USER MANUAL HM 886 MEDISANA

1 Safety Information 2 Useful Information 3 Operating 4 Miscellaneous 5 Warranty

Release button for adjustment of the massage head (5 levels) Switch for redlight on / off Function selector switch Massage heads with red light Massage attachments

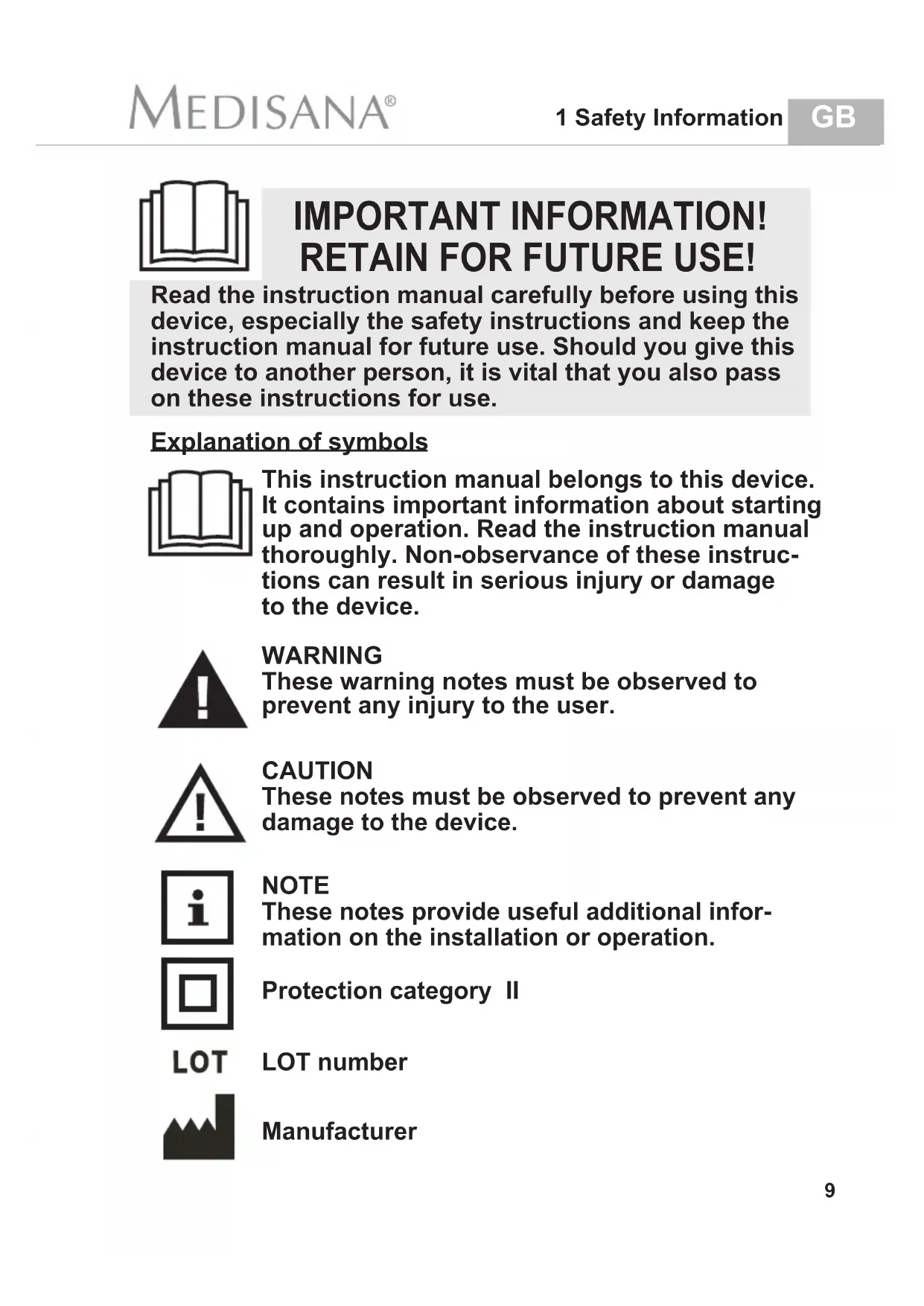

5 Garantie Die Service-Adresse finden Sie auf dem separaten Beilegeblatt.9 IMPORTANT INFORMATION! RETAIN FOR FUTURE USE! This instruction manual belongs to this device. It contains important information about starting up and operation. Read the instruction manual thoroughly. Non-observance of these instruc- tions can result in serious injury or damage to the device. WARNING These warning notes must be observed to prevent any injury to the user. CAUTION These notes must be observed to prevent any damage to the device. NOTE These notes provide useful additional infor- mation on the installation or operation. Protection category II Explanation of symbols LOT number Manufacturer Read the instruction manual carefully before using this device, especially the safety instructions and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

1 Safety Information• Before connecting the device to your power supply, make sure that it is switched off and that the electrical voltage specified on the device’s type label matches that of your mains power. Keep the power cord and the device itself away from heat, hot surfaces, damp and liquids. Avoid touching the plug or power switch with wet or even damp hands, or when you are standing in water. If the device falls into water, do not tryto pick it up. Instead pull the plug out immediately. Always make sure that the plug is easily accessible when the device is connected. Always switch off the device immediately after using it and dis- connect the plug from the socket. Never pull on the power cord to disconnect the appliance from the mains. Always pull out the mains plug! Do not carry, pull or rotate the device by its power cord. If the supply cord is damaged, it must be replaced by MEDI- SANA, its service agent or similarly qualified persons in order to avoid a hazard. Make sure at all times that the power cord does not represent a tripping hazard. The cord should not be kinked, pinched or twisted.

about the power supply

for specific groups of people

1 Safety Information This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.11

The surface of the appliance is hot. People who are insensitive to heat must be careful when using the appliance. Massages using the hand-held massage device are not a substitute for treatments administered by doctors or physiotherapists. Do not use this device if you are pregnant. People fitted with a pacemaker, artificial joints or electronic implants should in all cases consult a doctor before using the device. You should not use this device if you are affected by one or more of the following illnesses and conditions: circulatory disorders, varicose veins, open wounds, bruises, swellings, cracked skin, skin rashes, phlebitis or thrombosis. Do not use the massage device on parts of the body that are numb or insensitive to heat, pressure or pain, or only do so after proper consultation with your doctor. Never use the device where there is unexplained pain in the stomach or calves. If you feel any pain from use of this device, or find the massage unpleasant, stop the treatment and consult your doctor.

Check the device and its power cord and plug carefully for any damage before each use. The device should not be used if it is in any way defective. Do not use the device if there is any visible damage to the device itself or to the power cord, if the device is not working flawlessly or if it has been dropped or has fallen into water. The device is intended for private use only and should not be employed for commercial purposes. Use the massage device only for the purpose specified in the instructions for use. The guarantee is invalidated if the device is misused. While using the red light function, do not place the massager on the same part of the body for too long (max. 1 minute), as this could cause skin rashes or burns. before using the device

Do not use the device underneath bedding or cushions. Under no circumstances should you cover the device during use. Overheating may lead to burns, electric shock or personal injuries. Do not fall asleep while using the massager on yourself. Using the massager in the same place for a long time can cause complaints and burns. Avoid using the device directly on the head, bones or joints, on the front of the throat, on or near the carotid artery, in the genital area or around the kidneys. Do not use the device for more than twenty minutes maximum at a time, and allow it to cool down for about thirty minutes before using it again. It is best not to use this device directly before retiring - the massage that it delivers has a stimulating effect and may delay sleep.

It is vital to avoid placing, using or storing the device above containers holding liquids, particularly where the device could fall or be knocked into a bathtub or shower tray. Do not use the device whilst in the bath or the shower.

You should not carry out any work on the device, except for cleaning. To avoid possible injury, do not attempt to repair the device yourself. Contact the service point for all repairs. Before cleaning the device, switch it off, unplug it from the socket and allow it to cool. Never immerse the device in water or other liquids. Read the information in the section “Cleaning and maintenance”. In case of malfunctions, do not repair the device yourself. This would automatically invalidate the guarantee. The service point alone should be charged with any repair work. concerning maintenance and cleaning

Keep the device away from rain and damp. It should not be operated outdoors.

1 Safety Information1 MEDISANA Handheld massager HM 886 5 massage attachments for acupressure, rolling and point massage 1 Instruction manual WARNING Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

What is massage? Massage is one of the oldest methods of treatment and an important part of physiotherapy. The mechanical treatment of the outer tissues of the body relaxes tense muscles, improves blood circulation and supports the regeneration of tissues. Massage is stimulating, relaxing and helps to eliminate pain of the nerves and muscles. Massage may also positively effect the vascular system, the inner organs and metabolism. There are five classic methods of massage: stroke massage, kneading, tapping and vibrating massage as well as rubbing and slapping. Furthermore, there are other important massage techniques such as manual lymphatic drainage, reflexology, underwater pressure massage, brush massage and finger pressure massage techniques (shiatsu, acupressure).

How does the HM 886 massager work? The MEDISANA HM 886 massager utilizes what is known as vibration massage, whereby the massage head is subjected to high-frequency oscillation, giving rise to a vibrating motion, which is transferred to the parts of the body being massaged. It also features an optional red light warming function, which can be activated either independently or together with the massage. This special form of heat treatment accelerates the positive effects of the massage. When this is activated, the massage head will warm up slightly, but not actually get hot. The unique combination of intensive massage and heat treatment allows the HM 886 massager to offer effective and relaxing therapy. Thank you very much Thank you for your confidence in us and congratulations on your purchase! By purchasing the Handheld massager HM 886 you have acquired a quality product by MEDISANA. This unit is intended for body massage with and without heat treatment. To ensure that you are able to obtain the results you are looking for and can enjoy using your massage device for a long time to come, we recommend that you read carefully the following information about the use and care of the device.

Items supplied and packaging Please check first of all that the unit is complete and is not damaged in any way. If in doubt, do not use the appliance. Send it to a service point. The following parts are included: E The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required. If you notice any transport damage during unpacking, please contact your dealer without delay.

Getting started Ensure that the appliance is switched off (function selector switch is in the lowest position) before plugging into the mains. You may use the device directly or you may attach a pair of the massage attachmentsonto the massage heads .Then plug into an appropriate socket. E

Starting the Massager Use your thumb to gently push the selector switch upwards until it clicks into place and you can feel the massage head vibrate. The switch features 3 positions: 1. Down position: OFF2. Middle position (LO): Massage, low intensity3. Up position (HI): Massage, high intensity

The massage You can massage yourself or a partner. Switch the unit on as described above and apply to the part of body to be massaged. Do not use pressure; just place it lightly on the body. The massage effect is brought about by the vibration of the unit alone.Simultaneous use of the red light function improves the effective-ness of the massage. Do not concentrate on one side of the body for too long (max. 3 minutes); rather change the area of massage frequently. You may vary the position of the massage head according to your personal needs in 5 positions. Therefore, press the release button and move the upper part of the device to the desired position and release the button. By choosing the direction of the massage you can decide on the effect: a massage towards the heart relaxes, a massage away from the heart stimulates.For a full body massage, please refer to “Safety Information”. gEach session should not exceed a duration of 15 - 20 minutes. To ensure positive results, please use the massager regularly.The application should feel pleasant. In case you experience pain or or find the massage unpleasant, please stop the session and consult your doctor. After treatment, switch the massage device off, pull out the mains plug and let the device cool down.

Switching off the unit Switch off the unit by returning the function selector switch to its original position (“OFF“). When you have finished using the unit, unplug it from the mains outlet.

Switch on redlight The red light treatment can be switched on by pressing the switch for redlight to „ON“ position. The red light source illuminates the massage head then. To switch redlight off, move the switch to „OFF“ position.

Cleaning and maintenance Before cleaning the unit, make sure that it is switched off and unplugged from the mains outlet. Let it cool down. The device should be cleaned using a soft, slightly dampened cloth, slightly moistened with soapy water. Do not use harsh cleaning agents or stiff brushes. Wait until the device is completely dry before using it again. Undo any kinks in the cable. You should ideally store the device in its original packaging and keep it in a clean, dry place.

This product must not be disposed together with the domestic waste. All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner. Consult your municipal authority or your dealer for information about disposal.

Technical specifications Name and model:Power supply:Power consumption:Dimensions (l x w x h):Weight:Operating conditions:Storage conditions:Article No.:EAN Code: MEDISANA Handheld massager HM 886220 - 240V~ 50/60Hz 8 W approx. 40 x 10 x 10 cmapprox. 0.7 kgdo not use under high temperature and/or moist environment such as bathroomin a cool, dry place8826840 15588 88268 5In accordance with our policy of continual product im-provement, we reserve the right to technical and design changes without notice.

Overheating protection The device features an overheating protection, which will shut downthe device if operated too long. If the device switches off automati- cally, please disconnect the mains plug and wait for at least 5 minutes, before you use it again. 4 Miscellaneous

3 Operating / 4 Miscellaneous The current version of this instruction manual can be found under www.medisana.comWarranty and repair terms Please contact your dealer or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is. The following warranty terms apply:

1. The warranty period for MEDISANA products is 3 years from

date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.

2. Defects in material or workmanship will be removed free of

charge within the warranty period.

3. Repairs under warranty do not extend the warranty period either

for the unit or for the replacement parts.

4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observance of the user instructions. b. All damage which is due to repairs or tampering by the customer or unauthorised third parties. c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre. d. Accessories which are subject to normal wear and tear.

5. Liability for direct or indirect consequential losses caused by the

unit are excluded even if the damage to the unit is accepted as a warranty claim.
