KT 6017 - Kettle Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	KT 6017
Product type	Cordless kettle
Maximum capacity	1.7 liters
Minimum capacity	0.5 liter
Power	2200 W
Input voltage	220-240 V ~ 50/60 Hz
Automatic boil shut-off	Yes
Overheat protection	Yes
Water level indicator	Yes
Removable filter	Yes
360° swivel base	Yes
Body material	Stainless steel and plastic
Ergonomic handle	Yes
Power indicator light	Yes
Maintenance	Clean the exterior with a damp cloth; descale regularly
Recommended descaling	At least twice a year
Safety	Do not immerse; do not open while boiling
Dimensions (approx.)	Height 26 cm, Width 20 cm, Depth 17 cm
Net weight (approx.)	1.2 kg
Cord length	Approximately 0.8 m
Included accessories	Cordless base
Intended use	Household use only
Compliance	Directives 2014/35/EU and 2014/30/EU

Frequently Asked Questions - KT 6017 Orbegozo

How do I clean the exterior of the kettle?

Wipe the exterior with a soft, damp cloth or sponge. For stubborn stains, use a cloth moistened with mild liquid detergent. Do not use scouring pads or abrasive powders.

How do I descale the kettle?

Fill the kettle to the MAX mark with a mixture of 1/3 white vinegar and 2/3 water. Boil, then let it sit overnight. Discard the mixture, rinse, and boil clean water twice. Repeat this process at least twice a year.

What are the maximum and minimum water capacities?

The maximum capacity is 1.7 liters (MAX mark) and the minimum capacity is 0.5 liters (MIN mark). Do not exceed MAX or go below MIN to avoid malfunction.

Can I heat other liquids besides water?

No, the kettle is designed only for heating water. Using other liquids or foods could damage the appliance and void the warranty.

What should I do if the kettle does not turn on?

Check that the kettle is properly placed on its base and the cord is plugged in. If the indicator light does not turn on, check the power supply. If the problem persists, contact technical support.

How does the automatic shut-off work?

The kettle automatically turns off as soon as the water reaches boiling. To restart, wait about 1 minute for the kettle to cool, then lower the switch. Do not force the switch during cooling.

Can I open the lid while boiling?

No, never remove the lid while the water is boiling. Very hot steam could cause burns. Wait until the kettle is off and cooled down.

How do I install the kettle correctly?

Place the base on a dry, flat surface. Place the kettle on the base: the electrical connection is automatic. Plug the cord into a grounded outlet, then turn on with the switch.

What should I do if the power cord is damaged?

If the cord is damaged, it must be replaced by an authorized technical service to avoid any danger. Do not use the appliance with a damaged cord.

Why does the kettle turn off before boiling?

This may be due to overheat protection: if the kettle was turned on with too little water or empty, it turns off to protect itself. Let it cool for 5-10 minutes, then fill with water and turn on again.

USER MANUAL KT 6017 Orbegozo

Exterior view of a modern silver and black water heater with 'Önbegožo' branding (no additional text or symbols visible)

KT 6017

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

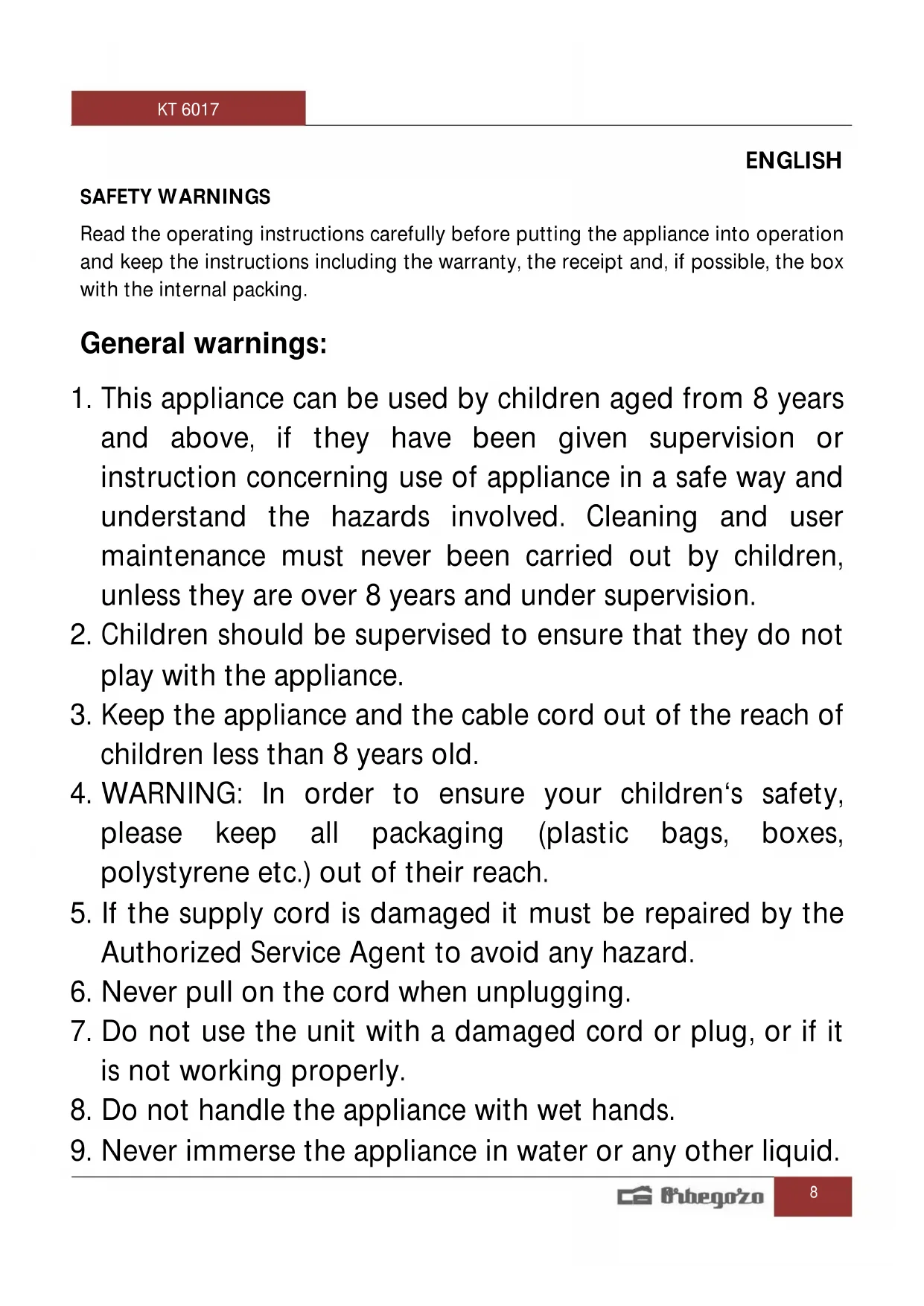

General warnings:

1. This appliance can be used by children aged from 8 years and above, if they have been given supervision or instruction concerning use of appliance in a safe way and understand the hazards involved. Cleaning and user maintenance must never been carried out by children, unless they are over 8 years and under supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent to avoid any hazard.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
14. WARNING: In case of misuse, there is a risk of possible injury.

ATTENTION: This symbol show: Hot surface.

CAUTION: The surface can remain hot during or after use.

• The device should only be used with the supplied stand.
• If the unit is overfilled, boiling water may be projected.
• CAUTION: Make sure the kettle is switched off before you remove it from its holder.
• Switch off the plug from the outlet before filling, emptying or cleaning, or when not in use.
• Do not operate or place any part of this appliance on or near any hot surfaces such as gas or electric burner or in a heated oven.
• Do not let the cord hang over the edge of a table or counter. Do not let the cord touch hot surfaces.

• Avoid touch hot kettle surfaces, use handles or knobs.

• To avoid possible steam damage, turn the spout away from walls or cabinets when operating the kettle.

• Clean the filter with water once a month or when it is necessary. When pulling the filter out, be careful it is hot after boiling water.
• If operated on wood furniture, use a protective pad to prevent damage to delicate finishes.
• Remove and replace the lid carefully when hot.
• Do not switch your kettle on if it is empty.
• To protect against fire, do not operate in the presence of explosive and / or flammable fumes.
• A kettle should not be left connected to a wall socket when the room temperature is likely to fall to outdoor winter temperatures. At sub-zero temperatures, the automatic control thermostat may reset to boiler energize the element.
• Do not use the kettle for any purpose other than heating water. Other liquids or food will contaminate the interior.
• This product has not been designed for any other uses than those specified in this booklet.
• Position the lid so that steam is directed away from the handle.
• Do not remove the lid while the water is boiling.
• This appliance is intended to be used in household applications such as:
  o Reserved kitchen areas for staff in shops, offices and

other working environments.

o Farms.
- By clients in hotels, motels and other residential environments.
- In environments such hotel room

PRODUCT DESCRIPTION (See page 2, Image 1)

1. Filter (Inside spout)
2. Cordless Base
3. Spout
4. Handle
5. Water Container with water Level Indicator
6. On / Off Switch
7. Light indicator (inside)
8. Lid

INSTRUCTION FOR USE

• Before first use, fill the kettle with clean water to maximum capacity and boil. Discard the water and repeat the process.
• The kettle should always be unplugged when filling or adding water.
• Fill the kettle with water to desired level. Do not overfill or there will be a risk of spillage or spitting. The water level indicator will assist you to measure the correct amount. You can fill the kettle via the spout or after opening the lid. Do not forget to close the lid after filling, otherwise the kettle will not automatically switch off after use.
• Do not fill with less than 0.5 liters of water (to "min" indication) to prevent the kettle running dry while operating.
• Do not fill with more than 1.7 liters of water (to "max" indication).
• An automatic safety cut-out has been fitted for protection against overheating, it will operate if the kettle is switched on when containing insufficient water. Always ensure the water inside the kettle covers the minimum mark on the water level indicator gauge. If the automatic safety cut-out has operated, switch the kettle off, disconnect from the power outlet and allow the kettle to cool down for 5 to 10 minutes. The refill with and switch on, the kettle will work as normal.

KETTLE

• Place the power base on a dry, flat surface. Place the kettle on the power base. The electrical connection will be made automatically as the kettle slides onto the power base. Plug the cord set on the power base. The electrical connection will be made automatically as the kettle slides onto the base.
• Plug the cord set into an earthed power socket and switch on by depressing the switch of the kettle to the “on” position.
• When the water has boiled, the kettle will switch off automatically, after allowing the kettle to cool down for 1 minute, the water can be brought back to the boil by pushing the switch back to the “on” position. During the cooling down time do not force the on/off switch into the “on” position as this can damage the operating mechanism.
• Do not remove the kettle from the power base without switching off first.
• Remember, if you do not wish to re-boil the kettle, switch it off.
• The kettle may be switched off manually at any time by setting the on/off switch into the "off" position.

- To pour water, lift the kettle from the power base and pour.

HOW TO CARE FOR YOUR KETTLE

• Wipe the exterior of the kettle with a soft, damp cloth or sponge. Remove stubborn spots with a cloth moistened with mild liquid detergent. Do not use abrasive scouring pads or powers.
• Never immerse the kettle in water or other liquids.
• From time to time, depended on the nature of your water supply, a boiled scale deposit is naturally formed and can be found mostly adhered to the heating element, thus reducing the heating efficiency.
• The amount of boiled scale deposited (and subsequently the need to clean or rescale) largely depends on the water hardness in your area the frequency with which the kettle is used.
• Boiled scale is not harmful to your health. But if poured into your beverage, it can give a powdery taste to your drink. Therefore, the kettle should be descaled periodically as indicated below.

DESCALING

• Descale kettle regularly. With normal use: at least twice a year. Fill the kettle up to “max” with a mixture of one part ordinary vinegar and two parts water. Switch on and wait for the appliance to switch off automatically.
• Let the mixture remain inside the kettle overnight. Discard the mixture the next morning.
• Fill the kettle with clean water up to “max” mark and boil again. Discard the boiled water to remove any remaining scale and vinegar.
• Rinse the inside of the kettle with clean water.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they

contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
