USER MANUAL WRF555SDHW WHIRLPOOL

FRENCH DOOR BOTTOM MOUNT OWNER'S

MANUAL

MANUEL D'UTILISATION DE RÉFRIGÉRATEUR À

PORTE À DOUBLE BATTANT ET CONGÉLATEUR EN BAS

Table of Contents/Table des matieres

REFRIGERATOR SAFETY 2

Refrigerator Safety 2

REFRIGERATOR CARE 3

Cleaning 3

Changing the Light Bulb 4

Refrigerator Shelves. 5

Opening and Closing Doors 6

Vacation and Moving Care 6

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator 7

Location Requirements 8

Electrical Requirements 8

Water Supply Requirements. 9

Connect the Water Supply 9

Complete the Installation 11

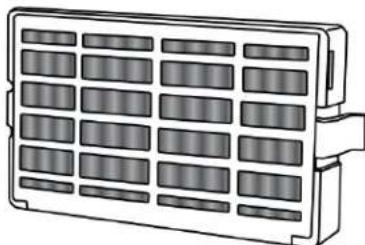

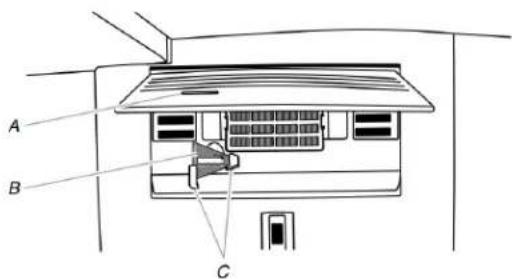

Install Air Filter (on some models) 11

Install Produce Preserver (on some models)

REFRIGERATOR FEATURES 13

Crisper Humidity Control (on some models) 13

Water and Ice Dispensers (on some models)

Ice Maker and Storage Bin. 14

Water Filtration System 16

DOOR AND HANDLE INSTRUCTIONS 18

Door and Drawers. 18

Remove and Replace Handles. 18

Remove Refrigerator Doors and Hinges 19

Reset Bottom Refrigerator Door Hinge 21

Replace Refrigerator Doors and Hinges 21

Remove and Replace Refrigerator Drawer 22

Door Closing and Alignment 24

PERFORMANCE DATA SHEET 27

Performance Data Sheet 27

SECURITE DU REFRIGERATEUR 29

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

ADANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (include children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not use an extension cord.
If power supply cord is damaged, it must be replaced by manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
Connect to potable water supply only.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential-type environments; bed and breakfast-type environments; and catering and similar non-retail applications.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not use replacement parts that have not been recommended by the manufacturer (e.g., parts made at home using a 3D printer).
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
  Ice maker kit can be added to models come with an ice maker. See serial tag inside the food compartment of appliance for ice maker kit model information.
  A qualified service technician must install the water line and ice maker. See installation instructions supplied with ice maker kit for complete details.

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Refrigerator

WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

AWARNING

Suffocation Hazard

Remove doors or lid from your old appliance.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned freezers or refrigerators, are still dangerous, even if they will sit for "just a few days." If you are getting rid of your old refrigerator or freezer, please follow these instructions to help prevent accidents.

Important information to know about disposal of refrigerants:

Dispos of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

REFRIGERATOR CARE

Cleaning

WARNING

Explosion Hazard

Risk of Fire or Explosion.

Flammable Refrigerant Used.

Do Not Use Mechanical Devices to Defrost Refrigerator.

Do Not Puncture Refrigerant Tubing.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid odor buildup. Wipe up spills immediately.

IMPORTANT:

• Because air circulates between all sections, any odors formed in one section will transfer to the other. You must thoroughly clean all sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly.
• Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on doors and cabinet, plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.
  ■ For stainless steel models, stainless steel is corrosion resistant and not corrosion-proof. To help avoid corrosion of your stainless steel, keep your surfaces clean by using the following cleaning instructions.

Cleaning the Touch Screen Display on the Dispenser Panel (on some models):

1. Make sure the refrigerator is unplugged or the power is disconnected before wiping the screen to avoid unintentionally changing the settings.
2. Mix a solution of mild detergent in warm water. Dampen a soft, lint-free cloth with the solution and gently wipe the screen. NOTE: Do not spray or wipe liquids directly onto the screen or over-saturate the cloth.
3. Plug in refrigerator or reconnect power.

Cleaning the Interior:

IMPORTANT: Refrigerator shelves with under-shelf, LED lighting are not dishwasher safe.

1. Unplug refrigerator or disconnect power.
2. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.
3. Plug in refrigerator or reconnect power.

Cleaning the Exterior:

IMPORTANT: Damage to smooth finish due to improper use of cleaning products or using non-recommended cleaning products is not covered under the warranty. Sharp or blunt instruments will mar the finish.

1. Unplug refrigerator or disconnect power.
2. Using a clean sponge or soft cloth and a mild detergent in warm water, wash, rinse, and thoroughly dry stainless steel and painted metal exteriors.

To keep your stainless steel refrigerator looking like new and to remove minor scuffs or marks, it is suggested that you use the manufacturer's approved stainless steel cleaner and polish. This cleaner is for stainless steel parts only. Refer to the Quick Start Guide for ordering information.

NOTE : When cleaning stainless steel, always wipe in the direction of the grain to avoid cross-grain scratching.

Do not allow the stainless steel cleaner and polish to come into contact with any plastic parts such as the trim pieces, dispenser covers, or door gaskets. If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth.

1. Plug in refrigerator or reconnect power.

Style 1: Smooth Door/Painted Metal

DO USE DO NOT USE
■ Soft, clean cloth ▪ Abrasi-ve cloths ■ Paper towels or newsprint ■ Steel-wool pads
■ Warm, soapy water with a mild detergent	■ Abrasive powders or liquids ■ Window sprays ■ Ammonia ■ Acidic or vinegar-based cleaners ■ Oven cleaners ■ Flammable fluids

NOTE: Paper towels scratch and may dull the clear coat of the painted door. To avoid possible damage, use only soft, clean cloths to polish and wipe the door.

Style 2: Stainless Steel

DO USE DO NOT USE
■ Soft, clean cloth ▪ Abrasi	ve cloths ■ Paper towels or newsprint ■ Steel-wool pads
■ Warm, soapy water with a mild detergent	■ Abrasive powders or liquids ■ Ammonia ■ Citrus-based cleaners ■ Acidic or vinegar-based cleaners ■ Oven cleaners
■ For heavy soil, use only manufacturer's approved stainless steel cleaner and polish	a ▪ Abrasive powders or liquids ■ Ammonia ■ Citrus-based cleaners ■ Acidic or vinegar-based cleaners ■ Oven cleaners ■ Abrasive cloths ■ Paper towels or newsprint ■ Steel-wool pads

NOTES:

If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth.
- Avoid exposing stainless steel appliances to caustic or corrosive elements such as high-salt, high-moisture, or high-humidity environments. Damage due to exposure to these elements is not covered under the warranty.
- Just because a cleaner is a liquid does not mean it is nonabrasive. Many liquid cleansers formulated to be gentle on tile and smooth surfaces still damage stainless steel.
- When cleaning stainless steel, always wipe in the direction of the grain to avoid cross-grain scratching.
- Citric acid permanently discolors stainless steel. To avoid damaging the finish of your stainless steel refrigerator:

Do not allow these substances to remain on the finish:

Mustard

• Citrus-based sauces

Tomato juice

• Citrus-based products

• Marinara sauce

Condenser Cleaning

There is no need for routine condenser cleaning in normal home operating environments. If the environment is particularly greasy or dusty or there is significant pet traffic in the home, the condenser should be cleaned every 6 months to ensure maximum efficiency.

1. Unplug refrigerator or disconnect power.

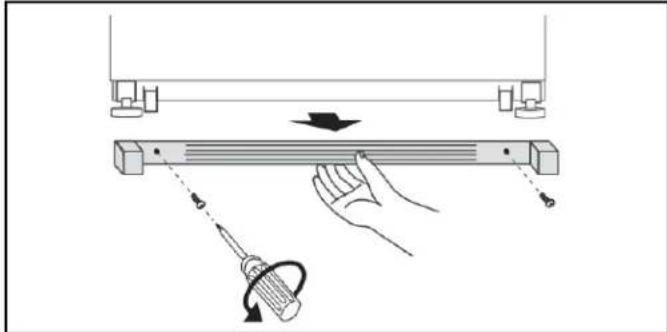

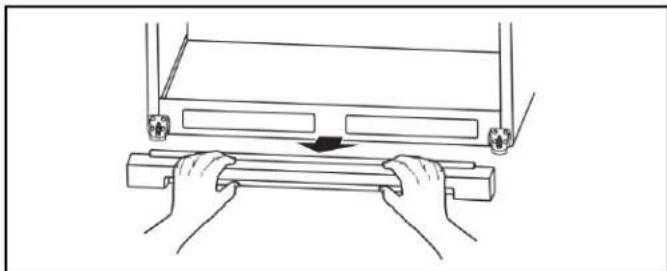

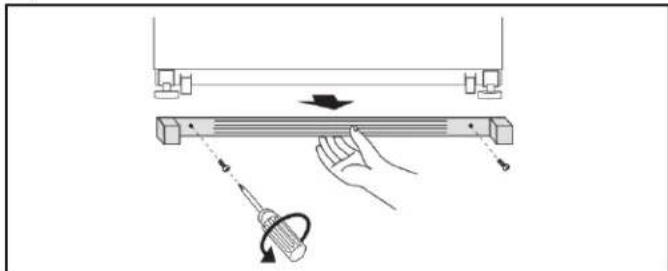

2. Remove the base grille.
3. Use a vacuum cleaner with a soft brush to clean the grille, the open areas behind the grille, and the front surface area of the condenser.
4. Replace the base grille when finished.
5. Plug in refrigerator or reconnect power.

NOTE: If you are unable to clean the condenser, please call for service.

Changing the Light Bulb

IMPORTANT: The lights in both the refrigerator and freezer compartments use LED technology that do not need to be replaced. If the lights do not illuminate when the door or drawer is opened, call for assistance or service. Refer to the Quick Start Guide for contact information.

The lighting system in this appliance may consist of:

Sealed LED modules
LED Bulbs
Incandescent Bulbs
Or a combination of the above.

NOTE: If your product has a sealed LED module, call for assistance or service. Refer to the Quick Start Guide for contact information.

If an LED bulb does not illuminate when the refrigerator and/oTo replace a shelf:

freezer door is opened, replace with like bulb following this procedure:

1. Unplug refrigerator or disconnect power.
2. Remove the light shield (on some models).

Remove the hardware holding the light shield in place.
Top of the refrigerator compartment - Slide the light shield toward the back of the compartment to release it from the light assembly.

1. Not all appliance bulbs will fit your refrigerator. Replace the burned-out bulb(s) with an appliance bulb of the same size, shape and wattage. Order part number W10565137 (3.6 W). NOTE: Some LED replacement bulbs are not recommended for wet/damp environments. The refrigerator and freezer compartments are considered to be wet/damp environments. If using a brand of LED bulb other than the recommended LED bulb, before installation, read and follow all instructions on the LED packaging.
2. Replace the light shield (on some models) by inserting the tabs on the shield into the liner holes on each side of the light assembly. Slide the shield toward the front until it locks into place.

NOTE: To avoid damaging the light shield, do not force the shield beyond the locking point.

1. Replace the hardware that holds the shield in place.
2. Plug in refrigerator or reconnect power.

If an incandescent bulb does not illuminate when the refrigerator and/or freezer door is opened, replace with like bulb using the same procedure outlined above. Replace burned-out bulb with only incandescent bulb(s) of the same size, shape, and wattage (maximum 40 W) designed for household appliances.

Freezer Compartment Light (on some models)

1. Unplug refrigerator or disconnect power.
2. Remove the light shield.

Top of the freezer compartment - Slide the light shield toward the of the compartment to release it from the light assembly.

1. Replace the burned-out bulb with an appliance bulb(s) no greater than 25 W.
2. Replace the light shield.
3. Plug in refrigerator or reconnect power.

Refrigerator Shelves

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

The shelves in your refrigerator are adjustable to match your individual storage needs.

Storing similar food items together in your refrigerator and adjusting the shelves to fit different heights of items will make finding the exact item you want easier. It will also reduce the amount of time the refrigerator door is open, and save energy

Glass Shelves

To remove a shelf:

1. Remove items from the shelf.
2. Slide the shelf straight out to the stop.

3. Depending on your model, lift the back or front of the shelf past the stop. Pull the shelf out the rest of the way.

4. Slide the back of the shelf into the track in the wall of the cabinet.

5. Guide the front of the shelf into the shelf track. Be sure to slide the shelf in all the way.

Shelves with Shelf Frames

To remove and replace a shelf/shelf frame:

1. Remove the shelf/frame by tilting it up at the front and lifting it out of the shelf supports.
2. Replace the shelf/frame by guiding the rear shelf hooks into the shelf supports. Tilt the front of the shelf up until rear shelf hooks drop into the shelf supports.
3. Lower the front of the shelf and make sure that the shelf is in position.

Shelves with Under-Shelf Lighting (on some models)

• Bactromoving LED lighting to a new spot under the shelves, this leading-edge technology improves interior refrigerator lighting and aids in locating storage items.

■ For models with the shelf frames, the hooks on the rear of the shelf must be fully engaged in the shelf supports to maintain proper electrical flow.
■ No more than two shelves with under-shelf lighting may be used in the refrigerator at one time.

Shelves with Shelf Mounts

Shelf height can be adjusted by changing the adjustable shelf mounts between their vertical and horizontal positions.

they. Carefully lift the shelf off the shelf mounts and turn the flipper to the desired orientation.

2.1.2. Repeat for remaining shelf mounts.

1. Apply pressure to the top of the shelf to ensure the shelf is properly seated on the shelf mounts.

To remove and replace shelves:

1. Make sure adjustable shelf mounts are in the lower position before removing shelves. Also doors will need to be open 90^ angle. If open wider, it will make it harder to remove shelves.
2. Remove the middle shelf or top shelf by lifting it up and the shelf supports. Then pull the shelf forward and tilt down a vertical position. Turn the shelf at an angle and pull out refrigerator.
   Infinity slide glass shelves should be pushed back in. When tilted make sure glass does not slide to front. NOTE: Remove middle shelf first before removing top shelf.
3. Remove the bottom shelf by lifting it up and out of the s supports. Then pull the shelf forward and tilt up to a vert position. Turn the shelf at an angle and pull out of the refrigerator.
4. Replace the middle and top shelves by putting the shelf in refrigerator at an angle with the shelf front down. Lift the of the shelf up and slide in until rear shelf drops into the supports. Lower the front of the shelf and make sure that shelf is in position.
5. Replace the bottom shelf by putting the shelf in the refrigerator at an angle with the shelf up. Lift the front of the shelf down and slide in until rear shelf drops into the shelf supports. Lower the front of the shelf and make sure that the shelf is in position.

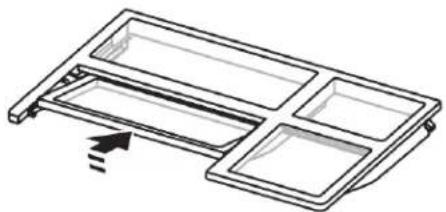

Tuck/Slide Away Shelf (on some models)

Some shelves will tuck/slide away to create room for taller objects.

To retract and extend the front section of the shelf:

1. To retract the front-section of the shelf, slightly lift up on the front edge and push the adjustable portion of the shelf back toward the rear of the refrigerator.
2. Extend the front of the shelf by pulling the retracted portion of the shelf outward until it is fully extended.

Foldaway Shelf (on some models)

To retract the fold away shelf:

Retract the fold away section of the shelf by holding the front of the shelf with one hand and lifting up on the center front of the shelf. Then push back and down on the shelf until it slides beneath the back section of the shelf.

To replace the fold away shelf:

Replace the fold away section of the shelf by holding the front of the shelf with one hand and pulling the center of the shelf until the fold away section is returned to its full shelf position.

MicroEdge® Glo Shelves (on some models)

The hooks on the rear of the shelf must be fully engaged in the shelf supports to maintain proper electrical flow.
more than two shelves with under-shelf lighting may be used in the refrigerator at one time.

to Opening and Closing Doors

There are two refrigerator compartment doors. The doors can be opened and closed either separately or together. On some models, there is a automatic closing mechanism so the door(s) will not unintentionally be left open. If a door is open at a 40^ or smaller angle, the door will automatically, softly close.
IMPORTANT: If the doors do not automatically close at a 40^ or smaller angle, see "Bottom Door Hinge."

There is a vertically-inged seal on the left refrigerator door.

When the left-hand door is opened, the hinged seal automatically folds inward so that it is out of the way.
When both doors are closed, the hinged seal automatically forms a seal between the two doors.

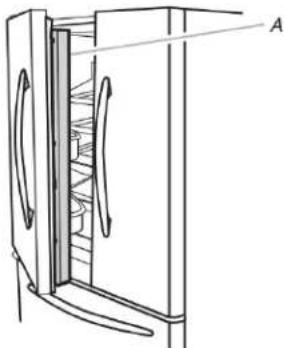

A. Hinged seal

The refrigerator compartment door switch is located in the top left and right hinge cover.

The door switch uses magnet to sense door opening/closing.
Ensure there are no magnet or electronic devices (Speaker, CoolVox, etc) within 3 inches of the hinge cap.

NOTE: The light and internal user interface (UI) will not turn on if the door opening is not detected.

A. Hinged cover

Vacation and Moving Care

Vacation

If You Choose to Leave the Refrigerator On While You're Away:

1. Use up any perishables and freeze other items.

2. If your refrigerator has an automatic ice maker, and is connected to the household water supply, turn off the water supply to the refrigerator. Property damage can occur if the water supply is not turned off.

3. If you have an automatic ice maker, turn off the ice maker. NOTE: Depending on your model, raise the wire shutoff arm to Off (up) position or press the switch to Off.

4. Empty the ice bin. Models with Vacation Mode Feature

Turn on Vacation mode. See the "Quick Start Guide" for details.

NOTE: Activating Vacation mode does not turn off the ice maker.

If You Choose to Turn Off the Refrigerator Before You Leave:

1. Remove all food from the refrigerator.

2. If your refrigerator has an automatic ice maker:

Turn off the water supply to the ice maker at least one ahead of time.

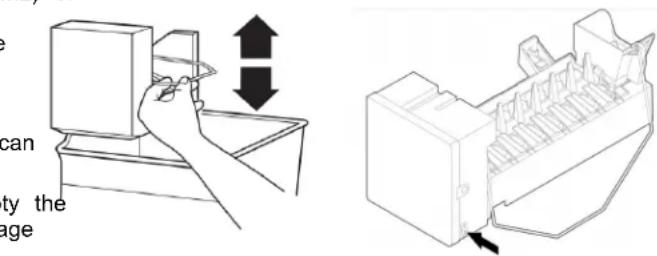

• When the last load of ice drops, raise the wire shutoff to the Off (up) position or press the switch to Off, depending on your model.

• Empty the ice bin.

• Turn off the Temperature control(s). See the "Quick Start Guide."

• Clean refrigerator, wipe it, and dry well.

• Tape rubber or wood blocks to the tops of both doors to them open far enough for air to get in. This stops odor mold from building up.

Moving

When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. If your refrigerator has an automatic ice maker:

2. Turn off the water supply to the ice maker at least one ahead of time.

3. Disconnect the water line from the back of the refrigerator
4. When the last load of ice drops, raise the wire shutoff to the Off (up) position or press the switch to Off, depending on your model.
5. Remove all food from the refrigerator and pack all frozen in dry ice.
6. Empty the ice bin.
7. Turn off the Temperature control(s). See the "Quick Start Guide."
8. Unplug refrigerator
9. Clean, wipe, and dry thoroughly.
10. Take out all removable parts, wrap them well, and tape the together so they don't shift and rattle during the move.
11. Depending on the model, raise the front of the refrigerator rolls more easily or raise the leveling screws so they don scrape the floor. See "Adjust the Door(s)" or "Door Closing Door Alignment."
12. Tape the doors closed and tape the power cord to the back of the refrigerator.

When you get to your new home, put everything back and refer to the "Installation Instructions" section for preparation instructions. Also, if your refrigerator has an automatic ice maker, remember to reconnect the water supply to the refrigerator.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

Refrigerator Delivery

aA minimum door opening of 33^ (838 mm) is required. If door opening is 36" (914 mm) or less, then removal of doors, drawer, and hinges is required.
- Cart the refrigerator from the side for all door openings.

Remove the Packaging

Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over prophe adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see "Refrigerator Safety."
- Dispose of/recycle all packaging materials.

When Moving Your Refrigerator:

^a Ybar refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or standardboard to avoid floor damage. Always pull the refrigerator
straight out when moving it. Do not wiggle or "walk" the refrigerator when trying to move it, as floor damage could occur.

Clean Before Using

To order you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in "Refrigerator Care."

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden

temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces.

This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping

Location Requirements

AWARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from appliance.

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

IMPORTANT: This appliance is intended to be used indoor for household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments.
- Farm houses and by clients in hotels, motels and other residential type environments.
Bed and breakfast type environments.
- Catering and similar non-retail applications.

NOTE: If the manufacturer wants to limit the use of the app to less than the above, this has to be clearly stated in the instructions.

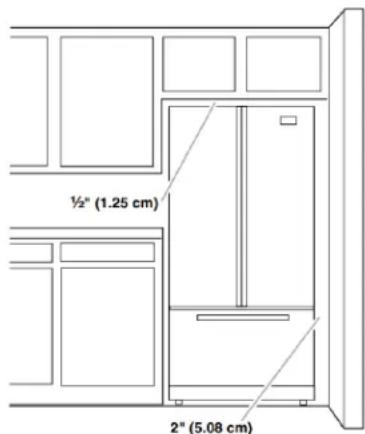

To ensure proper ventilation for your refrigerator, allow for a 1.25cm of space on each side and at the top. Allow for a 2.54cm space behind the refrigerator. If your refrigerator has ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed or leave a 2" (6.3 cm) minimum space between the refrigerator wall to allow the door to swing open.

NOTE: This refrigerator is intended for use in a location where temperature ranges from a minimum of 55^ (13^) to a maximum of 110^ (43^) . The preferred room temperature is for optimum performance, which reduces electricity usage and provides superior cooling, is between 60^ (15^) and 90^ (32^) . It is recommended that you do not install the refrigerator near a heat source, such as an oven or radiator.

Electrical Requirements

AWARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person. Do not use a cord that shows cracks or abrasion damage along length or at either the plug or connector end.

Recommended Grounding Method

A 115 V, 60 Hz, AC-only 15 A or 20 A fused, grounded electrical supply is required. It is recommended that a separate circuit is setting only your refrigerator and approved accessories be supplied. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

IMPORTANT: If this product is connected to a GFCI (Ground Fault Circuit Interruptions) protected outlet, nuisance tripping of the power supply may occur, resulting in loss of cooling. Food quality and diarrhea may be affected. If nuisance tripping has occurred, and if the condition of the food appears poor, dispose of the food.

NOTE: Before performing any type of installation or cleaning, or removing a light bulb, turn cooling off or turn the control (Thermostat, Refrigerator or Freezer Control depending on the model) to Off. On models with a digital temperature control, press the minus sign touch pads repeatedly until a dash (-) appears in both the freezer and refrigerator displays. Disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and turn cooling on or reset the control (Thermostat, Refrigerator or Freezer Control depending on the model) to the desired setting. See the "Quick Start Guide".

Water Supply Requirements

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed:

Flat-blade screwdriver

1/4" Nut driver

7/16" and 1/2" Open-end or adjustable wrenches
1/4" Drill bit
Cordless drill
Connect to potable water supply only

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

All installations must meet local plumbing code requirements.
■ Do not use a piercing-type or 3/16" (4.76 mm) saddle valve which reduces water flow and clogs more easily.
- Use copper or PEX tubing and check for leaks. Install copper or PEX tubing only in areas where the household temperature will remain above freezing.
For models with water filters, the disposable water filter should be replaced at least every 6 months.

Water Pressure

A cold water supply with water pressure of between 35 psi and 120 psi (241 kPa and 827kPa is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

NOTE: If the water pressure is less than what is required, the flow of water from the water dispenser could decrease or ice cubes could be hollow or irregular shaped.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 35 psi and 120 psi (241 kPa and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 psi to 60 psi (276 kPa to 414 kPa).

If the water pressure to the reverse osmosis system is less than 40 psi to 60 psi (276 kPa to 414 kPa):

• Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to after heavy usage. The tank capacity could be too small to keep up with the requirements of the refrigerator.

NOTE: Faucet-mounted reverse osmosis systems are not recommended.

If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See "Water Filtration System".

If you have questions about your water pressure, call a licensed, qualified plumber.

Connect the Water Supply

Read all directions before you begin.

IMPORTANT:

Plumbing shall be installed in accordance with the International Plumbing Code and any local codes and ordinances.
- The gray water tubing on the back of the refrigerator (which is used to connect to the household water line) is a PEX (cross-linked polyethylene) tube. Copper and PEX tubing connections from the household water line to the refrigerator are acceptable, and will help avoid off-taste or odor in your ice or water. Check for leaks. If PEX tubing is used instead of copper, we recommend the following part numbers:
- W10505928RP (7 ft [2.14 m] jacketed PEX), 8212547RP (5 ft [1.52 m] PEX), or W10267701RP (25 ft [7.62 m] PEX).
- Install tubing only in areas where temperatures will remain above freezing.

Connect to a potable water supply only.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Tools Needed:

Gather the required tools and parts before starting installation.

Flat-blade screwdriver

1/4" Nut driver

7/16" and 1/2" Open-end or adjustable wrenches
1/4" Drill bit
Cordless drill

NOTE: Your refrigerator dealer has a kit available with a 1/4" (6.35 mm) saddle-type shutoff valve, a union, and copper or PEX tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Do not use a piercing-type or 3/16" (4.76 mm) saddle valve which reduces water flow and clogs more easily.

Connect to Water Line

IMPORTANT: If you turn on the refrigerator before the water line is connected, turn off the ice maker.

1. Unplug refrigerator or disconnect power.
2. Turn off main water supply. Turn on nearest faucet long enough to clear line of water.
3. Use a quarter-turn shutoff valve or the equivalent, served by a 1/2'' copper or PEX household supply line.

NOTE: To allow sufficient water flow to the refrigerator, a refill minimum 1/2" size copper or PEX household supply line is recommended.

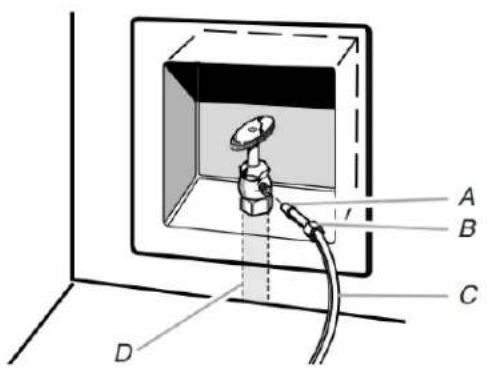

A. Bulb B. Nut

C. Copper or PEX tubing (to refrigerator)
D. Household supply line (1/2 "minimum)

1. Now you are ready to connect the copper or PEX tubing to the shutoff valve. Use 1/4'' (6.35 mm) O.D. (outside diameter) soft copper or PEX tubing to connect the shutoff valve and the refrigerator.

■ Ensure that you have the proper length needed for the job.
Be sure both ends of the copper tubing are cut square.3. Turn on water supply to refrigerator and check for leaks.
Slip compression sleeve and compression nut onto copper Correct any leaks.

tubing as shown. (PEX tubing has compression sleeves and compression nuts preinstalled.) Insert end of tubing into outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

A. Compression sleeve

C. Copper or PEX tubing

B. Compression nut

1. Place the free end of the tubing into a container or sink, and turn on main water supply to flush out tubing until water is clear. Turn off shutoff valve on the water pipe.

NOTE: Always drain the water line before making the final connection to the inlet of the water valve, to avoid possible water valve malfunction.

1. Bend the copper or PEX tubing to meet the water line inlet, which is located on the back of the refrigerator cabinet. Leave a coil of copper or PEX tubing to allow the refrigerator to be pulled out of the cabinet or away from the wall for service.

Connect to Refrigerator

Depending on your model, the water line may come down from the top or up from the bottom. Follow the connection instructions for your model.

Style 1

1. Remove plastic cap from water valve inlet port. Attach the copper or PEX tube to the valve inlet using a compression nut and sleeve as shown. Tighten the compression nut. Do not overtighten. Confirm copper or PEX tubing is secure by pulling on tubing.
2. Create a service loop with the copper tubing. Avoid kinks when coiling the tubing. Secure copper or PEX tubing to refrigerator cabinet with a "P" clamp.

A. Copper or PEXC. Compression nut tubing D. Compression sleeve B. "P" clamp

Style 2

1. Unplug refrigerator or disconnect power.
2. Remove and discard the short, black plastic part from the end of the water line inlet.
3. Thread the nut onto the end of the tubing. Tighten the nut by hand. Then tighten it with a wrench two more turns. Do not overtighten.

NOTE: To avoid rattling, be sure the copper tubing does not touch the cabinet's side wall or other parts inside the cabinet.

A. Household water line B. Nut (purchased)

C. Ferrule (purchased)
D. Refrigerator water tubing

Install the water supply tube clamp around the water supply line to reduce strain on the coupling.

1. Turn shutoff valve on.

2. Check for leaks. Tighten any connections (including connections at the valve) or nuts that leak.

On some models, the ice maker is equipped with a built-in water strainer. If your water conditions require a second water strainer, install in the 1/4'' (6.35 mm) water line at either tube connection. Obtain a water strainer from your appliance dealer.

Complete the Installation

AWARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3-prong outlet.

NOTE: Allow 24 hours to produce the first batch of ice.

Discard the first three batches of ice produced. Allow 3 days

to completely fill the ice storage bin.

1. Flush the water system. See "Water and Ice Dispensers."

Install Air Filter (on some models)

The air filter reduces the buildup of odors. This helps to maintain a cleaner environment inside your refrigerator. An air filter is 15 times more powerful than baking soda at reducing common food odors inside the refrigerator.

Your refrigerator's accessory packet includes an air filter, which must be installed prior to use. On some models, the air filter is already installed at the factory.

Installing the Air Filter

Depending on your model, the air filter can be installed in one of the following ways:

Style 1-Behind Vented Door:

Install the air filter behind the vented door, located on the near the top of the refrigerator compartment.

1. Remove the air filter from its packaging.

NOTE: An air filter status indicator is included with the air The indicator is not needed for models that display the air status on the control panel.

1. Lift open the vented door.
2. Snap the filter into place.

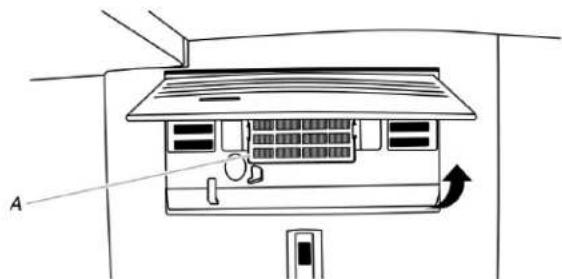

A. Air filter

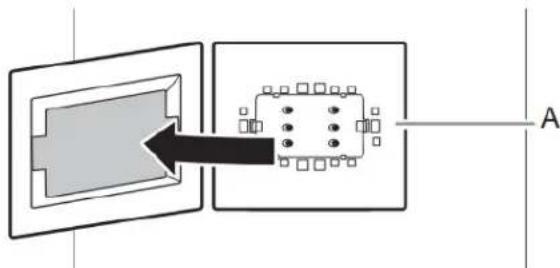

Style 2-Behind LED Vent Cover

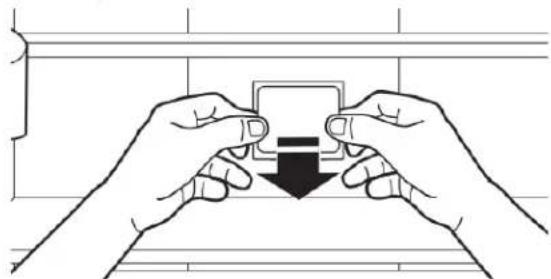

Install the air filter behind the blue LED-lighted vent cover, located on the rear wall near the middle of the refrigerator.

1. Remove the air filter from its packaging.
2. Firmly grasp plastic cover on the vented cover with both hands and pull out to remove.

NOTE: When cover is removed for the first time, a small foam part the size of the filter will need to be discarded.

Snap the filter into place.

A. Air filter

Installing the Filter Status Indicator (on some models)

The air filter icon on the control panel displays the air filter status

Blue or Green: Good.
Orange: Order a replacement.
Filter Red: Replace air filter.
Red and flashing "Replace Filter": Expired.

After replacing the air filter, press and hold the Air Filter button for 3 seconds. The filter icons will turn off. See "Quick Start Guide." When the system is reset, the air filter icon will return to its blue color and the words "Replace Filter" will disappear from the control panel.

NOTE: At any filter status, pressing and holding the Air Filter button for 3 seconds will reset the air filter status to Good and the air filter icon will turn off.

Replacing the Air Filter

The disposable air filter should be replaced every 6 months, when the status indicator air filter icon turns on and starts when the refrigerator door is opened.

To order a replacement air filter, see ordering information in Quick Start Guide.

1. Remove the used air filter by squeezing in on the side t
2. Install the new air filter and status indicator using the instructions in the previous sections.

Air Filter Status Indicator—Standard Installation

The filter comes with a status indicator, which should be ac and installed at the same time the air filter is installed.

1. Place the indicator facedown on a firm, flat surface.
2. Apply pressure to the bubble on the back of the indicator, the bubble pops to activate the indicator.
3. Lift open the vented air filter door. On some models, there notches behind the door.

On models with notches:

■ With the indicator screen facing outward, slide the indicator down into the notches.

NOTE: The indicator will not easily slide into the notches rear bubble has not been popped.

• Close the air filter door, and check that the indicator is vis through the window in the door.

A. Status indicator window
B. Air filter status indicator
C.Notches

Place the indicator in a visible place you will easily remember —either inside the refrigerator or elsewhere in your kitchen or home.

Replacing the Air Filter

The disposable air filter should be replaced every 6 months, when the status indicator has completely changed from white to red.

To order a replacement air filter, see ordering information in the Quick Start Guide.

1. Remove the used air filter by squeezing in on the side tabs.
2. Remove the used status indicator.
3. Install the new air filter and status indicator using the instructions in the previous sections.

Install Produce Preserver (on some models)

Shing Your refrigerator's accessory packet includes a Produce Preserver, which should be installed prior to use. On some Models, the Produce Preserver is already installed at the factory. To order a replacement produce preserver, use part number W10346771.

The Produce Preserver absorbs ethylene, allowing the ripening process of many produce items to slow down. As a result, certain produce items will stay fresh longer.

ethylene production and sensitivity varies depending on the type of fruit or vegetable. To preserve freshness, it is best to separate produce with sensitivity to ethylene from fruits that produce moderate to high amounts of ethylene.

	Sensitivity to Ethylene	Ethylene Production
Apples High Very	High
Asparagus Medium	Very Low
Berries Low Low
Broccoli High Very	Low
Cantaloupe until	Medium	High
Carrots are	Low	Very Low
Citrus Fruit	Medium Very	Low
Grapes	Low	Very Low
Lettuce	High Very Low
the Pears	High Very High
Spinach	High Very Low

Installing the Produce Preserver

CAUTION: IRRITANT. MAY IRRITATE EYES AND SKIN. DANGEROUS FUMES FORM WHEN MIXED WITH OTHER PRODUCTS.

Do not mix with cleaning products containing ammonia, bleach, or acids. Do not get in eyes, on skin or clothing. Do not breathe dust. Keep out of reach of children.

FIRST AID TREATMENT: Contains potassium permanganate. If swallowed, call a Poison Control Center or doctor immediately. Do not induce vomiting. If in eyes, rinse with water for 15 minutes. If on skin, rinse with water.

Style 1-Located Inside the Refrigerator:

1. Find the Produce Preserver housing inside the refrigerator.

1. Lift up on the housing to remove it from the mounting tab.

2. Open the housing by pulling up and out on the back of the to of the housing.

3. Remove the Produce Preserver pouches from the packaging. Place them into the housing then snap housing back together. NOTE: For best performance, always use two pouches.

4. Adhere the Produce Preserver housing to the back wall of crisper drawer according to the instructions included in the package.
5. Place housing back on mounting tab.

Style 2-Located in Crisper or Refrigerator Drawers:

For your convenience, the suction-mounted produce preserver can be installed in either the crisper or the refrigerated draw

1. Wash the interior of a drawer with a solution of mild dish and warm water and dry thoroughly.
2. Find the package containing the Produce Preserver inside the refrigerator and install the Produce Preserver into the drawer, according to the instructions provided in the package.

Installing the Status Indicator

The Produce Preserver comes with a status indicator, which should be activated and installed at the same time the pouch installed.

1. Place the indicator facedown on a firm, flat surface.
2. Apply pressure to the bubble on the back of the indicator, the bubble pops to activate the indicator.
3. Slide open the cap on the Produce Preserver housing.
4. Place the indicator in the top of the housing, facing outward.
5. Slide the cap closed, and check that the indicator is visible through the rectangular hole in the cap.

NOTE: The cap will not close easily if the indicator's rear bubble not been popped.

Replacing the Produce Preserver Pouches

The disposable pouches should be replaced every 6 months, when the status indicator has completely changed from white red.

To order replacements, see the contact information in the Quick Start Guide. Order part number W10346771A or FRESH1.

1. Remove the used pouches from the produce preserver housing.
2. Remove the used status indicator.
3. Install the new pouches and status indicator using the instructions in the previous sections or instructions included the replacement packets.

REFRIGERATOR FEATURES Crisper Humidity Control (on some models)

You can control the amount of humidity in the moisture-sealed crisper. Depending on your model, adjust the control to any setting between Fruit and Vegetables or Low and High.

Fruit/Low (open):

Move control to allow moist air out of the crisper for best storage.
Safeguts and vegetables with skins.

■ Fruit: Wash, let dry and store in refrigerator in plastic bag or the crisper. Do not wash or hull berries until they are ready to use.
per, Sort and keep berries in original container in crisper, or store it in a loosely closed paper bag on a refrigerator shelf.
Vegetables with skins: Place in plastic bags or plastic container and store in crisper.

Vegetables/High (closed):q

Move control to keep moist air in the crisper for best storage of fresh, leafy vegetables.
Leafy vegetables: Wash in cold water, drain and trim or tear of bruised and discolored areas. Place in plastic bag or plastic container and store in crisper.

Water and Ice Dispensers (on some models)

For additional information on how to use your water and ice dispensers, see the online "Dispensing Guide."

IMPORTANT:

After connecting the refrigerator to a water source or replacing the water filter, flush the water system. Use a sturdy container to depress and hold the water dispenser pad for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow. Once water begins to flow, continue depressing and releasing the dispenser pad (5 seconds on, 5 seconds off) until a total of 4 gal. (15 L) has been dispensed. This will flush air from the filter and water dispensing system, and prepare the water filter for use. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser.
Allow 24 hours for the refrigerator to cool down and chill water. Dispense enough water every week to maintain a fresh supply.

CK Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced.

The dispenser will dispense either water or ice.
The dispensing system will not operate when the refrigerator door is open.
- On some models, the display screen on the dispenser control panel will turn off automatically and enter "sleep" mode when the control buttons and dispenser levers have not been used for 2 minutes or more. While in "sleep" mode, the first press c a control button will only reactivate the display screen without changing any settings. After reactivation, changes to any settings can then be made. If no changes are made within 2 minutes, the display will re-enter "sleep" mode.

Flush the Water System

Air in the water dispensing system can cause the water dispenser to drip. After connecting the refrigerator to a water source or replacing the water filter, flush the water system.

Flushing the water dispensing system forces air from the water line and filter and prepares the water filter for use. Additional flushing may be required in some households.

NOTE: As air is cleared from the system, water may spurt out of the dispenser.

1. Using a sturdy container, depress and hold the water dispenser paddle for 5 seconds.
2. Release the dispenser paddle for 5 seconds. Repeat steps and 2 until water begins to flow.
3. Once water begins to flow, continue depressing and releasing information. Refer to the Quick Start Guide for contact information. the dispenser pad (5 seconds on, 5 seconds off) until a total of 3 gal. (12 L) has been dispensed. Turn the Ice Maker On/Off:
   Ice maker kit can be added to some models. See serial tag inside the food compartment of appliance for ice maker kit model
   Information. Refer to the Quick Start Guide for contact information. Total of turn the Ice Maker On/Off:

The Water Dispenser

IMPORTANT:

Dispense at least 1 qt. (1 L) of water every week to maintain a fresh supply. If the flow of water from the dispenser decreases, it could be caused low water pressure.

• With the water filter removed, dispense 1 cup (237 mL) of water. If 1 cup of water is dispensed in 8 seconds or less, water pressure to the refrigerator meets the minimum requirement.
  If it takes longer than 8 seconds to dispense 1 cup (237) water, the water pressure to the refrigerator is lower than recommended. See "Water Supply Requirements" and online "Troubleshooting" for more information.

Cleaning the Ice Dispenser Chute

Humidity causes ice to naturally clump together. Ice particles can build up until the ice dispenser chute becomes blocked.

If ice is not dispensed regularly, it may be necessary to empty the ice storage bin and clean the ice delivery chute, the ice storage bin and the area beneath the storage bin every 2 weeks.

If necessary, remove the ice clogging the storage bin and delivery chute, using a plastic utensil.
Clean the ice delivery chute and the bottom of the ice bin using a warm, damp cloth and dry thoroughly.

Ice Maker and Storage Bin

IMPORTANT:

To avoid low ice production and poor quality ice, flush the water system before turning on the ice maker. See "Water and Ice Dispenser" for details.

Following installation, allow 24 hours to produce the first batyur ice storage bin has a lever which allows the storage bin to of ice. Allow 2 to 3 days to fill the ice storage bin. slide out with the drawer when it is pulled open or to stay in place.
For models with a water filter, after connecting the refrigerator Move the lever to the right to attach the ice storage bin to the to a water source or replacing the water filter, fill and discardfreezer drawer. three full containers of ice to prepare the water filter for use:Move the lever to the left to release the ice storage bin from
The quality of your ice will be only as good as the quality of the freezer drawer.
Bur ice storage bin has a lever which allows the storage bin to slide out with the drawer when it is pulled open or to stay in place.
Enter Move the lever to the right to attach the ice storage bin to the card freezer drawer.
Use Move the lever to the left to release the ice storage bin from
of the freezer drawer.

water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.

If the ice in the storage bin clumps together, break up ice using a plastic utensil and discard ice. Do not use anything sharp to break up the ice. This can cause damage to the ice bin and the dispenser mechanism.
- Do not store anything on top of the ice maker or in the ice storage bin.

Ice Production Rate

Allow 24 hours to produce the first batch of ice. Discard the three batches of ice produced.

Allow 3 days to completely fill the ice storage bin. The ice maker should produce approximately 3 lbs (1.4 kg) (8 to 12 batches) of ice in a 24-hour period.

To increase ice production, lower the freezer and refrigerator temperature, or see "Control Panel Descriptions" in the Quick Start Guide for details. Wait 24 hours between adjustments.

Ice Maker in the Freezer

To turn on the ice maker, simply lower the wire shutoff arm or If your ice maker has a rocker switch, move the ON/OFF rocker switch to the ON (I) position.

To manually turn the ice maker off, lift the wire shutoff arm to the off (arm up) position and listen for the click. For the ice maker with a rubber rocker switch move the ON/OFF rocker switch to the OFF (O) position.

Your ice maker has an automatic shutoff. As ice is made, the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the off (arm up) position. Do not force the wi shutoff arm up or down.

Without switch With switch

STORE: Turn off the ice maker before removing the ice storage bin to serve ice or to clean the bin. This will keep the ice cubes from dropping out of the ice maker and into the freezer compartment. After replacing the ice storage bin, turn on the ice maker.

Wash the ice storage bin with mild soap and warm water.

Slide the ice storage bin under the ice maker and push it toward the back as far as it will go.

Auto Ice Storage Bin (on some models:

A. Ice storage bin lever

Ice Maker in the Refrigerator (on some models) Style 1—Left-Hand Refrigerator Door

The ice maker is located on the left-hand side of the refrigerator door. Ice cubes are ejected into the ice storage bin, located on the left-hand refrigerator door.

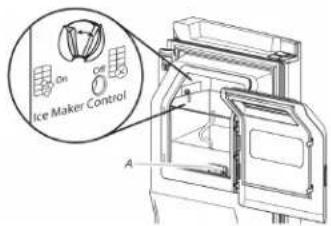

Turn the Ice Maker On/Off:

1. Push up on the latch on the left-hand side of the ice compartment to open the door.

A. Ice compartment door latch

1. Turn on the ice maker by moving the switch to the (left) position.

To manually turn off the ice maker, move the control off (right) position.
- Your ice maker has an automatic shutoff. The sensor automatically stop ice production if the storage bin is the door is open or the storage bin is removed. The will remain in the on (left) position.

A. Ice storage bin release latch

1. Close the ice compartment door.

Remove and Replace the Ice Storage Bin:

• Remove the ice storage bin by inserting your fingers into the hole at the base of the bin and squeezing the latch to release the bin from the compartment. Lift the storage bin up and pull it straight out.
• Replace the storage bin inside the ice compartment and push down to make sure it is firmly in place.

Style 2—Upper Left-Hand Side of the Refrigerator Compartment

The ice maker and storage bin are located in the upper left-hand side of the refrigerator compartment.

Turn the Ice Maker On/Off:

The ice maker has an automatic shutoff. When the ice maker is on, sensors will automatically stop ice production when the storage bin is full. The ice maker will remain set to on, and ice production will resume when the bin is no longer full.

NOTE: Some models have an on/off switch located on the ice maker storage bin. To turn on the ice maker, press the switch to the On position. To manually turn off the ice maker, press the switch to the Off position.

To manually turn off the ice maker, see the Quick Start Guide for more information.

Remove and Replace the Ice Storage Bin:

1. Hold the base of the storage bin and press the release button on the lower right.
2. Pull out the storage bin until resistance is felt. Lift up the front of the ice bin and remove.
3. Press the switch to Off (on some models).

IMPORTANT: To remove the ice storage bin, it may be necessary to turn the auger driver, behind the ice bin, counterclockwise to properly align the ice bin with the auger driver. The ice storage bin must be locked in place for proper ice dispensing.

A. On position (on some models)
B. Auger driver

1. Press the switch to On (on some models).
2. Slide the ice bin into the guide rails located on either side of the enclosure.
   Push the ice bin in until resistance is felt. Raise the front slightly and push the ice bin in until an audible "click" is heard.

Style 3—Left-Hand Door Behind the Refrigerator Bins

The ice maker is located on the left door behind the bins. Ice cubes are ejected into the ice storage bin located on the left-hand refrigerator door.

Turn the Ice Maker On/Off:

1. Push up on the latch on the left-hand side of the ice compartment to open the door.

1. Turn on the ice maker by moving the switch to the On (I) position.

1. Close the ice compartment door.

Remove and Replace the Ice Storage Bin:

• Remove the ice storage bin by inserting your fingers into the hole at the base of the bin and squeezing the latch to release the bin from the compartment. Lift the storage bin up and pull straight out.
• Replace the storage bin inside the ice compartment and push down to make sure it is firmly in place.

Water Filtration System

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

IMPORTANT: The disposable water filter should be replaced at least every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter more often.

Install the Water Filter

To order a replacement filter, contact us at www.whirlpool.com/ Parts & Accessories. See the "Quick Start Guide" for details. NOTE: If the filter is not installed correctly, water may dispense at a lower flow rate and there will be slower ice production. Improper filter installation may also cause the water filter housing to leak.

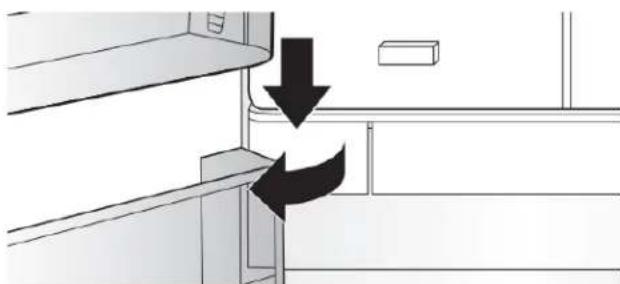

Style 1 - Bottom Left of Refrigerator Compartment

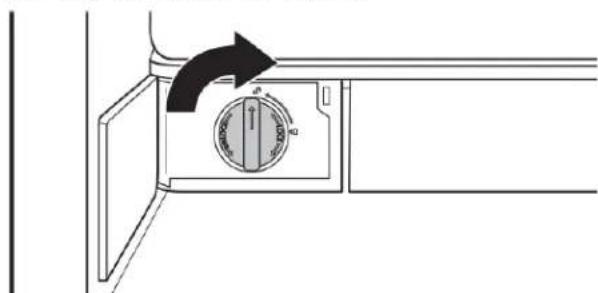

1. Push the water filter door to open, located bottom left of refrigerator compartment.

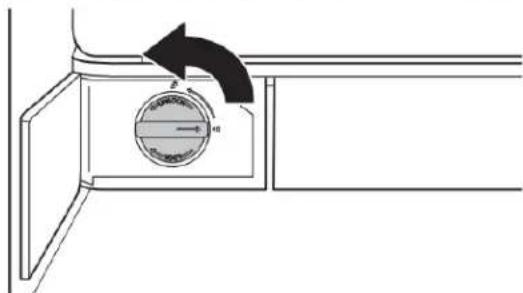

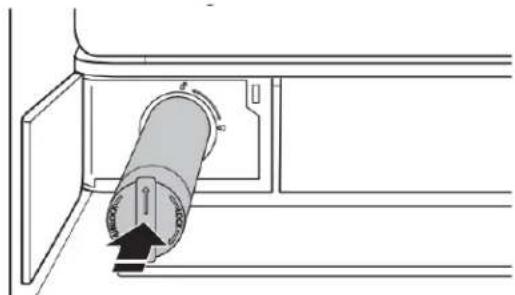

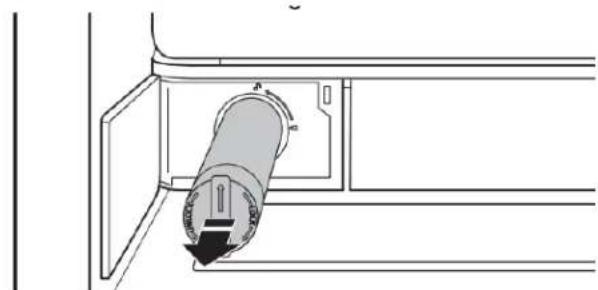

1. Twist the water filter and turn 90^ counterclockwise to unlock.

1. Pull the filter out of the housing.

1. Remove the water filter cap from the water filter.

1. Install the water filter cap onto the new filter. Be sure to align the arrows so the grooves in the filter align with ribs in the fil cap.

1. Insert the filter into the housing.

1. Twist the water filter and turn 90^ clockwise until it locks into place and the arrows are aligned.

1. Push the water filter door closed.

Style 2-Right-Hand Side of Refrigerator Ceiling

1. Locate the accessory packet in the refrigerator and remove the water filter.
2. Take the water filter out of its packaging and remove the cover from the O-rings. Be sure the O-rings are still in place after the cover is removed.

A. O-ring cover
B. O-rings

1. The water filter compartment is located in the right-hand of the refrigerator ceiling. Push up on the compartment release the catch, then lower the door.

1. Align the arrow on the water filter label with the cutout notch in the filter housing and insert the filter into the housing.
2. Turn the filter clockwise 90 degrees (1/4 turn), until it locks into the housing.

NOTE: If the filter is not correctly locked into the housing, the water dispenser will not operate. Water will not flow from the dispenser.

1. While the compartment door is still open, lift the filter up into the compartment. Then, close the filter compartment door completely.
2. Flush the water system. See "Water and Ice Dispensers" for details.

IMPORTANT: If you do not flush the water system, you may experience dripping and/or decreased flow from the water dispenser.

Style 3—Top-right Corner of Refrigerator Ceiling

1. Locate the water filter in the top-right corner of the refrigerator compartment.
2. Lift open the filter cover door. The filter will be released and then eject as the door is opened.
3. When the door is completely open, pull the filter straight out. NOTE: There may be some water in the filter. Some spilling may occur. Use a towel to wipe up any spills.
4. Take the new filter out of its packaging and remove the covers from the O-rings. Be sure the O-rings are still in place after the covers are removed.
5. With the arrow pointing up, align the new filter with the filter housing and slide it into place. The filter cover door will automatically begin to close as the new filter is inserted.
6. Close the filter cover door completely in order to snap the filter into place. You may need to press hard.
7. Flush the water system. See "Water and Ice Dispensers" for details.

sidReplacing the Water Filter

doortopurchase a replacement water filter, use model number UKF8001AXX-200 or UKF8001AXX-750, contact your dealer, or call 1-800-422-9991 in the U.S.A. or 1-800-807-6777 in Canada.

IMPORTANT: Air trapped in the water system may cause water and filter to eject. Always disperse water for at least 2 minutes before removing the filter or blue bypass cap.

1. If applicable, press upward on the water filter cover to access the filter.
2. Turn filter counterclockwise, and pull straight out to remove. NOTE: There may be some water in the filter. Some spilling may occur. Use a towel to wipe up any spills.
3. Remove sealing label from replacement filter and insert the filter end into the filter head.
4. Turn the filter clockwise until it stops. Snap the filter cover closed.
5. Flush the water system. See "Water and Ice Dispensers" for details.

NOTE: The dispenser feature may be used without a water filter installed. Your water will not be filtered. If this option is chosen, replace the filter with the blue bypass cap.

Reset Water Filter Status

After replacing the water filter, press and hold Reset Filter or Filte Reset (depending on your model) for 3 seconds. The Order and Replace indicator lights will blink and then go off when the system is reset. On some models the indicator light will change to blue when the system is reset. See the "Quick Start Guide" for more information.

On models with Options and Measured Fill buttons located on the control panel:

After changing the water filter, reset the status light. Press the Options button to enter Options mode, then press Lock to initiate the reset, then press Measured Fill to confirm that you want to reset the status light. When the system is reset, the "Order" and "Replace" icons will disappear from the display screen.

On models with Water Filter button located on the control panel:

After changing the water filter, reset the status. Press and hold the Water Filter button for 3 seconds. When the system is reset, the water filter icon will return to Blue and the words "Replace Filter" will disappear from the display.

DOOR AND HANDLE INSTRUCTIONS

Door and Drawers

Depending on the width of your doorway, you may need to remove the doors to move the refrigerator into your home. Also, the door hinges are factory installed on the right-hand side. If you want the door to open from the other direction, you must reverse the door swing.

IMPORTANT:

If the refrigerator was previously installed and you are moving it out of the home, before you begin, turn the refrigerator control Off, and unplug the refrigerator or disconnect power. Remove food and any adjustable door or utility bins from doors.
- Keep the refrigerator doors closed until you are ready to lift them free from the cabinet. Provide additional support for the refrigerator door while the hinges are being removed. Do not depend on the door gasket magnets to hold the door in place while you are working.

Tools Needed: 5/16", 3/8", and 1/4" hex head socket wrenches, Torx® T25 screwdriver, #2 Phillips screwdriver, and a flat-bladoc screwdriver.

Remove and Replace Handles

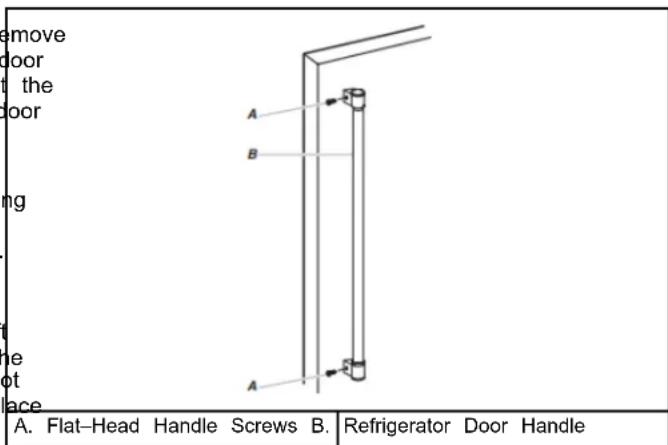

REFRIGERATOR DOOR HANDLES

Refrigerator Door Handle Style 1

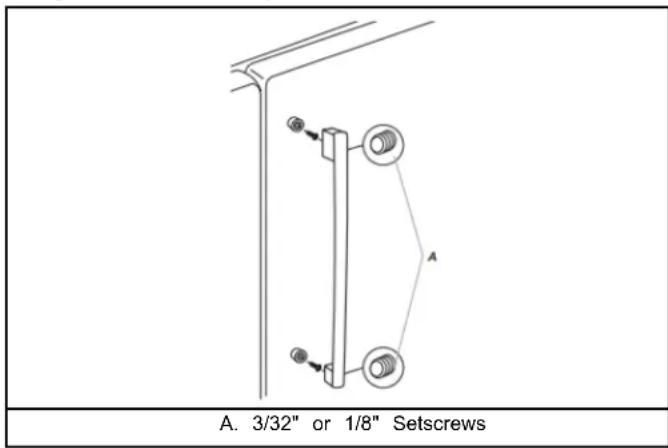

A. 3 / 32'' Setscrew

Using a 3 / 32'' or 1 / 8'' hex key, loosen the two setscrews located on the side of each handle. Pull the handle straight out from the drawer. Make sure you keep the screws for reattaching the handles.
To replace the handles, reverse the directions.

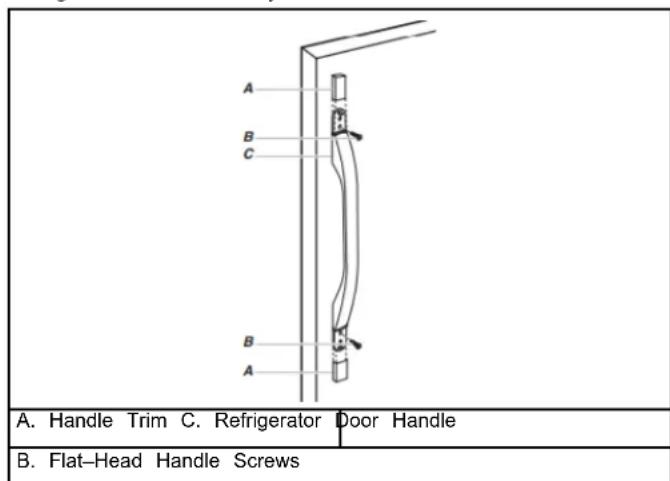

Refrigerator Door Handle Style 2

Remove the screw cover.
Remove the handle assembly. Keep all parts together.
To replace the handles, reverse the directions.

Refrigerator Door Handle Style 3

Using a 3/32" or 1/8" hex key, loosen the two setscrews located on the side of each handle. Pull the handle straight out from the drawer. Make sure you keep the screws for reattaching the handles.
To replace the handles, reverse the directions.

Refrigerator Door Handle Style 4

To remove the handle, remove the screw attaching the trim to the upper end of the handle. Using a flat-blade screwdriver wrapped in masking tape, pry the trim piece from the lower end of the handle. Then, remove the screws attaching the handle to the door.
To replace the handles, reverse the directions.

Refrigerator Door Handle Style 5

To remove the handle, grasp the lower part of the handle firmly, slide the handle up and pull the handle straight out from the door.
To replace the handle, position the handle so that the large holes in the mounting clips are down and align the holes with the door studs. Rotate the handle so that the mounting clips are flat against the door and slide the handle down to engage.

FREEZER DOOR HANDLES

Freezer Door Handle Style 1

Using a 3/32'' or 1/8'' hex key, loosen the two setscrews located on the side of each handle. Pull the handle straight out from the drawer. Make sure you keep the screws for reattaching the handles.
To replace the handles, reverse the directions.

Freezer Door Handle Style 2

Using a 3/32^ or 1/8^ hex key, loosen the two setscrews located on the side of each handle. Pull the handle straight out from the drawer. Make sure you keep the screws for reattaching the handles.
To replace the handles, reverse the directions.

Freezer Door Handle Style 3

Freezer Door Handle Style 5

To remove the handle, grasp the lower part of the handle firmly, slide the handle up and pull the handle straight out from the door.
To replace the handle, position the handle so that the large holes in the mounting clips are down and align the holes with the door studs. Rotate the handle so that the mounting clips are flat against the door and slide the handle down to engage.

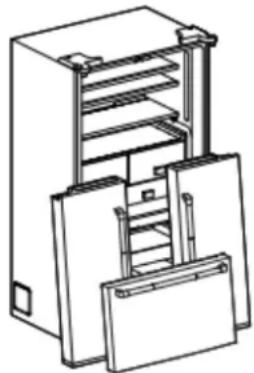

Remove Refrigerator Doors and Hinges

1. Unplug refrigerator or disconnect power.
2. Remove base grille.

BASE GRILLE

Style 1

Style 2

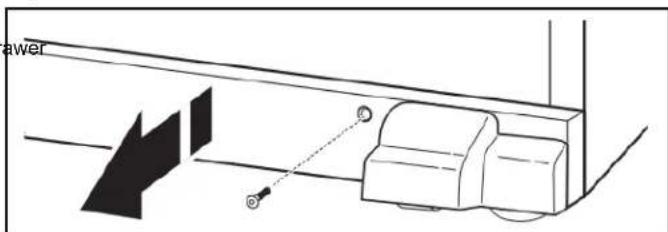

■ Remove the two screws fastening the base grille to the cabinet and set screws aside. 1.
Grasp the grille and pull it toward you. NOTE: To allow the refrigerator to roll easier, raise the brake feet by turning them counterclockwise. The front rollers will be touching the floor.

Style 3

Use a 1/4" hex-nut driver to remove both screws in the base grille.
Using both hands, grasp the grille firmly and pull it toward Open the freezer drawer to access the brake feet. NOTE: To allow the refrigerator to roll easier, raise the brake feet by turning them counterclockwise. The front rollers will be touching the floor.

Remove Right-Hand Refrigerator Door

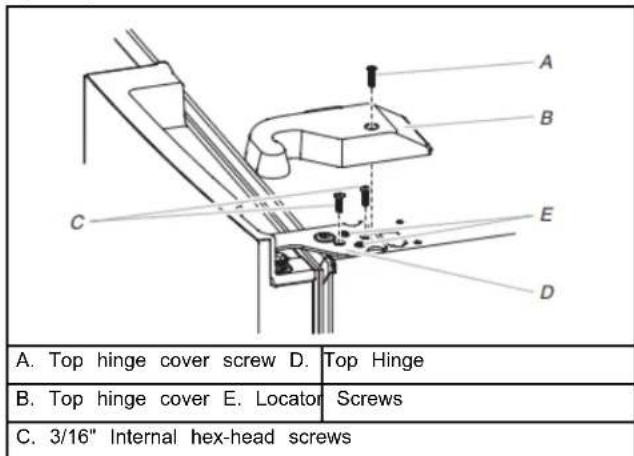

1. Starting with the right-hand side door, remove the parts for top hinge as shown below.

NOTE: Do not remove the two locator screws. These screws will help you align the hinge when you replace the door.

AWARNING

Excessive Weight Hazard

Use two or more people to lift the appliance door.

Failure to do so can result in back or other injury.

1. Lift the refrigerator door from the bottom hinge pin. The top hinge will come away with the door.

Remove Left-Hand Refrigerator Door

IMPORTANT: On models with a water dispenser, the tubing and wiring for the water dispenser run through the left-hand door hinge, so they must be disconnected before removing the door.

1. Remove the cover from the top hinge as shown below.

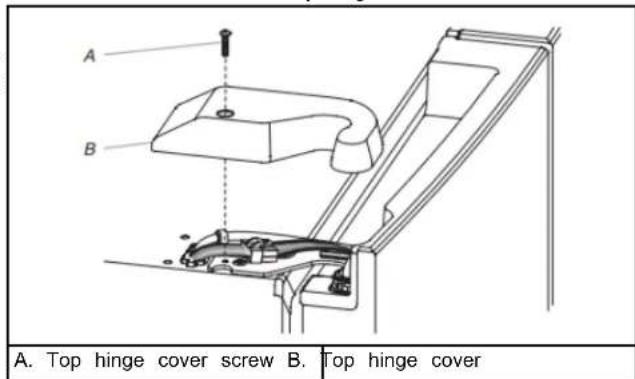

A. Top hinge cover screw B. Top hinge cover

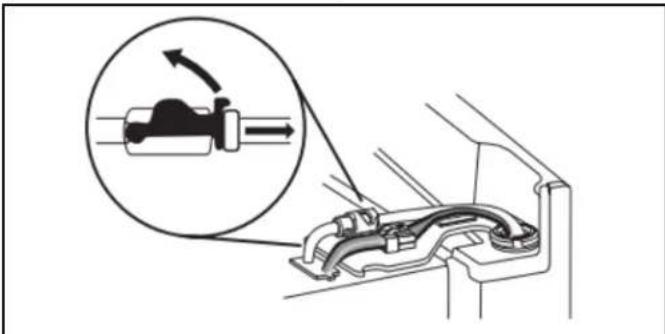

base Disconnect the water dispenser tubing located on top of the door hinge (if applicable).

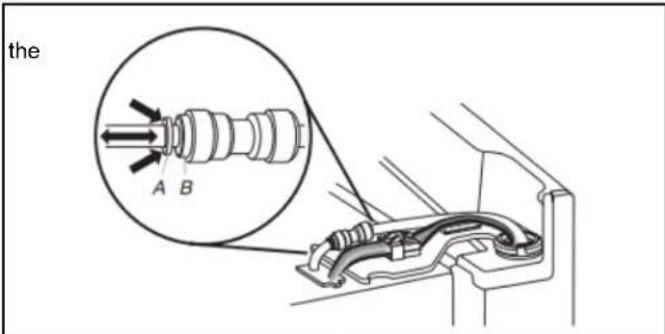

Water Tubing Connection Style 1: Press the colored outer ring against the face of the fitting and gently pull the dispenser tubing free as shown below.
NOTE: The water dispenser tubing remains attached to the left-hand refrigerator door.

A. Outer ring B. Face of fitting

1. Before removing the left-hand side door, disconnect the wirrRESET THE DOOR HINGE

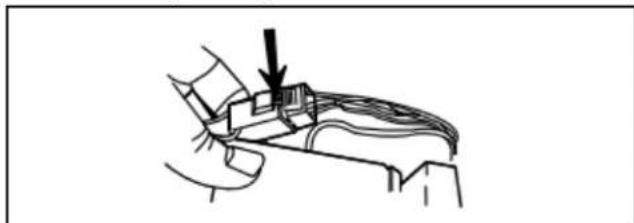

plug located on top of the top hinge by wedging a flat-blade Lift the door from the bottom hinge pin and place it on a flat screwdriver or your fingernail between the two sections. surface.

NOTE: Do not remove the green, ground wire. It should remain attached to the door hinge.

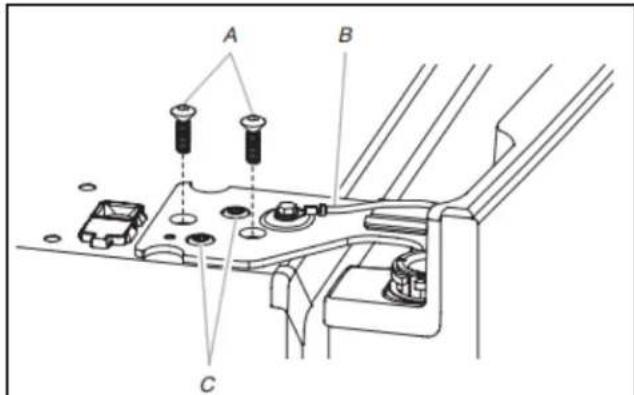

A. 3 / 4" Internal hex-head or TORX T25 screws

C. Locator screws (do not remove)

B. Ground wire (Do not remove)

1. Lift the refrigerator door from the bottom hinge pin. The top hinge will come away with the door.

NOTE: It may not be necessary to remove the bottom hinges and brake feet assemblies to move the refrigerator through a doorway.

Only if necessary, depending on your model, use a driver with a #2 square bit tip or a TORX T25 screwdriver to remove the bottom hinges and a 3/8" nut driver or a TORX T25 screwdriver to remove the brake feet screws.

Reset Bottom Refrigerator Door Hinge

For your convenience, the refrigerator doors have bottom hinges with door closers. These closers allow the doors to swing fully closed with just a gentle push.

IMPORTANT: So that the closers feature will operate properly, the doors must be removed only when open to a 90^ angle to the front of the cabinet. If one or both doors were not at a 90^ angle when removed, the bottom door hinge must be reset.

1. Using a driver with a #2 square bit, remove the bottom hinge with the bushing from the cabinet.

A. Bushing B. Hinge base

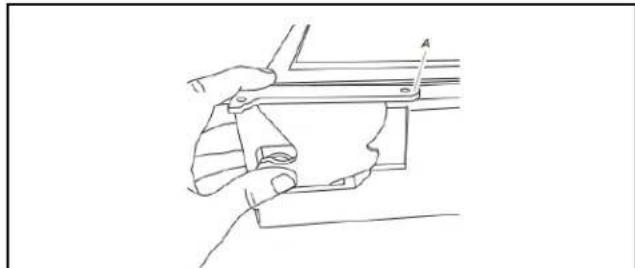

1. Insert the bottom hinge and bushing into the corresponding slot in the bottom of the door.

NOTE: Make sure that the base of the hinge is parallel to the bottom of the door.

A. Hinge base parallel to the bottom edge of the door

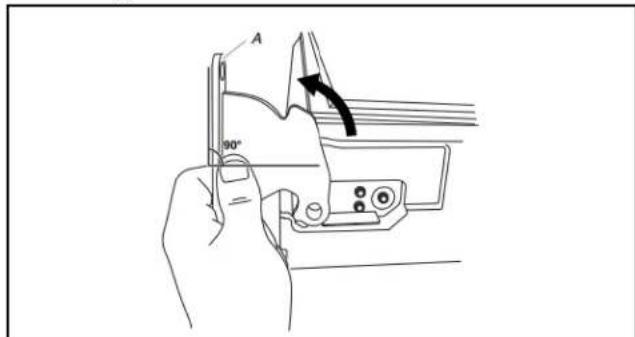

1. Turn the hinge until the hinge base is at a 90^ angle to the bottom edge of the door.

A. Hinge base turned to a 90^ angle with the bottom edge door

1. Remove the hinge from the door. Reattach the bottom hinge to the refrigerator cabinet.
2. The hinge is now reset and prepared for the door to be replaced.

Replace Refrigerator Doors and Hinges

Replace Right-Hand Refrigerator Door

1. Set the right-hand door onto the bottom hinge pin.
2. Insert the top hinge pin into the open hole in the top of the refrigerator door.
3. Fasten the hinge to the cabinet. Do not tighten the screws completely.

Replace Left-Hand Refrigerator Door

IMPORTANT: Do not intertwine the water tubing and wiring bundles when reconnecting them.

1. Set the left-hand door onto the bottom hinge pin.
2. Fasten the hinge to the cabinet. Do not tighten the screws completely.
3. If applicable, reconnect the water dispenser tubing. Style 1 - Insert the tubing into the fitting until it stops and the outer ring is touching the face of fitting.

Style 2 - Insert the tubing firmly into the fitting until it stops. Close the clasp around the tubing. The clasp snaps into place between the fitting and the collar.

1. Reconnect the electrical wiring.

Push together the two sections of the wiring plug.

Final Steps

1. Completely tighten the internal screws
2. Replace both top hinge covers.

Remove and Replace Refrigerator. Drawer

Depending on the width of your door opening, it may be necessary to remove the drawer fronts to move the refrigerator into your home.

REMOVE DRAWER FRONT

IMPORTANT:

If the refrigerator was previously installed and you are moving it out of the home, before you begin, turn the refrigerator control Off, and unplug the refrigerator or disconnect power. Remove food and any adjustable door or utility bins from doors.
Two people may be required to remove and replace the freezer drawer. Graphics are included later in this section.

Tools Needed: 1/4'' Hex head nut driver, Flat-blade screwdriver Disconnect Wiring (if applicable)

NOTES:

The exterior refrigerator drawer front is connected to the temperature control on some models. Before removing the drawer front, the wires must be disconnected from the temperature control.
The gray cable visible behind and under the pantry drawer the right side contains wiring for the pantry control and mo with the drawer as it is pulled out. There is no need to disconnect this cable.

1. Open the drawer to its full extension, and remove the inten bin.

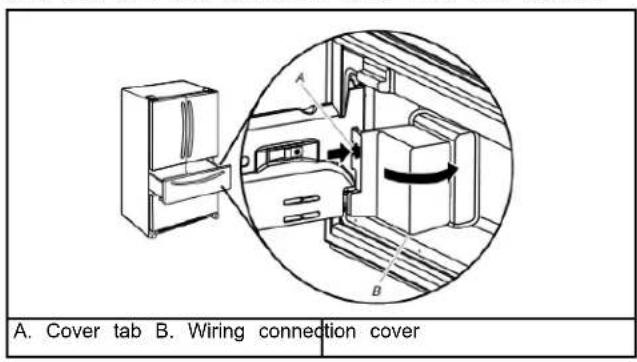

2. Left-hand drawer only: Remove the wiring connection cover. Press in on the side of the cover to release the tab from slot, and then pull the cover away from the bracket.

1. Left-hand drawer only, disconnect the wiring. NOTE:

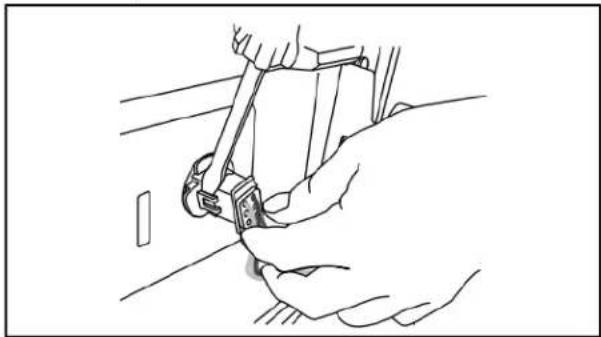

2. On one side of the wiring connector, insert the screwdriver blade between the connector tab and the connector to release. Repeat for the opposite side. Pull the wiring connector apart.

1. Remove the drawer front.

Style 1: Bottom Release Lever

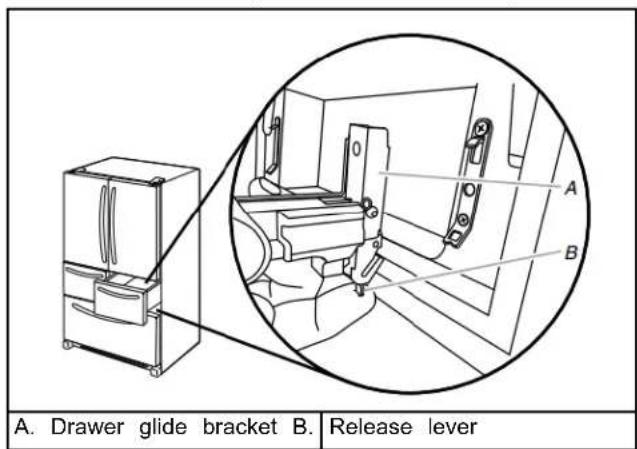

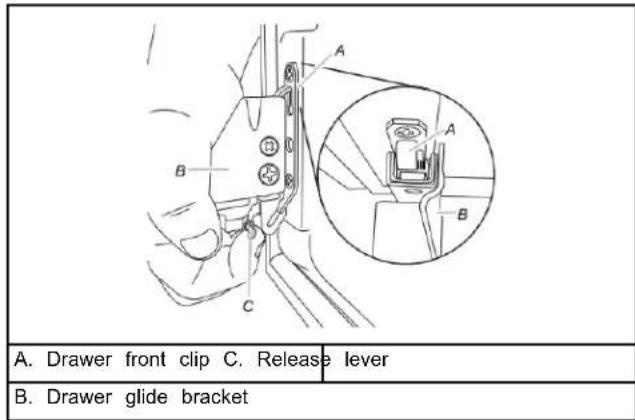

• Push up on the lever at the bottom of the drawer glide bracket to release the drawer front from the bracket.
• Lift the drawer front up and off the drawer glide brackets.

Style 2: Bottom Screws

Loosen the two top screws attaching the drawer glide brackets to the drawer front.

NOTE: Loosen screws three to four turns. Keep the screws in the drawer front.

Remove the two bottom screws attaching the drawer glide.
- Lift the drawer front up and off the top screws.

1. Slide the drawer glides back into the refrigerator.

REPLACE DRAWER FRONT

1. Pull out the drawer glides until they are full extended.

2. Style 1: Bottom Release Lever

Push up on the lever at the bottom of the drawer glide bracket to open. Insert the drawer front bracket into the drawer glide bracket and release the lever.

Style 2: Bottom Screws

Lower the loosened screws in the top of the door front into the upper notches in the drawer glide.
Align the holes in the bottom of the drawer glides.
- Replace two screws removed previously and tighten all four screws.

NOTE: It helps if one person holds the drawer glides steady while another person aligns the drawer front and inserts the screws into the notches.

1. Reconnect Wiring (if applicable)

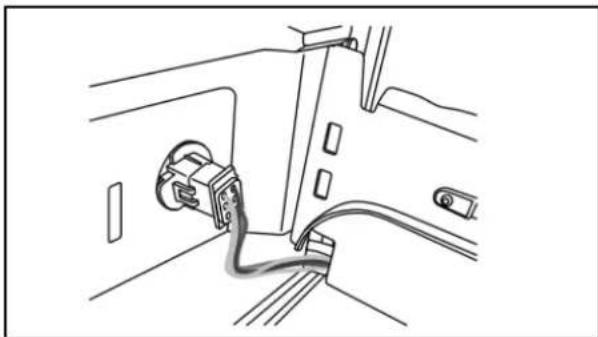

Align the two ends of the wiring connector and push them together until you hear a click sound and feel the tabs snap into place on the connector.

Gently pull on the wiring connection to ensure the wiring connection is completely seated. Replace the wiring cover: NOTE: The wiring connection must be complete for the drawer temperature control to operate.

1. Replace the drawer bins onto the drawer glides.

Remove and Replace Freezer Printer Front

Depending on the width of your door opening, it may be necessary to remove the freezer drawer front to move the refrigerator into your home.

IMPORTANT:

If the refrigerator was previously installed and you are mo it out of the home, before you begin, turn the refrigerator control Off, and unplug the refrigerator or disconnect powe Remove food and any adjustable door or utility bins from doors.
Two people may be required to remove and replace the freezer drawer

Tools Needed: 1 / 4'' hex driver

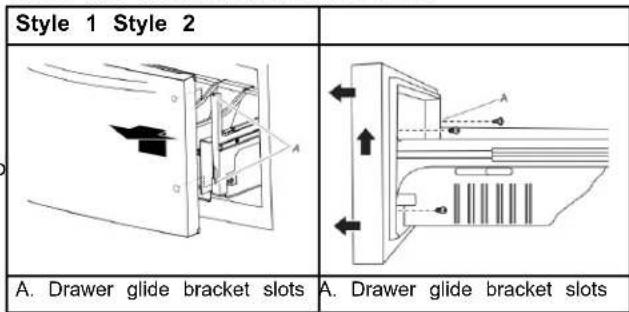

REMOVE DRAWER

Front Style 1 & 2

1. Open the freezer drawer to its full extension.
2. Loosen the two screws at the top, inside the drawer front (one on the left-hand side and one on the right-hand side) that fasten the drawer front to the drawer glides as shown below.

3. Remove the 2 screws at the bottom, inside the drawer front that fasten the drawer front to the drawer glides as shown below.

4. Lift up on the drawer front to release the plastic studs from the drawer glide bracket slots as shown below.

1. Slide the drawer glides back into the freezer.

Front Style 3

1. Open the freezer drawer to full extension.

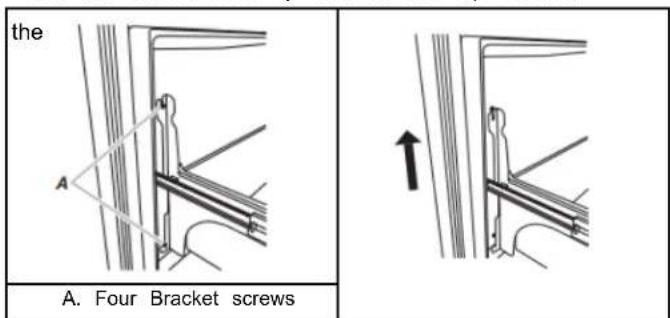

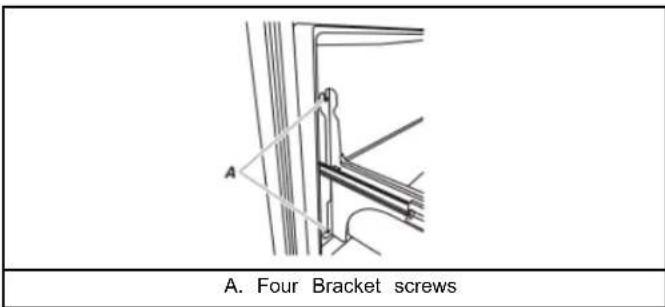

   Loosen the four screws attaching the drawer glides to the drawer front as shown below.

NOTE: Loosen screws three to four turns. Keep the screws in the drawer front.

1. Lift drawer front upward and off the screws.

REPLACE DRAWER

Front Style 1 and 2

1. Pull out the freezer drawer glides to their full extension.

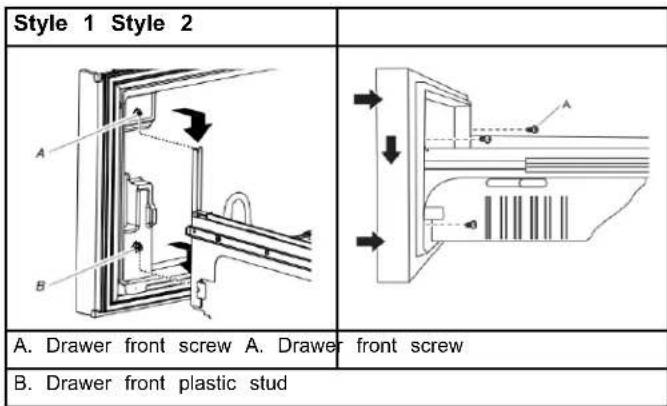

2. Holding the drawer front by its sides, align the two plastic studs, located at the bottom, inside the drawer front, with the drawer glide bracket slots.

NOTE: It helps if one person holds the drawer glides steady while another person aligns the drawer front and inserts the studs into the slots.

1. Replace and tighten the two screws at the top of the draf front (one on the left-hand side and one on the right-hand side).

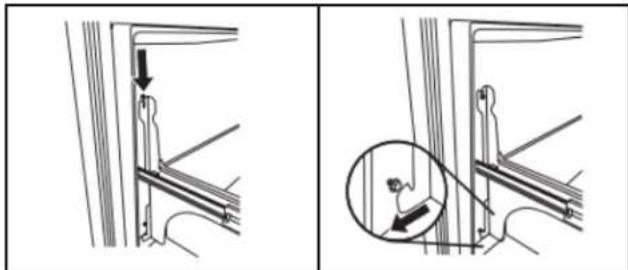

Front Style 3

1. Slide the drawer glides out of the freezer compartment.
2. Insert the screws in the top of the drawer into the slots in the dr brackets.

1. Completely tighten all four screws.

Door Closing and Alignment

The base grille covers the adjustable brake feet and roller assemblies located at the bottom of the refrigerator below the 3. freezer drawer. Before making any adjustments, remove the base grille and move the refrigerator to its final location.

Tools Needed: 1/4'' hex driver Tools Provided: 1/8'' hex key

1. Remove base grille.

BASE GRILLE

Style 1

Using both hands, grasp the grille firmly and pull it toward you. Open the freezer drawer to access the brake feet. NOTE: To allow the refrigerator to roll easier, raise the brake feet by turning them counterclockwise. The front rollers will be touching the floor.

Style 2

• Remove the two screws fastening the base grille to the cabinet and set screws aside.
  Grasp the grille and pull it toward you.

VER NOTE: To allow the refrigerator to roll easier, raise the brake feet by turning them counterclockwise. The front rollers will be touching the floor.

Style 3

Use a 1/4" hex-nut driver to remove both screws in the base grille.
Using both hands, grasp the grille firmly and pull it toward you. Open the freezer drawer to access the brake feet.

NOTE: To allow the refrigerator to roll easier, raise the brake feet by turning them counterclockwise. The front rollers will be touching the floor.

1. Move the refrigerator to its final location.
2. Make sure the doors close easily. If you are satisfied with the door opening and closing, skip the next section and go to "Align the Doors." If, however, the doors do not close easily on the doors pop open, adjust the tilt.
3. Using a 1/4'' hex driver, lower the brake feet. Turn them clockwise until the rollers are off the floor and both brake feet are snug against the floor. This keeps the refrigerator from rolling forward when operating the refrigerator doors freezer drawer.

IMPORTANT: If you need to make further adjustments involving the brake feet, you must turn both brake feet the same amount to keep the refrigerator level.

1. Use a level to make sure the refrigerator is level from side to side and front to back.
2. Make sure the doors are even at the top and that the space between the bottom of the refrigerator doors and the top of the freezer drawer is even. If necessary, align the doors.

To Adjust the Cabinet Tilt:

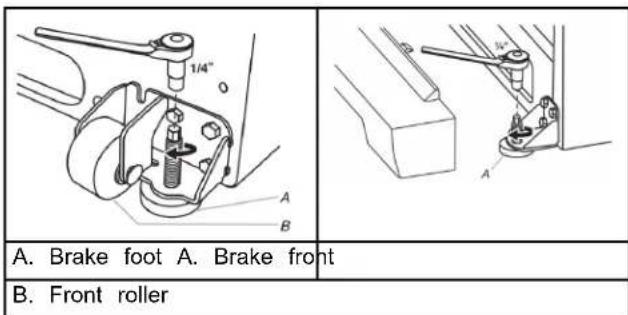

1. Open the freezer drawer. Use a 1/4'' hex driver to turn both you brake feet clockwise the same amount. This will raise the front of the refrigerator. It may take several turns to allow the doors take to close easier.

be NOTE: Having someone push against the top of the refrigerator takes some weight off the brake feet. This makes it easier to turn them.

1. Make sure the doors are even at the top and that the spa between the bottom of the refrigerator doors and the top of freezer drawer is even. If necessary, align the doors.

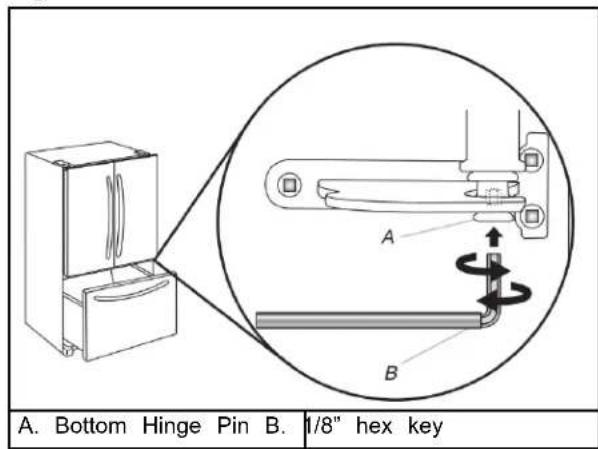

To Align the Doors:

• Keeping both refrigerator doors closed, pull out the freeze drawer. Locate the bottom hinge pin of the right-hand refrigerator door. The alignment screw is inside the bottom hinge pin.
  Insert the short end of the 1/8" hex key (packed with the Door Handle Installation Instructions) into the bottom hinge pin until it is fully engaged in the alignment screw. To raise the refrigerator door, turn the hex key to the right. To lower the door, turn the hex key to the left.
  Continue to turn the alignment screw until the doors are aligned.

1. Make sure the refrigerator is steady. If the refrigerator sees unsteady or rolls forward when a door or drawer is pulled open, adjust the brake feet.

To Steady the Refrigerator:

• Open the freezer drawer. Using a 1/4'' hex driver, turn the brake feet clockwise the same amount until the brake feels are snug against the floor. Check again. If you are not satisfied, continue to adjust the brake feet by half turns. The screw until the refrigerator does not roll forward when the drawer is opened.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws. makes it easier to turn the screws.

After making all appropriate adjustments, replace the base grille by aligning the ends of the grille with the leveling assemblies each side and snapping the grille into place. Use a 1/4'' hex to reinstall screws if applicable.

Final Steps

Plug into a grounded 3 prong outlet.
2. Reset the controls. See "Control Panel Descriptions" in the right Quick Start Guide for details.
3. Return all removable door parts to doors and the food to refrigerator.

Align Refrigerated Printer Fronts (on some models)

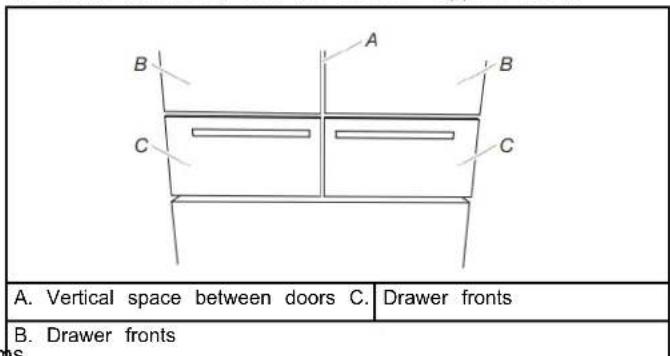

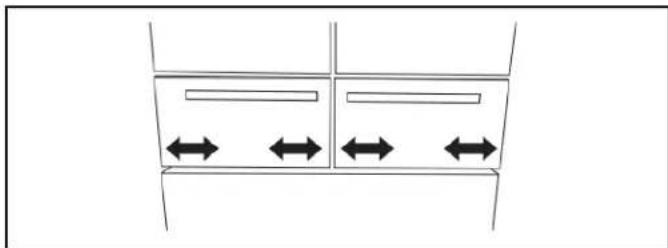

When the drawer fronts are aligned, the width of the vertical space (A) between the refrigerator doors (B) and the drawer fronts (C) is the same thickness, and the drawers appear level.

Aligning the drawer fronts is a two-step process. The first step is to adjust the drawer fronts up and down. The second step shifts the drawer fronts from side to side. Visually inspect the refrigerator for alignment and adjust the drawer fronts as needed.

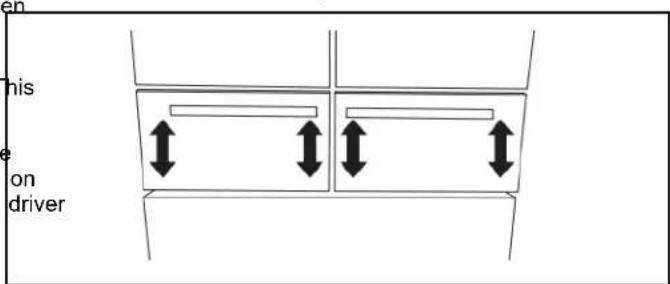

Step 1 - Adjust theDrawer Fronts Up/Down
IMPORTANT: Each refrigerated drawer can be adjusted up and down on both the left and the right sides.

Tools Needed: Phillips screwdriver

1. With the drawers closed, identify the drawer front that needs be raised or lowered.
2. Open the drawer to its full extension, and remove the interior bin.

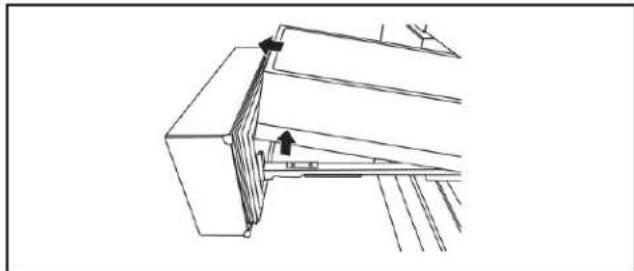

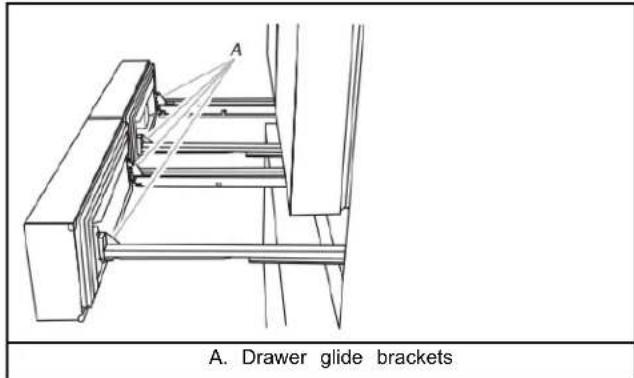

1. Locate the drawer glide brackets.

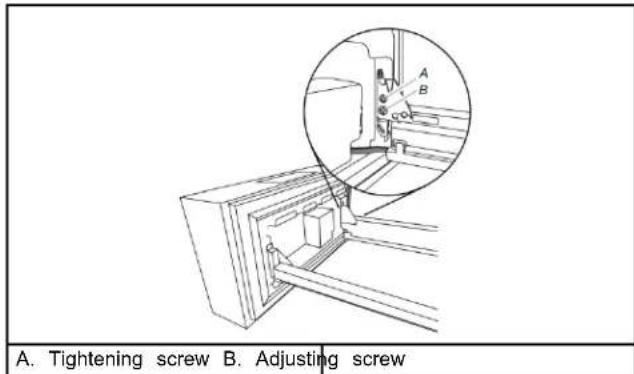

1. Insert the Phillips screwdriver into tightening screw and turn counterclockwise to loosen the drawer front.

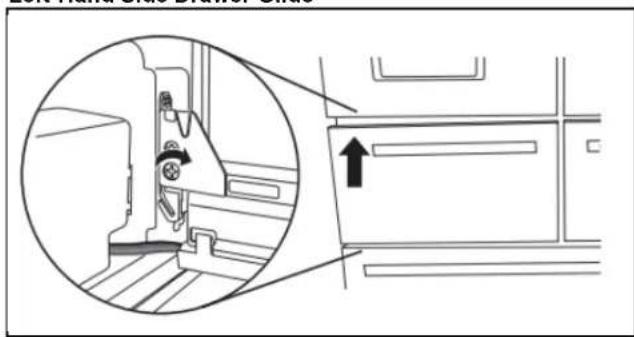

1. Insert the Phillips screwdriver into adjusting screw to adjust drawer front.

IMPORTANT: The direction you turn the adjusting screw depends on which side of the drawer you are adjusting.

Left-Hand SideDrawer Glide

To raise the drawer front, turn adjusting screw clockwise.
To lower the drawer front, turn adjusting screw counterclockwise.

Right-Hand Side Printer

To raise the drawer front, turn adjusting screw counterclockwise.
To lower the drawer front, turn adjusting screw clockwise.

1. Insert the Phillips screwdriver into tightening screw, and turn clockwise to tighten the drawer front.
2. Close the refrigerated drawer to check the alignment. Repeat steps 2 through 6 until the drawer fronts are level.

Step 2 - Adjust the Printer Fronts Side to Side

IMPORTANT: Each refrigerated drawer can be adjusted side to side on both the left and right side.

1. With the drawers closed, identify the drawer that is not aligned.
2. Open the drawer to its full extension, and remove the interior bin.
3. Locate the drawer glide brackets.
4. Starting with the glide bracket closest to the vertical gap, press and hold the release lever up. With your other hand, lift the door clip from the drawer glide bracket.

Reposition the drawer front clip onto the drawer glide bracket in the direction you want to move the drawer front. Make sure that the glide bracket is vertically level.
6. Release the lever to lock the glide bracket into position.
7. Repeat steps 3 through 6 for the other side of the drawer front. NOTE: Adjust the clip on the top of the second glide bracket so that it is in the same position as the side you adjusted first.
8. Close the drawer and visually inspect the gap. Repeat steps 2 though 7 until the drawer fronts are aligned.

FINAL STEPS

1. Replace the interior drawer bins.
   NOTE: The bins must be placed into the drawers correctly so that the refrigerated drawers will close and operate properly. See "Remove and ReplaceDrawer Fronts."
2. Close the refrigerated drawers.

PERFORMANCE DATA SHEET

Water Filtration System

Model P8WB2L (EDR1RXD1, Filter 1) Capacity 200 Gallons (757 Liters)

This system has been tested by an independent laboratory according to NSF/ANSI Standards 42, 53, 401 and CSA 483.1 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42, 53, 401 and CSA 483.1

**Certified to CSA B483.1 only for use in Refrigerator applications.

Substance Reduction Aesthetic Effects	Influent Challenge Concentration	Maximum Permissible Product Water Concentration	Average % Reduction
Chlorine Taste/Odor Particulate Class I*	2.0 mg/L ± 10%At least 10,000 particles/mL	50% reduction85% reduction	97.2%99.9%
Contaminant Reduction Influent Challenge Concentration		Maximum Permissible Product Water Concentration	Average % Reduction
Lead: @ pH 6.5 / @ pH 8.5	0.15 mg/L ± 10% 0.010 mg/L	96.0%
Benzene 0.015 mg/L ± 10%	0.005 mg/L 99.8%
P-Dichlorobenzene 0.225 mg/L	± 10% 0.075 mg/L 91.9%
Carbofuran 0.08 mg/L ± 10%	0.040 mg/L 92.4%
Toxaphene 0.015 ± 10%	0.003 mg/L >99%
Atrazine	0.009 mg/L ± 10% 0.003 mg/L	>99.99%
Asbestos	107 to 10 fibers/L††	99%	99.0%
Live Cysts†	50,000/L min.	99.95%	>96.6%
Turbidity	11 NTU ± 10%	0.5 NTU	>99.8%
Lindane	0.002 ± 10%	0.0002 mg/L	99.40%
Tetrachloroethylene	0.015 mg/L ± 10% 0.005 mg/L	>99.8%
o-Dichlorobenzene	1.8 mg/L ± 10%	0.60 mg/L	93.8%
Ethylbenzene	2.1 mg/L ± 10%	0.70 mg/L	99.8%
1,2,4-Trichlorobenzene	0.210 mg/L ± 10% 0.07 mg/L	87.9%
2,4 - D	0.210 mg/L ± 10% 0.07 mg/L	>96.6%
Styrene	2.0 mg/L ± 10%	0.1 mg/L	95.9%
Toluene	3.0 mg/L ± 10%	1.0 mg/L	>96.9%
Endrin	0.006 mg/L ± 10% 0.002 mg/L	>96.4%
Atenolol	200 ± 20%	60 ng/L	>97.0%
Trimethoprim	140 ± 20%	20 ng/L	>97.4%
Linuron	140 ± 20%	20 ng/L	>97.9%
Estrone	140 ± 20%	20 ng/L	93.8%
Nonylphenol	1400 ± 20%	200 ng/L	96.1%
Carbamazepine	1400 ± 20%	200 ng/L	99.20%
Phenytoin	200 ± 20%	30 ng/L	99.3% / 98.6%
Naproxen 140 ± 20% 20 ng/L	93.3%
Bisphenol A 2000 ± 20% 300	ng/L 98.9%

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.89 lpm). Pressure = 60 psig (413.7 kPa). Temperature = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).

The compounds certified under NSF 401 have been deemed as "emerging compounds/incidental contaminants." Emerging compounds/ incidental contaminants are those compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these compounds can affect the public acceptance/perception of drinking water quality.

For installation, operation, and maintenance instructions please refer to the Owner's Manual.
It is important that operational, maintenance, and filter replacement requirements be carried out for the product to perform as advertised. Property damage can occur if all instructions are not followed.
The disposable cartridge must be changed at least every 6 months.
Use replacement filter P8RFWB2L, part #EDR1RXD1/ EDR1RXD1B. 2015 suggested retail price of 49.99 U.S.A./ 49.99 Canada. Prices are subject to change without notice.
The filter monitor system measures the amount of water that passes through the filter and alerts you when it is time to replace the filter.
Refer to the "Using the Controls" or "Water Filtration System" section (in the User Instructions or User Guide) to learn how to Pressure 30 psi - 120 psi (207 kPa - check the water filter status.
■ After changing the water filter, flush the water system. SeeWater Temperature 33^ - 100^ (0.6^ - 37.8^) "Water and Ice Dispensers" or "Water Dispenser" in the User Service Flow Rate 0.50 GPM (2.27 L/min.) @ Instructions or User Guide. 60 psi. (413.7 kPa)
These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary.
The product is for cold water use only.
The water system must be installed in compliance with state and local laws and regulations.
■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. EPA Est. No. 082047-TWN-001
Refer to the "Warranty" section (in the User Instructions or User Guide) for the Manufacturer's limited warranty, name and telephone number.
Water Supply Potable City or Well
Water Pressure 30 psi - 120 psi (207 kPa - 827 kPa)

Application Guidelines/Water Supply Parameters

$$ \begin{array}{l} 3 3 ^ {\circ} - 1 0 0 ^ {\circ} F \left(0. 6 ^ {\circ} - 3 7. 8 ^ {\circ} C\right) \ \begin{array}{l} 0. 5 0 \text {G P M (2 . 2 7 L / m i n .)} @ \ 6 0 \text {p s i . (4 1 3 . 7 k P a)} \end{array} \ \end{array} $$

• Your water filtration system will withstand up to 120 pounds per square inch (psi) water pressure. If your water supply is higher than 80 psi, install a pressure reducing valve before installing the water filtration system.

*Class I particle size: >0.5 to 1 um

†Based on the use of Cryptosporidium parvum oocysts

+Fibers greater than 10 um in length

NSF is a registered trademark of NSF International.

SECURITE DU RÉFRIGÉRATEUR
