INTRODUCTION
SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
! DANGER
You can be killed or seriously injured if you don't immediately follow instructions.
WARNING
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
■ Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Do not use an extension cord.
If power supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
■ Connect to potable water supply only.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential-type environments; bed and breakfast-type environments; and catering and similar non-retail applications.
■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
■ Do not use replacement parts that have not been recommended by the manufacturer (e.g., parts made at home using a 3D printer).
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Do not damage the refrigerant circuit.
■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
■ Ice maker kit can be added to some models. See serial tag inside the food compartment of appliance for ice maker kit model information.
■ A qualified service technician must install the water line and ice maker. See installation instructions supplied with ice maker kit for complete details.
SAVE THESE INSTRUCTIONS
INTRODUCTION
PROPER DISPOSAL OF YOUR OLD
REFRIGERATOR
WARNING: Risk of child entrapment. Before You Throw Away Your Old Refrigerator or Freezer:
■Take off the doors.
■Leave the shelves in place so that children may not easily climb inside.
WARNING
Suffocation Hazard
Remove doors from your old refrigerator.
Failure to do so can result in death or brain damage.
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.
Important information to know about disposal of refrigerants:
Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.
INTRODUCTION
REGISTERING YOUR APPLIANCE
Gain access to our concierge-level Customer Support by registering your appliance. We make product registration simple and straightforward so you can start using your exclusive JennAir benefits today.
Registering your appliance allows you to:
■ Streamline your warranty service
If we have your appliance information, we can help you faster.
■ Protect your purchase
In case of an insurance loss—such as fire, flood, or theft—your product registration could serve as a proof of purchase.
■Keep your family safe
We'll notify you in the rare case of a safety notification.
Start taking advantage of these benefits today by going online to register your appliance at jennair.com/customer-care.
PRODUCT IDENTIFICATION
Your product identification, which includes the model and serial numbers, is listed on the product rating plate.
Recording this information below allows us to assist you more easily if your appliance should ever require service from one of our JennAir Authorized Service Providers.
Model Number:
Serial Number: ----
Date of Installation: ----
Authorized Dealer:
Authorized Dealer Phone #:----
TABLE OF CONTENTS
INTRODUCTION
Safety 3
Proper Disposal Of Your
Old Refrigerator 4
Registering Your Appliance....5
Product Identification 5
Product Features......6
Using The Controls....7
GETTING STARTED
Remove The Packaging....10
Clean Before Using 10
Water Supply Requirements......10
Reverse Osmosis Water Supply...... 10
Set Up Ice Maker....11
Install Air Filter (On Some Models) 11
Install Produce Preserver (on some Models) ... 12
Power On/Off Switch 12
Refrigerator Use....13
CARE AND CLEANING
Location Requirements....13
Cleaning 14
Power Interruptions....15
Ice Storage Bin Care....15
Replacing the Air Filter 15
Replacing the Produce Preserver.....15
Changing The Water Filter....16
Vacation Care....16
Refrigerator Shelves....17
Deli/Crisper Drawers....17
Wine Rack 17
Freezer Drawer And Pull-Out Ice Bin.....17
Door Bins....18
TROUBLESHOOTING
Refrigerator Operation....19
Temperature And Moisture 20
Ice And Water....20
Lights....20
ASSISTANCE
To Order Accessories....21
Performance Data Sheet 22
INTRODUCTION
PRODUCT FEATURES
-
Fully Integrated and Flush Design with Articulating Hinge Creates an integrated appearance with custom cabinetry without exposed hinges or trim pieces.
-
Adjustable Door Bins with Metal Accents
Refrigerator and freezer door bins can be positioned to accommodate a variety of container sizes.
6 | INTRODUCTION
-
Adjustable Elegance Shelving
Glass shelves, accented with brushed aluminum, make foods and beverages appear to float, allowing more light to fill the interior.
-
Obsidian Interior Satisfies consumer's desire to make a design statement with an exclusive color among luxury refrigerators on the market.
-
Multi-Point LED Theater Lighting
Minimizes shadows and evenly distributes light throughout the refrigerator, crisper and freezer.
- 90°/110° Door Stop Position
Limits the opening angle of a refrigerator to either 90° or 110°.
- Soft, Auto-Close Crisper Drawers
Provide smooth operation by rolling open even when fully loaded, and feature an innovative auto-close design that pulls the drawer closed.
- Electronic Controls with LED Display
Allow independent control of refrigerator and freezer temperatures with an integrated design that is easy-to-clean and responds to touch for easy operation.
(On Some Models)
The water filter indicator, located on the control panel, will help you know when to change the water filter.
A replacement water filter should be ordered when "Order Filter" is displayed. It is recommended that you replace the filter when "Replace Filter" is displayed or when water flow to your water dispenser and/or ice maker decreases noticeably. Refer "Changing the Water Filter" later in this section.
After changing the water filter, press and hold FILTER RESET for 3 seconds until the "Order Filter" or "Replace Filter" indicator light disappears.
9. Water Filter Indicator
INTRODUCTION
7 | INTRODUCTION
USING THE CONTROLS
IMPORTANT:
■The Fridge control adjusts the temperature in the refrigerator compartment. The Freezer control adjusts the temperature in the freezer compartment.
■Wait 24 hours after you turn on the refrigerator before you put food into it. If you add food before the refrigerator has cooled completely, your food may spoil.
NOTE: Adjusting the temperature controls to a lower (colder) setting will not cool the compartments any faster.
■If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls.
■The recommended settings should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.
■The actual temperature may differ from the display when a door is open for an extended period of time.

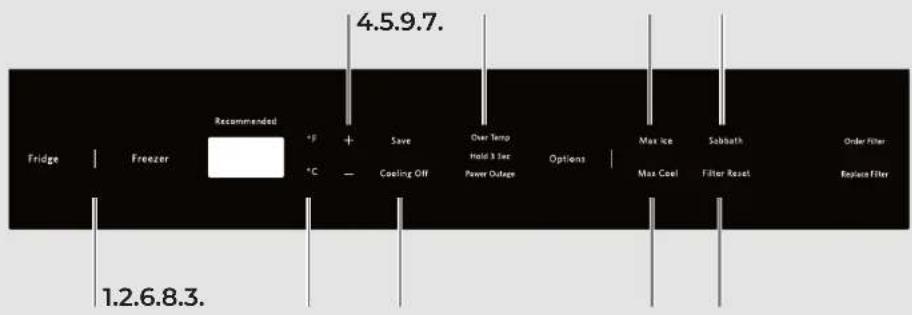

1. Turning On Cooling and Viewing Set Points
Press the FRIDGE or FREEZER touch pad.
NOTE:
■ The factory recommended set points are 0^ F ( -18^ C) for the freezer and 37^ F ( 3^ C) for the refrigerator
■ After the refrigerator is turned on, the Over Temperature audio alarm and indicator light may activate every 112 hours until the refrigerator and freezer temperatures are below 48^ ( 9^ ) and 15^ (- 9^ ), respectively, or until the alarm is turned off. To turn off the audio alarm and indicator light, refer "Alarm Reset."
INTRODUCTION | 7
INTRODUCTION
2. Turning Off Cooling
Press the FRIDGE or FREEZER touch pad.
NOTE:
■ Press and hold the COOLING OFF touch pad for 3 seconds.
■ To turn off the power completely, use the power ON/OFF switch located behind the top grille. Refer "Power On/Off Switch."
3. Viewing the Temperature in Degrees Celsius
Press °C touch pad. To redisplay degrees Fahrenheit, press °F touch pad.
NOTE: If the freezer temperature is below zero, the negative sign next to the freezer display will light up. This is normal.
4. Adjusting Controls
NOTE: Wait at least 24 hours between adjustments. Recheck the temperatures before other adjustments are made.
TO ADJUST SET POINT TEMPERATURES:
■Press the FRIDGE or FREEZER touch pad, and then press the Plus (+) or Minus (-) touch pad until the desired temperature is reached.
■Press the SAVE touch pad to program the desired temperature.
NOTE: The set point range for the freezer is -5^ F to 3^ F ( -21^ C to -16^ C). The set point range for the refrigerator is 34^ F to 42^ F ( 1^ C to 6^ C).
| CONDITION/REASON: | TEMPERATURE ADJUSTMENT: |
| REFRIGERATOR too coldNot set correctly for conditions | REFRIGERATOR Control 1 ^ higher |
| REFRIGERATOR too warmHigh use or room very warm | REFRIGERATOR Control 1 ^ lower |
| FREEZER too coldNot set correctly for conditions | FREEZER Control 1 ^ higher |
| FREEZER too warm/too little iceHigh use or heavy ice use | FREEZER Control 1 ^ lower |
5. Max Ice
The Max Ice feature speeds up the ice production rate to assist with periods of heavy ice usage.
■Press OPTIONS, and then press MAX ICE to turn on the Max Ice feature. Max Ice will remain activated for 24 hours unless manually turned off.
NOTE: The temperature display for the refrigerator and freezer compartments will remain at the user's set points, but the actual temperature of the freezer compartment will drop to -5^ F ( -21^ C), while the Max Ice feature is enabled. After 24 hours, the freezer will return to the previous temperature set point.
6. Max Cool
The Max Cool feature assists with full grocery loads, temporarily warm room temperatures, or during heavy door opening use.
■Press OPTIONS, and then press MAX COOL to turn on the Max Cool feature. Max Cool will remain activated for 24 hours unless manually turned off.
NOTE: The temperature display for the refrigerator compartment will remain at the user's set point, but the actual temperature of the Fridge compartment will drop to 34°F (1°C), while the Max Cool feature is enabled. After 24 hours, the refrigerator returns to the previous temperature set points.
7. Sabbath Mode
Sabbath mode is designed for the traveler or for those whose religious observances require turning off the lights and ice maker. By selecting this feature, the temperature set points remain unchanged, the ice maker will be disabled, the interior lights will turn off, and the audio tones are muted. For most efficient refrigerator operation, it is recommended to exit Sabbath mode when it is no longer required.
■Press the SABBATH touch pad to turn on Sabbath mode. This feature will remain on until Sabbath is pressed again.
NOTE: If the Max Cool or Max Ice feature has been selected prior to turning on Sabbath mode, Max Cool and Max Ice will be automatically canceled upon entering Sabbath mode.
8. Filter Reset
Refer "Water Filter Indicator" in the "Water Filtration System" section.
INTRODUCTION
9. Alarm Functions
ALARM RESET
Pressing any Home Screen touch pad (Fridge, Freezer or Options) will turn off the audio alarm and indicator light. The audio alarm will not sound again for the current condition that caused the alarm until a new condition occurs.
An Alarm Reset can be performed by pressing any Home Screen touch pad (Fridge, Freezer or Options), or by turning the power to the refrigerator off and on again. Refer "Power On/Off Switch." After performing an Alarm Reset, the indicator light will reactivate if the condition that caused the alarm is still present. Refer "Door Open," "Over Temperature" or "Power Outage."
DOOR OPEN
An alarm will sound when a door has been open for longer than 5 minutes. Closing the door or drawer, or pressing any Home Screen touch pad (Fridge, Freezer or Options) will reset the Door Open feature and turn off the audio alarm.
NOTE: If the door(s) or drawer are left open for 10 minutes the interior lights will go out. Closing the open door(s) or drawer will reset the lights.
OVER TEMPERATURE
IMPORTANT: If the Over Temperature Alarm activates, your food may spoil. Refer "Power Interruptions." Minimize door openings until temperatures return to normal.
The Over Temperature feature is designed to let you know when either the refrigerator temperature rises above 48^ F ( 9^ C) or the freezer temperature rises above 15^ F (- 9^ C) for longer than 112 hours. The audio alarm will shut off automatically when the temperature returns to normal, but the indicator light will continue to flash to let you know that an Over Temperature condition occurred until an Over Temperature reset has been performed. Press any Home Screen touch pad (Fridge, Freezer or Options) to turn off the indicator light.
If the over temperature condition is still present when an Over Temperature reset is performed, the indicator light will continue to reactivate every 112 hours until refrigerator and freezer temperatures are below 48^ ( 9^ ) and 15^ (- 9^ ), respectively.
POWER OUTAGE
When a power outage occurs, a Power Outage indicator light will be displayed. Press any Home Screen touch pad (Fridge, Freezer or Options) to turn off the indicator light. The power outage indicator light will not display when either Cooling Off or Sabbath Mode is active, but will appear after exiting Sabbath mode if a power outage occurred.
GETTING STARTED
REMOVE THE PACKAGING
Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
■Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, refer "Care and cleaning."
■Dispose of/recycle all packaging materials.
CLEAN BEFORE USING
After you remove all of the packaging materials, clean the inside of your refrigerator before using it. Refer the cleaning instructions in "Care and cleaning."
Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-sized pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.
WATER SUPPLY REQUIREMENTS
Read all directions before you begin.
IMPORTANT:
■When your refrigerator was installed, the water connection from the water source should have been connected to your refrigerator. If your refrigerator is not connected to a water source, refer "Connect to Water Line" in the Installation Instructions. If you have any questions about your water connection, refer "Troubleshooting" or call a licensed, qualified plumber.
■If you turn the refrigerator on before the water line is connected, turn the ice maker OFF. Refer "Ice Maker and Storage Bin."
■All installations must meet local plumbing code requirements.
■Connect to potable water supply only.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
WATER PRESSURE
A cold water supply with water pressure between 30 psi and 120 psi (207 kPa and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, refer "Troubleshooting" or call a licensed, qualified plumber.
NOTE: If the water pressure is less than what is required, the flow of water from the water dispenser could decrease or ice cubes could be hollow or irregular shaped. If you have questions about your water pressure, call a licensed, qualified plumber.
REVERSE OSMOSIS WATER SUPPLY
IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 psi and 120 psi (207 kPa and 827 kPa).
If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 psi (276 kPa).
If the water pressure to the reverse osmosis system is less than 40 psi (276 kPa):
■Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
■Allow the storage tank on the reverse osmosis system to refill after heavy usage.
■If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. Refer "Water Filtration System."
If you have questions about your water pressure, call a licensed, qualified plumber.
GETTING STARTED
SET UP ICE MAKER
Please read before using the water system.
IMPORTANT: Prepare the water filter for use before using the ice. After connecting the refrigerator to a water source or after replacing the water filter, fill and discard two full containers of ice.
- To turn on the ice maker, simply lower the wire shutoff arm. Refer "Ice Maker and Storage Bin" for further instructions on the operation of your ice maker.
NOTE: Allow 24 hours to produce the first batch of ice.
A. On/Off control
NOTE: If your model has a base grille filter system, make sure the base grille filter is installed so that the Eject button is out. Refer "Water Filtration System."
ICE MAKER AND STORAGE BIN
IMPORTANT: After connecting the refrigerator to a water source or replacing the water filter, fill and discard two full containers of ice to prepare the water filter for use, before using the ice.
- To turn on the ice maker, simply lower the wire shutoff arm.
NOTE: Your ice maker has an automatic shutoff. As ice is made, the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position. Do not force the wire shutoff arm up or down.
- To manually turn off the ice maker, lift the wire shutoff arm to the OFF (arm up) position and listen for the click.
A. On/Off control
INSTALL AIR FILTER
(ON SOME MODELS)
An air filter is 15 times more powerful than baking soda at reducing common food odors inside the refrigerator.
On some models, your refrigerator's accessory packet includes an air filter, which must be installed prior to use.
INSTALLING THE AIR FILTER
Install the air filter in the ceiling, along the back wall, of the refrigerator compartment.
- Remove the air filter from its packaging.
- Snap the filter into place.
GETTING STARTED
INSTALL PRODUCE PRESERVER
(ON SOME MODELS)
The produce preserver absorbs ethylene to slow the ripening process of many produce items. As a result, certain produce items will stay fresh longer.
Ethylene production and sensitivity varies depending on the type of fruit or vegetable. To preserve freshness, it is best to separate produce with sensitivity to ethylene from fruits that produce moderate to high amounts of ethylene.
| Sensitivity to Ethylene | Ethylene Production |
| Apples High Very High | |
| Asparagus Medium Very Low | |
| Berries Low Low | |
| Broccoli | High | Very Low |
| Cantaloupe Medium | High |
| Carrots Low | Very Low | |
| Citrus Fruit | Medium Very Low |
| Grapes Low | Very Low | |
| Lettuce | High | Very Low |
| Pears | High Very High |
| Spinach | High | Very Low |
INSTALLING THE PRODUCE PRESERVER
CAUTION: IRRITANT
MAY IRRITATE EYES AND SKIN.
DANGEROUS FUMES FORM WHEN MIXED
WITH OTHER PRODUCTS.
Do not mix with cleaning products containing ammonia, bleach or acids. Do not get in eyes, on skin or clothing. Do not breathe dust. Keep out of reach of children.
FIRST AID TREATMENT: Contains potassium permanganate. If swallowed, call a Poison Control Center or doctor immediately. Do not induce vomiting. If in eyes, rinse with water for 15 minutes. If on skin, rinse with water.
- Wash the interior of a crisper drawer with a solution of mild dish soap and warm water, and dry thoroughly.
- Find the package containing the Produce Preserver inside the refrigerator, and install the Produce Preserver into the crisper drawer according to the instructions provided in the package.
POWER ON/OFF SWITCH
If you need to turn the power to your refrigerator On or Off, you must remove the top grille panel to access the power switch. Turn the power to the refrigerator Off when cleaning your refrigerator or changing light bulbs.
A. Top grille
B. Cabinet sides
INTEGRATED INSTALLATION - FULL HEIGHT / ARMOIRE MACHINE COMPARTMENT COVER
To install the grille panel to the refrigerator:
- Slide the upper and lower slots in each bracket onto the mounting pins extending upward from the top of the refrigerator.
- Push the grille panel forward to fully engage the spring clips and fasten the grille panel.
GETTING STARTED
TO REMOVE THE GRILLE PANEL FROM THE REFRIGERATOR:
- Open the door(s).
- Place both hands under the grille panel, grasping the bottom edge between your fingers and thumbs.
- Pull the grille panel straight out until the grille stops. Then, lift up on the grille panel to remove.
POWER ON OR OFF SWITCH
- Remove the top grille panel.
- Press power switch to the On or Off position.
- Replace the top grille panel.
IMPORTANT: Be sure the power switch is set to the On position after cleaning refrigerator or changing light bulbs.
A. Power switch
REFRIGERATOR USE
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connection end.
LOCATION REQUIREMENTS
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
IMPORTANT: This appliance is intended to be used indoor for household and similar applications such as:
■Staff kitchen areas in shops, offices and other working environments.
■Farm houses and by clients in hotels, motels and other residential type environments.
■Bed and breakfast type environments.
■Catering and similar non-retail applications.
CARE AND CLEANING
CLEANING
WARNING
Explosion Hazard
Risk of Fire or Explosion.
Flammable Refrigerant Used.
Do Not Use Mechanical Devices to Defrost Refrigerator.
Do Not Puncture Refrigerant Tubing.
Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid buildup of odors. Wipe up spills immediately.
TO CLEAN YOUR REFRIGERATOR:
- Remove the top grille. Refer "Power On/Off Switch."
- Press the power switch to OFF.
- Remove all removable parts from inside, such as shelves, crispers, etc.
- Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.
■ Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools. These can scratch or damage materials.
■ To help remove odors, you can wash interior walls with a mixture of warm water and baking soda (2 tbs to 1 qt [26 g to 0.95 L] of water).
5. Clean the exterior surfaces.
Stainless steel panels: Wash stainless steel with a clean sponge or soft cloth and a mild detergent in warm water.
To keep your stainless steel refrigerator looking like new and to remove minor scuffs or marks, it is suggested that you use the manufacturer's approved Stainless Steel
IMPORTANT: This cleaner is for Stainless Steel parts only!
Do not allow the Stainless Steel Cleaner and Polish to come into contact with any plastic parts such as the trim pieces, dispenser covers or door gaskets. If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth. To order the cleaner, Refer "Accessories."
- Press the power switch to ON.
- Replace the top grille. Refer "Power On/Off Switch."
CARE AND CLEANING
POWER INTERRUPTIONS
If the power will be out for 24 hours or less, keep the door or doors closed (depending on your model) to help food stay cold and frozen.
If the power will be out for more than 24 hours, do one of the following:
■Remove all frozen food and store it in a frozen food locker.
■Place 2 lbs (907 g) of dry ice in the freezer for every cubic foot (28 L) of freezer space. This will keep the food frozen for 2 to 4 days.
■If neither a food locker nor dry ice is available, consume or can perishable food at once.
REMEMBER: A full freezer stays cold longer than a partially filled one. A freezer full of meat stays cold longer than a freezer full of baked goods. If you see that food contains ice crystals, it may be refrozen, although the quality and flavor may be affected. If the condition of the food is poor, dispose of it.
ICE STORAGE BIN CARE
NOTE: It is normal for ice to stick together in the ice bin. It is recommended that the ice bin be emptied and cleaned as needed.
TO CLEAN THE ICE STORAGE BIN:
- Slide the ice bin out of the freezer and lift up and out.
- Empty the ice bin. Use warm water to melt the ice if necessary.
NOTE: Do not use anything sharp to break up the ice in the bin. This can cause damage to the ice bin and the dispenser mechanism.
- Wash ice bin with warm water and a mild detergent, rinse well and dry thoroughly. Do not use harsh or abrasive cleaners or solvents.
REMEMBER:
■Allow 24 hours to produce the first batch of ice.
■It may take 3 to 4 days for the ice bin to completely fill, if no ice is used.
■The quality of your ice will be only as good as the quality of the water supplied to your ice maker.
■Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.
■It is normal for the ice cubes to be attached at the corners. They will break apart easily.
■Do not store anything inside the ice bin.
REPLACING THE AIR FILTER
The disposable air filter should be replaced every 6 months.
To order a replacement air filter, contact us. Refer "Accessories" for information on ordering.
- Remove the used air filter by squeezing in on the side tabs.
- Install the new air filter by snapping it into place.
REPLACING THE PRODUCE PRESERVER
The disposable packets should be replaced every 6 months or when the status indicator changes completely from white to red.
To order replacements, contact us. Refer "Accessories" for information on ordering.
- Remove the used packets from the produce preserver housing.
- Remove the used status indicator.
- Install the replacement packets and status indicator using the instructions included in the package.
CARE AND CLEANING
CHANGING THE WATER FILTER
The water filter is located in the base grille below the freezer compartment door. It is not necessary to remove the base grille to remove the filter.
- Remove the filter by pressing the eject button and pulling straight out on the filter cap.
NOTES:
■ Avoid twisting the cap when removing the filter because this could cause the cap to come off. If this occurs, replace the cap and pull the filter straight out.
■ There will be water in the filter. Some spilling may occur.
A. Eject button
B. Filter cap
- Remove the cap by turning it counterclockwise until it stops.
IMPORTANT: Do not discard the cap. It is part of your refrigerator. Keep the cap to use with the replacement filter.
- Align the ridge on the cap with the arrow on the new filter and turn the cap until it snaps into place.
A. Cover
B. O-rings
- Remove the covers from the O-rings. Be sure the O-rings are still in place after the covers are removed.
- Place the cap (removed in Step 2) on the new filter. Align the ridge on the cap with the arrow on the filter. Turn the cap clockwise until it snaps into place.
A. Eject button
B. Arrow on filter
C. Ridge on cap
- Push the new filter into the opening in the base grille. As the filter is inserted, the eject button will depress. The eject button will pop back out when the filter is fully engaged.
-
Pull gently on the cap to check that the filter is securely in place.
-
Flush the water system. Depending on your model, refer "Water and Ice Dispensers" or "Ice Maker and Storage Bin."
VACATION CARE
- Remove all food from the refrigerator.
- If your refrigerator has an automatic ice maker:
■ Turn off the water supply to the ice maker at least one day ahead of time.
■ When the last load of ice drops, slide the ice maker control to the OFF (down) position.
- Under the Fridge or Freezer menu, press and hold COOLING OFF for 3 seconds to turn off cooling.
NOTE: To turn off the power completely, use the power ON/OFF switch located behind the top grille. Refer "Power On/Off Switch."
- Clean refrigerator, wipe it, and dry well.
- Tape rubber or wood blocks to the tops of all doors to prop them open far enough for air to get in. This stops odor and mold from building up.
CARE AND CLEANING
REFRIGERATOR SHELVES
Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-sized pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.
The shelves in your refrigerator are adjustable to meet your individual storage needs.
Storing similar food items together in your refrigerator and adjusting the shelves to fit different heights of items will make finding the exact item you want easier. It will also reduce the amount of time the refrigerator door is open, and save energy.
SHELVES AND SHELF FRAMES
To remove and replace the shelf/frame:
- Remove the shelf by tilting it up at the front and lifting it out of the shelf supports. Pull shelf straight out.
- Reposition the shelf supports in the desired location. Check that they are level and firmly inserted in the support rails.
-
Place the back of the shelf in the shelf supports.
-
Lower the front of the shelf and make sure that it is in position.
MEAT STORAGE GUIDE
Store most meat in original wrapping as long as it is airtight and moisture-proof. Re-wrap if necessary. See the following chart for storage times. When storing meat longer than the times given, freeze the meat.
Fresh fish or shellfish .... use same day as purchased
Chicken, ground beef, variety meat (liver, etc.).... 1-2 days
Cold cuts, steaks/roasts 3-5 days
Cured meats 7-10 days
Leftovers - Cover leftovers with plastic wrap, aluminum foil, or plastic containers with tight lids.
DELI/CRISPER DRAWERS
TO REMOVE AND REPLACE THE DELI/ CRISPER DRAWERS:
- Slide the deli/crisper drawer straight out to the stop. Lift the front of the drawer with one hand while supporting the bottom with the other hand. Slide the drawer out the rest of the way.
- To replace the deli/crisper drawer, pull out the drawer slides until they are fully extended and set the drawer on the slides. Push the drawer in toward the back until it is in closed position.
- Reopen the deli/crisper drawer to make sure it has been replaced properly.
WINE RACK
TO REMOVE AND REPLACE THE WINE RACK:
-
Remove the rack by pulling it straight out from the shelf.
-
Replace the rack by sliding it in between the shelf and the wall of the refrigerator.
FREEZER DRAWER AND PULL-OUT ICE BIN
The freezer drawer can be used to store smaller items. The freezer drawer is not removable.
TO REMOVE AND REPLACE THE ICE BIN:
- Slide the ice bin out of the freezer and lift up and out.
A. Ice bin
B. Freezer drawer
-
To replace the ice bin, pull out the drawer slides until they are fully extended and set ice bin on the slides. Push the ice bin in toward the back until it is in closed position.
-
Reopen the ice bin to make sure it has been replaced properly.
CARE AND CLEANING
DOOR BINS
FROZEN FOOD STORAGE GUIDE
Storage times will vary according to the quality and type of food, the type of packaging or wrap used (should be airtight and moisture-proof), and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.
Put no more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs of food per cubic foot [907-1,350 g per 28 L] of freezer space). Leave enough space in the freezer for air to circulate around packages. Be sure to leave enough room for the door to close tightly.
For more information on preparing food for freezing, check a freezer guide or reliable cookbook.
Large door bins hold gallon containers and the smaller door bins hold 2-liter bottles. The door bins are adjustable and removable for easy cleaning and adjusting.
GALLON DOOR BIN
NOTE: The gallon door bin can only be placed on the lower door support.
-
Position gallon door bin above lowest door adjustment slot.
-
Push down to secure bin.
-
Adjust other bins, as necessary, to allow for milk or beverage container height.
DOOR BINS
To remove and replace the door bins:
-
Remove the bin by lifting it up and pulling it out.
-
Replace the bin by sliding it in above the desired support and pushing it down until it stops.
TROUBLESHOOTING
NOTE: Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
■Power cord unplugged? Plug into a grounded 3 prong outlet.
■Is outlet working? Plug in a lamp to see if the outlet is working.
■Household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.
■Are controls on? Make sure the refrigerator controls are on. Refer "Using the Controls."
■Is refrigerator defrosting? Your refrigerator will regularly run an automatic defrost cycle. Recheck in 30 minutes to see if it is operating.
■New installation? Allow 24 hours following installation for the refrigerator to cool completely.
NOTE: Adjusting the temperature controls to the coldest setting will not cool either compartment more quickly.
THE MOTOR SEEMS TO RUN TOO MUCH
Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open. If there is a "whooshing" sound, check the following:
THE REFRIGERATOR IS NOISY
Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with an explanation.
■Buzzing - heard when the water valve opens to fill the ice maker
■Pulsating - fans/compressor adjusting to optimize performance
■Rattling - flow of refrigerant, water line, or from items placed on top of the refrigerator
■Sizzling/Gurgling - water dripping on the heater during defrost cycle
■Popping - contraction/expansion of inside walls, especially during initial cool-down
■Water running - may be heard when ice melts during the defrost cycle and runs into the drain pan
■Creaking/Cracking - occurs as ice is being ejected from the ice maker mold
THERE IS NO AUDIBLE DOOR OPEN ALARM
Has the door been open less than 5 minutes? The door open alarm will only flash when the door has been open for 5 minutes. The audible alarm will sound the first time the door is left open for more than 5 minutes. Subsequent door open alarms will only flash. You must reset the audible alarm each time. Refer "Using the Control(s)."
THE DOORS WILL NOT CLOSE COMPLETELY
■Door blocked open? Move food packages away from door.
■Bin or shelf in the way? Push bin or shelf back in the correct position.
THE DOORS ARE DIFFICULT TO OPEN
WARNING
Explosion Hazard
Use nonflammable cleaner.
Failure to do so can result in death, explosion, or fire.
■Are the gaskets dirty or sticky? Clean gaskets with mild soap and warm water.
THE LIGHTS DO NOT WORK
■Is the refrigerator in Sabbath mode?
Refer "Using the Controls."
■Has the door been open more than 10 minutes?
Refer "Using the Controls."
TROUBLESHOOTING
TEMPERATURE AND MOISTURE
TEMPERATURE IS TOO WARM
■New installation? Allow 24 hours following installation for the refrigerator to cool completely.
■Door(s) opened often or left open? Allows warm air to enter refrigerator. Minimize door openings and keep doors fully closed.
■Large load of food added? Allow several hours for refrigerator to return to normal temperature.
■Controls set correctly for the surrounding conditions? Adjust the controls to a colder setting. Check temperature in 24 hours. Refer "Using the Controls."
■Refrigerator not cooling? For models with digital controls, turn the refrigerator OFF and then ON to reset. If this does not correct the problem, call for service.
■Air vents blocked? Remove any item from in front of the air vents.
NOTE: Some moisture buildup is normal.
■Humid room? Contributes to moisture buildup.
■Door(s) opened often or left open? Allows humid air to enter refrigerator. Minimize door openings and keep doors fully closed.
THERE IS INTERIOR MOISTURE BUILDUP
ICE AND WATER
THE ICE MAKER IS NOT PRODUCING ICE OR NOT ENOUGH ICE
■Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.
■Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line.
■Ice maker turned on? Make sure wire shutoff arm or switch (depending on model) is in the ON position.
■New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production.
■Large amount of ice recently removed? Allow 24 hours for ice maker to produce more ice.
■Ice cube jammed in the ice maker ejector arm? Remove ice from the ejector arm with a plastic utensil.
■Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. Refer "Water Supply Requirements" in either the Installation Instruction booklet or the Use & Care Guide.
THE ICE CUBES ARE HOLLOW OR SMALL
NOTE: This is an indication of low water pressure.
■Water shutoff valve not fully open? Turn the water shutoff valve fully open.
■Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line.
■Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure. Refer "Water Supply Requirements."
■Questions remain regarding water pressure? Call a licensed, qualified plumber.
ICE IS STICKING TOGETHER IN THE ICE STORAGE BIN
■It is normal for frost to be on top of the ice storage bin due to normal opening and closing of the freezer.
It is normal for ice to stick together when it is not dispensed or used frequently. It is recommended that the ice storage bin be emptied and cleaned as needed. Refer "Ice Maker and Storage Bin."
OFF-TASTE, ODOR OR GRAY COLOR IN THE ICE
■New plumbing connections? New plumbing connections can cause discolored or off-flavored ice.
■Ice stored too long? Discard ice. Wash ice bin. Allow 24 hours for ice maker to make new ice.
■Odor transfer from food? Use airtight, moisture-proof packaging to store food.
■Are there minerals (such as sulfur) in the water? A water filter may need to be installed to remove the minerals.
■Is there a water filter installed on the refrigerator? Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing.
LIGHTS
The lights in both the refrigerator and freezer compartments are LEDs which do not need to be replaced. If the lights do not illuminate when the door or drawer is opened, call for assistance or service. In the U.S.A., call 1-800-422-1230. In Canada call 1800-536-6247.
ASSISTANCE
IF YOU NEED SERVICE
For additional information regarding warranty, installation, registration or the overall care of your appliance, visit the US or Canada websites listed as follows.
IF YOU NEED REPLACEMENT PARTS
If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new JennAir® appliance.
To locate factory specified parts in your area, call us or your nearest designated service center.
IN THE U.S.A.
Call the JennAir Customer eXperience Center toll free 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.com.
OUR CONSULTANTS PROVIDE ASSISTANCE WITH:
■Features and specifications on our full line of appliances.
■Referrals to local JennAir® brand dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
If you need further assistance, you can write to JennAir with any questions or concerns at:
JennAir Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
IN CANADA
Call the JennAir Canada LP Customer eXperience Centre toll free 1-800-JENNAIR
(1-800-536-6247), or visit our website at www.jennair.ca.
OUR CONSULTANTS PROVIDE ASSISTANCE WITH:
■Scheduling of service. JennAir® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.
■Features and specifications on our full line of appliances.
■Referrals to local JennAir® brand dealers.
■Use and maintenance procedures.
■Accessory and repair parts sales.
If you need further assistance, you can write to JennAir Canada with any questions or concerns at:
JennAir Appliances
Customer eXperience Centre
200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.
ACCESSORIES
To order accessories, call 1-800-442-9991 and ask for the appropriate part number listed below or contact your authorized JennAir dealer. In Canada, call 1-800-807-6777.
Affresh ^® Stainless Steel Cleaner:
In U.S.A., order Part #W10355016
In Canada, order Part #W10355016B
Affresh ^® Stainless Steel Wipes:
In U.S.A., order Part #W10355049
In Canada, order Part #W10355049B
Affresh ^® Kitchen & Appliance Cleaner:
In U.S.A., order Part #W10355010
In Canada, order Part #W10355010B
Replacement Water Filter:
For U.S.A and CANADA Part #EDR3RXD1
Air Filter:
Refrigerator Air Filter: W10311524
SHEET
WATER FILTRATION SYSTEM
MODEL EDR3RXD1B/P1WB2 CAPACITY 200 GALLONS (757 LITERS) WITH PID; 100 GALLONS (378 LITERS) WITHOUT PID REPLACEMENT FILTER EDR3RXD1, EDR3RXD1B, AND KAD3RXD1
System tested and certified by NSF International against NSF/ANSI Standard 42, 53, 401 and CSA B483.1 for the reduction of contaminants specified on the Performance Data Sheet.
This system has been tested according to NSF/ANSI Standards 42, 53, 401 and CSA B483.1 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42, 53, 401 and CSA B483.1.
Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.89 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).
| Substance Reduction Aesthetic Effects | Influent Challenge Concentration | Maximum Permissible Product Water Concentration | Average % Reduction |
| Chlorine Taste/Odor Particulate Class I* | 2.0 mg/L ± 10% At least 10,000 particles/mL | 50% reduction 85% reduction | >97.5% 99.2% |
| Contaminant Reduction | Influent Challenge Concentration | Maximum Permissible Product Water Concentration | Average % Reduction |
| Lead: @ pH 6.5 / @ pH 8.5 0.150 mg/L ± 10% | 0.010 mg/L >99.3% / >99.3% | | |
| Mercury: @ pH 6.5 / @ pH 8.5 0.006 mg/L ± | 10% 0.0002 mg/L >96.4% / 90.8% | | |
| Asbestos 10 | ^7 to 10^8 fibers/L+ | 99% 99% | |
| Cysts† | 50,000/L min. 99.95% >99.99% | | |
| Turbidity | 11 NTU ± 10% | 0.5 NTU | >99.1% |
| Alachlor | 0.040 mg/L ± 10% | 0.002 mg/L | 97.6% |
| Atrazine | 0.009 mg/L ± 10% 0.003 mg/L | 94.50% | |
| Benzene | 0.015 mg/L ± 10% | 0.005 mg/L | 96.6% |
| Carbofuran | 0.080 mg/L ± 10% | 0.040 mg/L | 91.1% |
| Chlorobenzene | 2.000 mg/L ± 10% | 0.100 mg/L 99% | |
| Endrin | 0.006 mg/L ± 10% | 0.002 mg/L | 96.6% |
| Ethylbenzene | 2.100 mg/L ± 10% 0.700 mg/L | 99.9% | |
| Lindane | 0.002 mg/L ± 10% | 0.0002 mg/L 99% | |
| MTBE | 0.015 mg/L ± 10% | 0.005 mg/L | 90.6% |
| O-Dichlorobenzene | 1.800 mg/L ± 10% | 0.600 mg/L | 99.9% |
| Tetrachloroethylene | 0.015 mg/L ± 10% | 0.005 mg/L | 96.4% |
| Toxaphene | 0.015 mg/L ± 10% 0.003 mg/L | >93.7% | |
| TTHM | 0.045 mg/L ± 10% | 0.080 mg/L | 99.5% |
| Styrene | 2.000 mg/L ± 10% | 0.100 mg/L 99.9% | |
| VOC | 0.300 mg/L ± 10% | 0.015 mg/L | 99.7% |
| Contaminant Reduction | Influent Challenge Concentration | Maximum Permissible Product Water Concentration | Average % Reduction |
| Atcnolol 200 ± 20% 30 ng/L 95.7% | | | |
| Trimethoprim 140 ng/L ± 20% 20 ng/L 96.1% | | | |
| Linuron 140 ng/L ± 20% 20 ng/L 96.3% | | | |
| Estrone 140 ng/L ± 20% 20 ng/L 90.6% | | | |
| Nonylphenol 1400 ng/L ± 20% 200 ng/L 93.7% | | | |
| Meprobamate 400 ng/L ± 20% | 60 ng/L | 94.9% | |
| Carbamazepine | 1400 ng/L ± 20% | 200 ng/L | 98.6% |
| DEET | 1400 ng/L ± 20% 200 ng/L 98.6% | | |
| Metolachlor | 1400 ng/L ± 20% | 200 ng/L | 98.6% |
| TCEP | 5000 ng/L ± 20% | 700 ng/L 98.1% | |
| TCPP | 5000 ng/L ± 20% | 700 ng/L | 98.2% |
| Phenytoin | 200 ng/L ± 20% | 30 ng/L | 94.5% |
| Ibuprofen | 400 ng/L ± 20% | 60 ng/L | 95.6% |
| Naproxen | 140 ng/L ± 20% 20 ng/L 96.9% | | |
| Bisphenol A | 2000 ng/L ± 20% | 300 ng/L 99.1% | |
Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.89 Lpm). Pressure = 60 psig (413.7 kPa). Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).
For installation, operation, and maintenance instructions please refer to the Owners Manual.
It is important that operational, maintenance, and filter replacement requirements be carried out for the product to perform as advertised. Property damage can occur if all instructions are not followed.
■The disposable cartridge must be changed at least every 6 months.
■Use replacement filter part #EDR3RXD1/ EDR3RXD1B.
The filter monitor system measures the amount of water that passes through the filter and alerts you when it is time to replace the filter. To learn how to check the water filter status, see "Using the Controls" or "Water Filtration System" in the User Instructions or User Guide.
■ After changing the water filter, flush the water system. See "Water and Ice Dispensers" or "Water Dispenser" in the User Instructions or User Guide.
These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary.
For installation, operation and maintenance instructions please refer Owner's Manual.
■The product is for cold water use only.
The water system must be installed in compliance with state and local laws and regulations.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. EPA Est. No. 082047-TWN-001.
■ Refer to the "Warranty" section (in the User Instructions or User Guide) for the Manufacturer's limited warranty, name and telephone number.
Application Guidelines/Water Supply Parameters
Water Supply Potable City or Well
Water Pressure 30 psi-120 psi (207 kPa - 827 kPa)
Water Temperature 33°F-100°F (0.6°C - 37.8°C)
Service Flow Rate 0.5 gpm (1.89 L/min) @ 60 psi (413.7 kPa)
*Class II particle size: >0.5 to 1 μm
Based on the use of Cryptosporidium parvum occysts
Fibers greater than 10 um in length
NSF is a registered trademark of NSF International.
INTRODUCTION
SÉCURITÉ
CARACTÉRISTIQUES DU PRODUIT
DÉPANNAGE
Customer eXperience Centre
200 - 6750 Century Ave.

