USER MANUAL SLR16 Dörr
LED SELFIE RINGLICHT
DE Bedienungsanleitung LED SELFIE RINGLICHT
GB Instruction Manual LED SELFIE RING LIGHT
FR Notice d'utilisation
ÉCLAIRAGE ANNULAIRE LED SELFIE
ES Manual de instrucciones ANILLO DE LUZ LED SELFIE
IT
Manuale di istruzioni
ANELLO LUCE LED PER SELFIE
09.2 ROHS KONFORMITÄT

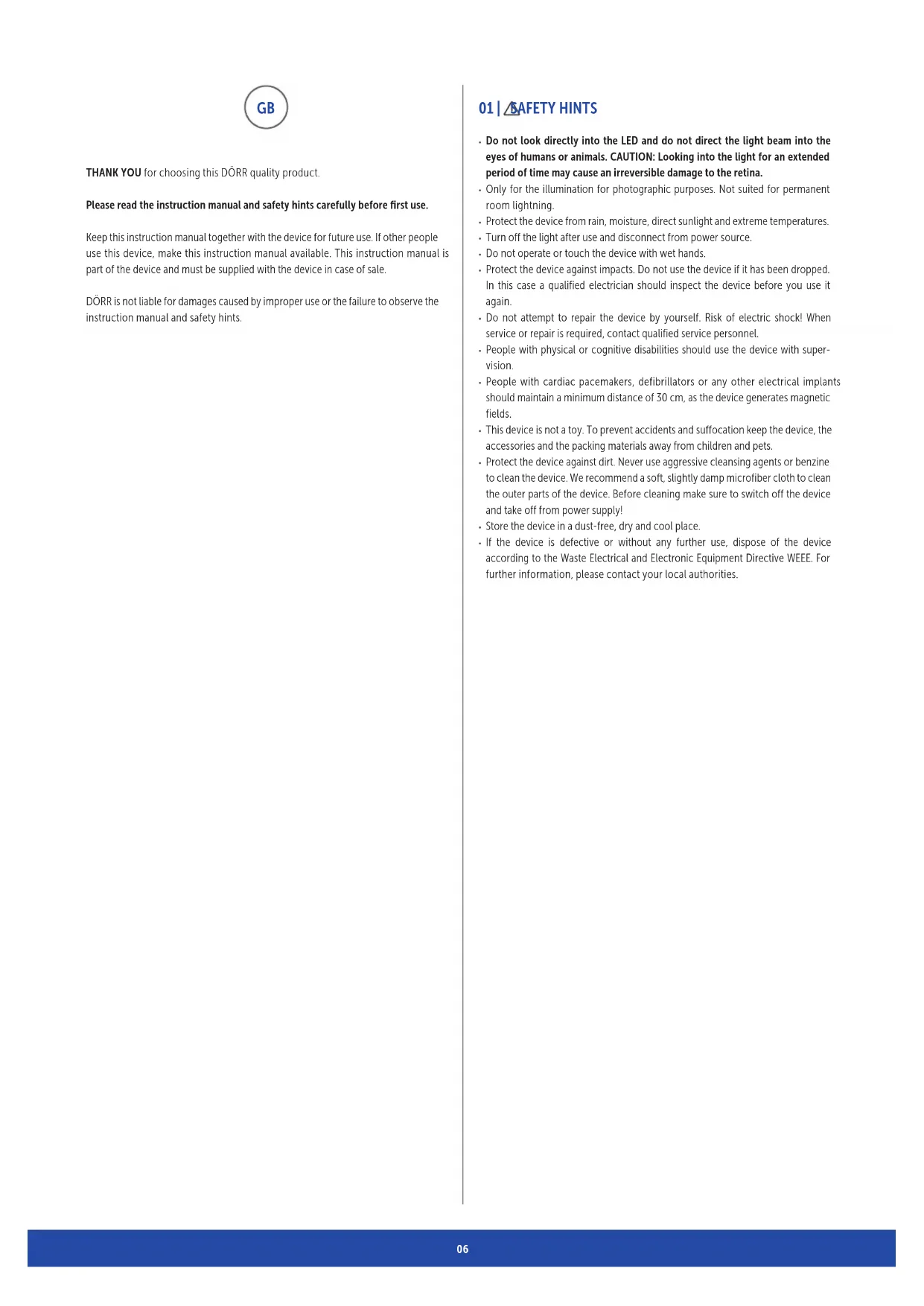

THANK YOU for choosing this DÖRR quality product.
Please read the instruction manual and safety hints carefully before first use.
Keep this instruction manual together with the device for future use. If other people use this device, make this instruction manual available. This instruction manual is part of the device and must be supplied with the device in case of sale.
DÖRR is not liable for damages caused by improper use or the failure to observe the instruction manual and safety hints.
01 | SAFETY HINTS
- Do not look directly into the LED and do not direct the light beam into the eyes of humans or animals. CAUTION: Looking into the light for an extended period of time may cause an irreversible damage to the retina.
- Only for the illumination for photographic purposes. Not suited for permanent room lightning.
- Protect the device from rain, moisture, direct sunlight and extreme temperatures.
- Turn off the light after use and disconnect from power source.
- Do not operate or touch the device with wet hands.
- Protect the device against impacts. Do not use the device if it has been dropped. In this case a qualified electrician should inspect the device before you use it again.
- Do not attempt to repair the device by yourself. Risk of electric shock! When service or repair is required, contact qualified service personnel.
- People with physical or cognitive disabilities should use the device with supervision.
- People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 30 cm, as the device generates magnetic fields.
- This device is not a toy. To prevent accidents and suffocation keep the device, the accessories and the packing materials away from children and pets.
- Protect the device against dirt. Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Before cleaning make sure to switch off the device and take off from power supply!
- Store the device in a dust-free, dry and cool place.
- If the device is defective or without any further use, dispose of the device according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.
02 | PRODUCT DESCRIPTION
- Versatile LED selfie ring light for video tutorials, self-portraits, beauty videos etc.
- The soft light reduces skin imperfections and creates a natural, circle reflection in the eye
- 3 light modes: cold light, mixed light, warm light
- Dimmable in 10 steps
• Including variable smartphone holder and table clamp
03 | NOMENCLATURE
1 USB A plug
2 USB cable
3 Control unit
3a) On/Off button
3b) Button -
3c) Button colour temperature
3d) Button +
4 Table clamp
5 Gooseneck
5a) 14 screw thread
6 Smartphone holder
6a) 14 " screw mount
7 Selfie ring light
04 | MOUNTING
Fix the table clamp (4) to a table or similar object (maximum opening of table clamp approx. 5,5 cm). Connect the USB plug (1) to a PC/Notebook.
Alternatively connect the selfie ring light with a powerbank (optional) or an USB mains adapter (optional) to run over AC.
Widen the smartphone holder (6) and place your smartphone in it and gently secure it in the smartphone holder (6).
You may unscrew the smartphone holder (6) counter clockwise to use the 1/4" screw thread (5a) with other devices such as e.g. digital cameras, microphones or similar accessory.
Use the flexible goosenecks (5) for perfectly setting position of light angle and smartphone.
05 | OPERATION
To turn on, use On/Off button (3a). Pre-setting is warm light with 100% brightness.
Press button - (3b) to reduce the brightness in 10 steps.
Press button + (3d) to increase the brightness in 10 steps.
Choose between the different colour temperatures, warm light (approx. 3200 K) – cold light (approx. 5600 K) and mixed light (approx. 4400 K) with button colour temperature (3c).
Turn off the ring light after use with button On/Off (3a) and disconnect from any USB power source.
06 | CLEANING AND STORAGE
Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Before cleaning make sure to switch off the device and take off from power supply! Store the device in a dust-free, dry and cool place. This device is not a toy – keep it out of reach of children. Keep away from pets.
07 | TECHNICAL SPECIFICATIONS
| SLR-16 | |
| Number of LEDs 64 (32x cold white, 32x warm white) | |
| Illumination power max. 280 Lux/1 m | |
| Colour temperature | Cold light: 5600 KMixed light: 4400 KWarm light: 3200 K(± 200 K) |
| Colour Rendering Index (CRI) | >80 Ra |
| LED Power | 7 - 14 W |
| Power supply | 5V 1A |
| Outer diameter | approx. 16 cm |
| Inner diameter | approx. 11 cm |
| For smartphone width | approx. 60 - 90 mm |
| Height max. | approx. 70 cm |
| Length USB cable | approx. 140 cm |
| Weight | approx. 560 g |
08 | SCOPE OF DELIVERY
1x Selfie ring light with table clamp, USB cable and control unit 1x Smartphone holder
09 | DISPOSAL, CE MARKING
09.1 WEEE INFORMATION
The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is a significant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.
09.2 ROHS CONFORMITY
This product is compliant with the European RoHS directive for the restriction of use of certain hazardous substances in electrical and electronic equipment and its amendments.
09.3 CE MARKING
The CE marking complies with the European standards and indicates that the product meets the requirements of the applicable EU directives.
