Kraken X63 - Computer cooling system NZXT - Free user manual and instructions

Product Type	All-in-one liquid cooling system
Brand	NZXT
Model	Kraken X63
Socket Compatibility	Intel LGA 1700/1200/115X/2011/2066, AMD AM4/TR4
Radiator	280 mm (compatible with 140 mm fans)
Fans	2 x 140 mm Aer P (pre-installed)
Pump	With customizable LCD screen, orientation adjustable by 90°
Power	SATA (pump), CPU_FAN or AIO_PUMP connector (fans)
Connectivity	Internal USB 2.0 (pump), RGB LED control via multi-pin cable
Control Software	NZXT CAM (download at nzxt.com/camapp)
Radiator Dimensions (approx.)	315 x 143 x 30 mm
Weight (approx.)	1.2 kg (with fans)
Main Features	High-performance CPU cooling, LCD screen for customized display, control via CAM
Maintenance	No maintenance required (sealed liquid)
Safety	Use the provided washers to avoid damage
Included Parts	Intel and AMD brackets, backplate, screws, standoffs, fans, cables
Warranty	2 years (manufacturer)

Frequently Asked Questions - Kraken X63 NZXT

How to install the Kraken X63 on an Intel LGA 1700 socket?

For LGA 1700 socket, move the four movable elements of the Intel backplate outward. Install the backplate on the back of the motherboard, then attach the socket 1700 standoffs on the front side before mounting the pump with thumbscrews.

How to orient the pump LCD screen?

The screen orientation can be adjusted in 90° increments via NZXT CAM software. It is also possible to rotate the pump tubes according to your motherboard layout.

How to connect the fans?

Connect the fan cable to the first 4-pin connector of the multi-pin cable. Then, connect the 3-pin connector of the multi-pin cable to the CPU_FAN or AIO_PUMP connector on the motherboard.

Where to download NZXT CAM software?

You can download NZXT CAM from the official website: nzxt.com/camapp. It allows you to control the pump, fans, LCD screen, and RGB lighting.

What to do if the pump does not turn on?

Check the connections: SATA power cable, internal USB 2.0 cable, and AIO_PUMP connector. Make sure CAM software is installed and the pump is recognized. Contact [e-mail] if the problem persists.

Is the cooling liquid replaceable?

No, the liquid is sealed and requires no maintenance. The product is maintenance-free. Do not attempt to open the loop.

Is the Kraken X63 compatible with AMD AM5 sockets?

Yes, the Kraken X63 is compatible with the AMD AM5 socket using the included AMD AM4 brackets, as the mounting system is the same. Use the AMD AM4 standoffs.

How to connect additional RGB LED peripherals?

Connect your compatible NZXT RGB peripherals (sold separately) to the RGB LED connector on the multi-pin cable. Control is done via NZXT CAM.

What is the length of the pump tubes?

The tubes are approximately 400 mm long, allowing flexible installation in most cases.

How to clean the Kraken X63 radiator?

Use a soft cloth or compressed air to remove dust from the fins. Avoid liquids and harsh cleaners. Maintain good airflow.

USER MANUAL Kraken X63 NZXT

Technical line drawing of a two-sided next vent fan with a 32° liquid pressure regulator attached (no text or symbols on the fan or device)

KRAKEN Z SERIES

KIT DE REFROIDISSEMENT LIQUIDE AVEC AFFICHEUR LCD

TABLE DES MATIERES

VERSION 2.0

1. CONTENU 02

2. TÉLÉCHARGEMENT DE NZXT CAM 25

3. PRÉPARATION 05

4. ANNEXE A-1

5. INSTALLATION 13

1. CONTENU

KRAKEN Z SERIES

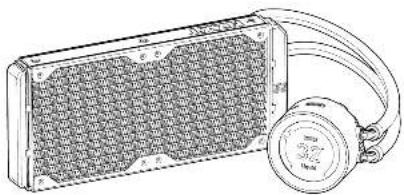

A. Kraken Z53 / Z63 / Z73

x1

Line drawing of a rectangular electronic device with a mesh grille and a pair of earphones (no text or symbols)

M. Câble multi-broches

×1

Technical line drawing of a mechanical device with rods and connectors (no text or symbols)

N. Câble micro-USB

x1

Symmetrical diagram with four petal-like shapes and directional arrows, no text or symbols present

SOCKET 1200/115X SOCKET 1700

Top-down diagram of a four-pole mechanical component with directional arrows, no text or symbols present

2.1 PRÉPARATION - INTEL LGA 1700&1200/115X

KRAKEN Z SERIES

STEP 2 - INSTALLATION DE LA BACKPLATE

Technical line drawing of a mechanical bracket assembly with mounting holes and a labeled section B (no text or symbols present)

2.1 PRÉPARATION - INTEL LGA 1700&1200/115X

KRAKEN Z SERIES

STEP 3 - INSTALLATION DES ENTRETOISE

Technical diagram of a mechanical assembly with two cylindrical components and directional arrows indicating movement or force (no text or symbols present)

2.3 PRÉPARATION - INTEL LGA AMD

KRAKEN Z SERIES

STEP 1 - PRÉPARATION DU SUPPORT DE RÉTENTION

Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols present)

2.3 PRÉPARATION - INTEL LGA AMD

KRAKEN Z SERIES

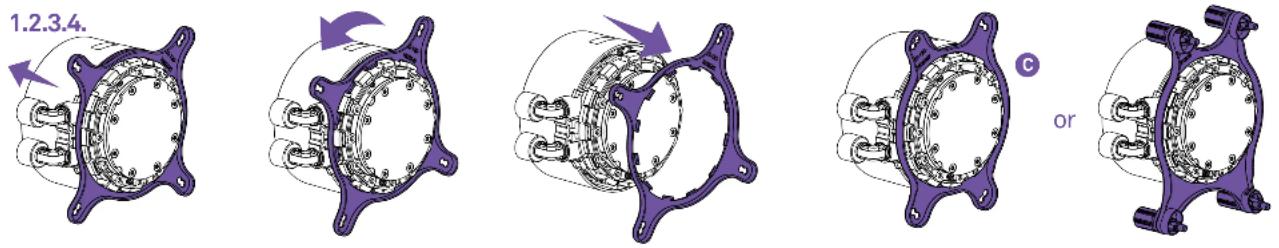

STEP 2 - INSTALLATION DES ENTRETOISES

STEP 3 - CHANGEMENT DU SUPPORT DE RÉTENTION

3.3 INSTALLATION DE LA POMPE - AMD TR4

KRAKEN Z SERIES

3.4 INSTALLATION DU RADIATEUR ET DES VENTILATEURS

KRAKEN Z SERIES

3.4 INSTALLATION DU RADIATEUR ET DES VENTILATEURS

KRAKEN Z SERIES

INSTALLATION INDIRECTE

3.5 MISE EN ROUTE DES VENTILATEURS

KRAKEN Z SERIES

3.6 BRANCHEMENT DU TACHYMÈTRE DE LA POMPE

KRAKEN Z SERIES

Technical line drawing of two electronic component packages (no text or symbols)

3.8 BRANCHEMENT DU CÂBLE USB

KRAKEN Z SERIES

Technical line drawing of a mechanical component with multiple connectors and a labeled connection point (no text or symbols present)

3.9 BRANCHEMENT DE PÉRIPHÉRIQUES LED RGB POUR CONTRÔLE DE L'ÉCLAIRAGE (OPTIONNEL)

KRAKEN Z SERIES

Technical line drawing of two connected electrical connectors (no text or symbols)

4. TÉLÉCHARGEMENT DE NZXT CAM

KRAKEN Z SERIES

NZXT CAM

Download and install NZXT CAM from nzxt.com/camapp.

Descargue e instale NZXT CAM en nzxt.com/camapp.

5.1 NZXT Global Warranty Policy....A-2

5.3 Regulatory Notices......A-11

5.2 Support and Service....A-8

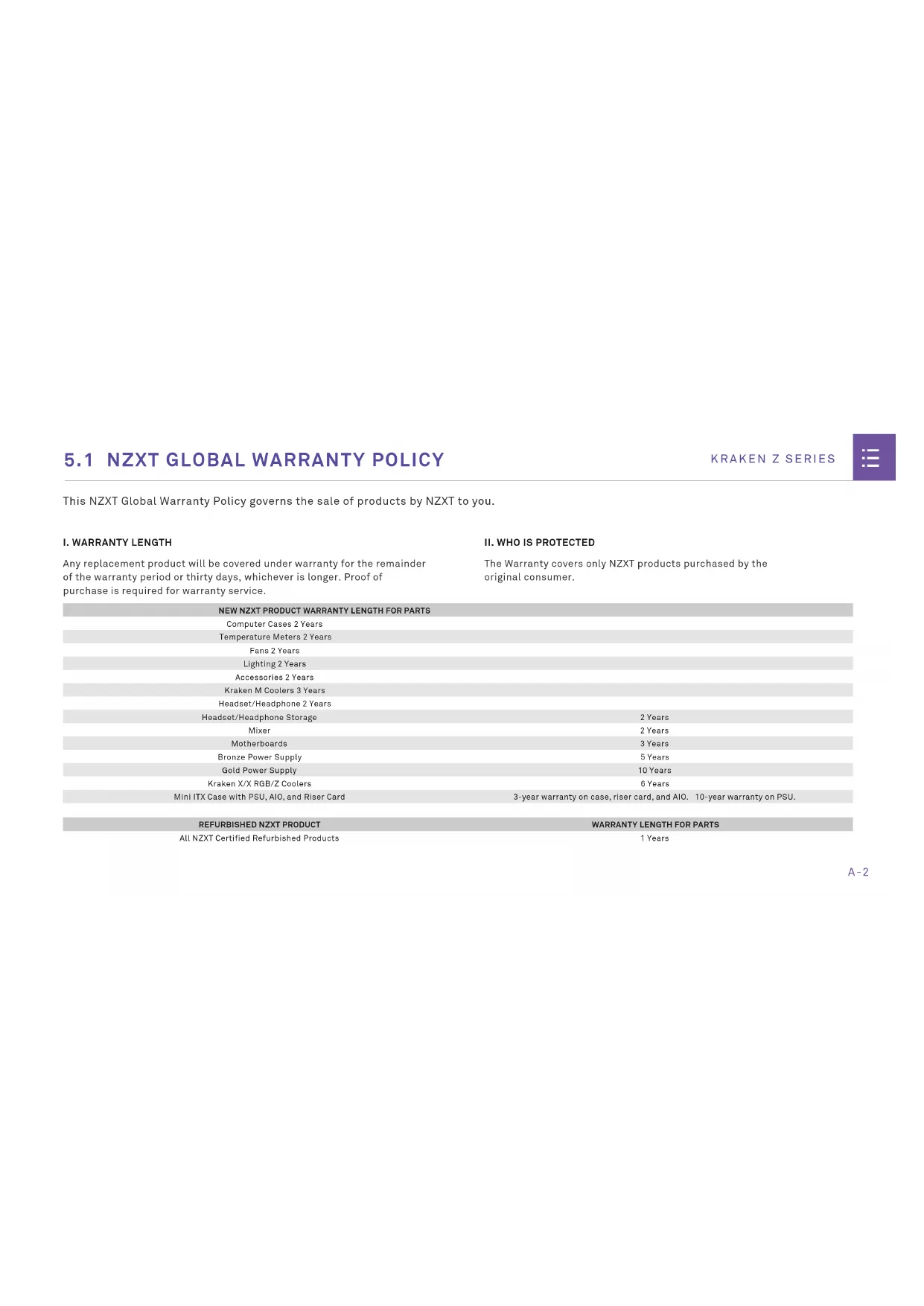

5.1 NZXT GLOBAL WARRANTY POLICY

KRAKEN Z SERIES

This NZXT Global Warranty Policy governs the sale of products by NZXT to you.

I. WARRANTY LENGTH

Any replacement product will be covered under warranty for the remainder of the warranty period or thirty days, whichever is longer. Proof of purchase is required for warranty service.

II. WHO IS PROTECTED

The Warranty covers only NZXT products purchased by the original consumer.

NEW NZXT PRODUCT WARRANTY LENGTH FOR PARTS
Computer Cases 2 Years
Temperature Meters 2 Years
Fans 2 Years
Lighting 2 Years
Accessories 2 Years
Kraken M Coolers 3 Years
Headset/Headphone 2 Years

Headset/Headphone Storage	2 Years
Mixer	2 Years
Motherboards	3 Years
Bronze Power Supply	5 Years
Gold Power Supply	10 Years
Kraken X/X RGB/Z Coolers	6 Years
X Case with PSU, AIO, and Riser Card	3-year warranty on case, riser card, and

REFURBISHED NZXT PRODUCT
All NZXT Certified Refurbished Products
WARRANTY LENGTH FOR PARTS
1 Years

III. WHAT IS AND IS NOT COVERED

Please note that our warranty is not an unconditional guarantee. If the product, in NZXT's reasonable opinion, malfunctions within the warranty period, NZXT will provide you at its sole discretion with a repaired or replacement product, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

Our warranty does not cover the following:

• any product or serial number/warranty sticker modification applied without permission from NZXT;
• any damage that is not a manufacturing defect;
• damage, deterioration or malfunction resulting from: accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification or failure to follow instructions included with the product;
• improper installation, unauthorized alterations or modifications, or repair or attempted repair by anyone not authorized by NZXT;
• shipping or transport damage (claims must be made with the carrier);
• normal wear and tear.

NZXT does not warrant that this product will meet your requirements. It is your responsibility to determine the suitability of this product for your purpose. For NZXT Store orders, we cover two way return shipping for all exchanges and returns. For all other authorized dealers, NZXT Support does not cover return shipping and only covers one way shipping from NZXT back to the end user for exchanges. Two way expedited shipping is provided for all PSUs covered under the Less Than Three program, indiscriminate of purchase location, provided the location is an approved NZXT reseller.

IV. EXCLUSION OF DAMAGES (DISCLAIMER)

NZXT's sole obligation and liability under this warranty is limited to the repair or replacement of a defective product with either a new or refurbished product with a similar function that is equal or greater in value at our option. NZXT shall not, in any event, be liable for any incidental or consequential damage, including but not limited to damages resulting from interruption of service and loss of data, business, or for liability in tort relating to this product or resulting from its use or possession.

V. LIMITATIONS OF IMPLIED WARRANTYEST

Here are no other warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.

VI. TO OBTAIN TECHNICAL SUPPORT

If you have already referenced your product owner's manual and still need help, you may contact us by phone at [phone], by email at [e-mail], or visit the NZXT Support site at nzxt.com/customer-support.

VII. HOW TO OBTAIN A WARRANTY SERVICE FROM NZXT

To receive a warranty service for your product when purchased directly from NZXT, you must submit a request via the NZXT Support site outlining the problem. If a technician deems the product defective or requiring testing, you will be required to provide a copy of your proof of purchase, which will enable you to submit a Return Merchandise Authorization "RMA" request.

Once approved, you'll receive an RMA number, upon which you will be asked to ship the defective item back to NZXT with the RMA number clearly marked or labelled on the package. NZXT recommends that appropriate measures are taken to safeguard the product from damage during shipping.

VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS

This warranty gives you specific legal rights. These conditions are governed and construed in accordance with the laws of California (with exception of its conflict of law provisions), and the application of the United Nations Convention of Contracts for the International Sale of Goods is expressly excluded. The non-exclusive jurisdiction of the courts of California is agreed, which means that you may bring a claim to enforce your consumer protection rights in connection with this Global Warranty in the country which you have your habitual residence where you may have additional rights. These rights may vary.

For original consumers who are covered by consumer protection laws or regulations in their country, state, or province of purchase or, if different, their country, state, or province of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such consumer protection laws and regulations. To the extent that liability under such consumer laws can be limited, NZXT's liability is limited, and its sole option, to repair or replacement, either new or refurbished, with a similar function that is equal or greater in value depending on supply.

In the United Kingdom:

• For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the following:

  Up to 30 days: if your goods are faulty, then you can get an immediate refund.
  Up to six months: if your goods can't be repaired or replaced, then you're entitled to a full refund, in most cases.
  Up to six years: if your goods do not last a reasonable length of time you may be entitled to some money back.

- If the person seeking to rely on the guarantee is not the original consumer, the NZXT Warranty will cover the product in relation to that person provided that they are able to provide proof of the transfer of the benefit of the guarantee from the original consumer.

- The implied warranties under the Consumer Rights Act 2015 says that your goods must be as described, fit for all purposes for which such goods are usually supplied, and of satisfactory quality.

In the EU:

- If you are a consumer and have your habitual residence in the EU, you additionally enjoy the protection afforded to you by provisions that cannot be derogated from by agreement by virtue of the law where you have your habitual residence.

IX. WARRANTY SERVICE FROM RESELLERS

In the event that a warranty service is sought, you must provide proof of purchase (store receipt or invoice) in order to receive the service and if deemed necessary, repair or replacement product.

In North America:

Within the first 60 days after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an RMA number.

In Europe:

Within the first year after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

In Australasia:

Within the first two years after purchase, please return your product (or for power supplies installed within our enclosures, just the failed power supply) to your dealer or reseller for a replacement. If the product is still within warranty and you can no longer return it to your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval.

The cost of shipping will be borne at the first instance by you; however, if the purchased item is defective, NZXT will reimburse reasonable postage or transportation of costs.

Outside North America, Europe, and Australasia:

If your product needs to be returned within the warranty period, please contact the retailer or distributor from whom you purchased the product.

X. NZXT.COM STORE RETURNS/EXCHANGE POLICY

Eligible products under this NZXT Warranty qualify for a full refund or exchange only with an authorized RMA number and if the item is returned to the NZXT.com store inventory within 30 days of purchase. Returns are not allowed beyond 30 days of the purchase date. The NZXT.com Store reserves the right to deny any return or exchange. Refunds will be credited to the original method of payment. To initiate a return, simply submit a request via NZXT support site.

NZXT, Inc./ 15736 E. Valley Blvd, City of Industry, CA 91744, USA NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany [phone] / [e-mail] / NZXT.com

Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service.
Visite el sitio Web nzxt.com/warranty y support.nzxt.com para obtener información sobre la cobertura y el servicio de la garantía.
Visitez nzxt.com/warranty et support.nzxt.com pour les informations de la couverture de la garantie et du service.
Informationen zu Geltungsbereich und Service der Garantie finden Sie unter support.nzxt.com und nzxt.com/warranty.
Visitare il sito nzxt.com/warranty e support.nzxt.com per informazioni sulla copertura e sul servizio della garanzia.
Visite nzxt.com/warranty e support.nzxt.com para obter informações sobre a cobertura da garantia e assistência.
Подробную информацию об условиях гарантийного обслуживания см. на веб-сайте nzxt.com/warranty и support.nzxt.com.
제품 보증 범위와 서비스 정보를 확인하시려면 nzxt.com/warranty 또는 support.nzxt.com을 방문해 주시기 바랍니다.
保証範囲およびサービスに関する情報については、support.nzxt.com と nzxt.com/warranty にアクセスしてください。
请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。
請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊息。

SUPPORT AND SERVICE

If you have any questions or problems with the NZXT product you purchased, please don't hesitate to contact us using our support system. support.nzxt.com

Please include a detailed explanation of your problem and your proof of purchase. For comments and suggestions, you can e-mail our design team, [e-mail]. Lastly we would like to thank you for your support by purchasing this product.
