1 Appliance at a glance.... 18

1.1 Description of appliance and equipment.... 18

1.2 Appliance range of use.... 18

1.3 Conformity.... 19

1.4 Saving energy.... 19

2 General safety information.... 19

3 Controls and displays.... 20

3.1 Operating and control elements.... 20

3.2 Temperature display.... 20

4 Putting into operation.... 20

4.1 Switching on the appliance.... 20

5 Control.... 20

5.1 Child proofing.... 20

5.2 Door alarm.... 21

5.3 Temperature alarm.... 21

5.4 Freezing food....21

5.5 Storage life.... 21

5.6 Thawing food 21

5.7 Setting the temperature.... 21

5.8 Fast-Freeze....22

5.9 Drawers....22

5.10 Shelves.... 22

5.11 VarioSpace.... 22

5.12 Extractor rails.... 22

5.13 Cold storage accumulators.... 22

6 Maintenance.... 23

6.1 Defrosting with NoFrost.... 23

6.2 Cleaning the appliance.... 23

6.3 Customer service.... 23

7 Malfunctions.... 23

8 Decommissioning.... 24

8.1 Switching off the appliance.... 24

8.2 Taking the appliance out of service.... 24

9 Disposing of the appliance.... 24

The manufacturer works constantly on the further development of all the types and models. Therefore please understand that we have to reserve the right to make design, equipment and technical modifications.

To get to know all the benefits of your new appliance, please read the information contained in these instructions carefully.

The instructions apply to several models. Differences may occur. Text relating only to specific appliances is marked with an asterisk (*).

Instructions for action are marked with a ▶ the results of action are marked with a ▷.

1 Appliance at a glance

1.1 Description of appliance and equipment

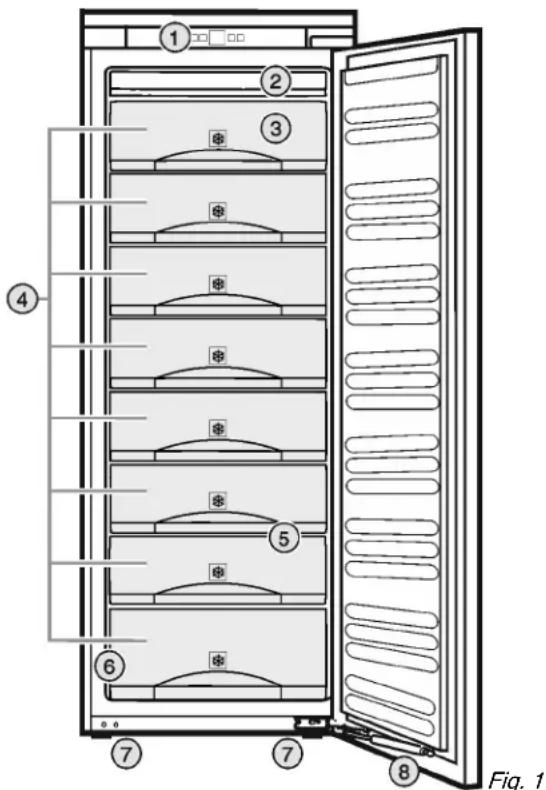

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Fig. 1

(1) Operating and control elements

(2) NoFrost device

(3) Cold storage accumulator

(4) Drawers

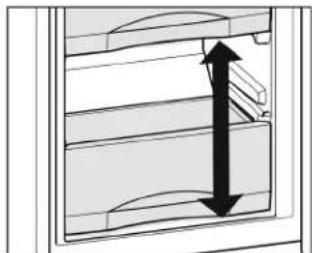

(5) VarioSpace

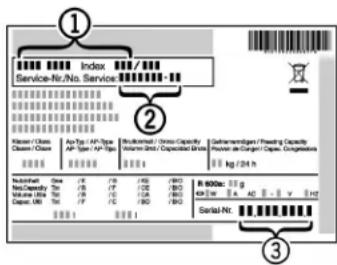

(6) Type plate

(7) Height-adjustable feet

(8) Soft closing fittings

Note

▶ Shelves, drawers and baskets are arranged for optimum energy efficiency on delivery.

1.2 Appliance range of use

Intended use

The appliance is only suitable for refrigerating food in a domestic or domestic-like environment. This includes, for example, using

• in staff kitchens, bed and breakfast establishments,
• by guests in country houses, hotels, motels and other accommodation,
• for catering and similar services in the wholesale trade.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly forbidden:

- Storing and refrigerating medicines, blood plasma, laboratory preparations or similar

substances and products based on the Medical Device Directive 2007/47/EC

- Use in areas at risk of explosions

Misusing the appliance may lead to damage to the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the appliance is designed to operate in restricted ambient temperatures. The climate classification applying to your appliance is printed on the rating plate.

Note

▶ Keep to the specified ambient temperatures in order to guarantee that the appliance works properly.

Climate classification	for ambient temperatures
SN, N to 32 °C
ST to 38 °C
T to 43 °C

The appliance will work properly down to a lower ambient temperature of 5^ C.

1.3 Conformity

The refrigerant circuit has been tested for leaks. In installed condition, this appliance complies with the applicable safety stipulations and with directives 2014/35/EU, 2014/30/EU, 2009/125/EG, 2011/65/EU and 2010/30/EU.

1.4 Saving energy

• Pay attention to good ventilation. Do not cover ventilation holes or grids.
• Always keep the fan air slits clear.
• Do not install the appliance in direct sunlight, next to an oven, radiator or similar.
• Energy consumption is dependent on the installation conditions, e.g. ambient temperature (see 1.2). If the ambient temperature deviates from the standard temperature of 25^ , the energy consumption may differ.
• Open the appliance for as short a time as possible.
• The lower the temperature is set the higher the energy consumption.
• Sort food before arranging (see Appliance at a glance).
• Store all food well packaged and covered. A build up of frost is avoided.
• Inserting hot food: let it cool to room temperature first.

2 General safety information

Danger for the user:

- This device can be used by children and people with impaired physical, sensory or mental abilities or with a lack of experience and knowledge provided that they are supervised or have received instruction in the safe use of this device, and about the resulting

hazards. Children must not play with this appliance. Cleaning and user maintenance work must not be carried out by children without adult supervision. Children aged between 3 and 8 are allowed to load and unload the appliance. Children below the age of 3 must be kept away from the appliance unless they are under continuous adult supervision.

• When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.
• In the event of a fault pull out the mains plug or deactivate the fuse.
• Do not damage the mains power cable. Do not operate the appliance with a defective mains power cable.
• Have any repairs to or intervention in the appliance, and any change of the mains power cable, carried out by the customer service only or by other specialised personnel trained for the purpose.
• Only install, connect and dispose of the appliance according to the instructions.
• Only use the appliance when it is installed.
• Please keep these instructions in a safe place and pass them on to any subsequent owners.

Fire hazard:

• The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.
• Do not damage the refrigerant circuit pipes.
• Do not allow naked flames or ignition sources to enter the appliance.
• Do not use any electrical appliances in the interior (e.g. steam cleaners, heaters, ice cream maker etc.).
• If refrigerant escapes: remove any naked flames or sources of ignition from the leakage area. Ventilate the room well. Notify the after-sales service.

- Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.

- Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components.

Danger of tipping and falling:

- Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.

Danger of food poisoning:

- Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

- Avoid lasting skin contact with cold surfaces or refrigerated/frozen food or take protective steps, e.g. wear gloves. Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Danger of injury and damage:

• Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment, open flames or defrosting sprays to defrost.
• Do not use sharp implements to remove the ice.

Danger of crushing:

- Do not hold the hinge when opening and closing the door. Fingers may get caught.

Symbols on the appliance:

The symbol can be located on the compressor. It refers to the oil in the compressor and indicates the following danger: Swallowing or inhaling can be fatal. This is only relevant for recycling. There is no danger in normal operation.

Please observe the specific information in the other sections:

	DANGER identifies a situation involving direct danger which, if not obviated, may result in death or severe bodily injury.
	WARNING identifies a dangerous situation which, if not obviated, may result in death or severe bodily injury.
	CAUTION identifies a dangerous situation which, if not obviated, may result in minor or medium bodily injury.
	NOTICE	identifies a dangerous situation which, if not obviated, may result in damage to property.
	Note	identifies useful information and tips.

3 Controls and displays

3.1 Operating and control elements

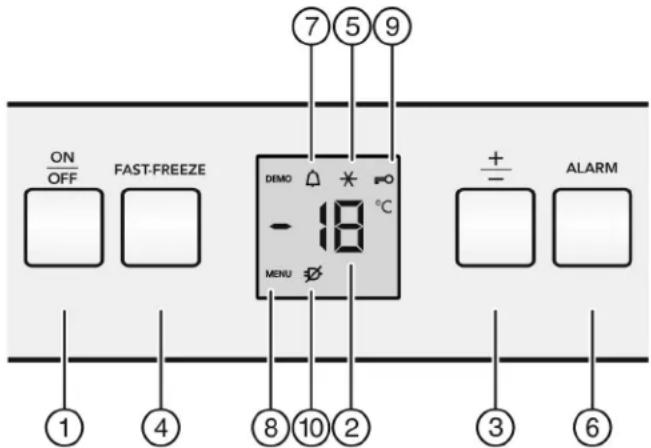

ON OFF FAST-FREEZE DEMO - 18 °C MENU + - ALARM ① ④ ⑧ ⑩ ② ③ ⑥

Fig. 2
(1) On/Off button
(2) Temperature display
(3) "+/-" setting button
(4) Fast-Freeze button
(5) Fast-Freeze symbol

(6) Alarm button

(7) Alarm symbol

(8) Menu symbol

(9) Child lock symbol

(10) Power failure symbol

3.2 Temperature display

- the freezer temperature setting

The temperature display flashes if/when:

• You change the temperature setting
• The appliance is not cold enough after switching on
• The temperature rises by several degrees

The following displays indicate a fault. Possible causes and solutions: (see Malfunction).

• F0 to F9
• The power failure symbol D flashes.

4 Putting into operation

4.1 Switching on the appliance

▶ Open the door.
▶ Press the On/Off button Fig. 2 (1).
The appliance is switched on. The temperature display and Alarm symbol Fig. 2 (7) flash until the temperature is cold enough.
▷ If "DEMO" is displayed, demo mode is activated. Please contact the after sales service.

5 Control

5.1 Child proofing

The child-proofing function enables you to make sure that the appliance is not inadvertently switched off by playing children.

5.1.1 Setting the child lock function

Activate setting mode:

▶ Press the Fast-Freeze button Fig. 2 (4) for approx. 5 seconds.

The menu symbol Fig. 2 (8) is indicated in the display.
▷ c flashes in the display.

If the function is to be switched on:

▶ Briefly confirm using the Fast-Freeze button Fig. 2 (4).
▷ c1 flashes in the display.
▶ Briefly confirm using the Fast-Freeze button Fig. 2 (4).
The child lock symbol Fig. 2 (9) illuminates in the display.
▷ c flashes in the display.
The child lock function is switched on.

If the function is to be switched off:

▶ Briefly confirm using the Fast-Freeze button Fig. 2 (4).
▷ c1 flashes in the display.
▶ Briefly confirm using the Fast-Freeze button Fig. 2 (4).
▷ c flashes in the display.
The child lock function is switched off.

End setting mode:

▶ Briefly press the ON/OFF button Fig. 2 (1).
The temperature is displayed again in the temperature display.

5.2 Door alarm

An audible warning sounds if the door is open for longer than 60 seconds.

The audible warning stops automatically when the door is closed.

5.2.1 Muting the door alarm

The audible alarm can be muted when the door is open. The sound switch-off function is active as long as the door is left open.

▶ Press alarm button Fig. 2 (6).
▷ The door alarm is silenced.

5.3 Temperature alarm

The audible alarm sounds if the freezer temperature is not cold enough.

The temperature display and the alarm symbol Fig. 2 (7) flash at the same time.

The cause of the temperature being too high may be:

• warm fresh food was placed inside
• too much warm ambient air flowed in when rearranging and removing food
• power failure for some time
• the appliance is faulty

The audible alarm is automatically silenced, the alarm symbol Fig. 2 (7) goes out and the temperature display stops flashing when the temperature is sufficiently cold again.

If the alarm status persists: (see Malfunction).

Note

Food may be spoilt if the temperature is not cold enough.

▶ Check the quality of the food. Do not consume spoiled food.

5.3.1 Muting the temperature alarm

The audible alarm can be muted. When the temperature is sufficiently cold again, the alarm function is active again.

▶ Press alarm button Fig. 2 (6).
▷ The audible alarm is silenced.

5.4 Freezing food

The rating plate indicates the maximum quantity of fresh food you can freeze within 24 hours (see Appliance at a glance) under "Freezing capacity ... kg/24h".

The maximum load for the top drawer is 5 kg and for the other drawers 25 kg each.

The shelves can each be loaded with 35 kg of frozen food.

A vacuum is generated after the door is closed. After closing the door, wait for about 1 minute and then it opens more easily.

Risk of injury due to broken glass!

Bottles and cans containing drinks may burst when being frozen. This applies particularly to sparkling drinks.

▶ Do not freeze bottles and cans containing drinks!

In order that the food is rapidly frozen through to the core, do not exceed the following quantities per pack:

• Fruit, vegetables up to 1 kg
• Meat up to 2.5 kg
  Pack the food in portions in freezer bags, reusable plastic, metal or aluminium containers.

5.5 Storage life

Standard values for the storage life of various types of food:
Ice-cream	2 to 6 months
Sausage, ham	2 to 6 months
Bread, bakery products	2 to 6 months
Game, pork	6 to 10 months
Fatty fish	2 to 6 months
Lean fish	6 to 12 months
Cheese	2 to 6 months
Poultry, beef	6 to 12 months
Vegetables, fruit	6 to 12 months

The values indicated for storage life are standard ones.

5.6 Thawing food

• in the refrigerator compartment
• in a microwave oven
• in a conventional or fan oven
• at room temperature
  ▶ Remove only as much food as is required. Use thawed food as quickly as possible.
  ▶ Food once thawed should be re-frozen only in exceptional cases.

5.7 Setting the temperature

The temperature depends on the following factors:

• the frequency of opening the door
• the room temperature of the installation location
• the type, temperature and quantity of the food

Recommended temperature setting: -18 °C

The temperature can be adjusted continually. Once the -28 °C setting is reached, the sequence starts again at -15 °C.

Control

▶ Call up the temperature function: Press the "+/-" setting button Fig. 2 (3) once.
The previously-set value will flash in the temperature display.
▶ Change the temperature in 1 °C steps: Press the "+/-" setting button Fig. 2 (3) until the required temperature is indicated in the temperature display.
▶ Change temperature continually: hold down setting button.
During adjustment the value flashes on the display.
The new setting is adopted approx. 5 seconds after the last time the button was pressed and the set temperature displayed again. The temperature in the interior gradually adjusts to the new value.

5.8 Fast-Freeze

With this function you can freeze fresh food quickly through to the core. The appliance operates with maximum refrigeration. The noise of the refrigeration unit may be temporarily louder as a result.

The maximum amount of fresh food which can be frozen in 24 h is indicated on the type plate under "freezing capacity ... kg/24h". This amount varies according to the model and climate rating.

You have to activate FastFreeze in good time, depending on how much fresh food is to be frozen: about 6 hours before placing the food inside in case of small amounts and about 24 hours in advance in case of the maximum amount of food to be frozen.

Wrap produce and spread it out as far as possible. Do not allow produce to be frozen to touch produce that is already frozen to prevent the latter thawing.

you do not have to activate Fast-Freeze in the following cases:

• when placing frozen food in the freezer
• when freezing up to approx. 2 kg fresh food daily

5.8.1 Freezing with Fast-Freeze

▶ Briefly press the Fast-Freeze button Fig. 2 (4) once.
The Fast-Freeze symbol Fig. 2 (5) illuminates.
The freezing temperature drops, the appliance operates with the maximum cooling capacity.

For a smaller quantity of produce to be frozen:

▶ wait approx. 6 h.
▶ Place wrapped produce in the deep bottom drawers. For the maximum quantity of produce to be frozen:
▶ wait approx. 24 h.
▶ Remove the deep bottom drawers and place produce directly on the bottom shelves.
Fast-Freeze is automatically deactivated. Depending on the quantity placed inside, after 30 h at the earliest, 65 h at the latest.
The Fast-Freeze symbol Fig. 2 (5) extinguishes once freezing is completed.
▶ Place produce in the drawers and push the latter back in again.
The appliance continues to operate in the energy-saving, normal mode.

5.9 Drawers

Note

The energy consumption increases and the cooling performance reduces if the air ventilation is insufficient.

▶ Ensure that the air slits of the fan on the rear wall are always kept free!

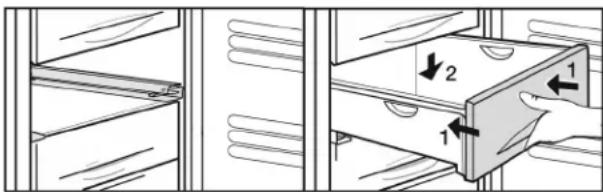

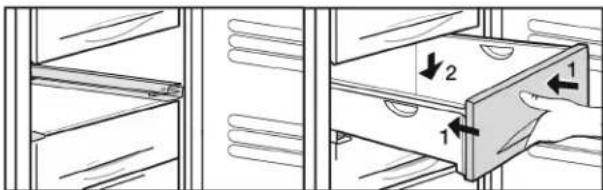

Technical diagram showing hand positioning of a device with numbered components and directional arrows indicating movement or assembly.

Fig. 3

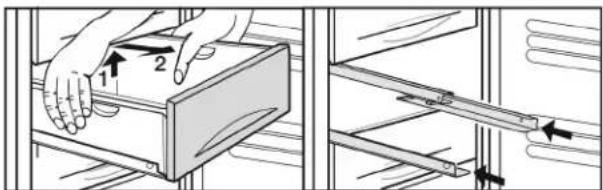

Diagram showing a hand placing a labeled object into a rack with directional arrows indicating movement or force.

Fig. 4

▶ To store frozen food directly on the shelves: raise the drawer at the back and pull it out forwards.

5.10 Shelves

▶ To remove the shelf: lift up at the front and pull out.
▶ To put the shelf back: simply push in as far as it will go.

Diagram showing a hand holding a tool interacting with a panel, labeled with arrows and numbers 1 and 2.

5.11 VarioSpace

Apart from being able to remove the drawers, you can also remove the shelves, creating space for large items of frozen food. Poultry, meat, large pieces of game and high bakery products can be frozen in one piece and prepared.

Diagram of a door frame with horizontal shelves and directional arrows indicating movement (no text or symbols)

The maximum load for the top drawer is 5 kg and for the other drawers 25 kg each.
▶ The shelves can each be loaded with 35 kg of frozen food.

5.12 Extractor rails

▶ For cleaning glass panels Extractor rails Removal: press front support hooks upwards (1) and slide extractor rail to one side (2) and backwards (3).

Technical diagram showing a mechanical assembly with numbered components and an inset close-up view of a bracket component.

▶ Installing extractor rail: attach hook at back (1) and engage at front (2).

Mechanical assembly diagram showing a lever mechanism with a magnified inset view (no text or symbols)

5.13 Cold storage accumulators

The cold storage accumulators prevent the temperature from rising too fast in the event of power failure.

5.13.1 Using cold storage accumulators

▶ Place the frozen cold storage accumulators on the frozen food in the upper front area of the freezer compartment.

Line drawing of a refrigerator with drawer and side compartments (no text or symbols)

6 Maintenance

6.1 Defrosting with NoFrost

The NoFrost system automatically defrosts the appliance.

The moisture condenses on the evaporator, is periodically defrosted and evaporates.

▶ The appliance does not have to be manually defrosted.

6.2 Cleaning the appliance

WARNING

Risk of injury and damage as a result of hot steam! Hot steam can lead to burns and can damage the surfaces.

▶ Do not use any steam cleaners!

NOTICE

Incorrect cleaning damages the appliance!

▶ Do not use cleaning agents in concentrated form.

▶ Do not use any scouring or abrasive sponges or steel wool.

▶ Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

▶ Do not use chemical solvents.

▶ Do not damage or remove the type plate on the inside of the appliance. It is important for the customer service.

▶ Do not pull off, bend or damage cables or other components.

▶ Do not allow any cleaning water to enter the drain channel, ventilation grille or electrical parts.

▶ Please use soft cleaning cloths and a universal pH-neutral cleaning agent.

▶ Please use cleaning and care products suitable for contact with foodstuffs in the appliance interior.

▶ Empty appliance.

▶ Pull out the power plug.

▶ Clean the vent grille regularly.

▷ Dust deposits increase energy consumption.

▶ Clean plastic outer and inner surfaces with lukewarm water and a little washing-up liquid.

▶ Clean items of equipment by hand with lukewarm water and a little washing-up liquid.

▶ Only use a damp cloth to clean the telescopic rails. The grease in the runners is for lubrication purposes and must not be removed.

After cleaning:

▶ Wipe dry the appliance and items of equipment.

▶ Connect the appliance and switch it on again.

▶ Switch on Fast-Freeze (see 5.8).

When the temperature is sufficiently cold:

▶ Put the food back inside.

6.3 Customer service

First check whether you can correct the fault yourself by reference to the list (see Malfunction). If this is not the case, please contact the customer service whose address is given in the enclosed customer service list.

WARNING

Risk of injury if repair work is not carried out professionally!

▶ Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see Maintenance)

▶ Read the appliance designation Fig. 5 (1), service No. Fig. 5 (2) and serial No. Fig. 5 (3) off the type plate located inside the appliance on the left-hand side.

Index Service-Nr./No. Service Klausen / Chuss Chuss / Chuss Ap Type / AP Type AP Type / AP Type Multifunction / Cross Capacity Volumen Band / Capacitance Band Sachanematischen / Freezing Capacity Provent der Criteri Capex, Coupling 3 Kg 244 ft Nichtzahl: 100 gm Nichtzahl: 100 gm Capita: 100 gm Capita: 100 gm Capita: 100 gm Capita: 100 gm Capita: 100 gm Capita: 100 gm Capita: 100 gm Capita: 100 gm Capita: 100 gm Capita: 100 gm Capita: 100 gm Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capita: Capital-NR:

Fig. 5

▶ Notify the customer service, specifying the fault, appliance designation Fig. 5 (1), service No. Fig. 5 (2) and serial No. Fig. 5 (3).
▷ This will help us to provide you with a faster and more accurate service.
▶ Keep the appliance closed until the customer service arrives.
▷ The food will stay cool longer.
▶ Pull out the mains plug (not by pulling the connecting cable) or switch off the fuse.

7 Malfunctions

Your appliance is designed and manufactured for a long life span and reliable operation. If a malfunction nonetheless occurs during operation, check whether it is due to a handling error. In this case you will have to be charged for the costs incurred, even during the warranty period. You may be able to rectify the following faults yourself:

Appliance does not work.

→ The appliance is not switched on.

▶ Switch on the appliance.
→ The power plug is not properly inserted in the wall socket.
▶ Check power plug.
→ The fuse of the wall socket is not in order.
▶ Check fuse.

The compressor runs for a long time.

→ The compressor switches to a low speed when little cold is needed. Although the running time is increased as a result, energy is saved.
▶ This is normal in energy-saving models.
→ Fast-Freeze is activated.
The compressor runs for longer in order to rapidly cool the food. This is normal.

A LED on the bottom rear of the appliance (at the compressor) flashes repeatedly every 5 seconds\*.

→ There is a fault.
▶ Please contact the after-sales service (see Maintenance).

Excessive noise.

→ Due to the various speed steps, speed-regulated* compressors can generate different running noises.
▶ The sound is normal.

A bubbling and gurgling noise.

→ This noise comes from the refrigerant flowing in the refrigeration circuit.

▶ The sound is normal.

A quiet clicking noise.

→ The noise is produced whenever the refrigeration unit (motor) automatically switches on or off.

▶ The sound is normal.

A hum. It is briefly a little louder when the refrigeration unit (the motor) switches on.

→ The refrigeration increases automatically when Fast-Freeze is activated, fresh food has just been placed in the appliance or the door has been left open for a while.

▶ The sound is normal.

→ The ambient temperature is too high.

▶ Solution: (see 1.2)

A low hum.

→ The sound is produced by air flow noise of the fan.

▶ The sound is normal.

Vibratory noise.

→ The appliance is not fixed to the ground. The running of the cooling unit therefore makes objects and adjacent furniture vibrate.

▶ Check installation and reposition appliance as required.

▶ Move bottles and containers apart.

Flow sound at the soft stop mechanism.

→ The noise is produced when the door is opened and closed.

The sound is normal.

The temperature display indicates: F0 to F9

→ There is a fault.

▶ Please contact the after-sales service (see Maintenance).

Power failure flashes in the temperature display. The highest temperature reached during power failure is indicated in the temperature display.

→ The freezer temperature rose too high over the last hours or days due to a power failure or power interruption. When the power interruption is over, the appliance will continue to operate in the last temperature setting.

▶ To cancel the display of the warmest temperature: press alarm button Fig. 2 (6).

▶ Check the quality of the food. Do not consume spoiled food. Do not re-freeze thawed food.

DEMO shines in the temperature display.

→ The demo mode is activated.

▶ Please contact the after-sales service (see Maintenance).

The outer surfaces of the appliance are warm\*.

→ The heat of the refrigeration circuit is used to prevent condensate from forming.

This is normal.

The temperature is not cold enough.

→ The door of the appliance is not properly closed.

▶ Close the door of the appliance.

→ Insufficient ventilation.

▶ Keep ventilation grille clear, and clean it.

→ The ambient temperature is too high.

▶ Solution: (see 1.2)

→ The appliance was opened too frequently or for too long.

▶ Wait to see whether the appliance reaches the required temperature by itself. If not, please contact the after sales service (see Maintenance).

→ Too much fresh food was placed inside without Fast-Freeze.

▶ Solution: (see 5.8)

→ The temperature is incorrectly set.

▶ Set the temperature to a colder setting and check after 24 hours.
→ The appliance is too close to a source of heat (stove, heater etc).
▶ Change the position of the appliance or the source of heat.
→ The appliance was not inserted properly into the recess.
▶ Check whether the appliance was inserted correctly and the door closes properly.

8 Decommissioning

8.1 Switching off the appliance

▶ Press the On/Off button Fig. 2 (1) until the display goes dark. Release button.
▷ If the appliance cannot be switched off, the child lock function is active (see 5.1).

8.2 Taking the appliance out of service

▶ Empty the appliance.
▶ Switch off the appliance (see Decommissioning).
▶ Remove mains connector.
▶ Clean the appliance (see 6.2).

▶ Leave the door open to prevent odour.

9 Disposing of the appliance

The appliance contains some reusable materials and should be disposed of properly - not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

When disposing of the appliance, ensure that the refrigeration circuit is not damaged to prevent uncontrolled escape of the refrigerant it contains (data on type plate) and oil.

▶ Disable the appliance.
▶ Pull out the plug.
▶ Cut through the connecting cable.

Sommaire

Technical diagram showing hand positioning and assembly steps with numbered components

Fig. 3

Diagram showing a hand placing a labeled object into a storage cabinet with arrows indicating direction of movement.

Fig. 4

Diagram showing a hand holding a labeled mechanical component with arrows indicating direction and numbered parts

5.11 VarioSpace

Diagram showing a double-headed arrow pointing upward through a window-like structure (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and an inset close-up view of a bracket component.

Technical diagram of a mechanical assembly with an inset showing a component detail (no text or symbols present)

Pure technical line drawing of a mechanical component or assembly (no text or symbols)

6 Entretien
