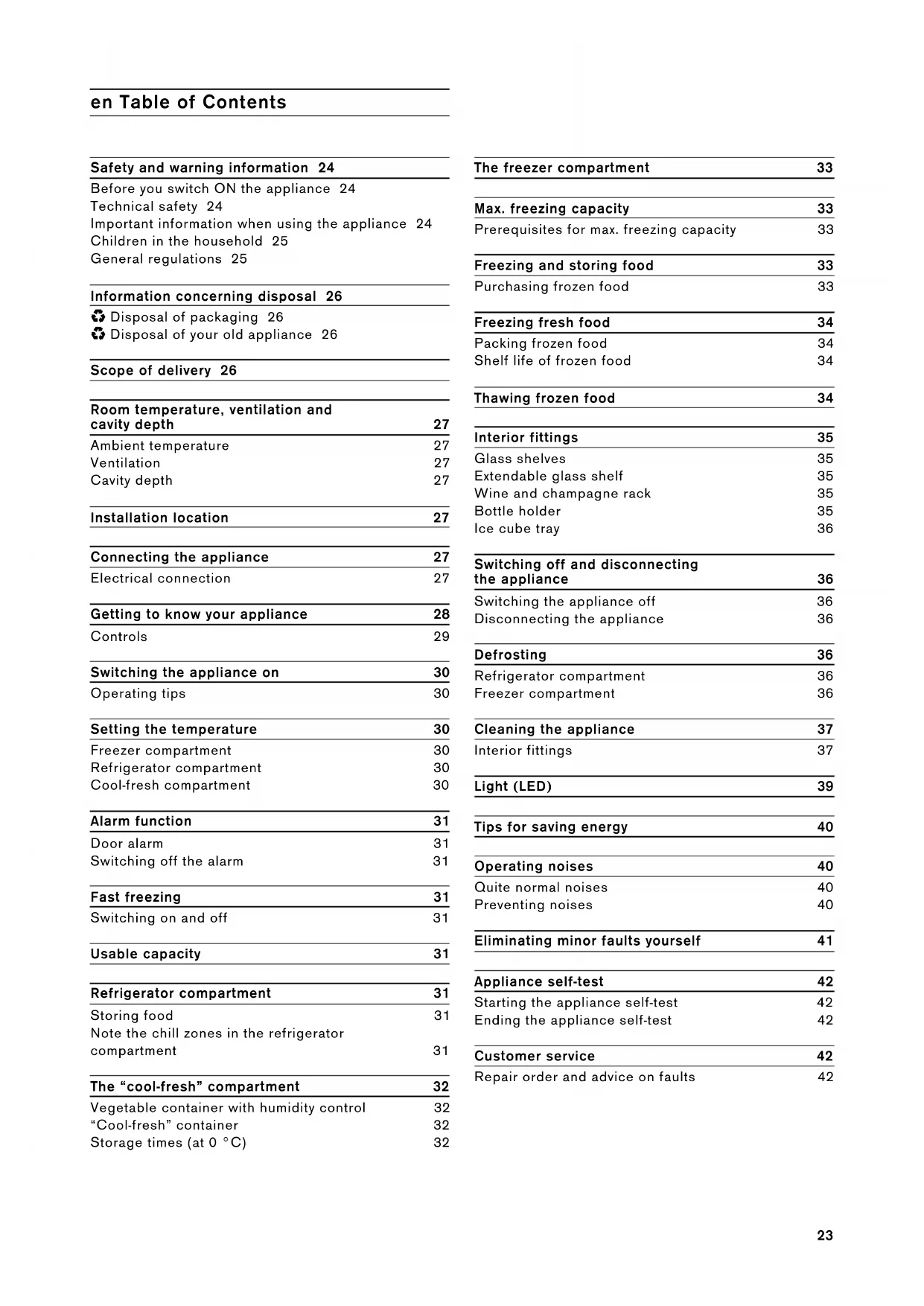

Safety and warning information 24

Before you switch ON the appliance 24

Technical safety 24

Important information when using the appliance 24

Children in the household 25

General regulations 25

Information concerning disposal 26

Disposal of packaging 26

Disposal of your old appliance 26

Scope of delivery 26

Room temperature, ventilation and cavity depth

Ambient temperature 27

Ventilation 27

Cavity depth 27

Installation location 27

Connecting the appliance 27

Electrical connection 27

Getting to know your appliance 28

Controls 29

Switching the appliance on 30

Operating tips 30

Setting the temperature 30

Freezer compartment 30

Refrigerator compartment 30

Cool-fresh compartment 30

Alarm function 31

Door alarm 31

Switching off the alarm 31

Fast freezing 31

Switching on and off 31

Usable capacity 31

Refrigerator compartment 31

Storing food 31

Note the chill zones in the refrigerator compartment 31

The "cool-fresh" compartment 32

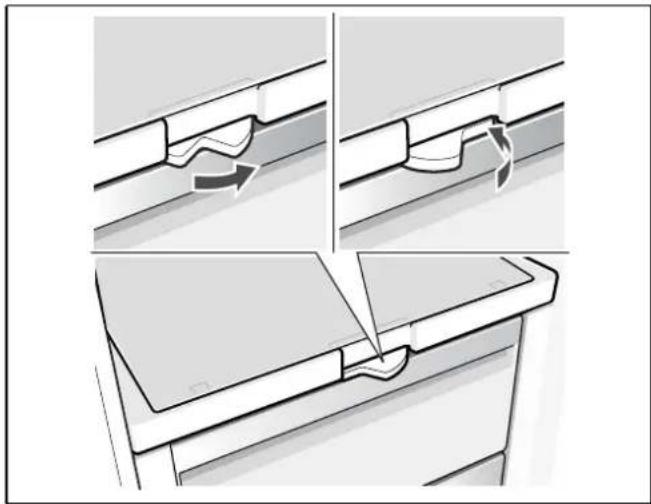

Vegetable container with humidity control 32

"Cool-fresh" container 32

Storage times (at 0 °C) 32

The freezer compartment 33

Max. freezing capacity 33

Prerequisites for max. freezing capacity 33

Freezing and storing food 33

Purchasing frozen food 33

Freezing fresh food 34

Packing frozen food 34

Shelf life of frozen food 34

Thawing frozen food 34

Interior fittings 35

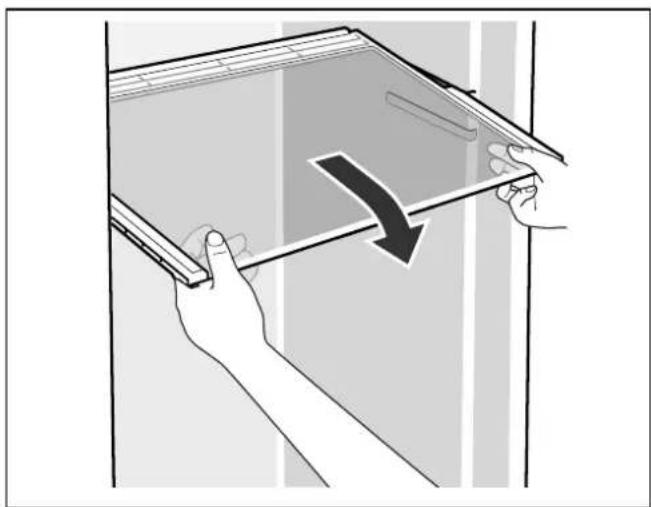

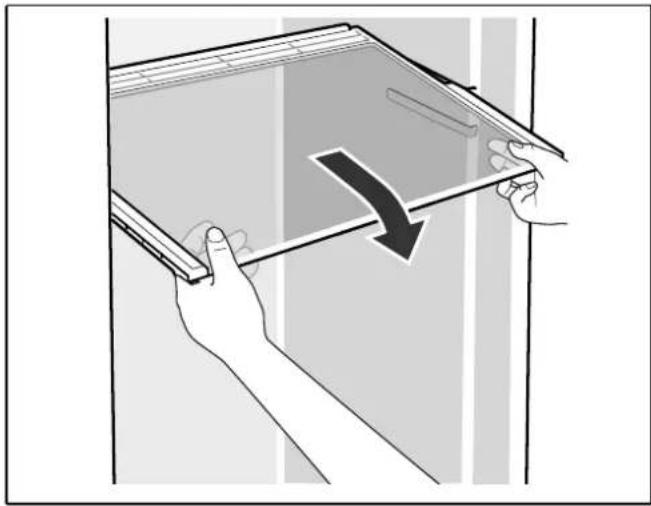

Glass shelves 35

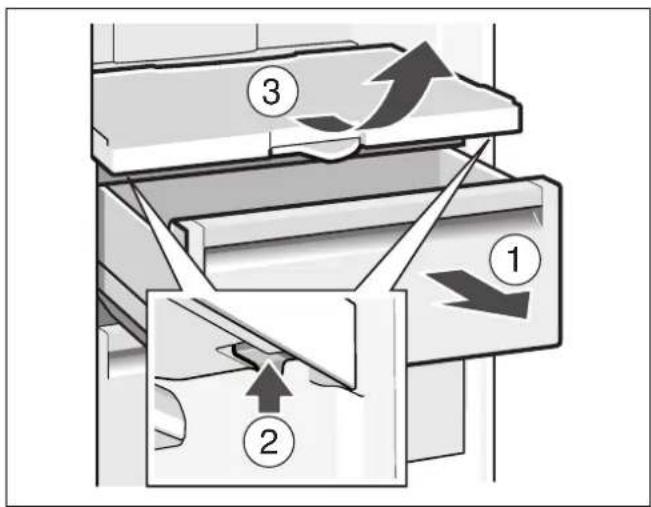

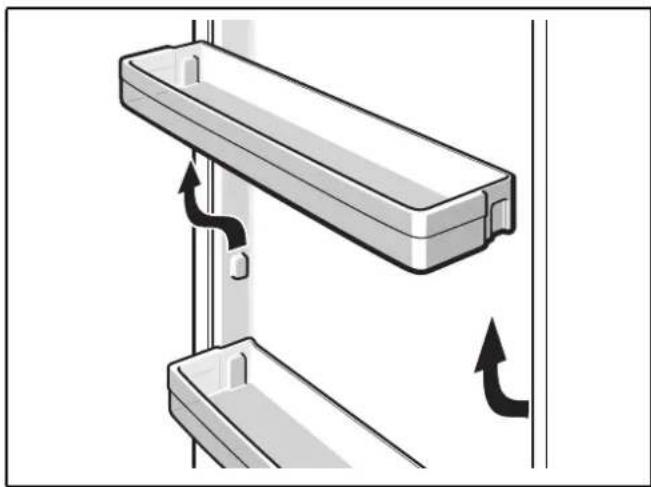

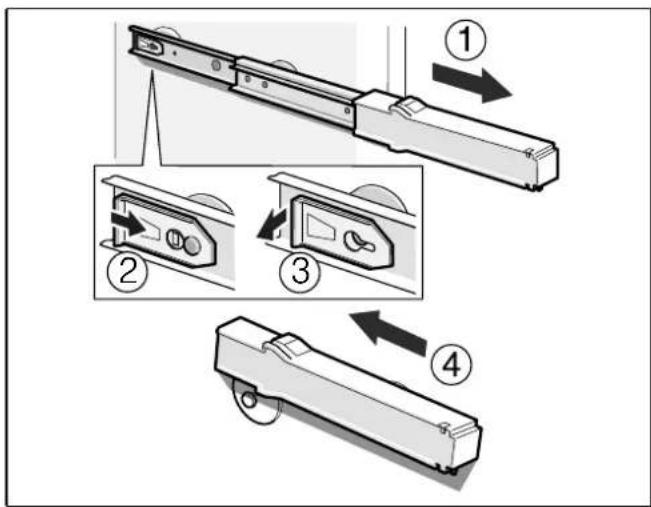

Extendable glass shelf 35

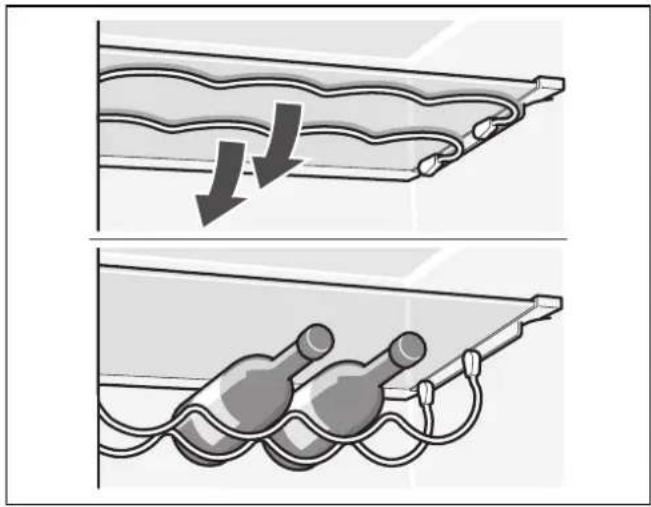

Wine and champagne rack 35

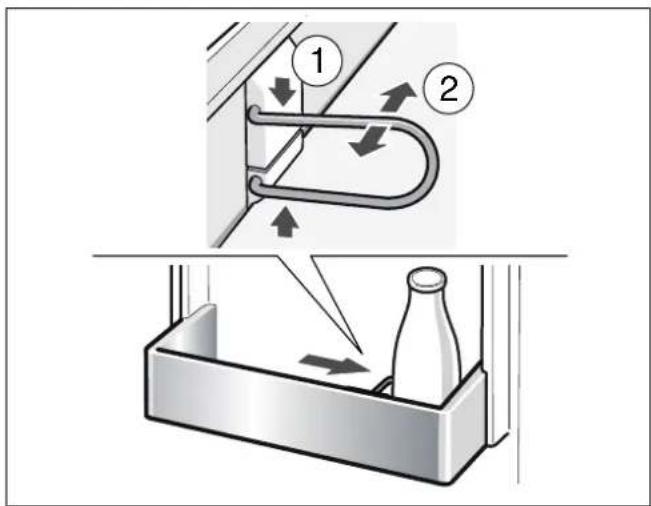

Bottle holder 35

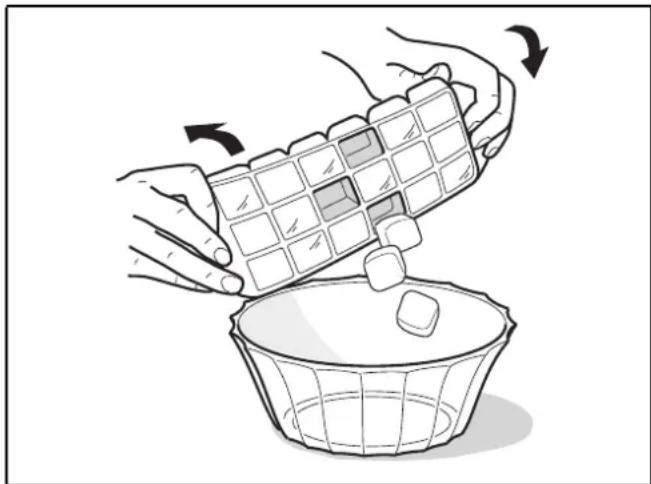

Ice cube tray 36

Switching off and disconnecting the appliance 36

Switching the appliance off 36

Disconnecting the appliance 36

Defrosting 36

Refrigerator compartment 36

Freezer compartment 36

Cleaning the appliance 37

Interior fittings 37

Light (LED) 39

Tips for saving energy 40

Operating noises 40

Quite normal noises 40

Preventing noises 40

Eliminating minor faults yourself 41

Appliance self-test 42

Starting the appliance self-test 42

Ending the appliance self-test 42

Customer service 42

Repair order and advice on faults 42

Before you switch ON the appliance

Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

Technical safety

The appliance contains a small quantity of environmentally friendly but flammable refrigerant R600a. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

If damage has occurred

• Keep naked flames and/or ignition sources away from the appliance,
• thoroughly ventilate the room for several minutes,
• switch off the appliance and pull out the mains plug,
  • inform customer service.

The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small.

The room must be at least 1 m^3 per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

A extension cable may be purchased from customer service only.

Important information when using the appliance

• Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
• Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
• Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard!
• Do not stand on or lean heavily against base of appliance, drawers or doors, etc
• For defrosting and cleaning, pull the mains plug out or switch off the fuse. Do not pull out the mains plug by tugging on the power cord.
• Store high-percentage alcohol tightly closed and standing up.
• Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
• Never cover or block the ventilation openings of the appliance!

- Avoiding placing children and vulnerable people at risk:

At risk are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

Ensure that children and vulnerable people have understood the hazards.

A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.

Only children from 8 years and above may use the appliance.

Supervise children who are cleaning and maintaining the appliance.

Never allow children to play with the appliance.

- Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!

- Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns!

- Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns!

Children in the household

• Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!
• Do not allow children to play with the appliance!
• If the appliance features a lock: keep the key out of the reach of children!

General regulations

The appliance is suitable

• for refrigerating and freezing food,
- for making ice.

This appliance is intended for use in the home and the home environment.

The appliance is suppressed according to EU Directive 2004/108/EC.

The refrigeration circuit has been checked for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Warning

Redundant appliances

1. Pull out the mains plug.
2. Cut off the power cord and discard with the mains plug.
3. Do not take out the trays and receptacles: children are therefore prevented from climbing in!
4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Scope of delivery

After unpacking all parts, check for any damage in transit.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

The delivery consists of the following parts:

Built-in appliance
- Interior fittings (depending on model)
- Bag containing installation materials
- Operating instructions
• Installation manual
- Customer service booklet
- Warranty enclosure
• Information on the energy consumption and noises

Room temperature, ventilation and cavity depth

Ambient temperature

The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following room temperatures.

Climate class Permitted ambient temperature

SN +10 °C to 32 °C

N +16 °C to 32 °C

ST +16 °C to 38 °C

T +16 °C to 43 °C

The climate class can be found on the rating plate.

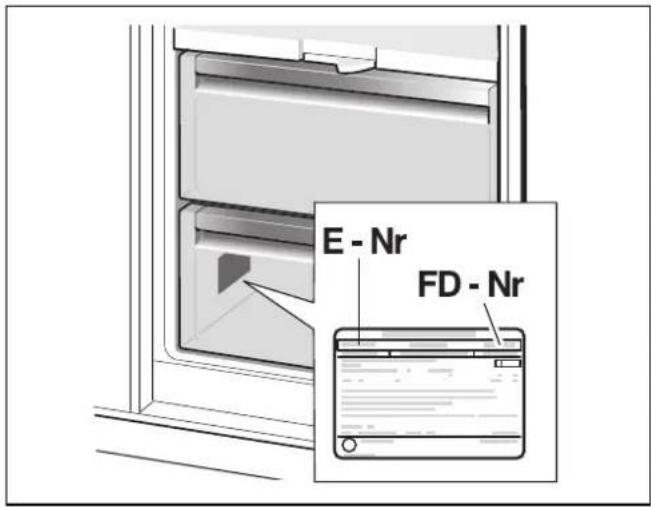

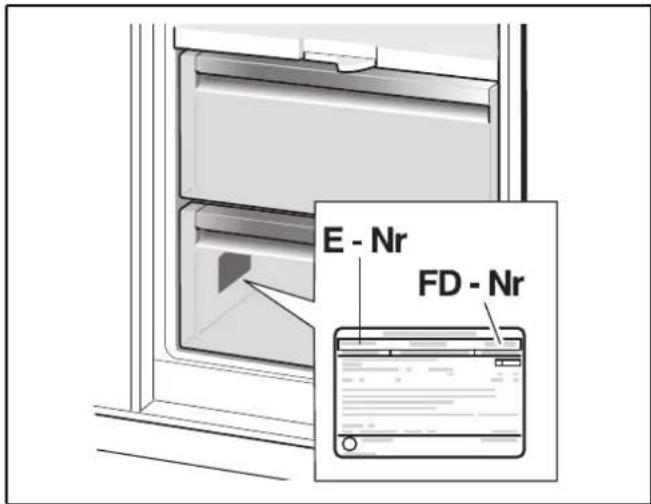

E - Nr FD - Nr

Note

The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C.

Ventilation

The air on the rear panel of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigeration unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!

Cavity depth

A cavity depth of 560 mm is recommended for the appliance. If the cavity depth is smaller - at least 550 mm - the energy consumption increases slightly.

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e. g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:

3 cm to electric or gas cookers.
30 cm to an oil or coal-fired cooker.

Connecting the appliance

After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter "Cleaning the appliance").

Electrical connection

The socket must be near the appliance and also freely accessible following installation of the appliance.

The appliance complies with the protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse.

For appliances operated in non-European countries, check whether the stated voltage and current type match the values of your mains supply. These specifications can be found on the rating plate.

Warning

Never connect the appliance to electronic energy saver plugs. Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

Getting to know your appliance

These operating instructions refer to several models.

The features of the models may vary.

The diagrams may differ.

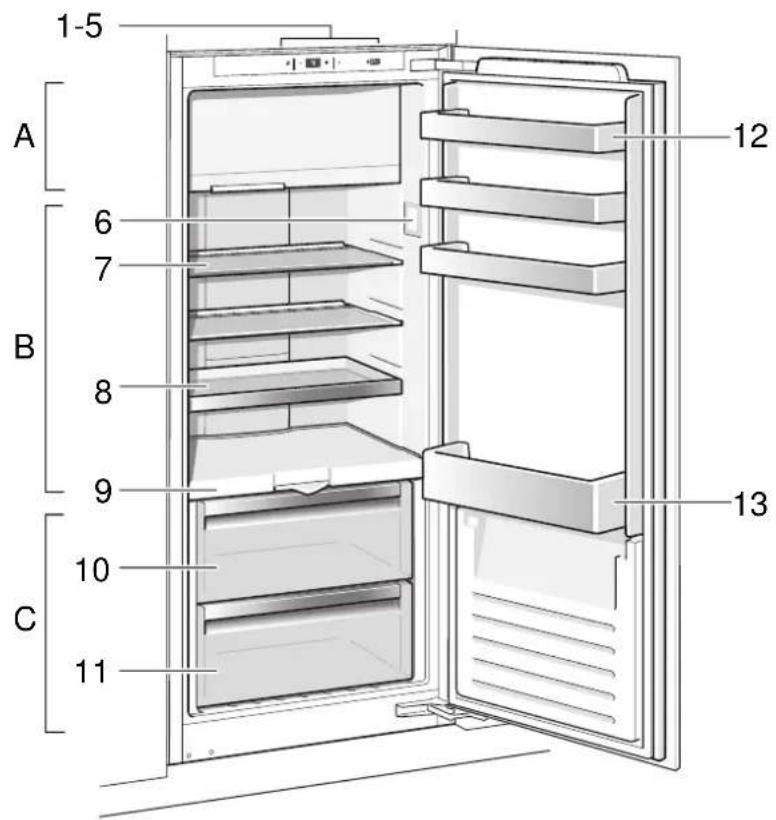

1-5 A 6 7 B 8 9 10 C 11 12 13

A Freezer section

B Refrigerator compartment

C Cool-fresh compartment

1-5 Controls
6 Light, refrigerator compartment
7 Glass shelf

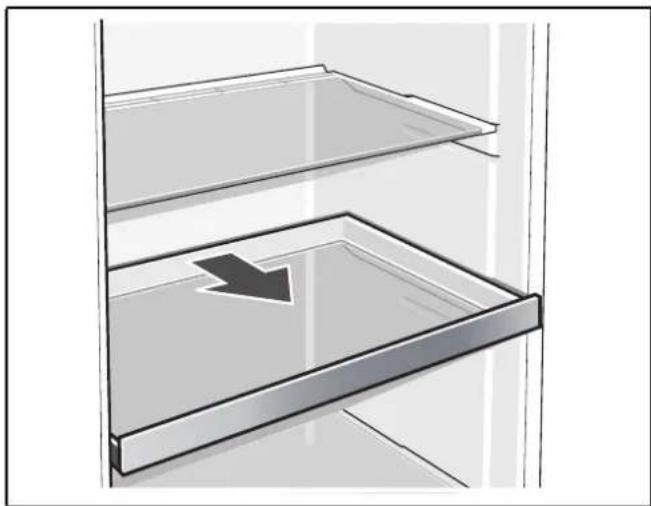

8 Extendable glass shelf
9 Partition with humidity controller
10 Vegetable container
11 "Cool-fresh" container
12 Door shelf
13 Shelf for large bottles

Controls

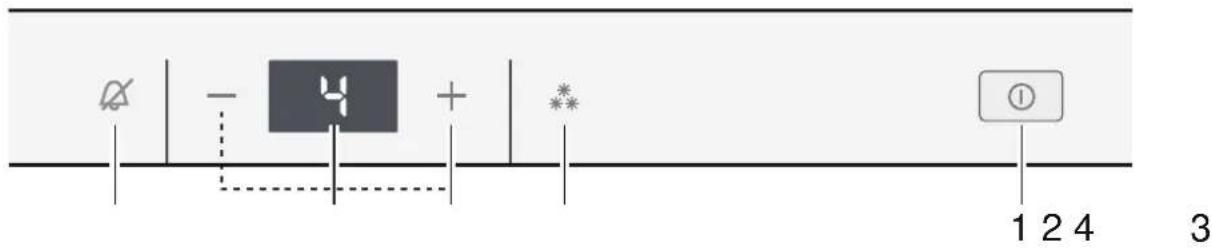

Diagram showing labeled symbols and numbers, including a cross, minus sign, plus, asterisk, and numbered markers 1, 2, 4, 3.

1 On/Off button ①

Serves to switch the whole appliance on and off.

2 "Fast" button **

Switches fast freezing on and off (see chapter "Fast freezing").

3 Temperature setting buttons +/-

The temperature is set with these buttons.

4 Temperature display

The numbers correspond to the set refrigerator compartment temperatures in ^ C.

5 Alarm button

Used to switch off the warning signal, (see chapter "Alarm function").

Switching the appliance on

Switch on the appliance with the On/Off button ①.

The temperature display indicates the set temperature.

The appliance begins to cool. Light is switched on when the door is open.

We recommend a factory setting of +4 °C in the refrigerator compartment.

Do not store perishable food warmer than +4 °C.

Operating tips

• After the appliance has been switched on, it may take several hours until the set temperatures have been reached.
  Do not put any food in the appliance beforehand.
• The temperature in the freezer compartment depends on the temperature in the refrigerator compartment. Warmer refrigerator compartment temperatures also cause warmer freezer compartment temperatures.
• The sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal.

Setting the temperature

Freezer compartment

The temperature in the refrigerator compartment will affect the temperature in the freezer compartment. Change the temperature in the refrigerator compartment in order to change the temperature in the freezer compartment. Temperatures which are set higher in the refrigerator compartment will increase temperatures in the freezer compartment.

Refrigerator compartment

The temperature can be set from +3 °C to +8 °C.

Keep pressing temperature setting buttons +/- until the required refrigerator compartment temperature is set.

The value last selected is saved. The set temperature is indicated on temperature display.

Cool-fresh compartment

The temperature in the cool-fresh compartment is about 0 ^ .

Note

If frost forms on the refrigerated food in the “cool-fresh” compartment, increase the temperature (see chapter Eliminating minor faults yourself).

Alarm function

Door alarm

The door alarm (continuous sound) switches on if the appliance door is open for longer than two minutes. Close the door to switch off the warning signal.

Switching off the alarm

Press the alarm button ⚠ to switch off the warning signal.

Fast freezing

Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.

To prevent an undesirable temperature rise when placing fresh food in the freezer compartment, switch on fast freezing several hours beforehand.

If you would like to use the max. freezing capacity, switch on fast freezing for 6 hours before placing the fresh produce in the freezer compartment.

You can freeze smaller quantities of food without fast freezing.

Note

When fast freezing is switched on, increased operating noises may occur.

Switching on and off

Press "fast" button freezer compartment **.

If the fast freezing has been switched on the button is lit.

Fast freezing automatically switches off after approx. 1½ days.

Usable capacity

Information on the usable capacity can be found inside your appliance on the rating plate (see diagram at chapter "Customer service").

Refrigerator compartment

The refrigerator compartment is the ideal storage location for ready meals, cakes and pastries, preserved food, condensed milk and hard cheese.

Storing food

• Store fresh, undamaged food. The quality and freshness will then be retained for longer.
• In the case of ready-made products and bottled goods, observe the best-before date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing in the appliance. This will prevent the transfer of flavours and the discolouration of plastic parts in the refrigerator compartment.
• Allow warm food and drinks to cool down before placing in the appliance.

Note the chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones.

The coldest zone is on the partition and on the shelf for large bottles.

Warmest zone is at the very top of the door.

Notes

• Store e.g. hard cheese and butter in the warmest zone. Cheese can then continue to release its flavour and the butter will still be easy to spread.
• Store perishable food (e.g. fish, sausage, meat) in the "cool-fresh" compartment (see chapter The "cool-fresh" compartment).

The "cool-fresh" compartment

The temperature in the fridge is about 0 °C. The low temperature and the optimum moisture provide ideal storage conditions for fresh food.

Food can be kept fresh up to three times longer in the "cool-fresh" compartment than in the normal cooling zone – for even longer freshness, nutrient retention and flavour.

Vegetable container with humidity control

The vegetable container is the optimum storage location for fresh fruit and vegetables. The humidity controller of the partition and a special seal can be used to adjust the air humidity in the vegetable container.

The air humidity in the vegetable container can be set according to the type and amount of products to be stored:

• Mainly fruit as well as for a large load – lower air humidity
• Mainly vegetables as well as for a mixed load or small load – higher air humidity

Diagram showing three steps of a mechanical or structural assembly with curved arrows indicating motion (no text or symbols present)

Notes

- Fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. aubergines, cucumbers, zucchini, peppers, tomatoes and potatoes) should be stored outside the refrigerator at temperatures of approx. +8 °C to +12 °C for optimum preservation of quality and flavour.

- Condensation may form in the vegetable container depending on the food and quantity stored. Remove condensation with a dry cloth and adjust air humidity in the vegetable container with the humidity controller.

"Cool-fresh" container

The storage climate in the "cool-fresh" container offers ideal conditions for the storage of fish, meat, sausage, cheese and milk.

Storage times (at 0 °C)

Depending on the initial quality

Fresh fish, seafood up to 3 days

Poultry, meat (boiled/fried) up to 5 days

Beef, pork, lamb, sausage (cold meat) up to 7 days

Smoked fish, broccoli up to 14 days

Salad greens, fennel, apricots, plums up to 21 days

Soft cheese, yoghurt, quark, buttermilk, up to 30 days cauliflower

The freezer compartment

Is used to:

• store deepfrozen food,
• make ice cubes,
• freeze small quantities of food.

Notes

• You can tell from the handle whether the freezer compartment door is closed properly.
  The freezer compartment door engages audibly.
• If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice.

Also: waste of energy due to high power consumption!

Line drawing of a hand pressing down on a computer monitor (no text or symbols)

Max. freezing capacity

Information about the max. freezing capacity within 24 hours can be found on the rating plate (see diagram at chapter "Customer service").

Prerequisites for max. freezing capacity

• Freeze fresh food as close as possible to the side panels.
• Switch on fast freezing before placing fresh products in the compartment (see chapter "Fast freezing").

Freezing and storing food

Purchasing frozen food

• Packaging must not be damaged.
• Use by the "use by" date.
- Temperature in the supermarket freezer must be -18 °C or lower.
- If possible, transport deep-frozen food in a cool bag and place quickly in the freezer compartment.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.

Literature on freezing and blanching can be found in bookshops.

Note

Keep food which is to be frozen away from food which is already frozen.

• The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
  The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place in airtight containers.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and date of freezing.

Suitable packaging:

Cling wrap, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets.

Unsuitable packaging:

Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.

Items suitable for sealing packaged food:

Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc.

Bags and tubular film made of polyethylene (PE) can be sealed with a film heat sealer.

Shelf life of frozen food

Storage duration depends on the type of food.

At a temperature of -18 °C:

• Fish, sausage, ready meals and cakes and pastries: up to 6 months
  ● Cheese, poultry and meat: up to 8 months
• Vegetables and fruit: up to 12 months

Thawing frozen food

Depending on the type and application, select one of the following options:

at room temperature
- in the refrigerator
- in the microwave

- in an electric oven, with/without fan assisted hot-air

Caution

Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.

No longer store the frozen produce for the max. storage period.

Interior fittings

(not all models)

Glass shelves

You can reposition the inner shelves as required: lift shelf, pull forwards, lower and swivel out to the side.

Illustration of hands holding a clipboard with a directional arrow indicating flow or movement (no text or symbols)

Extendable glass shelf

The extendable glass shelf can be pulled out for a better overview of the food.

Illustration of a shelving cabinet with two shelves and one drawer, showing a downward arrow (no text or symbols)

Wine and champagne rack

You can store bottles securely in the wine and champagne rack. If you require space for other food, you can fold the metal clips upwards.

Two-panel diagram showing a cable being lifted by two different types of objects, with no text or symbols present.

Bottle holder

The bottle holder prevents bottles from falling over when the door is opened and closed.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a bottle in a container.

Ice cube tray

Fill the ice cube tray 34 full of drinking water and place in the freezer compartment.

If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).

To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.

Illustration of hands placing a 3D cube into a basket with an arrow indicating rotation (no text or symbols)

Switching off and disconnecting the appliance

Switching the appliance off

Press the On/Off button ①.

Temperature display goes out, refrigeration unit switches off.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Switch off the appliance.
2. Pull out mains plug or switch off fuse.
3. Clean the appliance.
4. Leave the appliance door open.

Defrosting

Refrigerator compartment

Defrosting is actuated automatically.

The condensation runs through the drainage hole into an evaporation pan on the rear of the appliance.

Freezer compartment

The freezer compartment does not defrost automatically. A layer of hoarfrost in the freezer compartment will impair refrigeration of the frozen food and increase power consumption. Regularly defrost the freezer compartment.

Caution

Do not scrape off hoarfrost or ice with a knife or pointed object. You could damage the refrigerant tubes. Leaking refrigerant may ignite or cause eye injuries.

Proceed as follows:

Note

Switch on super freezing approx. 4 hours before defrosting. As a result, the food will drop to a very low temperature and can therefore be stored for longer at room temperature.

1. Remove the frozen food and place temporarily in a cool location. Place ice pack (if available) on the frozen food.
2. Switch off the appliance.
3. Pull out the mains plug or remove the fuse.
4. To accelerate the defrosting process, place a pan of hot water on a trivet in the freezer compartment.
5. Wait until the layer of frost has thawed.
6. Wipe up condensation with a cloth or sponge.
7. Wipe dry the freezer compartment.
8. Switch the appliance on again.
9. Put the frozen food back in the freezer compartment.

Cleaning the appliance

Caution

• Do not use abrasive, chloride or acidic cleaning agents or solvents.
• Do not use scouring or abrasive sponges. The metallic surfaces could corrode.
• Never clean shelves and containers in the dishwasher. The parts may become deformed!

Proceed as follows:

1. Before cleaning: Switch off the appliance.
2. Pull out the mains plug or switch off the fuse!
3. Take out the food and store in a cool location.
4. Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.
5. Wipe the door seal with clear water only and then wipe dry thoroughly.
6. After cleaning reconnect and switch the appliance back on.
7. Put the food back into the appliance.

Interior fittings

All variable parts of the appliance can be taken out for cleaning.

Take out glass shelves

To do this, pull out shelf, lift at the front and take out.

Illustration of hands holding a tablet and pen, with a downward arrow indicating a process (no text or symbols present)

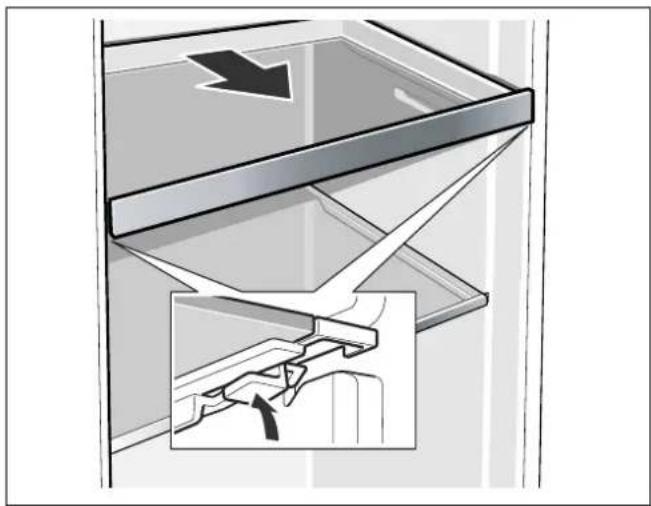

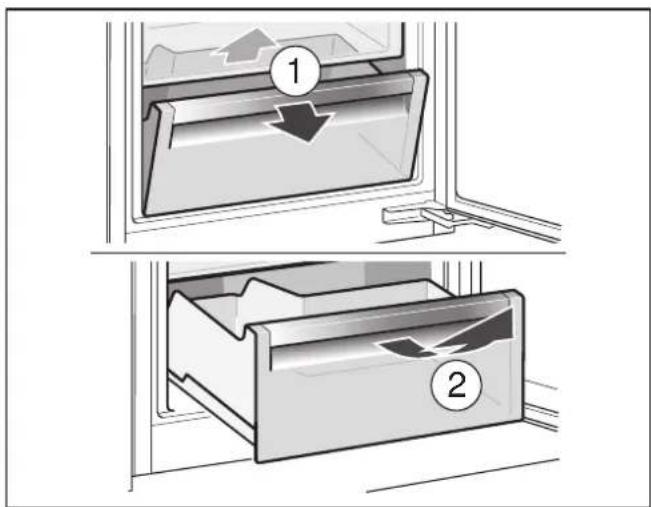

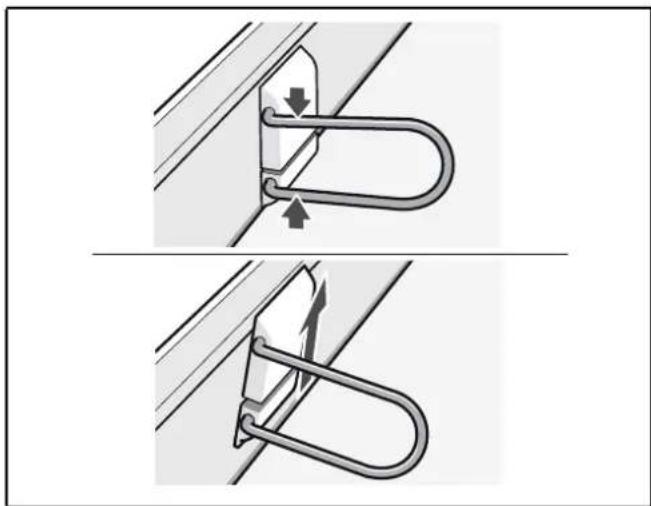

Taking out the extendable glass shelf

Hold down levers on the underside on both sides, pull glass shelf forwards, lift and swivel out to the side.

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Take out shelves in the door

Lift shelves upwards and take out.

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Taking out the bottle holder

Press bottle holder together and take out.

Two mechanical diagrams showing a U-shaped bracket assembly with directional arrows, no text or symbols present.

Removing the container

Raise container at the rear and lift off the extension rails.

To insert the container, place on the retracted extension rails and engage.

Diagram showing two steps of a refrigerator interior, labeled with numbered arrows and directional arrows.

Taking out the partition

Press levers on the underside on both sides, pull partition forwards, lift and swivel out to the side.

Diagram illustrating a mechanical or fluid system with numbered components and directional arrows indicating flow or movement.

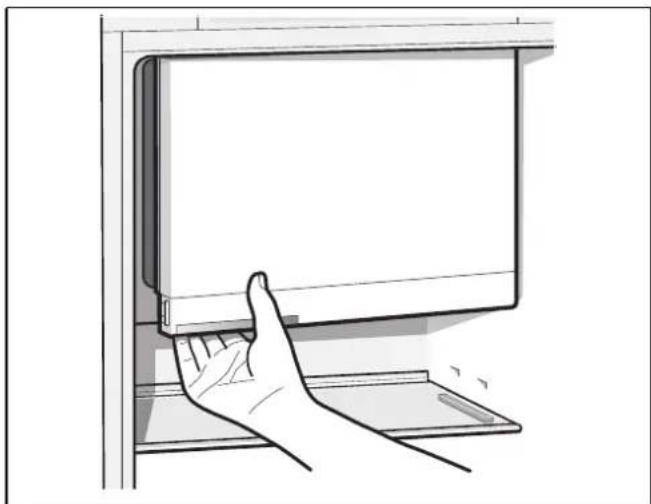

Taking out the vegetable container cover

Lift cover, pull forwards and swivel out to the side.

Inserting vegetable container cover and partition

1. Insert vegetable container cover.
2. Insert partition.

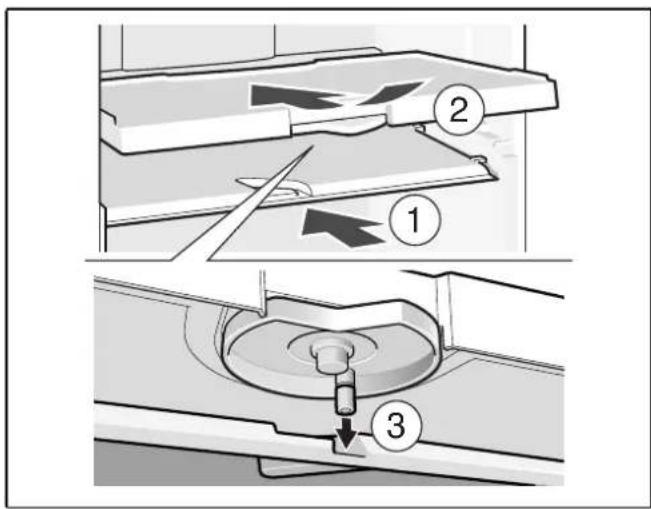

Note

Before the cover can be inserted, the humidity controller must be set to low air humidity.

Technical diagram showing three steps of a mechanical or fluid processing procedure with numbered annotations

Remove telescopic rails

1. Pull out extension rail.
2. Push lock in the direction of the arrow.
3. Detach telescopic rail from the rear pin.
4. Push telescopic rail together, push backwards above the rear pin and disengage.

Technical diagram showing four-step assembly of a mechanical device with labeled components and directional arrows indicating motion.

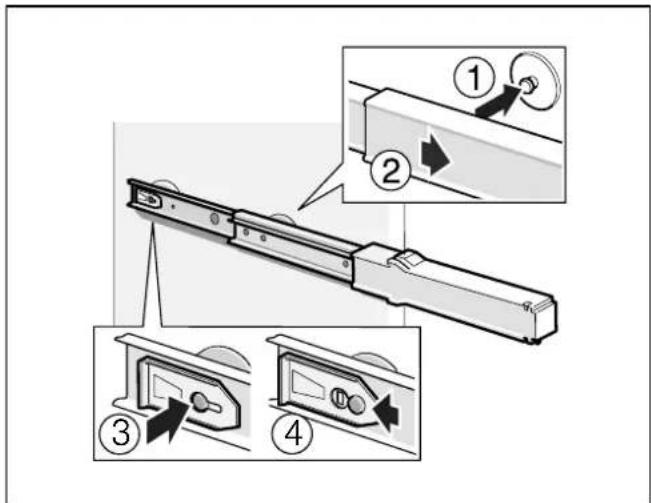

Installing telescopic rails

1. Place the extended telescopic rail on the front pin.
2. Pull the telescopic rail forwards slightly until it engages.
3. Place telescopic rail on the rear pin.
4. Push lock backwards.

Diagram illustrating a mechanical device with four labeled steps: pin insertion, lock operation, switch press, and close-up of the switch.

Light (LED)

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only.

Tips for saving energy

• Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker).
  If required, use an insulating plate.
• Select 560 mm cavity depth.
  A smaller cavity depth will result in a higher energy consumption.
• Allow warm food and drinks to cool down before placing in the appliance.
• Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.
• Open the appliance as briefly as possible.
• Regularly defrost the freezer compartment to remove the layer of frost!
  A layer of hoarfrost will impair refrigeration of the frozen food and increase power consumption.
• Ensure that the freezer compartment door has been closed properly.
• To avoid increased power consumption, occasionally clean the back of the appliance.
• The arrangement of the fittings does not affect the energy rating of the appliance.

Operating noises

Quite normal noises

Droning

Motors are running (e.g. refrigerating units, fan).

Bubbling, humming or gurgling noises

Refrigerant is flowing through the tubing.

Clicking

Motor, switches or solenoid valves are switching on/off.

Preventing noises

The appliance is not level

Please align the appliance with a spirit level. If required, place something underneath.

Containers or storage areas wobble or stick

Please check the removable parts and re-insert them correctly if required.

Bottles or receptacles are touching each other

Move the bottles or receptacles slightly away from each other.

Eliminating minor faults yourself

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following information.

Customer service will charge you for advice – even if the appliance is still under guarantee!

Fault Possible cause Remedial action
Temperature differs greatly from the set value.		In some cases it is adequate to switch off the appliance for 5 minutes.If the temperature is too high wait a few hours and check whether the temperature has approached the set value.If the temperature is too low check the temperature again the next day.
The temperature in the refrigerator compartment is too cold.	Freezer compartment door is open. Close the freezer compartment door. The freezer compartment door engages audibly.
	Temperature has been set too low. Increase the temperature.
	The “fast” function is switched on. Switch off the “fast” function.
The refrigerating unit is switching on more frequently and for longer.	Appliance opened frequently. Do not open the appliance unnecessarily.
	The ventilation openings have been covered.	Remove obstacles.
There is no cooling output from the appliance.	Appliance is switched off. Press the On/Off button 1.
	Power failure Check whether the power is on.
The lighting does not work.	The fuse has been switched off. Check mains fuse.
The display does not illuminate.	The mains plug has not been inserted properly.	Check whether the mains plug is secure.
There is a thick layer of frost in the freezer compartment.		Defrosting the freezer compartment (see chapter Defrosting). Always ensure that the freezer compartment door is closed properly.
Temperature display indicates “E..”.	Electronics have detected a fault. Call customer service.
The light does not function. The LED light is defective. See chapter “Light (LED)” section.
The “cool-fresh” compartment is too warm or too cold.	The standard setting has been set too high or too low (e.g. if there is frost in the “cool-fresh” compartment).	The temperature in the “cool-fresh” compartment can be set to be 3 steps warmer and/or colder. If the refrigerator compartment temperature is set to 0, the “cool-fresh” compartment has a temperature of almost 0 °C.NoteA change to the standard setting will affect the temperature in the refrigerator compartment and freezer compartment.Hold down “fast” button ** for 3 seconds until temperature display flashes.Change the setting using the temperature setting buttons +/-.Setting -3 corresponds to the coldest setting Setting +3 corresponds to the warmest setting The selected setting is saved after one minute.
Appliance is not cooling, temperature display and light are lit.	Showroom mode is switched on.	Start appliance self-test (see chapter “Appliance self-test”).When the programme has ended, the appliance switches over to normal operation.

Appliance self-test

Your appliance features an automatic self-test program which shows you sources of faults which may be repaired by customer service only.

Starting the appliance self-test

1. Switch off the appliance with the On/Off button ① and wait 5 minutes.
2. Switch on the appliance with the On/Off button ①.
3. Within the first 10 seconds, press and hold the freezer compartment "fast" button * for 3 to 5 seconds until an audible signal sounds. The self-test programme starts. While the self-test is running, a long audible signal sounds in the meantime.

If 2 audible signals sound and the set temperature is displayed after the self-test has ended, your appliance is OK.

If, at the end of the self-test, 5 audible signals sound and the freezer compartment "quick" button ** flashes for 10 seconds, there is a fault. Inform customer service.

Ending the appliance self-test

When the programme has ended, the appliance switches over to normal operation.

Customer service

Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD-Nr.).

These specifications can be found on the rating plate.

E - Nr FD - Nr

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

GB 0344 892 8988 Calls charged at local or mobile rate.

IE 01450 2655 0.03 € per minute at peak. Off peak 0.0088 € per minute.

US 877 442 4436 toll-free

Diagram showing labeled symbols and numbers, including a cross, minus sign, plus, asterisk, and numbered markers 1, 2, 4, 3.

Diagram showing three steps of a mechanical or structural assembly with curved arrows indicating motion (no text or symbols present)

Remarques

Line drawing of a hand inserting a component into a computer monitor (no text or symbols)

Illustration of hands holding a rectangular object with a downward arrow indicating motion or direction (no text or symbols)

Illustration of two shelves with a downward arrow indicating storage or clearance (no text or symbols)

Two-panel illustration showing a cable being lifted by a bottle, with arrows indicating direction (no text or symbols)

Porte-bouteilles

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, showing fluid flow from a container to a door.

Bac à glaçons

Illustration of hands placing a grid-based object into a bowl with an arrow indicating rotation (no text or symbols)

Illustration of hands holding a tablet and pen, with a downward arrow indicating a process (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Two mechanical diagrams showing a U-shaped bracket assembly with directional arrows, no text or symbols present.

Retirer le bac

Diagram showing two steps of a refrigerator interior, labeled with numbered arrows and directional arrows.

Diagram illustrating a mechanical or fluid system with numbered components and directional arrows indicating flow or movement.

Technical diagram showing three steps of a mechanical or electrical component processing process, labeled 1, 2, and 3.

Technical diagram showing four-step assembly of a mechanical device with labeled components and directional arrows indicating motion.

Diagram illustrating a mechanical device with four labeled steps: pin insertion, locking, locking lock, and holding a key.

Éclairage (LED)

Diagram showing labeled symbols and numbers, including a cross, minus sign, plus, asterisk, and numbered markers 1, 2, 4, 3.

Diagram showing three steps of a mechanical or structural assembly with curved and straight components, no text or symbols present.

Avvertenze

Line drawing of a hand pressing down on a computer monitor (no text or symbols)

Illustration of hands holding a rectangular object with a downward arrow indicating rotation or movement (no text or symbols)

Illustration of a shelf with two compartments and a downward arrow indicating a drop or direction (no text or symbols)

Two-panel diagram showing a cable installation process with arrows indicating direction of movement (no text or symbols)

Fermabottiglie

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, showing a pipe connection and a bottle in a container.

Illustration of hands placing a grid cube into a bowl with an eraser, showing rotation arrows (no text or symbols)

Illustration of hands holding a clipboard with arrows indicating direction (no text or symbols)

Diagram showing a hand inserting a device into a container with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Two mechanical diagrams showing a U-shaped bracket with directional arrows, mounted on diagonal lines (no text or symbols)

Estrarre i cassetti

Diagram showing two steps of a refrigerator door opening, labeled with numbered instructions and directional arrows.

Diagram illustrating airflow or movement in a storage or ventilation system with numbered components and directional arrows

Technical diagram showing three steps of a mechanical or fluid processing procedure with numbered annotations

Smontare le guide estraibili

Technical diagram showing four-step assembly of a mechanical device with labeled components and directional arrows indicating motion.

Montare le guide telescopiche

Diagram illustrating four steps of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Illuminazione (LED)

Diagram showing labeled symbols and numbers, including a cross, minus sign, plus, asterisk, and numbered markers 1, 2, 4, 3.

1 Toets Aan/Uit ①

Diagram showing three steps of a mechanical or structural assembly with curved arrows indicating motion (no text or symbols present)

Aanwijzingen

Line drawing of a hand inserting a device into a computer monitor (no text or symbols)

Illustration of hands holding a document with a downward arrow indicating a process (no text or symbols present)

Illustration of a shelf with two compartments and a downward arrow indicating a drop or direction (no text or symbols)

Wijn- en champagnerek

Two-panel diagram showing a cable installation process: top panel with downward arrow indicating compression, bottom panel with two bottles hanging from a rope (no text or symbols)

Flessenhouder

Diagram illustrating a mechanical or electrical system with labeled components and directional arrows, showing fluid flow or movement in a container.

Ijsbakje

Illustration of hands placing a 3D cube into a basket with an arrow indicating rotation (no text or symbols)

Illustration of hands holding a tablet and pen, with a downward arrow indicating a process (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Diagram of two mechanical components with directional arrows indicating movement or force (no text or symbols)

Two mechanical diagrams showing a U-shaped bracket with directional arrows, mounted on a diagonal line (no text or symbols)

Diagram showing two steps of a refrigerator interior, labeled with numbered arrows and directional arrows.

Diagram illustrating a mechanical or fluid system with numbered components and directional arrows indicating flow or movement.

Technical diagram showing three steps of a mechanical or fluid processing procedure with numbered annotations

Uittrekbare rails demonteren

Technical diagram showing four-step assembly of a mechanical device with labeled components and directional arrows indicating motion.

Diagram illustrating a mechanical device with four labeled steps: pin insertion, lock operation, switch press, and close-up of key components.

Verlichting (LED)
