USER MANUAL T18IW900SP THERMADOR

Important safety instructions .... 3

Definitions 3

About these instructions .... 3

Introduction 3

Risk of explosion....3

Risk of electric shock 3

Risk of fire 3

Avoiding placing children and vulnerable people at risk 4

Damage 4

Weight 4

State of California Proposition 65 Warnings ..... 4

Intended use 5

Environmental protection .... 5

Packaging 5

Old appliances 5

Installation and connection ....5

Contents of package....5

Technical data. 5

Installing the appliance 5

Check built-in cut-out. 5

Side-by-side installation 5

Saving energy 6

Before using for the first time 6

Electrical connection 6

Getting to know your appliance ..... 7

Appliance 7

Operating controls....7

Interior fittings 8

Operating the appliance 9

Switching the appliance on 9

Switching off and disconnecting the appliance. 9

Setting the language 9

Setting the temperature unit 9

Setting the temperature....9

Humidity 9

Display light 9

Clean lock 10

Self-test....10

Setting the brightness of the control panel ..... 10

Switching standby display on and off ..... 10

Switching key press sound on or off ..... 10

Setting the key volume 10

Setting the signal tone volume ..... 11

Automatic clean lock 11

Automatic door opening 11

Theater mode 11

Resetting to the factory settings 12

Switching demo mode on or off 12

Sabbath mode 12

Alarm.... 12

Door alarm 12

Wine storage cabinet 12

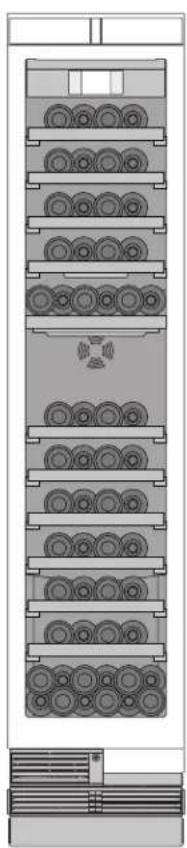

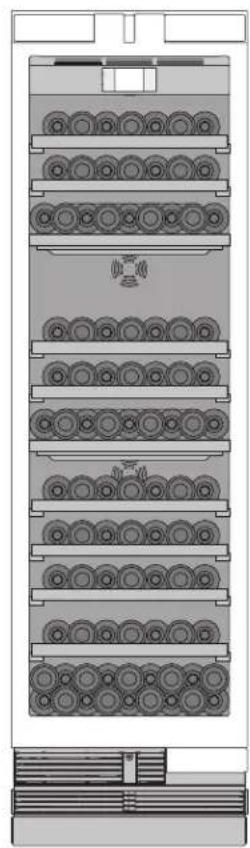

Loading bottles....12

Tips for storing wine 14

Drinking temperatures 14

Cleaning 15

Cleaning the display 15

Cleaning the appliance interior....15

Cleaning the fittings 15

Care instructions for stainless steel surfaces .... 15

Noises 15

Normal noises 15

Preventing noises 15

Lighting.... 15

Faults – what to do? 16

Appliance 16

Customer service.... 17

Appliance self-test 17

Repair order and advice on faults 17

Important safety instructions

READ INSTRUCTIONS - DO NOT DISCARD!

Definitions

WARNING

Non-observance of this warning could result in death or serious injuries.

CAUTION

Non-observance of this warning could result in slight or moderately serious injuries.

NOTICE: Non-observance of this information could damage the appliance.

Note: This indicates important information and/or tips.

About these instructions

• Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance.
  ■ The manufacturer is not liable if you disregard the instructions and warnings in the operating and installation instructions.
• Retain all documents for subsequent use or for the next owner.

Introduction

■ This appliance complies with the relevant safety regulations for electrical appliances.
■ The refrigeration circuit has been checked for leaks.

Risk of explosion

■ Never use electric devices inside the appliance (e.g. heaters or electric ice makers).
- Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

- Do not use other means to accelerate the defrosting process other than those recommended by the manufacturer.

Risk of electric shock

Improper installations or repairs may put the user at considerable risk.

• When installing the appliance, make sure that the power cord does not get jammed or is not damaged.
  ■ If the power cord is damaged, immediately disconnect appliance from the power supply.
• Do not use multiple outlets, extension leads or adapters.
  ■ Before servicing or modifying the appliance, pull out the power plug or switch off the fuse. Before cleaning, switch off the appliance with the main On/Off switch. Fittings can be safely adjusted while the appliance is switched on.
  ■ Never cut through or remove the power cord's third conductor (grounding conductor).
  ■ Never clean the appliance with a steam cleaner. The steam may penetrate electrical parts and cause a short circuit.
  ■ The appliance, cable and accessories should only be repaired or replaced by the manufacturer, customer services, or a similarly qualified person.
  ■ Only use original parts supplied by the manufacturer.
  These parts come with a guarantee from the manufacturer that they satisfy the safety requirements.

Risk of fire

Portable multi-outlet power strips and portable power supplies may overheat, causing a fire.

Never leave portable multi-outlet power strips or portable power supplies behind the appliance.

Important safety instructions

READ INSTRUCTIONS - DO NOT DISCARD!

Avoiding placing children and vulnerable people at risk

At risk are:

Children,
■ People who have limited physical, mental or sensory abilities,
■ People who have inadequate knowledge concerning safe operation of the appliance.

Measures:

■ Never allow children to play with the appliance.
■ Ensure that children and vulnerable people have understood the hazards.
■ Supervise children who are cleaning and maintaining the appliance.

Risk of suffocation

■ If the appliance features a door lock: keep the key out of the reach of children.
- Keep children away from the packaging and its parts.

Damage

To avoid damage:

• Do not stand or support yourself on the base, runners or doors.
• Keep plastic parts and door seals free of oil and grease.
• Pull the power plug – not the power cord.

Weight

The appliance is very heavy. The appliance should always be transported and set up by at least 2 people.

→ "Installing the appliance" on page 5

State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING: / AVERTISSEMENT ISSUE DE LA PROPOSITION 65 DE L'ÉTAT DE LA CALIFORNIE:

WARNING / AVERTISSEMENT

Cancer and Reproductive Harm / Cancer et dommages à la reproduction - www.P65Warnings.ca.gov.

Intended use

Use this appliance

■ only for storing wine.
■ only in the home and in the home environment.
■ only according to these operating instructions.

This appliance is intended for use at an elevation of no more than 2000 meters above sea level.

Environmental protection

Packaging

All materials are environmentally safe and recyclable:

■ Dispose of packaging in an environmentally responsible manner.
- Please ask your dealer or inquire at your local authority about current means of disposal.

Old appliances

Valuable raw materials can be reclaimed by recycling old appliances.

WARNING

CHILDREN MAY BECOME LOCKED IN THE APPLIANCE AND SUFFOCATE!

Before disposing of your old appliance:

■ Remove the door.
■ Leave shelves and containers in the appliance to prevent children from climbing in.
- Keep children away from the redundant appliance.

CAUTION

REFRIGERANT AND HARMFUL GASES MAY ESCAPE.

Do not damage the tubes of the refrigeration circuit or insulation.

1. Pull out the power plug.
2. Cut through the power cord.
3. Have the appliance disposed of properly.

Installation and connection

Contents of package

After unpacking all parts, check for any damage during transport.

If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.

→ "Customer service" on page 17

The delivery consists of the following parts:

■ Built-in appliance
■ Interior fittings (depending on model)
■ Installation material
■ Instruction manual
■ Installation instructions
■ Customer service booklet
■ Warranty enclosure
■ Information on the energy consumption and noises

Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate. → "Getting to know your appliance" on page 7

Installing the appliance

Installation location

The weight of the appliance may be up to 460 kg depending on the model. The base must be sufficiently stable and should not give. If necessary, reinforce the floor.

Check built-in cut-out

The cut-out must fulfill these criteria:

■ Anti-tilt bracket must be fitted
- Cut-out depth min. 24" (610 mm), for flush installation 25" (635 mm)
- rectangular
■ stable – the side panels and the top must be min. 5/8" (16 mm) thick and securely attached to the floor or wall
■ Depth of shortest side panels min. 4" (100 mm)

Side-by-side installation

Observe the specifications in the installation instructions for a side-by-side installation.

If a partition wall is required between the appliances it must be at least 5/8" (16 mm) wide.

Saving energy

If you follow the instructions below, your appliance will use less power.

Note: The arrangement of the fittings does not affect the energy consumption of the appliance.

Installing the appliance
Keep the appliance out of direct sunlight. The appliance needs to cool less frequently at low ambient temperatures and therefore consumes less power.
Install the appliance as far away as possible from heating elements, cooker and other heat sources:At least 1 14 " (3 cm) from electric or gas cookers.At least 11 34 " (30 cm) from oil or solid-fuel cookers.
Select an installation location at a room temperature of approx. 68 °F (20 °C).
Do not cover or block the ventilation openings. The appliance needs to cool less frequently if the warm air can
Ventilate the room daily.	escape and therefore consumes less power.

Using the appliance
Open the appliance door only briefly.	The air in the appliance does not warm up so intensely. The appliance needs to cool less frequently and therefore consumes less power.
Transport cooled wine in a cool bag and place in the appliance quickly.
Always leave a space between the bottles and the back panel.	The air can circulate, and the temperature will remain constant. The appliance needs to cool less frequently and therefore consumes less power.
Do not cover or block the ventilation openings.	The appliance consumes less power if the warm air can escape freely.
Vacuum the ventilation openings once a year.

Before using for the first time

1. Remove information material, adhesive tape and protective foil.

2. Clean the appliance.

→ "Cleaning" on page 15

Electrical connection

CAUTION

Do not connect the appliance to electronic energy saver plugs.

Note: You can connect the appliance to mains-controlled and sine-controlled inverters.

Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, are not directly connected to the national grid.

1. After installing the appliance, wait at least 1 hour before connecting it to prevent damaging the compressor.
2. Check that the outlet was installed according to the regulations and complies with the requirements.

Requirements for outlets

Outlet with 110 V ... 120 V

Protective conductor 60 Hz

Fuse 10 A ... 16 A

Maximum simultaneous load

Appliance 6 A

1. Connect the appliance to an outlet near the appliance. The outlet must also be freely accessible following installation of the appliance.

WARNING

RISK OF ELECTRIC SHOCK! Never use multiple outlets, extension leads or adapters. The appliance must be grounded correctly. Never cut through or remove the power cord's third conductor (grounding conductor).

WARNING

RISK OF ELECTRIC SHOCK! If the power cord is too short, never use multiple outlets or extension leads. Instead, please contact Customer Service.

Getting to know your appliance

1 ... 5 6 7 8 9 10 11 12

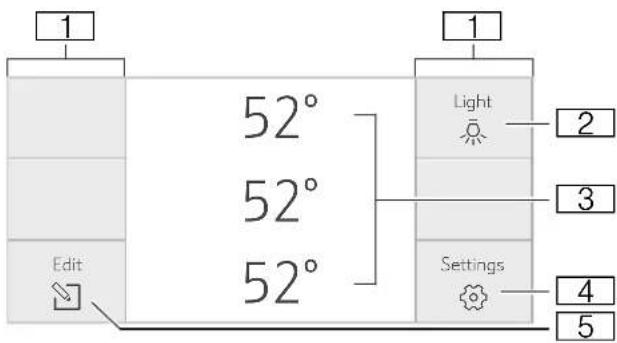

Operating controls

1 52° 52° 52° Edit 1 Light 2 3 Settings 4 5

1 Touch fields

There are sensors under the touch fields. Touching the symbol calls up the respective function.

2 button

Opens the menu for switching between the different light scenarios.

3 Wine storage cabinet temperature display

Indicates the set temperature in °F/°C. Depending on the appliance model in question, 2 or 3 cabinets are displayed.

4 button

Opens the Settings menu. → "Settings menu" on page 8

5 button

Opens the menu for changing the temperature.

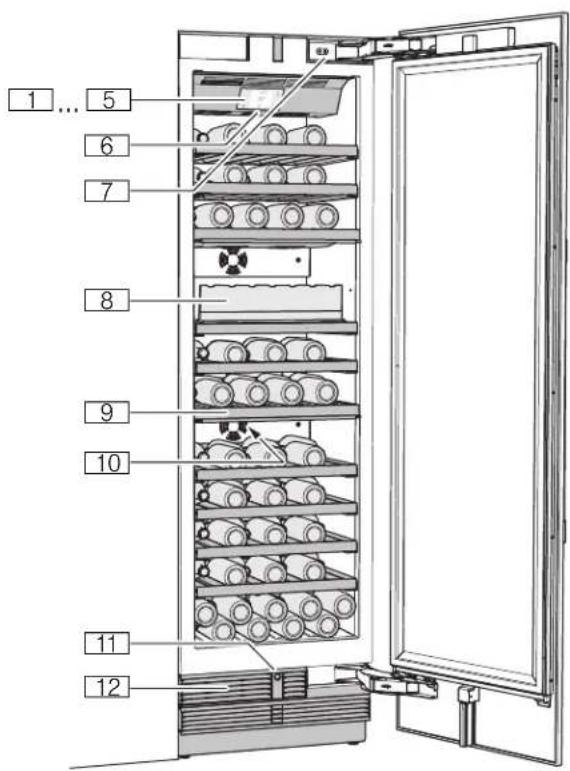

Appliance

* Not all models.

1 ... 5 Operating controls
6 Main On/Off switch
7 Door damper
8 Partition
9 Shelf
10 Rating plate
11 Automatic door opening
12 Ventilation opening

en-us Getting to know your appliance

Settings menu

Press ↩ button to open the menu.

In the Settings menu you will find:

■ Appliance settings
- Cleaning mode
Self-test
■ Sabbath mode (if activated)

→ "Operating the appliance" on page 9

Appliance settings menu

This is how to navigate to the Appliance settings menu:

1. Press ↩ button.
2. Use < button to move to the Appliance settings menu.
3. Open the menu using ☑ button.

In the Appliance settings menu you will find the following sub-menus and setting options:

Brightness
Standby screen
■ Key press sound
■ Key volume
■ Signal tone volume
■ Automatic clean lock
■ Automatic door opening
■ Theater mode
Temperature unit
Language
■ Factory settings
■ Demo Mode
■ Sabbath mode

→ "Operating the appliance" on page 9

Interior fittings

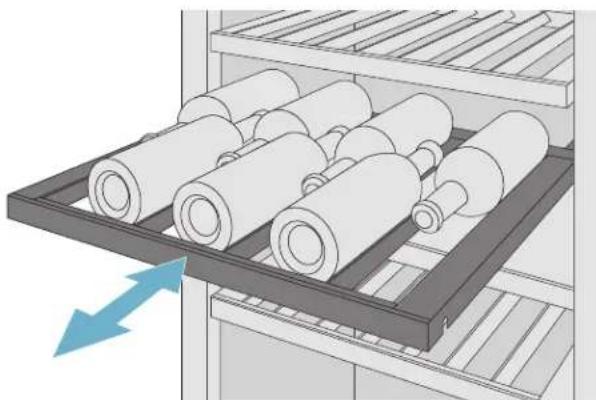

Shelf

You can pull out the shelves to reach the wine bottles more easily.

Note: The shelves separating the climate zones are not movable.

Illustration of a rack with rolled cylindrical objects inside, showing an upward arrow (no text or symbols)

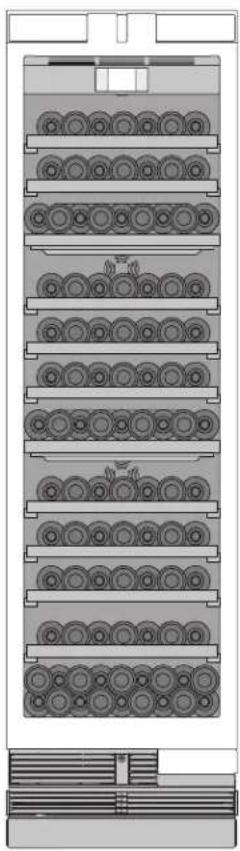

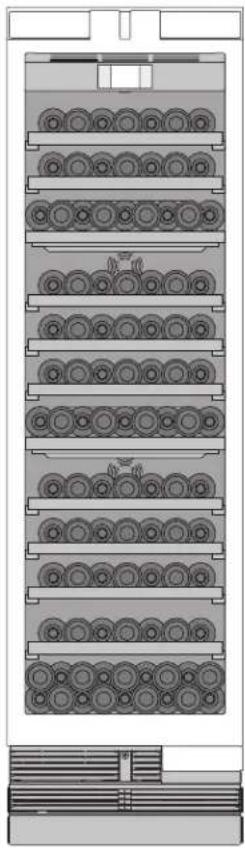

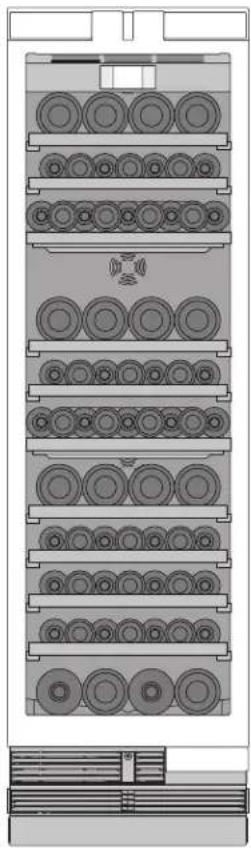

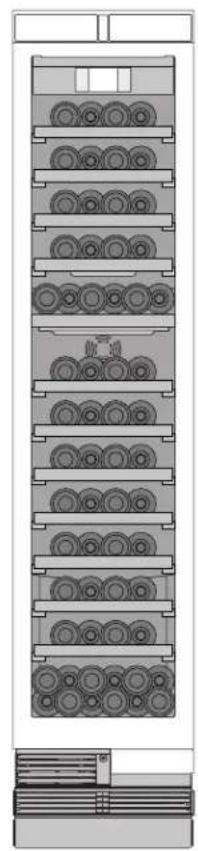

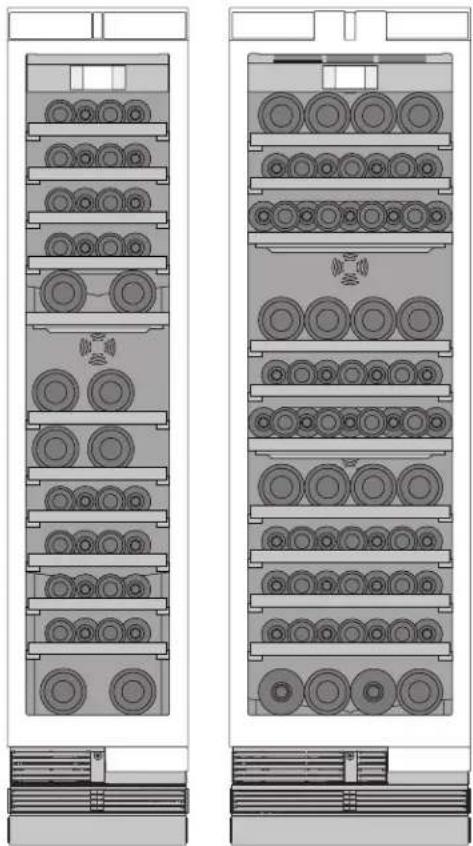

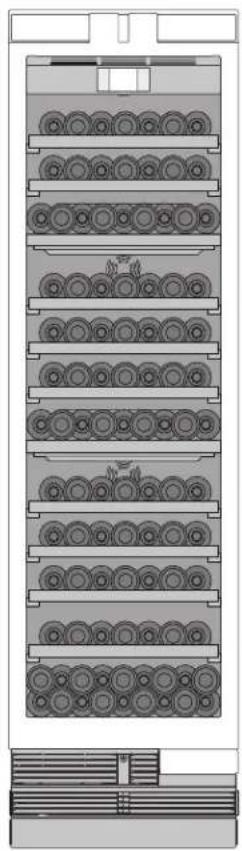

Additional shelf

You can install additional shelves to store more wine bottles or to provide better support to the bottles on the fixed shelves.

Operating the appliance

Switching the appliance on

1. Press the main On/Off switch. The appliance starts cooling and the light is switched on when the door is open.
2. Set the required temperature. → "Setting the temperature" on page 9

Operating tips

• When the appliance has been switched on, it may take several hours until the set temperatures have been reached.
  The front sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal.

Switching off and disconnecting the appliance

Switching off the appliance

■ Press the main On/Off switch. The appliance is no longer cooling.

Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Pull out mains plug or switch off fuse. The appliance is no longer cooling.
2. Clean the appliance.
3. Leave appliance open.

Setting the language

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Press < button to move to the menu item Language.
5. Press ↻ button.
6. Use <> buttons to move to the required language.
7. Press ☑ button. The display restarts, and the start screen is displayed.

Setting the temperature unit

You can choose between the unit ^ C and ^ F.

1 ° means 1 °F
1 °C means 1 °C

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.

4. Use < button to move to the menu item Temperature unit.

5. Press ↩ button.

6. Use <> buttons to move to the required unit.
7. Press ☑ button. The unit will be changed.
8. Press ↻ button to exit the menu.

Setting the temperature

Recommended temperature

Wine storage cabinet: 11 °C/52 °F

Wine storage cabinet

1. To open the menu for setting the temperature, press the ➕ button.
2. Use the ☐/☐ button to select the desired compartment.
3. Keep pressing the +/- button until the display indicates the required temperature.
4. Confirm the selection by pressing the ☑ button. If the button is not pressed, the appliance stores the setting and automatically returns to the main screen after a few seconds.

Humidity

If bottles with natural corks are stored for longer than 4 weeks, the natural corks may shrink if the humidity is too low.

To prevent this from happening, store old wine bottles in such a way that the cork is kept wet and increase the humidity.

Switching humidity on and off:

1. Press 📋 button to open the menu for setting the climate zones.
2. Use ☐/☐ button to select the desired compartment.
3. To switch on the higher humidity level, press △ button.
   The symbol appears in the display.
   To switch off, press ↗ button.
   The ♂ symbol appears in the display.
4. Confirm the selection by pressing ☑ button. If the button is not pressed, the appliance saves the setting and automatically returns to the main screen after a few seconds.

Display light

You can use the preprogrammed light modes to illuminate your wine bottles when the door is closed. The individual climatic zones have different illumination levels.

Using the display light

1. Press the ⚙ button to open the Display light menu.
2. Select a light mode or press the ☑ button to switch the display light off.
3. Press ☑ button. The setting is saved.

Clean lock

You can use this function to switch off the touch function of the controls for 10 seconds. During this time you can clean the display.

→ "Cleaning the display" on page 15

1. Press ↩ button to open the Settings menu.
2. Press ▷ button.

The cleaning display appears, and the countdown starts.

10s

Automatic clean lock

You can use this function to select whether the automatic clean lock is switched on automatically when the door is opened.

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Press > button to move to the menu item Automatic clean lock.
5. To change the setting, press ↩ button.

Self-test

This function can be used to start fault analysis on your appliance.

→ "Appliance self-test" on page 17

Setting the brightness of the control panel

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Press 📋 button to open the menu item Brightness.
5. Press ( ) buttons to set the required brightness.
6. Press ☑ button. The setting is sa
7. Press ↻ button to exit the menu.

Switching standby display on and off

If you switch on the standby screen, you can select what is displayed on the control panel when the door is closed.

1. Press the ↗ button to open the main menu.
2. Press < button to move to the menu item Basic settings.
3. Press √ button.
4. Use the > button to scroll to the Standby screen menu item.
5. Press 📋 button.
6. Use buttons to select whether the Standby screen is switched on or off.
7. Press ☑ button.
8. When the Standby screen has been switched on, you can use the buttons to select whether the logo or the temperature is displayed with the functions switched on.
9. Press ☑ button. The setting is saved.
10. Press ↻ button to exit the menu.

Switching key press sound on or off

You can switch the sounds generated when pressing keys off and back on again.

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button to open the menu item.
4. Press > button to move to the menu item Key press sound.
5. Press ☑ button to open the menu item.
6. Use buttons to select the required setting.
7. Press ☑ button. The setting is saved.
8. Press ↻ button to exit the menu.

Setting the key volume

You can adjust the volume level of the sounds generated when pressing keys.

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button to open the menu item.
4. Use > button to move to the menu item Key volume.
5. Press ↩ button to open the menu item.
6. Use <> buttons to select the required setting.
7. Press ☑ button. The setting is saved.
8. Press ↻ button to exit the menu.

Setting the signal tone volume

You can adjust the volume level of the signal tones generated e.g. with alarms.

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button to open the menu item.
4. Use > button to move to the menu item Signal tone volume.
5. Press ↗ button to open the menu item.
6. Use buttons to select the required setting.
7. Press ☑ button.
   The setting is saved.
8. Press ↻ button to exit the menu.

Automatic clean lock

You can use this function to select whether the automatic clean lock is switched on automatically when the door is opened.

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Press > button to move to the menu item Automatic clean lock.
5. To change the setting, press ↻ button.

Automatic door opening

The automatic door opening function supports you in opening the door.

As soon as you activate this function, automatic door opening moves out and supports you in opening the door.

CAUTION

Repeatedly closing the door too early will cause automatic door opening to fail or wear out. Do not close the door as long as automatic door opening is still moved out. If you have nevertheless closed the door, leave it closed for 5 minutes. Automatic door opening will re-adjust itself.

Switching on Push-to-open system

In an installation situation without handles you can select the Push-to-open system. Your appliance will then open a crack if you press lightly on the door.

Note: Please note that automatic door opening is disabled if Sabbath mode is activated.

1. Open menu item Auto door opening.
2. Select menu item Push-to-open system.
3. Press ☑ button to open the menu item.
4. Select Opening force. Here you can select the level of force required to activate automatic door opening.
5. Select Opening duration. Here you can select how long the door should remain open a crack before it closes again automatically.

Note: If the door only remains open a crack, the appliance checks once a second whether the door is still ajar. After the selected opening duration elapses, the appliance will close the door automatically.

Switching on Pull-to-open system

In an installation situation with handles you can select the Pull-to-open system. Your appliance will support you in opening the door as soon as you pull on the handle.

1. Open menu item Auto door opening.
2. Select menu item Pull-to-open system.
3. Press ☑ button to open the menu item.
4. Select Opening force. Here you can select the level of force required to activate automatic door opening.

Switching off automatic door opening

1. Open menu item Auto door opening.
2. Select menu item Off.

Theater mode

If Theater mode is switched on, the light will slowly become brighter when the appliance is opened, and then slowly darker when it is closed.

Switching Theater mode on or off

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button to open the menu item.
4. Use > button to move to the menu item Theater mode.
5. Press ↩ button to open the menu item.
6. Use > button to move to the menu item On or Off.
7. Press ☑ button.
   The setting is saved.
8. Press ↻ button to exit the menu.

Resetting to the factory settings

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Use < button to move to the menu item Factory settings.
5. Press 📋 button.
   A signal tone sounds, and a prompt to confirm reset appears.
6. Press ☑ button.
   All settings are reset to the factory settings.
7. Press ↻ button to exit the menu.

Switching demo mode on or off

The cooling function of the appliance is switched off. All other functions can be used.

Note: Do not store any food items in demo mode as the appliance remains at room temperature.

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the menu item Appliance settings.
3. Press ☑ button.
4. Use < button to move to the menu item Demo mode.
5. Press ↙ button.
6. Use buttons to select the setting On or Off
7. Press ☑ button.
   The setting is saved.
8. Press ↻ button to exit the menu.

Sabbath mode

All non-essential functions are switched off so you can also use the appliance on the Sabbath.

The appliance switches off the following:

■ Automatic door opening

Note: With handle-free installation, please note that you will not be supported when opening the door during this time.

To open the door in this case, reach from below under the bottom panel of the unit.

Audible signals
Interior light
■ Messages on the control panel
■ Background illumination of control panel is reduced

Switching Sabbath mode on or off

Displaying Sabbath mode in the Settings menu

To use Sabbath mode, you first have to display the function in the Settings menu:

1. Press ↩ button to open the Settings menu.
2. Use < button to move to the Appliance settings menu.
3. Press ☑ button.
4. Use < button to move to the menu item Sabbath mode. Press ↩ button.
5. Use < button to move to the menu item Available. Confirm by pressing ☑ button.
6. Press ↻ button to exit the menu.
   The function is added to the Settings menu.

Switching on Sabbath mode

1. Press ↩ button to open the Settings menu.
2. Press ⏻ button to open the view Duration Sabbath mode.
3. Select one of the presettings, or change the duration with +/- buttons.
4. Press ▷ button to start.
   The appliance switches all listed functions off.

Switching Sabbath mode off

■ After the selected time elapses, the appliance switches over to normal operation.
■ To end Sabbath mode before the selected time elapses, press □ button.

Door alarm

If the appliance door is open for a long time, the door alarm (continuous audible signal) switches on.

- Close door.

The audible warning signal is switched off.

Wine storage cabinet

Loading bottles

To store the maximum number of wine bottles:

■ store the bottles as indicated
- check that the bottles do not exceed the specified dimensions

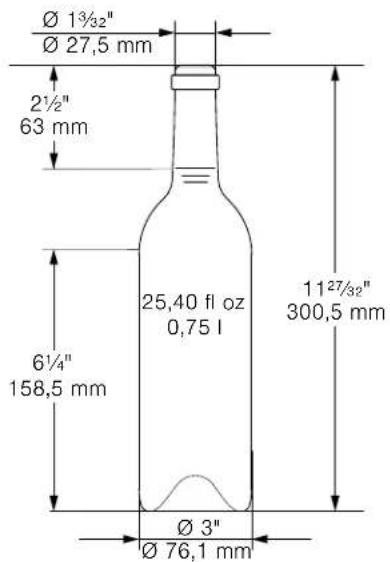

Standard bottle size

You can ideally utilize the volume of your appliance with Bordeaux bottles of this size.

Ø 1¾/32" Ø 27,5 mm 2½" 63 mm 6¼" 158,5 mm 25,40 fl oz 0,75 l Ø 3" Ø 76,1 mm 11²⁷/³²" 300,5 mm

Storage example with standard bottles

18" appliance: 58 standard bottles
24" appliance: 92 standard bottles

Technical diagram of a multi-tiered storage unit with circular components and a central hub (no text or labels)

Technical diagram of a multi-tiered mechanical or electrical component with circular components and mounting brackets (no text or symbols)

Loading with additional shelves

You can change the storage options of your appliance by installing additional shelves.

18" appliance: 62 standard bottles
24" appliance: 99 standard bottles

Diagram of a vertical rack with circular components, no text or symbols present

Technical diagram of a multi-layered mechanical or electrical component with circular components and a small inset view (no text or symbols)

Storage example for different bottle sizes

Technical diagram of a dual-chamber electronic device with circular components and mounting brackets (no text or symbols)

Tips for storing wine

• Unpack wine bottles – do not store in crates or cartons in the wine storage compartment.
  If bottles with natural corks are stored for longer than 4 weeks, the natural corks may shrink if the humidity is too low.
  To prevent this from happening, store old wine bottles in such a way that the cork is kept wet and increase the humidity.
  → "Humidity" on page 9

■ The open bottle shelves allow continuous air circulation. As a result, excess humidity is quickly removed.

Before the wine is enjoyed, it should be slowly warmed up (chambré): take e.g. rosé wine out of the appliance approx. 2–5 hours before drinking, and red wine 4–5 hours before drinking. This will ensure that the wine is at the correct drinking temperature. White wine, on the other hand, should be placed on the table just before drinking. Sparkling wine and champagne should be chilled in the refrigerator for a short while before drinking.

■ Remember that wine should always be cooled slightly lower than the ideal serving temperature, as its temperature increases as soon as it is poured into a glass.

Drinking temperatures

The correct serving temperature is crucial for the taste and therefore your enjoyment of the wine.

We recommend the following drinking temperatures for serving the wine:

Type of wine Drinking temperature

Full-bodied red Bordeaux 65 °F (18 °C)

Côtes du Rhône red, Barolo 64 °F (17 °C)

Full-bodied red Burgundy, red Bordeaux 61 °F (16 °C)

Port 59 °F (15 °C)

Young red Burgundy 57 °F (14 °C)

Young red wines 54 °F (12 °C)

Young Beaujolais, all white wines with little residual sugar 52 °F (11 °C)

Old white wines, full-bodied Chardonnay 50 °F (10 °C)

Sherry 49 °F (9 °C)

Young white wines, from late vintage onward 46 °F (8 °C)

White wines, Loire, Entre-deux-Mers 45 °F (7 °C)

Cleaning

CAUTION

AVOID DAMAGING THE APPLIANCE AND THE FITTINGS.

• Do not use abrasive, chloride-based or acidic cleaning agents or solvents.
• Do not use scouring or abrasive sponges. The metallic surfaces may corrode.
  ■ Never clean the shelves or containers in the dishwasher.
  The parts may become deformed.

Cleaning the display

The change in temperature and humidity can cause the controls to steam up.

Switch the clean lock on before cleaning.

→ "Clean lock" on page 10

Use a clean micro-fiber cloth for cleaning.

Cleaning the appliance interior

Proceed as follows:

1. Press main On/Off switch.
2. Take out bottles and store in a cool location if possible.
3. Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid.

CAUTION

The rinsing water must not run into the light or through the drainage hole into the evaporation area.

1. Wipe door seal with clear water and dry thoroughly with a cloth.
2. Switch appliance back on and put in bottles.

Cleaning the fittings

To clean, take the variable parts out of the appliance.

→ "Interior fittings" on page 8

Care instructions for stainless steel surfaces

When taking care of and cleaning stainless steel surfaces, use only cleaning agents suitable for stainless steel and a stainless steel cleaning cloth.

You can purchase a suitable stainless steel cleaning cloth from customer service.

To prevent visible scratches, clean the stainless steel surface in the direction of the structure.

Noises

Normal noises

Droning: A motor is running, e.g. refrigerating unit, ventilator.

Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes.

Clicking: Motor, switches or solenoid valves are switching on or off.

Preventing noises

Appliance is not level: Align appliance using a water level. Adjust the height of the feet. If the feet have already been moved right out, but the appliance is still not level, place e.g. a thin wooden plate underneath.

Containers, shelves or storage compartments wobble or stick: Check the removable fittings and re-insert if required.

Bottles or receptacles are touching each other: Move bottles or receptacles away from each other.

Lighting

Your appliance features a maintenance-free LED light.

Only customer service or authorized technicians may repair the light.

Faults – what to do?

Before you call customer service, use this table to check whether you can rectify the fault yourself.

Appliance

Temperature differs greatly from the set value.
	Switch off appliance for 5 minutes.→ "Switching off and disconnecting the appliance" on page 9If the temperature is too warm, check temperature again after a couple of hours.If the temperature is too cold, check temperature again on the following day.
Displays do not illuminate.
The power plug has not been inserted properly. Connect the power plug.
The fuse has tripped. Check the fuses.
The power has failed. Check whether the power is on.
The refrigeration unit is switching on more frequently and for longer.
The appliance was opened frequently. Do not open the appliance unnecessarily.
The ventilation openings are covered up. Remove obstacles.
Large quantities of fresh food have been put in. Switch on super cooling promptly in advance.
Appliance is not cooling, display and lighting are lit.
Demo mode is switched on. Switch demo mode off. → "Switching demo mode on or off" on page 12
The door does not open when pressed.
A special mode has switched off automatic door opening.	To open the door, reach from below underneath the bottom panel of the unit or switch off special mode.→ "Switching Sabbath mode on or off" on page 12
Pull-to-open is switched on.	Switch the appliance to Push-to-open.→ "Automatic door opening" on page 11
The opening force is set too high.	Select a lower setting for the opening force.→ "Automatic door opening" on page 11
The fuse has tripped. Check the fuses.
The power has failed. Check whether the power is on.

Customer service

If you are unable to rectify the fault, please contact our customer service. We will always find an appropriate solution in order to avoid unnecessary visits by engineers.

The contact information for your nearest customer service can be found here or on the enclosed customer service list.

When calling, please state the product number (E-Nr.) and the production number (FD), which can be found on the rating plate.

→ "Getting to know your appliance" on page 7

Trust the expertise of the manufacturer. You can therefore be sure that the repair is carried out by trained service engineers who carry original spare parts for your home appliances.

Appliance self-test

Your appliance features a self-test program which displays the fault your customer service can rectify.

1. Press ↩ button to open the Settings menu.
2. Use > button to move to the menu item Self-test.
3. Press ☑ button to start the self-test. The self-test starts.
4. If faults are present, they will be displayed. In this case follow the instructions.
5. The appliance restarts.
6. A message that the self-test has finished is displayed for 10 seconds.

When the self-test has ended, the appliance switches to normal operation.

Repair order and advice on faults

Contact information for all countries can be found on the enclosed customer service list.

USA 1-800-735-4328 Toll-free in the USA

CA 1-800-735-4328

Illustration of cylindrical rollers in a rack inside a storage cabinet, with an arrow indicating direction (no text or symbols)

Technical diagram of a dual-chamber storage or rack system with circular components and mounting brackets (no text or labels)

Ajout de clayettes

Diagram of a vertical rack with multiple circular components, no text or symbols present

Technical diagram of a multi-layered mechanical or electrical component with circular components and mounting brackets (no text or symbols)

Technical diagram of a dual-chamber electrical enclosure with circular components and mounting brackets (no text or labels)

Illustration of a rack with rolled cylindrical objects inside, showing an upward arrow (no text or symbols)

Technical diagram of a multi-tiered storage unit with circular components and a base panel (no text or labels)

Technical diagram of a multi-tiered mechanical or electrical component with circular components and mounting brackets (no text or symbols)

Diagram of a vertical rack with multiple circular components, no text or symbols present

Technical diagram of a multi-layered mechanical or electrical component with circular components and mounting brackets (no text or symbols)

Technical diagram of a multi-tiered rack-mounted device with circular components and mounting holes (no text or labels)

Technical diagram of a multi-tiered mechanical or electrical component with circular components and mounting brackets (no text or symbols)
