CU 4100 - Corkscrew Orbegozo - Free user manual and instructions

Product type	Electric corkscrew
Brand	Orbegozo
Model	CU 4100
Power source	6 x 1.5V batteries (not included)
Battery type	AA
Main function	Open wine bottles
Integrated foil cutter	Yes
Automatic stop	Yes (when cork is extracted)
Rotation direction	Clockwise to screw, counterclockwise to unscrew
Usage	Indoors only
Recommended surface	Flat and stable
Maintenance	Clean with a damp cloth, do not immerse
Safety	Sharp spiral, do not use near water, do not force the mechanism
Compliance	CE (directives 2014/35/EU and 2014/30/EU)
Minimum age of use	8 years (under supervision)
Housing material	Plastic
Spiral	Metal
Recycling	WEEE (do not dispose of with household waste)

Frequently Asked Questions - CU 4100 Orbegozo

How to use the Orbegozo CU 4100 corkscrew?

Remove the capsule with the foil cutter. Place the corkscrew vertically on the cork. Hold the bottle with one hand, press the lower switch to screw. The device stops automatically when the cork is extracted. To remove the cork, press the upper switch.

How to change the corkscrew batteries?

Unscrew the top cap. Insert 6 AA 1.5V batteries respecting the indicated polarity. Close the cap.

What to do if the spiral does not turn?

Check that the batteries are installed correctly and are not discharged. If the problem persists, contact customer service.

How to clean the corkscrew?

Clean the exterior with a damp cloth, then dry it with a soft cloth. Never use abrasive products and do not immerse the device in water.

Is the corkscrew suitable for all types of corks?

It is suitable for standard wine corks (cork or synthetic). For very fragile or damaged corks, proceed with caution.

Why does the cork sometimes break?

This can happen if the corkscrew is not centered properly or if the cork is too dry. Make sure to keep the device vertical and do not force the mechanism.

How to remove the cork after extraction?

Press the upper switch to turn the spiral in the opposite direction. The cork will be released automatically.

Can I use the device without batteries?

No, the corkscrew requires 6 AA batteries to operate. It is not designed for manual use.

What is the battery life?

The lifespan depends on usage. On average, a set of batteries allows opening several dozen bottles. Replace them as soon as power decreases.

What to do if the device falls into water?

Do not try to grab it with wet hands. Remove the batteries immediately and let it dry completely before reuse. If the device is damaged, contact customer service.

USER MANUAL CU 4100 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

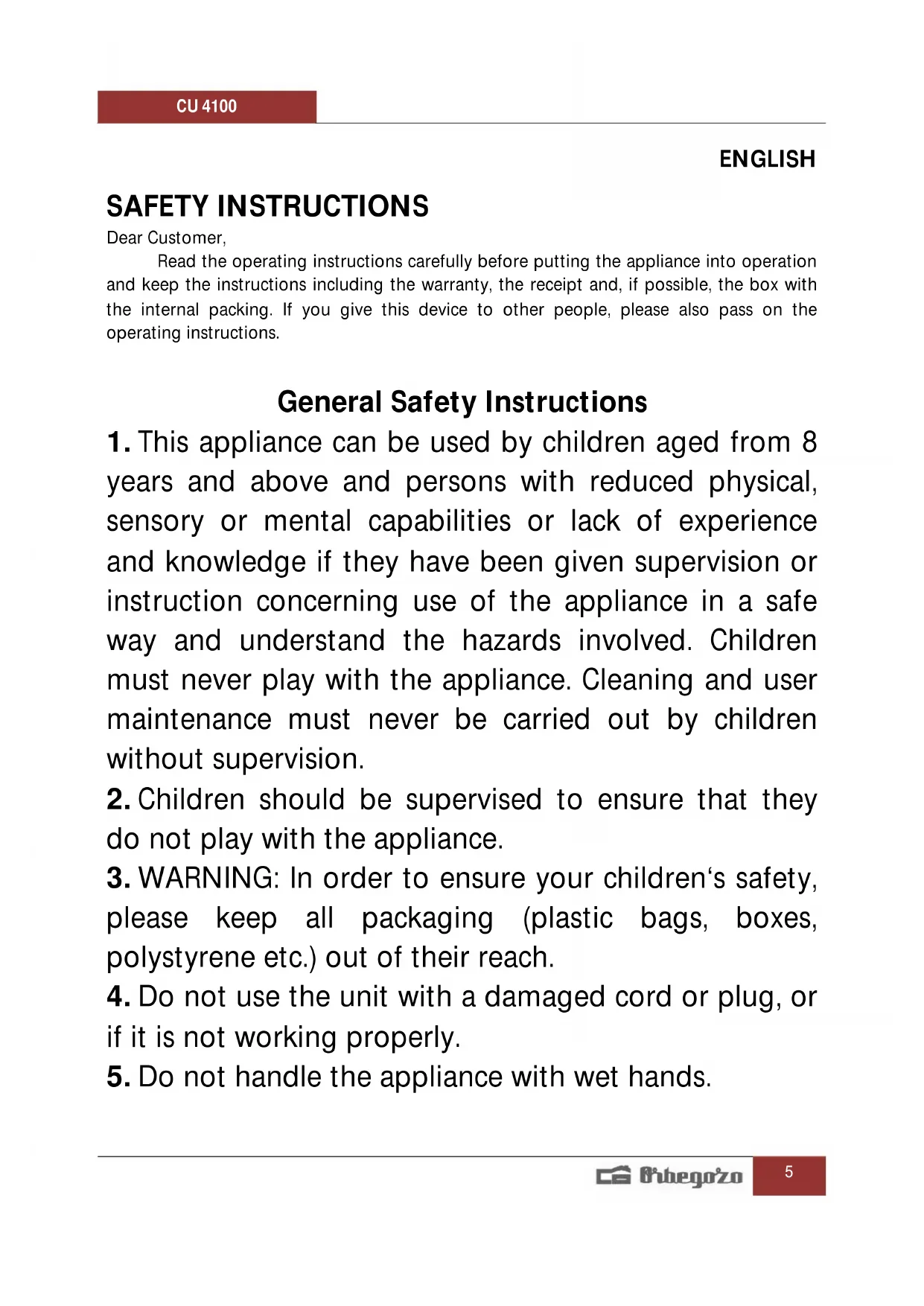

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. Do not use the unit with a damaged cord or plug, or if it is not working properly.

5. Do not handle the appliance with wet hands.

6. Never immerse the appliance in water or any other liquid.

7. This appliance is for household use only.
8. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
9. WARNING: In case of misuse, there is a risk of possible injury.

Specific safeguards

• Place the device on a flat stable surface.
• This product is intended to be used indoors. Never use the appliance near a sink filled with water or other liquids.
• Never force the corkscrew onto a bottle or attempt to speed up the mechanism. The corkscrew will work best when it is operated at its intended speed.
• Do not touch or adjust the corkscrew's mechanism or the corkscrew spiral. Only hold the corkscrew by the plastic housing.
• ATTENTION: the spiral is a sharp object. Handle with care.

USE

1. Use the foil cutter to remove any protection of the cork.
2. Place the corkscrew on the top of the wine bottle. Ensure that it remains as upright as possible at all the times. If you hold the corkscrew at an angle to the bottle, it will not remove the cork properly.
3. Hold the corkscrew firmly with one hand while the other one holds the bottle, and depress the lower part of the switch. The corkscrew spiral will turn in a clockwise direction and enter the cork, then gradually remove it from the bottle. When the corkscrew mechanism stops, the cork has been fully removed from the bottle.
4. Lift the wine opener away from the bottle. To remove the cork, simply depress the upper part of the switch. The spiral will turn in an anti-clockwise direction and release the cork.

BATTERY

The appliance works with 6 × 1.5V AAA (not included)

To replace the batteries, unscrew the top cover and insert them in accordance with the polarity

CLEANING

• Never immerse the appliance in water or other liquid.
• Clean the outside of the appliance with a damp cloth and dry it with a soft, clean cloth. Never use abrasives.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning

the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
