Product Type	Compact VHS Camcorder
Brand	Panasonic
Model	PV-L352-K
Power Supply	6 V DC (NiCd battery pack) or AC adaptor 110-240 V AC, 50/60 Hz
Dimensions (W × H × D)	106 × 125 × 190.5 mm
Weight	0.99 kg (approximately)
Video Signal	NTSC, 525 lines, 60 fields
Recording System	2 rotary heads + 1 flying erase head, helical scan
Lens	Motorized zoom 20:1, F1.6, focal length 3.6 to 72 mm
Viewfinder	Electronic 0.4 inch (10.2 mm)
LCD Screen	2.5 inches (63.5 mm) color, adjustable

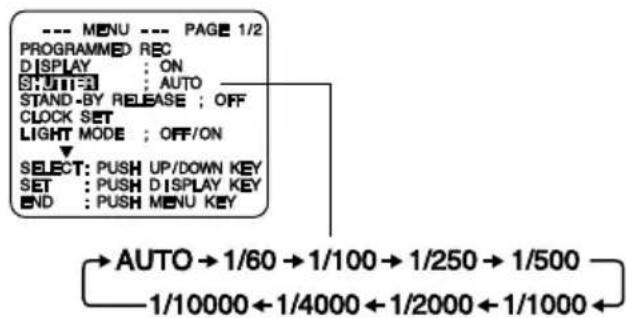

Shutter Speed	Automatic 1/60 to 1/350 s, manual up to 1/10000 s
Digital Zoom	Up to 700x
Stabilization	Electronic (EIS)
Special Features	Fade (black/white), digital color fade, motion detection, delayed recording, built-in light
Included Accessories	AC adaptor, PV-BP15-K battery pack, lens cap, audio/video cable, cassette adaptor, CR2025 clock battery
Maintenance	Clean video heads with special cassette if necessary; do not use abrasive detergents
Safety	Do not expose to rain or moisture; disconnect before cleaning; do not open

Frequently Asked Questions - PVL352K PANASONIC

How to recharge the battery pack?

Plug the AC adaptor into an outlet, insert the battery pack into the adaptor aligning the marks. The charge indicator blinks and then stays on when charging is complete (about 1 hour).

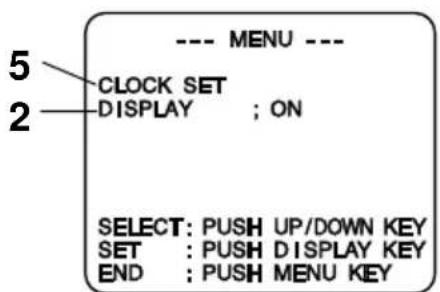

How to set the camcorder clock?

Set the switch to CAMERA or VCR, press MENU, select CLOCK SET, then set the time zone, daylight saving time (DST), and date/time using the UP/DOWN and DISPLAY buttons.

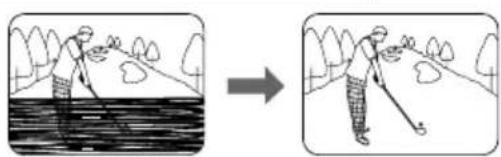

Why is the picture snowy during playback?

This may be due to dirty video heads. Use a video head cleaning cassette. If the problem persists, have the unit serviced by a qualified technician.

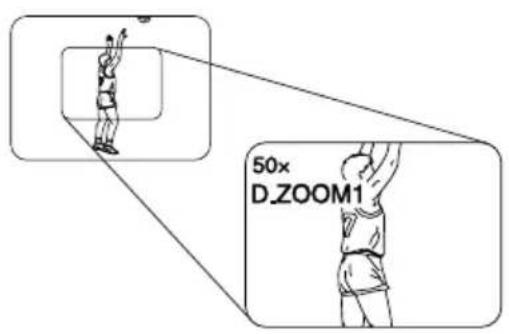

How to use the digital zoom?

Press D.ZOOM to activate digital zoom (D.ZOOM 1 or 2). Then, press and hold the T end of the zoom lever to enlarge the image beyond the optical zoom.

What to do if the cassette does not insert?

Make sure the unit is powered on (battery pack or adaptor). Insert the cassette with the window facing outward and the protection tab intact for recording.

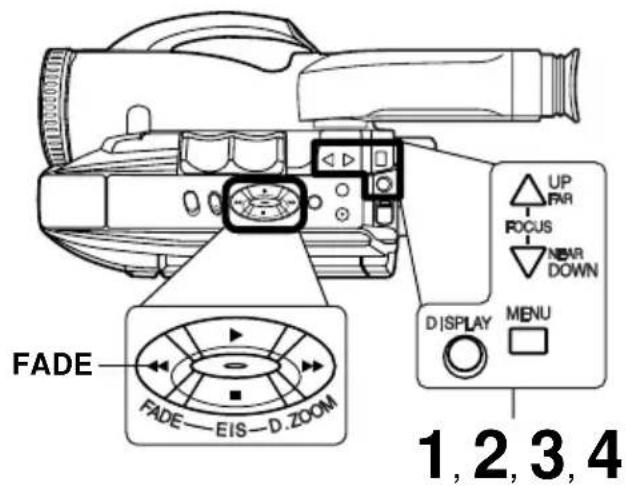

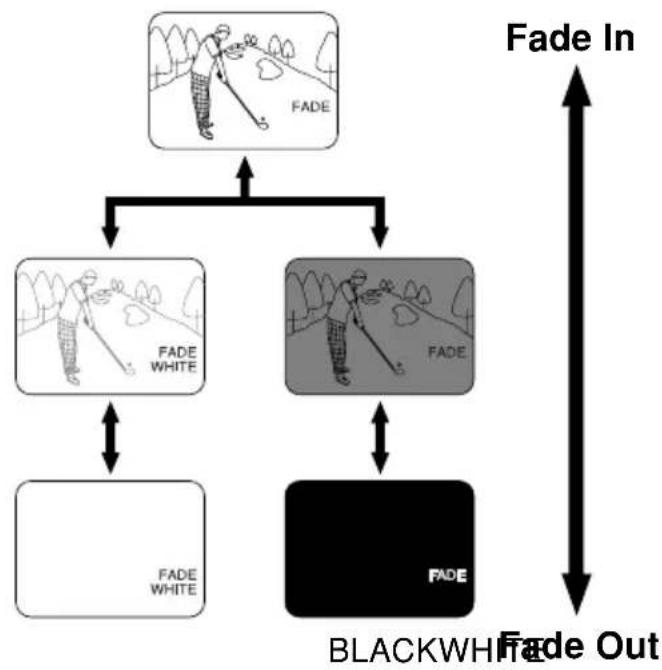

How to activate the automatic fade?

Press MENU, select VIDEO EFFECTS then AUTO FADE, choose BLACK or WHITE. In record/pause mode, press FADE for a fade-in, or during recording for a fade-out.

Does the image stabilizer (EIS) work in low light?

No, in insufficient lighting, the EIS indicator blinks and stabilization may not work properly. It is then recommended to use a tripod or increase the lighting.

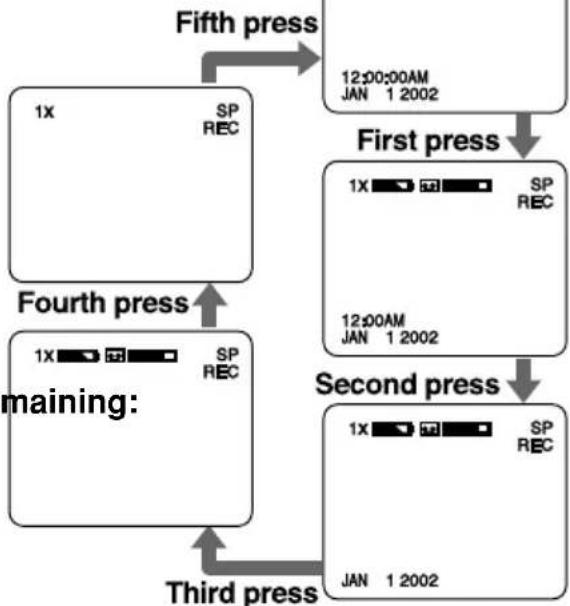

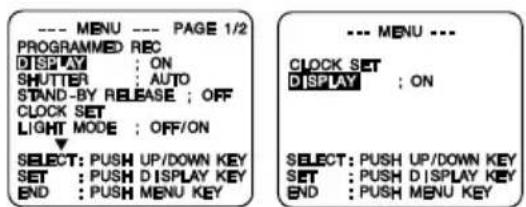

How to clear the date and time display on the screen?

Press DISPLAY repeatedly until the display disappears. You can also disable the display in the menu by setting DISPLAY to OFF.

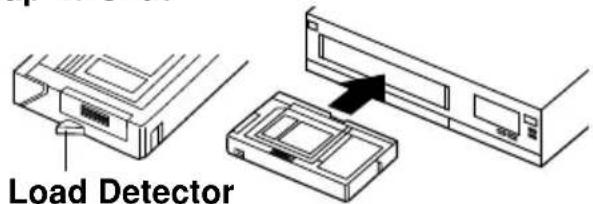

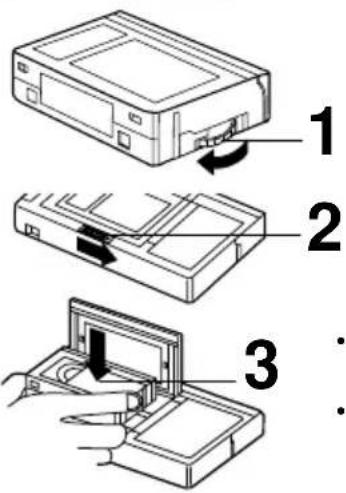

Can I use standard VHS cassettes?

Yes, but only with the supplied cassette adaptor. Insert the VHSC cassette into the adaptor, then place the whole thing into a standard VHS VCR.

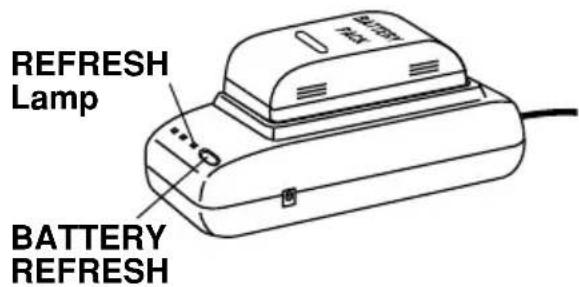

The battery life seems short, what should I do?

Use the discharge function (BATTERY REFRESH) after about 5 charges to keep the battery in good condition. If the life remains short, replace the battery pack.

USER MANUAL PVL352K PANASONIC

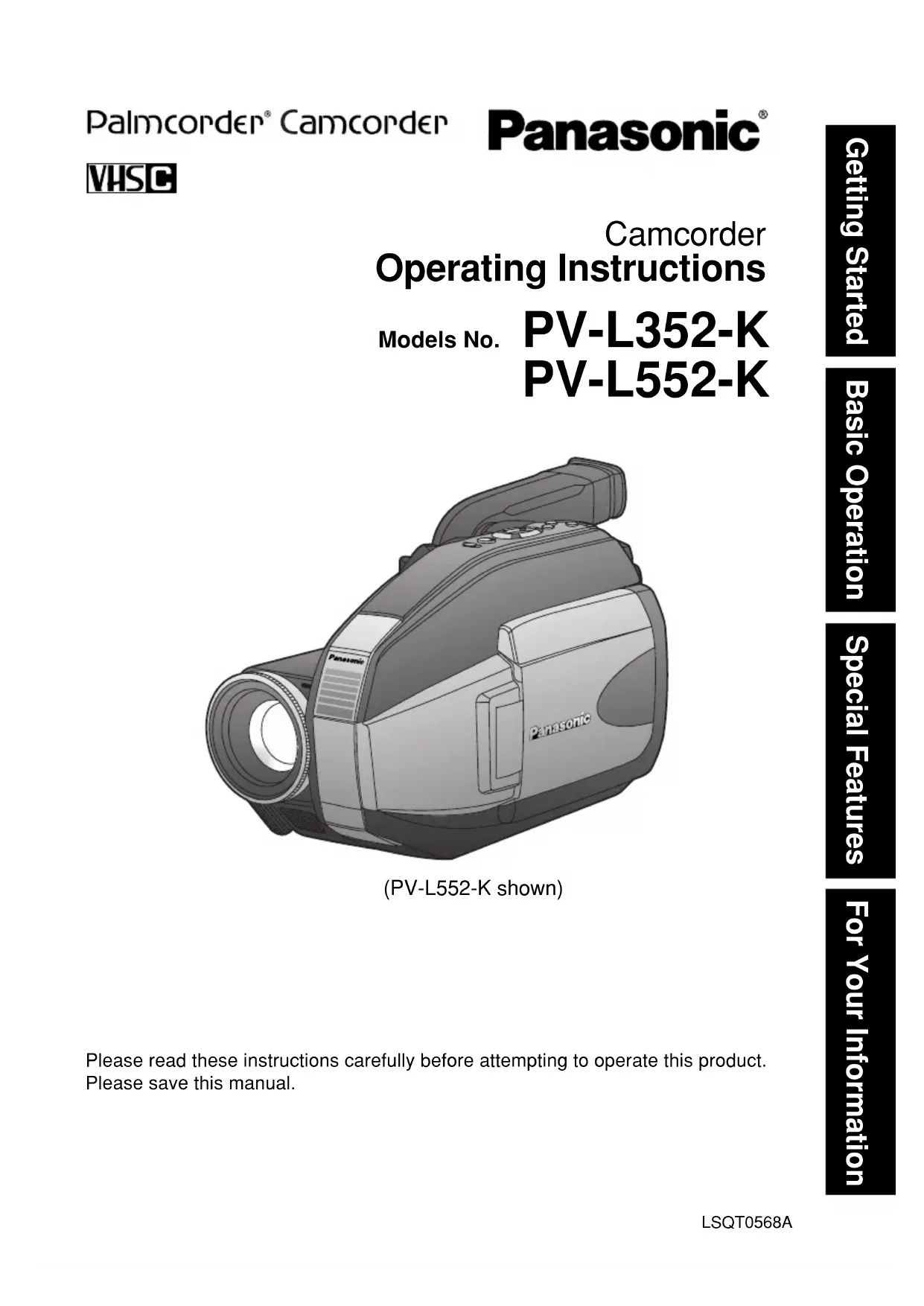

Operating Instructions

Models No. PV-L352-K

PV-L552-K

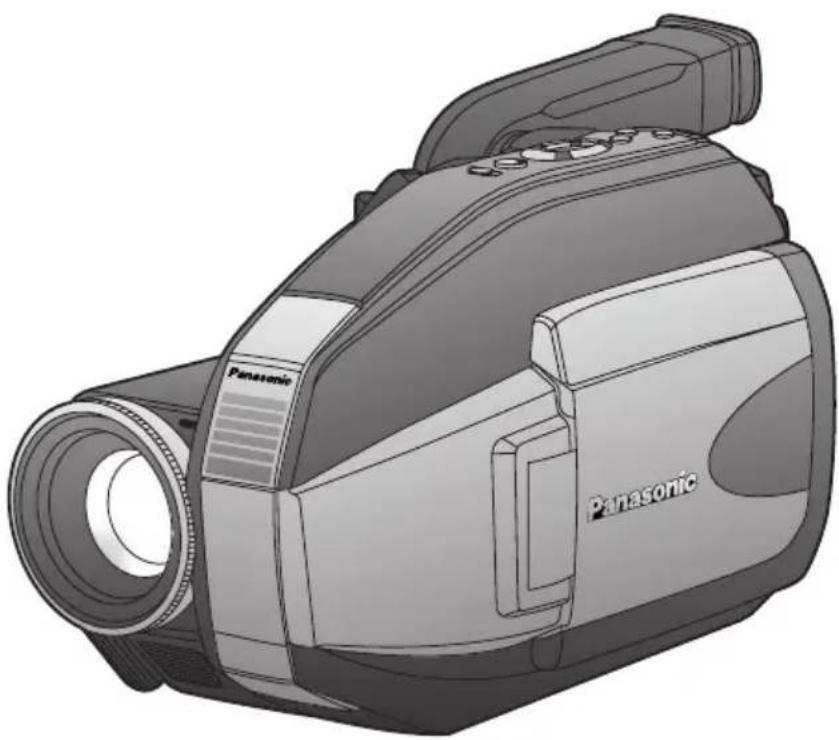

Illustration of a Panasonic digital camera with lens and control panel (no text or symbols on body)

(PV-L552-K shown)

Please read these instructions carefully before attempting to operate this product. Please save this manual.

Things You Should Know

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on the market today. Used properly, it will bring you years of enjoyment. Please take time to fill in the information to the right.

The serial number is on the tag located on the bottom of your Camcorder. Be sure to retain this manual as your convenient Camcorder information source.

Date of Purchase

Dealer Purchased From

Dealer Address

Dealer Phone No.

Model No.

Serial No.

Unpack your Camcorder

These accessories are provided in order to set up or use your Camcorder.

1 pc. AC Adaptor

(PV-A20-K) with DC

Power Cable (page 10)

1 pc. Audio/Video Cable

(LSJA0390) (pages 21, 22)

1 pc. Battery Pack

(PV-BP15-K) (pages 9, 10)

Line drawing of a battery pack with coiled cables and connectors (no text or symbols)

1 pc. Shoulder Strap

(LSFC0012) (page 12)

1 pc. VHS PlayPak

(PV-P1-K/VYMW0009)

and one "AA" battery

(page 21)

Technical line drawing of a mechanical component with a cylindrical part and internal structure (no text or symbols)

1 pc. Lens Cap (LSYK0817)

with Lens Cap Strap

(LSGQ0049) (page 12)

1 pc. CR2025 Clock

Battery (VSBW0004)

(installed in Camcorder)

(page 35)

Battery Charging

Confirmation

Marker

Nation WNT 1032119

Use this marker as a reminder to yourself when the battery is fully charged or in need of a charge.

This marker performs no function and is for your reference only.

This operating instruction book is designed for use with models PV-L352-K and PV-L552-K. Illustrations in this manual show the PV-L552-K. Features may vary, so please read carefully.

Differences between models

Model Number	LCD Monitor	Zoom Lens	Focal Length	Digital Zoom maximum
PV-L352-K	63.5 mm (2.5 inch)Liquid Crystal Display	20 : 1	3.6 mm - 72.0 mm	700x
PV-L552-K	101.6 mm (4.0 inch)Liquid Crystal Display	26 : 1	3.8 mm - 98.8 mm	780x

Safety Precautions

WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

WARNING : DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

CAUTION : TO PREVENT FIRE OR SHOCK HAZARD AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.

Your Compact VHS Camcorder is designed to record and play back in Standard Play (SP) and Super Long Play (SLP) modes. You can also play a Compact VHS Camcorder recording on your VHS VCR using the supplied VHS PlayPak.

This Camcorder is equipped with the HQ System to provide excellent video pictures, and is compatible with standard VHS equipment.

It is recommended that only cassette tapes that have been tested and inspected for use in VCR machines, with the VHSC and/or VHSCark, be used.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

The above markings are located on the appliance's bottom cover.

FCC Warning: Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with Part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment.

If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver.

If necessary, consult the dealer or an experienced radio/TV technician for help. You may find the booklet, ‘Something About Interference’ available from FCC local regional offices helpful.

This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30 MHz.

Important Safeguards

1. Read Instructions – All the safety and operating instructions should be read before the unit is operated.
2. Retain Instructions – The safety and operating instructions should be retained for future reference.
3. Heed Warnings – All warnings on the unit and in the operating instructions should be adhered to.
4. Follow Instructions – All operating and maintenance instructions should be followed.
5. Cleaning – Unplug this video unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry cloth for cleaning.
6. Attachments – Do not use attachments not recommended by the video product manufacturer as they may be hazardous.
7. Water and Moisture – Do not use this video unit near water – for example near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
8. Accessories – Do not place this video unit on an unstable cart, stand, tripod, bracket, or table. The video unit may fall, causing serious injury to a child or adult, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video unit. Any mounting of the unit should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart

combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video unit and to protect it from overheating. These openings must not be blocked or covered. Never place the video unit on a bed, sofa, rug, or other similar surface, or near or over a radiator or heat register. This video unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

2. Power Sources – This video unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For video units intended to be operated from battery power, or other sources, refer to the operating instructions.

3. Grounding or Polarization – This video unit may be equipped with either a polarized 2-wire AC (Alternating Current) line plug (a plug having one blade wider than the other) or 3-wire grounding type plug, a plug having a third (grounding) pin.

The 2-wire polarized plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

The 3-wire grounding type plug will fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

1. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Paying particular attention to cords of plugs, convenience receptacles, and the point where they exit from the unit.

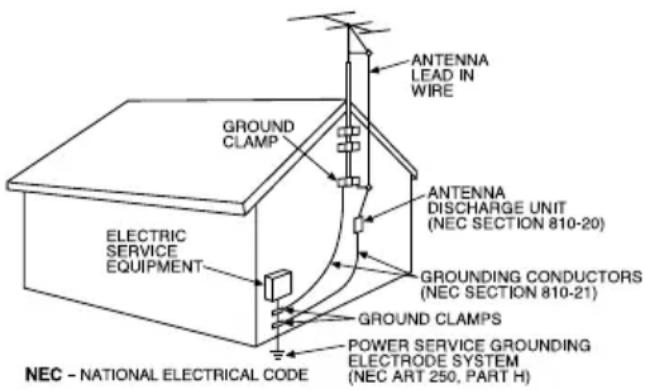

2. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the video unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Part 1 of the Canadian Electrical Code, in USA Section 810 of the National Electrical Code, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

ANTENNA LEAD IN WIRE GROUND CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC - NATIONAL ELECTRICAL CODE

1. Lightning – For added protection of this video unit receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video unit due to lightning and power-line surges.

Important Safeguards

1. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

2. Overloading – Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

3. Objects and Liquids – Never push objects of any kind into this video unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind onto the video unit.

4. Servicing – Do not attempt to service this video unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

5. Damage Requiring Service – Unplug this video unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If any liquid has been spilled into, or objects have fallen onto, the video unit. c. If the video unit has been exposed to rain or water. d. If the video unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video unit to its normal operation.

e. If the video unit has been dropped or the cabinet has been damaged.

f. When the video unit exhibits a distinct change in performance – this indicates a need for service.

1. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

2. Safety Check – Upon completion of any service or repairs to this video unit, ask the service technician to perform safety checks to determine that the video unit is in safe operating order.

Precautions

USE & LOCATION

• TO AVOID SHOCK HAZARD ... Your Camcorder and power supply should not be exposed to rain or moisture. Do not connect the power supply or operate your Camcorder if it gets wet. Your Camcorder has been designed for outdoor use, in all kinds of weather, however it will probably not survive any type of direct exposure to water, rain, sleet, snow, sand, dust, or a direct splashing from a pool or even a cup of coffee. This action could permanently damage the internal parts of your Camcorder. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your Camcorder from the power supply before cleaning.
  • DO NOT AIM YOUR CAMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS.
• DO NOT LEAVE THE CAMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE DAMAGE TO THE INTERNAL PARTS OF THE EVF.
• DO NOT EXPOSE YOUR CAMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, in direct sunlight, inside a closed car, next to a heater, etc... This action could permanently damage the internal parts of your Camcorder.
• AVOID SUDDEN CHANGES IN TEMPERATURE ... If the unit is suddenly moved from a cold place to a warm place, moisture may form on the tape and inside the unit.
  • DO NOT LEAVE YOUR CAMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE.
• STORAGE OF YOUR CAMCORDER ... Store and handle your Camcorder in a manner that will not subject it to unnecessary movement (avoid shaking and striking). Your Camcorder contains a sensitive pick-up device which could be damaged by improper handling or storage.

CARE

• TO CLEAN YOUR CAMCORDER ... Do not use strong or abrasive detergents when cleaning your Camcorder body.
• TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial camcorder lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.
• TO PROTECT THE FINISH OF YOUR CAMCORDER ... Before handling your Camcorder, make sure your hands and face are free from any chemical products, such as suntan lotion, as it may damage the finish.

Table of Contents

Getting Started

Things You Should Know 2\~3

Important Safeguards ....4\~5

Precautions....5

Self Demo Mode 7

Quick Operation Guide 8

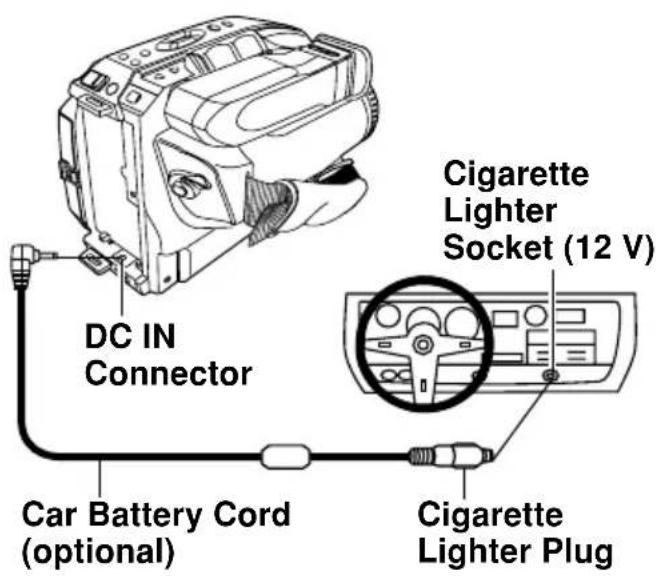

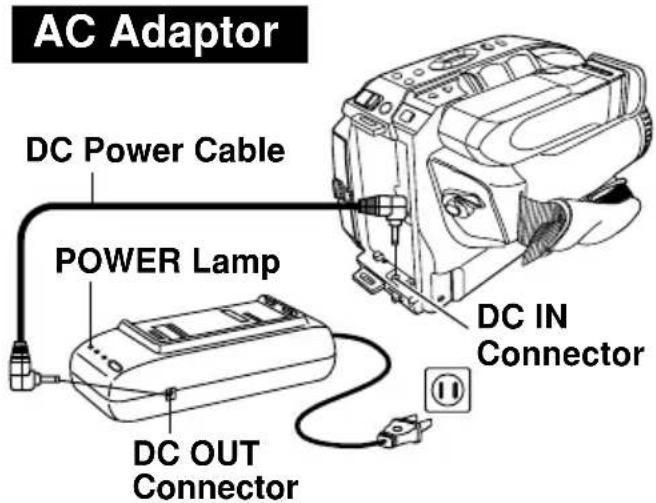

Supplying Power (Battery Charge/Use/Refresh/Care, AC Adaptor, Car Battery Cord) .... 9\~10

Cassette Information 11

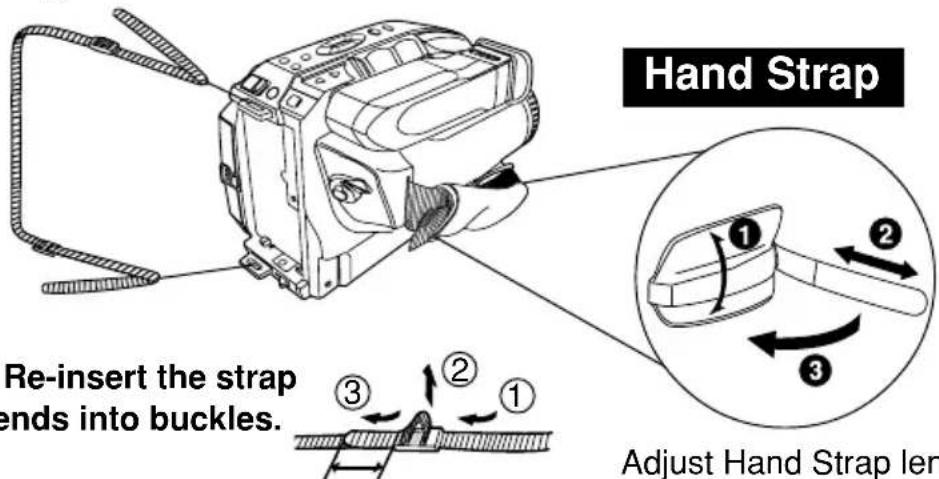

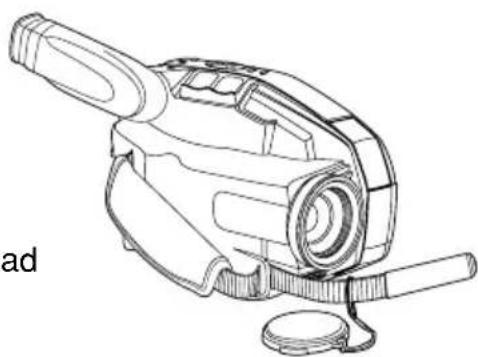

Before Using (Using the Shoulder and Hand Straps, Lens Cap) 12

Using MENU Mode 13

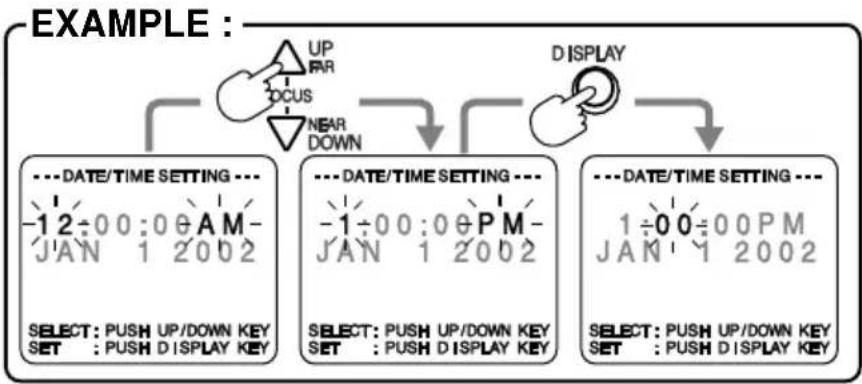

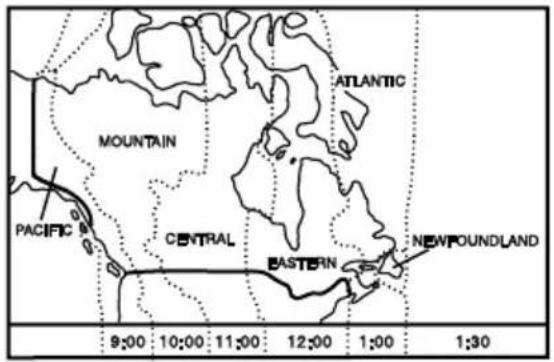

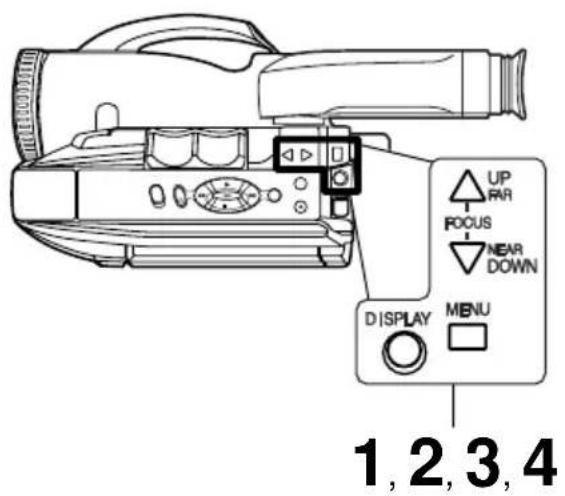

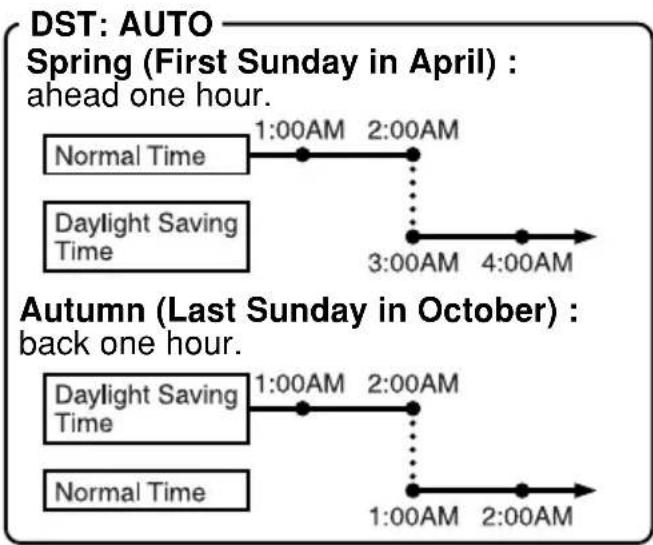

Setting the Clock (Time Zone, Auto Daylight Saving Time) 14\~15

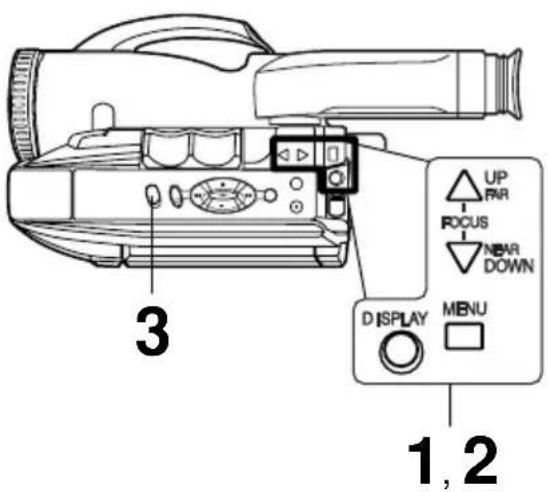

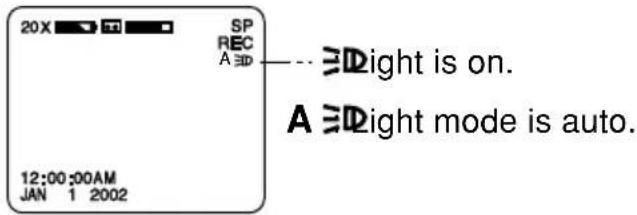

Built-in Auto Light (Using the Light) 16

Basic Operation

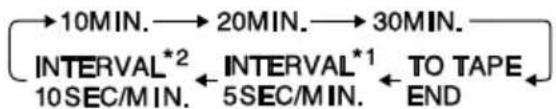

Camera Recording (Basic, Stand-by, Programmed Recording) 17\~19

Playing Back Recordings

(Basic Playback, Visual Search, Still Picture, Tracking, TV/VCR Playback) 20\~21

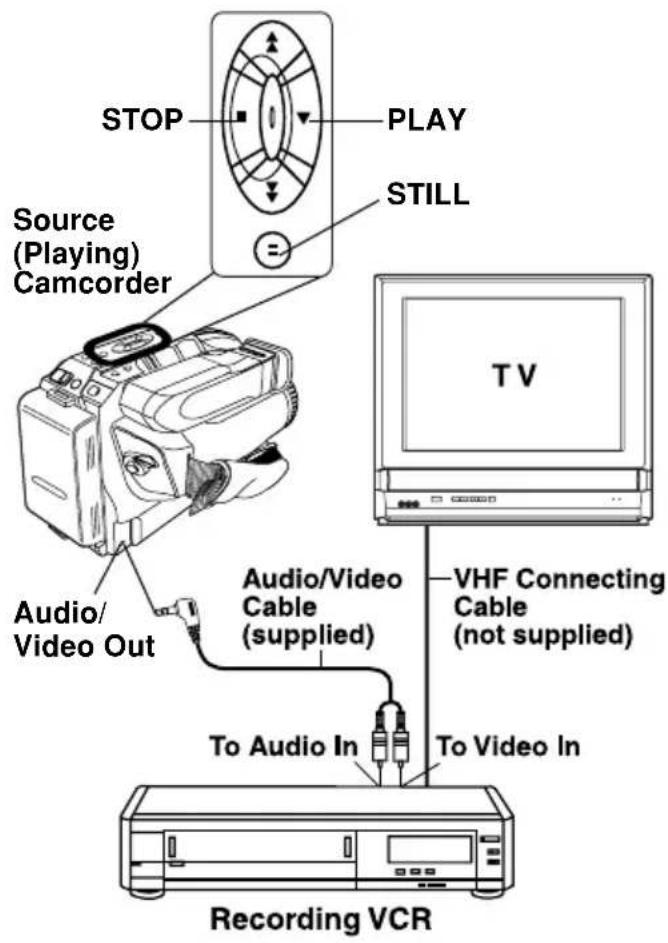

Copying your Tapes (dubbing) 22

Special Features

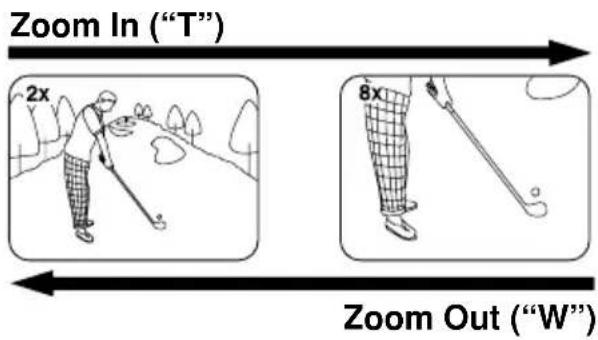

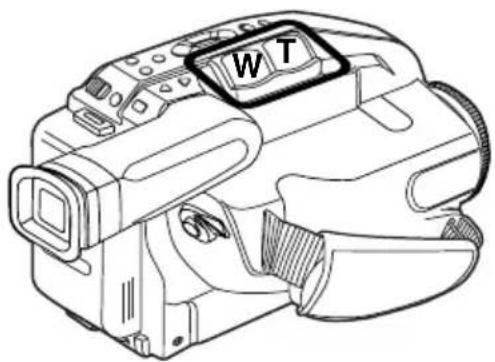

Four-Speed Power Zoom.... 23

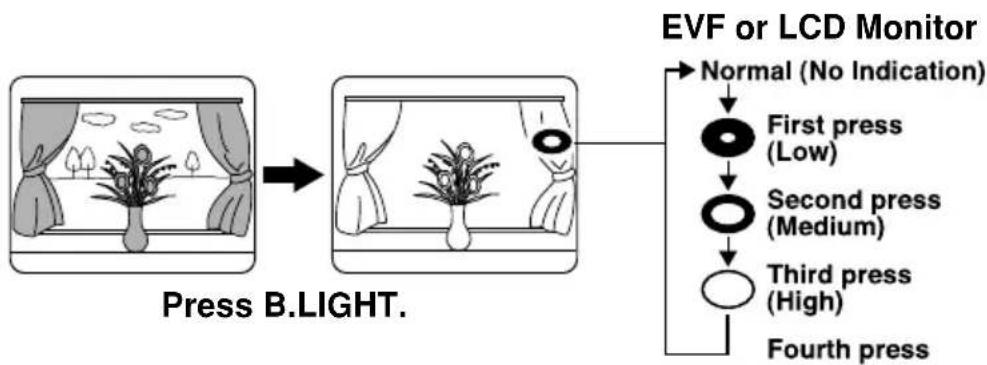

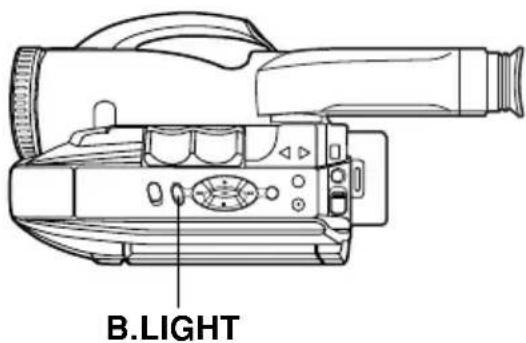

Backlight 24

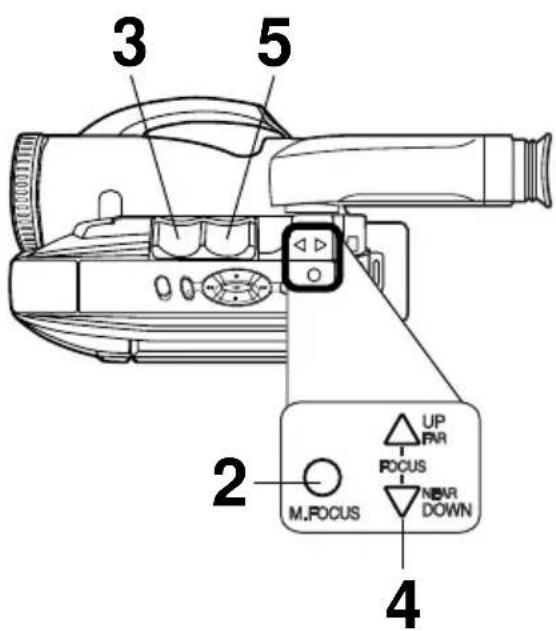

Focus (Auto/Manual Focus) 25

High Speed Shutter (Auto/Manual Shutter) 26

Auto Fade....27

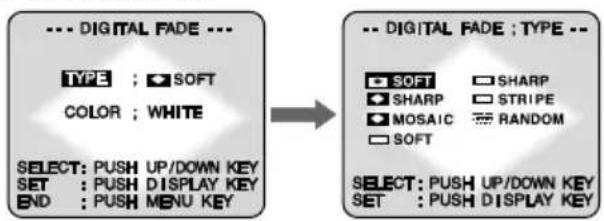

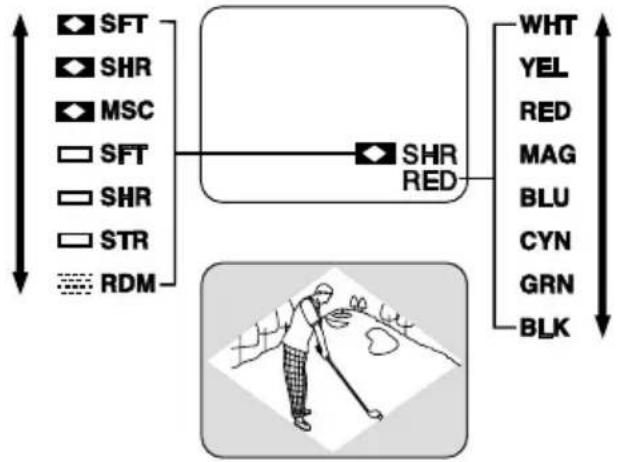

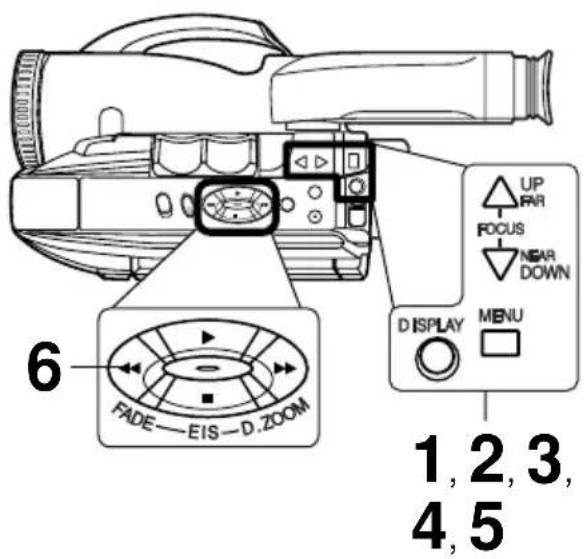

Colour Digital Fade 28

Digital Zoom 29

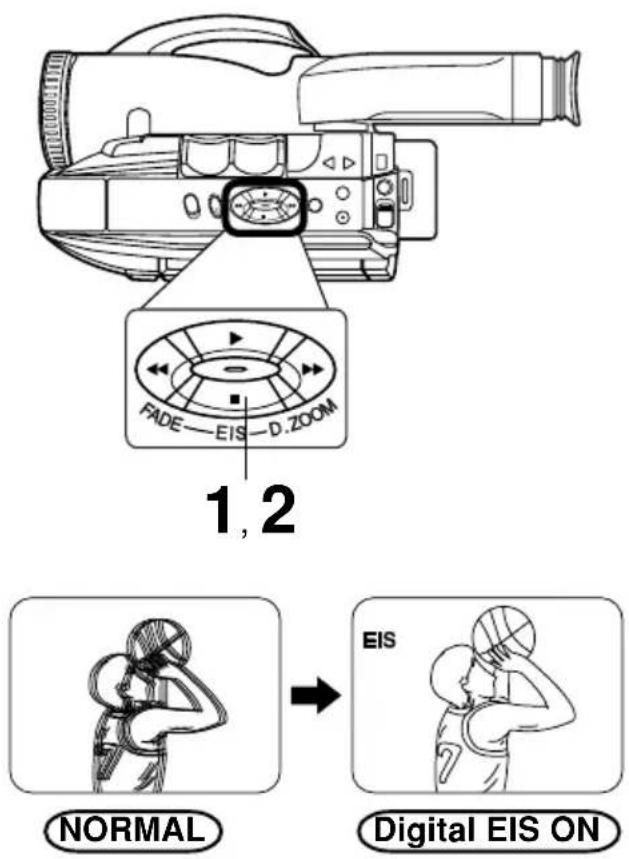

Digital Electronic Image Stabilization (EIS) 30

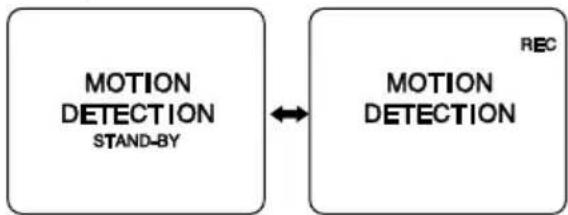

Motion Detection 31

For your information

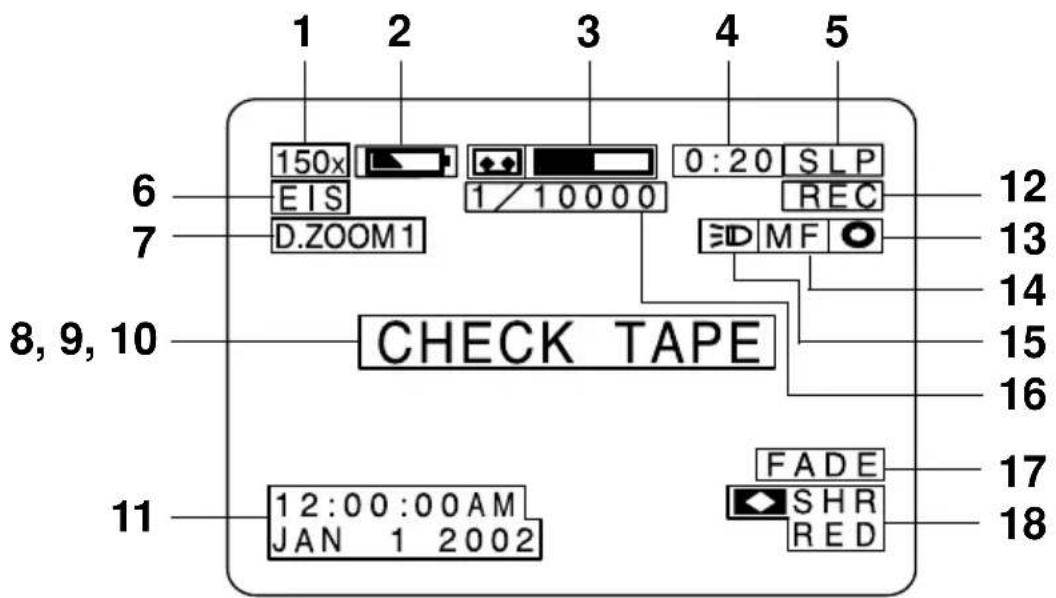

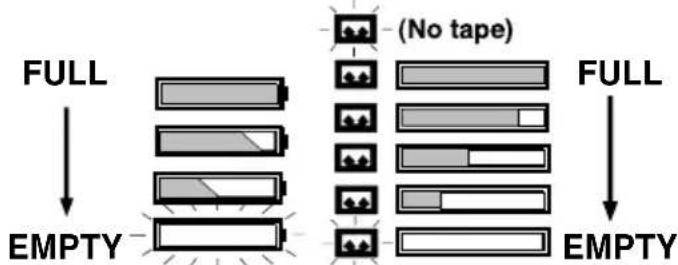

Viewfinder/LCD Monitor Indications ....32\~33

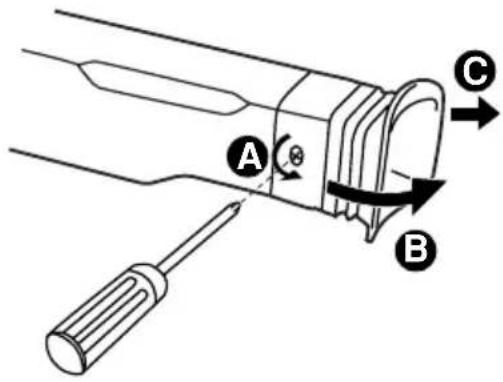

Operation Notes (Cleaning EVF) 34

Notice 34

Replacing Clock Battery 35

Palmcorder Accessory System 36

Specifications 37

Before Requesting Service (Video Head Cleaning) 38

Warranty 39

Index 40

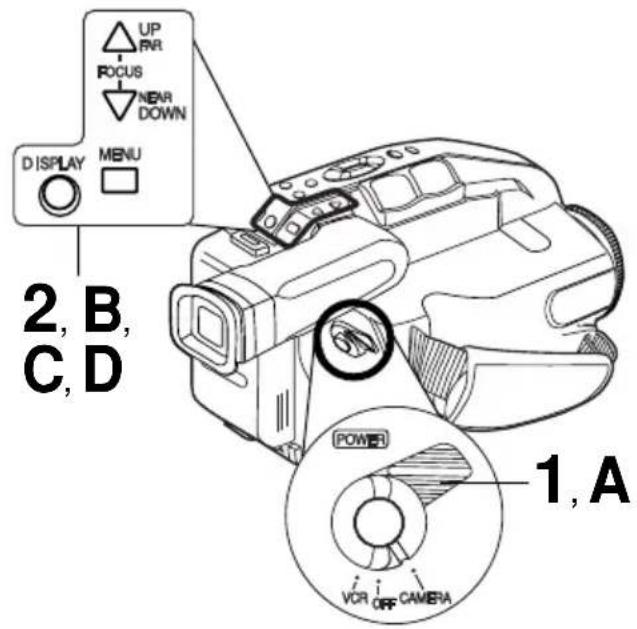

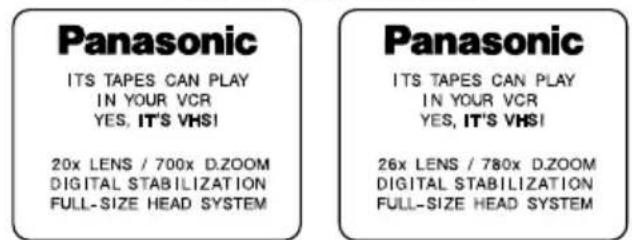

Self Demo mode is on when the screen below appears. To turn it off, follow steps 1-4 below.

EVF or LCD Monitor

Panasonic ITS TAPES CAN PLAY IN YOUR VCR YES, IT'S VHS! 20x LENS / 700x D.ZOOM DIGITAL STABILIZATION FULL-SIZE HEAD SYSTEM Panasonic ITS TAPES CAN PLAY IN YOUR VCR YES, IT'S VHS! 26x LENS / 780x D.ZOOM DIGITAL STABILIZATION FULL-SIZE HEAD SYSTEM

- Connect Camcorder to power source.

1 Set POWER to CAMERA.

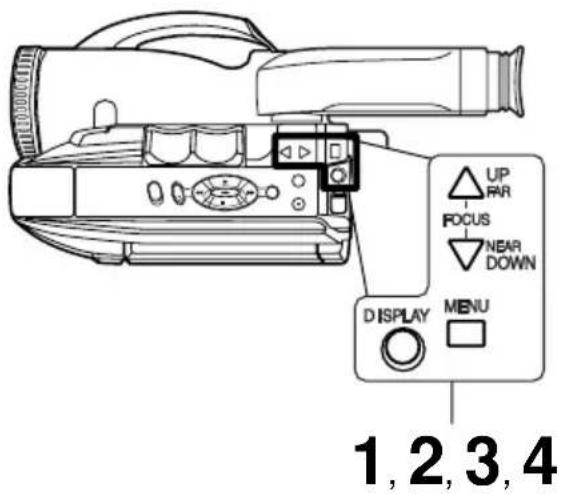

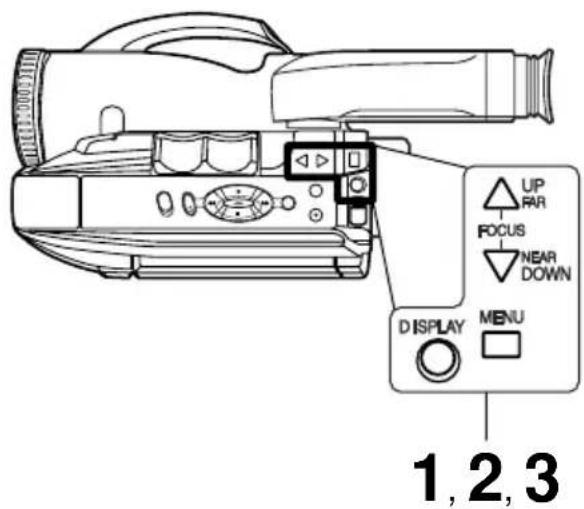

2 Press MENU for MENU mode. Press UP or DOWN to select SELF DEMO.

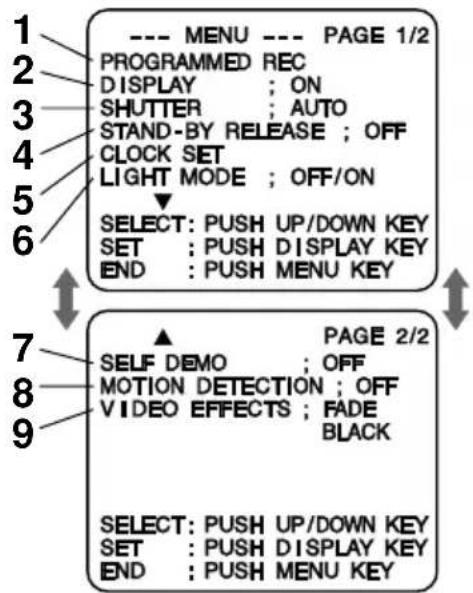

PAGE 2/2 SET:DEMO ; OFF MOTION DETECTION ; OFF VIDEO EFFECTS ; FADE BLACK SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

3 Press DISPLAY to select OFF.

4 Press MENU to exit.

Note:

• Self Demo stops automatically if battery is attached (page 9) and cassette tape is inserted (page 11).
• Inserting a tape alone (or attaching a partially charged battery) only temporarily stops Self Demo.
• Self Demo stops for 30 seconds when the Light is pressed.

To turn Self Demo back on:

- Set to SELF DEMO : ON in MENU screen.

Quick Operation Guide

Charging the Battery Pack

Charge Battery Pack fully before operation (page 9).

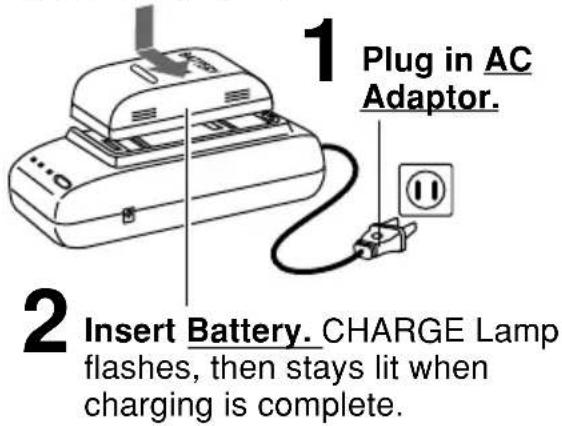

1 Plug in AC Adaptor. 2 Insert Battery. CHARGE Lamp flashes, then stays lit when charging is complete.

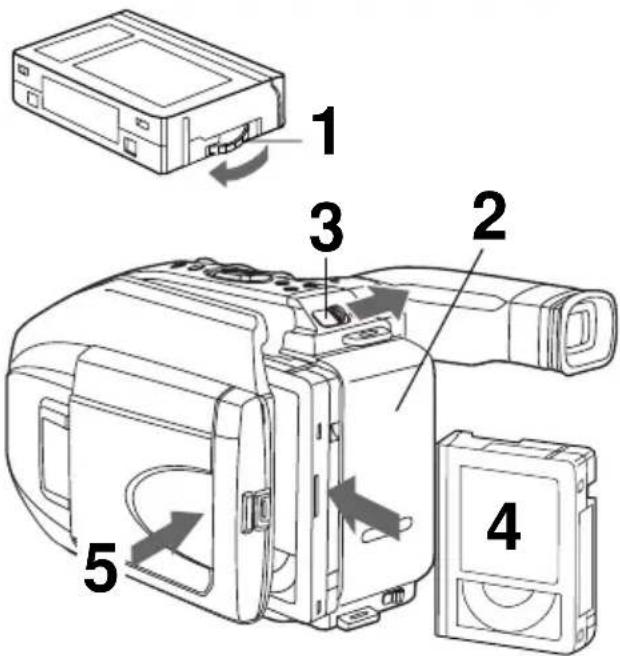

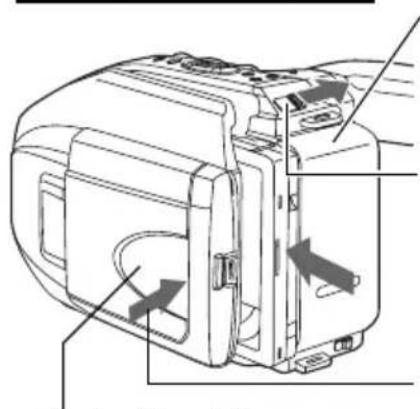

Insert Cassette

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Protection Film Note:

- Remove the Protection Film before use.

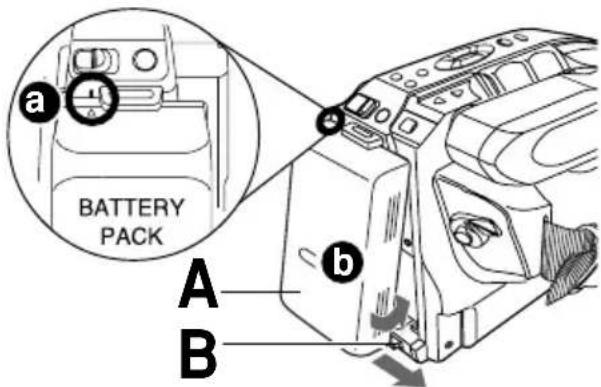

1 Attach fully charged Battery (page 9).

2 Slide TAPE EJECT to open door.

3 Insert cassette (page 11).

4 Press here to close door.

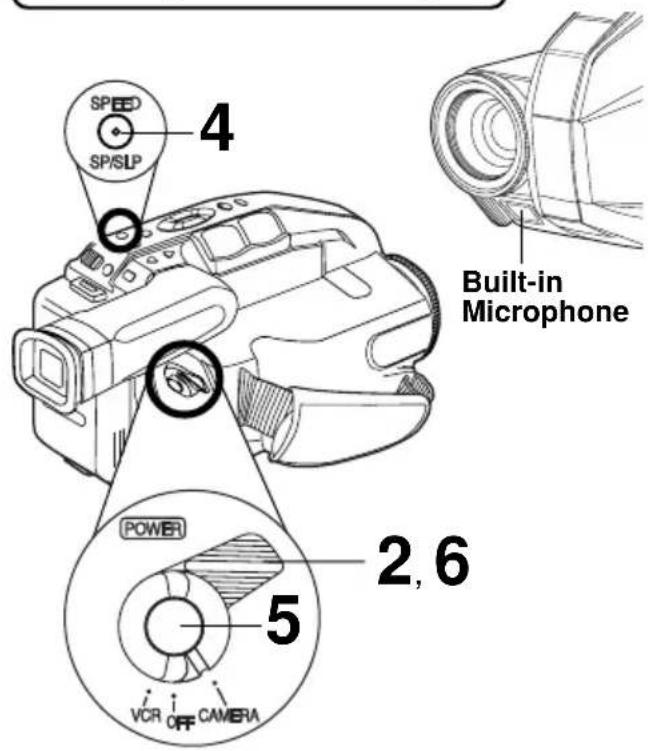

Camera Recording

See page 17.

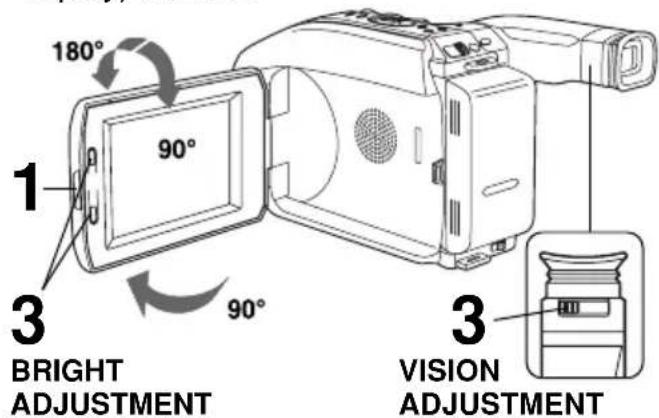

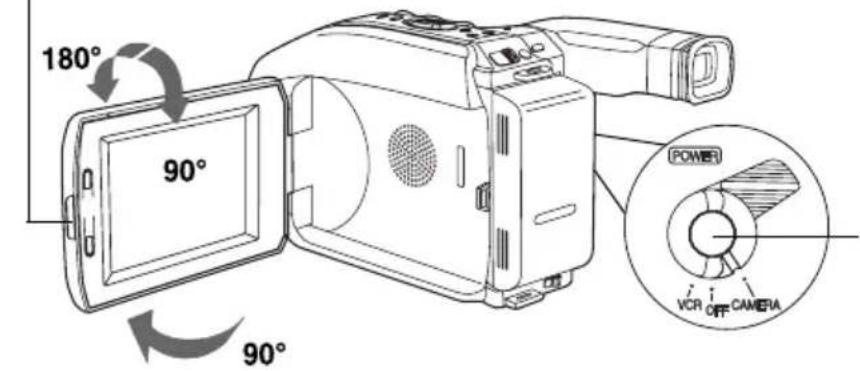

1 Press LCD-OPEN to unlock the LCD monitor. Swing it fully open and adjust the angle.

180° 90° 90° POWER VCR OFF CAMERA

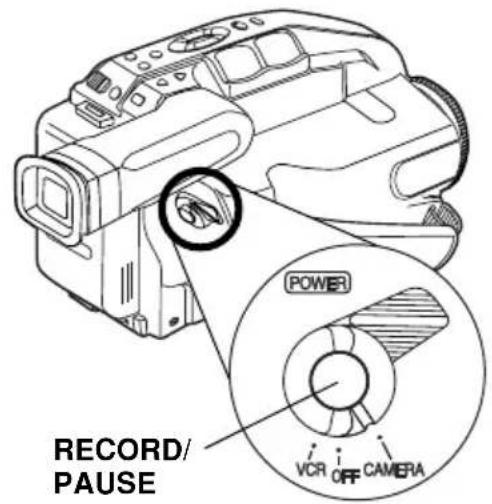

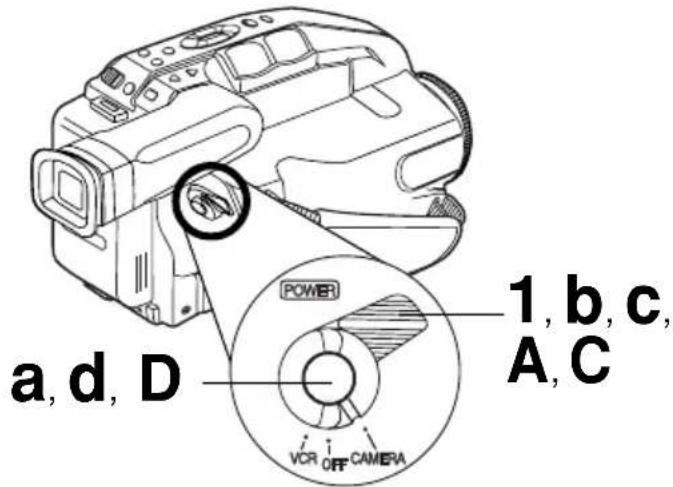

2 Set POWER to CAMERA.
3 Press RECORD/PAUSE to start recording.

Press RECORD/PAUSE again to pause recording.

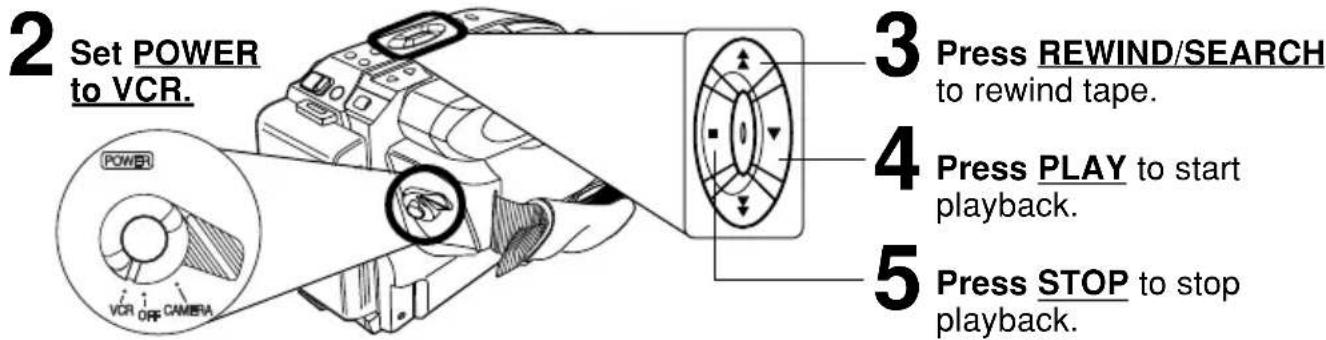

Playback using the LCD Monitor

See page 20.

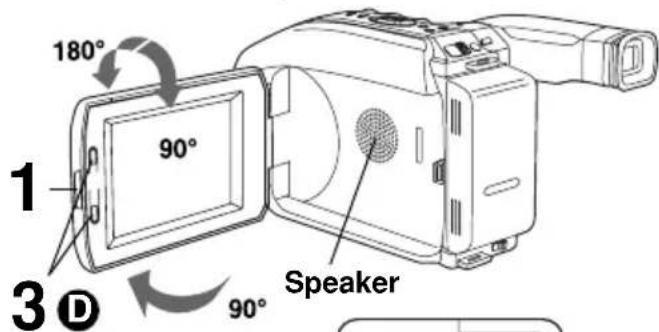

1 Press LCD-OPEN to unlock the LCD monitor. Swing it fully open and adjust the angle (see above).

2 Set POWER to VCR. POWER VCR OFF CAMERA 3 Press REWIND/SEARCH to rewind tape. 4 Press PLAY to start playback. 5 Press STOP to stop playback.

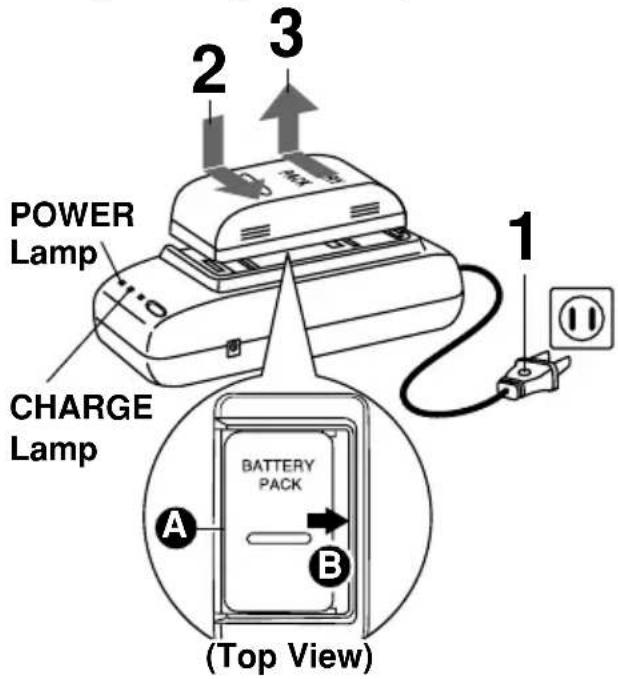

Charging the Battery Pack

Charge Battery Pack fully before use.

POWER Lamp 2 3 CHARGE Lamp 1 (BATTERY PACK) A B (Top View)

1 Plug in AC Adaptor. POWER Lamp lights.

2 Power Lamp Insert Battery.

A Align left side of Battery with left edge of AC Adaptor.
B Press Battery down and slide in direction of arrow.

The CHARGE Lamp flashes, then stays lit when charging is complete.

3 Remove Battery.

Slide Battery to the left and lift off.

Note:

• Charging takes about 1 hour.
• While the DC Power Cable (supplied) is connected to the AC Adaptor, the Battery cannot be charged.
  • After charging 5 times, use Battery Refresh feature as explained below.
• Battery life gradually decreases after repeated use and recharging. If operation time becomes very short even after a sufficient charge, discard Battery properly (pages 10, 34).

Using the Battery Pack

A fully charged Battery provides a maximum of about 1 hour 10 minutes of continuous use (LCD monitor off) or about 55 minutes (LCD monitor on). Actual time may vary due to operating conditions. Using the Built-in Light decreases operating time.

a BATTERY PACK A b B

A Attach Battery.

a Insert top of Battery into top of mounting surface.
b Press and snap into place.

B Remove Battery.

Slide BATTERY RELEASE and remove Battery.

To use battery refresh, insert Battery on AC Adaptor (see steps 1\~2 above), then press BATTERY REFRESH.

The REFRESH Lamp lights, then goes out when discharge is complete. Battery charging will then start automatically.

If BATTERY REFRESH is pressed by mistake, remove Battery from AC Adaptor and reinsert it for normal charging.

Note:

• Charging takes about 5 hours when Battery Refresh is used.
• Battery will not operate in extremely high temperatures.

Battery Refresh

This feature completely discharges Battery before recharging begins. Use after every 5 charges for optimum Battery performance.

REFRESH Lamp BATTERY REFRESH

Supplying Power

Battery Care

Caution:

• Charge only with specified charger.
• Battery can be charged within a temperature range of 10 °C (50 °F) and 35 °C (95 °F).
• Battery is normally warm after charging or just after use.
• Do not use an insufficiently charged or worn-out Battery.

Safety precautions:

• Do not get Battery near, or dispose of in, fire.
• Do not directly connect (short circuit) the positive (+) and negative (−) terminals.
• Never attempt to disassemble or reassemble Battery.

To avoid Battery damage:

• Do not drop or jar Battery.
• Use Battery with specified units only.
• If Battery is used in extremely high temperatures, a safety device will automatically prevent operation.

To prolong Battery life:

• While not in use, remove Battery from the Camcorder and AC Adaptor, and store in a cool, dark, dry place.
• Keep Battery terminals clean.

AC Adaptor DC Power Cable POWER Lamp DC IN Connector DC OUT Connector

1 Connect AC Adaptor DC OUT to Camcorder DC IN with supplied DC Power Cable.

2 Plug in AC Adaptor. POWER Lamp lights.

Note:

• While the DC Power Cable (supplied) is connected to the AC Adaptor, the Battery cannot be charged.
• When not in use, unplug AC Adaptor from AC outlet. (Adaptor uses 1.2 W of electricity while plugged in.)

CAUTION:

This unit will operate on 110/120/220/240 V AC 50/60 Hz. An AC plug adaptor may be required for voltages other than 120 V AC. Please contact either a local or foreign electrical parts distributor for assistance in selecting an alternate AC plug. We recommend using the accessory power plug adaptor (VJSS0070) in an area which has special AC outlets.

Car Battery Cord (Optional)

DC IN Connector Car Battery Cord (optional) Cigarette Lighter Socket (12 V) Cigarette Lighter Plug

1 Connect PV-C16-K Car Battery Cord (optional) to Camcorder DC IN.

2 A Start engine first. B Plug Car Battery Cord into Cigarette lighter socket.

- If Car Battery cord fuse needs replacing, use exact current rating (in amps).

Note:

• This cord only works in vehicles equipped with DC 12 V (negative ground) battery. Check with your car/truck dealer. Use only specified car battery cord.
• To avoid blowing the car battery cord fuse, do step 2 in the proper order.
• Running vehicles must be well ventilated.
• When not in use, disconnect cigarette lighter plug.
• For personal safety the driver of the vehicle should not attempt to operate the camcorder while driving.

Cassette Information

Cassette Insertion/Removal

Diagram of a digital camera with numbered parts and directional arrows indicating assembly or operation.

1 Turn Tape Wheel in direction of arrow until there is no slack.
2 Attach_Battery (page 9).
3 Slide TAPE EJECT to open door.
4 Insert cassette as shown.
5 Press here to close door.

- To remove the cassette, slide the TAPE EJECT switch.

Record/Playback Time

Use tapes with the VHSO on this unit.

Tape Speed Selector Position	Cassette type
	TC-20	TC-30 TC	-40
SP(Standard Play)	20 minutes	30 minutes	40 minutes
SLP(Super Long Play)	1 hour	1 hour30 minutes	2 hours

- SLP playback may contain more picture noise.

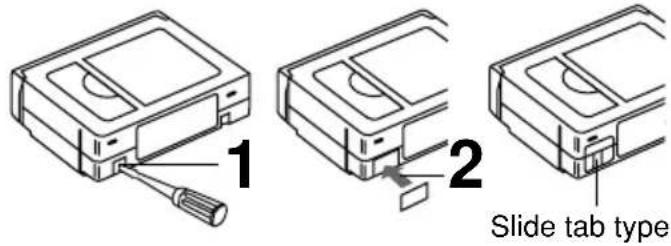

Erase Protection Tab

Protects tapes from being accidentally erased.

1 2 Slide tab type

1 To prevent accidental erasing, break off tab with screwdriver. (Or, slide tab open.)
2 To record again, cover hole with adhesive tape. (Or, slide tab closed.)

Before Using

Attaching Shoulder Strap

Remove Battery Pack before completing the following steps:

1 Undo strap ends from buckles.

Illustration of two hands tying a rope knot with a curved cord (no text or symbols)

2 Thread strap ends through Strap Rings on Camcorder.

Adjust the Length of the Shoulder Strap

OR

Pull a loop of strap from buckle, then pull strap tight to shorten or lengthen.

Hand Strap Re-insert the strap ends into buckles. Adjust Hand Strap len

min. 25.4 mm (1 inch)

Adjust Hand Strap length to fit your hand as shown.

Lens Cap

Hand holding a circular object with an arrow indicating rotation or movement (no text or symbols)

Attaching the Lens Cap Strap:

Thread the Strap through the Lens Cap attachment ring as illustrated at left.

Line drawing of a mechanical device with a cylindrical component and a base (no text or symbols)

Attaching the Lens Cap Cord to the Hand Strap:

Remove the Hand Strap from the front clasp and thread the Strap through the loop in the Lens Cap Cord. Reattach the Hand Strap.

UP RAR FOCUS NEAR DOWN DISPLAY MENU 1, 2, 3, 4

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA or VCR.

1 Press MENU for MENU mode.

The CAMERA or VCR MENU screen (see below left) appears when Menu mode is entered.

2 Press UP or DOWN to highlight the desired menu item.
3 Press DISPLAY to set selection.
4 Press MENU to exit.

Note:

• The Menu mode is cancelled if UP/DOWN, DISPLAY, or MENU are not pressed within 5 minutes when Self Demo mode is off.
• The Menu mode is cancelled if UP/DOWN, DISPLAY, or MENU are not pressed within 30 seconds when Self Demo mode is on.

MENU Mode (CAMERA) Screen

1 --- MENU --- PAGE 1/2 2 PROGRAMMED REC 3 DISPLAY ; ON 4 SHUTTER ; AUTO 5 STAND-BY RELEASE ; OFF 6 CLOCK SET LIGHT MODE ; OFF/ON 7 SELECT: PUSH UP/DOWN KEY 8 SET : PUSH DISPLAY KEY 9 END : PUSH MENU KEY 8 SELF DEMO ; OFF 9 MOTION DETECTION ; OFF 10 VIDEO EFFECTS ; FADE 11 BLACK 12 SELECT: PUSH UP/DOWN KEY 13 SET : PUSH DISPLAY KEY 14 END : PUSH MENU KEY

MENU Mode (VCR) Screen

--- MENU --- 5 CLOCK SET DISPLAY ; ON 2 SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

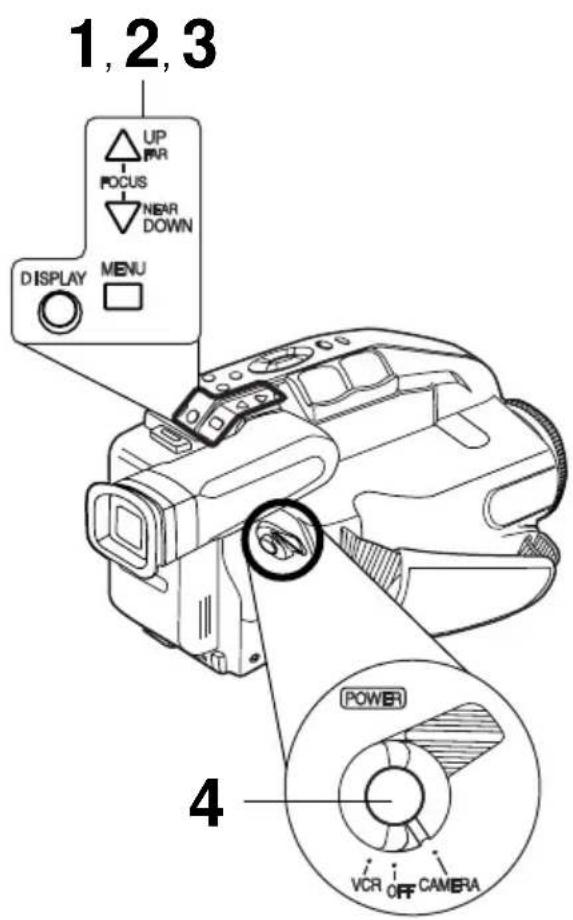

1 PROGRAMMED REC (page 19).

Camcorder starts and stops recording at a preset time.

2 DISPLAY (page 32).

ON : On-screen Display (OSD) screens are displayed.

3 SHUTTER (page 26).

Select desired shutter speed.

4 STAND-BY RELEASE (page 18).

ON : Enables quick resumption of recording from Stand-by mode.

5 CLOCK SET (pages 14, 15).

Select to set clock.

6 LIGHT MODE (page 16).

ON/OFF : Light can be set ON or OFF.

ON/OFF/AUTO : Light can be set ON, OFF, or AUTO.

7 SELF DEMO (page 7).

ON : SELF DEMO screen is displayed.

8 MOTION DETECTION (page 31).

ON : Enables Motion Detection recording.

9 VIDEO EFFECTS (pages 27\~28).

AUTO FADE : BLACK or WHITE

DIGITAL FADE : TYPE → 7 types

COLOR 8→colours

Setting the Clock

Set the following items in order: Time Zone, Daylight Saving Time, Date, and Time.

UP RAR FOCUS NEAR DOWN DISPLAY MENU 1, 2, 3, 4

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA or VCR.

1 Press MENU for MENU mode.

Press UP or DOWN to select CLOCK SET.

---- MENU ---- PAGE 1/2 PROGRAMMED REC DISPLAY ; ON SHUTTER ; AUTO STAND-BY RELEASE ; OFF CLOCK 371 LIGHT MODE ; OFF/ON ▼ SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

--- MENU --- CLOCK SET DISPLAY ; ON SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

[ VCR MODE ][ CAMERA M

2 Press DISPLAY for CLOCK SET menu.

Press UP or DOWN to select TIME ZONE, D.S.T., or DATE/TIME.

--- CLOCK SET --- TIME ZON : EASTERN D, S. T. : AUTO DATE / TIME : 12:00:00AM JAN 1 2002 SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

3 Press DISPLAY for menu of item selected in step 2.

To change the setting:

TIME ZONE → Go to step 3a on page 15.

D.S.T. → Go to step 3b on page 15.

DATE/TIME → Go to step 3c on page 15.

4 Press MENU twice to exit.

3a Setting the Time Zone

The Camcorder is preset to Eastern time.

[ Time Zone chart ]

ATLANTIC MOUNTAIN PACIFIC CENTRAL EASTERN NEWPOUNDLAND 9:00 10:00 11:00 12:00 1:00 1:30

Press UP or DOWN to select local time zone.

Press DISPLAY to confirm entry.

--- SELECT TIME ZONE --- NEWFOUNDLAND CENTRAL ATLANTIC MOUNTAIN EASTERN PACIFIC SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY

- When travelling, repeat this operation and select one of the 6 listed time zones to set the clock to local time.

Note :

• Clock may lose or gain up to 2 minutes per month.
• When travelling outside the listed time zones, set clock to local time manually.
• To adjust or set clock, see "Setting Date and Time" (below).

3b Auto Daylight Saving Time

Clock will auto-adjust to daylight saving time (DST).

    F["Daylight Saving Time"] --> G["1:00AM"]
    G --> H["2:00AM"]
    H --> I["1:00AM"]
    I --> J["2:00AM"]

    K["Normal Time"] --> L["1:00AM"]
    L --> M["2:00AM"]
    M --> N["1:00AM"]
    N --> O["2:00AM"]

The Camcorder is preset to DST: AUTO. If DST is not observed in your area, set to OFF by doing the following.

Press UP or DOWN to select OFF or AUTO.

Press DISPLAY to confirm entry.

--DAYLIGHT SAVING TIME-- AUTO OFF SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY

3c Setting Date and Time

Date and time including leap year are calculated up to DEC 31, 2099.

---DATE/TIME SETTING --- -12:00:00 AM- J'AN 1 2002 SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY

Press or hold down UP or DOWN to select hour, then press DISPLAY to fix.

Repeat for minute, month, day, and year.

Clock starts when year is entered and DISPLAY is pressed.

Built-in Auto Light

Using the Light

For recording in dim lighting.

3 1, 2 UP RAR ROUS NEAR DOWN DISPLAY MENU

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA.

1

Press MENU for MENU mode. Press UP or DOWN to select LIGHT MODE.

---- MENU ---- PAGE 1/2 PROGRAMMED REC DISPLAY ; ON SHUTTER ; AUTO STAND-BY RELEASE ; OFF CLOCK SET RIGHT MODE : OFF/ON SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

2

Press DISPLAY to set OFF/ON or OFF/ON/AUTO. Press MENU to exit.

3

Press LIGHT repeatedly for Light ON, OFF, or AUTO.

• In AUTO, light turns itself on/off according to lighting conditions.

EVF or LCD Monitor

20X SP REC A 3D --- Right is on. A Right mode is auto. 12:00:00AM JAN 1 2002

CAUTION:

Light becomes hot. Never cover Light while on.

Note:

• Using Light reduces battery operating time.
- Provide proper ventilation when using Light extensively in a hot environment.
- Using Light when the Camcorder is powered by a car battery may shorten bulb life.
- Set Light to OFF when not in use.

Camera Recording

Recording via EVF or LCD Monitor

View recording scene on EVF (Electronic Viewer Finder) or LCD (Liquid Crystal Display) monitor.

180° 90° 3 BRIGHT ADJUSTMENT 90° 3 VISION ADJUSTMENT

CAUTION : Rotating partially open LCD monitor may block cassette door and damage Camcorder body.

SPEED SP/SLP 4 Built-in Microphone POWER 5 2,6 VCR OFF CAMERA

Note:

• When Camcorder is aimed at excessively bright objects, or bright lights, a vertical bar may appear in the picture. This is normal for the CCD pick-up. Try to avoid this when possible.
• Using LCD monitor reduces battery operation time. Return LCD monitor to locked position when not in use.

Before you begin...

• Connect Camcorder to power source.
• Insert cassette with record tab (page 11).

1

Press LCD-OPEN to unlock the LCD monitor. Swing LCD monitor fully open and adjust viewing angle.

- If you want to record using EVF, close and lock LCD monitor.

2

Set POWER to CAMERA.

• Be sure POWER is fully turned to CAMERA position.
  • EVF or LCD monitor turns on/off by the P

- Both EVF and LCD monitor turn on when LCD is at 180° (see above left). This allows both you and the subject to view the recording.

PAUSE

EVF or LCD Monitor (Record/Pause mode)

3

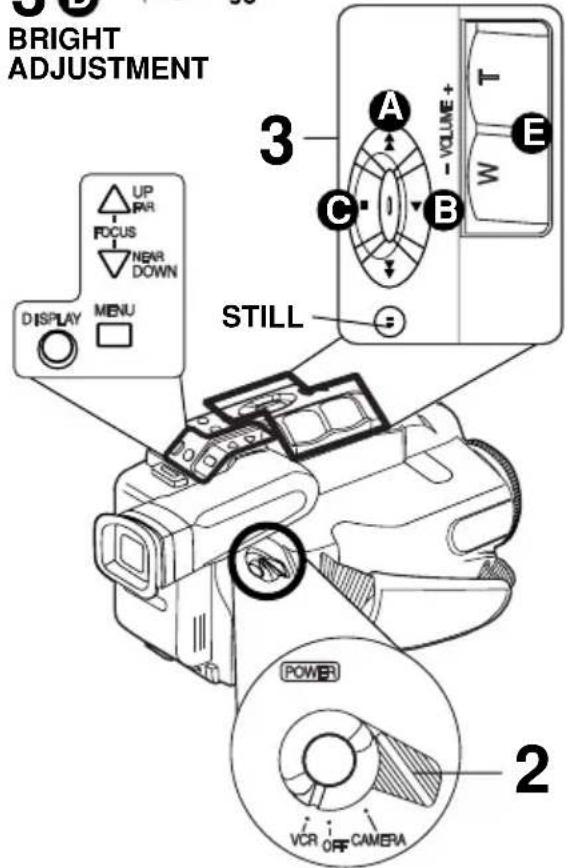

LCD : Press BRIGHT ADJUSTMENT

to adjust LCD monitor brightness level.

20X SP REC LCD BRIGHT[√] [1] [A] 12:00:00AM JAN 1 2002

EVF : Look into EVF and adjust VISION ADJUSTMENT to your eyesight.

4

Hold down TAPE SPEED for about 1 second to change tape speed to SP/SLP (page 11).

5

Press RECORD/ PAUSE to start or pause recording.

Tape speed

SP RECORD

EVF or LCD Monitor (Record mode)

6

Set POWER to OFF when finished.

• To remove the cassette, slide the TAPE EJECT switch (page 11).

Camera Recording

Before you begin...

• Connect Camcorder to power source.
• Insert cassette with record tab (page 11).

UP FAR FOCUS NBEAR DOWN DISPLAY MENU 2, 3, 4 a b c B

a, d, D POWER 1, b, c, A, C VCR OFF CAMERA

Manual Easy Editing

For proper continuity when taping from Stop mode or after attaching a new Battery.

A Set POWER to VCR.

B a Press REWIND/SEARCH to rewind a few seconds of tape.
bPress PLAY to review recording.
©Press STILL at the point where you will want to continue the recording.

C Set POWER to CAMERA.
D Press RECORD/PAUSE to resume recording.

Stand-by Quick Release

If left in RECORD/PAUSE mode for 5 minutes, the Camcorder switches to Stand-by mode to conserve battery power. When set to ON, Stand-by Quick Release lets you resume recording by pressing RECORD/PAUSE twice. The default setting from the factory is OFF mode.

1 Set POWER to CAMERA.
2 Press MENU for MENU mode. Press UP or DOWN

--- MENU --- PAGE 1/2 PROGRAMMED REC DISPLAY ; ON SHUTTER ; AUTO STAND-BY RELEASE ; OFF CLOCK SET LIGHT MODE ; OFF/ON ▼ SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

to select STAND-BY RELEASE.

3 Press DISPLAY to select ON/OFF.

ON : From Stand-by mode, press RECORD/PAUSE twice to resume recording. OFF : From Stand-by mode, set POWER to OFF, then to CAMERA. Press RECORD/PAUSE to record.

4 Press MENU to exit.

Easy Edit Stand-by

For a smooth transition between scenes if recording is stopped, and then started within 24 hours.

a Press RECORD/PAUSE to stop recording.
b Set POWER to OFF and leave cassette in Camcorder.
C To resume recording, set POWER to CAMERA.
d Press RECORD/PAUSE to resume recording.

Note:

- Use Manual Easy Edit (left) if more than 24 hours has passed before recording was resumed.

Camera Recording

Programmed Recording

Set a recording start and stop time. Or, set a 5 or 10 second interval recording to be done each minute.

1,2,3 UP PAR POCUS NEAR DOWN DISPLAY MENU 4 POWER VCR OFF CAMERA

REC TIME :

*1 Record 5 seconds each minute.

*2 Record 10 seconds each minute.

Before you begin...

- Connect Camcorder to power source. Use AC Adaptor for longer recordings.

- Insert cassette with record tab (page 11).

- Set POWER to CAMERA.

1 Press MENU for MENU mode. Press UP or DOWN to select PROGRAMMED REC.

--- MENU --- PAGE 1/2 PROGRAMM-D REC DISPLAY ; ON SHUTTER ; AUTO STAND-BY RELEASE ; OFF CLOCK SET LIGHT MODE ; OFF/ON ▼ SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

2 Press DISPLAY. (Current time is displayed.) Each additional press of DISPLAY increases start time by 30 minutes.

START : 10:20PM REC TIME : 10MIN. SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY START : PUSH RECORD KEY CANCEL : PUSH MENU KEY 10:20:00PM

3 Press DOWN to select REC TIME. Press DISPLAY repeatedly to select one of the options shown at left.

START : 10:20PM RECT TIME : 10MIN. SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY START : PUSH RECORD KEY CANCEL: PUSH MENU KEY 10:20:00PM

To cancel the setup, press MENU twice.

4 Press RECORD/PAUSE to place Camcorder in stand-by mode.

STAND-BY START ; 10:20PM REC TIME ; 10MIN. 10:20:00PM JUN 1 2002

Recording will be done as scheduled.

Note:

- Start time may not be set over 24 hours from current time.

- Camcorder shuts off at tape end, or 12 hours after Interval Recording starts.

• To cancel, set POWER to OFF.

Playing Back Recordings

Before you begin...

• Connect Camcorder to power source.
• Insert recorded tape.

180° 90° Speaker 3D

BRIGHT ADJUSTMENT UP FAR FOCUS NBNR DOWN DISPLAY MENU 3 A VOLUME+ C B W E STILL POWER VCR OFF CAMERA 2

Tracking Control

Illustration showing a person using a golf club to walk on a path, with trees and water in the background (no text or symbols)

Auto Tracking

Continuously analyzes each recording for optimum picture quality.

Manual Tracking

Some recordings require manual adjustment to reduce noise.

Press UP or DOWN until Playback picture clears up.

Press DISPLAY to return to Auto Tracking.

Playback on EVF or LCD Monitor

1 Press LCD-OPEN and swing LCD monitor fully open.

- If you want to playback on EVF, close and lock LCD monitor.

2 Set POWER to VCR.

• If tape has no record tab, auto playback begins.
• EVF or LCD monitor turns on/off by the POWER switch.

3 Playback function buttons.

A REW : Rewind tape.
B PLAY : Play tape.
© STOP : Stop tape.
D BRIGHT : Adjust LCD monitor brightness.
E VOLUME: During playback, adjust volume of speaker.

Press "T": Volume up (+). Press "W": Volume down (-).

Note:

• When LCD monitor is closed, Volume may be adjusted, however VOLUME indication will not appear in EVF.
• Using LCD monitor reduces battery operation time. Return LCD monitor to locked position when not in use.

Special Effects

Quick Visual Search

Search Speed

• SP (Standard Play) : 3 times normal.
  • SLP (Super Long Play) : 9 times normal.

During playback, press:

• FF : fast forward search
• REW : rewind search

Press again or press PLAY for normal play.

Still Picture

Press STILL to freeze picture.

Press again for normal play.

This feature works best in SLP mode (page 11).

Note:

• During search, horizontal noise bars will appear. Audio is muted.
  • To protect video heads and tape, operating modes will revert as follows after 5 minutes: Still Stand by

Stand-by Power off (when Battery Pack is used).

- Tape auto-rewinds if played or fast forwarded to end.

Playing Back Recordings

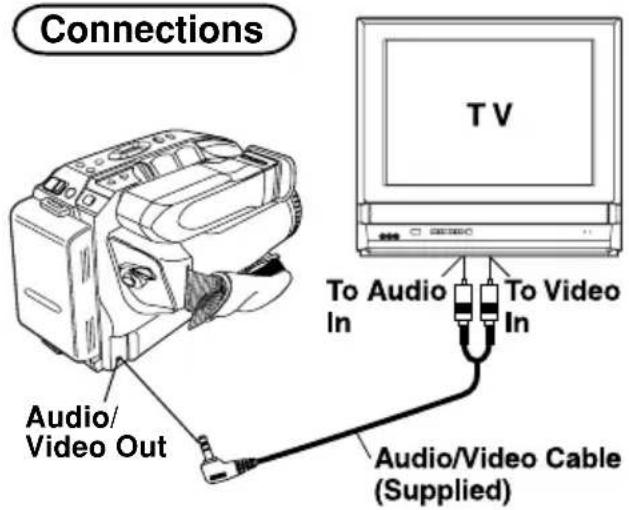

TV Playback or Viewing

Connect Camcorder to a TV to view playback or recordings in progress.

Connections TV To Audio In To Video In Audio/Video Cable (Supplied)

VCR Playback using PlayPak

Load Battery in PlayPak

Diagram showing a battery component with positive and negative charges, indicating charge distribution or polarity.

Before you begin...

• Connect Camcorder to power source.
• Make all TV-Camcorder connections.

1 Set POWER to:

VCR → view playback.

CAMERA → view picture as it is recorded.

2 Turn TV ON and set to LINE INPUT.

See TV owner's manual.

3 Begin playback or recording.

Remove Battery lid and insert AA battery.

• Do not reverse polarity.
• Replace battery when tape loading/unloading takes longer than usual.

Insert V20 cassette in PlayPak

Diagram showing three steps of a device operation: opening, adding to a component, and closing.

1 Turn VIGSsette Tape Wheel in direction of arrow to take up any slack.
2 Slide RELEASE to open cassette lid. 3 Insert the VHSC cassette with the wi

Insert the VHSC cassette with the window up and on the left, then snap lid shut.

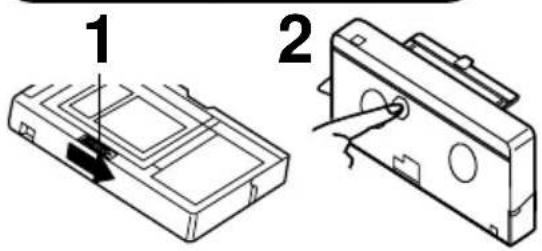

Remove VD cassette

Technical diagram showing two views of a device component with labeled parts and directional arrows indicating movement or assembly.

Load Detector

1 Slide RELEASE and wait for lid to open.

Push cassette out through hole in bottom of PlayPak with your finger.

Copying your Tapes (dubbing)

Connections

STOP PLAY STILL Source (Playing) Camcorder Audio/Video Out Audio/Video Cable (supplied) To Audio In VHF Connecting Cable (not supplied) To Video In Recording VCR

Before you begin...

• Make Camcorder-VCR connections (see left).
• Turn both units on.
• Set VCR input signal to LINE. Please see VCR owner's manual.
• Set Camcorder POWER to VCR.

1 Insert a pre-recorded tape

into Camcorder and a blank tape with record tab into VCR.

2 Press PLAY on Camcorder, then press STILL at starting point.

3 Press REC, then STILL/PAUSE on VCR.

4 Press STILL on Camcorder and STILL/PAUSE on VCR to start copying.

5 Press STOP on both units to stop copying.

Note:

• Camcorder will only play back tapes recorded in SP or SLP mode.
• Dubbing may reduce picture quality.

CAUTION:

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

Monitor with your TV

• Turn TV on and tune to VCR channel (CH3 or CH4).
• Set TV/VCR Selector on VCR to VCR.

Four-Speed Power Zoom

Zoom in (close up) and out (wide angle) in one of four speeds ranging from slow (16 seconds) to fast (2 seconds).

W T

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA.

Zoom In ("T") 2x 8x Zoom Out ("W")

• Zoom slowly: Lightly press "T" (telephoto) or "W" (wide angle) POWER ZOOM button.
• Zoom quickly: Apply more pressure to the button.

Backlight

Use when subject is darker than surroundings, in shadowed area, or in front of the light source.

B.LIGHT

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA.

Press B.LIGHT while recording to select the level of backlight compensation.

In normal lighting, press B.LIGHT repeatedly until no indicator is displayed.

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA.

Auto Focus

Camcorder automatically focuses on subject even during zooming.

Auto Focus is on when "MF" is not displayed in EVF or LCD monitor.

Press M.FOCUS to remove "MF" in EVF or LCD monitor if necessary.

Manual Focus

Use Manual Focus (MF) when :

• recording through glass.
• lighting is poor.
• subject is far away with objects in foreground.
• subject has distinct horizontal lines.
• subject is not centred in EVF or LCD monitor.
• subject has a shiny surface.
• subject is slanted.
• subject is bright and flat, like a white wall.
• subject has fast motion, like a golf swing.

EVF or LCD Monitor

MF

3 5 2 M.FOCUS 4 UP FAR FOCUS NEAR DOWN

1 Aim the camera at a distant object (more than 3 metres away).
2 Press M.FOCUS so "MF" (Manual Focus) appears in EVF or LCD monitor.
3 Hold down "T" (telephoto) on POWER ZOOM to fully zoom the object in.
4 Press UP (FAR) or DOWN (NEAR) until subject is in focus.
- Back away from subject if necessary.
5 Hold down "W" (wide angle) on POWER ZOOM as desired.
- Refocus as needed when aiming at new scenes.

Macro Focus (close-ups)

Auto Focus functions up to 12.7 mm (1/2 inch) from subject.

Hold down "W" on POWER ZOOM to maximum wide angle.

Bring Camcorder up close to the subject.

High Speed Shutter

Improves Still or Slow Motion playback picture of high speed subjects (e.g. a tennis stroke), when viewed on a Camcorder or 4 head VCR.

Before you begin...

• Connect Camcorder to power source.
• Insert cassette with record tab (page 11).
• Set POWER to CAMERA.

Auto Shutter

In AUTO mode (no indication in EVF or LCD Monitor), shutter speed is auto-adjusted from 1/60 to 1/350 according to subject brightness.

- AUTO mode is selected each time POWER is set to CAMERA.

Manual Selection

The faster the shutter speed, the more light is needed for proper picture and colour quality. High Speed Shutter indication flashes if light is inadequate. Provide additional light.

UP RAR FOCUS NEAR DOWN DISPLAY MENU 1, 2, 3

1 Press MENU for MENU mode. Press UP or DOWN to select SHUTTER.

2 Press DISPLAY repeatedly to select shutter speed.

--- MENU --- PAGE 1/2 PROGRAMMED REC DISPLAY : ON STUTTER : AUTO STAND-BY RELEASE ; OFF CLOCK SET LIGHT MODE : OFF/ON SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY AUTO → 1/60 → 1/100 → 1/250 → 1/500 1/10000 ← 1/4000 ← 1/2000 ← 1/1000 ←

3 Press MENU to exit.

Note:

• Shutter speed cannot be set to 1/60 if Digital E.I.S. feature is set to ON.
• Provide additional halogen or tungsten light for use indoors or in poor light. Fluorescent light degrades picture.
• Auto Focus may not function properly if high speed shutter is used in inadequate light.
• Setting reverts to AUTO each time POWER is set to CAMERA.

An interesting way to open and close scenes.

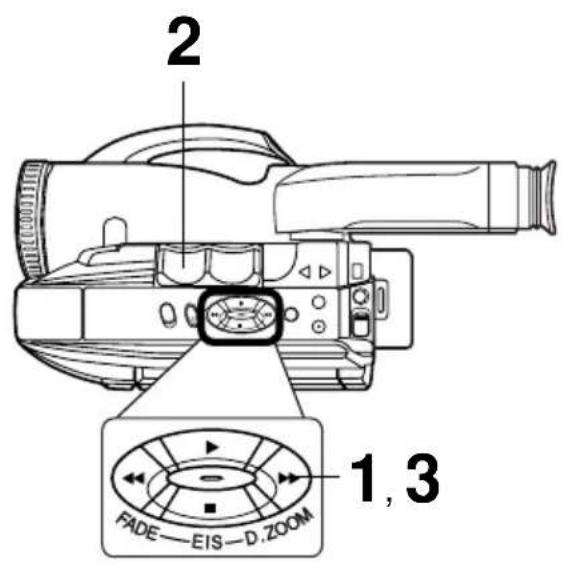

FADE EIS-D.ZOOM UP FAR ROCUS NEAR DOWN DISPLAY MENU 1, 2, 3, 4

RECORD/ PAUSE POWER VCR OFF CAMERA

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA.

1

Press MENU for

MENU mode.

Press UP or DOWN to select

VIDEO EFFECTS.

PAGE 2/2 SELF DEMO ; OFF MOTION DETECTION ; OFF VID:O F:=SIS ; FADE BLACK SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

2

Press DISPLAY for

VIDEO EFFECTS menu. Press UP or

DOWN to select AUTO FADE.

--- VIDEO EFFECTS --- AUTO FADE DIGITAL FADE SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

3

Press DISPLAY for AUTO FADE ;

COLOR menu.

Press UP or DOWN

to select BLACK or WHITE.

--- AUTO FADE ; COLOR --- BLACK WHITE SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY

4

Press DISPLAY to confirm entry. Press MENU to exit.

Fade In:

In RECORD/PAUSE mode, press FADE so "FADE" flashes in EVF or LCD monitor.

Press RECORD/PAUSE.

Recording starts as picture and sound gradually fade in.

Fade Out:

While recording, press FADE so "FADE" flashes in EVF or LCD monitor.

Press RECORD/PAUSE.

Picture and sound gradually fade out, and recording is paused.

If FADE is pressed accidentally, press again so "FADE" disappears in EVF or LCD monitor.

Colour Digital Fade

Choose from 7 fade effects in 8 different colours.

6 FADE EIS-D.ZOOM UP RR FOCUS NEAR DOWN DISPLAY MENU 1,2,3, 4,5

EVF or LCD monitor
    Q["Image: Driver with hand-drawn path"]

■For more effects, stop fade in or fade out at any time (except RANDOM mode) by pressing FADE.

Then, press FADE to resume fade.

Note:

• Audio is not affected by fade.
• To cancel Digital Fade, do steps 1, 2, and 5. In step 2, select AUTO FADE.

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA.

1

Press MENU for MENU mode.

Press UP or DOWN to select VIDEO EFFECTS

PAGE 2/2 SELF DEMO : OFF MOTION DETECTION : OFF VIDEO : FADE BLACK SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

2

Press DISPLAY for VIDEO EFFECTS menu.

Press DOWN to select DIGITAL FADE.

--- VIDEO EFFECTS --- AUTO FADE DIGITAL FADE SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

3

Press DISPLAY for DIGITAL FADE menu.

Press UP or DOWN to select TYPE. Press DISPLAY for TYPE menu. Press UP or DOWN to select from 7 different types of fades.

- A preview of each fade type is displayed as it is selected.

4

Press DISPLAY for DIGITAL FADE menu. Press DOWN to select COLOR.

Press DISPLAY for COLOR menu. Press UP or DOWN to select from 8 colours.

- A preview of each colour is displayed as it is selected.

5

Press DISPLAY to confirm entry. Press MENU twice to exit.

6

Press FADE for about 2 seconds to fade out during recording (selected fade type flashes). Press FADE again to fade in.

Power Zoom magnification is digitally increased.

2 1, 3 FADE—EIS—D.ZOOM

50x D.ZOOM1

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA.

1 Press D. ZOOM.

once →D.ZOOM 1 (150× maximum)

twice →D.ZOOM 2

(PV-L352-K: 700x maximum)

(PV-L552-K: 780x maximum)

The higher digital magnification levels may cause picture distortion.

2 Hold down "T" on POWER ZOOM.

Digital Zoom starts when normal zoom reaches maximum.

(20×: PV-L352-K / 26×: PV-L552-K)

• Zoom level appears in EVF or LCD monitor.
• POWER ZOOM switch controls digital zoom level.
• Normal zoom resumes when level falls to 20 × : PV - L352 - K / 26 × : PV - L552 - K .

3 Press D. ZOOM to turn off Digital Zoom so no indication appears.

Digital Electronic Image Stabilization (EIS)

Helps stabilize picture when recording in unstable situations.

Before you begin...

• Connect Camcorder to power source.
• Set POWER to CAMERA.

1 Press EIS to display "EIS" in the EVF or LCD monitor.

• Image becomes slightly enlarged and shutter speed auto-adjusts from 1/80 to 1/350 according to brightness.
• Use High Speed Shutter (page 26) if needed. Shutter speed setting remains after EIS is cancelled.

2 Press EIS again to cancel when not in use.

EIS may not function during...

• extreme Camcorder movement.
- recording of subjects with distinct horizontal or vertical stripes.
- low light situations (EIS indicator flashes).
- intense fluorescent lighting situations.
- recording of very fast motion.

Motion Detection

Recording starts automatically if motion is detected.

UP PAR FOCUS NEAR DOWN DISPLAY MENU 1, 2, 3

Motion Detection may mistakenly start when:

• background is plain, like a white wall, or has distinct vertical, horizontal, or slanted stripes, like a venetian blind.
  • brightness suddenly changes.

Motion Detection may not start when:

• motion is very slow or fast.
• moving object is very small.
• motion occurs only in 1 corner of viewing area.
• in poor lighting (in this case, MOTION DETECTION flashes).
• background is plain, like a white wall, or has distinct horizontal or vertical stripes.

Before you begin...

• Connect Camcorder to power source. Use AC Adaptor for longer recordings
• Insert cassette with record tab (page 11).
• Set POWER to CAMERA.
• Securely position and aim Camcorder.

1

Press MENU for MENU mode. Press UP or DOWN to select MOTION DETECTION.

PAGE 2/2 SELF DEMO ; OFF MOTION DETECTION ; OFF VIDEO EFFECTS ; RADE BLACK SELECT: PUSH UP/DOWN KEY SET : PUSH D ISPLAY KEY END : PUSH MENU KEY

2

Press DISPLAY to select ON.

3

Press MENU for Motion Detection standby mode. (If cassette is not inserted, "◆◆◆" will flash.)

• Recording will start about 3 seconds after motion is detected.
• Date and time are recorded if displayed in EVF or LCD monitor (page 15).
• Recording stops about 10 seconds after motion ceases.

To cancel Motion Detection Mode, set POWER to OFF.

Note:

• Motion Detection recording starts if Camcorder is bumped or repositioned.
• This feature is not available during normal recording.
• While in Motion Detection stand-by, the following functions are not available: Record/Pause, Stand-by mode, Digital EIS, Video Effects (Auto/Digital Fade).

Viewfinder/LCD Monitor Indications

Tape remaining and battery charge level can be displayed.

UP FUR FOCUS NEAR DOWN DISPLAY MENU 2, B, C, D POWER VCR OFF CAMERA 1, A

Before you begin...

- Connect Camcorder to power source.

1 Set POWER to CAMERA.

2 Press DISPLAY (Initial screen)

repeatedly to select the following displays.

Tape Remaining: Battery Remaining:

• Tape remaining indicator operates a few seconds after tape starts moving.

Recording the Date and Time

a Do steps 1 and 2 above to select time/date, date only, or no display.

b Start a recording (page 17). • Only the Date and/or Time are recorded.

1X SP REC 12:00:00AM JAN 1 2002 1X SP REC JAN 1 2002

Display-Off Mode

A Set POWER to CAMERA or VCR.
B Press MENU for MENU mode. Press UP or DOWN to select DISPLAY.
C Press DISPLAY to select OFF. Press MENU to exit.
D Press DISPLAY repeatedly to remove time/date.

Indications are restored the next time Camcorder is turned on.

--- MENU --- PAGE 1/2 PROGRAMMED REC DISPLAY : ON SHUTTER : AUTO STAND-BY RELEASE : OFF CLOCK SET LIGHT MODE : OFF/ON SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY --- MENU --- CLOCK SET DISPLAY : ON SELECT: PUSH UP/DOWN KEY SET : PUSH DISPLAY KEY END : PUSH MENU KEY

[CAMERA MODE] [VCR MODE]

12:00:00AM JAN 1 2002

Viewfinder/LCD Monitor Indications

CAMERA/VCR mode

1 2 3 4 5 6 150x EIS D.ZOOM1 1/10000 0:20 SLP REC 3DMF 12 13 14 15 16 8,9,10 CHECK TAPE 17 11 12:00:00AM JAN 1 2002 FADE SHR RED 18

1 Zoom Magnification level (pages 23, 29).
2 Battery Remaining (page 32).

"WARNING LOW BATTERY" appears and Camcorder shuts off after 15 seconds.

3 Tape Remaining (page 32).

“◆◆” flashes and “TAPE END” appears for 5 seconds when:

• End of tape is reached.

“flashes for 1 minute and “CHECK TAPE” appears for 5 seconds when:

• RECORD/PAUSE is pressed with no cassette, or cassette has no record tab in Camera (RECORD) mode.
• PLAY, FF or REW is pressed with no cassette inserted in VCR mode.

4 10-Second Reminder

Each time a recording is started, a 10 second incremental display (up to 59:50) lets you monitor how long one scene is recorded.

0:00 0:10 0:20 .... 59:50 (return to 0:00 and continue)

5 TAPE SPEED (pages 11, 17).

(SP=standard play, SLP=super long play).

6 Digital EIS (page 30).
7 Digital Zoom (page 29).

8 VCR-MODE

"VCR-MODE" appears for 1 minute when POWER is set to VCR or if RECORD/PAUSE is pressed in VCR mode.

9 DEW

If moisture condensation occurs in unit, "WARNING DEW DETECTED" appears, and Camcorder will shut off in 15 seconds. Wait until "WARNING" no longer indicates when Camcorder is turned on to use.

10 Motion Detection (page 31).
11 Date and Time (pages 14, 15).
12 Operating Mode

• REC (record) • PAUSE
• FF (fast forward) • PLAY
• REW (rewind)

13 Backlight (page 24).
14 Manual Focus (page 25).
15 Light ON/OFF/AUTO (page 16).
16 High Speed Shutter (page 26).
17 Fade (page 27).
18 Colour Digital Fade (page 28).

Operation Notes

Cleaning EVF (Electronic Viewer Finder)

To Remove

Diagram of a mechanical device with labeled parts A, B, and C, showing directional arrows and rotation indicators.

1 Remove the screw with a Phillips screwdriver. Turn counterclockwise.
B Turn the EVF Eyepiece.
© Pull the EVF Eyepiece.

2 Remove any lint or dust particles with a soft clean cloth being careful not to scratch the glass surfaces.

3 Replace the EVF Eyepiece and the screw.

Notice

ATTENTION :

A nickel cadmium battery that is recyclable powers the product you have purchased. At the end of its useful life, under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Replacing Clock Battery

The clock battery is pre-installed. Follow the steps below if replacement becomes necessary.

WARNING:

Replace battery with Panasonic PART NO. VSBW0004 (CR2025) only. Use of another battery may present a risk of fire or explosion.

Caution: Battery may explode if mistreated. Dispose of used battery promptly. Keep away from children. Do not recharge, disassemble or dispose of in fire.

Clock Battery

Tripod Mounting Hole 1 Underside View 2 3 4

1 While pinching the 2 tabs, pull Battery Tray out.
2 Bend middle tab out and remove Battery.
3 Snap new Battery ( mark down) into Battery Tray.
- Do not reverse the polarity.
4 Insert Battery Tray so the triangle marks meet.

Note:

• Keep Battery out of children's reach. Swallowing it may be harmful.
• Improper installation, discharge, or missing battery causes "CLOCK BATTERY" to appear when DISPLAY is pressed.
• Battery life is approximately 5 years.

Palmcorder Accessory System

Power Supplies

Line drawing of a battery pack with coiled cables and connectors (no text or symbols)

AC Adaptor with DC Power Cable Supplied (PV-A20-K) Optional (PV-A19-K/PV-A20-K)

1.2Ah Battery Pack (Rechargeable Nickel Cadmium Battery) Supplied (PV-BP15-K)

Up to 2 hr Battery Pack (Rechargeable Nickel Metal Hydride Battery) Optional (HHR-V20A/1B)

Up to 4 hr Battery Pack (Rechargeable Nickel Metal Hydride Battery) Optional (HHR-V40A/1B)

Up to 6 hr Battery Pack (Rechargeable Nickel Metal Hydride Battery) Optional (HHR-V60A/1B)

"AA" Battery Case Optional (PV-AA6-K)

Car Battery Cord Optional (PV-C16-K)

Connection T

Audio/Video Cable Supplied (LSJA0390)

cord and Playback

VHS PlayPak Supplied (PV-P1-K/ VYMW0009) Optional (PV-P1-K)

Compact Video Cassette Tape Optional (NV-TC20P) Optional (NV-TC30P) Optional (NV-TC40P)

To Transport

Shoulder Strap Supplied (LSFC0012)

To Copy your Tapes (with Video/Audio)

Supplied (LSJA0390)

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

VCR (not supplied)Audio/Video Cable

Power Source: Compact VHS Camcorder: DC 6 V

AC Adaptor: 110/120/220/240 V AC, 50/60 Hz

Battery: Nickel-Cadmium Type DC 6 V

Power Consumption: Compact VHS Camcorder: 6V DC 8.5 W (Max. 11.5 W)

AC Adaptor: 19 W

1.2 W (when not in use.)

Video Signal: EIA Standard (525 lines, 60 fields) NTSC colour signal

Video Recording System: 2 rotary heads plus flying erase head

Helical scanning system

Audio: 1 track

Pick-Up System: Sequential colour difference field reverse system

Pick-Up Device: One integral colour filter Charge Coupled Device (CCD)

Lens: 20:1 (PV-L352-K) / 26:1 (PV-L552-K) zoom lens,

F1:1.6 with auto iris control

Focal length: 3.6 mm - 72.0 mm (PV-L352-K)

Focal length: 3.8 mm - 98.8 mm (PV-L552-K)

4 speed power zoom function

Viewfinder: 10.2 mm (0.4 inch) Electronic Viewfinder

LCD Monitor: 63.5 mm (2.5 inch) Liquid Crystal Display (PV-L352-K)

101.6 mm (4.0 inch) Liquid Crystal Display (PV-L552-K)

Minimum Illumination Required: 0.8 lx (F1:1.6) 0.08 footcandles

7 lx (F1:1.6) 0.7 footcandles (EIA Standard)

Operating Temperature: 0 °C\~40 °C (32 °F\~104 °F)

Operating Humidity: 10%\~75%

Weight: Compact VHS Camcorder: 0.99 kg (PV-L352-K)

2.18 lbs.

1.03 kg (PV-L552-K)

2.27 lbs.

AC Adaptor: 0.3 kg

0.66 lbs.

Dimensions: Compact VHS Camcorder:

4-3/16 (W) × 4-15/16 (H) × 7-1/2 (D) inch

4-5/16 (W) × 4-13/16 (H) × 7-1/2 (D) inch

AC Adaptor: 68 (W) × 41 (H) × 140 (D) mm

2-11/16 (W) × 1-5/8 (H) × 5-1/2 (D) inch

Weight and dimensions shown are approximate.

Designs and specifications are subject to change without notice.

Before Requesting Service

If a problem arises, you may be able to correct it yourself. See Symptom and Correction list below.

	CorrectionSymptom
No picture in EVF or LCD monitor ...	Connect Power Source. (pp. 9, 10)Set POWER to VCR or CAMERA. (pp. 17, 20)Check for Dew Indication. (p. 33)Use fully charged Battery. (p. 9)Firmly connect all necessary cables. (p. 10)
Video cassette cannot be inserted ...	Connect Power Source. (pp. 9, 10)Insert cassette, window side facing out. (p. 11)
Video cassette cannot be removed ...	Connect Power Source. (pp. 9, 10)
Operation buttons do not work ...	Check for Dew Indication. (p. 33)
Recording cannot be done ...	Make sure record tab is intact. (p. 11)Check Battery Indicator. (p. 32)Check for Dew Indication. (p. 33)
Auto Focus does not operate ...	Set FOCUS to AUTO. (p. 25)Set POWER to CAMERA. (p. 17)
Sound from microphone can't be monitored ...	Set unit to REC or Record/Pause mode.
Camera picture is too dark ...	Set HIGH SPEED SHUTTER to AUTO. (p. 26)
No playback picture, or the playback picture is noisy or contains streaks ...	Press UP/DOWN button during playback(Tracking Control). (p.20)
“Panasonic ITS TAPES CAN PLAY IN YOUR VCR ...” appears in EVF or LCD Monitor ...	Set POWER to CAMERA, then set SELF DEMO:OFF in MENU screen to cancel Demo mode. (p. 7)
Top of playback picture waves back and forth excessively ...	A playback signal is not as stable as an off the air TV signal, so the top of your TV screen may appear bent or unstable during playback. This is called, “Horizontal AFC time constant change.”If your TV does not have this control, or adjusting it does not help, contact your TV servicentre. (Some nominal service charges may be required.)

Video Head Cleaning

Scanned text of contract clauses or legal document with visible Chinese characters and a central emblem.

Clogged Video Head

(a) Video Head Cleaning: Your Palmcorder will not normally require head cleaning; however, it is possible that the heads may become clogged when playing an old or damaged tape. If the image on your screen resembles the photograph on the left while playing back a tape, the heads may require cleaning.
(b) Cleaning the Heads: To clean the heads, obtain a head cleaning cartridge. There is a wide range of cleaning cartridges, however, using a worn or poor quality cleaning cartridge will shorten head life. Be sure to follow the instructions that come with the cassette, as excessive use can shorten head life. It is recommended that the cleaning be done by a qualified technician, Please contact your nearest Panasonic Servicentre. (Refer to page 39.) Refer servicing to qualified service personnel.

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

Camcorder Product – One (1) year, parts and labour

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty.

This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, EXCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY SERVICE

For product operation and information assistance, please contact your Dealer or our Customer Care Centre at: Telephone #: [phone] Fax #: [phone] Web: www.panasonic.ca

For product repairs, please contact one of the following:

• Your Dealer who will inform you of an authorized Servicentre nearest you.
• Our Customer Care Centre at [phone] or www.panasonic.ca
  • A Panasonic Factory Servicentre listed below:

Richmond, British Columbia

Panasonic Canada Inc.

12111 Riverside Way

Richmond, BC V6W 1K8

Tel: [phone]

Fax: [phone]

Calgary, Alberta

Panasonic Canada Inc.

6835-8 ^th St. N. E.

Calgary, AB T2E 7H7

Tel: [phone]

Fax: [phone]

Mississauga, Ontario

Panasonic Canada Inc.

5770 Ambler Dr.

Mississauga, ON L4W 2T3

Tel: [phone]

Fax: [phone]

Lachine, Québec

Panasonic Canada Inc.

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase.

A

AC Adaptor 10

Accessories (Optional) ... 36

Accessories (Supplied) .... 2

Audio/Video Cable ... 21, 22

Audio/Video Out ..... 21, 22

Auto Daylight Saving Time 15

B

Backlight.... 24

Battery Pack 9,10

BATTERY RELEASE Button 9

Before Requesting Service 38

B.LIGHT Button ...... 24

BRIGHT ADJUSTMENT 17, 20

Built-in Microphone ..... 17

C

Camera Recording ... 17\~19

Car Battery Cord ...... 10

Cassette Information ..... 11

Charging Battery 9

Cleaning EVF 34

Clock Battery 35

Clock Set 14, 15

Copying your Tapes ..... 22

D

DC IN 10

DC Power Cable ...... 10

Digital EIS 30

Digital Zoom 29

DISPLAY Button . 13, 20, 32

Display-off Mode ...... 32

D.ZOOM Button 29

E

EIS Button 30

F

Fade 27, 28

FADE Button ...... 27, 28

FAST FORWARD/ SEARCH Button ...... 20

Focus 25

H

Hand Strap 12

High Speed Shutter ..... 26

L

LCD Monitor 17,20

LCD-OPEN Button ... 17, 20

Lens Cap 12

Light 16

LIGHT Switch 16

M

MENU Button 13

MENU Mode...... 13

M.FOCUS Button ...... 25

Motion Detection ..... 31

P

PLAY Button 20

Playback.... 20, 21

PlayPak 21

Power Supply 9,10

POWER Switch .... 7, 17, 20

POWER ZOOM Button ..... 23, 25, 29

Programmed Recording . 19

Q

Quick Operation Guide .... 8

R

RECORD/PAUSE Button 17

Record/Playback Time .... 11

Replacing Clock Battery . 35

REWIND/SEARCH

Button 20

S

Safety Precautions ...... 3

TAPE EJECT Switch . 11, 17

TAPE SPEED Button ..... 17

Tracking Control 20

Tripod Mounting Hole ..... 35

U

UP (FAR) / DOWN (NEAR) Button ...... 13, 20, 25

V

VHF Connecting Cable .. 22

Video Cassettes (tapes) .. 11

Video Head Cleaning ..... 38

Viewfinder/LCD Monitor Indications .... 32\~33

Viewing (TV/VCR) ...... 21

VISION ADJUSTMENT .. 17

VOLUME 20

W

Warranty 39

Z

Zoom 23, 29

Panasonic®

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario L4W 2T3

[phone]

www.panasonic.ca

Printed in Indonesia

LSQT0568A

S0102-0

Montréal: 3075 Louis A. Amos, Lachine, Québec H8T 1C4 [phone]

Toronto: 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 [phone]

Calgary: 6835 8th Street N.E., Calgary, Alberta T2E 7H7 [phone]

Vancouver: 12111 Riverside Way, Richmond, BC V6W 1K8 [phone]

Caméscope

Illustration of a Panasonic digital camera with visible lens and grip (no text or symbols beyond branding)

Line drawing of a battery pack with coiled cables and connectors (no text or symbols)

1 bandoulière (LSFC0012) (page 12)

Technical line drawing of a mechanical component with a cylindrical shaft and internal channels (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Diagram of a digital camera with numbered parts and directional arrows indicating assembly or operation.

Illustration of two hands tying a rope knot with a curved cord (no text or symbols)

Hand holding a circular object with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with cylindrical components and a base plate (no text or symbols)

20X SP REC LCD BRIGHT[√] | | | | --- [A] 12:00:00AM JAN 1 2002

Illustration of a person using a tool to clean water, showing a change from before to after (no text or symbols present)

Pistage automatique

Diagram showing a battery component with positive and negative charges, indicating charge distribution or polarity.

Technical diagram showing two views of a device component with labeled parts and directional arrows indicating movement or assembly.

Technical line drawing of a digital camera with no visible text or symbols

1X SP REC 12:00:00AM JAN 1 2002 1X SP REC JAN 1 2002

Mode sans affichage

12:00:00AM JAN 1 2002

Diagram of a mechanical device with labeled parts A, B, and C, showing directional arrows indicating motion or movement.

Line drawing of a battery pack connected to a cord with connectors (no text or symbols)

Line drawing of a rectangular electronic device with ports and control panel (no text or symbols)

Scanned text of contract clauses or legal document with visible Chinese characters

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

Panasonic Canada Inc.

12111 Riverside Way

Richmond, BC V6W 1K8

Tél. : [phone]

Panasonic Canada Inc.

6835-8 ^th St. N.E.

Calgary, AB T2E 7H7

Tél. : [phone]

Téléc. : [phone]

Mississauga, Ontario

Panasonic Canada Inc.

5770 Ambler Dr.

Mississauga, ON L4W 2T3

Tél. : [phone]

Téléc. : [phone]

Lachine, Québec

Panasonic Canada Inc.

Touches UP / DOWN .... 13, 20, 25

V

Visionnement 21

Z

Zoom 23, 29

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario L4W 2T3

[phone]

www.panasonic.ca

Calgary: 6835 8th Street N.E., Calgary, Alberta T2E 7H7 [phone]

Vancouver: 12111 Riverside Way Richmond, BC V6W 1K8 [phone]
