| Brand | Panasonic |
| Model | NR-BD31ES1 |
| Category | Fridge-freezer (category 7) |
| Energy efficiency class | A+++ |
| Annual energy consumption | 154 kWh/year |
| Useful volume of refrigerator | 227 L |
| Useful volume of freezer | 95 L |
| Freezer star rating | Four stars |
| Freezing power | 4.5 kg/24h |
| Temperature rise time | 30 h |
| Climate class | SN-T (10°C to 43°C) |
| Dimensions (W x D x H) | 600 mm x 650 mm x 1850 mm |
| Net weight | 73 kg |
| Rated voltage | 220-230 V, 50 Hz |
| Refrigerant / charge | R600a / 78 g |
| Acoustic emissions | 40 dB |
| Interior lighting | LED |
| Special functions | Super Cool, Fresh Case humidity control, Slide'N'Store shelf, FlexLift, ice maker |
| Defrost | Manual for freezer, automatic for refrigerator |
| Maintenance and cleaning | Removable parts washable with lukewarm water; do not use abrasive products |
Frequently Asked Questions - NRBD31ES1 PANASONIC
User questions about NRBD31ES1 PANASONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual NRBD31ES1 - PANASONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NRBD31ES1 by PANASONIC.
USER MANUAL NRBD31ES1 PANASONIC
Operating Instructions

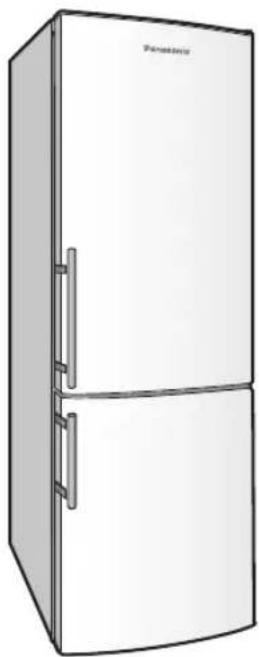

Refrigerator-Freezer
(Household use)
Model No.
NR-BD31ES1
NR-BD31EW1
English 2-15
Thank you for purchasing this Panasonic product. Please read these instructions carefully before using this product. Please keep this manual for future reference. Included installation Instructions.
Francais 30-43

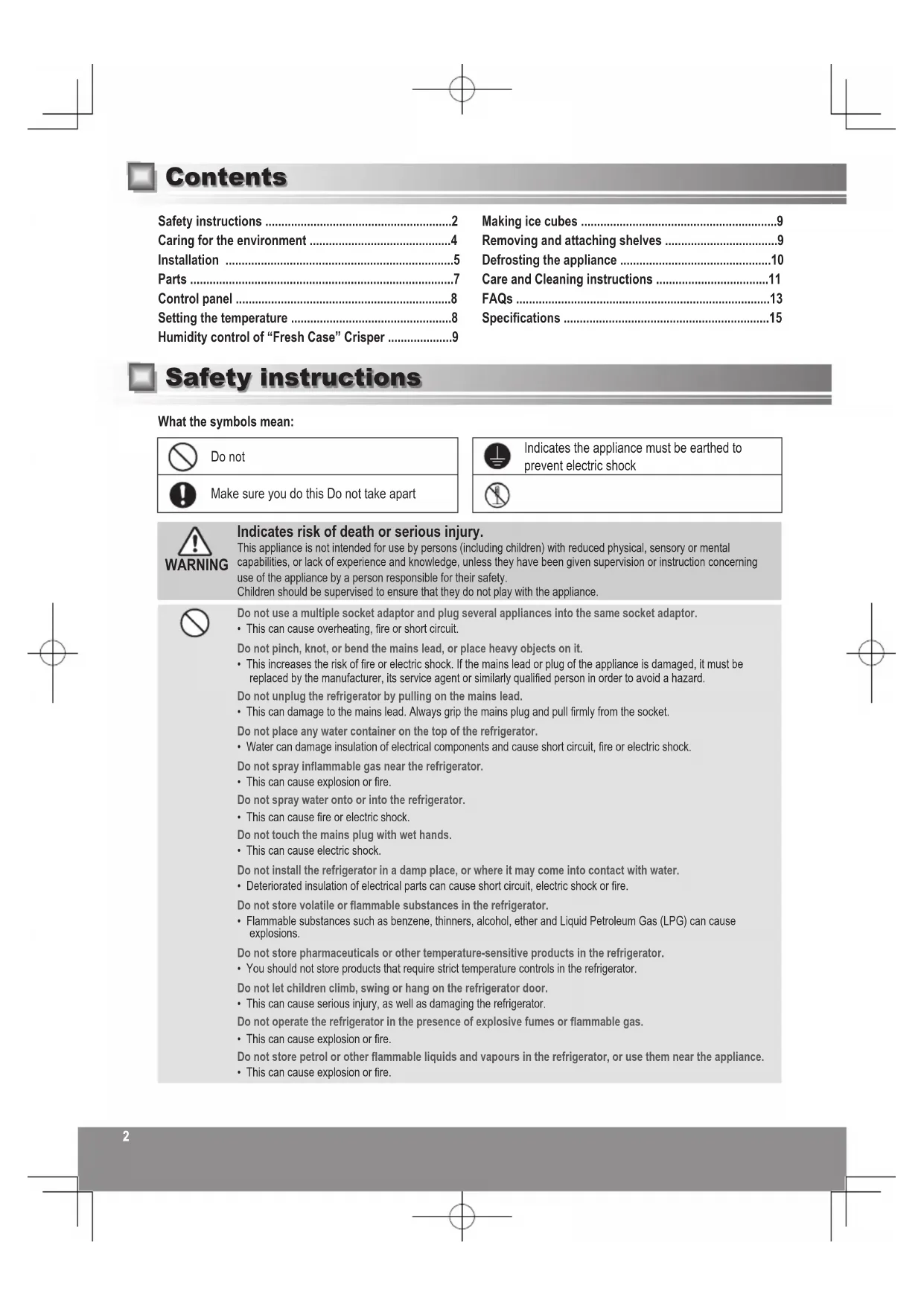

Safety instructions 2
Caring for the environment 4
Installation 5
Parts 7
Control panel 8
Setting the temperature 8

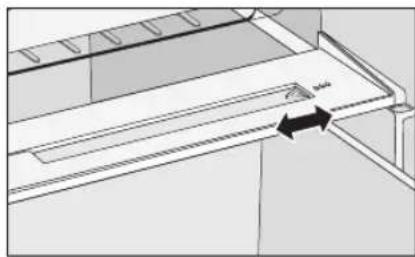

Humidity control of "Fresh Case" Crisper 9
Making ice cubes 9
Removing and attaching shelves 9
Defrosting the appliance 10
Care and Cleaning instructions 11
FAQs 13
Specifications 15
Safety instructions
What the symbols mean:
Do not
Make sure you do this Do not take apart
Indicates the appliance must be earthed to prevent electric shock
WARNING
Indicates risk of death or serious injury.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not use a multiple socket adaptor and plug several appliances into the same socket adaptor.
- This can cause overheating, fire or short circuit.
Do not pinch, knot, or bend the mains lead, or place heavy objects on it.
- This increases the risk of fire or electric shock. If the mains lead or plug of the appliance is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
Do not unplug the refrigerator by pulling on the mains lead.
- This can damage to the mains lead. Always grip the mains plug and pull firmly from the socket.
Do not place any water container on the top of the refrigerator.
Water can damage insulation of electrical components and cause short circuit, fire or electric shock.
Do not spray inflammable gas near the refrigerator.
- This can cause explosion or fire.
Do not spray water onto or into the refrigerator.
- This can cause fire or electric shock.
Do not touch the mains plug with wet hands.
- This can cause electric shock.
Do not install the refrigerator in a damp place, or where it may come into contact with water.
- Deteriorated insulation of electrical parts can cause short circuit, electric shock or fire.
Do not store volatile or flammable substances in the refrigerator.
- Flammable substances such as benzene, thinners, alcohol, ether and Liquid Petroleum Gas (LPG) can cause explosions.
Do not store pharmaceuticals or other temperature-sensitive products in the refrigerator.
- You should not store products that require strict temperature controls in the refrigerator.
Do not let children climb, swing or hang on the refrigerator door.
- This can cause serious injury, as well as damaging the refrigerator.
Do not operate the refrigerator in the presence of explosive fumes or flammable gas.
- This can cause explosion or fire.
Do not store petrol or other flammable liquids and vapours in the refrigerator, or use them near the appliance.
- This can cause explosion or fire.
Safety instructions (continued)
-WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- This can cause damage to the interior of the refrigerator or cause an explosion.
-WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
This can cause explosion or fire.
-WARNING: Do not damage the refrigerant circuit.
- This can cause explosion or fire.
-WARNING: Do not open the cover of LED lighting of fridge interior.
This can cause electric shock. If the LED lighting does not work correctly, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
Do not try to disassemble, repair or modify the refrigerator yourself.
- You may injure yourself – or others – with burns or electric shock, or damage the refrigerator. If your appliance needs alterations or repair, please consult authorized service centre.
Ensure that the refrigerator is plugged into an earthed mains socket. DO NOT plug into an unearthed mains socket.
- A short circuit could cause an electrical shock.
Make sure the mains lead and plug are not squashed or damaged.
- A damaged mains plug or lead can cause short-circuit, fire or electric shock.
If the mains lead is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
DO NOT ATTEMPT TO REPLACE IT YOURSELF.
Remove any dirt or dust from the mains plug's pins before connecting to the power supply.
- Dust build-up on the mains plug can cause insulation failure, especially in humid conditions. This can cause short circuit, fire or electric shock. Unplug the mains lead and wipe it with a dry cloth. Never use a wet or damp cloth.
Plug your appliance into the socket, making sure the connection is secure.
- A loosely connected mains plug can cause fire or electric shock.
Install the refrigerator in a well-ventilated area.
- The more refrigerant there is in an appliance, the larger the room it should be installed in. If there's a refrigerant fluid leak, and the appliance is in a small room, the build up of combustible gases is more likely. This can cause fire or explosion. As a guide, for every 8g of coolant, you'll need at least 1 cubic metre of space in the room. The data plate inside the appliance tells you how much refrigerant your refrigerator contains.
The refrigerant (R600a) used in the refrigerator and the gases in the insulation material (cyclopentane) are both flammable. They also require special disposal procedures.
- Before you dispose of the appliance, make sure none of the pipes on the back are damaged. Refrigerant or gas leaks can cause fire or explosion.
Unplug the refrigerator before cleaning and servicing.
- Failure to do this can cause electric shock.
If you smell burning or see smoke coming from the refrigerator, disconnect the power immediately and please consult authorized service centre.
- Failure to do this can cause fire or electric shock.
-WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Failure to do this could result in fire or explosion because refrigerant cannot disperse if it leaks.
Indicates risk of injury or damage to property.
Do not put glass bottles or containers in the freezer.
- When the contents freeze, the glass may break.
Do not touch the inside walls of the freezer or items stored in the freezer with wet hands.
- Your skin can become frozen onto the interior wall, or items stored in the freezer.
Do not open or close the doors by taking hold of the door handles with both hands.
- This may cause personal injury.
Safety instructions (continued)
If there's a power cut, avoid opening the refrigerator frequently or putting unchilled food in it.
- This can cause the temperature in the refrigerator to rise and spoil food stored inside.
If you're not going to use the refrigerator for a long time, unplug it from the mains.

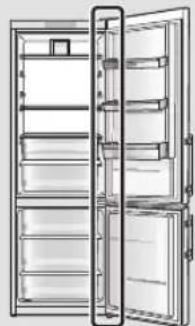

Also, be careful of the gap between the fridge and freezer doors, especially if they are both open at the same time.
- This may cause personal injury.
When opening the refrigerator, be careful not to pinch your fingers at the "pinch point" areas. In particular, when opening the fridge door, be careful to avoid the potential pinch point between the fridge and freezer doors.
- This can cause personal injury.
Potential pinch point
Caring for the environment
Disposing of the packaging
Please recycle where possible (e.g. cardboard, plastic bags, adhesive tape and polystyrene) and make sure you dispose of all other packing materials safely.
Keep the packaging out of the reach of babies and young children, to avoid injury or suffocation.
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
Before disposing of your old appliance
Please follow either the disposal instructions from the manufacturer of the old appliance, or local disposal regulations for the appliance. Where this is not available, please follow the three step instructions below.
- Remove the mains plug from the socket.
- Cut the mains lead off, and safely dispose of it with the mains plug still attached.
-
Until the old appliance is collected, or you take it to a Recycling Centre, make sure it's out the reach of small children.
-
Remove all sealing materials from the door and leave all the shelves and drawers in place. This way, children are less likely to climb in and become trapped.
This section explains how to install your appliance for the most energy-efficient, safe and quiet operation.

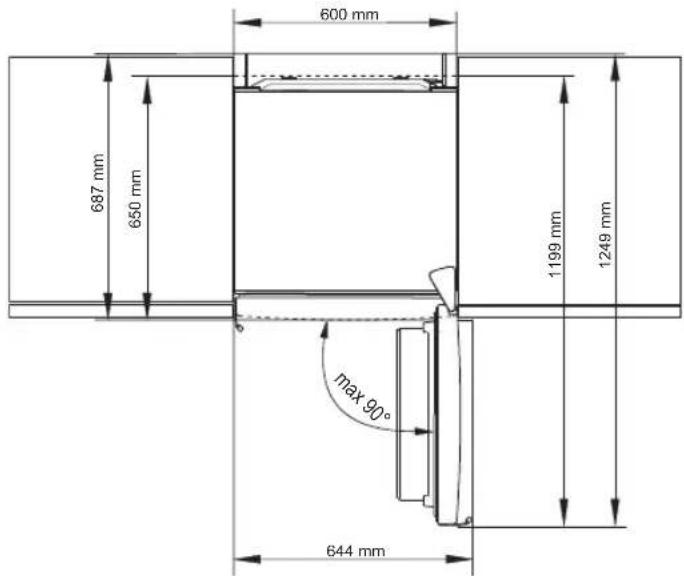

Dimensions
W600×D650×H1850(mm)
Unpacking your appliance
Remove all packaging and tape.
Choosing the right location

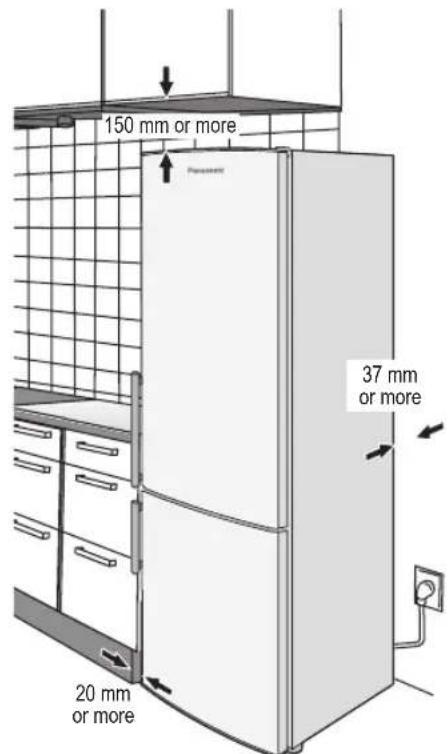

Ventilation
As the appliance gives off heat during operation, it should be installed in a well-ventilated, dry room with plenty of space above and behind it, as shown in Figure 1.
If you can hear it vibrating, it needs more space.
Temperature
The room temperature affects the refrigerator's energy-efficiency, i.e. how much electricity it uses to chill and freeze foods.
For the best results, install your refrigerator:
away from direct sunlight
away from radiators, cookers or other heat sources
where the room temperature corresponds to the climate classification for which the appliance is designed. Refer to the Specifications Section for your appliance's climate classification.
Level
After carefully positioning the appliance so as not to damage floor surfaces, install on a level floor that's strong enough to support a fully loaded refrigerator.
You can adjust the level of the refrigerator by screwing or unscrewing the two adjustable front legs as shown in Figure 2. This prevents vibration and noise.
If the appliance is to stand on a carpeted or vinyl floor, put a solid board underneath it first. This will protect your floor against possible colour change due to heat given off by the appliance.

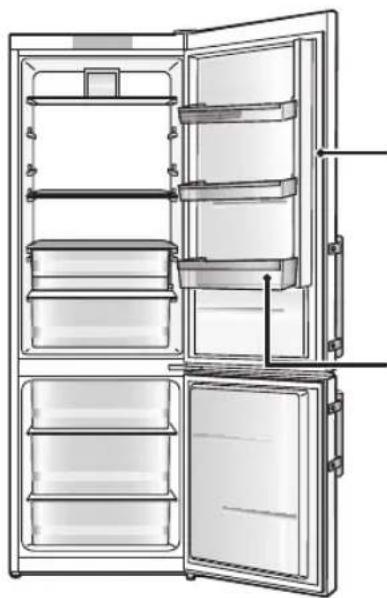

Refrigerator door
The refrigerator's door hinges can be swapped over, from the right side to the left, so that the doors open in the opposite direction. If this is more convenient in your home, please contact our service centre listed on the attached sheet or access to our Web site (http://panasonic.net). We could not be held responsible if you replace the hinges by yourself.
Figure 1
Figure 2
Installation (continued)

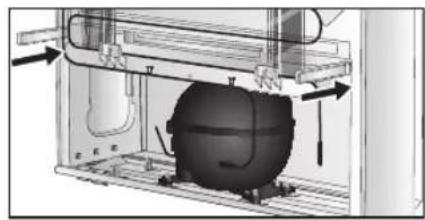

Installing the distance guides
The appliance is supplied with two distance guides which should be installed on the lower part of the housing to prevent from pushing the appliance too close to the wall. Appliance may also be installed without the spacers; however, this may increase power consumption.
Cleaning
After installation, wipe the appliance clean with warm water.
Connecting the mains plug to the household mains socket
After the appliance is plugged, all symbols on the control panel will appear for a moment, and then the startup values will appear as 5^ on fridge setting indicator.
Notes:
Cooling may take longer in the summer months or at other times when the room temperature is higher.
If you need to unplug the refrigerator, wait at least 10 minutes before you plug it back in again. If not, you might damage the compressor.
Ambient room temperature
You'll find your refrigerator's climate classification on the rating plate in the left side of the fridge compartment. It shows the room temperature the appliance is designed to work in.
| Climate classification Permitted ambient temperature | |
| SN (Extended Temperate) +10 °C to | 32 °C |
| N (Temperate) +16 °C to 32 °C | |
| ST (Subtropical) +16 °C to 38 °C | |
| T (Tropical) +16 °C to 43 °C | |
For saving energy
- Install the refrigerator in a dry, cool and well-ventilated location. The colder the ambient temperature, the better the efficiency. (Please refer to Page 5 for dimensions and clearance.)
-
The combination of drawers and shelves that result in the largest in volume and the most efficient use of energy for the refrigerator.
-
Remove the freezer drawers.
-
Attach the drawers and shelves in the refrigerator to the positions illustrated on the section of "Parts" (P.7).
-
Do not over fill the refrigerator to allow the air to circulate.
- Open the doors only when necessary and as briefly as possible.
- Occasionally clean the ventilation openings at the bottom of the refrigerator with a vacuum cleaner, etc. (Take care not to damage the refrigerant pipe inside the cover.)
- When setting to Super Cool Mode, power consumption will be increased.

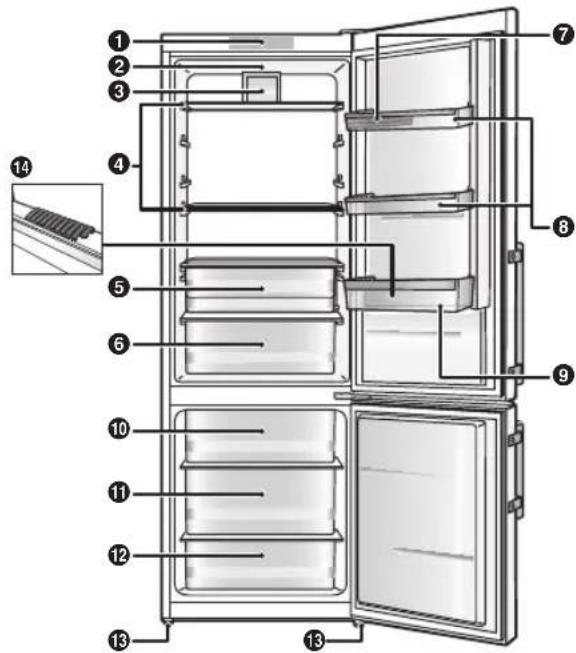

The illustration below is based on model NR-BD31ES1, and may be slightly different to your refrigerator.
Fridge compartment
The temperature can be set in a range from 1^ to 9^
Cooked food, drinks, eggs, cakes, dairy products
Freezer compartment
The freezer cannot be separately set to a desired temperature.
Fridge temperature settings will impact the temperature of the freezerFreezer temperature will fall if the fridge temperature is set to below the recommended level, and rise if set above the recommended level.
Frozen meat, poultry, fish, ice cream
The egg tray can also be used as an ice tray.
The height of shelves can be adjusted to your preferences without having to take them out of the appliance. Pull the two levers on either side of the shelf towards you and move the shelf down. If you wish to set the shelf higher, you can do so without releasing the two levers.
Control panel
LED lighting of fridge interior
3 Fan
4 "Slide'N'Store" Glass shelf
Chiller Case
6 "Fresh Case" crisper
Egg tray
"FlexLift" height adjustable door shelf
Bottle shelf
10 Freeze drawer
Freeze drawer
12 Freeze drawer
Legs
14 Bottle stopper
Note:
- You can change the positions where the Glass shelves and Door shelves are installed. Please use caution, however, because stored food and beverages could fall out when the door is opened and closed depending on the shelf positions.
- Please do not remove or damage the fan cover. Leaving the fan exposed can lead to injuries.
- When opening the door, please take care to avoid collisions with people or objects in the vicinity.

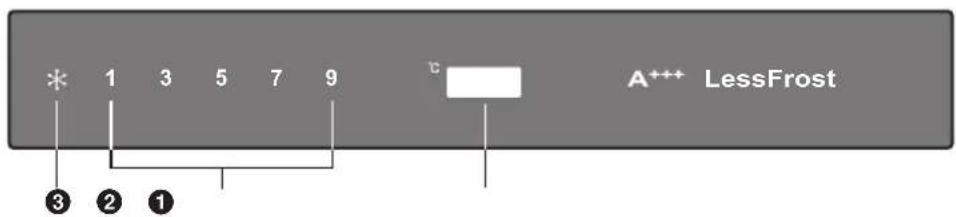

Control panel
Temperature adjustment and Super Cool Mode key
Fridge temperature display
Super Cool Mode button
Notes:
- This refrigerator uses a microprocessor to control the temperature. The temperature inside the refrigerator varies depending on such factors as changes in the room temperature, how frequently the doors are opened and closed, and how much food is stored inside and how it is stored.
- The anti-scratch protective film is pasted on the control panel.
Setting the temperature
To set the temperature in the fridge compartment use the key.
- Press the ① key until the desired temperature is set.
Recommended setting is 5^
- If the temperature of the room where the appliance is installed is below 16^ , the freezer may not cool properly. In this event, we recommend changing the temperature setting to 3^ or lower.
- If the temperature is set to 1^ for an extended time, the fridge may become too cold. In this situation, please raise the temperature setting.
Super Cool Mode
To activate the Super Cool Mode, press the key until the symbol lights up.
- Use this setting after switching on the appliance for the first time, before cleaning, or 24 hours before inserting a large amount of food.
If the mode is not deactivated manually, it will be deactivated automatically after approximately two days. When the fridge become too cold, please correct manually.
Humidity control of "Fresh Case" Crisper
- The bin at the bottom of the refrigerator is intended for storing fruit and vegetables. It keeps humidity and prevents the food from drying out.
- Store the food in suitable packaging to prevent them from emitting or taking on odors.
The bin has integrated humidity regulator which allows setting the humidity according to the amount of food stored.
Smaller amounts of food - push the control slider to the right.
Larger amounts of food - push the control slider to the left.
Making ice cubes
Egg tray can make ice cubes.
To make ice cubes, fill the egg tray with water and place it in the freeze drawer of the freezer.
When ice cubes are ready, take out it from the freezer drawer.
Push each cavity of the egg tray from the back side.
The ice cubes will pop out from the egg tray.
Removing and attaching shelves
Fridge
Glass shelves
To remove a shelf from the refrigerator, pull it out to the point when it is stopped by the guide. Then, lift it slightly at the front part and pull it all the way out.
Chiller Case and "Fresh Case" Crisper
Pull out the case as far as it will go. Then, lift the front part and pull it out completely.
Door shelves and bottle shelf
To remove a shelf from the appliance, lift it as far as it will go and pull it out.
Freezer
The drawers are protected against pulling out. To remove a drawer from the appliance, open it, then lift the front part and pull it out.
Having removed the drawer, you can store food in the empty compartment.
Defrosting the appliance
Freezer
Defrost the freezer when an approximately 3-5 millimeter layer of frost or ice has built up.
24 hours before defrosting, activate the super cool mode to additionally cool the food (see section "Setting the temperature").
After this period, remove the food from the freezer and protect them from defrosting and unplug the mains plug from the household mains socket.
- Do not use any defrosting sprays as they may melt the plastic parts or harm your health.
- Do not use a knife or any other sharp object to remove the frost, because you may damage a pipe of the cooling system.
- As frost melts, water and ice will build up in the case and in lower portions of the compartment. Please wipe these away. In natural defrosting, it may take time for frost to melt due to surrounding temperatures.
- Clean and dry the appliance interior.
- Before placing the food into the freezer, connect the mains plug to the household mains socket, then store food once the inside of the appliance is sufficiently cooled.
Fridge
The refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically.
Any accumulated ice will melt when the compressor unit is inactive.
Drops will flow through an opening in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate.
If an excessive layer of ice is formed on the rear wall of refrigerator interior (3-5 mm), switch off the appliance and defrost the appliance manually.
Care and Cleaning instructions
Daily cleaning
Wipe regularly with a dry cloth.
Places to pay particular attention to:
Door opening seal
If the seal gets dirty and damaged, cold air is more likely to leak.
Bottle shelf
Wipe away any dirt and liquid before it builds up.
Each year, unplug your refrigerator, remove the shelves and give them a thorough clean.
Parts you can wash with water
Fridge Freezer
Glass shelves
- Door shelves
- Bottle shelf
- Egg tray
Chiller Case
"Fresh Case" crispers
- Freezer drawers
Note:
- Do not use abrasive cleaners such as Bicarbonate of Soda, as they can damage the plastic.
Cleaning the control panel
The refrigerator's control panel is made of delicate materials. To protect its surfaces, do not clean it with solvent based chemicals. Simply wipe it with a dry or slightly damp cloth.
Cleaning the outside of the refrigerator
Use a warm, damp, soft cloth to clean the outside of your refrigerator. For more stubborn marks, use a mild kitchen detergent and wipe away with a soft damp cloth. Remove any remaining surface water with a dry cloth.
Notes for cleaning
When cleaning inside or outside your refrigerator, do not use:
- alkaline detergents - they can crack plastic parts.
- grinding dust, soap powder, oil-based cleaners, hot water, brushes, acids, benzenes, solvents or alcohol-based
solutions - all can damage the refrigerator's surfaces and plastic parts.
Make sure you wipe off any stains from edible oils, which can also damage plastic parts.
Care and Cleaning instructions (continued)
Maintenance check
Is the mains lead damaged?
- Does the mains plug get hot?
Is the mains plug firmly in the mains socket?
If the mains lead is damaged, please consult an authorized service centre. DO NOT attempt to replace these items yourself.
Extended disuse
If you're not going to use the refrigerator for a long time, unplug it and clean the mains plug as described above. Then leave the doors open for 2-3 days. This lets the interior dry out properly, and prevents odour and the build up of mould.
Do not switch the refrigerator on and off repeatedly. It will last longer if you leave it switched on during normal use.
Fridge

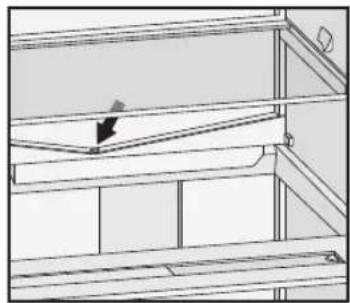

- A gutter and opening for water from melted ice to flow through are located underneath the interior cooling panel.
The gutter and opening must not become clogged. Inspect often and clean if necessary (e.g. with a plastic straw).
Freezer
- Frost or ice build-up, 3-5 mm thick, will increase power consumption. Therefore, it should be regularly removed. Do not use any sharp object solvents, or sprays.
Before moving or transporting your refrigerator
① Remove all items.
② Unplug it.
③ Raise the adjustable leg.
④ Pull, or walk' the refrigerator towards you.
⑤ Use a cloth, for example, to absorb the water in the evaporation pan.
(Lower back of the refrigerator)
Moving and transporting your refrigerator
At least two people are needed to carry the refrigerator safely.
① Tighten the adjustable legs.
Hold the adjustable legs at one end, and corners at the other, as shown.
Note:
- Do not carry the refrigerator by holding its doors.
Always transport the refrigerator in its normal upright position.
Secure the doors with adhesive tape
If you feel that the refrigerator is not working properly, check out the following points first.
If the trouble persists, disconnect the mains plug and contact your dealer or an authorized service centre.
General
| You hear unusual sounds from the refrigerator. | ·Has the refrigerator been installed on a sturdy and level floor? ·Have sufficient clearances been provided around the refrigerator? ·Is anything vibrating on the top of the refrigerator? ·It's normal to hear some noises when the refrigerator starts or stops operation. |
| You hear a sound after the compressor has shut down. | ·This is normal, and is often caused by refrigerant flowing back to the compressor. |
| You hear a sound after you have opened or closed the door. | ·This is normal, and is due to the difference in air pressure between the inside and outside of the refrigerator. |
| You hear the sound of air or water flowing after you have opened the door. | ·This is caused by refrigerant flowing the internal pipework. |
| You hear a continuous whining sound. | ·This sound is heard while the fan for circulating the cold air is operating. |
| The compressor is quite loud. | ·Has the food been packed too tightly together or is the room temperature high? In cases like these, the compressor runs hard so it's normal for the compressor to be louder. |
| The compressor has been running for a long time. | ·When the mains plug has been connected for the first time, the compressor runs longer than usual in order to cool down the inside of the refrigerator until the set temperatures are reached. ·Has Super Cool Mode been set? ·Have the doors been opened and closed frequently? Are the doors completely shut? ·Have the food items been packed too tightly together or is the room temperature high? ·When many food items are placed in the refrigerator at one time, the compressor will need to run for a longer period. |
| Condensation forms on the outside of the refrigerator. | ·Condensation may form when the humidity in the room is high and is normal. Wipe it off using a dry cloth. |
| The outside of the refrigerator feels hot to the touch. | ·After the power of the refrigerator is turned on, the refrigerator may become warm until the interior of the compartment is sufficiently cooled down. The refrigerator may become warm even after the compartments have been cooled down. This is due to the operation of the heat radiation pipe equipped on the refrigerator for the purpose of preventing condensation, and is not malfunction. |
| The controls on the control panel cannot be operated. | ·Is the power to the refrigerator on? |
Fridge and freezer
| The fridge is not chilling (and the freezer is not freezing). | Is the power to the refrigerator on? |
| The fridge is not chilling (and the freezer is not freezing) satisfactorily. | Is the set temperature too high? Is the refrigerator exposed to direct sunlight or positioned near a heating appliance? Have sufficient clearances been provided around the refrigerator? Have the food items been packed too tightly together or is the room temperature high? Have the doors been opened and closed frequently? Are the doors completely shut? When warm food is put inside the refrigerator, the temperature will rise temporarily. During the cold season or when the room temperature is low, it may feel as if the refrigerator is not chilling. If room temperature is low, the freezer may not cool properly. In this event, please change the temperature setting to 3 °C or lower. |
| There is a difference between the set temperature and actual temperature. | When warm food is put inside the refrigerator, the temperature will rise temporarily. |
| Food in the fridge freezes. | Is the set temperature for the fridge too low? Alternately, is Super Cool Mode set to Active? Has the food been placed at the back of the fridge? The area near the back wall is where the temperatures are coldest so avoid placing food which may freeze easily here. |
| Condensation forms in the fridge and drawers. | Condensation may form when the door has been opened and closed frequently or when it has not been shut completely, or when the room humidity is high. Wipe off the condensation using a dry cloth. |
| Condensation forms on interior refrigerator walls (internal compartment) | Condensation may form when the temperature is high, when the door has been open for an extended period, when the door is repeatedly opened and closed, and in similar situations. Furthermore, as the back surface of the internal compartment is the condenser, frost may form on it, melt, and become condensation, but this is not a malfunction. |
| It is hard to open the freezer door. | The door is sometimes difficult to open just after it has been closed. The difference in air pressure between the inside and outside of the freezer may sometimes make it hard to open the freezer door. Wait a few moments, and then try opening the door. |
| It smells inside the refrigerator. | Were any food items with strong odours sealed before they were placed in the fridge? Place the items inside a sealed container and store them. Odours may stick to the surfaces inside the refrigerator. Wipe the surfaces using a soft cloth which has been dipped in lukewarm water. |
This symbol is used to refer users to the instructions or leaflets for relevant information.
This refrigerator incorporates a filter, which is considered a biocidal product.
The filter itself incorporates a substance containing silver ions which deactivates bacteria in the air inside the refrigerator and inhibits bacterial growth.
Active substance: Silver sodium hydrogen zirconium phosphate
Specifications
| Product fiche (EU Regulation 1060/2010) | |
| SUPPLIER'S NAME Panasonic | |
| MODEL NR-BD31ES1-E NR-BD31EW1-E | |
| CATEGORY 7 (Refrigerator-Freezer) | |
| ENERGY EFFICIENCY CLASS A+++ | |
| ANNUAL ENERGY CONSUMPTION 154 kWh/year | *1 |
| NET FRIDGE VOLUME 227 L | |
| NET FREEZER VOLUME 95 L | |
| STAR RATING OF THE FREEZER Four-star | |
| 'FROST FREE' COMPARTMENTS - | |
| TEMPERATURE RISE TIME 30 hours | |
| FREEZING CAPACITY 4.5 kg/24 h | |
| CLIMATE CLASS SN-T | *2 |
| AIRBORNE ACOUSTICAL NOISE EMISSIONS 40 dB | |
| Other Information | |
| TOTAL GROSS VOLUME 326 L | |
| TOTAL NET VOLUME | 322 L |
| OUTSIDE DIMENSIONS | |
| WIDTH ×深度 ×HEIGHT | 600 mm x 650 mm x 1850 mm |
| NET WEIGHT | 73 kg |
| RATED VOLTAGE | 220 V - 230 V |
| RATED FREQUENCY | 50 Hz |
| REFRIGERANT/CHARGE | R600a/78 g |
| BLOWING AGENT | Cyclo-Pentane |
English
Notes:
The energy consumption per year is based on the standard test results for 24 hours in accordance with EN153. Actual energy consumption vary depending on how the appliance is used and where it is located. The energy consumption when in use may vary depending on where the unit is installed, the temperature setting of each of the compartments, the ambient temperature and humidity, how often the doors are opened/closed, the volume and temperature of the food stuffs and how the appliance is used.
2 Permitted ambient temperature: 10^ to 43^
When the doors are completely open
Inhaltsverzeichnis
Installation (suite)
Pursuant to the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
©Panasonic Corporation 2014
Y0814-0
AH-324010
Printed in Europe
