USER MANUAL 10022096 Klarstein

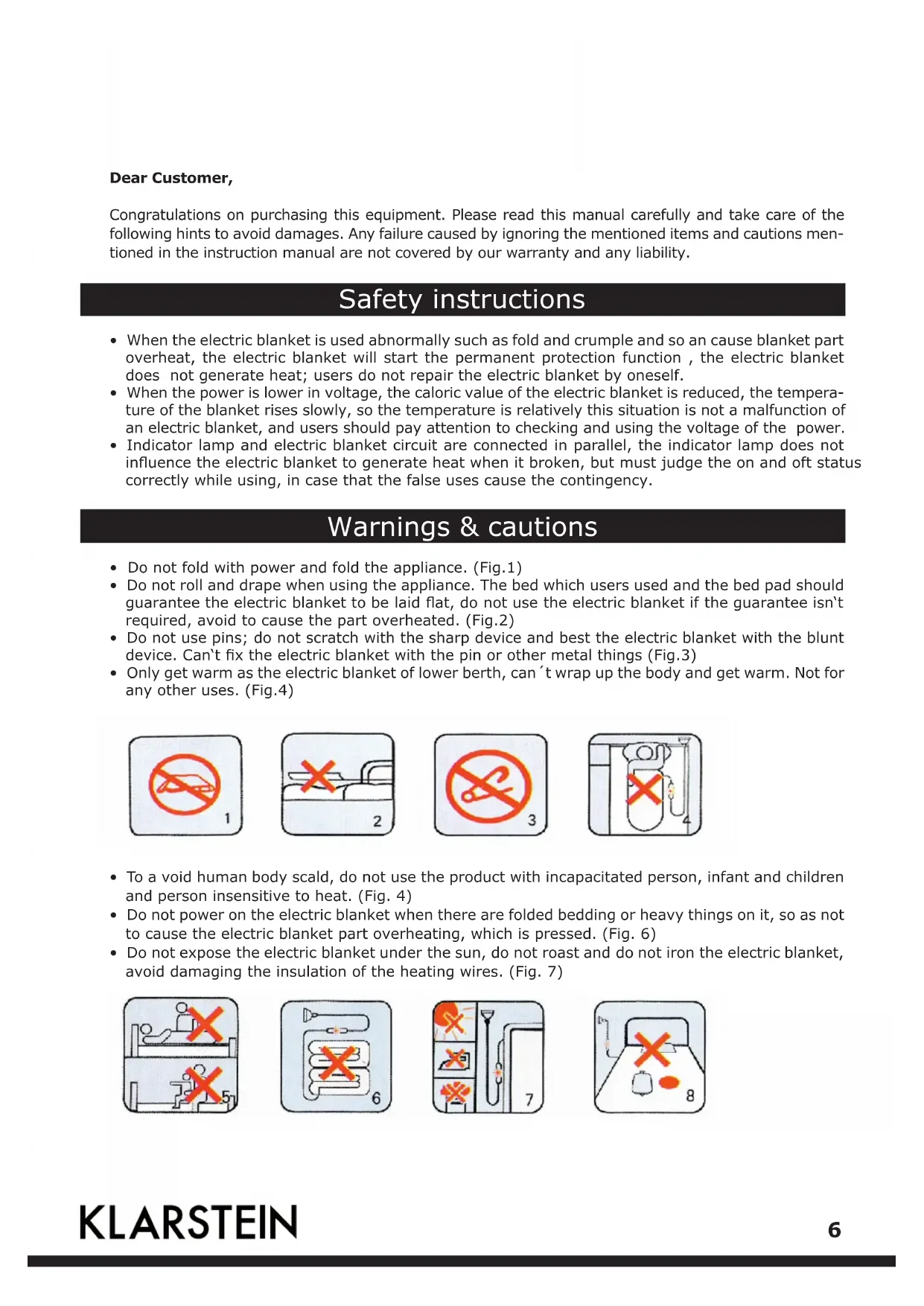

• When the electric blanket is used abnormally such as fold and crumple and so an cause blanket part overheat, the electric blanket will start the permanent protection function , the electric blanket does not generate heat; users do not repair the electric blanket by oneself.

• When the power is lower in voltage, the caloric value of the electric blanket is reduced, the tempera- ture of the blanket rises slowly, so the temperature is relatively this situation is not a malfunction of an electric blanket, and users should pay attention to checking and using the voltage of the power.

• Indicator lamp and electric blanket circuit are connected in parallel, the indicator lamp does not inuence the electric blanket to generate heat when it broken, but must judge the on and oft status correctly while using, in case that the false uses cause the contingency. Warnings & cautions

• Do not fold with power and fold the appliance. (Fig.1)

• Do not roll and drape when using the appliance. The bed which users used and the bed pad should guarantee the electric blanket to be laid at, do not use the electric blanket if the guarantee isn‘t required, avoid to cause the part overheated. (Fig.2)

• Do not use pins; do not scratch with the sharp device and best the electric blanket with the blunt device. Can‘t x the electric blanket with the pin or other metal things (Fig.3)

• Only get warm as the electric blanket of lower berth, can´t wrap up the body and get warm. Not for any other uses. (Fig.4)

• To a void human body scald, do not use the product with incapacitated person, infant and children and person insensitive to heat. (Fig. 4)

• Do not power on the electric blanket when there are folded bedding or heavy things on it, so as not to cause the electric blanket part overheating, which is pressed. (Fig. 6)

• Do not expose the electric blanket under the sun, do not roast and do not iron the electric blanket, avoid damaging the insulation of the heating wires. (Fig. 7) 6• Do not use together with other heat appliances (such as foot warmer, hot-water bottle), do not heat other heat appliances. (Fig. 8)

• No kindling material (such as cigarette end, spark) on bed, which can lead to re. (Fig. 9)

• Cut o the electric blanket power or pull out the electric blanket plug when users go out or not using the electric blanket, avoid the re accident potential. (Fig. 10)

• When the electric blanket runs, users can´t leave for an hour and do not go out prevent the contingency.

• Do not unplug the power plug by drag the power cord and do not pull the appliance by rag the soft power cord forcibly.

• Only use together with the electric switch of the product.

• The product is not for specic use in the hospital.

• The electric blanket should be stored in the dry place, do not place heavy things on it so as not to drape. After storing, should check the blanket carefully rst when reusing. Whether the control and cords are unusual, do not power on when unusual.

• Do not detach and repair the electric blanket and control by oneself, use contrary to the instructions, will accept the consequences by one self.

• The soft power cord of the appliance can‘t be changed, if the cord is damaged, the appliance must scrap.

• Do not use the electric blanket on a mechanically adjustable bed. When use on it, check the electric blanket or soft cord whether would be folded or blocked.

• Children should not use the electric blanket, unless parents or the guardian have already set up it in advance, or has already fully guided children on the operation method.

• According to the international convention, under the normal service condition, the electric blanket service life is 8 years, exceeds useful life, our factory advises users to change the new electric blanket, in order to be responsible for user, guarantee user use electric blanket safely. The products with improperly use or damage caused by other reason, safe performance drop should be repaired and then continue to use.

• If the heating wire was tut down, do not repair it by yourself, please send it to the technological service departments of our factory or service center to maintain or check.

• Do not push shift button to „high“ when you asleep.

• Setting the controls for all night use, warning the users do not fall asleep. Return to the manufacturer or his agent if link has ruptured. The above 1, 2, 3, 4, 6, 8, 10, 14 users must observe. Otherwise, it will produce part overheating or part unusually high temperature because of improper use of electric blanket, thus lead to re, cause bodily injury and property loss. 6 7Using environment When environment temperature no more than 40 degrees, relative humidity no more than 40%, when is 20 degrees no more than 90%, height above sea level below 1000 meter work normal. Product summary Made by professional enterprise of electric blanket, have domestic First-class production equipment, adopt double-layer all circuitry Safe protection electric heat wires, have really realized that update to the Safe, healthy, comfortable type from the ordinary cold-proof type:

1. Health and Environmental protection: Adopt the pollution-free electromagnetic radiation shield

technology; stop the injury of electromagnetic wave radiation to the human body.

2. comfortable and gratied: It adopts the multi-temperature adjustable control, breaks the traditional

electric blanket has limitations to the human body with only high and low two low grades, you can choose the most comfortable temperature that t yourself. Every product has passed strict test and every index all reach the national standard such as EN 60335-1:2002 and EN 60335-2-17:2002. Operation method Lay the electric blanket at on the bed. The end of no control is the Foot. Fix the four corners fasteners of the electric blanket on the four corners of the bed or the mattress with the nonmetal belts, only spread sheets or thin cotton-padded mattress on the blanket, so help to conduct heat and nd whether the electric blanket drape, lay the quilt at on the sheet can use the electric blanket safely.

• General temperature adjustment: Plug power cord into an AC230v-50Hz wall outlet (do not connect this appliance with DC) before bedtime. Push shift button to „3 position „, the power indicator lamp glows, and the electric blanket begin to heat. Normally, preheat 30minutes, can push shift button to „3, 2 or 1 position“ according to need so as to keep sure temperature when falling asleep, or to „0 position“ and stop heating (the power indicator lamp goes out).

• Three – setting temperature controller adjustment: turn on the switch, the power indicator lamp glows, put the knob to „3 position „, the electric blanket enter the high temperature heating status, can sleep after heat 30 minutes, adjust the knob can select numerous temperature after going to bed. You can adjust the temperature knob according to your need until you feel comfortable. When the electric blanket runs, the control must uncover in the position easy to use , make sure not to put under the quilt or the pillow, and are covered by other things, let alone close to other heating source in case that the control is overheated and damaged , and cause the contingency. 8Daily checks and safeguard To guarantee users to use the electric blanket safely, try the best to avoid the contingent contingen- cy, especially remind users to pay attention to the following item:

1. Pay attention to observe the power cords, plug, soft cords used connect the appliance and control

whether have unusual situations before using, if unusual and can‘t conrm whether it is safe or not, don‘t continue to use, please send it to the technological service departments of our factory or service center to maintain or check.

2. During using, should check regularly the electric blanket is leveled, xes rmly and no-fold or

no-roll, deal with the situation that inuence normal use in time.

3. Often check whether there is wear and tear mark on the appliance (including the soft cord), if

there is this kind of phenomenon or this appliance has already been used by mistake, should return to supplier‘s place before using next time.

4. The heating wire in the electric blanket should space evenly, wire smoothly, no cross, no trap and

no fold between wires, do not use when there is not accord with the above, and send it to the technological service departments of our factory or service center to deal with. Check method: lay the electric blanket at on the bed; touch the heating wires with hand.

5. When the electric blankets is an the bed, should forbid children to jump on the bed, if the situation

already took place, should pay special attention to check whether every part of the electric blanket is normal, use only after conrm it is normal

6. When any accident or damage takes place (smoking, re, abnormal sound, abnormal smell, etc.),

must cut o the electric blanket power rst (pull out the plug), then do other treatment. Washing Instructions

1. Detach all the power cord/controller before washing. (Top important)

2. Select gentle washing setting

3. Do not dehydrating by spinning in machine

4. Dry it in an open area
