USER MANUAL 512811BBB LA CROSSE TECHNOLOGY

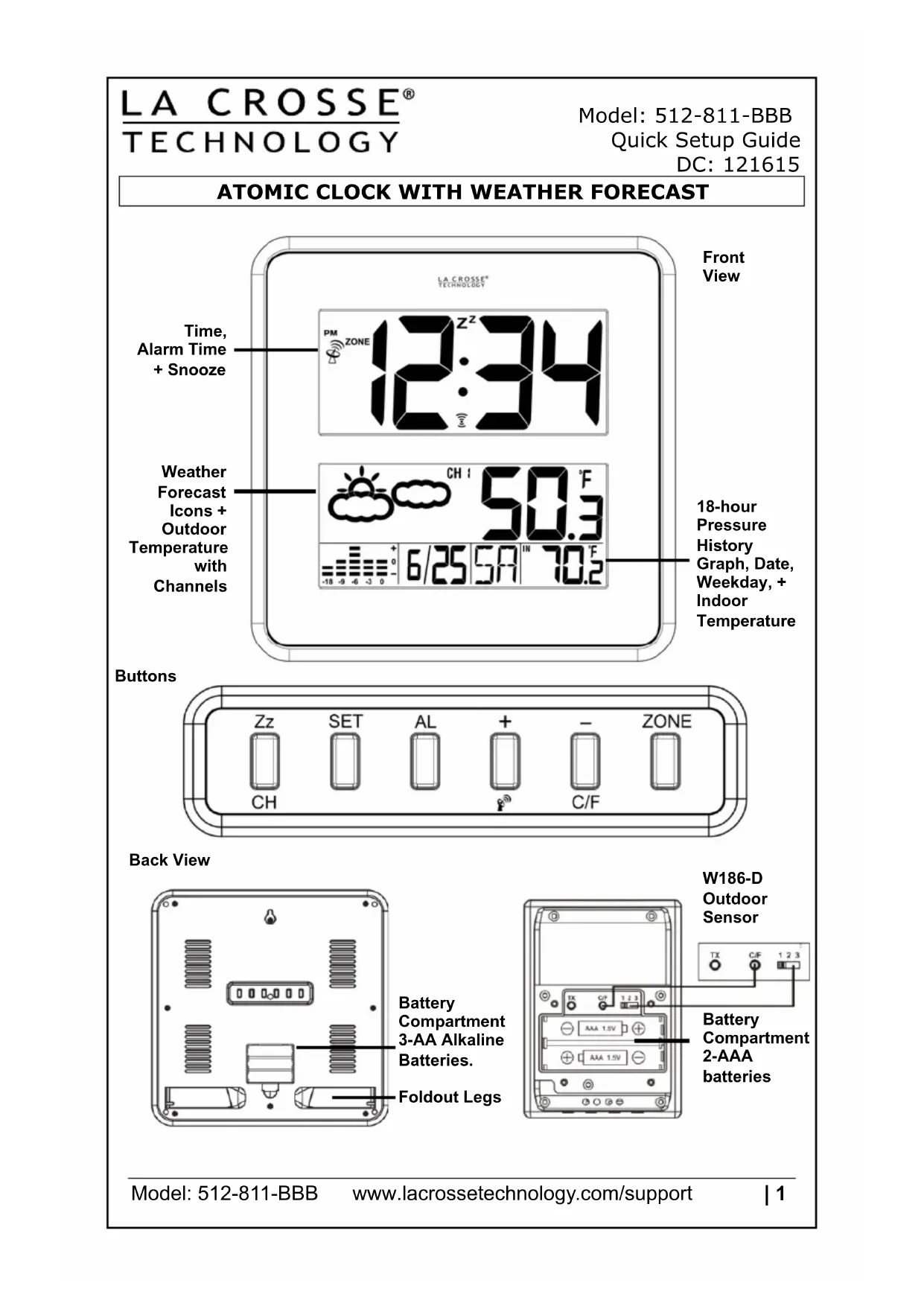

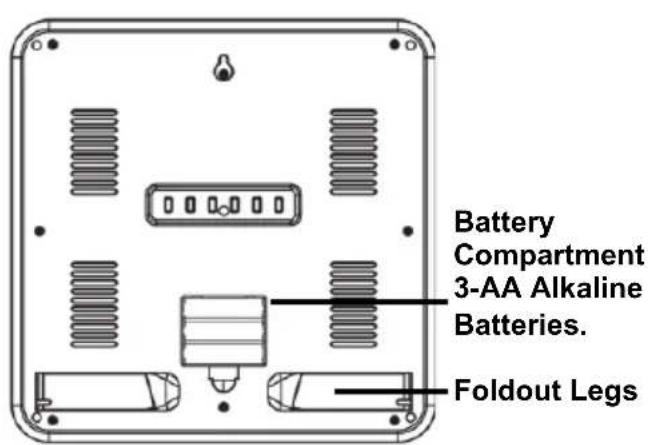

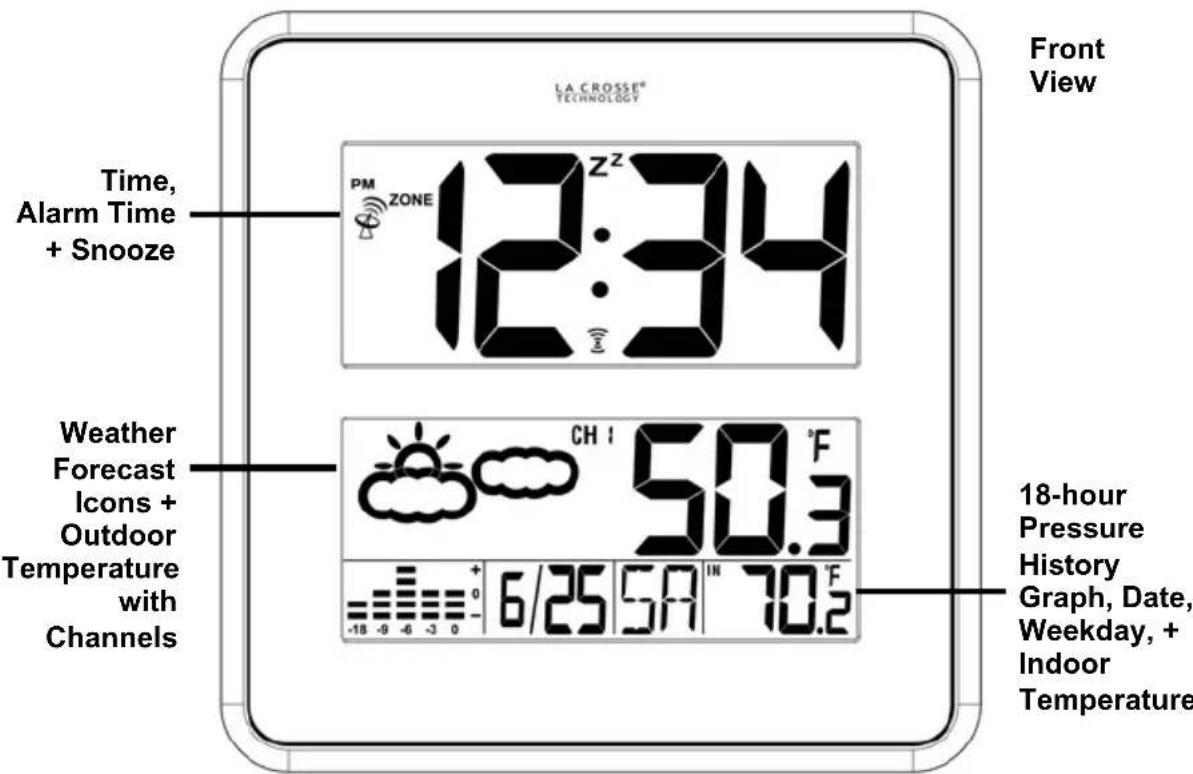

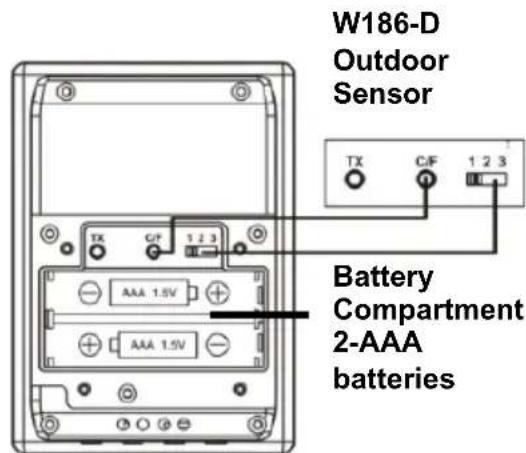

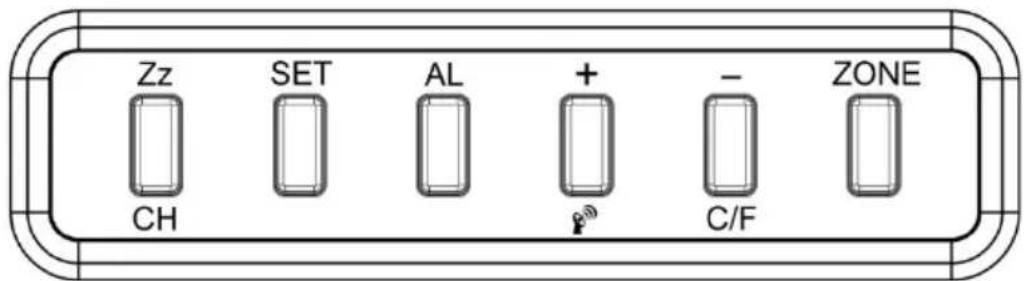

Time, Alarm Time + Snooze Weather Forecast Icons + Outdoor Temperature with Channels 18-hour Pressure History Graph, Date, Weekday, + Indoor Temperature Battery Compartment 3-AA Alkaline Batteries. Foldout Legs Battery Compartment 2-AAA batteries W186-D Outdoor Sensor Buttons Back View Front ViewModel: 512-811-BBB www.lacrossetechnology.com/support | 2 Get Started

1. Insert 2 new AAA batteries (not included) into the

W186-D outdoor sensor. Observe the correct polarity. The red LED will flash during transmission.

2. Insert the 3 n ew AA Alkaline batteries (not included) into

the clock. Observe the correct polarity.

3. After 5 minutes place sensor outside in a shaded location.

Set Language, Calendar, Time, Weather Forecast Icon

1. Hold the SET button to enter time set mode.

2. Press the + or -buttons to adjust the values.

3. Press the SET button to confirm adjustments and move to

the next item. Setting order:

1. Language (EN English, GE German, FR French, DU Dutch,)

Note: The day of the week sets automatically, as the year, month and date are set. Press the S ET button to exit, or wait 60 seconds without pressing buttons to return to the normal time display. Time Zone Press the ZONE button to select one of four time zones:

• PS = Pacific Note: The time zone letters will flash in the weekday display. The hours will change as you change time zones.Model: 512-811-BBB www.lacrossetechnology.com/support | 3 Alarm Icon Celsius/Fahrenheit Clock: Hold the °C/°F button to switch from Fahrenheit to Celsius temperature display. Outdoor Sensor: Remove the battery cover then press and release the °C/°F button on the transmitter to select Fahrenheit or Celsius shown on the transmitter. Set Time Alarm

1. Hold the AL button to enter alarm set mode.

The letters “AL” will replace the weekday.

2. Press the + or -buttons to adjust the values.

3. Press the AL button to confirm & move to the next item.

Alarm Time setting order: 1. Hours, 2. Minutes Activate/Deactivate Time Alarm

• Press the AL button once to view alarm time.

• Press the + or -buttons to activate the alarm. Once activated, the alarm icon appears.

• Press the + or - buttons again to deactivate the alarm. The alarm icon will disappear. Snooze (Silences Alarm Temporarily)

• When alarm sounds, press the ZZ button to silence the alarm for 5 minutes.

• The alarm icon will flash.

one day. Note: The alarm is crescendo sound. The alarm sounds fo

o minutes and then shut off completely. WWVB Time Signal Search Hold the + button to start or stop a manual signal search. WWVB Icon will flash For information about WWVB visit: www.nist.gov/pml/div688/grp40/wwvb.cfmModel: 512-811-BBB www.lacrossetechnology.com/support | 4 Forecast Icons

he forecast icon is programmable in the setup menu above.

he unit predicts weather condition of the next 12 – 24 hours based on the change of atmospheric pressure. The weather forecast is about 70-75% correct. As weather conditions cannot be 100% correctly forecasted we cannot be responsible for any loss caused by an incorrect forecast. 18-hour Barometric Pressure History Graph The bar chart indicates the air pressure history trend over the last 18 hours. The “0” in the middle of this scale is equal to the current pressure and each change bar represents how high or low in “hPa“. When read from left to right, if the bars are rising, it means that the weather is getting better due to the increase of air pressure. If the bars go down, it means the air pressure has dropped and the weather is expected to worsen. Low Battery Icon Low battery icon indicates low battery for clock or sensor.

• If the icon is displayed in the Outdoor Temperature section, replace batteries in the outdoor sensor.

• If the icon is displayed in the Indoor Temperature section, replace batteries in the atomic clock. Outdoor Sensor Channels When more than one transmitter is used, set each transmitter to a different channel. To view: press the CH button on the atomic clock to select Ch1, Ch2, Ch3 or auto-channel scrolling display modes. Auto-channel will show a circling arrow below the channel number and the atomic clock will rotate through each channel approximately every 5-8 seconds Low Battery IconModel: 512-811-BBB www.lacrossetechnology.com/support | 5 Setup with Multiple Sensors The clock can receive up to 3 outdoor sensors: W186-D.

• Select a separate channel on each outdoor sensor.

• Install batteries in all the sensors.

• Hold the CH button for 5 seconds and the clock will search for all outdoor sensors.

• Press the TX button once on each sensor to send a signal. Search for Outdoor Sensor

• Hold the CH button to search for the outdoor sensor.

• Press the TX button on the sensor to send a signal. Restart If there is no outdoor temperature data after 3 minutes, remove batteries from the clock and the outdoor sensor then press any button 20 times. After 15 minutes, return to Step 1 above. Outdoor Sensor Positioning

• Mount the outdoor sensor on a north-facing wall or in any well shaded area. Under an eave or deck rail is preferred.

• The maximum wireless transmission range to the clock i

ver 100 feet (30 meters) in open air, not including walls or floors.

• Be sure the outdoor sensor is mounted vertically Care & Maintenance

• Do not mix old and new batteries

• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries

• Always purchase the correct size and grade of battery mos

suitable for intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device pri

battery installation.

• Ensure the batteries are installed with correct polarity (+and -).Model: 512-811-BBB www.lacrossetechnology.com/support | 6

• Remove batteries from equipment which is not to be used for an extended period.

• Remove expired batteries promptly. Specifications Indoor Temperature Range: +32°F to +122°F (0°C to 50°C) Outdoor Temperature Range: -4°F to 140°F (-20°C to 60°C) Distance: Over 100 ft. (30 meters) RF 434MHz (open air) Power Atomic Clock: 3-AA, IEC, LR6 batteries (not included) W186-D Sensor: 2-AAA, IEC, LR3 batteries (not included) Battery Life Atomic Clock: Battery life is over 12 months when using reputable battery brands W186-D Sensor: Battery life is over 12 months when using reputable battery brands Dimensions Atomic Clock: 11.33” W x 1.14” D x 11.33” H (28.77 x 2.89 x 28.77 cm) W186-D Sensor: 2.55” W x 1.27” D x 3.57” H (6.47 x 3.22 x 9.06 cm)Model: 512-811-BBB www.lacrossetechnology.com/support | 7 Warranty and Support Information

a Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship.

iew full warranty details online at: www.lacrossetechnology.com/warranty_info.pdf For warranty work, technical support or other information contact: La Crosse Technology, Ltd 2830 South 26

otected under U.S. Patents: 5,978,738 | 6,076,044 |RE43903
