USER MANUAL Perfectcare Compact Essential GC6842 PHILIPS

© 2021 Philips Domestic Appliances Holding B.V. All rights reserved

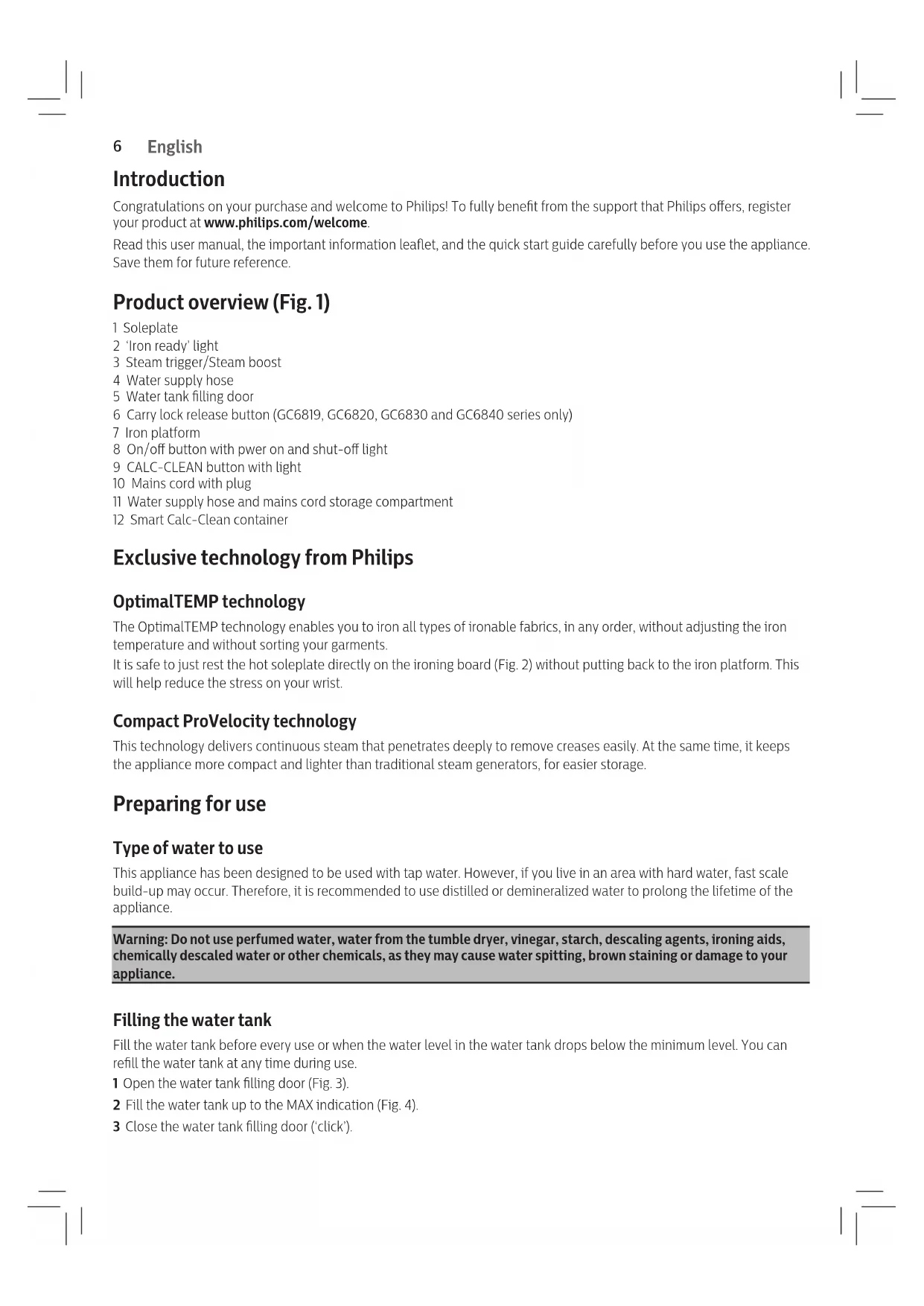

1English 6 Français 11 Português 17 󰡳󰋔󰈓󰍶 27 󰑡󰗎󰕷󰔢󰍜󰐃󰈉 326 Introduction Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/welcome. Read this user manual, the important information leaet, and the quick start guide carefully before you use the appliance. Save them for future reference. Product overview (Fig. 1) 1 Soleplate 2 ‘Iron ready’ light 3 Steam trigger/Steam boost 4 Water supply hose 5 Water tank lling door 6 Carry lock release button (GC6819, GC6820, GC6830 and GC6840 series only) 7 Iron platform 8 On/o button with pwer on and shut-o light 9 CALC-CLEAN button with light 10 Mains cord with plug 11 Water supply hose and mains cord storage compartment 12 Smart Calc-Clean container Exclusive technology from Philips OptimalTEMP technology The OptimalTEMP technology enables you to iron all types of ironable fabrics, in any order, without adjusting the iron temperature and without sorting your garments. It is safe to just rest the hot soleplate directly on the ironing board (Fig. 2) without putting back to the iron platform. This will help reduce the stress on your wrist. Compact ProVelocity technology This technology delivers continuous steam that penetrates deeply to remove creases easily. At the same time, it keeps the appliance more compact and lighter than traditional steam generators, for easier storage. Preparing for use Type of water to use This appliance has been designed to be used with tap water. However, if you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use distilled or demineralized water to prolong the lifetime of the appliance.

Warning: Do not use perfumed water, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids,

chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance. Filling the water tank Fill the water tank before every use or when the water level in the water tank drops below the minimum level. You can rell the water tank at any time during use. 1 Open the water tank lling door (Fig. 3). 2 Fill the water tank up to the MAX indication (Fig. 4). 3 Close the water tank lling door (‘click’). English7 Using the appliance Ironable fabrics Do not iron non-ironable fabrics. - Fabrics with these symbols (Fig. 5) are ironable, for example linen, cotton, polyester, silk, wool, viscose and rayon. - Fabrics with this symbol (Fig. 6) are not ironable. These fabrics include synthetic fabrics such as Spandex or elastane, Spandex-mixed fabrics and polyolens (e.g. polypropylene). Prints on garments are not ironable either. Ironing 1 Place the appliance on a stable and even surface. Note: In order to ensure safe ironing we recommend to always place the base on a stable ironing board. 2 Make sure that there is enough water in the water tank. 3 Remove the mains cord and water supply hose from the storage compartment. 4 Put the mains plug in an earthed wall socket and press the on/o button to switch on the appliance.Wait until the ‘iron ready’ light lights up continuously (Fig. 7). This takes about 2 minutes. 5 For GC6819, GC6820, GC6830 and GC6840 series only: press the carry lock release button to unlock the iron from the iron platform (Fig. 8). 6 Press and hold the steam trigger to start ironing (Fig. 9). Note: For best ironing results, after ironing with steam, perform the last strokes without steam.

Warning: Never direct steam at people.

Note: When you use the appliance for the rst time, it may take 30 seconds for steam to come out of the appliance. Note: The pump is activated each time you press the steam trigger. It produces subtle rattling sound, which is normal. When there is no water in the water tank, the pump sound is louder. Fill up the water tank with water when the water level drops below the minimum level. Steam boost function 1 Press the steam trigger twice quickly to release a powerful boost of steam for 3 seconds (Fig. 10). Note: It is recommended to use the steam boost function only for stubborn crease. Vertical ironing

Warning: Hot steam is emitted from the iron. Never attempt to remove wrinkles from a garment while someone is

wearing it (Fig. 11). Do not apply steam near your or someone else’s hand. You can use the steam iron in vertical position to remove wrinkles from hanging fabrics. 1 Hold the iron in vertical position, press the steam trigger and touch the garment lightly with the soleplate and move the iron up and down (Fig. 12). Safe rest Resting the iron while rearranging your garment While rearranging your garment, you can rest the iron either on the iron platform or horizontally on the ironing board (Fig. 2). The OptimalTEMP technology ensures the soleplate will not damage the ironing board cover. Auto shut-o - The appliances enters the standby mode if it has not been used for 5 minutes. The light of the on/o button starts to ash. English8 - To activate the appliance again, press the on/o button or the steam trigger. The appliance starts to heat up again. - The appliance switches o automatically if it has not been used for another 10 minutes after it enters the standby mode. The light in the on/o button goes o.

Warning: Never leave the appliance unattended when it is connected to the mains. Always unplug the appliance after

use. Cleaning and maintenance Smart Calc-Clean System Your appliance has been designed with a Smart Calc-Clean system to ensure that descaling and cleaning is done regularly. This helps to maintain a strong steam performance and prevents dirt and stains coming out of the soleplate over time. To ensure that the cleaning process is performed, the appliance gives regular reminders. Sound and light Calc-Clean reminder After 1 to 3 months of use, the Calc-Clean light starts ashing and the appliance starts beeping to indicate that you have to perform the Calc-Clean process (Fig. 13). Besides that, a second defense step to protect the appliance from scale is integrated: the steam function gets disabled if descaling is not done (Fig. 14). After descaling is done, the steam function will be restored. This takes place regardless of the type of water used. Note: The Calc-Clean process can be performed at any time, even when the sound and light reminder is not activated yet. Performing the Calc-Clean process with the Calc-Clean container

Warning: Do not leave the appliance unattended during the Calc-Clean process.

Caution: Always perform the Calc-Clean process with the Calc-Clean container. Do not interrupt the process by lifting the iron up from the Calc-Clean container, as hot water and steam will come out of the soleplate. 1 Fill up the water tank halfway. Note: Make sure that the appliance is plugged in and switched ON during the Calc-Clean process. 2 Place the Calc-Clean container on the ironing board or any other even, stable surface. 3 Place the iron stably on the Calc-Clean container (Fig. 15). 4 Press and hold the CALC-CLEAN button for 2 seconds until you hear short beeps (Fig. 16). Note: The Calc-Clean container has been designed to collect scale particles and hot water during the Calc-Clean process. It is perfectly safe to rest the iron on this container during the entire process. 5 During the Calc-Clean process, you hear short beeps and a pumping sound (Fig. 17). 6 Wait approximately 2 minutes for the appliance to complete the process (Fig. 18). When the Calc-Clean process is completed, the iron stops beeping and the CALC-CLEAN light stops ashing. 7 Wipe the iron with a piece of cloth and put it back on the base station (Fig. 19). Caution: The iron is hot. 8 As the Calc-Clean container becomes hot during the Calc-Clean process, wait about 5 minutes before you touch it. Then carry the Calc-Clean container to the sink, empty it and store it for future use (Fig. 20). 9 If necessary, you can repeat steps 1 to 8. Make sure that you empty the Calc-Clean container before you start the Calc- Clean process. Note: During the Calc-Clean process, clean water may come out of the soleplate if no scale has accumulated inside the iron. This is normal. For more information on how to carry out the Calc-Clean process, refer to the videos in this link: http://www.philips.com/descaling-iron. English9 Cleaning the soleplate To properly maintain your appliance, clean it regularly. 1 Clean the appliance with a moist cloth. 2 To easily and eectively remove stains, let the soleplate heat up and move the iron over a moist cloth (Fig. 21). Tip: Clean the soleplate regularly to ensure smooth gliding. Storage 1 Switch o the appliance and unplug it. 2 Pour the water out of the water tank into the sink (Fig. 22). 3 Fold the mains cord and water supply hose together. Push them into the storage compartment (Fig. 23). 4 For GC6819, GC6820, GC6830 and GC6840 series only: push the carry lock to lock the iron onto the iron platform (Fig. 24). You can carry the appliance by the handle of the iron when it is locked onto the iron platform (Fig. 25). Troubleshooting This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country. Problem Possible cause Solution The iron does not produce any steam. There is not enough water in the water tank. Fill the water tank beyond the MIN indication. Press and hold the steam trigger until steam comes out. It may take up to 30 seconds until steam comes out. You did not press the steam trigger. Press and hold the steam trigger until steam comes out. The steam function has been disabled until you have performed the Calc-Clean process. Perform the Calc-Clean process to restore the steam function. (see chapter ' Cleaning and maintenance') At the start of your ironing session, the steam trigger has not been pressed long enough. Press and hold the steam trigger until steam comes out. It may take up to 30 seconds until steam comes out. The light of the CALC CLEAN button ashes and the appliance beeps. This is the Calc-Clean reminder. Perform the Calc-Clean after the Calc-Clean reminder is given (see chapter ‘Cleaning and maintenance’). No steam comes out of the soleplate, the light of the CALC CLEAN button ashes and the appliance beeps. You have not done or have not completed the Calc-Clean process. Perform the Calc-Clean process to enable the steam function again (see chapter ‘Cleaning and maintenance’). The appliance has switched
