Features	Details
Device type	Steam iron
Power	2400 W
Steam pressure	Up to 7.5 bars
Steam flow	Up to 150 g/min
Steam boost	Up to 500 g/min
Water tank	1.8 L, removable
Heating time	About 2 minutes
OptimalTEMP technology	Yes, no need to adjust temperature
Soleplate	SteamGlide Advanced
Anti-scale function	Yes, integrated cleaning system
Weight	About 1.5 kg
Dimensions	31 x 20 x 38 cm
Safety	Automatic shut-off after 10 minutes of inactivity
Warranty	2 years

Frequently Asked Questions - PerfectCare Elite Plus GC9680 PHILIPS

Why is my iron not heating up?

Check that the device is properly plugged into a power outlet and that the thermostat is set to the correct temperature. Also make sure the water tank is full.

How can I prevent water dripping while ironing?

Make sure not to overfill the water tank and adjust the steam function according to the fabric type. Avoid leaving the iron stationary for too long.

My iron makes strange noises, is this normal?

A slight noise can be normal, especially when steam is produced. If the noise is loud or unusual, it is recommended to unplug the device and contact customer service.

How do I clean the soleplate of my iron?

Use a soft, damp cloth to wipe the soleplate. For stubborn stains, use a specific soleplate cleaner recommended by the manufacturer.

Why is no steam coming out?

Check that the water tank is full and that the iron is hot enough. Also ensure the steam button is activated and that the steam holes are not blocked.

How do I descale my iron?

Use a descaling solution recommended by Philips or a mixture of vinegar and water. Follow the instructions in the manual to safely descale.

Does the iron turn off automatically?

Yes, the PHILIPS PerfectCare Elite Plus GC9680 is equipped with an automatic shut-off function for safety reasons. If the iron is left stationary for a certain time, it will turn off automatically.

What type of water should I use in my iron?

Use tap water if it is soft. If your water is very hard, consider using demineralized water to avoid limescale buildup.

How can I adjust the temperature for different fabrics?

The PHILIPS PerfectCare Elite Plus uses smart heat technology that automatically adjusts the temperature based on the fabric type. Manual temperature adjustment is generally not necessary.

Where can I find the user manual?

The user manual can be downloaded from the official Philips website or is included in the product packaging.

USER MANUAL PerfectCare Elite Plus GC9680 PHILIPS

© 2021 Philips Domestic Appliances Holding B.V.

All rights reserved

4719.00118753(15/07/2021)

Exterior view of a modern steam iron with handle and side arm (no text or symbols visible)

EN	User Manual 6
DA	Brugervejledning 17
DE	Bedienungsanleitung 28
ES	Manual de usuario 40
FI	Käyttöopas 51
FR	Mode d'emploi 61
IT	Manuale per l'utente 72

NL	Gebruiksaanwijzing	83
NO	Brukerhändbok	94
PT	Manual do utilizador	105
SV	Användarhandbok	116
EL	Εγχειρίδιο χρήσης	127
HE	υπωνην γιτηση	148

Diagram of an electric scooter with numbered parts and a close-up inset showing internal components.

EN IMPORTANT: Perform descaling regularly for great steam and prolonged life. Let the appliance cool down completely, before you remove the EASY DE CALC KIND.

Welcome to the future!

Say hello to your new powerful smart friend and learn how to use it in this booklet.

Hand pointing at a circular object with a lightning bolt symbol (no text or labels)

EN Intelligent automatic steam

Enabled by the DynamiQ sensor, steam is released automatically when the iron is moved.

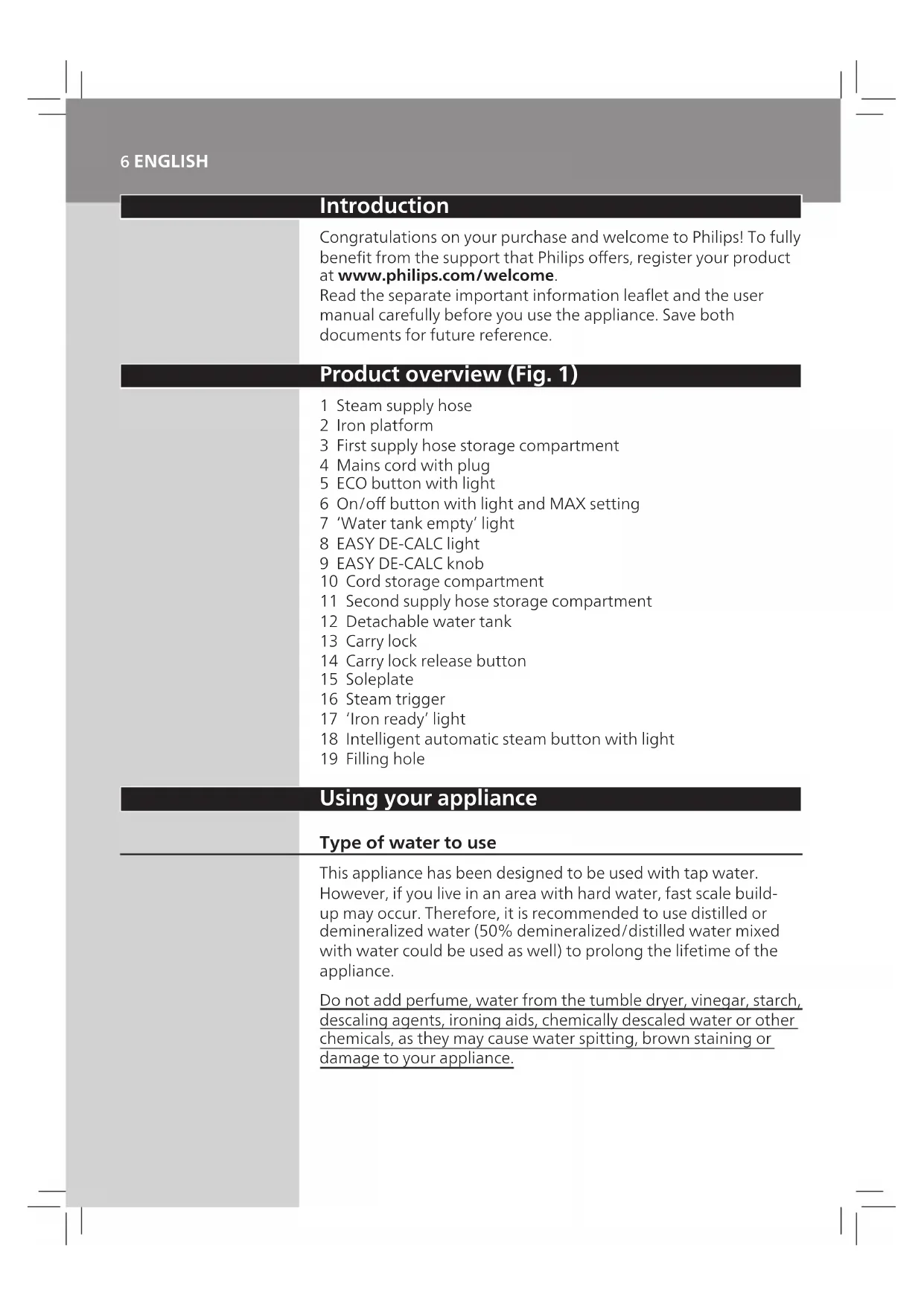

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Read the separate important information leaflet and the user manual carefully before you use the appliance. Save both documents for future reference.

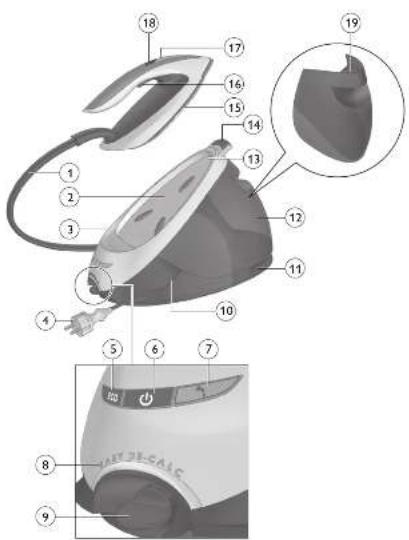

Product overview (Fig. 1)

1 Steam supply hose
2 Iron platform
3 First supply hose storage compartment
4 Mains cord with plug
5 ECO button with light
6 On/off button with light and MAX setting
7 'Water tank empty' light
8 EASY DE-CALC light
9 EASY DE-CALC knob
10 Cord storage compartment
11 Second supply hose storage compartment
12 Detachable water tank
13 Carry lock
14 Carry lock release button
15 Soleplate
16 Steam trigger
17 'Iron ready' light
18 Intelligent automatic steam button with light
19 Filling hole

Using your appliance

Type of water to use

This appliance has been designed to be used with tap water. However, if you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use distilled or demineralized water (50% demineralized/distilled water mixed with water could be used as well) to prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Filling the water tank

Illustration of a person performing a manual task with hands on the seat (no text or symbols visible)

Fill the water tank before every use or when the 'water tank empty' light flashes. You can refill the water tank at any time during use.

1 Remove the water tank from the appliance and fill it with tap water up to the MAX indication.
2 Put the water tank back into the appliance by fitting the bottom part into the appliance first.

Hand placing a black plastic component into a machine (no text or symbols visible)

3 Push the top part until it locks into place.

'Water tank empty' light

When the water tank is almost empty, the 'water tank empty' light flashes. Fill the water tank and press the steam trigger to let the appliance heat up again. When the 'iron ready' light lights up continuously, you can continue steam ironing.

OptimalTEMP technology

Diagram showing a person's shirt with a speech bubble containing three icons labeled 'i', 's', and 't' inside, likely indicating a user interface or service.

The OptimalTEMP technology enables you to iron all types of ironable fabrics, in any order, without adjusting the iron temperature setting.

Fabrics with these symbols are ironable, for example linen, cotton, polyester, silk, wool, viscose and rayon.

8 ENGLISH

i

Fabrics with this symbol are not ironable. These fabrics include synthetic fabrics such as Spandex or elastane, Spandex-mixed fabrics and polyolefins (e.g. polypropylene), but also prints on garments.

Illustration of a person using a checkmark on an iron table (no text or symbols present)

During ironing, you can place the iron either on the iron platform or horizontally on the ironing board. Thanks to the OptimalTEMP technology, the soleplate will not damage the ironing board cover.

Illustration of a hand pressing down on a device component, partially overlaid by a close-up of the device (no text or symbols visible)

Ironing

1 Place the steam generator on a stable and even surface.

2 Make sure that there is enough water in the water tank (see section 'Filling the water tank').

3 Put the mains plug in an earthed wall socket and press the on/off button to switch on the steam generator. The blue power-on light on the appliance and the 'iron ready' light start to flash to indicate that the appliance is heating up (this takes approx. 2 minutes).

When the appliance is ready for use, the 'iron ready light' and the power-on light stop flashing and light up continuously. Additionally you hear a short beep.

4 Press the carry lock release button to unlock the iron from the iron platform.

Close-up of a hand pressing down on a small iron iron (no text or symbols visible)

5 Press and hold the steam trigger to start ironing.

Hand using a hand iron on an iron, spraying mist (no text or symbols visible)

Never direct steam at people.

Note: For best result on tough fabrics such as cotton, linen and jeans, keep the steam trigger pressed continuously when you move the iron over the fabric. Then move the iron over the same area a few more times without steam to dry the fabric.

Note: For the best results on silk and shiny synthetic fabrics, it is recommended to keep the steam trigger pressed continuously while ironing.

DynamiQ sensor and intelligent automatic steam mode

The intelligent Dsenson inside your iron knows exactly when and how your iron is moving. When you activate intelligent automatic steam mode, the Dsenson will start recognizing the movements of your iron and will enable your iron to release the right amount of steam automatically without you having to press the steam trigger. This will help you to get great results faster and easier.

Illustration of a hand pointing at a circular object with an arrow, no text or symbols present

• To activate the intelligent automatic steam mode, press the intelligent automatic steam button on top of the iron handle. The intelligent automatic steam light turns on.
• The 'iron ready' light moves back and forth when the iron is moving.

Illustration of a hand pressing down on a slide with arrows indicating motion (no text or symbols)

Note: in intelligent automatic steam mode, steam comes out automatically when you move the iron and stops when you stop moving the iron. You can still press the steam trigger in this mode to activate the steam when the iron is not moving.

- You can use the intelligent automatic steam mode in all steam settings, including ECO and MAX.

Note: for your safety, in intelligent automatic steam mode, the steam stops when the soleplate is tilted.

- To exit the intelligent automatic steam mode, press the intelligent automatic steam button. The intelligent automatic steam light turns off. You need to press the steam trigger to continue your ironing.

Steam boost function

2x

The steam boost function is designed to help tackle difficult creases.

- Press the steam trigger twice quickly to activate the steam boost function. The appliance releases 3 powerful shots of steam.

10 ENGLISH

Vertical ironing

Illustration of a hand inserting a hair into a suit jacket (no text or symbols visible)

Hot steam is emitted from the iron. Never attempt to remove creases from a garment that someone is wearing. Do not apply steam near your or someone else's hand.

You can use the iron in vertical position to remove wrinkles from hanging fabrics.

1 Hold the iron in vertical position, press the steam trigger and touch the garment slightly with the soleplate.

Note: for your safety, the intelligent automatic steam mode is not available for vertical ironing.

ECO setting

Illustration of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

By using the ECO setting (reduced amount of steam), you can save energy without compromising on the ironing result.

- Press the ECO button. The green ECO light turns on.

- To deactivate ECO setting, press then ECO button again. The green ECO light goes off.

MAX setting

2 sec.

For faster ironing and a higher amount of steam, you can use MAX setting.

1 Press and hold the on/off button for 2 seconds until the light turns white.
2 To deactivate MAX setting, press and hold the on/off button again for 2 seconds until the white light turns blue

Auto shut-off

Close-up of a stylized white object with a star-like emblem on its side, possibly a helmet or device (no text or symbols visible)

- The appliances enters the standby mode if it has not been used for 10 minutes. The light in the on/off button starts to flash.

- To activate the appliance again, press the on/off button. The appliance starts to heat up again.

- The appliance switches off automatically if it has not been used for another 10 minutes after it enters the standby mode. The light in the on/off button goes off.

Ironing tips

Minimising wrinkles while drying

Start wrinkle removal early in the drying process by spreading out your laundry properly after washing and by putting garments on hangers to make them dry naturally with fewer wrinkles.

Best practice shirt ironing

Start with the time-consuming parts like collar, cuff links and sleeves. Next, iron the bigger parts like front and back to prevent wrinkling the bigger parts when you are busy ironing the time-consuming parts.

Collar: When you iron a collar, start on its underside and work from the outside (the pointy end) inwards. Turn over and repeat. Fold down the collar and press the edge for a more crisp finish.

Buttons: Iron on the reverse side of the buttons for more effective and faster ironing.

Cleaning and maintenance

Illustration of a person using a iron on an air conditioner (no text or symbols)

To properly maintain your appliance, clean the iron and the appliance regularly.

1 Clean the appliance with a moist cloth. To remove stubborn stains, you can use a small amount of washing-up liquid.

2 To easily and effectively remove stains from the soleplate, switch on the appliance and let it heat up. When the appliance has heated up, move the iron over a moist cloth while you press the steam trigger.

Tip: Clean the soleplate regularly to ensure smooth gliding.

12 ENGLISH

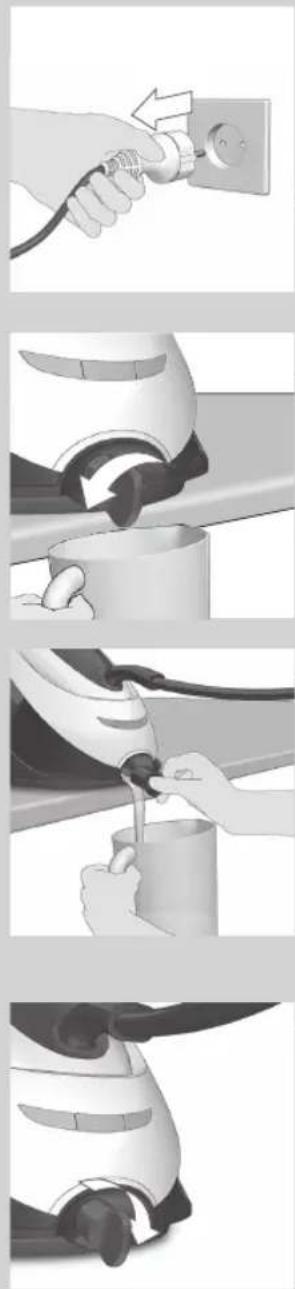

IMPORTANT - EASY DE-CALC

It is very important to use the EASY DE-CALC function as soon as the EASY DE-CALC light starts to flash and the appliance beeps continuously.

The EASY DE-CALC light flashes and the appliance beeps continuously after about a month or 10 ironing sessions to indicate that the appliance needs to be descaled. Perform the following EASY DE-CALC procedure before you continue ironing.

To avoid the risk of burns, unplug the appliance and let it cool down for at least two hours before you perform the EASY DE-CALC procedure.

Hand holding a plug inserted into an electrical outlet socket (no text or symbols visible)

1 Remove the plug from the wall socket.

Close-up of a mechanical component with a curved arrow indicating motion or force (no visible text or symbols)

2 Place the appliance on the edge of the tabletop.

3 Hold a cup (with a capacity of at least 350ml) under the EASY DE-CALC knob and turn the knob anticlockwise.

Illustration of hands using a hairdryer to add liquid into a container (no text or symbols visible)

4 Remove the EASY DE-CALC knob and let the water with scale particles flow into the cup.

Close-up of a robotic arm joint (no visible text or symbols)

5 When no more water comes out of the appliance, reinsert the EASY DE-CALC knob and turn it clockwise to fasten it.

6 You can continue using your iron immediately after completing the EASY DE-CALC procedure.

IMPORTANT – Descaling the soleplate

Hand inserting a plug into an electrical outlet (no text or symbols visible)

If you do not use the EASY DE-CALC function regularly, scale particles may build up in the soleplate and brown stains may come out of the soleplate during ironing. In this situation, you need to descale the soleplate by following the procedure below. We advice you to repeat the procedure twice to better clean the soleplate.

To avoid the risk of burns, unplug the appliance and let it cool down for at least two hours before you descale the soleplate.

1 Remove the plug from the wall socket.

2 Place the appliance on the edge of the tabletop.

3 Make sure that the water tank is empty.

4 Hold a cup (with a capacity of at least 350ml) under the EASY DE-CALC knob and turn the knob anticlockwise.

5 Remove the EASY DE-CALC knob and let the water with scale particles flow into the cup.

6 Hold the appliance in the position that EASY DE-CALC opening is facing up and pour 900ml distilled water into the opening.

Note: Be mindful on the heavy weight of the appliance when you tilt it.

14 ENGLISH

Close-up of hands performing a mechanical press or stamping operation on a dark object (no visible text or symbols)

7 Keep the EASY DE-CALC opening facing up, reinsert the EASY DE-CALC knob and turn it clockwise to fasten it.

Close-up of a hand using a brush to press down a small object, no visible text or symbols

8 Put the appliance back on a stable and even surface. Plug in the appliance and switch it on.

9 Wait for 5 minutes for the appliance to heat up.

Illustration of a person using a computer to press down an air conditioner on an iron stand (no text or symbols visible)

10 Keep the steam trigger pressed continuously while you move the iron on a piece of thick cloth for 3 minutes.

Warning: hot, dirty water comes out of the soleplate.

11 Stop moving the iron when no more water comes out or when steam starts coming out.

12 You can continue to use the appliance immediately. Otherwise unplug the appliance after the descaling is completed.

Storage

Close-up of hands adjusting a black buckle buckle (no text or symbols visible)

1 Switch off the appliance and unplug it.

2 Remove the water tank and empty it.

3 Put the iron on the iron platform. Push the carry lock to lock the iron onto the platform.

4 Fold the supply hose and mains cord. Put them in their respective storage compartments.

Illustration of a steam iron with black and white casing (no text or symbols)

5 You can carry the appliance with one hand by the handle of the iron.

Do not carry the appliance by holding the water tank release lever.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit

www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution
The ironing board cover becomes wet or there are water droplets on the garment during ironing.	Steam has condensed on the ironing board cover after a long ironing session.	Replace the ironing board cover if the foam material has worn out. You can also add an extra layer of felt material under the ironing board cover to prevent condensation on the ironing board. You can buy felt in a fabric shop.
	You have an ironing board cover that is not designed to cope with the high steam rate of the appliance.	Put an extra layer of felt material under the ironing board cover to prevent condensation on the ironing board. You can buy felt in a fabric shop.
Water droplets come out of the soleplate.	The steam that was still present in the hose has cooled down and condensed into water. This causes water droplets to come out of the soleplate.	Steam away from the garment for a few seconds.
Steam and/or water come out from under the EASY DE-CALC knob.	The EASY DE-CALC knob is not tightened properly.	Switch off the appliance and let the appliance cool down for 2 hours. Unscrew the EASY DE-CALC knob and screw it back onto the appliance properly. Note: Some water may escape when you remove the knob.
	The rubber sealing ring of the EASY DE-CALC knob is worn.	Contact an authorised Philips service centre for a new EASY DE-CALC knob.
Dirty water and impurities come out of the soleplate or the soleplate is dirty.	Impurities or chemicals present in the water have deposited in the steam vents and/or on the soleplate.	Clean the soleplate with a damp cloth.
	Too much scale and minerals have accumulated inside the appliance.	Descale the appliance regularly (see chapter 'Important - DESCALING').
The iron leaves a shine or an imprint on the garment.	The surface to be ironed was uneven, for instance because you were ironing over a seam or a fold in the garment.	PerfectCare is safe on all garments. The shine or imprint is not permanent and will come off if you wash the garment. Avoid ironing over seams or folds or you can place a cotton cloth over the area to be ironed to avoid imprints at seams and folds.
The appliance does not produce any steam.	There is not enough water in the water tank (the 'water tank empty' light flashes).	Fill the water tank (see chapter 'Using your appliance', section 'Filling the water tank').
	The appliance is not hot enough to produce steam.	Wait until the 'iron ready' light on the iron lights up continuously.
	You did not press the steam trigger.	Press the steam trigger and keep it pressed while you iron.
	The water tank is not placed in the appliance properly.	Slide the water tank back into the appliance firmly ('click').
	The appliance is not switched on.	Insert the plug in the wall socket and press the on/off button to switch on the appliance.
The appliance has switched off. The light in the on/off button flashes.	The auto-off function is activated automatically when the appliance has not been used for more than 10 minutes.	Press the power on/off button to switch on the appliance again.
The appliance produces a pumping sound.	Water is pumped into the boiler inside the appliance. This is normal.	If the pumping sound continues nonstop, switch off the appliance and remove the plug from the wall socket. Contact an authorised Philips service centre.

Introduktion

Illustration of a person performing a manual task with hands on the back (no text or symbols visible)

Hand placing a component into a black plastic or plastic housing (no text or symbols visible)

Diagram showing a person in a shirt with a speech bubble containing icons of people and clothing, likely indicating a communication or categorization process.

i反

Illustration of a person using a tool on an ironing table with a checkmark (no text or symbols present)

Illustration of a person using a mask and pointing at the nose, separated by a diagonal line (no text or symbols)

Close-up of a hand pressing down on a steam iron (no text or symbols visible)

5 Hold dampudløseren nede for at begynde strygning.

Ret aldrig dampstrålen mod personer.

Hand ironing a steam iron with visible steam emission (no text or symbols)

Hand pointing at a small object on a curved surface, possibly part of a vehicle or mechanical component (no text or symbols visible)

Medical illustration showing a hand performing a procedure on a patient's arm, with a magnified inset highlighting the anatomical detail (no text or symbols present)

Illustration of a hand using an iron to clean a surface, with a magnified inset showing 2x speed (no text or symbols)

DynamiQ Sensor og intelligent automatisk damptilstand

Illustration of hands inserting a plug into a suit (no text or symbols visible)

Hand holding a small electronic device with a scroll wheel (no visible text or symbols)

Close-up of a cartoon-style character's head with a star emblem (no text or symbols visible)

Illustration of a person using an iron on an air conditioner stand (no text or symbols)

VIGTIGT - EASY DE-CALC

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating motion or force (no text or symbols visible)

4 Fjern EASY DE-CALC-knappen, og lad vandet med kalkpartikler flyde ned i koppen.

Person using a hairdryer to clean or prepare food using a tool (no text or symbols visible)

Close-up of a robotic head with visible joints and motion blur (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Illustration of a mechanical device with a rotating arrow and a cup (no text or symbols)

Person using a handheld electric vehicle to add fuel into a cup (no text or symbols visible)

5 Fjern EASY DE-CALC-knappen, og lad vandet med kalkpartikler flyde ned i koppen.

Illustration of a hand holding a black object over a surface, with no visible text or symbols.

Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Close-up of a hand using a power tool to press down a white object (no text or symbols visible)

Illustration of a person pressing down on an iron cutting board (no text or symbols visible)

Close-up of hands adjusting a seatbelt between two vertical panels (no text or symbols visible)

Illustration of a steam iron with handle and blade (no text or symbols)

Illustration of a person performing a split-down maneuver on a chair (no text or symbols)

Hand placing a black plastic component into a steam iron (no text or symbols visible)

Diagram showing a person in a shirt with a speech bubble containing three icons labeled 'i', 'e', and 'f'.

Illustration of a person using a checkmark on a table (no text or symbols present)

Illustration of a hand using a tool to clean or install a helmet, showing the blade and seat (no text or symbols)

Close-up of a hand pressing down on a small iron iron (no text or symbols visible)

Hand ironing a steam iron with visible steam emission (no text or symbols)

Hand pointing at a circular object with a white arrow, no visible text or symbols

Illustration of a hand performing a manual press or massage technique on a chair (no text or symbols visible)

Illustration of hands using a hairdryer to clean a jacket (no text or symbols visible)

Close-up of a hand pressing down on a white object (no text or symbols visible)

Close-up of a cartoon-style character's head with a star emblem (no text or symbols visible)

Illustration of a person using an iron on a flatboard, with arrows indicating motion (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating motion or force (no text or symbols visible)

Close-up of hands using a handheld tool to adjust or install a cylindrical object (no visible text or symbols)

Close-up of a white car's front wheel and dashboard (no visible text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating motion or force (no text or symbols visible)

Person pouring liquid from a white electric shaver into a cup (no text or symbols visible)

Illustration of a hand holding a black object over a surface, with no visible text or symbols.

Close-up of hands performing a mechanical press or stamping operation on a dark object (no visible text or symbols)

Close-up of a hand using a screwdriver to press down a small object (no text or symbols visible)

Illustration of a person pressing down on an iron (£) using a tool, with arrows indicating motion (no text or symbols)

Close-up of hands adjusting a seatbelt between two views (no text or symbols visible)

Illustration of a hand ironing an iron on a steam iron (no text or symbols visible)

Illustration of a person using a desktop computer to interact (no text or symbols present)

Close-up of a hand pressing down on a black industrial iron (no text or symbols visible)

Diagram showing a shirt collar with an icon of three devices and an 'i' label pointing to it, likely indicating a device selection or notification.

Illustration of a person using a tool on an outdoor table with a checkmark (no text or symbols present)

Illustration of a hand using a tool to clean or install a helmet, with no visible text or symbols

Close-up of a hand pressing down on a garment with a pointed tip (no text or symbols visible)

Hand using a hand iron on an iron, emitting steam or dust (no text or symbols visible)

Hand pointing at a circular object with an arrow, possibly part of a diagram or mechanical component (no text or symbols visible)

Illustration of a hand pressing down on a chair with a magnified inset showing hand positioning (no text or symbols)

Illustration of a hand adjusting a garment with a curved seam (no text or symbols)

Close-up of a hand holding a small electronic device (no visible text or symbols)

Close-up of a cartoon-style character's helmet with a star emblem (no text or symbols visible)

Illustration of a person using a iron on an ironboard, showing mechanical components and motion arrows (no text or symbols)

IMPORTANTE: EASY DE-CALC

Step-by-step illustration of a hand using a power plug to adjust a cup, showing mechanical components and tool path (no text or symbols)

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a rotating arrow and base, no visible text or symbols

Close-up of hands using a handheld electric vehicle to lift a cup (no visible text or symbols)

Illustration of a hand holding a black object over a surface, with no visible text or symbols.

Illustration of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols present)

Close-up of a hand using a brush to press down a small object, no visible text or symbols

Illustration of a person using a computer to press down an iron on a flat surface (no text or symbols visible)

Close-up of hands adjusting a seatbelt mechanism (no text or symbols visible)

Illustration of a steam iron with a handle, shown in grayscale (no text or symbols)

Illustration of hands performing a manual task on a mechanical component (no text or symbols visible)

Close-up of a hand placing a black plastic cover into a white airfoil (no text or symbols visible)

Diagram showing a person in a shirt with a speech bubble containing icons of food containers, one labeled 'i'.

Illustration of a person using a checkmark on a table with a plate (no text or symbols)

Illustration of a hand using a tool to clean or install a device, with no visible text or symbols.

Close-up of a hand pressing down on a car airfoil (no text or symbols visible)

Hand using a steam iron to clean or smoke (no text or symbols visible)

Hand pointing at a circular object with a lightning bolt, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand performing a medical procedure on a chair, with a magnified inset showing the hand positioning (no text or symbols present)

Illustration of a hand inserting a medical device into a coat (no text or symbols visible)

Illustration of a hand holding a small electronic device (no text or symbols visible)

Close-up of a stylized helmet with a star emblem and shield design (no text or symbols visible)

Illustration of a person using a iron on an ironboard, with arrows indicating motion (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Three-step illustration showing a hand using a tool to adjust or install a cylindrical object, with no visible text or symbols.

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating motion or force, partially embedded in a cylindrical base (no text or symbols visible)

58 SUOMI

Person using a hairdryer to clean or prepare a cup (no text or symbols visible)

Illustration of a hand holding a dark object over a surface, with no visible text or symbols.

Close-up of hands performing a task on a dark object, possibly a device or machine (no visible text or symbols)

Close-up of a hand using a vacuum cleaner to press down a surface (no text or symbols visible)

Illustration of a person pressing down on an iron cutting board with arrows indicating motion (no text or symbols)

Close-up of hands adjusting a black shoe buckle (no text or symbols visible)

Illustration of a steam iron with a handle, shown in grayscale (no text or symbols)

Illustration of a person performing a split-down task on a chair (no text or symbols visible)

Hand placing a black plastic component into a white plastic housing (no text or symbols visible)

Diagram showing a person in a shirt with a speech bubble containing three icons labeled 'i', indicating a notification or message.

Illustration of a person using a checkmark on a wooden table (no text or symbols)

Illustration of a hand pressing down on a device component, with no visible text or symbols

Close-up of a hand pressing down on a garment with a pointed tip (no text or symbols visible)

Hand ironing a steam iron with visible steam emission (no text or symbols)

Hand pointing at a circular object with a white arrow, no visible text or symbols

Illustration of a hand pressing down on a chair with a magnified inset showing the hand holding a finger (no text or symbols present)

Illustration of hands installing or adjusting a jacket with a curved handle (no text or symbols visible)

Close-up of a hand pressing a small object on a device (no visible text or symbols)

Close-up of a stylized helmet with a sword design (no text or symbols visible)

Illustration of a person using a power iron on an iron (no text or symbols)

IMPORTANT – EASY DE-CALC

Step-by-step illustration of a hand using a power adapter to adjust a cup (no text or symbols present)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating motion or force, partially embedded in a cylindrical base (no text or symbols visible)

Close-up of hands using a hairdryer to clean or store items (no visible text or symbols)

Illustration of a hand holding a dark object over a surface, with no visible text or symbols.

Close-up of hands performing a task on a mechanical component (no visible text or symbols)

Close-up of a hand using a power tool to press down a surface (no text or symbols visible)

Illustration of a person pressing down on an iron (£) using a power tool, with arrows indicating motion direction (no text or symbols)

Close-up of hands adjusting a seatbelt in a car seat (no text or symbols visible)

Illustration of a hand using a steam iron (no text or symbols visible)

Illustration of a person performing a split task with hands on the back (no text or symbols)

Close-up of a hand placing a dark plastic component into a black cylindrical housing (no text or symbols visible)

Diagram showing a person in a shirt with a speech bubble containing icons of food and people, likely illustrating a perceived or informational profile.

Illustration of a hand pressing down on a device component, with no visible text or symbols

Close-up of a hand pressing down on a garment piece, no visible text or symbols

Hand using a steam iron to clean or smoke (no text or symbols visible)

Hand pointing at a circular object with a downward arrow, possibly indicating a process or action (no text or symbols present)

Medical illustration showing a hand performing a procedure on a patient's abdomen, with a magnified inset highlighting the anatomical detail (no text or symbols present)

Illustration of a hand using an iron to clean or brush the power, with a 2x speed indicator (no text or symbols on the image itself)

Illustration of a hand adjusting a garment with a curved seam or collar (no text or symbols visible)

Close-up of a hand holding a small electronic device (no visible text or symbols)

Close-up of a stylized cartoon character's head with a star emblem (no text or symbols visible)

Illustration of a person using a iron on an ironboard, showing mechanical components and motion arrows (no text or symbols)

IMPORTANTE - EASY DE-CALC

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating motion or force, partially submerged in a cylindrical container (no text or symbols visible)

Person using a hairdryer to lift a cup (no text or symbols visible)

Close-up of a white and black robotic arm with visible joints and control buttons (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component being cut or opened, showing a curved tool interacting with a cylindrical base (no text or symbols visible)

Person using a hairdryer to add liquid into a container (no text or symbols visible)

Illustration of a hand holding a dark, irregularly shaped object against a light background (no text or symbols)

Illustration of hands performing a task on a mechanical component (no text or symbols visible)

Close-up of a hand using a vacuum cleaner to press down a surface (no text or symbols visible)

Illustration of a person pressing down on an iron cutting board (no text or symbols)

Close-up of hands adjusting a black shoe seatbelt, showing the mechanism (no text or symbols visible)

Illustration of a steam iron with a handle, shown in grayscale (no text or symbols)

Illustration of a person adjusting a seatbelt, separated by a diagonal line (no text or symbols)

Close-up of a hand opening a black industrial machine component (no visible text or symbols)

Diagram showing a person in a shirt with a speech bubble containing icons of people and food containers, likely illustrating a user interaction or labeling system.

i风

Illustration of a person using a checkmark on a table (no text or symbols present)

Illustration of a hand using a tool to press or inspect a device, with no visible text or symbols.

Close-up of a hand pressing down on a car airfoil (no text or symbols visible)

Hand using a steam iron to clean or spread material (no text or symbols visible)

Illustration of a hand pointing at a circular object with a lightning bolt, no text or symbols present

Medical illustration showing a hand performing a procedure on a patient's abdomen, with an inset magnified view of the procedure (no text or symbols present)

2x

DynamiQ-sensor en intelligente automatische stoommodus

Illustration of hands using a hairdryer to clean or wear a garment (no text or symbols visible)

Illustration of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Close-up of a cartoon-style robot's head with a star emblem (no text or symbols visible)

Illustration of a person using a power iron on an iron (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component being cut with a curved arrow indicating rotation (no text or symbols visible)

Person pouring liquid from a white electric shaver into a container (no text or symbols visible)

Close-up of a robotic arm joint (no visible text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating motion or force (no text or symbols visible)

Close-up of hands using a tool to spark or store items from a cup (no visible text or symbols)

3D rendered illustration of a hand holding a dark, irregular object against a light background (no text or symbols)

Close-up of hands performing a mechanical press or stamping operation on a dark object (no visible text or symbols)

Close-up of a hand using a brush to press or install a small electronic device (no visible text or symbols)

Illustration of a person pressing down on an iron cutting board with arrows indicating motion (no text or symbols)

Close-up of hands adjusting a seatbelt, showing mechanical components (no text or symbols visible)

Illustration of a steam iron with a hand operating it (no text or symbols visible)

Illustration of a person adjusting a car seatbelt, divided by a diagonal line (no text or symbols)

Hand placing a black plastic bag into a steam iron (no text or symbols visible)

Lampe for tom vannbeholder

Illustration of a person using a checkmark on a wooden table (no text or symbols)

Illustration of a person adjusting a helmet with a finger pointing at the nose (no text or symbols)

Close-up of a hand using a tool to press down a small object on an iron (no text or symbols visible)

Hand using a hand iron to spread air, no text or symbols visible

Hand pointing at a circular object with a lightning bolt, no visible text or symbols

Illustration of a hand performing a medical procedure on a patient's abdomen, with no visible text or symbols.

DynamiQ sensor og modus for intelligent automatisk damp

Illustration of a hand adjusting a garment with a curved seam (no text or symbols)

Illustration of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Close-up of a cartoon-style robot's head with a star emblem (no text or symbols visible)

Illustration of a person using a iron on an ironboard, showing mechanical components and motion arrows (no text or symbols)

VIKTIG – EASY DE-CALC

Hand holding a plug inserted into an electrical outlet, with a white arrow indicating the insertion direction (no text or symbols present)

Three-step illustration showing a hand pouring liquid into a container, with no visible text or symbols.

Hand holding a plug inserted into an electrical outlet, with an arrow indicating the insertion direction (no text or symbols present)

1 Ta ut støpselet av stikkontakten.
2 Plasser apparatet på enden av bordplaten.
3 Kontroller at vannbeholderen er tom.

Close-up of a mechanical component being cut or opened, showing a curved tool interacting with a cylindrical base (no text or symbols visible)

4 Plasser en kopp (med en kapasitet på minst 350 ml) under EASY DE-CALC-knotten, og vri knotten mot klokken.

Person using a hairdryer to clean or prepare food, no visible text or symbols

Illustration of a hand holding a dark object over a surface, possibly a container or mechanical component (no text or symbols visible)

Close-up of hands performing a task on a dark object (no visible text or symbols)

Close-up of a hand using a brush to press down a small object, no visible text or symbols

Illustration of a person using a iron on an ironboard (no text or symbols visible)

10 Hold inne dampbryteren kontinuerlig mens du drar strykejernet over et tykt plagg i tre minutter.

Illustration of a person adjusting a seatbelt, showing hands and arrows indicating movement (no text or symbols)

Close-up of a steam iron with black and gray casing (no visible text or symbols)

Illustration of a person adjusting a seatbelt, showing mechanical components (no text or symbols)

Hand placing a black plastic component into a steam iron (no text or symbols visible)

Diagram showing a person in a shirt with an icon of three devices inside a speech bubble containing an 'i' and three stacked devices.

Illustration of a person using a checkmark on an iron table (no text or symbols present)

Illustration of a hand using a device to interact with a helmet, showing no text or symbols

Engomar

Close-up of a hand pressing down on a garment with a small object on the side (no text or symbols visible)

Hand using a steam iron to clean or smoke (no text or symbols visible)

Hand pointing at a small object on a curved surface (no text or symbols visible)

Illustration of a hand performing a medical procedure on a patient's abdomen, with no visible text or symbols.

Illustration of hands installing or adjusting a garment with a circular opening (no text or symbols visible)

Illustration of a hand holding a small electronic device (no text or symbols visible)

Close-up of a cartoon character's helmet with a star emblem (no text or symbols visible)

Illustration of a person using an iron on an air conditioner (no text or symbols)

IMPORTANTE - EASY DE-CALC

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating motion or force (no text or symbols visible)

Person pouring liquid from a bottle into a container (no text or symbols visible)

Close-up of a robotic arm joint (no visible text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component being cut with arrows indicating motion (no text or symbols visible)

Illustration of hands using a hairdryer to lift a cup (no text or symbols visible)

Hand holding a dark object with a small object above it, possibly part of a mechanical or electronic component (no visible text or symbols)

Illustration of hands performing a task on a mechanical component (no text or symbols visible)

Close-up of a hand using a power tool to press down a small appliance (no text or symbols visible)

Illustration of a person using a curved tool on an iron cutting board (no text or symbols)

Close-up of hands adjusting a black seatbelt, showing mechanical adjustment (no text or symbols visible)

Illustration of a steam iron with handle and blade (no text or symbols)

Illustration of a person using a toilet to lift a seat, separated by a diagonal line (no text or symbols)

Hand placing a black plastic component into a machine (no text or symbols visible)

Diagram showing a shirt with a speech bubble containing three icons labeled 'i', indicating information or system interaction.

Illustration of a person using a checkmark on a wooden table (no text or symbols)

Illustration of a hand using a hairdryer to press down a device, with no visible text or symbols.

Close-up of a hand pressing down on a garment with a zipper (no text or symbols visible)

Hand using a steam iron to clean or smoke (no text or symbols visible)

Illustration of a hand pointing at a circular object with a lightning bolt, no text or symbols present

Illustration of a hand performing a manual press or massage technique on a chair, with no visible text or symbols.

Illustration of hands adjusting a jacket with a curved object inside (no text or symbols visible)

Illustration of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Close-up of a stylized helmet with a star emblem (no text or symbols visible)

Illustration of a person pressing down on an iron (£) using a tool, with arrows indicating motion direction (no text or symbols)

Step-by-step illustration of a hand using a power plug to adjust a cup, showing mechanical components and tool path (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component being cut with arrows indicating motion (no text or symbols visible)

Person using a hairdryer to add liquid into a cup (no text or symbols visible)

Illustration of a hand holding a dark, irregular object against a light background (no text or symbols)

Illustration of hands performing a task on a dark object (no text or symbols visible)

Close-up of a hand using a power tool to press down a small electronic device (no visible text or symbols)

Illustration of a person pressing down on an iron (£) using a curved tool, with arrows indicating motion (no text or symbols)

Illustration of a hand fastening a seatbelt between two views (no text or symbols)

Illustration of a steam iron with a handle, shown in grayscale (no text or symbols)

Two-panel illustration showing a person adjusting a seatbelt, divided by a diagonal line (no text or symbols)

Hand placing a black plastic cover into a steam iron (no text or symbols visible)

Diagram showing a person in a shirt with a speech bubble containing three icons labeled 'i', likely indicating a notification or message.

Illustration of a person standing on an iron table with a checkmark symbol (no text or labels present)

Illustration of a hand pressing down on a device while another shows a close-up of a jacket (no text or symbols visible)

Σιδέρωμα

Close-up of a hand pressing down on a garment with a pointed tool (no text or symbols visible)

130 ΕΛΛΗΝΙΚΑ

Illustration of a hand using a steam iron to spread material (no text or symbols)

Hand pointing at a small object on a curved surface, possibly part of a vehicle or mechanical component (no text or symbols visible)

Medical illustration showing a hand performing a procedure on a patient's abdomen, with an inset magnified view of the procedure (no text or symbols present)

Illustration of hands installing or adjusting a garment with a circular component (no text or symbols visible)

Hand holding a small object, possibly a device or tool, with no visible text or symbols.

Close-up of a cartoon character's helmet with a star emblem (no text or symbols visible)

Illustration of a person using a power iron to press down a surface, with arrows indicating motion direction (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a curved arrow indicating motion or force, partially submerged in a cylindrical tank (no text or symbols visible)

Two-step illustration showing a hand using a brush to press or adjust a cup of liquid, with no visible text or symbols.

Two-step diagram showing hand holding a plug inserted into an electrical outlet, then applying a tool to a cup (no text or symbols present)

Person using a hairdryer to clean or prepare food (no text or symbols visible)

Illustration of a hand holding a dark object with a lid, partially covered by a flat surface (no text or symbols visible)

3D rendered mechanical component with hands operating a curved tool (no visible text or symbols)

Close-up of hands using a power tool to press down a whiteboard (no text or symbols visible)

Illustration of a person using a power tool to press down an iron on a flat surface (no text or symbols)

Two-panel illustration showing hands adjusting a seatbelt, no text or symbols present

Illustration of a steam iron with handle and blade (no text or symbols)

Close-up of a hand holding a dark, textured object against a light background (no visible text or symbols)

Close-up of hands operating a mechanical device with a handle and circular motion indicator (no text or symbols visible)

Close-up of a hand using a power tool to press down a white and black air conditioner cover (no text or symbols visible)

Illustration of a person using a computer to press down an iron on a flat surface (no text or symbols visible)

lionx

Close-up of hands adjusting a black seatbelt, showing mechanical components (no text or symbols visible)

142

EASY 5

EASY DE- 6. CALC

Close-up of a stylized white object with abstract black patterns, possibly a helmet or mask (no text or symbols visible)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

EASY 4.

Illustration of a hand pouring liquid into a cup (no text or symbols visible)

Close-up of hands using a tool to dispense liquid into a container (no text or symbols visible)

Illustration of a person using a tool to press down an iron on a flat surface (no text or symbols visible)

Easy De-calc – אַרְשׁ

Easy De-calc

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Close-up of a mechanical component with a rotating arrow and a cup (no visible text or symbols)

Person pouring liquid from a white electric vehicle into a cup (no text or symbols visible)

Illustration of a hand holding a small electronic device (no text or symbols visible)

MAX

Abstract grayscale illustration of curved and angular shapes (no text or symbols)

Illustration of a hand cleaning a shoe with a cloth (no text or symbols)

- הַרְהָרִיֹתְרִיֹתְרִיֹתְרִיֹתְרִיֹתְרִיֹתְרִיֹתְרִיֹתְרִיֹתְרִיֹתְרִיֹתְרִיֹתְשָׁ

.MAX-1 ECO 7710 71017

Illustration of hands adjusting a jacket with a partially visible pocket (no text or symbols)

146

Illustration of a person using a checkmark on a table with a computer (no text or symbols visible)

1.

Close-up of a hand using a power iron to press down a component, with no visible text or symbols.

Close-up of a hand pressing down on a small iron iron (no text or symbols visible)

Hand ironing a steam iron with visible steam emission (no text or symbols)

Illustration of two mechanical components, one being adjusted and the other lying down (no text or symbols)

Hand placing a black plastic component into a white plastic sheet (no text or symbols visible)

"בְרָה בְרָה" כִי
