Technical Specifications	Vornado 660 air circulation fan, 160 watt power, 3 operating speeds, Vortex technology for efficient air circulation.
Dimensions	Dimensions: 38.1 x 38.1 x 38.1 cm, weight: 3.6 kg.
Usage	Ideal for medium to large rooms, can be used in quiet mode for sleeping.
Maintenance	Regular cleaning of grills and blades with a soft cloth, no water or abrasive products.
Safety	Overheat protection, do not use near water, unplug before cleaning.
General Information	5-year warranty, available in multiple colors, quiet operation, energy-efficient consumption.

Frequently Asked Questions - 660 Vornado

The Vornado 660 fan won\u0027t turn on, what should I do?

Check that the fan is properly plugged into a working outlet. Make sure the power cord is not damaged. If the problem persists, try resetting the device by unplugging it for a few minutes then plugging it back in.

The Vornado 660 fan makes noise, is this normal?

A slight noise can be normal depending on the selected speed. However, if you hear unusual sounds like squeaking or vibrations, check if the device is on a stable surface and if the blades are not obstructed.

How do I clean the Vornado 660 fan?

Unplug the fan before cleaning. Use a soft, damp cloth to wipe the exterior. For the blades, use a vacuum with a soft nozzle or a dry cloth. Avoid using harsh chemicals.

The fan is not blowing air, what should I do?

Make sure the fan is set to an appropriate speed. Also check that the blades are not obstructed by debris. If the device is in \"oscillation\" mode, try switching to fixed mode to see if it makes a difference.

Does the Vornado 660 fan overheat?

If the fan becomes warm to the touch, this can be normal, but it should not overheat to the point of causing a burning sensation. Ensure there is enough space around the device for proper ventilation. If you are concerned, turn off the device and contact customer service.

How do I adjust the speed of the Vornado 660 fan?

Use the speed control button located on the control panel to adjust the fan speed. The Vornado 660 has several power levels; select the one that best suits your needs.

Is the Vornado 660 fan energy efficient?

Yes, the Vornado 660 is designed to be efficient, using less energy while providing powerful airflow. For optimal use, avoid running it when not needed.

Where can I buy replacement parts for the Vornado 660?

Replacement parts can be purchased directly from the official Vornado website or through authorized dealers. Make sure to check compatibility with your model.

USER MANUAL 660 Vornado

We expect this product to be perfect.

If it is not, we will make it right.

Vornado.com

800-234-0604

[e-mail]

CONTENTS

Important Safety Instructions 4

Whole Room Circulation 7

Features 8

Circulation 101

Troubleshooting 14

Warranty. 15

Lz#rpl.10 range p.31

2 E

English 3

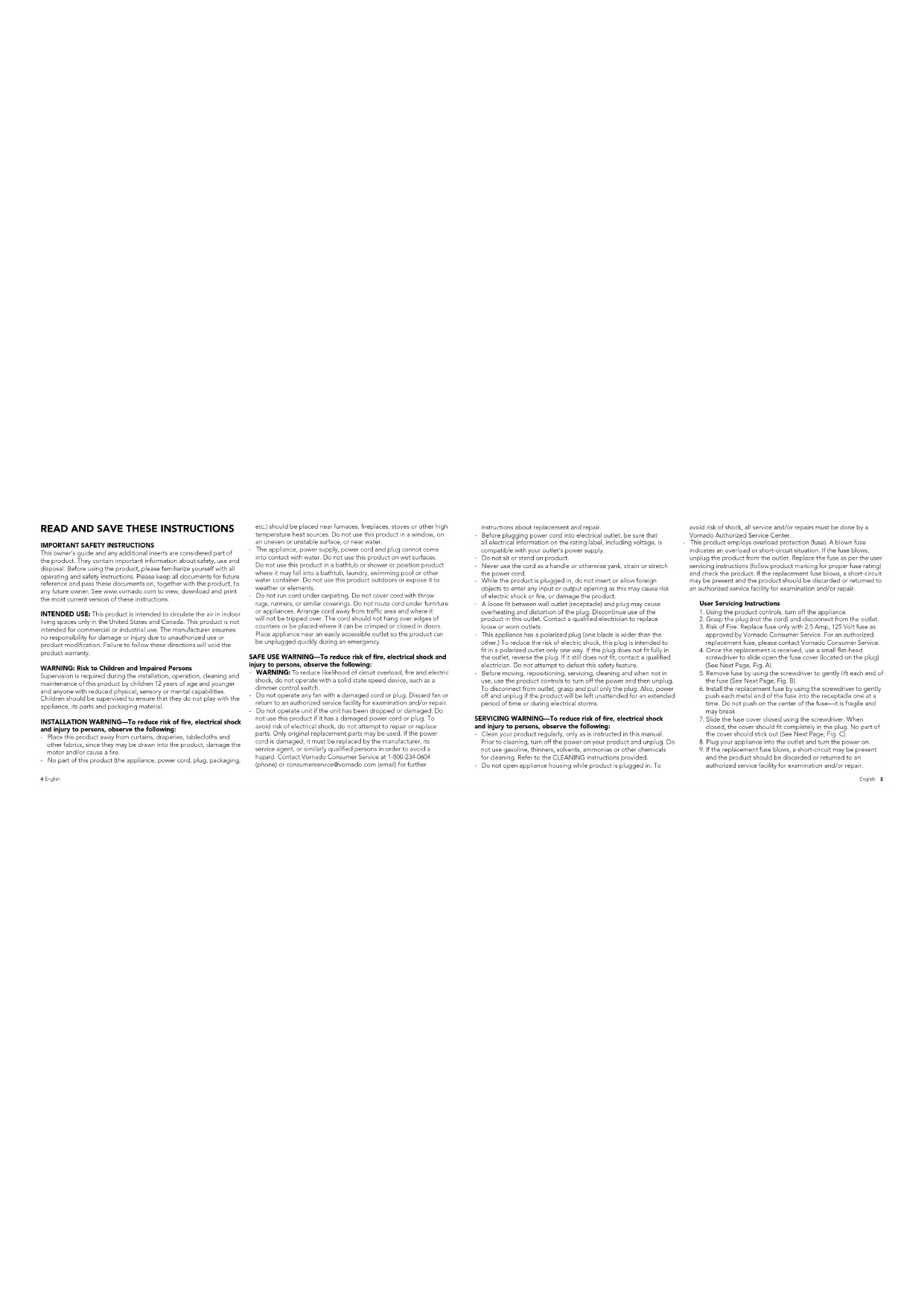

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any 'future' owner. See www.vorrad.com to view, download and print the most current version of these instructions.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only in the United States and Canada. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or procu: modification, I see to follow these directions will void the product; warranty.

WARNING: Risk to Children and Impaired Persons

Supervision is required during the installation, operation, cleaning and maintenance of this product by children 12 years of age and younger. The supervision should be carried out by other personnel capabilities. Children should be supervised to ensure that they do not play with the spoilence, its parts and packaging material.

INSTALLATION WARNING—to reduce risk of fire, electrical shock and injury to persons, observe the following:

Place this product away from curtains, drapes, tocolatoths and other fabrics, since they may be drawn into the product, damage the motor and/or cause a fire.
- No part of this product is this appliance, power cord, plug, packaging,

etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources. Do not use this product in a window, on an uneven or unstable surface, or near water.

The apoplasia, power supply, power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not use this product outdoors or expose it to weather or elements.

Do not run cord under carpeting. Do not cover cord with throw nigs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place警示牌 near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING-To reduce risk of fire, electrical shock and injury to persons, observe the following:

WARNING: To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a dimmer control switch. Do not operate any form with a damaged core or plug. Discard ten or return to an authorized service facility for examination and/or repair. Do not operate unit if the unit has been dropped or damaged. Do not operate in a closed or unheated condition. Do not avoid risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-802-234-6624 (phone), or [e-mail] (email) for further

instructions about replacement and repair

Before unplugging power cord into electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet's power supply.

Do not sit or stand on product.

Never use the cord as a handle or otherwise yarn, stain or stretch the power cord.

While the product is plugged in, do not insert or allow foreign products into the device. If you are unsure of this may cause risk of electric shock or fire, or damage the product.

A loose fit between wt. outlet (peopidade) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a suited electrician to replace loose or worn outlets.

This appliance has a polarized plug tone blade is wider than the other. To reduce the risk of electric shock, this plug is intended to be made from a solid metal that is not soft enough to fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. To disconnect from outlet, grasp and pull only the plug. Also, power and water should be removed from the device and attempted for an extended period of time or during electrical storms.

SERVICING WARNING-To reduce risk of fire, electrical shock and injury to persons, observe the following:

Clean your product regularly, only as instructed in this manual. Prior to cleaning, turn off the power on your product end unplug. Do not use a sharp or abrasive blade when cleaning. Use a sharp or abrasive blade for cleaning. Refer to the CLEAN/NO instructions provided. Do not open appliance housing while product is plugged in.

avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center.

This product employs overload protection (fuse). A blowup fuse indicates an overload or short-circuit situation. If the fuse blows, unplugging the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating). The fuse should be replaced with a new fuse when the circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

User Servicing Instructions

1. Using the product controls, turn off the appliance.
2. Grasp the plug (not the cord) and disconnect from the outlet.
3. Risk of Fire. Replace fuse only with 2.5 Amp, 125 Volt fuse as approved by Vornado Consumer Service. For an authorized replacement fuse, please contact Vornado Consumer Service.

4. Once the replacement is received, use a small head/neck swivel to slide open the fuse cover located on the plug. (See Note 10.)

5. Remove fuse by using the screwdriver to gently lift each end of the fuse (See Next Page, Fig. 1).

6. Install the replacement fuse by using the screwdriver to gently push each metal end of the fuse into the receptacle one at a

time. Do not push on the center of the fuse. It is fragile and may break. 7. Squeeze the fuse cover closed using the screwdriver. When closed, the cover should be completely removed. No part of the cover must be visible in the figure. 8. Plug your appliance into the outlet and turn the power on. 9. If the replacement fuse blows, a short circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Risk of fire. Do not replace attachment plug. Contains a safety device (fus, AFCI, LCD) that should not be removed. Discard product if the attachment plug is damaged.

FCC Compliance Statement (Models 560, 569, 660 only) NOTE: This equipment has been tested and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Recipient or relocate the receiving antenna.

E

Increase the separation between the product and the receiver.
- Connect the product into an outlet on a circuit different from that to which the receiver is connected.
- Contact Vodafone Consumer Services or dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES 003.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Supplier's FCC Declaration of Conformity

Unique Identifier Varnao Modals 560,569,660

Responsible Party: Vongnac X'LL
Mailing Address: 415 F. 13th St., Annapolis, K5 67020

SAVE THESE INSTRUCTIONS

WHOLE ROOM CIRCULATION

The Vornado's signature Whole Room Circulation delivers continuous, uniform air circulation to the entire room. Cool only the rooms that you are in and not the entire house.

A Vamoda circulates all the air in the room so everyone is comfortable. Air in motion feels closer when air that is stagnant, by providing whole room circulation, a Vamoda allows you to turn the thermostat up 5^ - saving energy and money - without sacrificing comfort

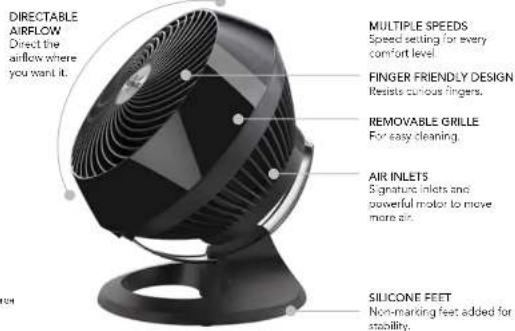

FEATURES

Save energy by maximizing the performance of heating and cooling systems. When you use a Vornado Air Circulator, you will not have to set your summertime thermostat as low or your wintertime thermostat as high. Refer to page 9 for further details.

E

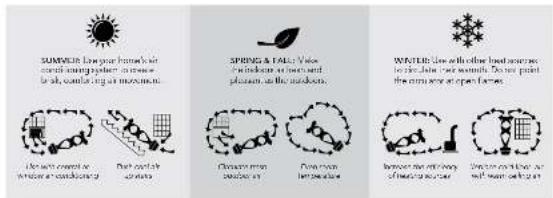

CIRCULATION 101

GETTING THE MOST OUT OF YOUR VORNADO - ALL YEAR LONG

With Vomodo Air Circulators, you can save money on enemy bills by adjusting your thermostat several degrees and still maintaining the same comfort level.

HOW TO USE

Before use, check appliance for visible damage, DO NOT USE THIS CIRCULATOR if there is evidence of damage. If any damage is found, contact Vornado Air LLC at 1-800-234-0604.

1. Plug in end position the circulator so airflow is not obstructed.

2. Set desired speed and allow a few minutes for an airflow pattern to be established. Different airflow patterns can be established by changing the location, angle and speed. Adjust until a desired comfort level is achieved.

CLEANING

GRILLE REMOVAL (MODELS 160,560 & 569) Screwdriver required.

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. To release the Front Grillie, remove the 4 screws located on the back of the inter grillie, located at 2,5,7, and 10 o'clock position.
2. Dust or wash front grille with a mild dishwashing soap. Do not place grille in the dishwashing. The excessive heat can distort the plastic.
3. To reach: position the Front Grilla so the Vorraccano logo in the center of the front Grilla is straight Replace all the screws.
   Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust of the Front Glacial and Air Inlets.

10 E

CLEANING

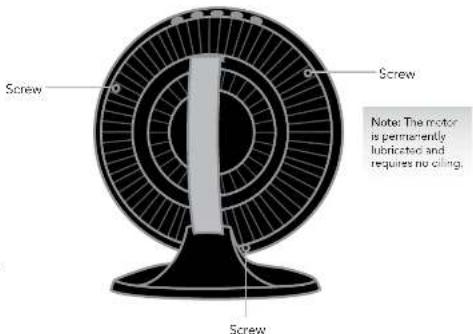

GRILLE REMOVAL (MODELS 360 & 460)

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. Feel for nouns in aack of product, close to inlets, that help to locate screws at roughly 12, 3, 6 and 9 o'clock positions. Remove the 4 screws located at those positions, releasing the grille
2. Dust or wash front Grillite was a middishwashing soap. Do not place grillie in the dishwasher. The washing heat can distort the elastic.
3. To march-up position the Front Grille so the Vornado logo in the center of the Front Grille is straight, Replace all the screws.
   Tb Use the brush aleshment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grillie and Air Intakes.

Screw

CLEANING

GRILLE REMOVAL (MODELS 660)

Screwdriver required.

WARNING To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. To release the Front Grillie, remove the 3 screws on the back of the inlet grille, located at roughly 10, 2 and 6 of clock positions.
2. Dust or wash from Grillie with a mild dishwashing soap. Do not place grille in the dishwasher. The excessive heat can distort the plastic.
3. To reach a position the Front Grilla so the Vornado logo is in the center of the Front Grilla is straight. Realize all the screws.

Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust of the Iron Grill and Air ins.

12E

CLEANING

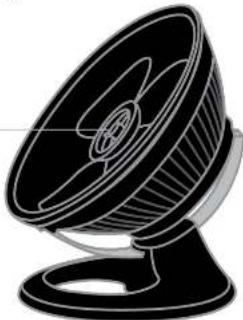

BLADE REMOVAL Piers recommended

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing blade.

1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Remove the washer. Pull the blade straight out from the shaft.
2. Wire the blade with a damp cloth. If your circulatory is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents. Do not place blade in the dishwasher. The excessive heat can distort the plastic.
3. To react each to be certain the flat side of the flat agains directly with the corresponding flat side on the blade's socket. Push the blade all the way on the shaft until it bottoms out. Do not use a hammer as this could result in bearing damage. Reinsall nut

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

The unit falls to power on.

Unit is not plugged in. Plug Power Cord into electricity, put it

Ensure unit for speed setting is selected.

Plug (use has blown. Replace fuse (See USER SERVICING INSTRUCTIONS on page 6).

Unit is damaged or in need of repair. Feease usage and unplug. Contact Consumer Service for assistance.

The outer is worn or damaged. Try another outlet or contact a qualified electrician.

Unit set to a low speed setting. Adjust to a higher speed setting.

Airflow is blocked. Remove obstruction.

Adjust direction of airflow towards the user.

GFCI has tripped.

Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit interrupter) outlet to tip when the user is charging speeds on a Vornado circulation. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electronician to check the GFCI outlet.

14E

WARRANTY

We expect this product to be perfect. If you're not satisfied with this product, let us know.

We're Here To Help

800.234.0604

yornado.com

[e-mail]

Vemurafen A (C) "Vemurafen" actuarial is the original consumer or counterpart of this Vemurafen Whole/Ordeal (Tiroflox C.) is free from defects in material or otherwise for a point of view (6) from the nature of cardiac arrhythmia, which is discussed in conjunction with V. vampyryum var. Vemurafen, at least as important as explain the Pseudo and no real.

Fur matrally autoway Call 1006234-0606 or eulholliprodoway to obtain a Return Authorization (RAI) Fbox box or Indelware product's maxioe number are total number as well as your name addwic, city state zip codes, +mail, and phone number. The RAI is an electronic signature for payments only. In case the certificate is poorly claim, visit www.candac.com/complete

After receiving the BA firm, ship your Customer to Vodafone Air LLC. Warranty & Repair 4th Part: Air S30 Annual Transmission COLDEN. For your warranty, please have your initial customer's license card and the following information available for this product. Please use the above procedure, codes must clearly mark with the BA number. Codes not shown in the above figure are not valid. The BA number is used for warranty service and return of your product after the Rod is received.

This warranty does not apply to defects resulting from use of the product, modification, alteration, manufacturing, nonpart maintenance, commercial use or repair of service. The Product is subject to: Verma's damage, damage of which is attributable to any side to acts of Good Impact on product use, which, including use or national doctor visit, shall in no event be subject to the law or liability of liability, or shipping a Verna's product to a country not intended for use will hold a warranty. Any manufacturer and a product.

modification, such as unauthorized riparian center, or use of non-approved replacement parts is not recommended and any consequences will not be covered by support services. The use of a new product in the last 12 months may not exceed 30 percent of the total number used in the survey intended. RIVERBIR OR CLNCLMENT IS NOT INCLUDED IN THIS WARRANTY! IS THE EXCELLO PRINCE OF THE CONSUMER WARDEN? NO, I SHALL BE ALLOWED ANY INDICATE OR CONCRETOURAL DEFENCES FOR REACH OF THE EXCELLO PRINCE OF THE EXCELLO PRINCE OF THE CONSUMER WARDEN! PROHIBITED BY APPICARE! ANY IMPED' WARRANTY! OF MERCANTILARY OR HLINNS! OR QUALITY/COMPLIANCE TESTS ON THIS PRODUCT IS HELD IN DURATION TO THE DURATION OF THIS WARRANTY! Some states do not allow the use of this product because of their legal requirements. This product has been shown to have long unimprinted marks on both sides, so the above limitations or exclusions may not apply to you. This warranty gives private legal rights, and may, upon reasonable right, carry from you the warranty that includes an obligation to follow those standards or improve production. Any such warranty will invalidate the productarranty.

All company names and product names are trademarks of their respective customer. ©
All rights reserved. All material information on this web site, except for the use in this publication, may not be copied or transmitted without written permission. This work may not be reproduced or transmitted in any form without written permission. This corresponds to the individual's right to copy, print or distribute from the actual product. ©See above any additional supplements.

Dnged angreeeand austnred in Andover, K2

念 2022 Vessels and Endocarditis, K8 S7C002 U.S. Patient Rating: Surgical outcomes for therapy in patients with myocardial infarction: a systematic review by Vessels and Endocarditis

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

POSIBLE CAUSA Y SOLUCIONPROBLEMA

El atrafacto no se andende.

2022 Veri 11.14, 678-2022 U.S. patent No. 13-75976 (Filed on July 1, 2022)

30E

CAUSE POSSIBLE ET SOLUTIONPROBÉME

415 East 13th Street, Andover, Kansas 67002

800.234.0604 | vornado.com

CL3-0415 RB, V01
