EAH6850 DC2DIS1GD5 - Graphic card ASUS - Free user manual and instructions

Features	Details
Model	ASUS EAH6850 DC2DIS1GD5
Graphics card type	AMD Radeon HD 6850
Video memory	1 GB GDDR5
Memory interface	256 bits
Processor frequency	775 MHz
Memory frequency	4000 MHz
Display connectors	2 x DVI, 1 x HDMI, 1 x DisplayPort
Supported DirectX	DirectX 11
Dimensions	26.7 x 11.5 x 4.5 cm
Weight	1.2 kg
Power consumption	150 W
Power supply recommendation	Minimum 500 W
Usage	Video games, graphic applications, multimedia processing
Maintenance	Regular cleaning of fans, driver updates
Safety	Avoid overheating, use in a well-ventilated case
Warranty	2 years

Frequently Asked Questions - EAH6850 DC2DIS1GD5 ASUS

What operating system is compatible with the ASUS EAH6850 DC2DIS1GD5 graphics card?

The ASUS EAH6850 DC2DIS1GD5 graphics card is compatible with Windows 7, Windows 8, Windows 10, and later versions of Windows.

How to install the ASUS EAH6850 DC2DIS1GD5 graphics card?

To install the graphics card, turn off your computer, remove the side panel of the case, insert the card into a PCI Express x16 slot, secure it with screws, and reconnect power cables if necessary before replacing the panel and restarting.

What to do if my graphics card does not appear in the device manager?

Check that the card is properly installed in the PCI Express slot and that all power cables are connected. Also ensure that your motherboard BIOS is up to date.

Which drivers should I install for the ASUS EAH6850 DC2DIS1GD5 graphics card?

Visit the official ASUS website to download the latest drivers compatible with your operating system.

My graphics card is overheating, what should I do?

Make sure the card's fan is working properly and that the computer case is well ventilated. Clean accumulated dust and consider using temperature monitoring software.

Can I use multiple ASUS EAH6850 DC2DIS1GD5 graphics cards in SLI?

No, SLI technology is not supported by this graphics card. You can use multiple cards in CrossFire, but this also depends on your motherboard.

How to check the version of my graphics card?

You can check your graphics card version via Windows Device Manager by right-clicking on 'My Computer', then 'Properties', and finally 'Device Manager'.

What to do if I encounter graphical artifacts?

This may be caused by outdated drivers, excessive overclocking, or hardware issues. Try reinstalling drivers, resetting overclocking settings, or testing the card in another computer.

The graphics card beeps at startup, what does it mean?

Beeps may indicate a hardware problem. Check that the card is properly seated, power cables are connected, and the motherboard is compatible.

USER MANUAL EAH6850 DC2DIS1GD5 ASUS

ASUS GPU Tweak II User Manual

Q10790

First Edition

August 2015

Contents

English. 3

繁體中文 14

简体中文 25

Francais 36

日本語 47

Italiano 58

Pycckn 69

Čestina. 80

Nederlands 91

Elambdaeta 102

Portugues. 113

Polski 124

Espanol 135

YKpaHcbKa 146

Deutsch 157

Knowing GPU Tweak II

ASUS GPU Tweak II utility allows you to monitor and tweak the settings of your ASUS graphics card for optimal performance. It has two user interfaces, the Simple Mode and Professional Mode, that allow you to quickly monitor your preset and customized profiles, boost the GPU settings for your game-changing enjoyment, or do some advanced tweaking on the GPU settings for optimal performance.

ASUS GPU Tweak II includes these ASUS-exclusive preset power-saving and gaming profiles:

OC Mode

Silent Mode

Gaming Mode

My Profile

System requirements

AMD 7000 Series GPU or higher
NVIDIA 600 Series GPU or higher
32-/64-bit Microsoft'Windows 10/8/8.1/7

Installing GPU Tweak II

1. Ensure that you have installed the ASUS graphics card and its driver. Refer to the ASUS graphics card user manual for details on installing its driver.
2. Locate the ASUS GPU TweakII driver folder and double-click the setup.exe file to start the installation.
3. Follow the onscreen instructions to finish the installation.

Launching GPU Tweak II

Double-click the GPU Tweak icon on the desktop.
- Click Start > All Programs > ASUS > GPU Tweak II to launch the program.

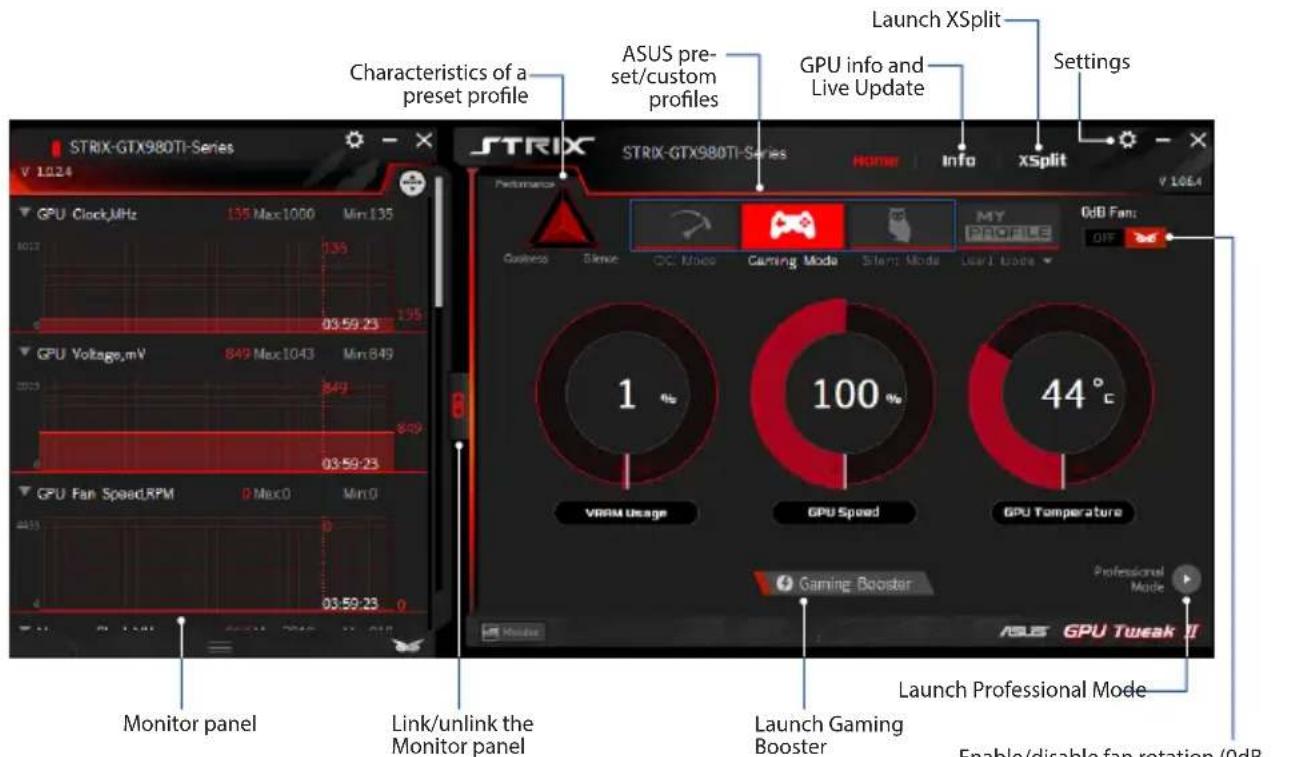

Simple Mode

Simple Mode provides you with a quick way to monitor your GPU settings in real-time, and tweak some system settings via Gaming Booster for your game-changing enjoyment.

Enable/disable fan rotation (0dB Fan)* * Appears only on an ASUS Graphics card with 0dB Fan function.

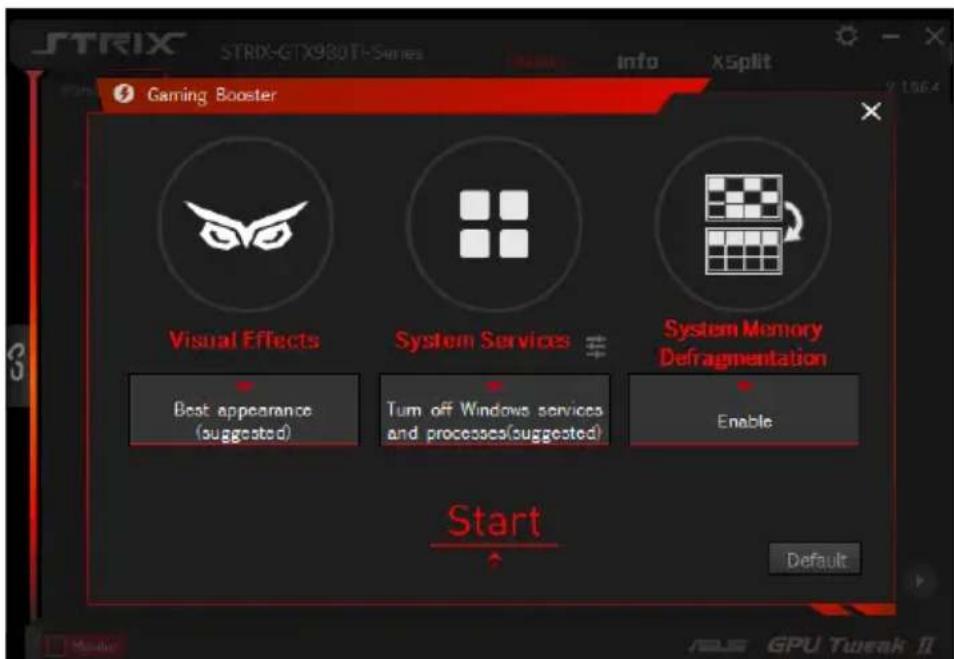

Gaming Booster

Get that game-changing performance edge with Gaming Booster, which helps optimize your system for a seamless and faster game play in your computer games.

Gaming Booster offers you these three (3) functions:

Visual Effects: Lets you turn off the Windows® visual effects to intensify the processor performance.
System Services: Lets you to automatically or manually turn off Windows® services or processes.

• System Services setting: Lets you to manually choose the services or processes that you want to stop.

• System Memory defragmentation: Lets you rearrange and clean your system memory without closing any processes.

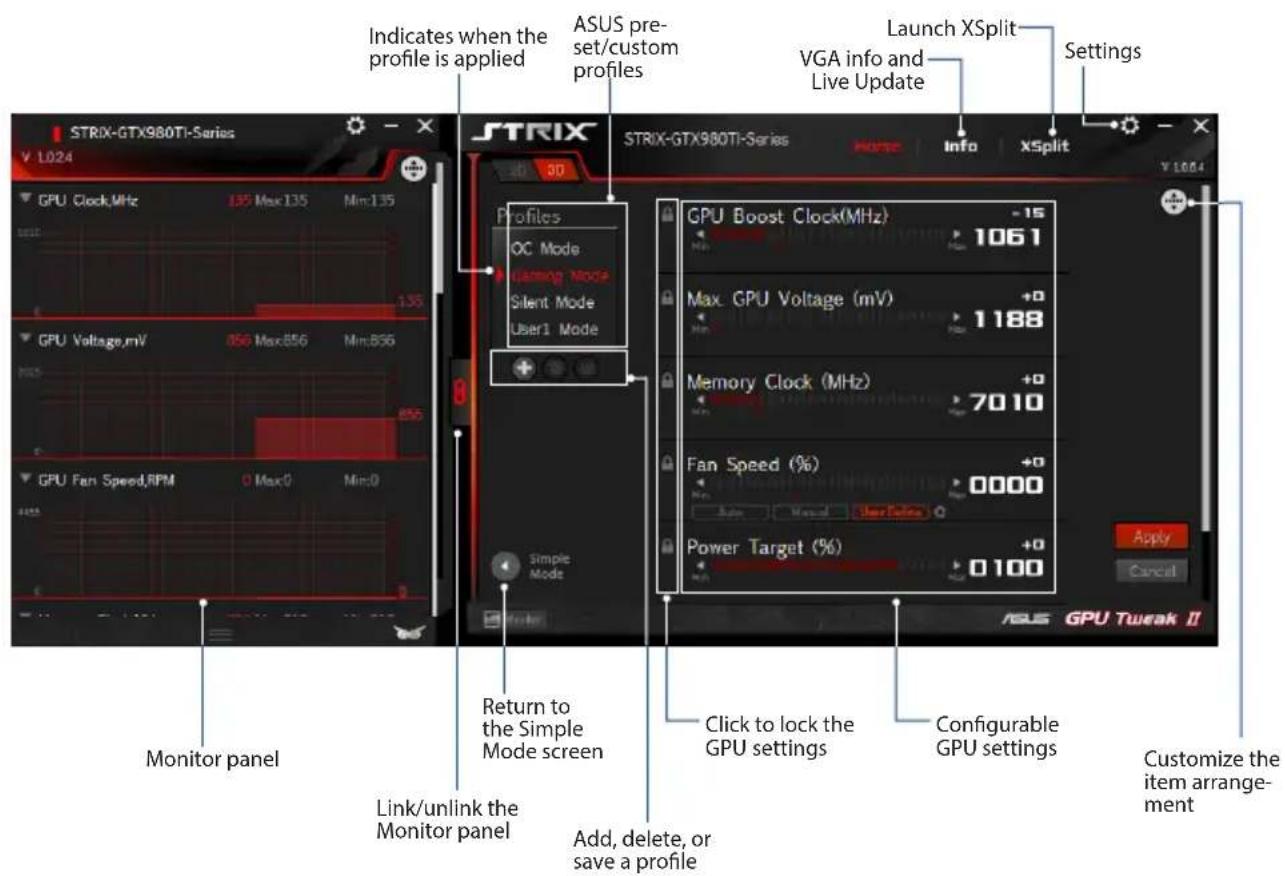

Professional Mode

Configure the GPU settings like a pro, and get the optimal performance from your ASUS Graphics card.

Configuring a profile

1. Select the profile that you want to configure.
2. Select the GPU setting, then key in your preferred value.
3. When done, click Apply

Adding a profile

1. Click + then assign the profile name.
2. Set your preferred values.
3. When done, click save the profile.

Applying a profile

• Select the profile, then click Apply to apply the profile.

Deleting a profile

• Select the profile, then click to delete the profile.

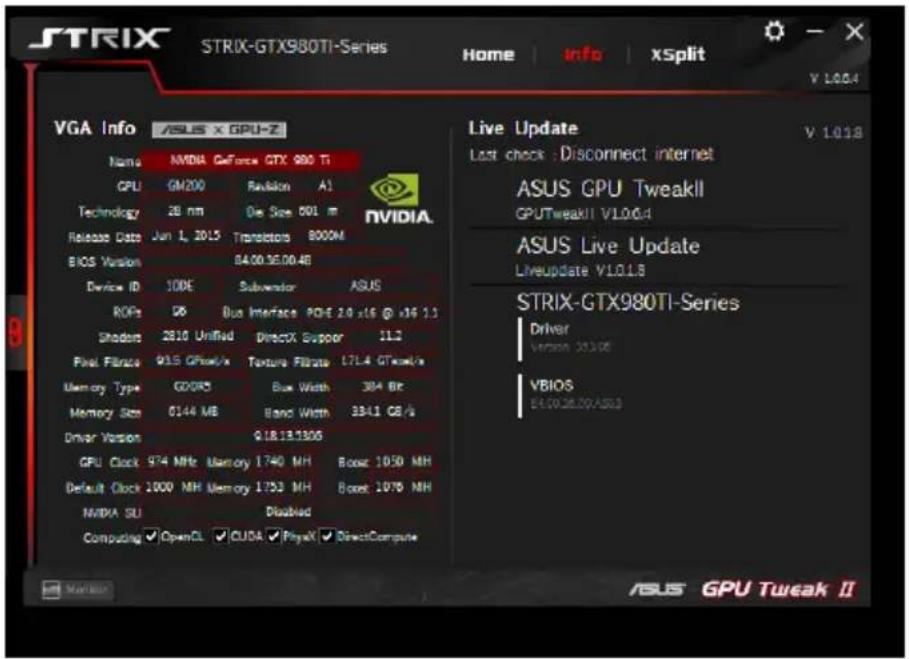

Getting the VGA info and Live Update

The Info screen provides you with information and live updates about your ASUS VGA card.

NOTE: Ensure that your computer is connected to the Internet to get the Live Update.

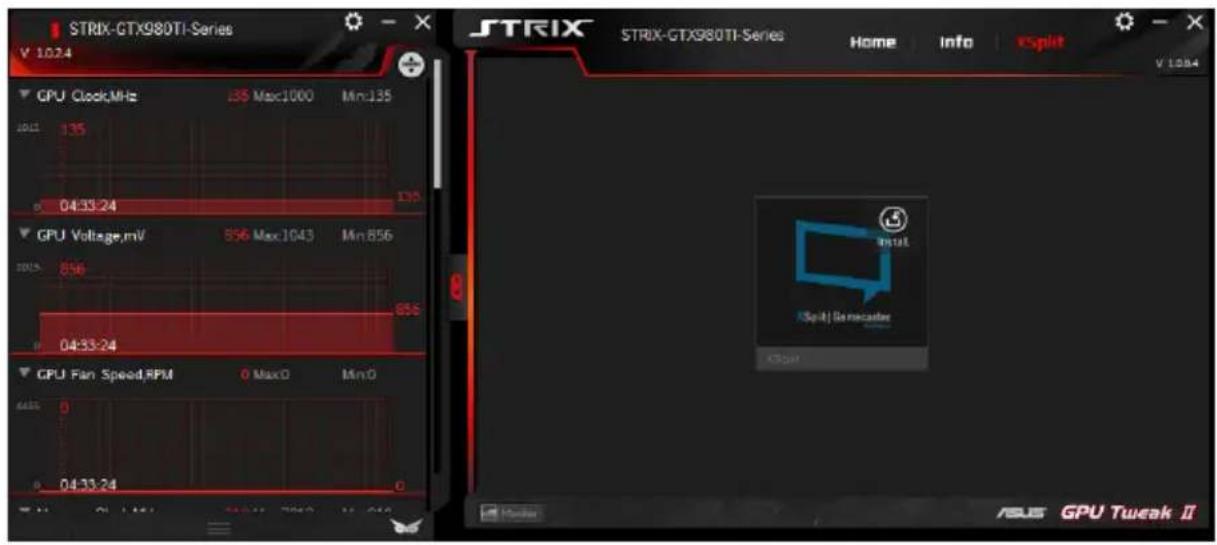

Launching XSplit

Install and launch XSplit Gamecaster from GPU Tweak II.

Using the Settings screen

The Settings screen allows you to configure the GPU Tweak II settings such as Main, Tuning Settings, Live Update, and Keyboard Shortcuts.

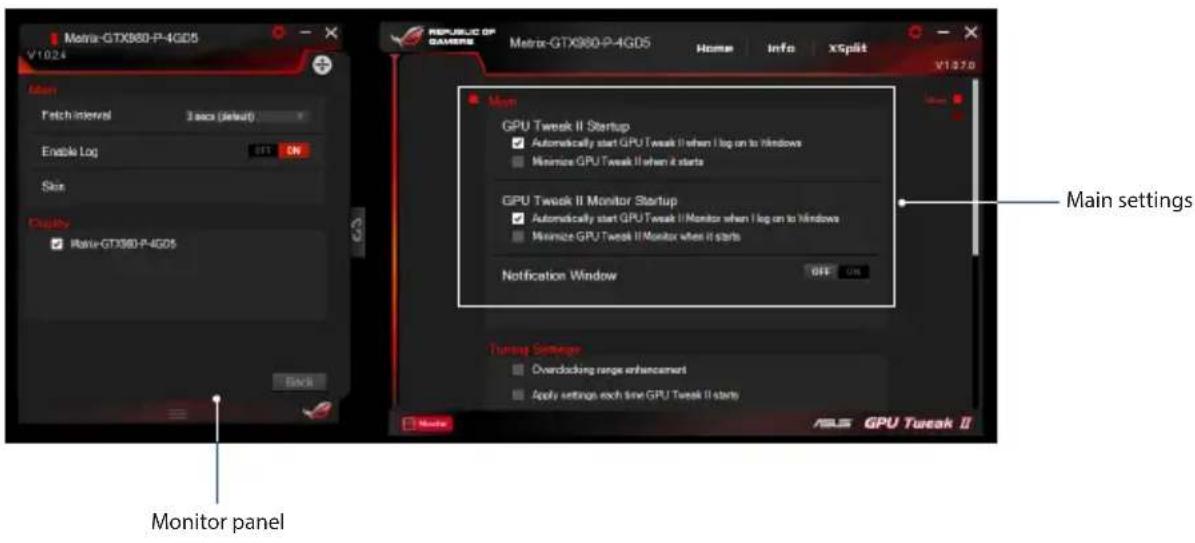

Main

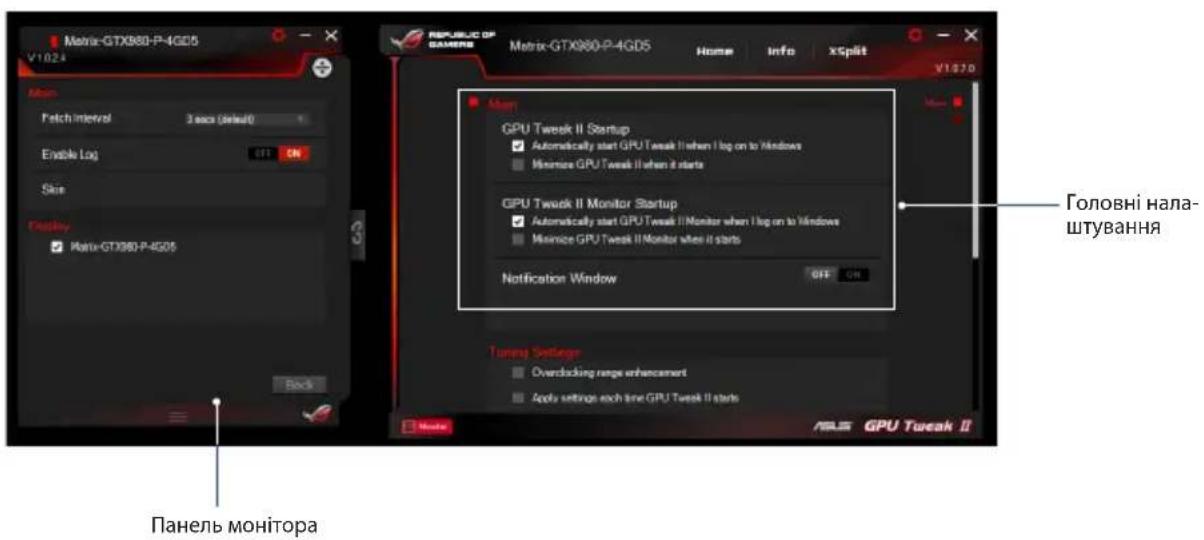

From the Main settings, you can select any of these options on launching GPU Tweak II:

• Automatically launch GPU Tweak II or its Monitor panel on Windows® startup.
• Minimize GPU Tweak II or its Monitor panel once launched.
• Turn the notification window on/off.

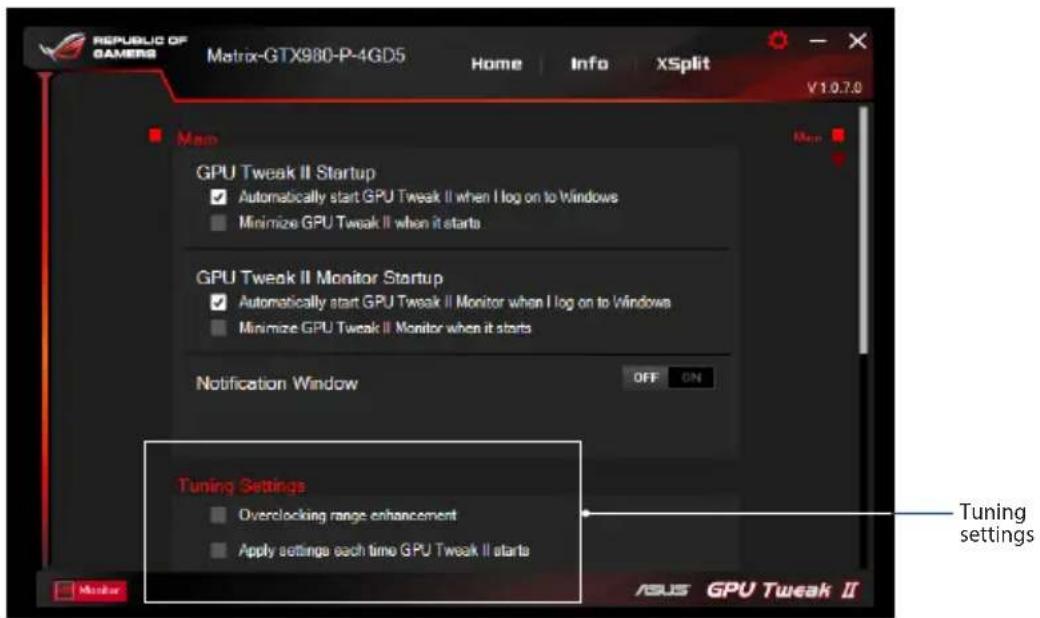

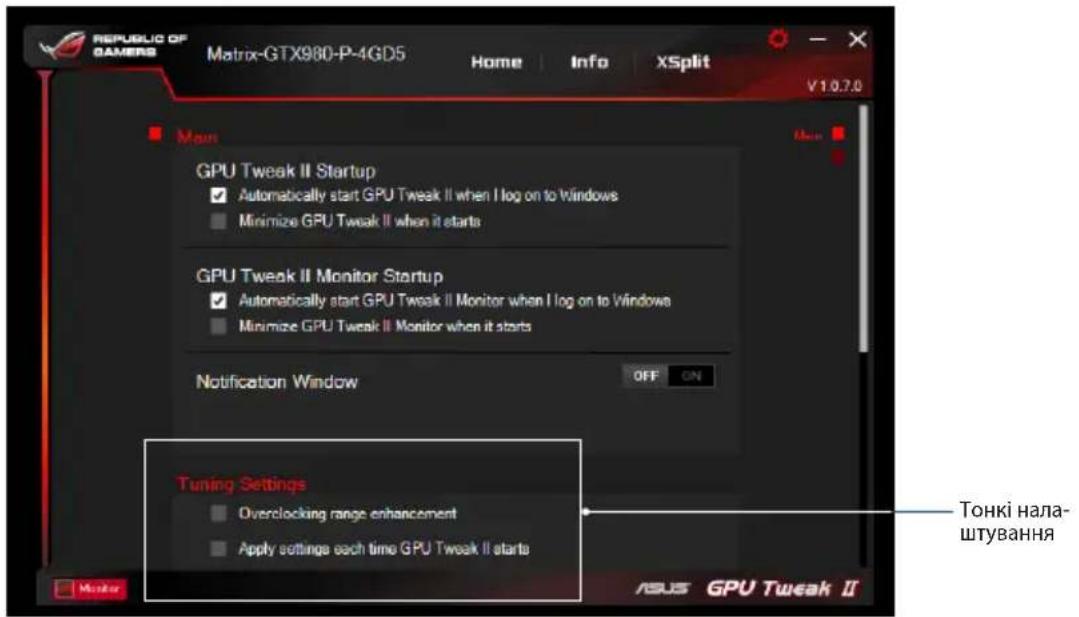

Tuning Settings

From the Tuning Settings, you can select any of these options on applying the GPU Tweak II settings:

• Enhance the overclocking range.
• Apply the settings on GPU Tweak startup.

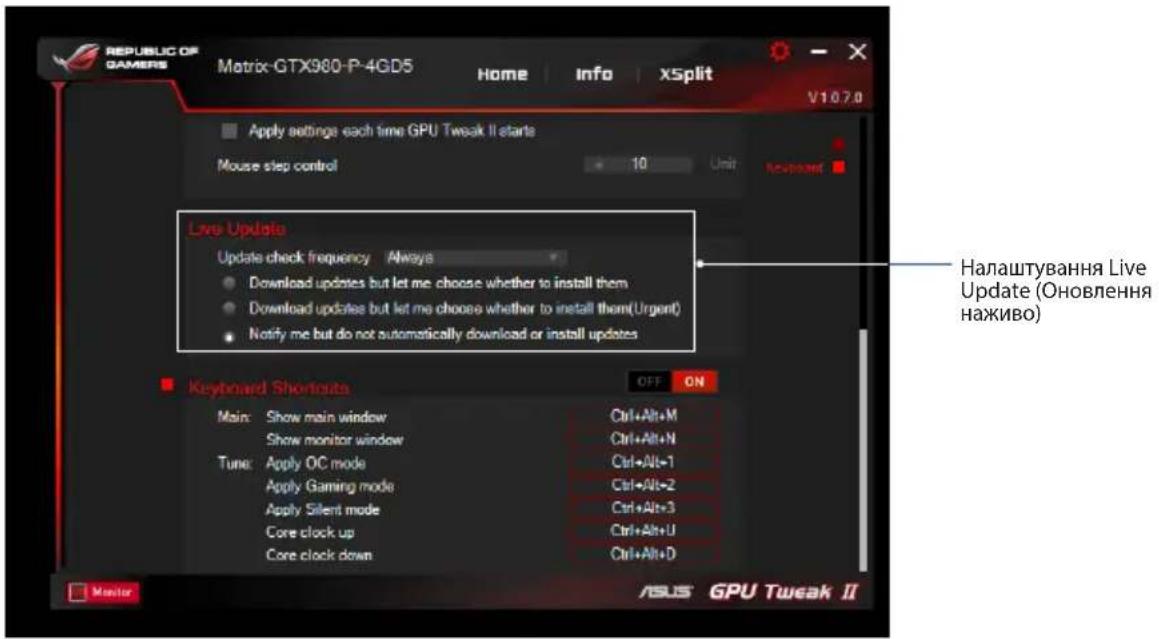

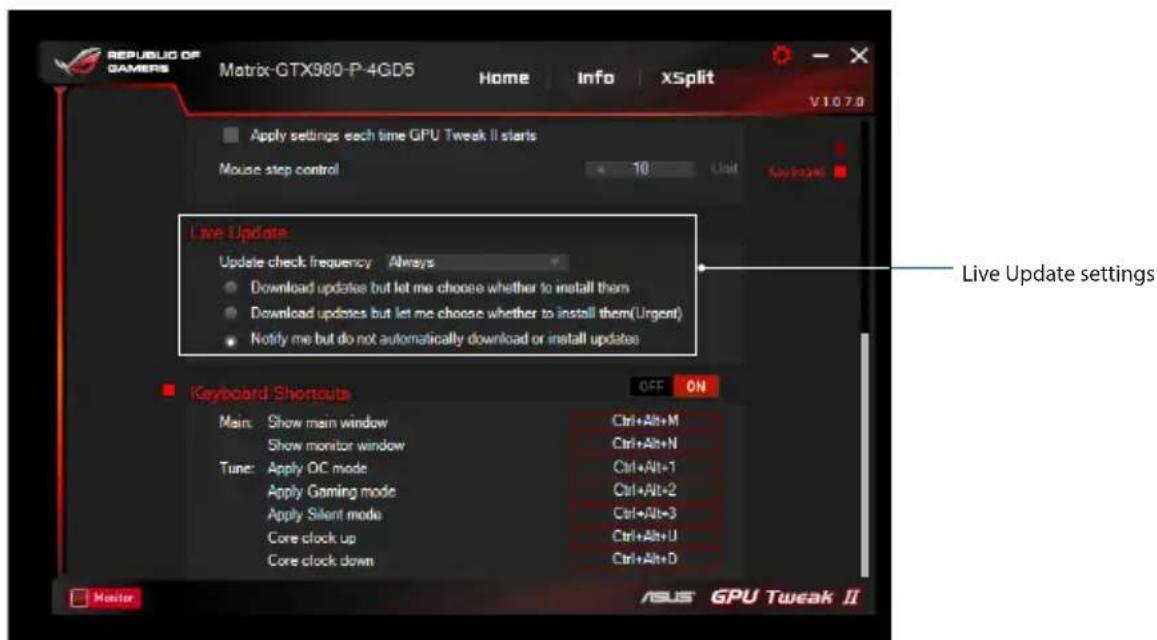

Live Update

Receive notifications on the latest VBOS and driver updates from Live Update. Configure and select the following Live Update options:

• Set the Update check frequency as to when you want to receive the Live Update.

• Select any of the Live Update options:

• Download updates but let me choose whether to install them: Select this option to automatically download updates, and decide whether to manually install them.

• Download important updates but let me choose whether to install them: Select this option to automatically download critical updates, and decide whether to manually install them.
• Notify me but do not automatically download or install updates: Select this option to receive notifications only, and decide whether to manually download and install the updates.

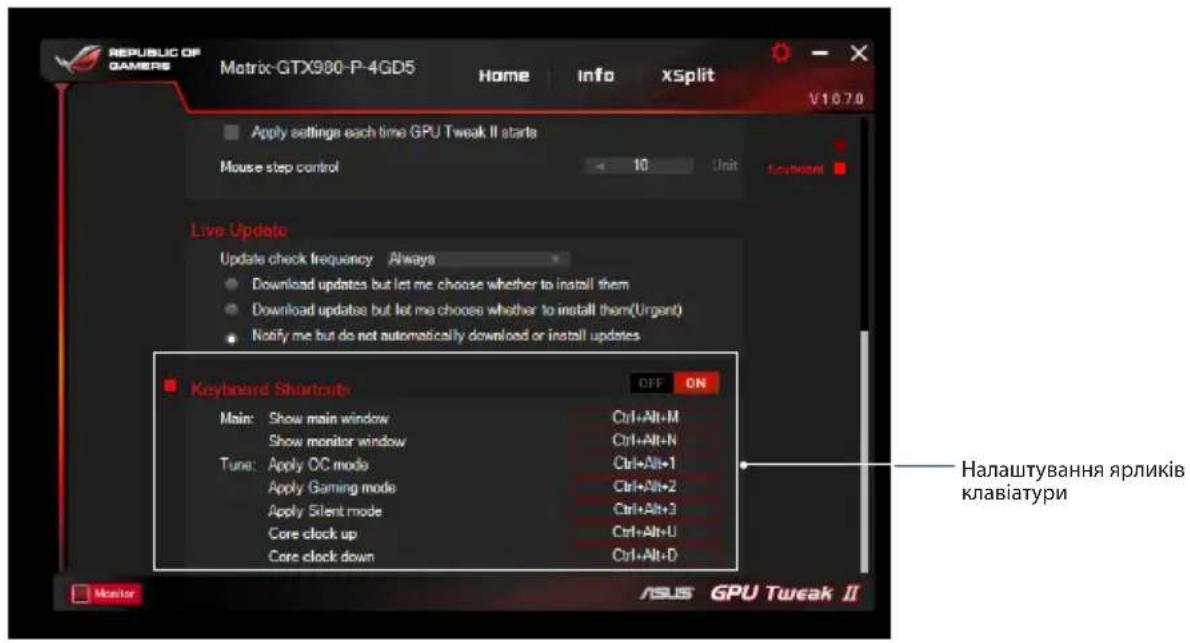

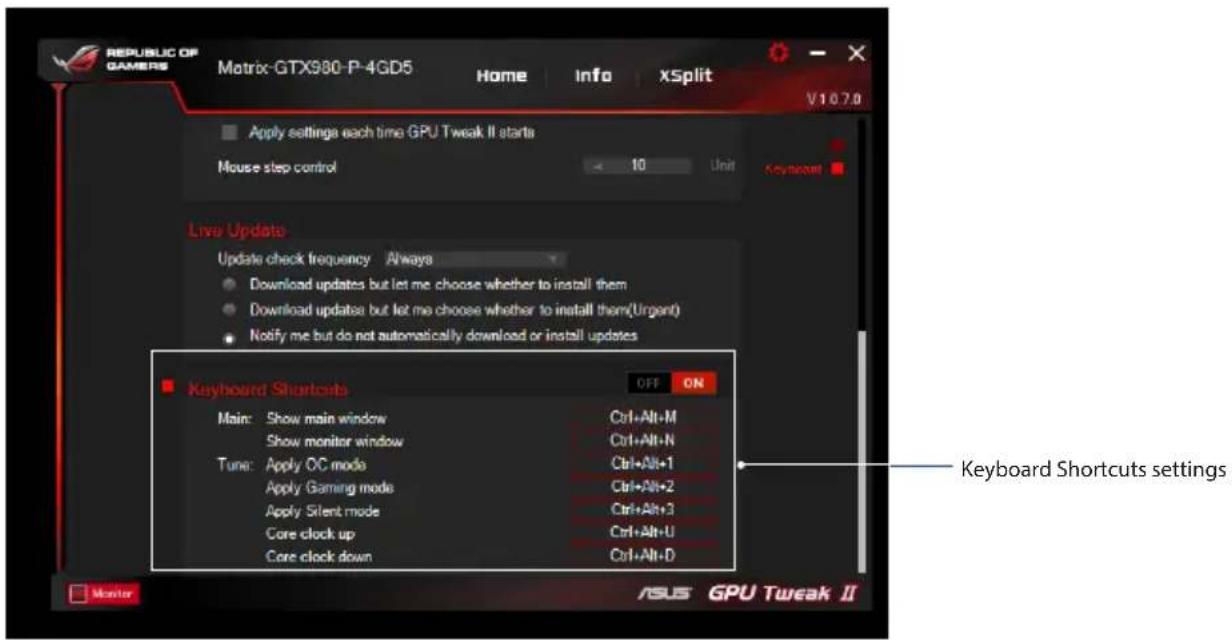

Keyboard Shortcuts

Turn on/off the Keyboard Shortcuts to quickly show the main screen or apply some quick adjustments.
