Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property. Warning for hot surfaces. Protection class for electric shock. PLEASE SAVE THESE INSTRUCTIONS! Metallic containers for food and beverages are not allowed during microwave cooking. Care should be taken not to displace the turntable when removing containers from the appliance. The appliance shall not be cleaned with a steam cleaner.3 / 39 EN Microwave Oven / User Manual CONTENTS 01M-8851293800-3516-03 1 Important safety and environmental instructions 4

1.1 Precautions to avoid possible exposure to

2 Your over the range microwave oven 11

Important safety and environmental instructions

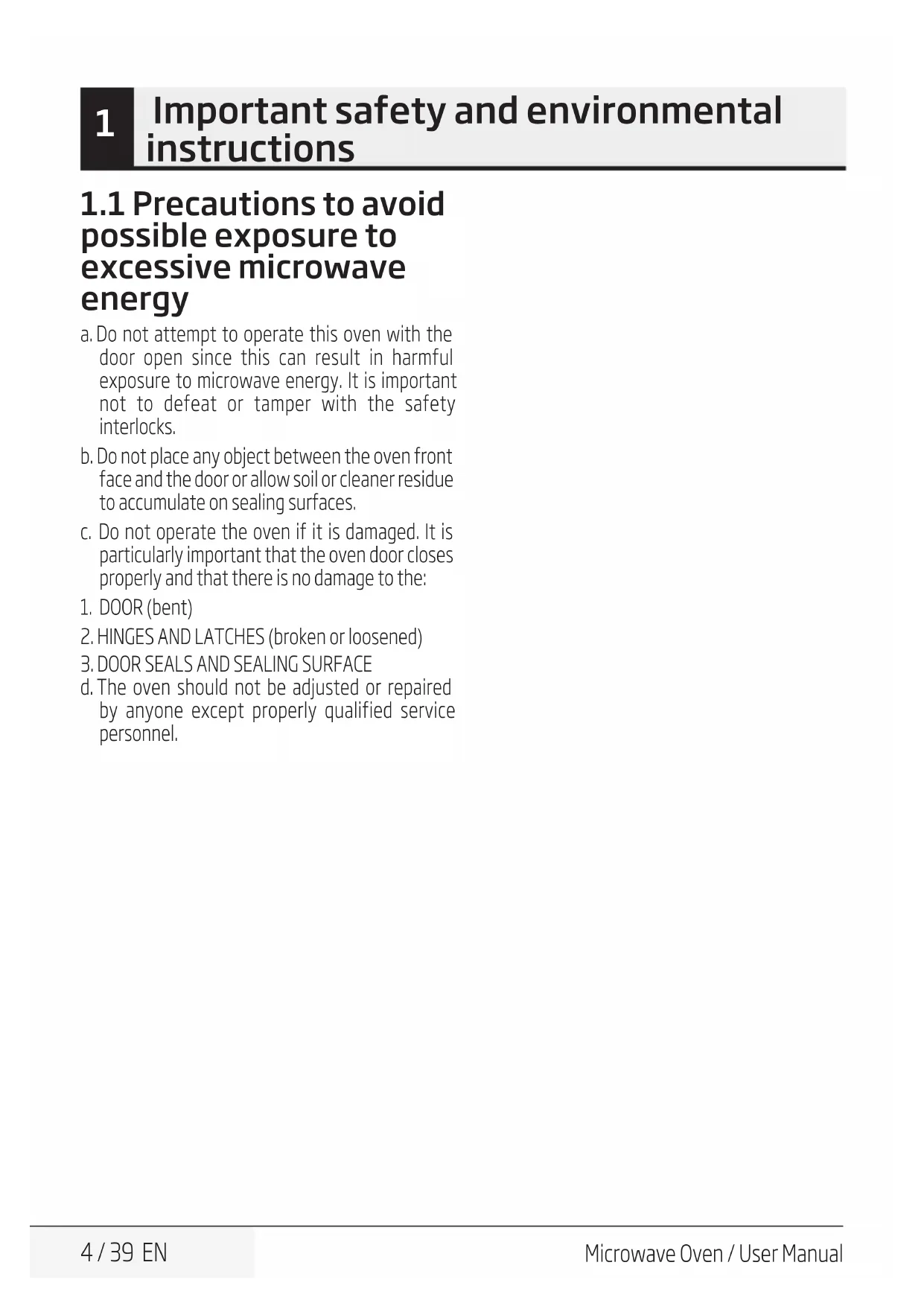

1.1 Precautions to avoid

possible exposure to excessive microwave energy a. Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. c. Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:

2. HINGES AND LATCHES (broken or loosened)

3. DOOR SEALS AND SEALING SURFACE

d. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.5 / 39 EN Microwave Oven / User Manual

Important safety and environmental instructions

To reduce the risk of burns, electric shock, fire,injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic safety precautions, including the follow- ing:

• Read all instructions before using the appliance.

• Read and follow the specific:

“PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY ” found on page 4.

• As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity.

• To reduce the risk of fire in the oven cavity:

i. Do not overcook food. Care-

fully attend the appliance when paper, plastic, or other combustible materials are placed inside the oven to fa- cilitate cooking.

ii. Remove wire twist-ties and

metal handles from paper or plastic containers/bags before placing them in the oven.

iii. If materials inside the oven

ignite, keep the oven door closed. Turn the oven off, and unplug the appliance. Discon- nect the power cord, shut off power at the fuse or circuit breaker panel.

iv. Do not use the oven cavity for

storage purposes. Do not leave paper products, cooking uten- sils, or food in the cavity when not in use.

• This oven must be grounded. Con- nect only to properly grounded outlet. See “GROUNDING IN- STRUCTIONS” found on page

• Install or locate this oven only in accordance with the installation instructions provided.

• Some products such as whole eggs and sealed containers-for example, closed glass jars-are able to explode and should not be heated in the oven.

• Use this appliance only for its in- tended uses as described in this manual. Do not use corrosive chemicals or vapors in this appli- ance. This oven is specifically de- signed to heat or cook or dry food. It is not designed for industrial or laboratory use.6 / 39 EN Microwave Oven / User Manual

Important safety and environmental instructions

• As with any appliance, close su- pervision is necessary when used by children.

• Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.

• This appliance should be ser- viced only by qualified service technicians. Contact the nearest authorized service facility for ex- amination, repair or adjustment.

• Do not cover or block any openings on the oven.

• Do not store or use this appliance outdoors.

• Do not use this oven near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.

• Do not immerse cord or plug in water.

• Keep cord away from heated sur- faces.

• Do not let cord hang over edge of table or counter.

• When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.

• Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the con- tainer is removed from the micro- wave oven is not always present.

THIS COULD RESULT IN VERY HOT

ii. Stir the liquid both before and

halfway through heating it.

iii. Do not use straight-sided con-

tainers with narrow necks.

iv. After heating, allow the con-

tainer to stand in the micro- wave oven for a short time before removing the container.

• Do not Operate any heating or cooking appliance beneath the appliance.

• Do not mount unit over or near any portion of heating or cooking ap- pliance.

• Do not mount over sink.7 / 39 EN Microwave Oven / User Manual

Important safety and environmental instructions

• Do not store anything directly on top of the appliance surface when the appliance is in operation.

instructions Electric Shock Hazard Touching some of the in- ternal components can cause serious personal in- jury or death. Do not disas- semble this appliance. Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appli- ance is properly installed and grounded. Three-pronged (ground- ing) plug This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an es- cape wire for the electric current. This appliance is equipped with a cord having grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding in- structions are not completely un- derstood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot recep- tacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the ap- pliance.

• A short power-supply cord is pro- vided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

• Longer cord sets or extension cords are available and may be used if cared is exercised in their use.

• If a long cord sets or extension cord is used:8 / 39 EN Microwave Oven / User Manual

Important safety and environmental instructions

i. The marked electrical rating

of the cord set or extension marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the ap- pliance.

ii. The extension cord must be a

grounding-type 3-wire cord; and

iii. The longer cord should be ar-

ranged so that it will not drape over the countertop or table- top where it can be pulled on by children or tripped over un- intentionally.

1.3 Radio interference

• Operation of the microwave oven may cause interference to your radio, TV or similar equipment.

• When there is interference, it may be reduced or eliminated by taking the following measures:

i. Clean door and sealing surface

ii. Reorient the receiving antenna

of radio or television.

iii. Relocate the microwave oven

with respect to the receiver.

iv. Move the microwave oven

away from the receiver.

v. Plug the microwave oven into a

different outlet so that micro- wave oven and receiver are on different branch circuits.

Personal Injury Hazard Tightly-closed utensils could explode. Closed containers should be opened and plas- tic pouches should be pierced before cooking. See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question follow- ing the procedure below Utensil Test:

• Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

• Cook on maximum power for 1 minute.

• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

Important safety and environmental instructions Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resis- tant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plas- tic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture.10 / 39 EN Microwave Oven / User Manual

Important safety and environmental instructions Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal- trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Wood will dry out when used in the microwave oven and may split or crack.11 / 39 EN Microwave Oven / User Manual

Your over microwave oven

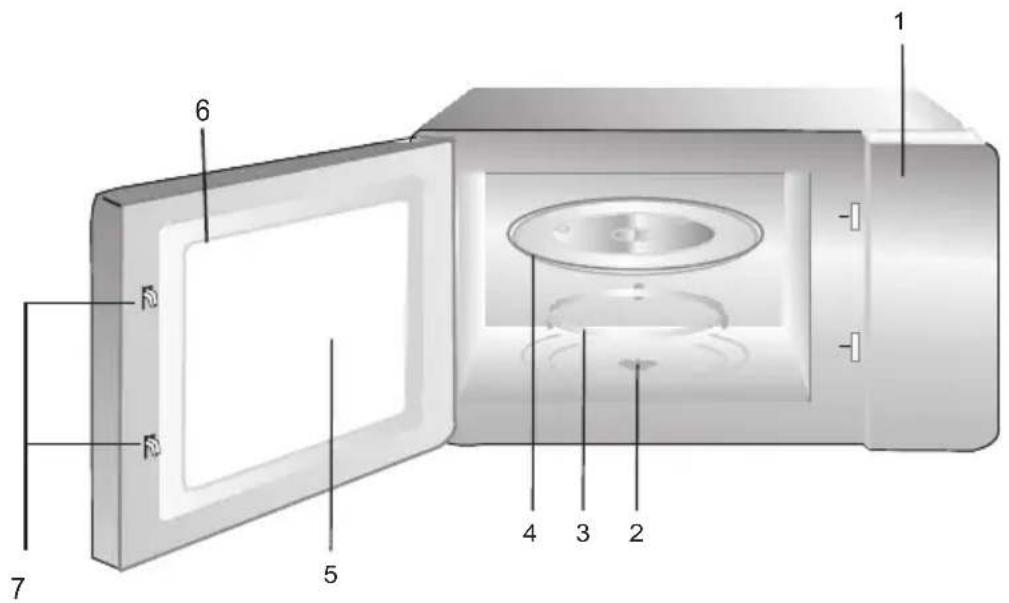

Your over the range microwave oven

• Never place the glass tray upside down. The glass tray should never be restricted. • Both glass tray and turntable support must always be used during cooking. • All food and containers of food must always place on the glass tray for cooking. • If glass tray or turntable support crack or break, contact your nearest authorized service center.Hub (underside)Glass trayTurntable shaftTurntable support13 / 39 EN Microwave Oven / User Manual

• Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

• Remove any protective film found on the microwave oven cabinet surface.

1. Select a level surface that provide enough open

space for the intake and/or outlet vents. A minimum clearance of 3.0 inch (7.5cm) is re- quired between the oven and any adjacent wall. One side must be open. Do not remove the light brown Mica cover that is screwed to the oven cavity to protect the magne- tron. – Leave a minimum clearance of 12 inch(30cm) above the oven. – Do not remove the legs from the bottom of the oven. – Blocking the intake and/or outlet openings can damage the oven. – Place the oven as far away from radios and TV as possible.Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household

outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

Do not install oven over a range cooktop or other heat-producing appliance. If in- stalled could be damaged and the warranty would be void.Microwave Oven / User Manual 14 / 39 EN

4.1 Control Panel and Features

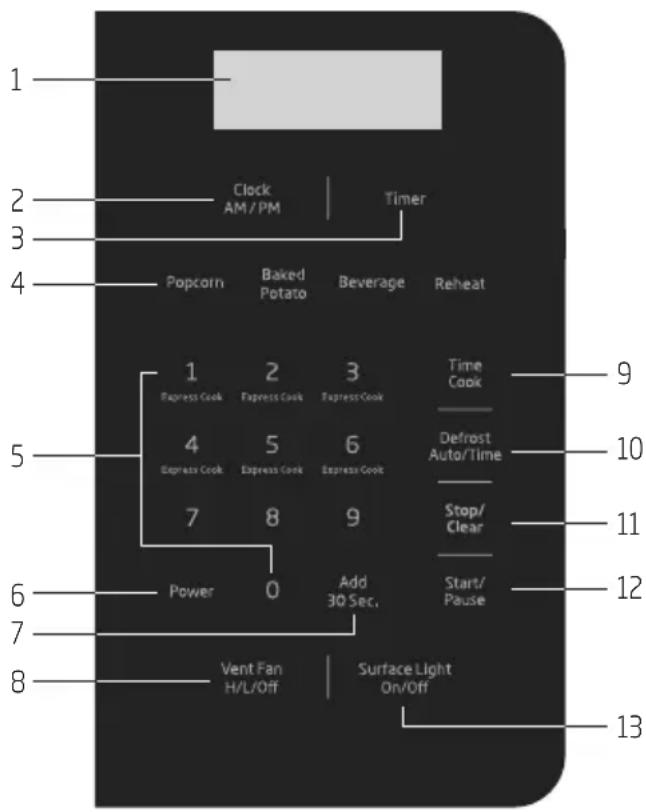

1. Display Screen2. Clock AM/PM: to set the current time;3. Timer4. Auto Menu5. Number Keys6. Power7. Add 30Sec.8. Vent Fan H/L/Off9. Time Cook10. Defrost Auto/Time Stop/Clear: Clears all previous settings pressed before cooking starts. During cooking: press once to stop oven; twice to stop and clear all entries.12. Start/Pause13. Surface Light On/Off

4.2 Operation Instructions

1. Press “CLOCK/AM/PM”,the unit enters the clock setting states.AM indicator will light. “0:00” flash to remind you to input the time.2. Press “CLOCK/AM/PM” again to select AM or PM. The responding AM or PM indicator lights.3. Press the number keys and enter the correct time. For example, time is 10:12 now, please press “1,0,1,2” in turn.4. Press “CLOCK/AM/PM” key finish setting the clock. Note: This is a 12 hour clock from 1:00 to 12:59. If the time set is not appropriate, press “CLOCK/AM/PM” will be no used.Buzzer sounds twice and turn back to waiting states.

4.2.2 Microwave Cooking

1. Press “ TIME COOK” to select microwave cooking. “0:00” flash to remind you to input the cooking time.2. Press the number keys to adjust the cooking time you need. For example, to cook the time for 10 minutes.Please press “1,0,0,0” in turn. The maximum cooking time is 99 minutes 99 seconds.3. At the same time, you can choose the power by pressing “POWER”

4. Press the number keys to select the power level.5. Press “START/PAUSE” to start cooking. Time counts down.

If the power level you choose is 100% power, steps “3” and “4” can be skiped and go directly to the step “ 5 “. After cooking finishing, buzzer sounds five times.15 / 39 EN Microwave Oven / User Manual

4.2.3 Multi-stage Cooking

At most two stages can be input.For example: To cook the food with 100% microwave power for 10 minutes and then cook with 80% microwave power for 15 minutes. Do as following:1. Press “TIME COOK” to choose microwave cooking;2. Press “1”,”0”,”0”,”0” to input the cooking time;3. Press “POWER” to choose 100% microwave power;4. Press “TIME COOK” to choose microwave cooking;5. Press “1”,”5”,”0”,”0” to input cooking time;6. Press “POWER” to select the microwave power;7. Press “8” to choose 80% microwave power;8. Press “START” to start cooking. Microwave cooking can be set as two stages only. Defrost program and auto menu cannot be set here. When the first stage finish, buzzer sounds once and the second stage begins cooking. During cooking,each added press on “ADD 30 SEC.”, 30 seconds can be added too. The time can be up to 99 minutes and 99 seconds.

4.2.4 Speedy Cooking

1. In waiting states,press “ ADD 30 SEC.” to start cooking 100% microwave power for 30 seconds.2. During cooking states, 30 seconds can be increased for each pressing on “ADD 30 SEC.”. The maximum cooking time is 99 minutes and 99 seconds.3. Press number keys from 1 to 6 to start cooking with full microwave power for 1-6 minutes. During speedy cooking, microwave power can be checked and selected. Press ”POWER”, the current pow-er displays, then press number keys to choose the power you need

4.2.5 Defrost Cooking

A. Defrost By Weight1. Press “DEFROST AUTO/TIME” once to choose defrost by weight function. Defrost indicator will light and “lb” indicator flash;2. Press number keys from 0 to 9 to input the derfost weight. For example: the food weight is 1.2 Lbs, then “1”,”2” will be input. The maximum cooking weight is 6.0 Lbs.If the weight input is more than 6.0 Lbs, the unit will turn back to waiting states.3. Press “START/PAUSE” to start defrosting. “lb” indicator will be off.B. Defrost By Time1. Press “DEFROST AUTO/TIME” twice to choose defrost by time function. Defrost indicator will light;Microwave Oven / User Manual 16 / 39 EN 2. Press number keys from 0 to 9 to input the derfost time. The maximum time can be input is 99 minutes and 99 seconds.3. Press “START/PAUSE” to start defrosting. If half the defrost time passes, the buzzer will sound twice to remind you to turn the food over.

1. When the exhaust fan is under off states, press “VENT FAN/H/L/OFF” once to choose the fan with high speed;2. Press “VENT FAN/H/L/OFF” twice to choose the fan with low speed;3. Press “VENT FAN/H/L/OFF” three times to choose the fan to be off.4. Except lock states, the fan can be adjusted anytime.

1. Press “SURFACE LIGHT ON/OFF” once to turn on the lamp;2. Press “SURFACE LIGHT ON/OFF” twice to turn off the lamp.

4.2.8 Timer Function

1. Press “TIMER”, timer indicator will light;2. Press number keys to input the cooking time you need. The maximum cooking time is 99 minutes and 99 seconds.3. Press “TIMER”, time counts down.When time counting down is over, buzzer sounds to indicates off. During timer states, hood and oven lamp can be activated. Others func-tion will be no used.

4.2.9 Display On/Off Function

1. In wating states,press “0” for 3 seconds,buzzer sounds twice. Waiting mode can be turn on or turn off.1. When the display under the off states, program can be set too. But cooking cannot be done. Press “STOP/CLEAR” to cancel the setting and turn back to off states. If the key is not pressed, the setting will be cancelled after 25s automatically and turn back to the off states.2. Set timer function.It will display normally.After finishing, press “TIMER” to turn back off states.3. To reset the clock. Please refers to the clock setting instructions. It will display normally. After operation finish, the display will be off states.

1. Press “POPCORN“ repeatedly until the number you wish appears in the display.“1”SET: approximate 1.75 ounces“2”SET: approximate 3.0 ounces“3”SET: approximate 3.5 ouncesFor example, press “POPCORN” once , “1.75” appears in the LED.2. Press “ START/PAUSE “ to cook.

4.2.11 Baked Potato Menu

1. Press “ BAKED POTATO “ repeatedly until the number you wish appears in the display.“1”SET: 1 potato“2”SET: 2 potatoes“3”SET: 3 potatoesFor example, press “BAKED POTATO” once , “1” appears in the LED.2. Press “ START/PAUSE “ to cook.

“ BEVERAGE “ repeatedly until the number you wish appears in the display. “1”SET: 1 cup “2”SET: 2 cups “3”SET: 3 cups For example, press “BEVERAGE” once , “1” ap- pears in the LED.

“ START/PAUSE “ to cook.

“ REHEAT “ repeatedly until the number you wish appears in the display. “1”SET: approximate 8.0 ounces “2”SET: approximate 16.0 ounces “3”SET: approximate 24.0 ounces For example, press “ REHEAT” once , “8.0” ap- pears in the LED. b) Press “ START/PAUSE “ to cook.

4.2.14 Inquiring Function

1. Under microwave cooking states, press

“POWER” to check the power level.

2. During cooking states, press

“CLOCK/AM/ PM” to check the clock.

4.2.15 Lock Function For Children

Lock: In waiting state, press “ STOP/CLEAR

for 3 seconds, there will be two beeps denoting the entering into the children-lock state; Lock quitting: In locked state, press “ STOP/ CLEAR “ for 3 seconds, there will be two beeps denoting that lock is released.Microwave Oven / User Manual 18 / 39 EN

Check your problem by using the chart below and try the solutions for each problem. If the micro- wave oven still does not work properly, contact the nearest authorized service center. Trouble Possible cause Possible remedy Oven will not start a. Electrical cord for oven is not plugged in. b. Door is open. c. Wrong operation is set. a. Plug into the outlet. b. Close the door and try again. c. Check instructions. Arcing or sparking a. Materials to be avoided in microwave oven were used. b. The oven is operated when empty. c. Spilled food remains in the cavity. a. Use microwave-safe cookware only. b. Do not operate with oven empty. c. Clean cavity with wet towel. Unevenly cooked foods a. Materials to be avoided in microwave oven were used. b. Food is not defrosted completely. c. Cooking time, power level is not suitble. d. Food is not turned or stirred. a. Use microwave-safe cookware only. b. Completely defrost food. c. Use correct cooking time, power level. d. Turn or stir food. Overcooked foods Cooking time, power level is not suitable. Use correct cooking time, power level. Undercooked foods a. Materials to be avoided in microwave oven were used. b. Food is not defrosted completely. c. Oven ventilation ports are restricted. d. Cooking time, power level is not suitable. a. Use microwave-safe cookware only. b. Completely defrost food. c. Check to see that oven ventilation ports are not restricted. d. Use correct cooking time, power level. Improper defrosting a. Materials to be avoided in microwave oven were used. b. Cooking time, power level is not suitable. c. Food is not turned or stirred. a. Use microwave-safe cookware only. b. Use correct cooking time, power level. c. Turn or stir food.19 / 39 EN Microwave Oven / User Manual

a. Do not operate or allow the oven to be operated with the door open. b. Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary:

• Interlock operation,

• Proper door closing,

• Seal and sealing surfaces (arcing, wear, and other damage),

• Damage to or loosening of hinges and latches,

“STOP/CLEAR“ (ARRÊTER/
