USER MANUAL LFU316W ELECTROLUX

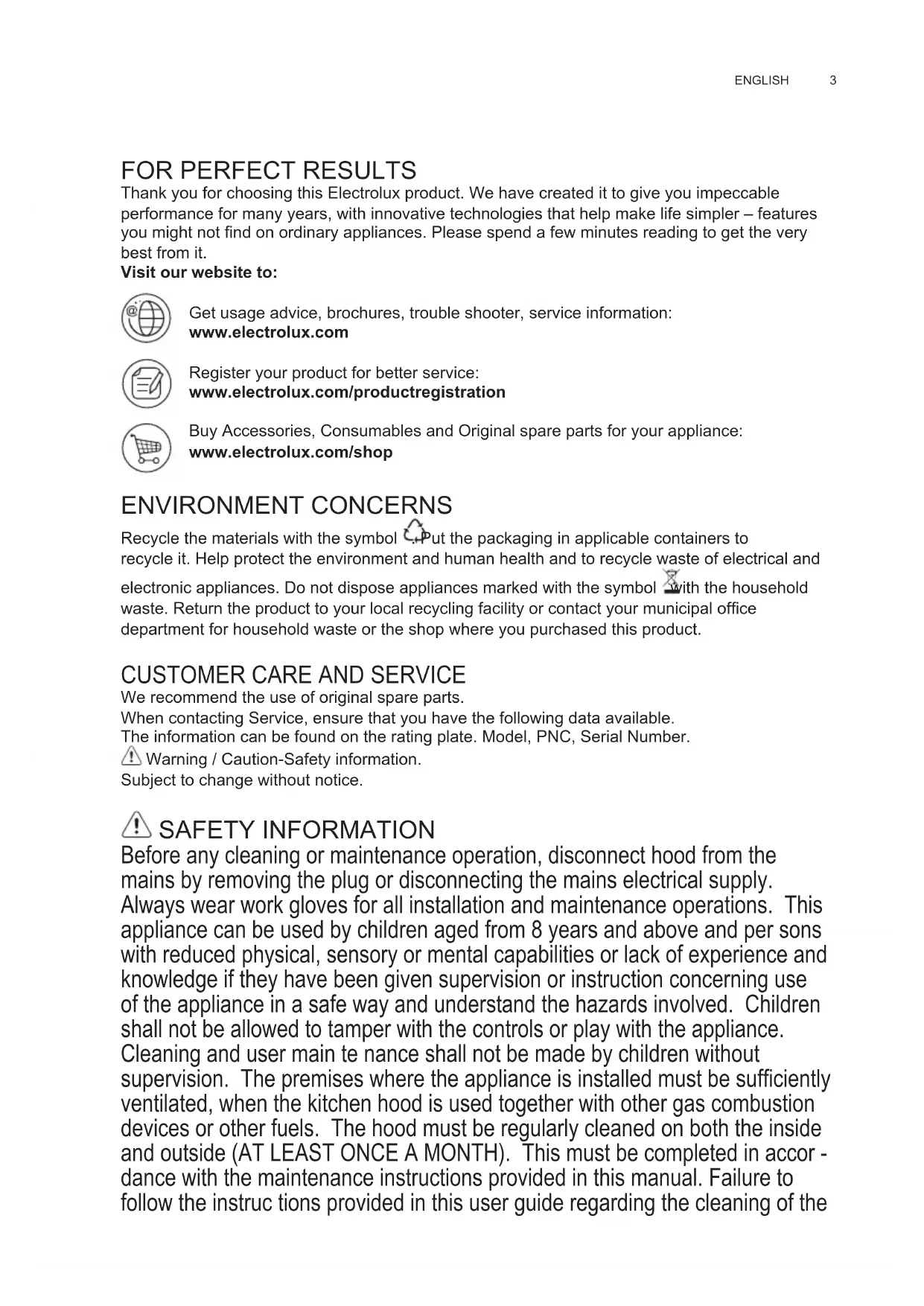

Thank you for choosing this Electrolux product We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not nd on ordinary appliances. Please spend a few minutes reading to get the very best from it Visit our website to: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop ENVIRONMENT CONCERNS Recycle the materials with the symbol Put the packaging in applicable containers to recycle it Help protect the environment and human health and to recycle waste of electrical and electronic appliances Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal ofce department for household waste or the shop where you purchased this product

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts When contacting Service, ensure that you have the following data available The information can be found on the rating plate Model, PNC, Serial Number Warning / Caution-Safety information Subject to change without notice SAFETY INFORMATION Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged from 8 years and above and per sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be allowed to tamper with the controls or play with the appliance. Cleaning and user main te nance shall not be made by children without supervision. The premises where the appliance is installed must be sufciently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accor - dance with the maintenance instructions provided in this manual. Failure to follow the instruc tions provided in this user guide regarding the cleaning of the EN USER MANUALwww.electrolux.com

hood and lters will lead to the risk of res. The aming of foods beneath the hood itself is severely prohibited. The use of exposed ames is detrimental to the lters and may cause a re risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite. CAUTION: Accessible parts of the hood may become hot when used with cooking appliances. For lamp replacement use only lamp type indicated in the Maintenance/ Replacing lamps section of this manual. WARNING! Do not connect the appliance to the mains until the installation is fully complete. When connecting the hood to the electrical network, only certied electrical adaptors are allowed and not power strips. 1.SAFETY INSTRUCTIONS With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks Never use the hood without effectively mounted grids The hood must NEVER be used as a support surface unless specically indicated. Use only the xing screws supplied with the product for installation or, if not supplied, purchase the correct screws type Use the correct length for the screws which are identied in the Installation Guide In case of doubt, consult an authorised service assistance centre or similar qualied person. WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards 2.USE The hood serves to aspirate the fumes and vapors resulting from cooking The attached installation manual indicates the version to be used depending on the model you have, the suction version with external evacuation or ltering with internal recirculation In some models ONLY: As optional accessory is supplied a Non return valve This should be installed inside the proper outlet hole housing in same cases only (ie: in any case there's no protection against accidental backdraft air current from the outside) 3.INSTALLATION The mains power supply must correspond to the rating indicated on the plate situated inside the hood If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation If it not tted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions Warning!Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled5 ENGLISH

4.1 Grease lter - The grease lter must

be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle When washed in a dishwasher, the grease lter may discolour slightly, but this does not affect its ltering capacity.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers If the instructions for installation for the gas hob specify a greater distance, this must be adhered to

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat lters) internally and externally. Clean using the cloth dampened with neutral liquid detergent Do not use abrasive products DO NOT USE ALCOHOL! Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the lters may cause re risks. Therefore, we recommend observing these instructions The manufacturer declines all responsibility for any damage to the motor or any re damage linked to inappropriate maintenance or failure to observe the above safety recommendationswww.electrolux.com

4.2 - NON-washable activated charcoal

lter The saturation of the charcoal lter occurs after more or less prolonged use, depend- ing on the type of cooking and the regularity of cleaning of the grease lter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal lter may NOT be washed or regenerated.

The hood is tted with a control panel with aspiration speed selection control and a light switch to control cooking area lights

medium (4.), maximum (5.), Intensive suction power (6) Use the high suction speed in cases of concentrated kitchen vapours It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking

Disconnect the hood from the electricity Warning! Prior to touching the light bulbs ensure they are cooled down Replace the damaged lamp Use E14 3W max LED lamps only For more details, check enclosed leaet “ILCOS D” (alfanumeric position “1d”)7 DEUTSCH
