USER MANUAL BIC3I GK IX3 PKM
- 5.3 Trouble shooting p. 46
- 6. Technical data p. 47
- 7. Waste management p. 48
- 8. Guarantee conditions p. 49

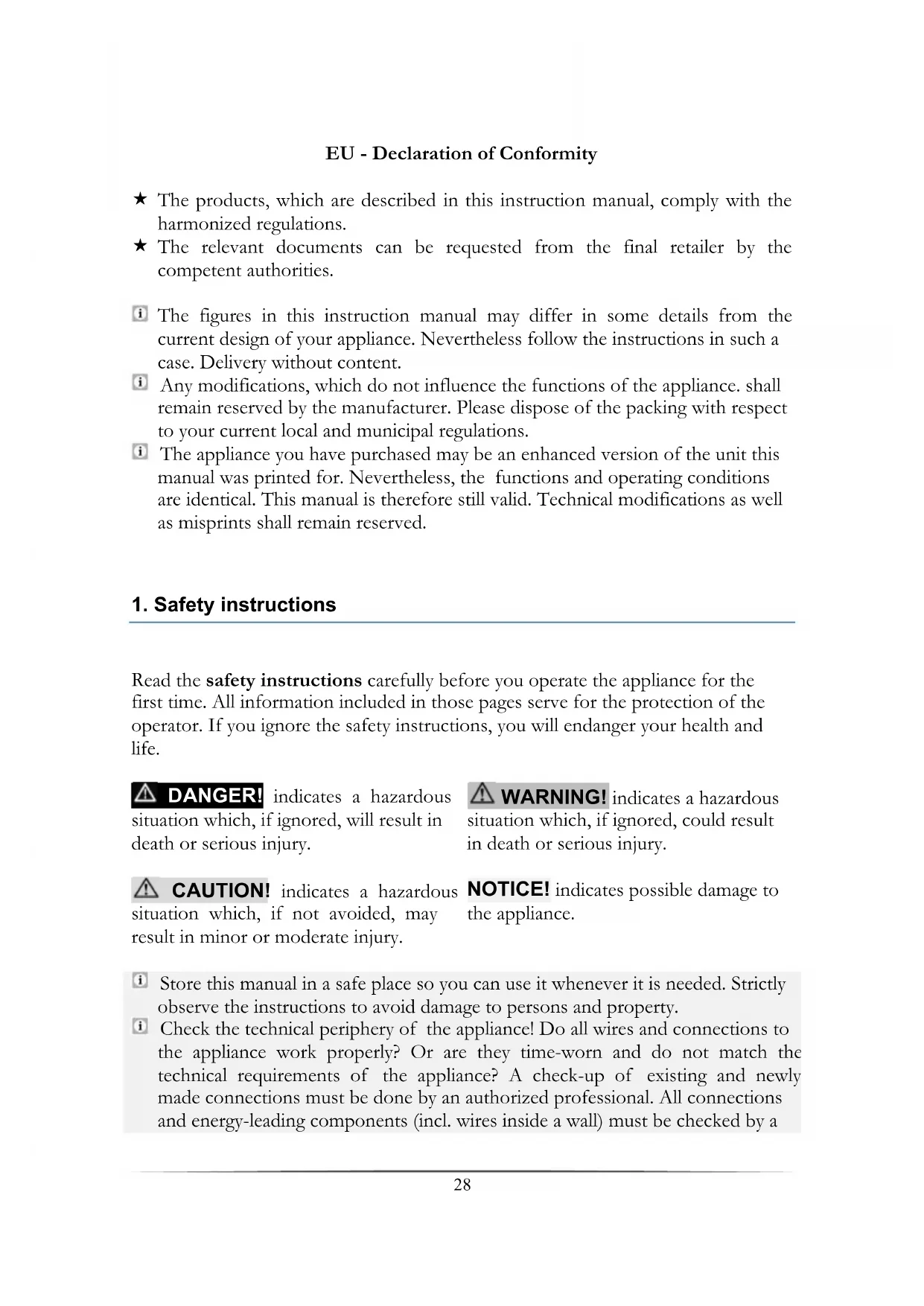

- 9. Installation drawing EU - Declaration of Conformity The products, which are described in this instruction manual, comply with the harmonized regulations. The relevant documents can be requested from the final retailer by the competent authorities. The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content. Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations. The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved. p. 9428
1. Safety instructions
Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life. DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury. WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury. CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE! indicates possible damage to the appliance.
Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property. Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly- made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a29 qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional. The appliance is intended for private use only. The appliance is intended for cooking in a private household only. The appliance is intended for indoor-use only. The appliance is not intended to be operated for commercial purposes, during camping and in public transport. Operate the appliance in accordance with its intended use only. Do not allow anybody who is not familiar with this instruction manual to operate the appliance. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user- maintenance must not be carried out by children unless they are supervised.
1. The appliance must be connected to the mains by a qualified professional, who
is familiar with and adheres to the local requirements and supplementary regulations of your electricity supplier
2. All electrical work must be carried out by a qualified professional. Do not
modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations
3. Do not connect the appliance to the mains if the appliance itself or the power
cord or the plug are visibly damaged.
4. Never try to repair the appliance yourself. If the appliance does not operate
properly, please contact the aftersales service. Original spare parts should be used only.
5. When the power cord is damaged, it must be replaced by the manufacturer or
an authorized aftersales service or a qualified professional only. WARNING!
1. Disconnect the appliance from the mains before you clean or maintain it.
2. The appliance must always be grounded and protected corresponding to the
requirements of your local energy supplier. The main current circuit must be equipped with a safety shut-down device.
3. All modifications to the electrical mains to enable the installation of the
appliance must be performed by a qualified professional.
4. In case of an event caused by a technical malfunction, disconnect the appliance
from the mains. Report the malfunction to your service centre so it can be30 repaired.
5. If the cooking zones are cracked or damaged in any way, switch off the
appliance immediately and disconnect it from the mains (fuse box). Risk of electric shock.
6. Do not carry out any modifications to your appliance.
7. Do not repair the appliance yourself. Repairs carried out by unauthorized
persons can cause serious damage. Always contact the nearest service centre. Only original spare-parts should be used for repairs.
8. Unattended cooking with fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket
9. The room the appliance is installed in must be dry and well-ventilated. When
the appliance is installed, an easy access to all control elements is required.
10. The veneering of cabinets has to be fixed with a heat-resistant glue, that is able
to withstand a temperature of 120
11. Adjacent furniture or housing and all materials used for installation must be able
to resist a temperature of min. 85
C above the ambient temperature of the room the appliance is installed in during operation.
12. Do not install the appliance in rooms or at areas which contain flammable
substances as petrol, gas or paint. This warning also refers to the vapour these substances release.
13. Cooker-hoods should be installed according to their manufacturers' instructions.
14. Do not heat your rooms or dry your washing by use of the appliance.
15. Do not install the appliance near to curtains or upholstered furniture. RISK OF
17. Household equipment and connection leads must not touch the hot oven or the
hob as the insulation material is usually not heat-resistant.
18. Never use a steam cleaner to clean the appliance. The steam will cause serious
damage to the electric components of the appliance. Risk of electrical shock!
19. The accessible parts of the oven become hot during operation, so keep children
away from the operating appliance. Touching the appliance while it is operating can cause serious burns.
20. Children must not play with the appliance. Always supervise children if they are
21. Only use hob guards designed by the manufacturer of the cooking appliance or
indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. CAUTION!
1. The appliance becomes hot while operating. Do not touch the hot components
2. Do not use any aggressive, abrasive and acrid detergents or sharp-edged items
to clean the door of the oven. Otherwise you may scratch the surface and damage the glass.
3. Do not put any cookware or backing trays directly on the base inside the oven.
Do not cover the base inside the oven with aluminium foil.
4. The hob should be clean at every time. Soiled cooking zones do not transfer the
5. Protect the hob against corrosion.
8. Do not leave pans with prepared dishes based on fats and oils unattended on a
operating cooking zone; hot fat can spontaneously catch fire.
9. Keep the door of the oven always closed if you use one of the oven-functions.
10. Do not put any cookware directly on the base inside the oven. Use the trays.
11. The interior parts of the oven become extremely hot. Do not touch any parts
inside the oven if you handle your cookware.
12. Be careful if you open the door. Do not get in contact with the hot parts of the
oven or the steam, which will escape the oven.
13. Always use oven-gloves.
14. This appliance complies with the current European safety legislation. We do
wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating. NOTICE
1. When you move the appliance, hold it at its base and lift it carefully. Keep the
appliance in an upright position.
2. Never use the door for moving the appliance as you will damage the hinges.
3. The appliance must be transported and installed by at least two persons.
4. When you unpack the appliance, you should take note of the position of every
part of the interior accessories in case you have to repack and transport it at a later point of time.
5. Do not operate the appliance unless all components are installed properly.
6. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
7. The air vents of the appliance or its built-in structure (if the appliance is
suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
8. Do not put heavy cookware on the hob.
9. Do not put any heavy items onto the open door of the oven. Do not put any
cookware onto the open door of the oven. Do not lean against the open door of the oven as you will damage the hinges.32
2.1 Unpacking and positioning
1. Unpack the appliance carefully. Dispose of the packaging as described in
chapter waste management.
2. Completely remove the transport-protection. Be very careful and do not use any
aggressive or abrasive detergents to remove residuals of the transport- protection.
3. Check that the appliance and the power cord are not visible damaged.
4. Do not install the appliance in a place where it may come in contact with water
or rain; otherwise the insulation of the electrical system will be damaged.
5. Install the appliance on a level, dry and solid floor. Check the correct
installation with a bubble level.
6. The nameplate is situated inside the appliance or at the back.

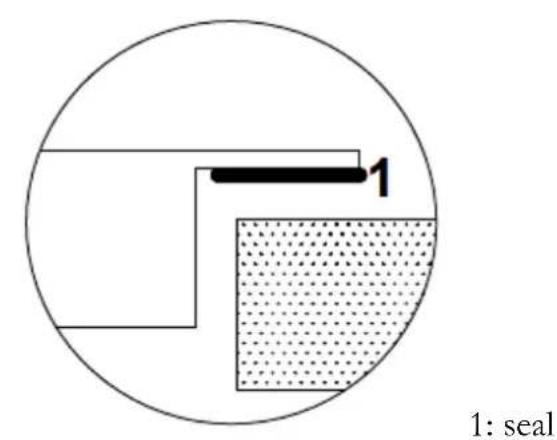

2.2 Installation/hob
The customer is responsible for the installation. If the manufacturer´s help is needed to repair any damage due to improper installation, this repair work is not covered by the guarantee. Improper installation may cause serious personal injuries and/or property damage. The manufacturer cannot be held liable for such injuries or damages.33

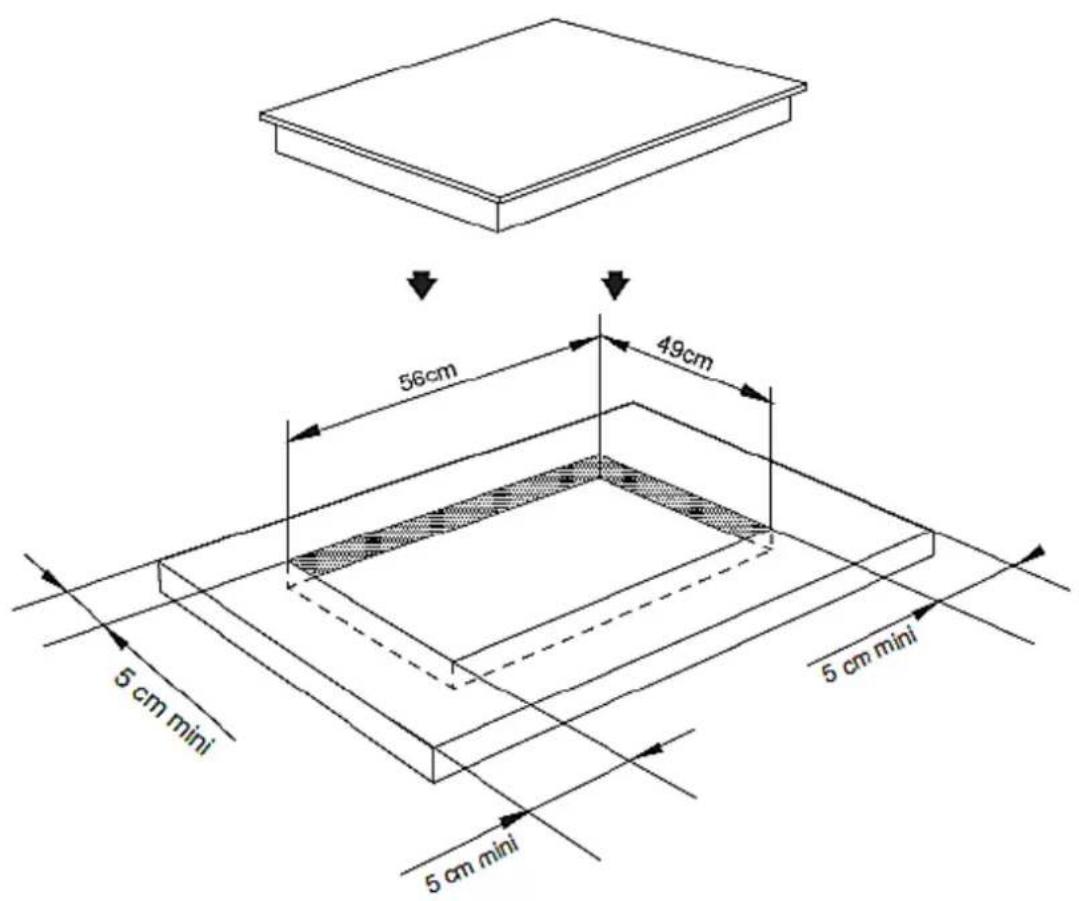

1. Provide an installation opening relevant to the dimensions on the drawing.
Ensure that there is free space of at least 50 mm around the installation opening. The thickness of the installation surface has to be at least 30 mm. Only use heat-resistant material to avoid deformation due to the heat emitted by the hotplates.

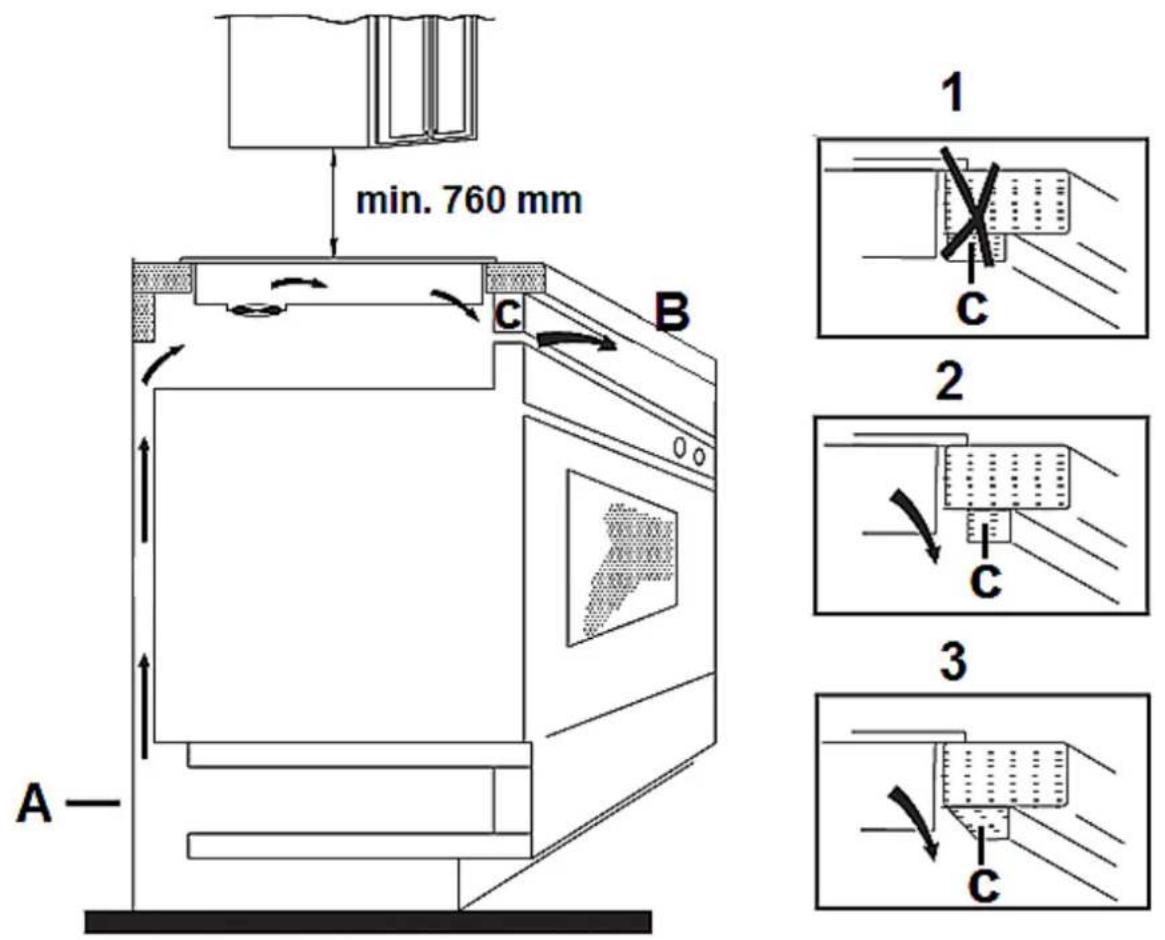

2. The hob must be ventilated properly. The air inlet (A) and outlet (B) must never
be blocked or covered. Always keep the appliance in proper condition. The top closing edge of the cabinet (C) must not be flush with the installation opening (1). Install the closing edge in offset positioning (2) or bevel the closing edge (3).
WARNING! Min. safety distance between hob and a cupboard above = 76 cm.35

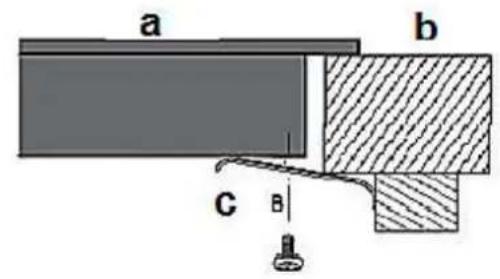

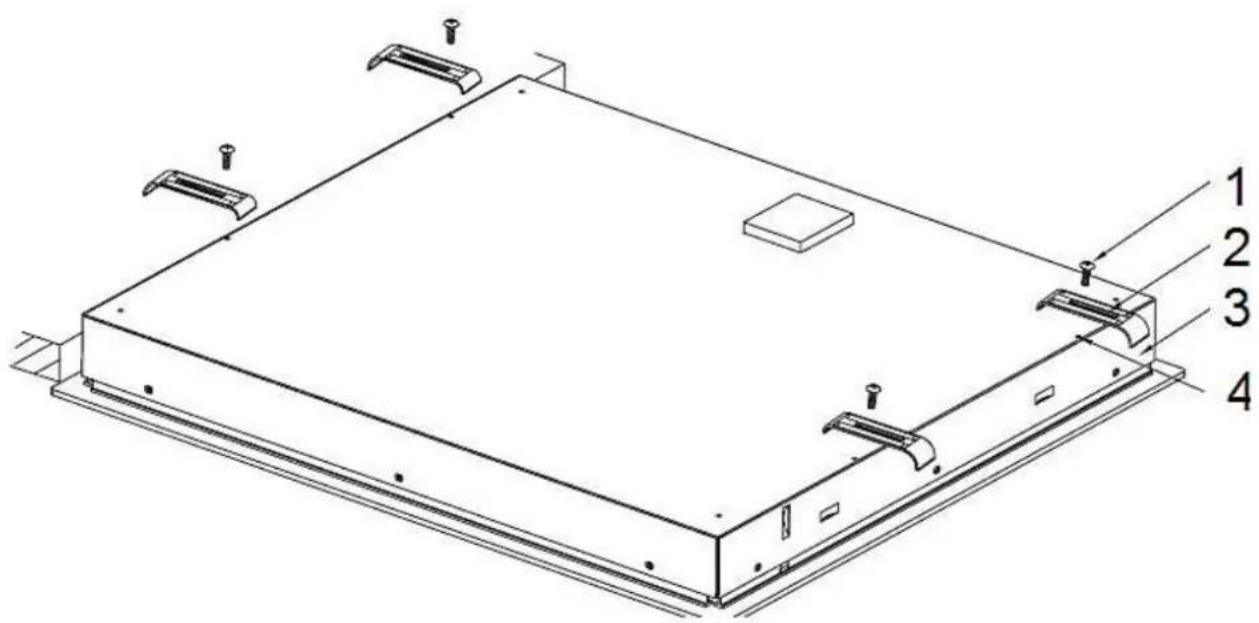

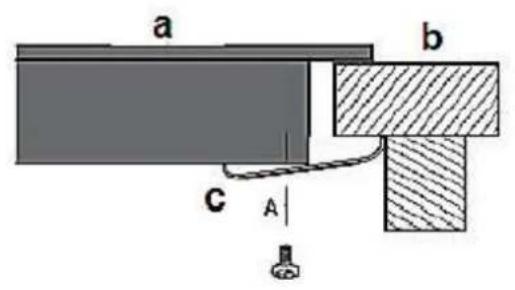

3. To fix the appliance screw the 4 brackets on the bottom of the hob. Adjust the

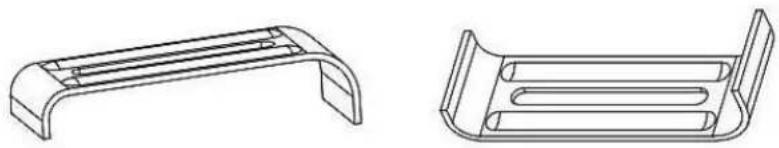

brackets relevant to the size of the installation surface. Standard brackets for installation:
NOTICE! Always use the supplied standard brackets for installation if possible. Alternative brackets for installation:
NOTICE! Only use the supplied alternative brackets if the dimensions of the worktop do not allow the use of the standard brackets.
Depending on model, you must connect the cable bundle of the hob to the control panel of the oven before finally fixing the oven. Insert the oven into its installation opening. You can install the oven below a worktop or in a suitable piece of furniture. Fix the oven via the two fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. You must meet the dimensions on the installation drawing (chapter 9) for proper ventilation. Free space of at least 45 mm on the back of the oven is required.
2.4 Electrical connection
DANGER! The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your electricity supplier. All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations
Instructions for the installer (qualified professional) Remember that the connection wire should match the connection type and the power rating of the cooker. The connection cable must be secured in a strain- relief clamp. The ground wire must be connected to the marked clamp of the terminal. The electric supply of the appliance must be equipped with an emergency switch with a distance between the contacts of at least 3 mm which disconnects the entire appliance from the mains in a case of emergency. Read the information on the rating label and the connection diagram before connecting the appliance to the mains.37 When the socket is not accessible for the user or a fixed electrical connection of the appliance is required, an all-pole disconnecting device must be incorporated during installation. Disconnecting devices are switches with a contact opening distance of at least 3 mm. These include LS-switches, fuses and protectors (EN 30335).

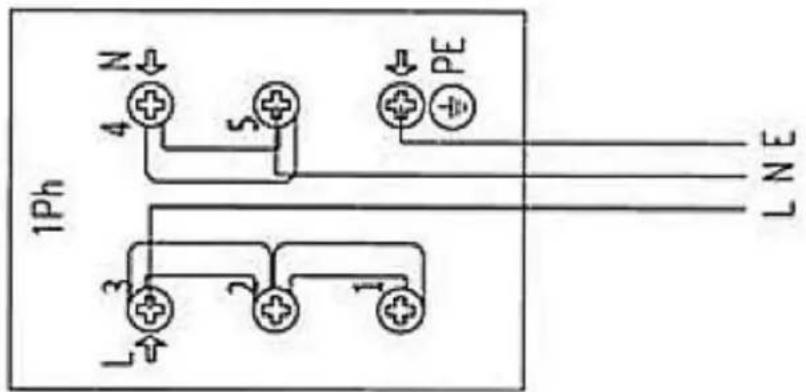

For 220-240 VAC mains single-phase connection with operating neutral conductor. Jumpers connecting the terminals 1-2-3. Jumpers to the terminals 4-5 for the operating neutral conductor. Protective conductor on

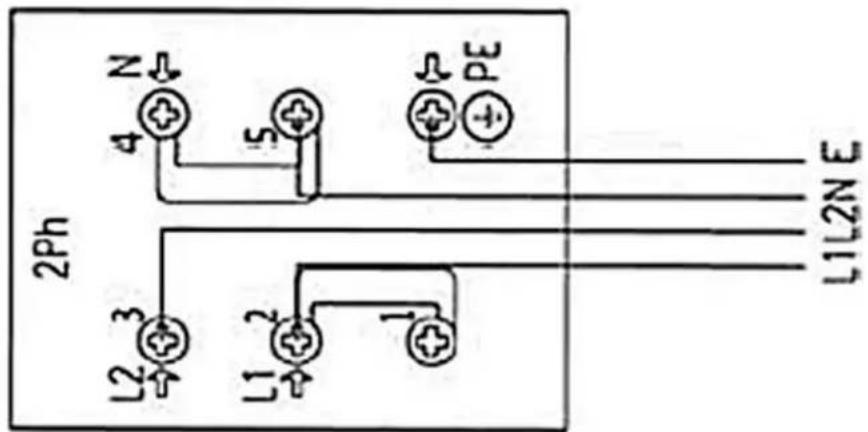

For 220-240 VAC mains two-phase connection with operating neutral conductor. Jumpers connecting the terminals 1-2. Jumpers to the terminals 4-5 for the operating neutral conductor. Protective conductor on

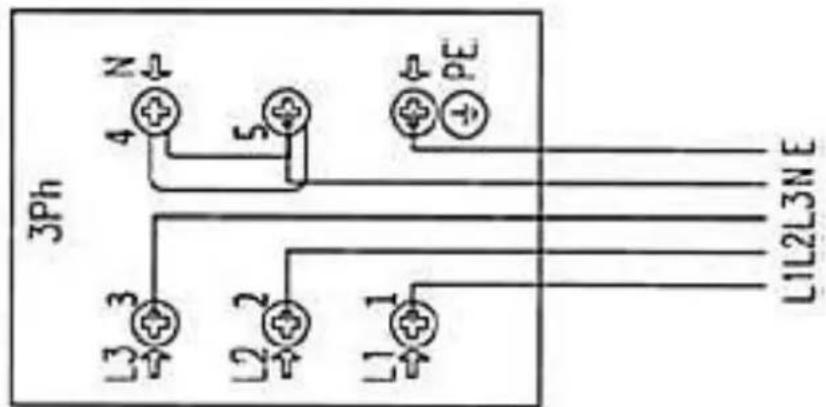

For 220-240 VAC mains three-phase connection with operating neutral conductor. Jumpers connecting the terminals 4-5. Phase sequence according to 1-2-3. Jumpers to the terminals 4-5 for the operating neutral conductor. Protective conductor on
1. Check that the technical data of your energy supply meet the values on the
2. Your domestic circuit must be equipped with an automatic circuit breaker.
3. The appliance has to be grounded properly.

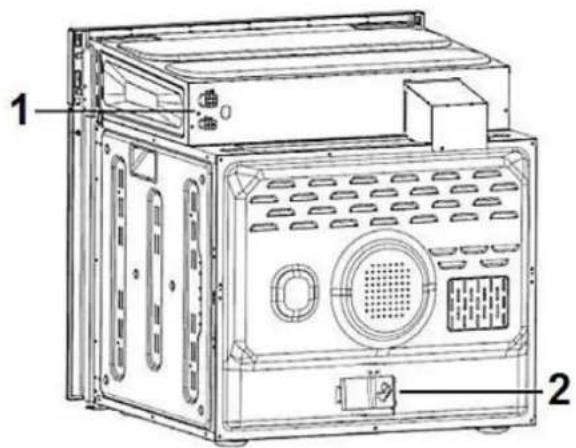

Hob connector; protective conductor
2.5 Electrical connection/hob
Connect the cable bundle of the hob to the relevant socket of the control panel of the oven.

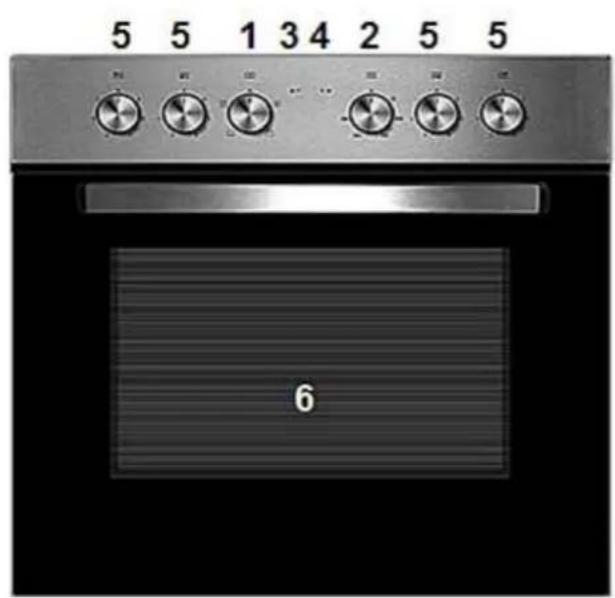

goes off as soon as the set temperature has been reached.
is on while a hotplate is used and goes off as soon as all hotplates have been switched off.40
2. Clean the oven inside and the supplied accessories with warm water and
3. Switch on the room ventilation or open a window.
4. Let the oven operate (250
C) for 30 minutes. A little bit of smoke and odour may be generated. This is normal. They are generated by the substance, that protects your appliance against damage caused by the shipment from the manufacturer's works.
5. NOTICE! Clean the oven with warm water and washing-up liquid

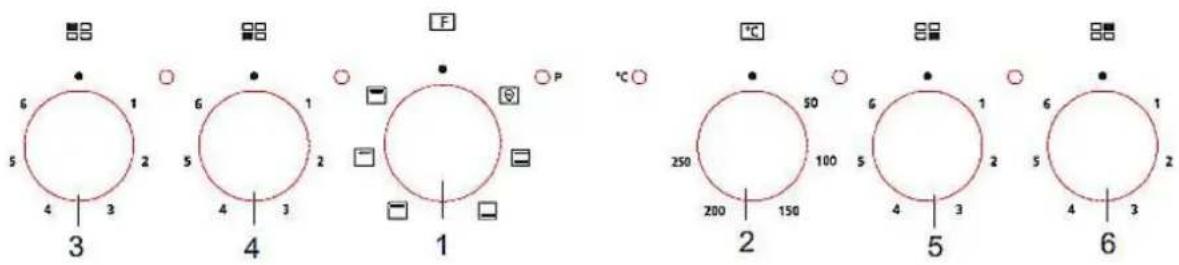

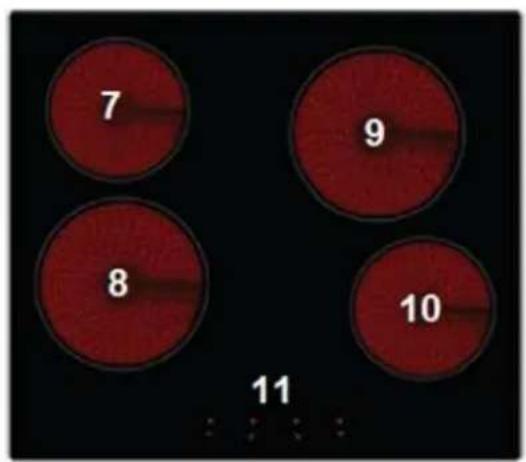

Cooking zone front left
Cooking zone front right
Cooking zone back right41
Put a cookware directly onto a cooking zone. Turn the corresponding knob clockwise or anticlockwise to switch on the hob. Turn the knob to position O/OFF/AUS to stop cooking.
Location of the cooking zone.
Lowest setting (e.g. to keep meals warm etc.).
Highest setting (quick heating, quick cooking, roasting etc.)
Set the control back to OFF immediately after cooking.
Use cookware with a flat base only.
The base of the cookware should meet the diameter of the cooking zone. Centre the cookware on the cooking zone.
Do not push the cookware while cooking. Lift the cookware if you want to move it; otherwise you can damage the cooking zone.
The operation of the oven is controlled by the oven function knob .To set a function you should turn the knob to the desired position.
To select a temperature, use the temperature regulator knob to set the desired temperature. You can set the temperature within a range of 50-250℃. The oven can be switched off by setting both of these knobs to position .42 CAUTION! Turn the temperature control knob in clockwise direction only. After you have set a temperature, you can turn the knob back to its home position. Otherwise you may damage the temperature control knob.
Functions of the oven
interior light switches separately on the interior light of the oven, e.g. for cleaning the oven inside.
top heat on switches on the top heater of the oven, e.g. for final backing from above.
bottom heat on switches on the bottom heater of the oven, e.g. for final backing from the bottom.
top heat and bottom heat on allows the oven to be heated conventionally.
We recommend to use the supplied baking tray provided with your appliance. It is also possible to bake in cake tins and trays bought somewhere else. For baking it is better to use black trays which conduct heat better and shorten the baking time. Shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters).The use of such tins can result in under-cooking the base of cakes. Before you take a cake out of the oven, check that it is ready using a wooden stick (when the cake is ready the stick should come out dry and clean after having been inserted in the cake). When switching off the oven leave the cake inside for about 5 minutes. Cook meat with a weight of more than 1 kg in the oven. Cook smaller pieces of food on the hob. Use oven-proof cookware only. Check that their handles also are oven-proof. When you cook meat on a grillage, insert a drip tray with a small amount of water in the oven (minimum rack height). Turn over meat at least once. Never pour cold water on the meat.43
4.6 How to save energy
Use proper cookware for cooking. Cookware with thick, flat bases can save up to1/3 of electric energy. Remember to cover your cookware if possible; otherwise you will use four times as much energy! Match the size of the cookware to the surface of the heating plate. A cookware should never be smaller than a heating plate. Ensure that the heating plates and the cookware are clean. Soils prevent heat-transfer. Repeatedly burnt-on spillages can often be removed by products, which will damage the environment, only. Do not uncover the cookware too often (a watched pot-content will never boil!). Do not open the oven door unnecessarily often. Switch off the oven in good time and make use of the residual heat. For long cooking times, switch off the heating zones 5 to 10 minutes before you will finish cooking. This saves up to 20% of energy. Only use the oven when cooking larger dishes. Meat of up to 1kg can be cooked more economically in a pan on the hob. Make use of the residual heat of the oven. lf the cooking time takes longer than 40 minutes switch off the oven 10 minutes before. Make sure the oven door is closed properly. Heat can escape through spillages on the door seals. Clean up any spillages immediately. Do not install the cooker near of refrigerators/freezers. Otherwise the energy consumption increases unnecessarily.44
5. Cleaning and maintenance
WARNING! Switch off the appliance and let it cool down before cleaning. Disconnect the appliance from the mains before maintenance.
Hob Clean the hob after use. Clean the glass-ceramic with a commercially available detergent for glass- ceramic. Use a special sponge and warm water. Remove residuals on the glass-ceramic with a soft cloth. Do not scrub the glass-ceramic. Remove residuals with a silicon-made scraper, which is suitable for glass- ceramic. Such scrapers are commercial available. Detergent Do not use any abrasive detergents! Do not use any organic detergents!
Do not use essential oils! Never use solvents. Oven Clean the oven after use. Switch on the internal light while cleaning. Clean the interior with warm water and a little bit of washing-liquid. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents. Dry after cleaning. Clean the outside of the oven with warm soapy water. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents. If you use a special oven-detergent, check that the detergent is suitable for your appliance ( instructions on the packaging of the detergent). Any damage that is caused to the appliance by a cleaning product will not be fixed free of charge, even if the guarantee period of the appliance is still valid. Never use a steam cleaner. Oven-door Clean the door very carefully. Do not use any abrasive detergents; otherwise you may damage or brake the glass. Use wash-up liquid and warm water.
Detergents such as vinegar, citric acid etc.45
5.1 Replacing of the illuminant
1. WARNING! Switch off the appliance and disconnect it from the
2. Remove the illuminant and replace it by a new one of the same kind and power:
Heat-proof illuminant for ovens (300
According to the EU regulation No. 244/2009, your appliance is classified as a household appliance in accordance with the ecodesign requirements for non- directional household lamps. This means that bulbs, which are used in household appliances, must not be used to illuminate domestic establishments.

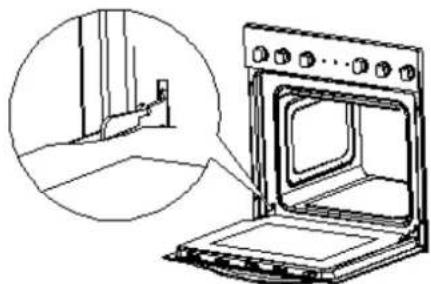

5.2 Removing of the door

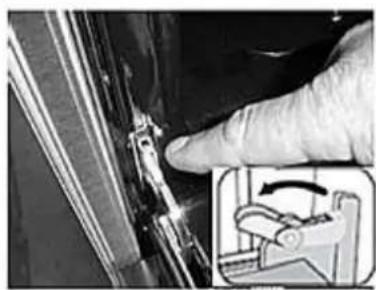

2. Open the catch levers of the hinges
angle. Hold the door with both hands. Remove the door by pulling it out of its hinges (toward you).
4. When reinstalling proceed in reverse order.
5. Do not reach into the hinges while removing the door. RISK OF INJURY!46

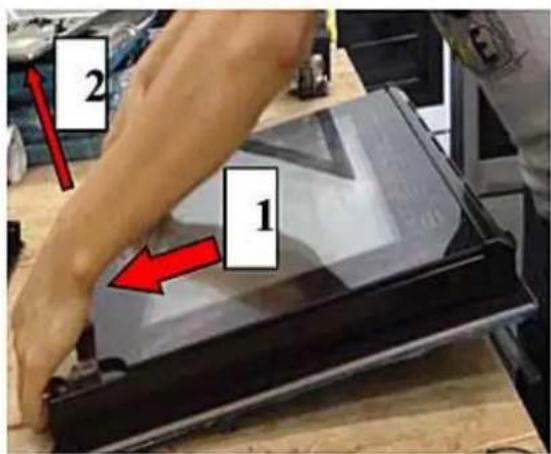

Removing of the inner glass panel

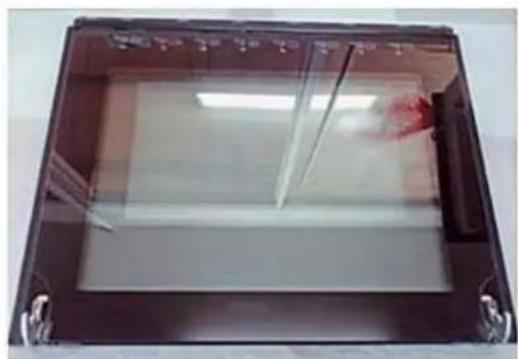

1. Unscrew and release the locking
device located in the edge on the top of the door.

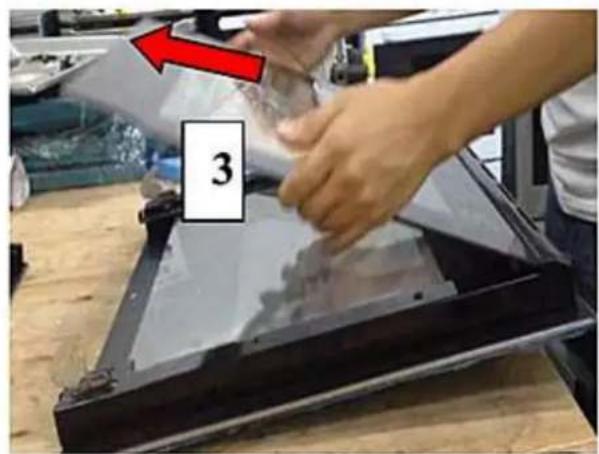

2. Push the glass panel in the direction of the arrow (1) and remove the glass panel
(2/3). Store carefully!
3. Clean both sides of the glass panel using a suitable, mild detergent.
4. Install the glass panel and block it.
5. Reinstall the locking device.
5.3 Trouble shooting
Periodical controls:
1. Carry out periodic inspections of the control elements and cooking units of the
cooker. After the guarantee has expired you should provide a technical inspection of the cooker carried out at a service centre at least once every two years.
2. All malfunctions should be repaired immediately.47
1. Switch off the entire appliance.
2. Disconnect the appliance from the mains (fuse box of your household power
3. Contact your aftersales service.
Check the schedule below before you contact your aftersales service. MALFUNCTION POSSIBLE CAUSES MEASURES
Appliance does not work at all. The appliance is not supplied with energy. Check the relevant fuse in the fuse box of your household power supply. Internal light does not work. The illuminant is loose or damaged. Tighten or replace the illuminant.
Model Built-in oven and hob Control panel Stainless steel Material hob Ceramic glass Diameter cooking zones 2*200 mm, 2*165 mm Residual heat indicator
Voltage/ Frequency 220-240VAC/50Hz Energy consumption/conventional operation
1. While unpacking, the packaging materials (polythene bags, polystyrene pieces,
etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible
recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the
appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these
materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal
Materials marked with this symbol are recyclable. Please contact your local authorities to receive further information.49
8. Guarantee conditions
for large electric appliances; PKM GmbH & Co. KG, Neuter Wall 2, 47441 Moers This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material- components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property. The guarantee claim does not cover:
1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized
condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product
unless a liability is forced by legal regulations. The validity of the guarantee will be terminated if:
1. the prescriptions of the installation and operation of the appliance are not
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but
2.3 Installation/four
Aftersales service information on the leaflet inside this instruction manual.
