Features	Details
Brand	TIMEX
Model	Easy Reader T2N5259J
Movement Type	Quartz
Display	Analog
Case Diameter	38 mm
Case Material	Stainless Steel
Dial Color	White
Strap Type	Leather
Strap Width	20 mm
Water Resistance	30 meters
Additional Features	Stopwatch, date
Usage	Ideal for daily and casual use
Maintenance	Clean with a soft cloth, avoid prolonged exposure to water
Repair	Battery replacement recommended every 1 to 2 years
Safety	Avoid strong shocks, do not expose to extreme temperatures
General Information	2-year warranty, TIMEX customer service available

Frequently Asked Questions - Easy Reader T2N5259J TIMEX

How do I set the time on my TIMEX Easy Reader T2N5259J watch?

To set the time, pull the crown located on the side of the watch to the first position. Turn the crown to adjust the time. Once the correct time is set, push the crown back to its original position.

My watch is not working, what should I do?

First, check if the battery needs to be replaced. If the watch still does not work after replacing the battery, contact a professional for repair.

How do I clean my TIMEX Easy Reader watch?

Use a soft, damp cloth to clean the case and strap. Avoid harsh chemicals that could damage the materials.

Is the watch water resistant?

Yes, the TIMEX Easy Reader T2N5259J is water resistant up to 30 meters. This means it can withstand splashes and occasional immersion in water, but it should not be used for swimming or diving.

How do I change the strap on my watch?

To change the strap, use a spring bar removal tool to remove the spring bars holding the strap in place. Then install the new strap by reversing the process.

Where can I find the warranty for my TIMEX watch?

The warranty is usually included in the watch packaging. If you cannot find it, check the TIMEX website or contact their customer service for more information.

How do I adjust the strap if my watch is too big?

You can adjust the strap by removing links. Use a link removal tool to take out the extra links. If you are not comfortable, consult a jeweler.

What is the battery life of my watch?

Battery life varies depending on usage, but generally it can last between 1 and 3 years. It is recommended to have it checked regularly.

Does the watch have an alarm function?

No, the TIMEX Easy Reader T2N5259J does not have an alarm function. It is a classic analog watch without additional features.

USER MANUAL Easy Reader T2N5259J TIMEX

Register your product at https://www.timex.com/product-registration.html

Congratulations on purchasing your TIMEX® watch. Please read these instructions carefully to understand how to operate your Timex timepiece.

Your watch may not have all of the features described in this booklet. For more information, please visit: www.timex.com

HOW TO START YOUR WATCH

Quartz Movement: To start your watch remove the plastic guard from under the crown, then press the crown in against the case. The second hand will begin advancing in one-second intervals.

Some deep-depth water-resistant watches require the setting crown to be screwed in to secure water-resistance. If your watch case has a protrusion with screw threads, the crown must be screwed in after setting the watch.

To screw in, push the crown firmly against the threaded protrusion and hold in while turning the crown clockwise. Continue to screw in the crown until it is tight. You will need to unscrew the crown (counter-clockwise) before pulling it out the next time you want to set your watch.

Solar Movement: The watch includes a solar cell that charges its battery. Expose the watch in direct sunlight, sunlight through a window, or artificial (indoor) lighting to charge the battery prior to use. When fully charged, the watch may function without additional charging for up to 2 months.

To start your watch, remove the plastic guard from under the crown, then press the crown in against the case. The second hand will begin advancing in one-second intervals.

Charging happens faster while in direct sunlight and slower when indoors. A depleted battery may be charged by exposing the dial to sunlight for several days. Wear watch so that the sleeve does not cover all or part of the dial and impede charging. Store watch where it will be exposed to light or the battery will run down and require a full charge. See the table below for more information.

WARNING: Leaving the watch in direct sunlight or close to a lamp may cause the watch to become hot. Handle with care.

After many years of use, if the battery becomes unable to charge fully, it may be replaced with a new rechargeable battery of the same type. Please see BATTERY section for details.

Illumination (Lx)	Light Source	Environment	Full Charge from Empty	Charge for One Day's Operation
700	Fluorescent Light	Office Lighting N/A	100 Minutes
3,000	Incandescent Light	150W Lamp (8" / 20cm distance)	60 Hours 25	Minutes
10,000 Sunlight		Cloudy Weather	20 Hours 8	Minutes
100,000 Sunlight Clear Weather		5 Hours 2 Minutes

Hand-wind Movement: To start your watch remove the plastic guard from under the crown, set the Time and Date (if applies) then press the crown in against the case. Slowly turn the crown clock-wise until you feel resistance. You should hear the watch "ticking" and the second hand will begin to move. If the watch stops in the next 24 hours, you should increase the amount of clock-wise turns of the crown during the winding process until you find the watch will work for 24 hours without stopping. You should wind the watch each 24-hour period at approximately the same time of day to ensure the watch does not become fully un-wound and stops. If the watch stops, follow the instructions to set the Time and Date (if applies), and wind to start the watch again.

WATER AND SHOCK RESISTANCE

If your watch is water-resistant, meter marking or ( ≈ ) is indicated.

Water-Resistance Depth p.s.i.a. * Water Pressure Below Surface
30m /98ft 60
50m /164ft 86
100m /328ft 160
200m /656ft 284

*pounds per square inch absolute

WARNING: TO MAINTAIN WATER-RESISTANCE, DO NOT PRESS ANY BUTTONS OR PULL OUT THE CROWN UNDER WATER UNLESS YOUR WATCH IS INDICATED AS 200 METER WATER-RESISTANT.

1. Watch is water-resistant only as long as lens, push buttons and case remain intact.
2. Watch is not a diver watch and should not be used for diving.
3. Rinse watch with fresh water after exposure to salt water.
4. Shock-resistance will be indicated on watch face or caseback. Watches are designed to pass ISO test for shock-resistance. However, care should be taken to avoid damaging crystal/lens.

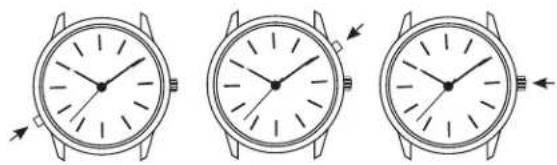

Press button or crown to activate light. Electroluminescent technology used in the INDIGLO® night-light illuminates entire watch face at night and in low light conditions.

Three identical line drawings of a wristwatch with hour and minute hands, shown from different angles (no text or symbols)

DATE MODELS

TO SET TIME:

1. PULL crown all the way out and turn to correct time.
2. Push crown in to restart. For screw-in setting crown, push crown in while turning CLOCKWISE to tighten.

Watches with date: Note correct time of day (A.M or P.M.) for proper date function.

TO SET DAY:

1. PULL crown to "middle" position and turn CLOCKWISE until correct day appears. If day does not change, pull crown to "out" position and turn CLOCKWISE or COUNTERCLOCKWISE through necessary number of 24 hour periods until correct day appears.

DATE C3 A CROWN POSITION

TO SET "QUICKDATE®" FEATURE:

3-POSITION CROWN:

1. Pull crown to "Middle" position and turn CLOCKWISE or COUNTERCLOCKWISE until correct date appears.

2-POSITION CROWN:

1. Pull crown to "OUT" position and turn CLOCKWISE until date changes. Repeat until correct date appears. Adjust date when month has less than 31 days. Push crown in when finished.

Caution: Wearing or storing the watch with the crown in the "middle" position will cause damage to the movement. Always return the crown to the normal position, or if you wish to save the battery life while storing the watch, leave the crown in the "out" position.

TIMEX

The date function advances the date between the hours of 10 PM and 2 AM. Avoid setting the date during this timeframe. If you attempt to set the date during this time period, rotate the crown at a very slow rate to avoid damaging the watch.

DAY / DATE MODELS

TO SET THE TIME:

1. PULL the crown out to the "C" position.
2. TURN the crown either way to the correct time.
3. PUSH in the crown to the "A" position.

TO SET THE DATE:

1. PULL the crown out to the "B" position.
2. TURN the crown either way to the correct date.
3. PUSH in the crown to the "A" position.

TO SET THE DAY:

1. PULL the crown out to the "C" position.
2. TURN the crown either way for full 24 hour cycle to set day.
3. PUSH the crown in to the "A" position.

TO SET THE BILINGUAL DATE:

If your watch is equipped with a bilingual day display, you may select the desired language by advancing the day display.

1. PULL the crown out to the "C" position.
2. Repeatedly move the time back to 11pm and forward to 4am until you see the current day displayed in the desired language.
3. PUSH the crown in to the "A" position.

DATE CROWN POSITION

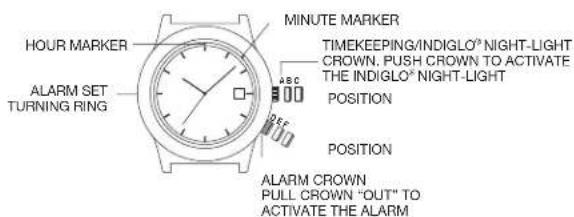

EASY SET ALARM

HOUR MARKER ALARM SET TURNING RING MINUTE MARKER TIMEKEEPING/INDIGLO® NIGHT-LIGHT CROWN. PUSH CROWN TO ACTIVATE THE INDIGLO® NIGHT-LIGHT POSITION POSITION ALARM CROWN PULL CROWN "OUT" TO ACTIVATE THE ALARM

EASY SET ALARM WITH DATE & INDIGLO® NIGHT-LIGHT

1. From the "A" position, PUSH the TIMEKEEPING CROWN in (towards the watch case) to activate the INDIGLO® Night-Light and illuminate the watch dial.

EASY SET ALARM DATE & TIME SETTINGS

TO SET THE DATE:

1. With the TIMEKEEPING CROWN in the "B" position TURN the TIMEKEEPING CROWN or TURNING RING in either direction to set the date.

TO SET THE TIME:

1. With the TIMEKEEPING CROWN in the "C" position TURN the TIMEKEEPING CROWN or TURNING RING in either direction to set the time.

EASY SET ALARM SETTINGS

1. Your easy set alarm watch is equipped with two types of alarms:
2. 12-Hour Alarm: rings OR vibrates twice per day at the desired hour and minute as long as the alarm is activated. (Alarm crown must be in "E" position.)
3. Hourly Alarm: rings OR vibrates every hour at the desired minute if activated. (Alarm crown must be in "F" position.)

TO SET THE 12-HOUR ALARM:

1. With the ALARM CROWN in the "D" position, TURN the ALARM CROWN or TURNING RING in either direction to set the hour and minute alarm markers. To activate the alarm to ring or vibrate at the desired time, PULL the ALARM CROWN out to the "E" position. A single beep sound and flash, OR a vibration will indicate that the 12-Hour Alarm is activated.
2. The alarm will sound and the dial will flash OR vibrate at the desired time (hour and minute) and will repeat every twelve hours unless the alarm is deactivated.

NOTE: Alarm is deactivated when the ALARM CROWN is in the "D" position. If the alarm is not deactivated it will automatically stop ringing after 20 beeps and flashes OR stop vibrating, and will resume in 12 hours at the indicated time.

TO SET THE HOURLY ALARM:

1. With the ALARM CROWN in the "D" position, TURN the ALARM CROWN or TURNING RING in either direction to set the minute alarm marker.
2. To activate the alarm to ring or vibrate at the desired minute, PULL the ALARM CROWN out to the "F" position. Three beops sound and flash OR a vibration indicates the Hourly Alarm is activated.
3. The alarm will sound and the dial will flash OR vibrate at the desired minute and will repeat every hour on the specified minute unless the alarm is deactivated.

NOTE: Alarm is deactivated when the ALARM CROWN is in the "D" position.

If the alarm is not deactivated it will automatically stop ringing after 20 beeps and flashes OR stop vibrating, and will resume again in one hour at the indicated minute.

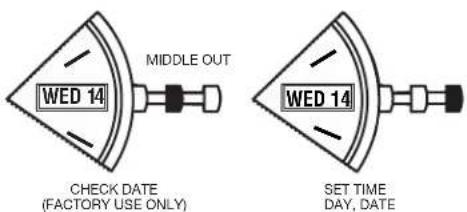

PERPETUAL CALENDAR

Your Perpetual Calendar watch accurately keeps track of how many days are in each month. It also adjusts for leap years. The date on your watch (including the month and year) was preset at the factory to Eastern Standard Time, Greenwich Mean Time or Hong Kong Standard Time (depending on where you purchased your watch). You only need to adjust the time.

MIDDLE OUT WED 14 CHECK DATE (FACTORY USE ONLY) WED 14 SET TIME DAY, DATE

TO SET TIME

To set time, simply pull crown all the way out and turn. Day and date change automatically when time is adjusted past midnight; there is no additional step for setting day or date. Push crown in when done.

After setting, if date changes at noon, time needs to be adjusted ahead or back 12 hours.

If crown is accidentally put in MIDDLE position and turned, date display will change temporarily, but date setting is unaffected. Simply pull crown all the way out and set time. Proper date display will resume.

PERPETUAL CALENDAR WATCH

FREE LIFETIME BATTERY REPLACEMENT\*\*

If the battery needs to be changed, we recommend that only TIMEX replace it. Your watch will need to be recalibrated to correct time and date after changing the battery. To return your watch to Timex, visit the retailer where you purchased your watch or go to http://www.timex.com/product!Warranty.html for information on contacting Timex.

** Shipping & handling charges apply.

NEVER INCLUDE A SPECIAL WATCHBAND OR ANY OTHER ARTICLE OF PERSONAL VALUE IN YOUR SHIPMENT.

TIMEX

ELAPSED TIME RING

If your watch is equipped with a rotatable outer ring on the face, with numbers corresponding to minutes, you can use this Elapsed Time Ring to time an activity from the start, or to mark the ending time for the duration of an activity.

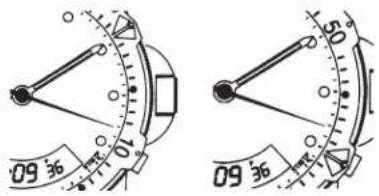

TO TIME AN ACTIVITY FROM THE START:

Set the Start/Stop triangle at the time (hour or minute) when you start the activity (As shown on the left in the illustration shown below). At completion, you can see how long the activity took.

09 36 50 09 36

TO MEASURE THE TIME REMAINING:

Set the triangle to the hour or minute position when you wish to complete the activity, and check the watch periodically for progress towards that goal.

In the illustration shown on the previous page on the right you can stop when the minute hand reaches the 20 minutes past the hour position.

TACHYMETER RING

The tachymeter feature can be used to measure speed in miles per hour (MPH), nautical miles per hour (knots) or kilometers per hour (KPH) using the sweep second hand and the scale on the wall above the watch face. You need to know the actual distance you are covering in miles or km.

Start the chronograph with the second hand at zero (the twelve o'clock position). Within the first minute, the second hand will point to the rate for a one-mile (or one kilometer) course: if it takes 45 seconds, the hand will point to 80 at that position - 80 MPH or 80 KPH.

If within the first minute, a distance greater than one mile or kilometer is covered, multiply the tachymeter number by the distance to get the actual rate: if you went 1.2 miles in 45 seconds, multiply the 80 by 1.2–96 MPH.

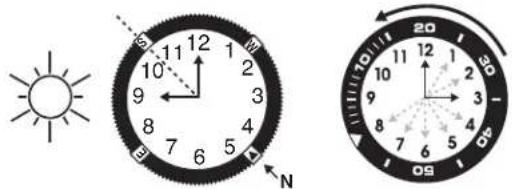

COMPASS RING

If your watch is equipped with a movable ring around the dial marked at the letters "N", "E", "W", "S" (for the four compass directions) or compass degrees, you can use this feature to find an approximate compass directionalreading.

1. Lay the watch on a flat surface, or hold it so that the face is parallel to the ground.
2. Locate the sun and point the hour hand at the sun.
3. In the A.M., rotate the ring until the "S" (south) marker is halfway between the hour hand and 12:00 (after the hour hand or within the shortest distance between the hour hand and 12:00).
4. In the P.M., rotate the ring until "S" is before the hour hand and halfway between the hour hand and 12:00.

Weather icon and analog compass showing sun, hour, minute, and minute hands with degree markings

HOW TO ADJUST BRACELET

(Variations of the following bracelet sections apply to all watch models).

SLIDING CLASP BRACELET

1. Open locking plate.
2. Move clasp to desired bracelet length.
3. Exert pressure while holding locking plate and slide clasp back and forth until it engages in grooves on underside of bracelet.
4. Press locking plate down until it snaps closed. Clasp can be damaged if excessive force is used.

Illustration of a mechanical device emitting a triangular blade, with an arrow indicating direction (no text or symbols)

FOLDOVER CLASP BRACELET

1. Find spring bar that connects bracelet to clasp.
2. Using a pointed tool, push in spring bar and gently twist bracelet to disengage.
3. Determine wrist size, then insert spring bar in correct bottom hole.
4. Push down on spring bar, align with top hole and release to lock in place.

Three sequential diagrams showing structural deformation of a curved bridge or cable, with arrows indicating direction of movement (no text or symbols present)

FIG. 1 FIG. 2 FIG. 3

BRACELET LINK REMOVAL REMOVING LINKS:

1. Place bracelet upright and insert pointed tool in opening of link.
2. Push pin forcefully in direction of arrow until link is detached (pins are designed to be difficult to remove).
3. Repeat until desired number of links are removed.

RE-ASSEMBLY:

1. Rejoin bracelet parts.
2. Push pin back into link in opposite direction of arrow.
3. Press pin down securely into bracelet until it is flush.

Diagram showing mechanical assembly steps with no visible text or symbols

BATTERY

Timex strongly recommends that a retailer or jeweler replace battery. Battery type is on watch back. If present, push/short internal reset switch after replacing battery. Battery life estimates are based on certain assumptions regarding usage; battery life may vary depending on actual usage.

DO NOT DISPOSE OF BATTERY IN FIRE. DO NOT RECHARGE. KEEP LOOSE BATTERIES AWAY FROM CHILDREN.

TIMEX INTERNATIONAL WARRANTY

http://www.timex.com/productWarranty.html

©2019 Timex Group USA, Inc. TIMEX, INDIGLO and QUICKDATE are registered trademarks of Timex Group B.V. and its subsidiaries.

TIMEX

Luz nocturna INDIGLO®

Three identical line drawings of a wristwatch with hour and minute hands, shown from different angles (no text or symbols)

MODELOS CON FECHA

PARA FIJAR LA HORA:

Weather icon and compass diagram showing sun, hour, minute, and second dial with directional arrows

CÓMO AJUSTAR LA PULSERA

Diagram of a mechanical device with a rotating arrow and mesh blades (no text or symbols)

PULSERA CON BROCHE PLEGABLE

Three sequential line drawings of a curved structural component with internal components, showing progressive assembly (no text or symbols)

FIG. 1 FIG. 2 FIG. 3

Diagram showing mechanical assembly steps with arrows indicating motion (no text or labels)

PILA

Three identical line drawings of a wristwatch face showing hand positioning and dial orientation (no text or symbols)

MODÈLES AVEC AFFICHAGE DE LA DATE POUR RÉGLER L'HEURE :

Weather icon and compass diagram showing sun, directional compass, and hour/minute hands

COMMENT AJUSTER LE BRACELET

Diagram of a mechanical device emitting force or material, with an arrow indicating direction (no text or symbols present)

BRACELET À FERMOIR DÉPLIANT

Technical line drawings of three mechanical components or assemblies, showing structural details without any text or symbols.

FIG. 1 FIG. 2 FIG. 3

DÉMONTAGE DE MAILLONS DU BRACELET DÉMONTAGE DE MAILLONS :

Diagram showing mechanical assembly steps with labeled components and directional arrows

PILE

LUZ NOTURNA INDIGLO®

Three identical line drawings of a wristwatch with hour and minute hands (no text or symbols)

MODELOS COM DATA PARA CONFIGURAR A HORA:

Weather icon and analog compass showing sun, hour, minute, and minute hands with degree markings

COMO AJUSTAR A PULSEIRA

Diagram of a mechanical device emitting powder or material, with an arrow indicating direction (no text or symbols present)

PULSEIRA DE FIVELA DOBRÁVEL

Three-step diagram showing structural deformation of a curved bridge or channel (no text or symbols present)

FIG. 1 FIG. 2 FIG. 3

RETIRADA DOS ELOS DA PULSEIRA RETIRADA DOS ELOS:

Diagram illustrating a mechanical or structural assembly with labeled components and directional arrows indicating movement or force.

BATERIA

Three identical line drawings of a wristwatch with hour and minute hands, shown in different angles (no text or symbols)

MODELLI CON DATA PER IMPOSTARE L'ORA

Weather icon and compass diagram showing sun, 1200, and 240-degree hand signals with directional arrows

COME REGOLARE IL BRACCIALE

Diagram of a mechanical device with a rotating arrow and textured internal structure (no text or symbols)

BRACCIALE CON FERMAGLIO RIPIEGABILE

Three-step diagram showing a mechanical assembly with arrows indicating motion (no text or symbols)

FIG. 1 FIG. 2 FIG. 3

Diagram illustrating a mechanical or structural assembly with labeled components and directional arrows indicating movement or force.

BATTERIA

www.timex.it/it_IT/productWarranty.html

*pounds per square inch absolute

Three identical line drawings of a wristwatch with hour and minute hands, shown from different angles (no text or symbols)

DATUMSMODELLE

Weather icon and compass diagram showing solar and 24-hour cycle with hour and minute hands

ANPASSEN DER ARMBÄNDER

Diagram of a mechanical device emitting particles with an arrow indicating direction (no text or symbols)

ARMBAND MIT FALTVERSCHLUSS

Three technical line drawings of a structural component with arrows indicating motion (no text or symbols)

Diagram illustrating a mechanical assembly or assembly process with labeled components and directional arrows indicating movement.

TIMEX

DEUTSCH 990-095926-05

BATTERIE

Three identical line drawings of a wristwatch face showing dial and wrist movements (no text or symbols)

MODELLEN MET DATUM

DE TIJD INSTELLEN:

Weather icon and analog compass showing sun, 1200, and 95°/30' cycles with hour and minute hands

ARMBAND AFSTELLEN

Diagram of a mechanical device with an arrow indicating motion or force direction (no text or symbols present)

ARMBAND MET KLAPSLUITING

Three-step diagram showing structural deformation of a curved beam or spring, with arrows indicating force direction (no text or symbols)

FIG. 1 FIG. 2 FIG. 3

Technical diagram showing assembly steps of a mechanical component with arrows indicating direction and components

TIMEX

NEDERLANDS 990-095926-05

BATTERIJ

Three identical line drawings of a wristwatch with hour and minute hands, shown from different angles (no text or symbols)

日期显示型手表

时间设置：

Weather icon and analog compass showing sun, hour, minute, and 20/30/45/50 time indicators

如何调整表带

Illustration of a mechanical device emitting force with an arrow indicating upward motion (no text or symbols)

翻扣式表带

Three sequential line drawings of a curved structural component, showing progressive assembly or assembly steps (no text or symbols present)

图1 图2 图3

拆卸表带环扣

拆卸环扣：

Diagram showing mechanical assembly steps with labeled components and directional arrows

电池

Three identical line drawings of a wristwatch with hour and minute hands, shown in different angles (no text or symbols)

日付のモデル

時間の設定

Weather icon showing sun and minute hand pointing to 12:00, with compass needle indicating time.

ブレスレットの調整

Illustration of a mechanical device emitting smoke or vapor, with no visible text or symbols

折り重ね式留め金ブレスレット

Diagram illustrating a mechanical or electrical assembly with labeled components and directional arrows indicating movement or process.

電池

www.timexwatch.jp/fs/timex/c/guide#returns

Three identical line drawings of a wristwatch with hour and minute hands (no text or symbols)

Weather icon and analog compass showing sun, hour, minute, and minute hands with degree markings

Diagram of a mechanical device with a triangular component and an arrow indicating motion (no text or symbols)

Three technical line drawings of a mechanical component or bracket assembly, showing progressive assembly and alignment (no text or symbols)

Diagram showing mechanical assembly steps with arrows indicating direction of movement

БАТАРЕЯ

Weather icon showing sun and a compass with hour and minute hands pointing to 12:00

NASTAVENÍ ŘEMÍNKU

Illustration of a mechanical device emitting smoke or vapor, with no visible text or symbols

ŘEMÍNEK SE SKLÁDACÍ SPONOU

Diagram illustrating a mechanical or electrical assembly with labeled components and directional arrows indicating movement or assembly.

BATERIE

Three identical line drawings of a wristwatch with hour and minute hands, shown from different angles (no text or symbols)

DÁTUM MODELLEK

IDÖBEÁLLÍTÁS:

Weather icon and analog compass showing sun, hour, minute, and minute hands with degree markings

HOGYAN LEHET BEÁLLÍTANI A KARKÖTŐ ÓRASZÍJAT

Diagram of a mechanical device with a rotating arrow and blade, no text or symbols present

ÁTHAJTÓ CSATOS KARKÖTŐ

Three sequential line drawings of a curved structural component with internal components, showing progressive assembly (no text or symbols)

1. ÁBRA 2. ÁBRA 3. ÁBRA

Diagram showing mechanical assembly steps with arrows indicating direction of movement

ELEM

USTAWIANIE DATY W DWÓCH JĘZYKACH:

DZWONEK UPŁYWU CZASU

Weather icon showing sun and a clock face with hour and minute hands, indicating solar position

Diagram of a mechanical device emitting a fan or blade, with an arrow indicating direction (no text or symbols present)

Three sequential line drawings of a curved structural component, showing progressive assembly and alignment (no text or symbols)

RYS.1 RYS.2 RYS.3

ODŁĄCZANIE OGNIW OD BRANSOLETKI ODŁĄCZANIE OGNIW:

Diagram illustrating a mechanical assembly or processing process with labeled components and directional arrows indicating movement.

BATERIA

LUMINA NOCTURNĂ INDIGLO®

Three identical line drawings of a wristwatch with hour and minute hands, shown from different angles (no text or symbols)

MODELE DE DATA

PENTRU A SETA ORA:

INELUL PENTRU BUSOLĂ

Weather icon and analog compass showing sun, hour, minute, and minute hands with degree markings

CUM SĂ REGLATI BRĂTARA

Illustration of a mechanical device emitting particles with an arrow indicating direction (no text or symbols)

BRĂȚARĂ CU CATARAMĂ PLIABILĂ

Three-step diagram showing structural deformation of a curved bridge or arch structure (no text or symbols present)

FIG. 1 FIG. 2 FIG. 3

SCOATEREA UNEI VERIGI DIN BRĂȚARĂ PENTRU A SCOATE O VERIGĂ:

Diagram illustrating a mechanical or structural assembly with labeled components and directional arrows indicating movement or force.

BATERIE

Three identical line drawings of a wristwatch with hour and minute hands, shown from different angles (no text or symbols)

TARİH MODELLERİ

SAATI AYARLAMAK IÇIN:

SAATİN AYARLANMASI GÜN, TARIH

Weather icon and analog compass showing sun, hour, minute, and minute hands with degree markings

KORDONUN AYARLANMASI

Illustration of a mechanical device emitting force with an arrow indicating direction (no text or symbols)

KATLANAN TOKALI KORDON

Three sequential diagrams showing structural changes in a curved pipe or channel, with arrows indicating direction of movement (no text or symbols present)

ŞEKİL 1 ŞEKİL 2 ŞEKİL 3

KORDON BAKLASININ ÇIKARTILMASI BAKLALARIN ÇIKARTILMASI:

Diagram illustrating a mechanical or structural assembly with labeled components and directional arrows indicating movement or force.

PIL
