Arthur 087240330 - Lamp Lucide - Free user manual and instructions

Product type	Indoor lamp
Brand	Lucide
Model	Arthur 087240330
Estimated height	150 cm
Estimated diameter	30 cm
Estimated weight	3 kg
Power supply	220-240 V ~ 50 Hz
Insulation class	Class I (with ground)
Compatible bulb type	E27 (standard base)
Maximum bulb wattage	60 W (or as indicated on product)
Protection rating	IP20 (indoor use)
Body material	Metal and glass
Main functions	Ambient lighting, compatible with dimmer (depending on bulb)
Installation	Requires a qualified electrician
Maintenance and cleaning	Dry cloth after cooling
Safety	Disconnect power before service, avoid contact with water
Spare parts	Bulb, protective glass
Repairability	Bulb and glass replacement by user, other by professional
Warranty	2 years (glass excluded after 14 days)
Waste category	WEEE (separate collection)

Frequently Asked Questions - Arthur 087240330 Lucide

What bulbs can I use with the Arthur 087240330 lamp?

Use bulbs with E27 base with a maximum wattage of 60 W (or the wattage indicated on the product). Choose LED bulbs for longer lifespan.

Can I install this lamp in a bathroom?

No, this lamp is rated IP20 and suitable only for dry indoor use. It should not be installed in a bathroom or any humid environment.

How to clean the lamp?

Turn off and unplug the lamp, let it cool. Clean with a soft, dry cloth or slightly damp, without abrasive products. Never immerse in water.

What to do if the protective glass is broken?

Replace the glass immediately. Contact the manufacturer or a certified electrician for a replacement part. Do not use the lamp without glass.

Does the lamp get very hot?

The temperature depends on the bulb used. Incandescent bulbs get hotter than LEDs. Wait for the lamp to cool before touching or changing the bulb.

Can I use a dimmer with this lamp?

It depends on the bulb. If you use a dimmer-compatible bulb (dimmable LED or halogen), the lamp can be used with a suitable dimmer.

How to install the lamp?

Installation must be carried out by a competent person in accordance with current electrical standards (NF C 15 100). Turn off the power before any intervention.

What to do if the lamp does not turn on?

Check the bulb (replace if necessary), the fuse or circuit breaker, and the electrical connections. If the problem persists, contact an electrician.

What is the warranty period?

Lucide offers a 2-year warranty against material and workmanship defects from the date of purchase. Broken glass parts are only covered for the first 14 days.

How to recycle the lamp at end of life?

Do not dispose of the lamp with household waste. Take it to a WEEE collection point (Waste Electrical and Electronic Equipment) for proper recycling.

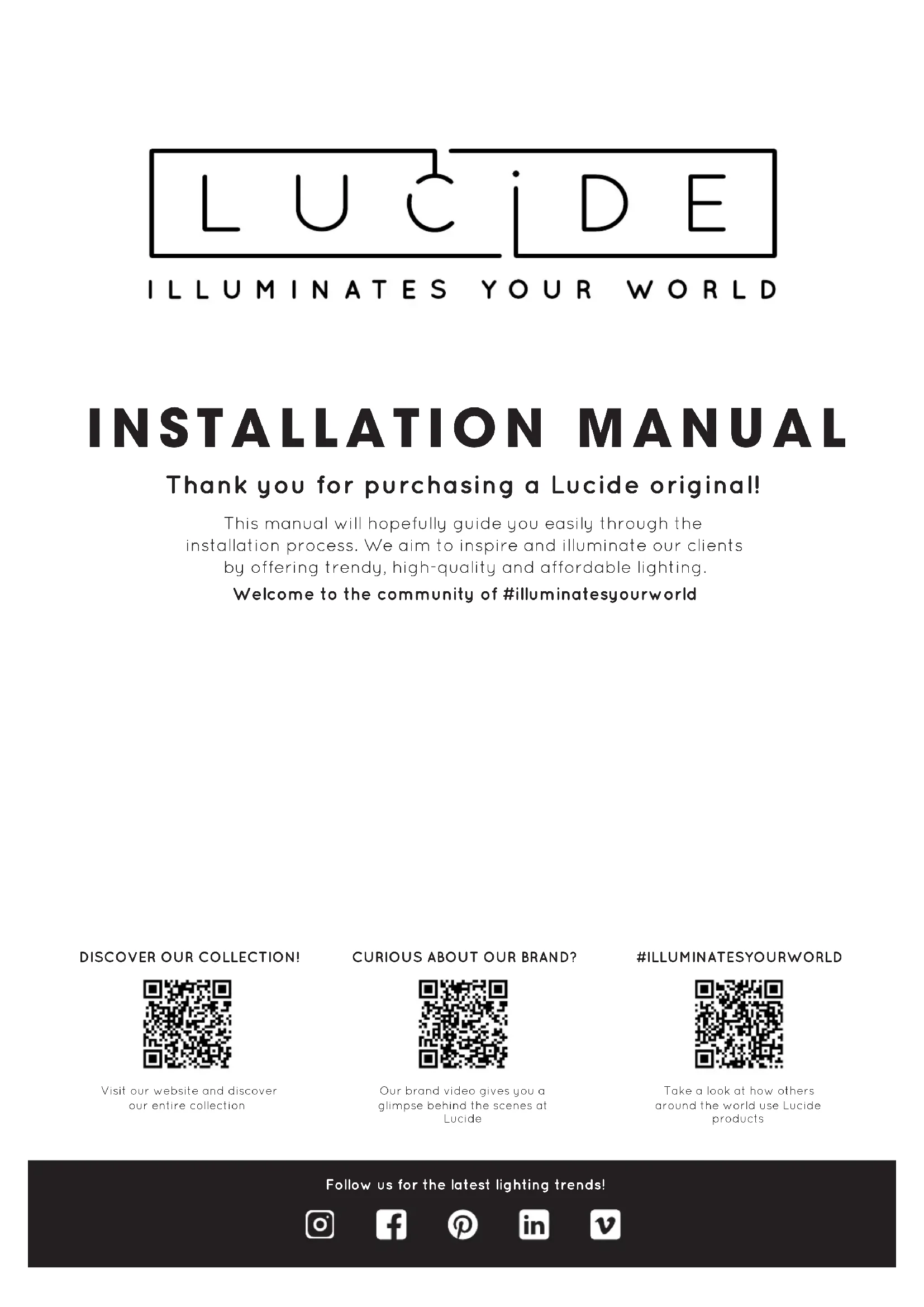

USER MANUAL Arthur 087240330 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

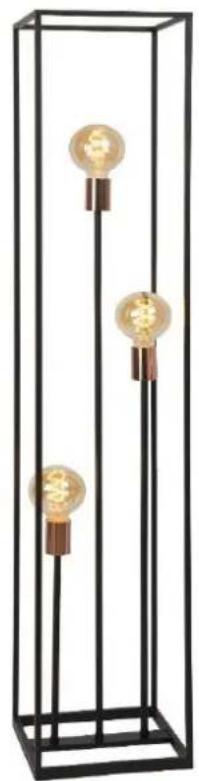

Black metal frame with three illuminated circular lamps and vertical supports (no text or symbols)

Item number: 08724/03/30

EAN code: 5411212082909

ARTHUR

Close-up of a glowing incandescent light bulb with spiral filament (no text or symbols visible)

RECOMMENDED LUCIDE LIGHT SOURCE

49032/05/62

Dimmable: Yes

Included: No

General

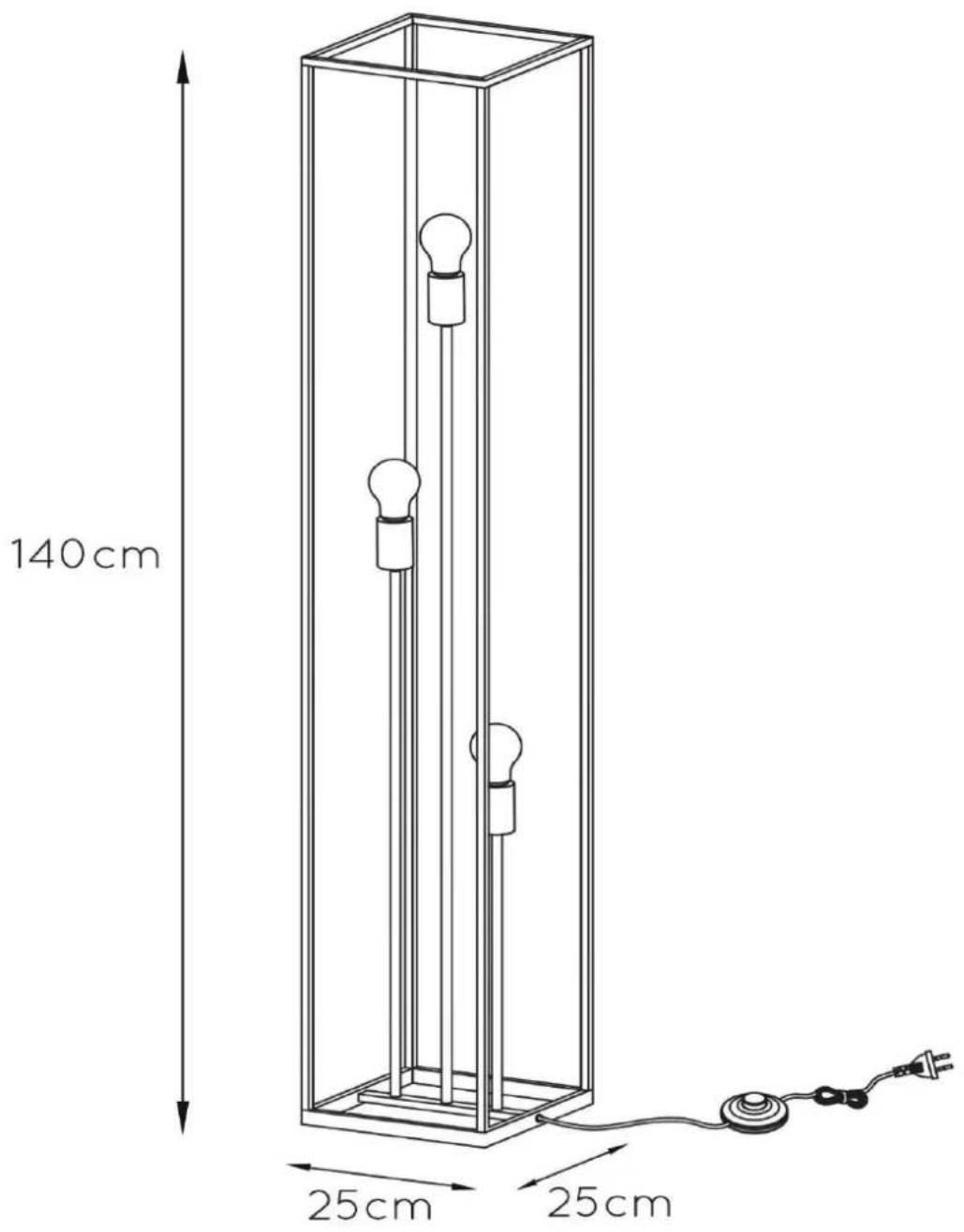

Dimensions LxW xH: 25cm x 25cm x 140cm

Main material: Metal

Color: Black and Copper

Style: Vintage

Shape: Rectangle

Weight: 3,00 kg

Warranty: 2 Years

Specifications

Dimmable: No

Light direction: Around (Diffuse)

Adjustable in height: Not In Height Adjustable

Directional: Not Directional

Cable: Yes, Cable With Plug On Product

Cable length: 200 cm

Sensor: Without Sensor

Control: On/Off Switch - In The Cord

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 1

Number of light sources: 3

Lamp socket: E27

Wattage: 3 x 60 W

Power requirements: 220-240V\~50Hz

ARTHUR

Item number: 08724/03/30

EAN code: 5411212082909

EAN code: 5411212082909

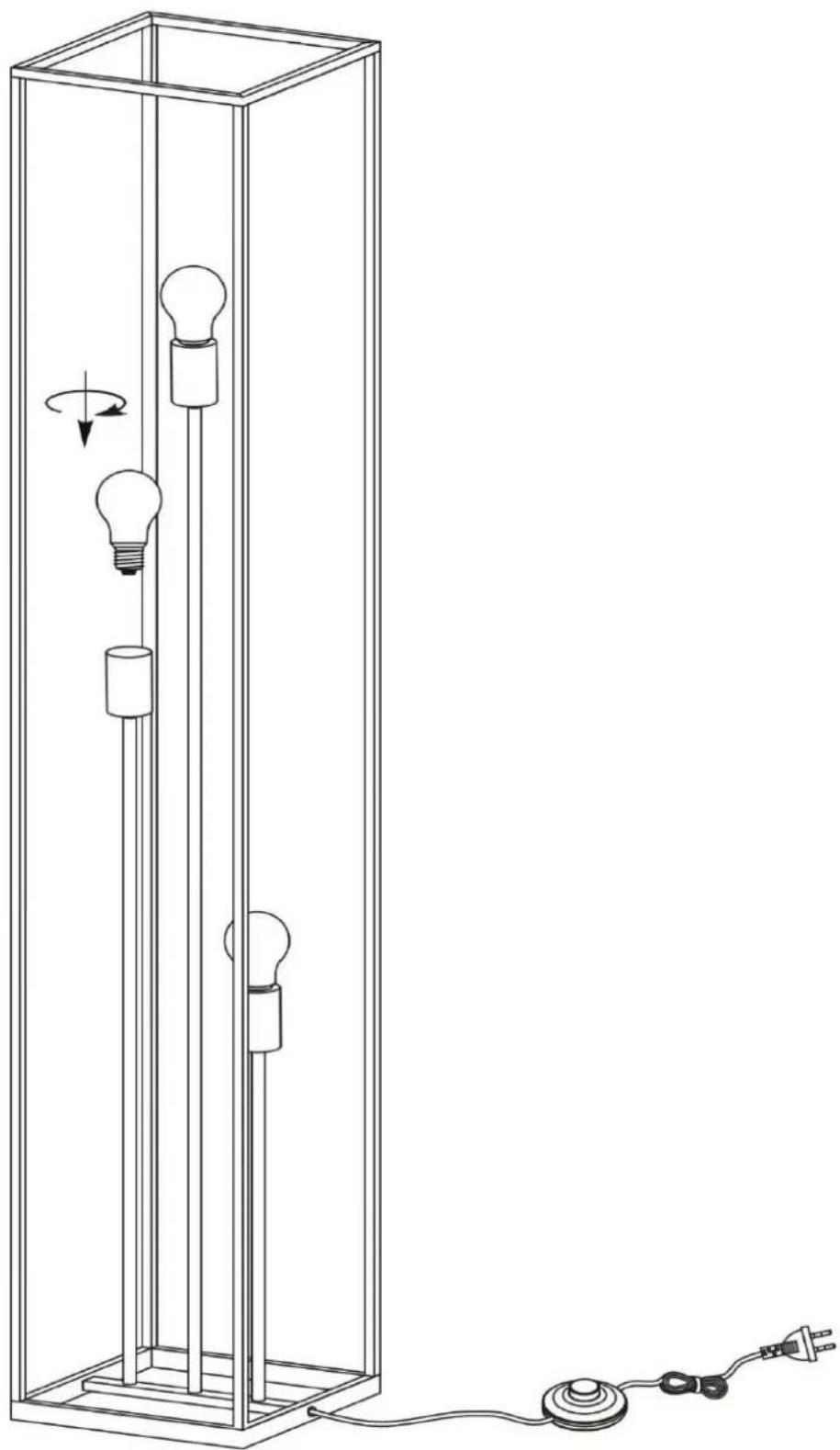

Line drawing of a vertical lamp structure with three light bulbs and a power cord, no text or symbols present

Cropped image showing a series of icons and labels, including house, water level, IP20 symbol, and light bulb with 0.5m scale indicator.

IP20 0.5m

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

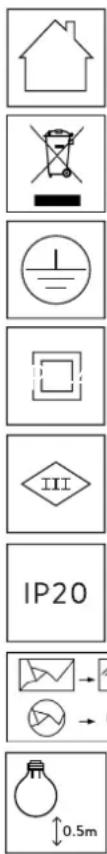

Explanation of the symbols which can appear on the fixture

Vertical sequence of icons and labels, including house, circuit, water level, square, diamond, IP20, email, and light bulb with 0.5m scale indicator.

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Sicherheitshinweise

Vertical sequence of icons and labels, including house, grid, water level, square, IP20 symbol, and light bulb with 0.5m scale indicator.

Vertical sequence of icons and labels including house, circuit symbol, water level, square, IP20 label, and light bulb with 0.5m scale indicator

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of

2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.

2. Normal wear and tear, discoloring as a result from normal use.

3. Damage caused by external causes like fire, water, wrong use/installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
