Bodi 091010131 - Lamp Lucide - Free user manual and instructions

Brand	Lucide
Model	Bodi 091010131
Product Type	Indoor lamp
Protection Index	IP20
Power Supply	230 V ~ 50 Hz
Socket	Standard E27 (depending on model)
Max Lamp Wattage	See indication on product
Electrical Class	Class I or II (depending on model)
Material	Metal and glass (depending on model)
Usage	Indoor only
Minimum Distance from Flammable Materials	Indicated on the lamp
Warranty	2 years against manufacturing defects
Replaceable Parts	Bulb and protective glass replaceable
Maintenance	Clean with a soft dry cloth
Installation	By a qualified electrician

Frequently Asked Questions - Bodi 091010131 Lucide

What is the power supply of the lamp Bodi 091010131?

The lamp operates on mains 230 V ~ 50 Hz. Before any installation, cut off the power supply.

Can I use this lamp in a bathroom?

No, this lamp is rated IP20 and is only suitable for dry indoor use (not in bathroom).

How to replace the bulb of the Lucide Bodi lamp?

Let the bulb cool down, then unscrew the old one and replace it with a bulb of the type and maximum wattage indicated on the product.

What safety distance must be observed from flammable objects?

The minimum distance is indicated on the lamp itself. It must be strictly observed to avoid any risk of fire.

Does the lamp have a warranty?

Yes, Lucide offers a 2-year warranty against material and workmanship defects from the date of purchase, subject to correct installation.

What to do if the protective glass is broken?

The damaged protective glass must be replaced immediately. Under warranty, replacement is possible within 14 days of purchase.

How to clean the lamp?

Use a soft dry cloth. Never use water or liquid products, nor abrasive cleaners.

Does installation require an electrician?

Yes, installation must be carried out by a competent person in accordance with the applicable electrical regulations (NF C 15 100).

Can I use an LED bulb with this lamp?

Yes, you can use an LED bulb provided it respects the socket type and maximum wattage indicated.

Where to find the complete user manual?

The complete manual is available for free download in PDF format on the website notice-facile.com.

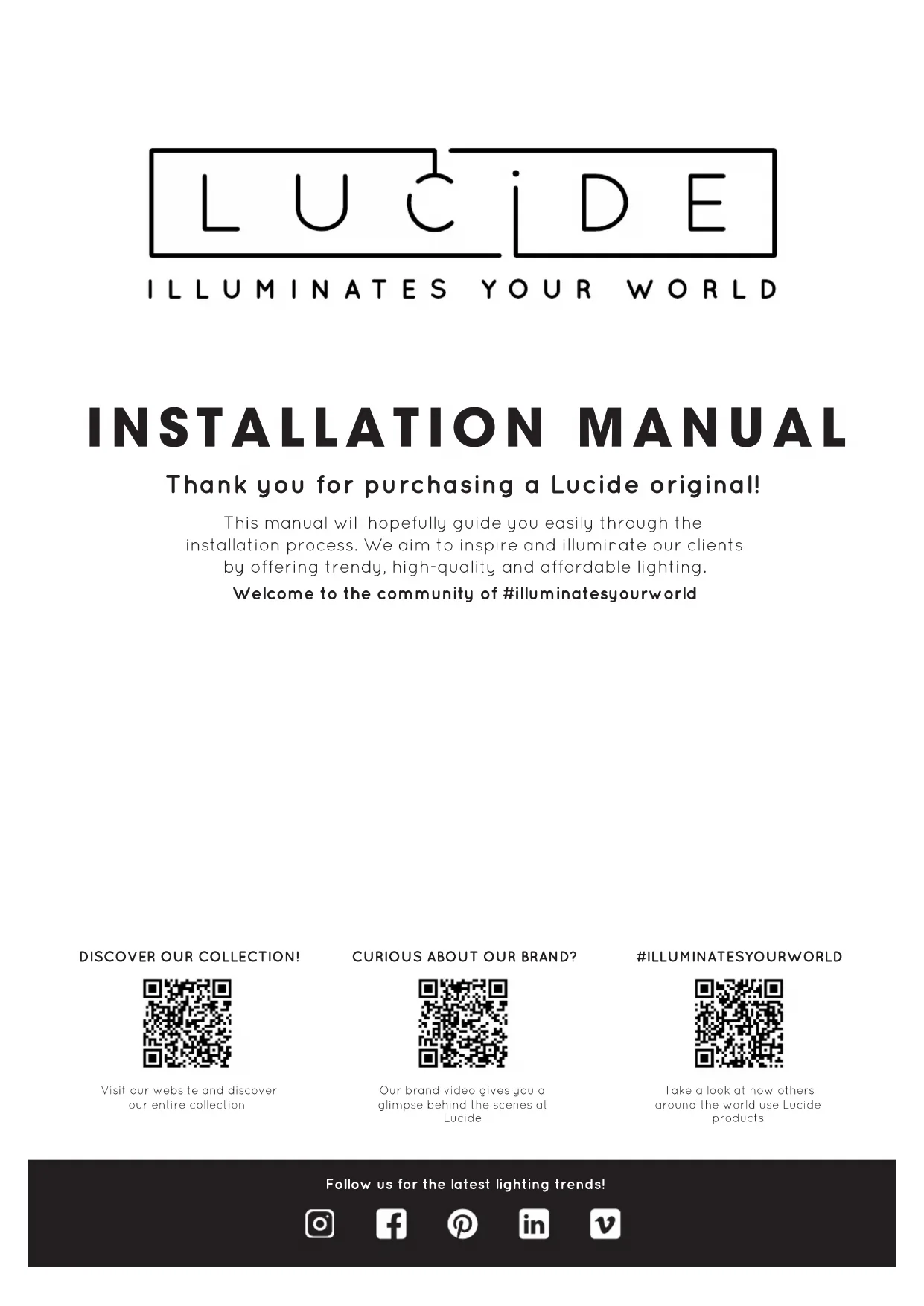

USER MANUAL Bodi 091010131 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCIDE

Item number: 09101/01/31

EAN code: 5411212091574

BODI

RECOMMENDED LUCIDE LIGHT SOURCE

49006/05/30

Dimmable: Yes

Included: No

General

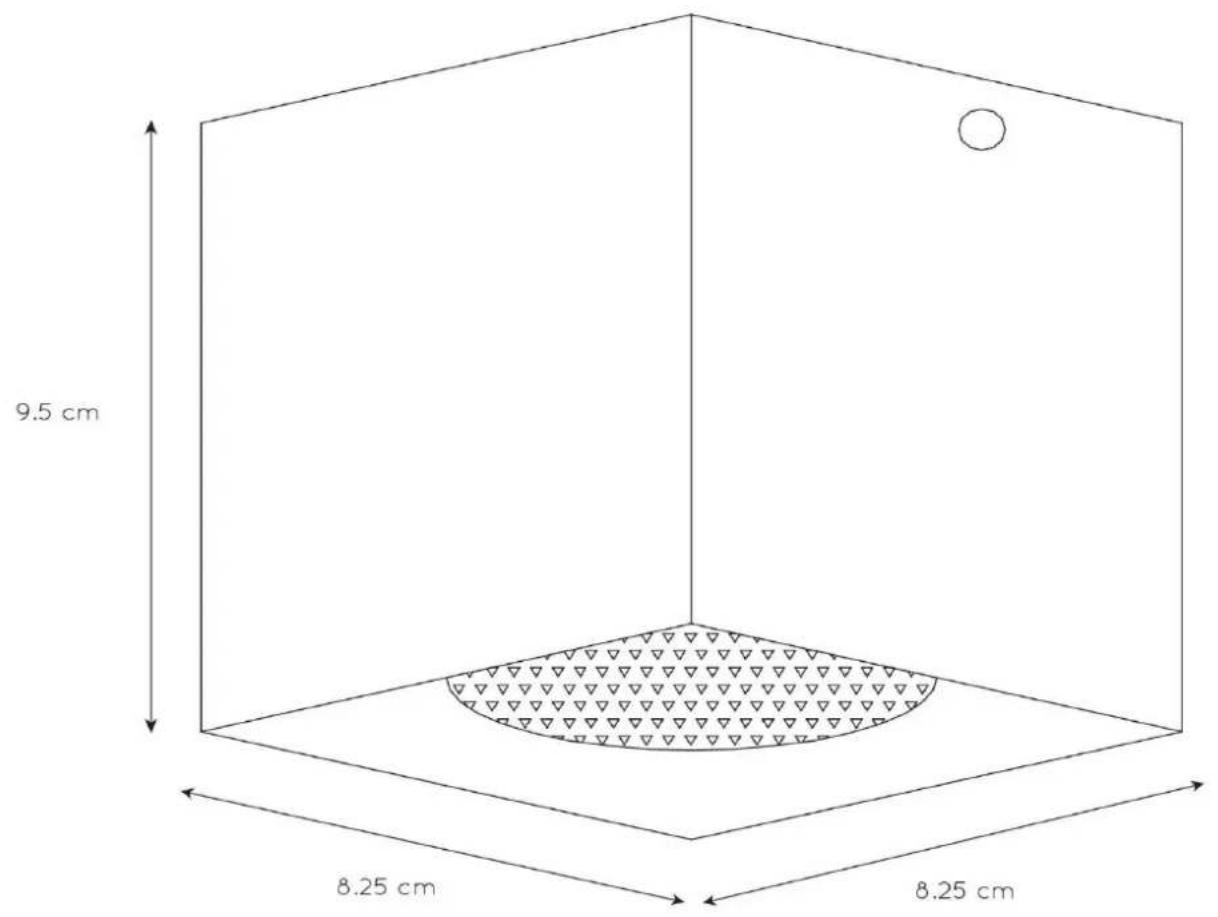

Dimensions LxW xH: 8,2cm x 8,2cm x 9,5cm

Main material: Aluminum

Color: White

Style: Modern

Shape: Square

Weight: 0.40kg

Warranty: 2 Years

Specifications

Dimmable: Yes

Light direction:Downlight

Adjustable in height: Not In Height Adjustable

Directional: Not Directional

Cable: No Cable On Product

Sensor: Without Sensor

Control: Light Switch Control

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 1

Number of light sources: 1

Lamp socket: GU10

Wattage: 1 × 50W

Power requirements: 220 - 240V 50Hz

BODI

Item number: 09101/01/31

EAN code: 5411212091574

BODI

Item number: 09101/01/31

EAN code: 5411212091574

E

Veiligheidsinstructures

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

Explanation of the symbols which can appear on the fixture

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

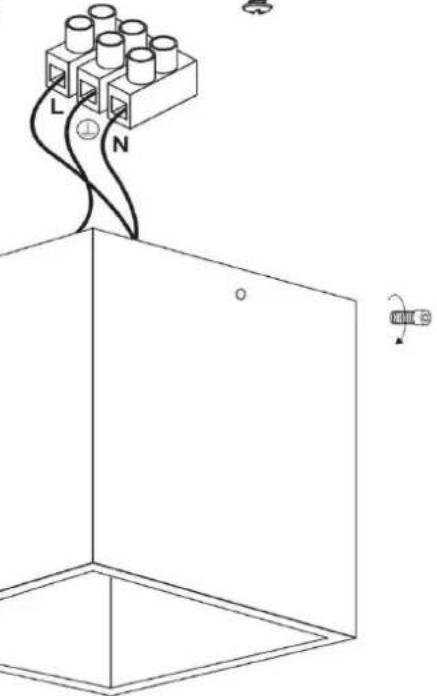

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.
2. Normal wear and tear, discoloring as a result from normal use.
3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.

L U C

D E

ILLUMINATES YOUR WORLD

LUCIDE NV

LUCIDE NV BISSCHOPPENHOFLAAN 145,2100 DEURNE,BELGIUM

[e-mail] tel: [phone]

www.lucide.com
