Classic ET0T004D - Watch ORIENT - Free user manual and instructions

Brand	ORIENT
Model	Classic ET0T004D
Movement type	Automatic movement
Case material	Stainless steel
Case diameter	40 mm
Case thickness	11.5 mm
Glass type	Mineral glass
Water resistance	30 meters
Dial color	Black
Strap type	Leather
Strap width	20 mm
Additional features	Date display
Usage	Everyday watch, elegant for formal occasions
Maintenance	Recommended service every 3 to 5 years
Safety	Do not expose to strong shocks or extreme temperatures
General information	2-year warranty, after-sales service available

Frequently Asked Questions - Classic ET0T004D ORIENT

How do I set the time on my ORIENT Classic ET0T004D watch?

To set the time, pull the crown out to the second position. Turn the crown clockwise or counterclockwise to adjust the time. Push the crown back in to lock the setting.

My ORIENT Classic ET0T004D watch stops, what should I do?

If your watch stops, it may be due to a lack of winding. Manually wind the watch by turning the crown clockwise several times. If the problem persists, it is advisable to consult a watchmaker.

How do I maintain my ORIENT Classic ET0T004D watch?

To maintain your watch, clean the case and strap with a soft cloth. Avoid harsh chemicals. It is recommended to have the watch checked by a professional every 3 to 5 years.

Is the watch water resistant?

The ORIENT Classic ET0T004D has a water resistance of 50 meters, which means it can withstand splashes and rain but is not designed for swimming or diving.

What should I do if my watch strap is too long?

If the strap is too long, you can remove links to adjust the size. It is recommended to go to a watchmaker to perform this adjustment to avoid damaging the strap.

Where can I find the model number of my ORIENT watch?

The model number is usually located on the back of the watch case, engraved on the back. You can also find it on the original box or the provided documents.

How do I change the battery of my ORIENT Classic ET0T004D watch?

The ORIENT Classic ET0T004D is a mechanical model and does not have a battery to change. If your watch is not working, check the winding or consult a watchmaker.

What is the warranty on my ORIENT watch?

The warranty for ORIENT watches is generally 2 years from the date of purchase. Keep your receipt as proof of purchase for any claims.

USER MANUAL Classic ET0T004D ORIENT

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	×	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

WARNING

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.

CAUTION

④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.
② Avoid a violent shock such as dropping the watch on the floor.

Simple line drawing of a person using a golf club to dig (no text or symbols)

(3) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.
② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(4) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(5) Temperature

In environments below and above normal temperatures ( 5^ C- 35^ C), the watch may malfunction and stop.

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(6) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(7) About accessory parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(8) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(9) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(10) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or the case code on the watch's case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch. You can also see the number on the product tag put on the watch. Its second and third digits indicate the caliber number of your watch.

Example: If the model number is "FX01002B", the caliber number is "FX".

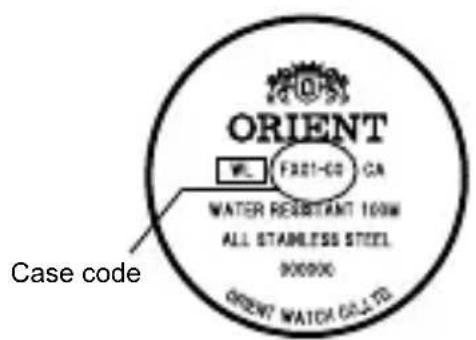

2. Searching by the case code

See the case code on the case back of your watch.

A: If the case code is 6 digits, the first two digits indicate the caliber number.
B: If the case code is 8 or 9 digits, the first three digits indicate the movement number. Search the caliber number corresponding to the movement number referring to the correspondence table.

Example A

ORIENT FL: FREE-60 CA WATER RESISTANT 100W ALL STAINLESS STEEL 900000 ORIENT WATER GAS LTD Case code

Example B

Case code TIGER BUSTINEL RDT ENRIQUEZ SILVIA HOTCH CO.,LTD. AID301-9 CA

Example A: When the case code is "FX01-C0", the caliber number is "FX".

Example B: When the case code is "46D001-9", the movement number is "46D". The caliber number corresponding the number will be found "EU" on the table.

* The place of case code may vary and its letter size may be small and difficult to see depending on the characteristics of watches.
* The pictures and illustrations on this manual may differ from the actual appearance of your watch but the function and operation procedures are the same.

◆ SPECIFICATIONS

Caliber		Number of Jewels	Date	Day of week 24H hand	Daily accuracy	Remark1*
ES 46C 21			○	Hand Indicating type	- +25~-15s/day		9:00 p.m. ~ 2:00 a.m.
ET 46B 21			○	Hand Indicating type	○	+25~-15s/day	9:00 p.m. ~ 2:00 a.m.
EU 46D 21			○	○	- +25~-15s/day		9:00 p.m. ~ 2:00 a.m.
EV 46E 21			○	Wide type	- +25~-15s/day		10:00 p.m. ~ 1:00 a.m.
FE 46P 21			○	-	○	+25~-15s/day	9:00 p.m. ~ 2:00 a.m.
FN 46V 21			○	Wide+AM/PM	- +25~-15s/day		9:00 p.m. ~ 3:00 a.m., 10:30 a.m. ~ 1:30 p.m.
FP 46W 21			○	Dot or arrow indicating	- +25~-15s/day		9:00 p.m. ~ 3:00 a.m.
FX 46Y 21			○	○	- +25~-15s/day		9:00 p.m. ~ 2:00 a.m.

(1) Vibrations: 21.600 vibrations/hour
(2) Running time: More than 40 hours
(3) Shock-proof bearings to protect the balance with hairspring from shocks.

The stated daily accuracy is in the following conditions:

• After 24 hours at room temperature with the mainspring wound fully and the dial facing up.
- Due to the characteristics of the automatic winding watch, the time may deviate from the stated “daily accuracy” depending on the following conditions: amount of time the watch is worn each day, position of the watch, movement of your arm, winding condition of the mainspring.

Product specifications may change without notice, for improvement.

CAUTION

* Avoid setting the date during the time periods listed in “Remark1” above since the calendar changes during this time. If the date is set during this time period, the date may not change or the watch may malfunction. Be sure to move the hour and minute hands away from this time period when setting the date.

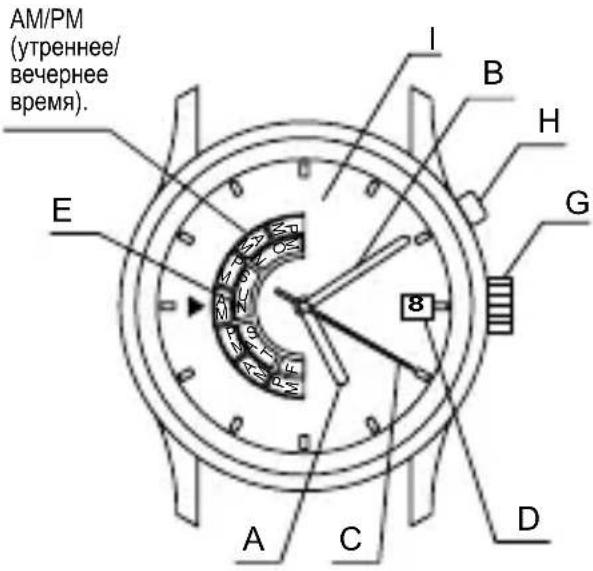

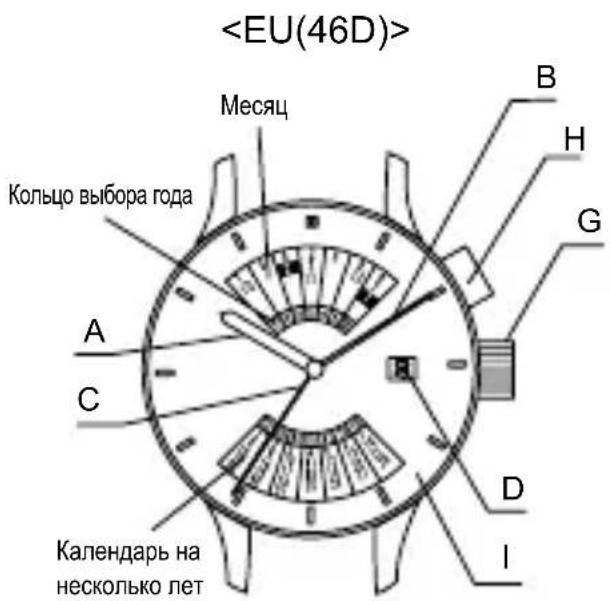

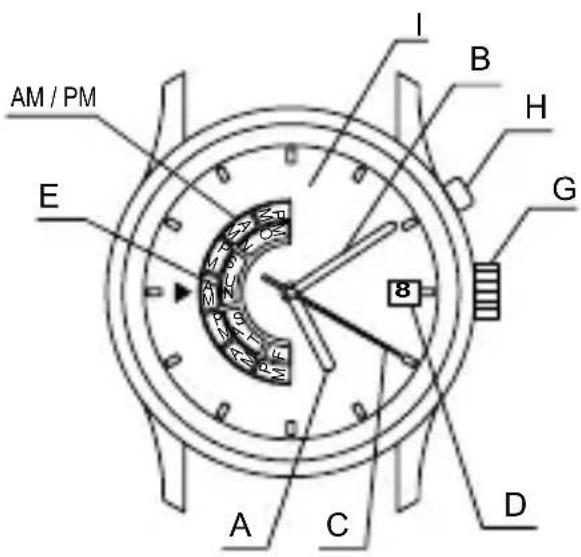

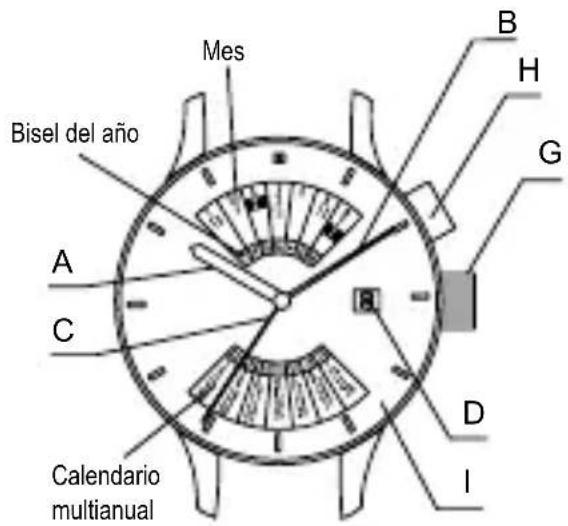

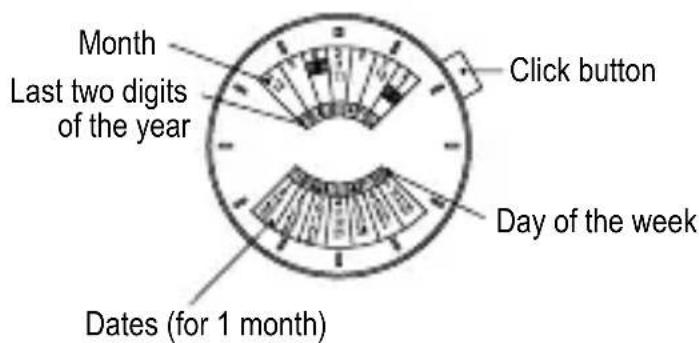

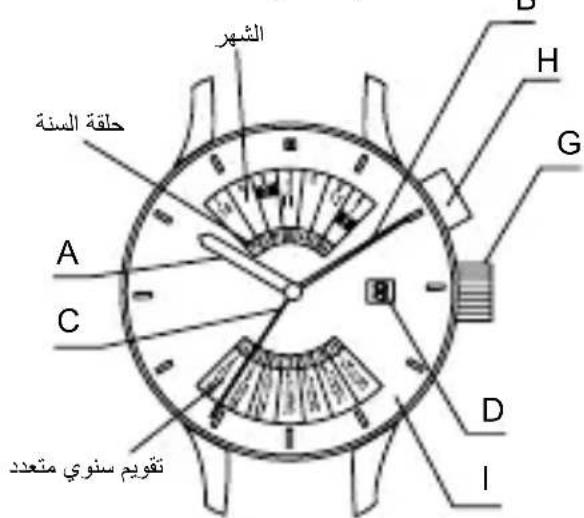

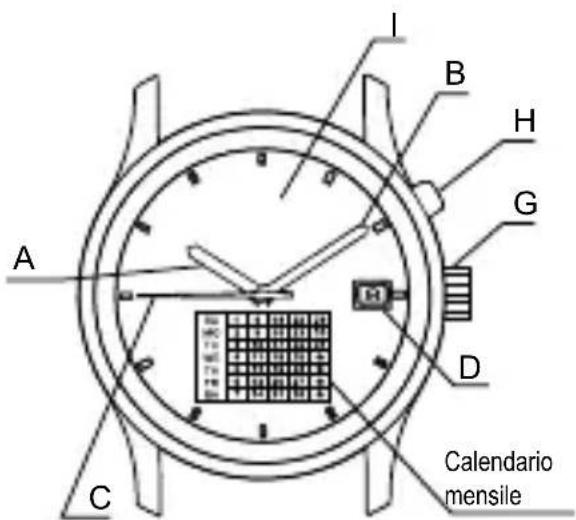

◆ NAMES OF INDIVIDUAL COMPONENT PARTS

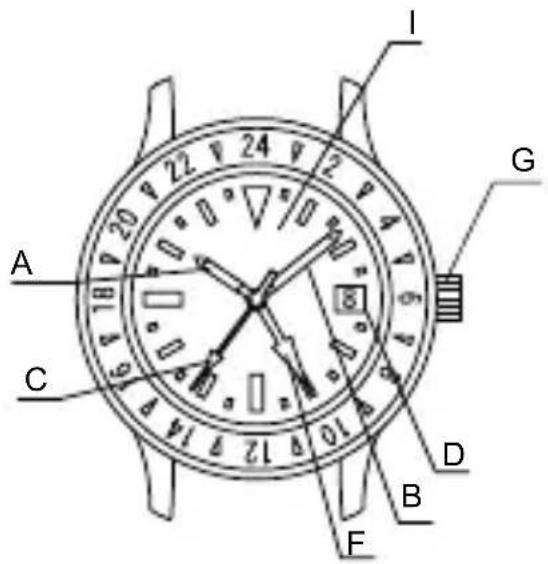

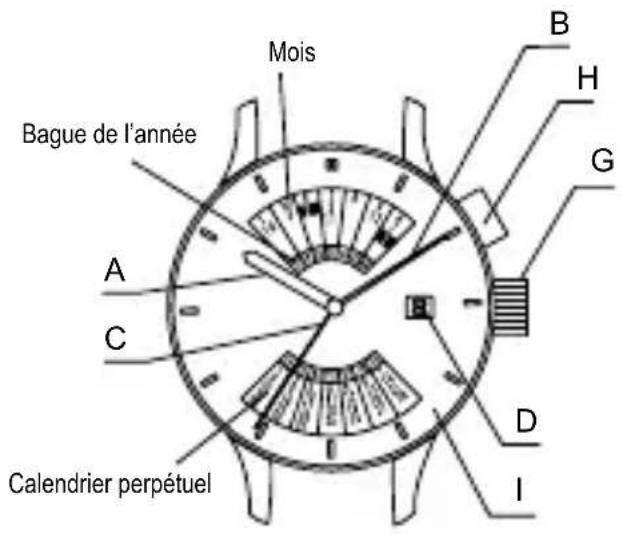

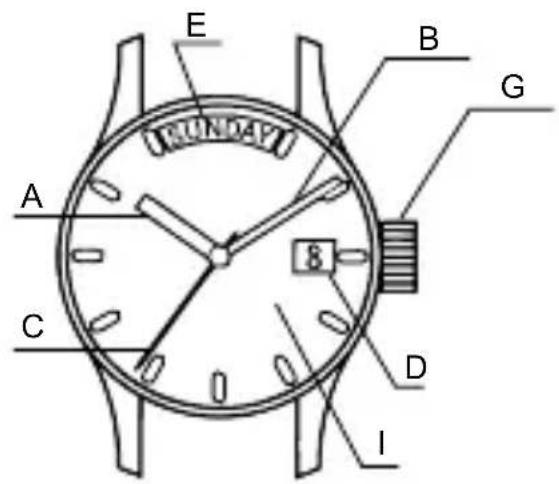

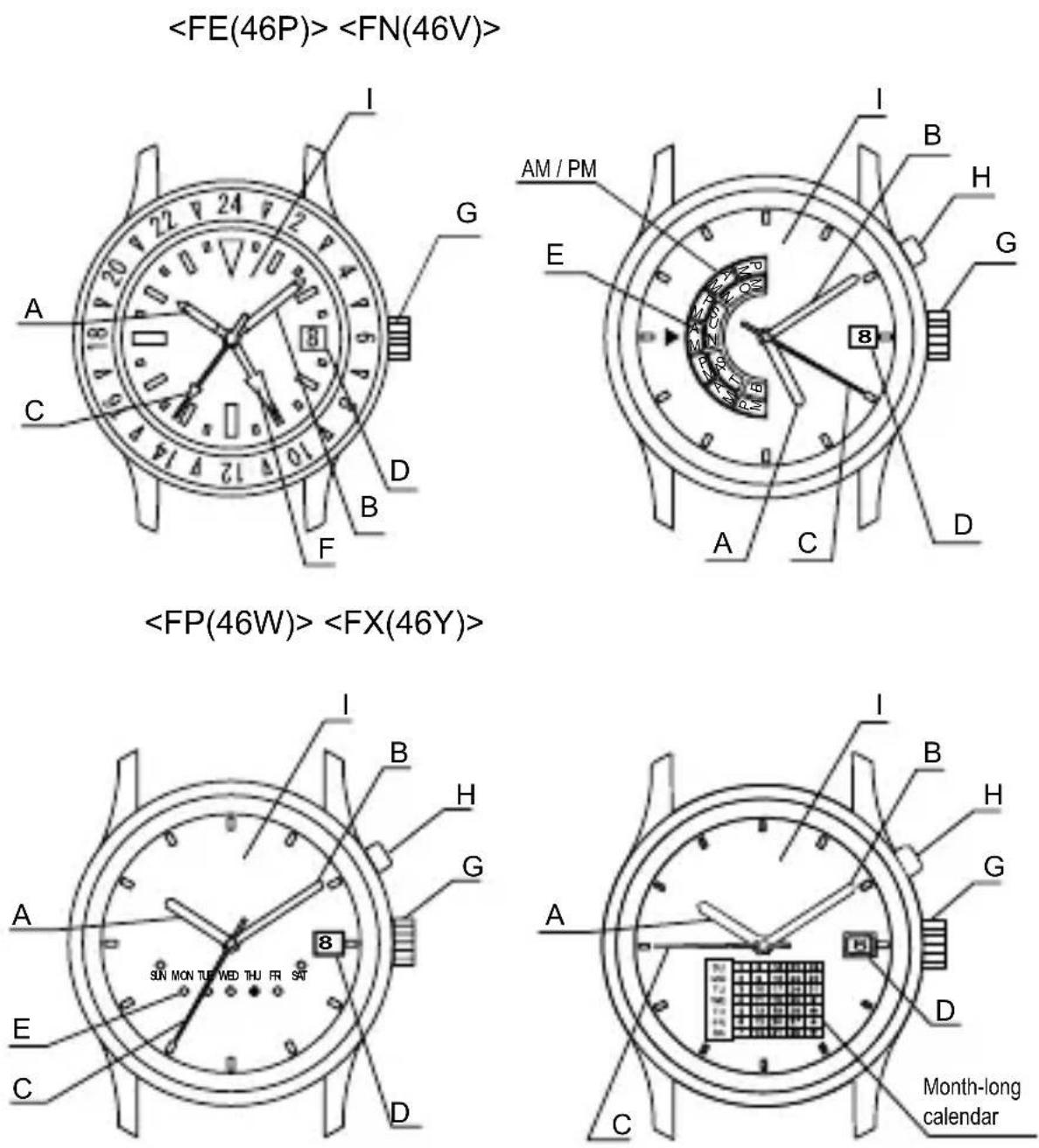

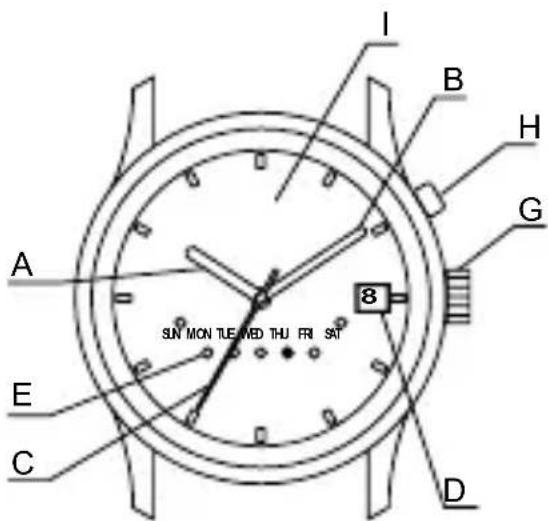

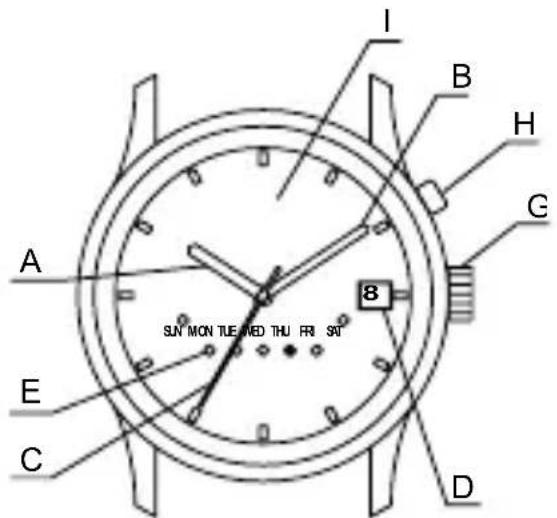

A: Hour hand

B: Minute hand

C:Secondhand

D:Date

E: Day of the week

F: 24-hour hand

G: Crown

H: Clickbutton

I: Dial

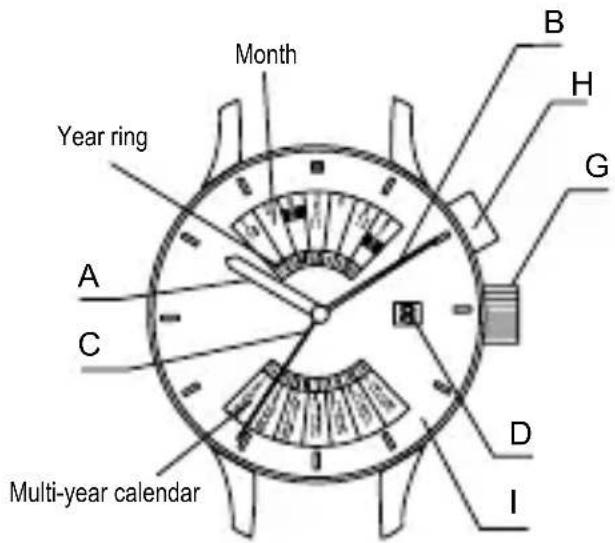

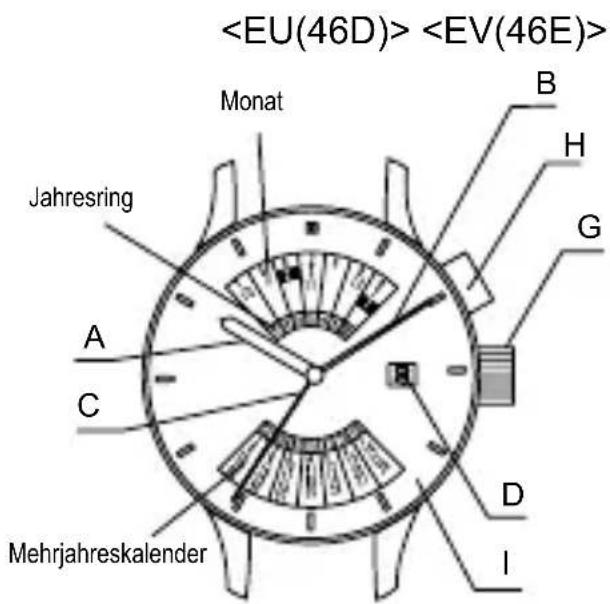

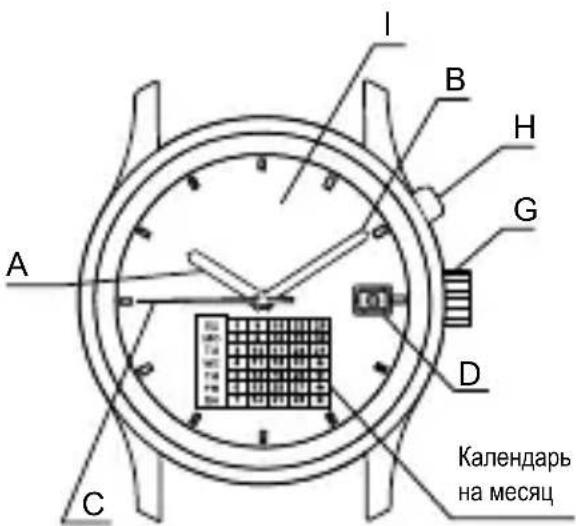

A F C E 24 6 8 D B I G

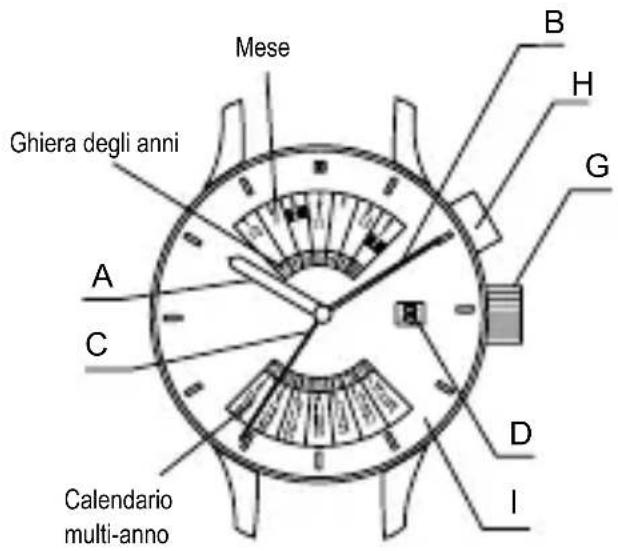

Month Year ring A C Multi-year calendar B H G D I

E B G A 8 C D I

* The position of the crown, date indicator, etc. may vary on some models.

◆ AUTOMATIC WINDING MECHANISM

(1) This is an automatic winding mechanical watch.
(2) The mainspring is wound by natural movements of your arm when wearing the watch on your wrist.
(3) If your watch stops, swing the watch back and forth ten or more times to re-start the second hand. After it starts moving, set the date and time.
(4) This watch will run approximately 40 hours after it is fully wound. If it is not wound enough, the watch may lose

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

accuracy. In order to maintain the watch's accuracy, we recommend wearing the watch at least 8 hours a day.

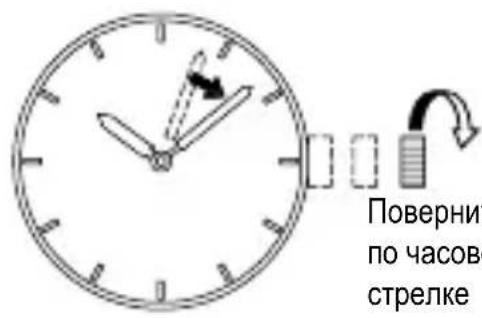

◆ MODELS WITH SCREWED-DOWN CROWN

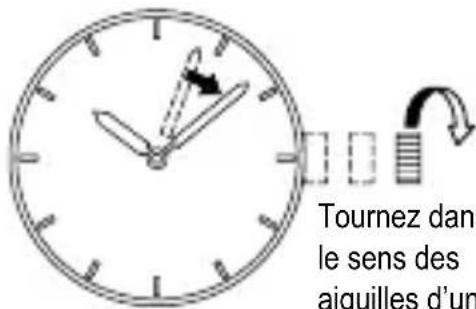

Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

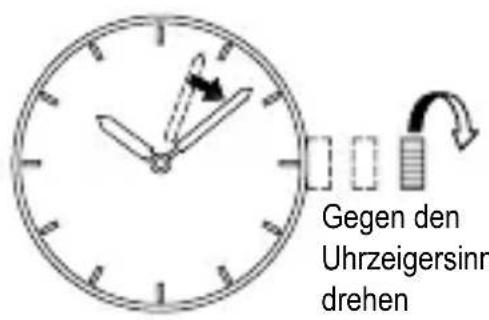

(1) Before setting the date and time, first turn the crown to the left to loosen the screw lock.
(2) After setting the date and time, turn the crown to the right while pressing in, until it stops turning to securely tighten the screw.

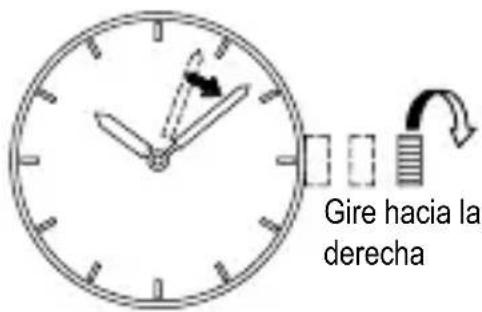

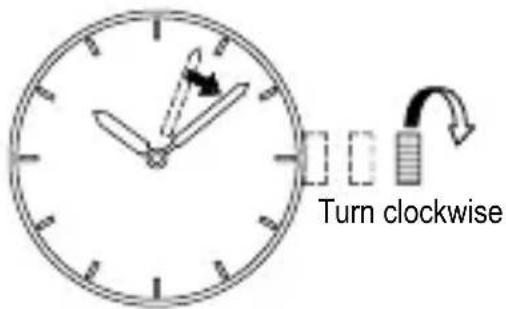

◆ HOW TO SET THE TIME [EU(46D), FX(46Y), FE(46P), FN(46V), FP(46W)]

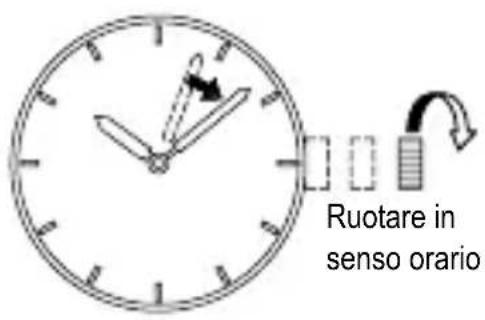

(1) Pull out the crown to the second click. The second hand does not stop.
(2) Turn the crown clockwise and set the current time.

Since this watch comes with a calendar, make sure that you set either a.m. or p.m. without fail.

The date changes at [twelve o'clock midnight].

When setting the time, first bring the hand back slightly earlier the actual time and then move it forward to the actual time.

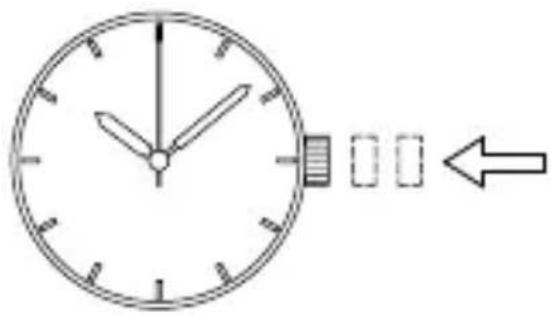

(3) Press the crown in to the normal position.

Simple analog clock face with hour and minute hands, showing time measurement (no text or numbers)

Turn clockwise

Diagram of an analog clock showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

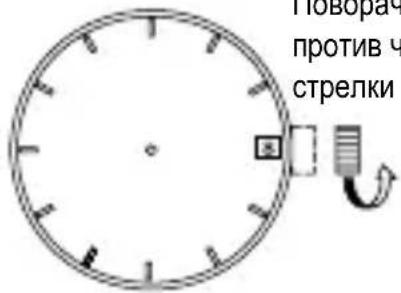

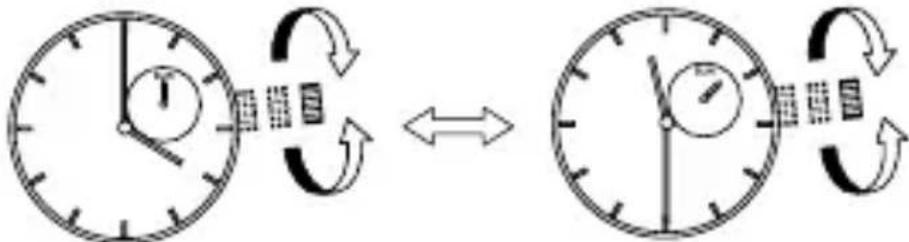

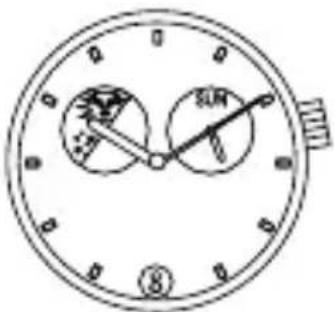

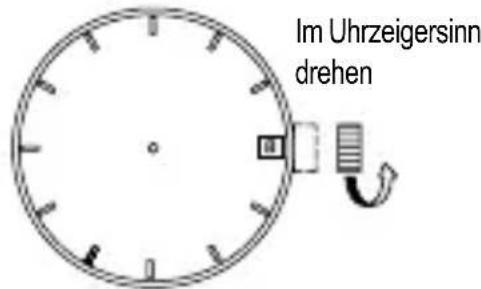

◆ HOW TO SET THE DATE [ALL MODELS]

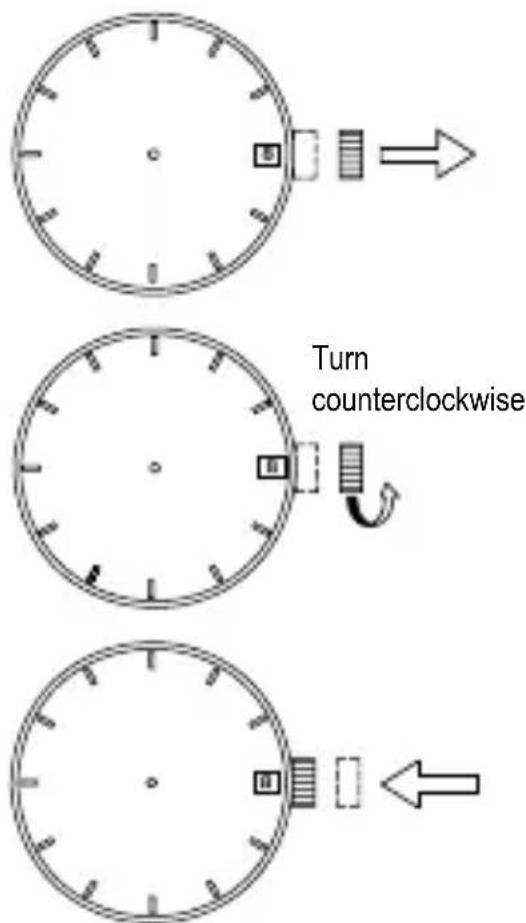

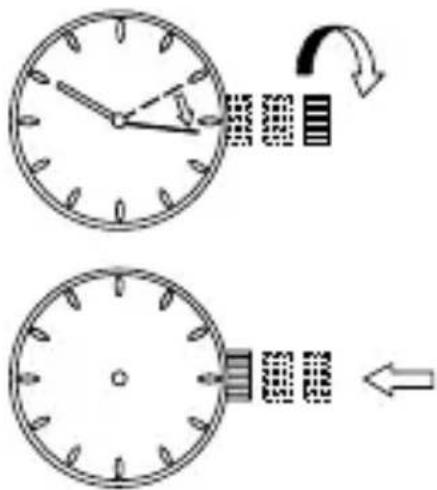

(1) Pull the crown out to the first click. The crown on this watch can be pulled out to the first and second clicks.

(2) Turn the crown counterclockwise until you reach today's date.

(3) Press the crown in to the normal position.

The position of the crown, date indicator, etc. may vary on some models.

About date correction at month's end:

Date correction is necessary for months with 30 days or less. Set the date to the [1st day] on the first day of the next month.

* ET(46B)

The 24-hour hand moves in conjunction with the hour hand and cannot be set by itself.

Some watches may display time using pictures or symbols (Sun & Moon) instead of the 24-hour hand.

0 0 200 8

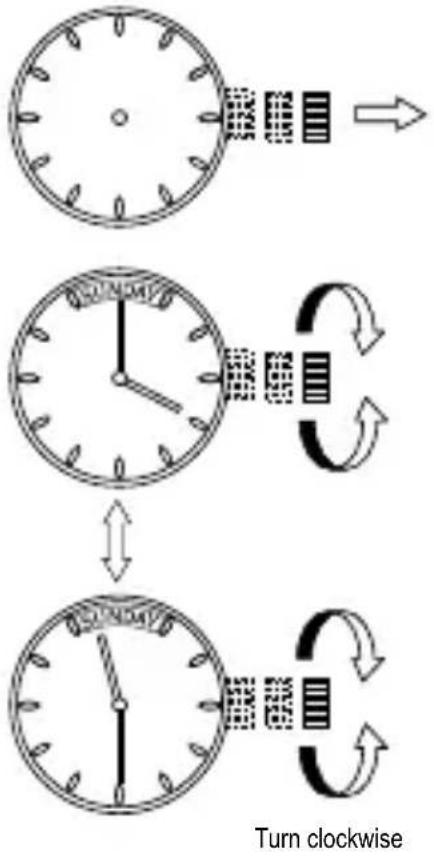

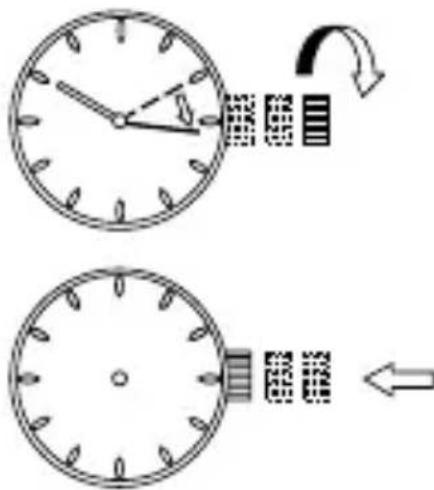

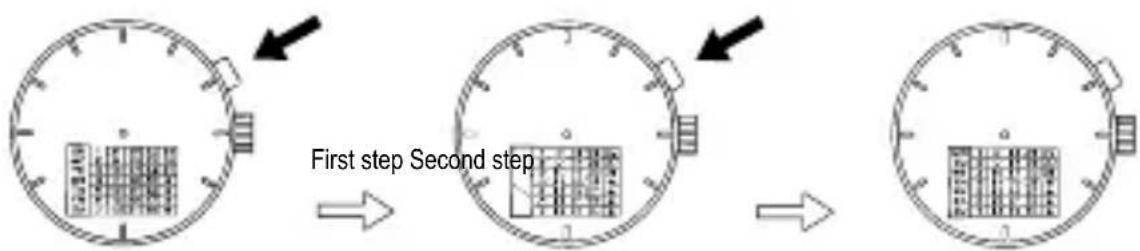

◆ HOW TO SET THE TIME & DAYS OF THE WEEK [ES(46C), ET(46B)]

Set the day of the week first by turning the hour hand and minute hand since this watch does not come with a correcting mechanism for the day of the week.

(1) Pull the crown out to the second click. (Second hand does not stop.)
(2) At first, turn the crown and set the day of the week.

Turn the crown clockwise until the hand indicates the day of the week.

Turn the crown counterclockwise and bring

back the

hands to

about 11:30

p.m. (At this

time, the day

of the week

does not

change.)

Again, turn the crown clockwise until the hand indicates the next day of the week.

Repeat this operation and set the day of the week.

(3) Turn the crown clockwise to set the time.

* Since this watch comes with a calendar, be sure to set either a.m. or p.m.

The date changes at [twelve o'clock midnight].

Also, you can check a.m. and p.m. with the 24-hour hand.

Some models may use a picture-based system (Sun & Moon) instead of the 24-hour hand. The time is twelve o'clock midnight when the Moon symbol is at the top of the window.

* When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.

(4) Press the crown in to the normal position.

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

Diagram showing a clock with hour and minute hands, followed by a circular arrow indicating rotation or cycle.

Diagram showing a clock with hour and minute hands, accompanied by a circular arrow indicating rotation or refresh.

Turn clockwise

Diagram showing a clock with an arrow indicating rotation around 12:30, accompanied by a coin and directional arrow.

Simple line drawing of a clock face with an arrow pointing to the right side (no text or symbols)

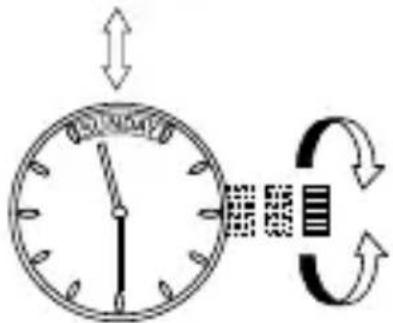

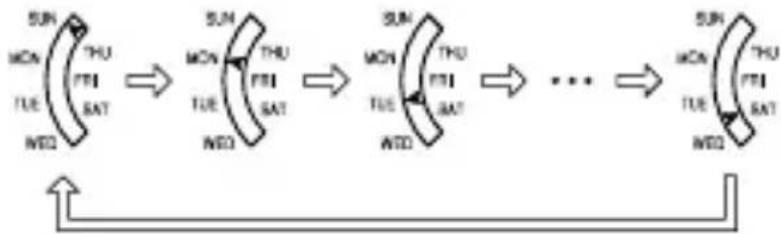

◆ HOW TO SET THE TIME & DAYS OF THE WEEK [EV(46E)]

Set the day of the week first by turning the hour hand and minute hand since this watch does not feature a correcting mechanism for the day of the week.

(1) Pull the crown out to the second click. (Second hand does not stop.)
(2) At first, turn the crown and set the day of the week.

Turn the crown clockwise until the hand indicates the day of the week.

If a day of the week is between two days of the week, turn the crown until a day is shown.

Turn the crown counterclockwise and bring back the hands to about 11:30 p.m. (At this time, the day of the week does not come back.)

Again, turn the crown clockwise until the next day of the week is shown.

Repeat this operation and set the day of the week.

(3) Turn the crown clockwise to set the time. Since this watch comes with a calendar, be sure to set either a.m. or p.m.

The date changes at [twelve o'clock midnight].

When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.

(4) Press the crown in to the normal position.

Diagram showing two analog clocks with hand gestures and a curved arrow indicating rotation or change.

◆ HOW TO SET THE DAY OF THE WEEK & AM/PM [FN(46V)]

Press the click button at the two o'clock position to set AM/PM and the day of the week.

When setting the time, be sure that AM/PM is set correctly.

Example: Changing the display from SUN AM to MON AM

(1) Press the click button to change the display from SUN AM to SUN PM.
(2) Press the click button again to change SUN PM to MON AM.

Simple circular diagram with clock face and arrow, no text or symbols present

24 18 15 12 9 6 3 0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24

24 12 15 12 15 12 15

* For types of watches with a click button that cannot be pressed with your finger (i.e. the "hidden button" type)

The day of the week can be set by pressing the click button using a sharp, pointed object such as a precision screwdriver, a pair of tweezers or a metal pin.

The layout of the days of the week and the location of the window vary from model to model.

◆ HOW TO SET THE DAY OF THE WEEK [FP(46W)]

There are models that indicate the day of the week with ● (dot) or ▲ (arrow). Though display methods are different, operation methods are the same.

See below for operation methods.

(Dot-indicating type)

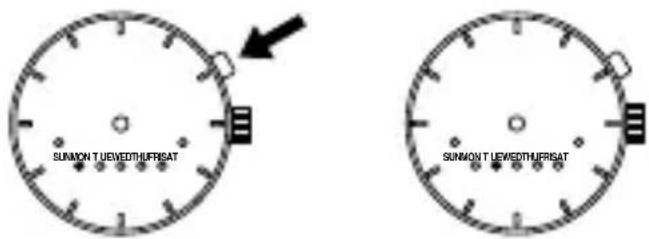

Press the click button at the two o'clock position to set the day of the week.

SUMMON TUEVEDTHURISAT SUMMON TUEVEDTHURISAT

(Arrow-indicating type)

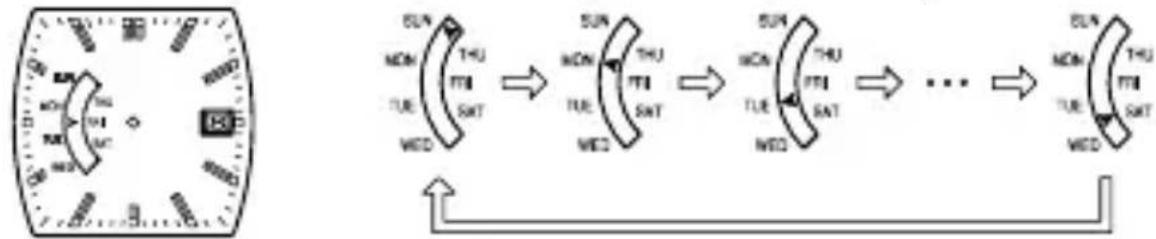

Press the click button at the two o'clock position to set the day of the week.

* For types of watches with a click button that cannot be pressed with your finger (i.e. the "hidden button" type)

The day of the week can be set by pressing the click button using a sharp, pointed object such as a precision screwdriver, a pair of tweezers or a metal pin.

The layout of the days of the week and the location of the window vary from model to model.

◆ HOW TO USE THE MULTI-YEAR CALENDAR [EU(46D)]

[NAMES AND FUNCTIONS OF COMPONENT PARTS]

Month Last two digits of the year Click button Day of the week Dates (for 1 month)

* The click button, location of the date indicator, and style of the month indicator may vary by model.

[HOW TO SET THE MULTI-YEAR CALENDAR]

Press the click button until the month to be set lines up with the last two digits of the year to be set at the top of the dial.

* To display the month of January or February during a leap year, line up the last two digits of the year with the appropriate 1 or 2 in the black box. The last two digits of the year for a leap year are printed in red.

A calendar with the days for the specified month in their appropriate places is displayed at the bottom of the dial.

◆ HOW TO USE THE DUAL TIME FUNCTION [FE(46P)]

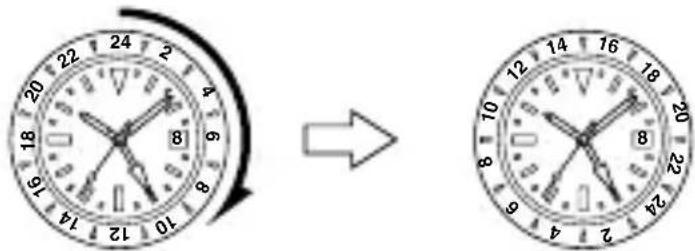

You can see the time for two different time zones, one for the city you are in and another for any other city, using the rotating bezel and the 24-hour hand.

(1) First be sure that the watch is showing the correct time.
(2) Get the time difference for the city you want to know the time of. (See Comparison table of standard times.)
(3) When the time difference is a negative number, turn the bezel clockwise to that number of hours. When the time difference is positive, turn the bezel counterclockwise to that number of hours.
(4) The number on the bezel where the 24-hour hand is pointing will be the time in the city you selected.

Example: When you want to know the time in London while you are in Japan London time is 9 hours behind Japan. Therefore, turn the rotating bezel clockwise 9 hours. The hours and minutes shown by the watch hands is the time in Japan. The number on the bezel where the 24-hour hand is pointing is the time in London. (Japan time: 10:09 a.m., London time: 01:09 a.m.)

Diagram showing a clock face with hour and minute hands, before and after an arrow indicating rotation or change.

Example: When you want to know the time in Japan while you are in London Japan time is 9 hours ahead of the time in London. Therefore, turn the rotating bezel counterclockwise 9 hours. The hours and minutes shown by the watch hands is the time in London. The number on the bezel where the 24-hour hand is pointing is the time in Japan. (London time: 10:09 a.m., Japan time 07:09 p.m.).

Diagram showing a clock face with hour and minute hands, before and after an operation.

◆ USING THE ROTATING WORLD TIME RING

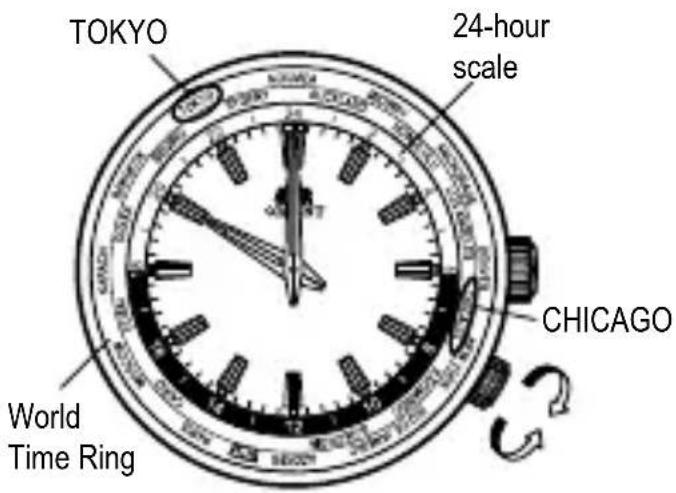

When you turn the rotating indicator ring and align the city names with the times, you can read the respective times of the cities right away.

Example: It is 10:00 p.m. in Tokyo now.

(1) In the 24-hour system, 10:00 p.m. is 22:00 hours.
(2) Set TOKYO on the World Time Ring to the 22-hour position of the 24-hour scale.

* The World Time Ring comes in various types, such as with a crown for setting world time or with a rotating bezel.
(3) The position that CHICAGO on the World Time Ring indicates is the time in Chicago.

* The position indicated by each

scale on the World Time Ring represents the time in that country.

Using this method, you can simultaneously see the time in countries around the world by using the scales on the World Time Ring and reading the dial.

* The position of the inner ring crown and details of the date indicator may vary depending on the model.

TOKYO 24-hour scale CHICAGO World Time Ring

◆ COMPARISON TABLE OF STANDARD TIMES

City indication Typical city Time differences with GMT
GMT GMT ±0
PAR PARIS +1
CAI CAIRO +2
MOW MOSCOW +3
DXB DUBAI +4
KHI KARACHI +5
DAC DHAKA +6
BKK BANGKOK +7
BJS	BEIJING	+8
TYO TOKYO +9
SYD SYDNEY +10
NOU	NOUMEA	+11
AKL AUCKLAND	+12
MDY	MIDWAY	-11
HNL HONOLULU	-10
ANC ANCHORAGE	-9
LAX LOS ANGELES	-8
DEN DENVER	-7
CHI CHICAGO	-6
NYC NEW YORK	-5
SDQ	S. DOMINGO	-4
RIO	RIO DE JANEIRO	-3
SGS S.GEORGIA	-2
PDL AZORES	-1

* Some countries use daylight savings time. There may be cases where the time difference and daylight savings time change to suit the country's convenience.

* The city names listed are major cities in various countries of the world. Please note in advance that some product specifications are subject to change for product improvement purposes.

* If planning to use the watch in a place not listed in the table above, select a city in the same time zone as the city for which you want to indicate time.

◆ HOW TO ADJUST A DAY OF THE WEEK [FX(46Y)]

Correction of a day of the week is required the beginning of a month.

Please unite the day of the week display of a dial on the day at the beginning of a month.

Please adjust the following procedure.

Push the click button, and adjust a day of the week.

Whenever it pushes a day of the week display twice, it changes.

(* It does not change to the right position only by pushing once)

Please repeat this operation and adjust with the day of the week of that month.

* For types of watches with a click button that cannot be pressed with your finger (i.e. the "hidden button" type)

The day of the week can be set by pressing the click button using a sharp, pointed object such as a precision screwdriver, a pair of tweezers or a metal pin.

◆ USING THE ROTATING ORIENTATION RING [FE (46P)]

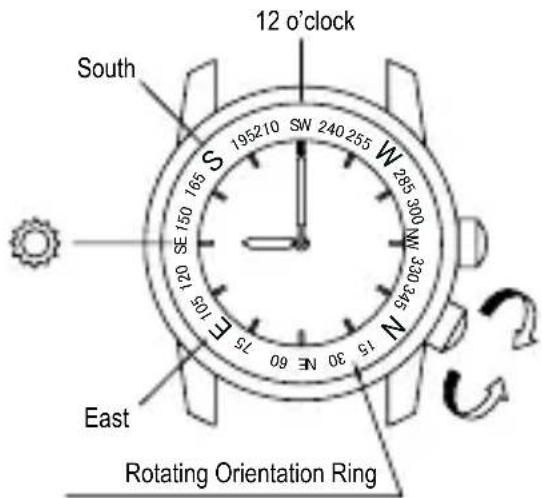

Turning the crown will rotate the rotating orientation ring. If you point the hour hand in the direction of the sun while keeping the watch horizontal, the direction between the hour hand and twelve o'clock will face south.

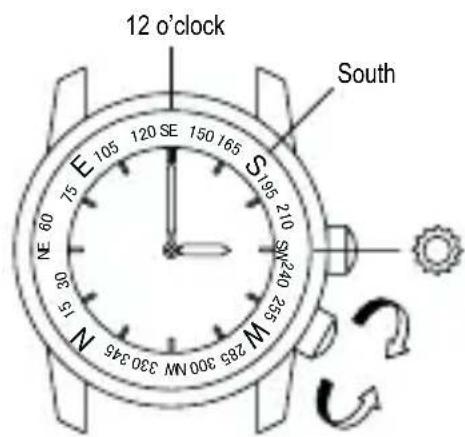

(1) In the morning, with twelve o'clock as the origin, "the position midway between twelve o'clock and the hour hand counterclockwise from twelve o'clock" will point toward south. Refer to FIG. 1.
(2) In the afternoon, with twelve o'clock as the origin, "the position midway between twelve o'clock and the hour hand clockwise from twelve o'clock" will point toward south. Refer to FIG. 2.

The orientation ring is labeled with indications for north, south, east, and west (N, S, E, and W) as well as numbers for degrees of angles to allow directions to be known quickly.

12 o'clock South SW 240 255 195210 S 165 SE 150 10.71 1.71 105 10 F 15 NE 60 30 NE 300 320 345 N 15 E 15 East Rotating Orientation Ring

FIG. 1

12 o'clock South NE 60 75 E 105 120 SE 150 165 S 195 210 N 300 330 345 W 285 300 S 240 255 S 210 S 195 NE 60 S 240 W 285

FIG. 2

* The position of the inner ring crown and details of the date indicator may vary depending on the model.

This function can only be used in the northern hemisphere. However, you may not be able to use it in regions in latitudes lower than the Tropic of Cancer, depending on the season.

• To use this function, you need to be able to confirm the position of the sun.
• To use this function, you need to set the watch's time to the local time of the place where you are located.
• This function is merely a simple compass and cannot be used to determine true direction.

Example: When wanting to know the direction of east at nine o'clock in the morning. Refer to FIG. 1.

(1) Point the hour hand toward the sun.
(2) The position midway between the hour hand (nine o'clock) and twelve o'clock points toward south, so turn the S on the rotating orientation ring to line it up with the position of 10:30 on the dial.
(3) In this case, the direction in which E points (7:30) on the rotating orientation ring is east.

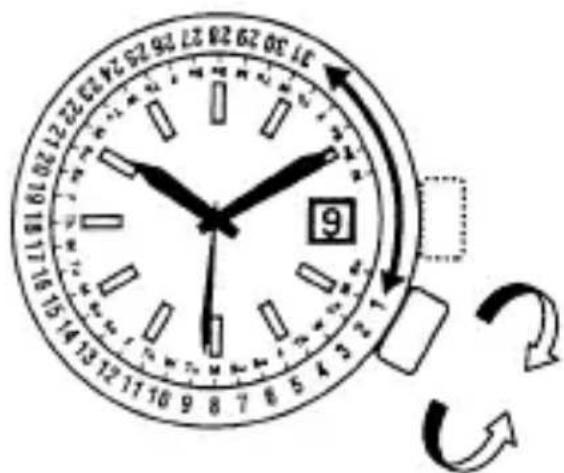

◆ HOW TO SET THE MONTHLY CALENDAR

Some models come with a calendar function which uses an inner ring or bezel on the exterior of the case to indicate the date.

The monthly calendar can be used by turning the crown to set the rotating ring inside the watchcase and aligning it with the day of the week that is printed on the dial.

Turn the crown to align the first day of the month to the appropriate day of the week.

* Note that when setting the first day of the month, if the days at the end of the month (31st, etc.) are aligned with the section that does not have the days of the week printed on the dial (3 - 4 o'clock side), days of the week will not be indicated at the end of the month.

12:30 12:31 12:32 12:33 12:34 12:35 12:36 12:37 12:38 12:39 12:40 12:41 12:42 12:43 12:44 12:45 12:46 12:47 12:48 12:49 12:50 12:51 12:52 12:53 12:54 12:55 12:56 12:57 12:58 12:59 12:60 12:61 12:62 12:63 12:64 12:65 12:66 12:67 12:68 12:69 12:70 12:71 12:72 12:73 12:74 12:75 12:76 12:77 12:78 12:79 12:80 12:81 12:82 12:83 12:84 12:85 12:86 12:87 12:88 12:89 12:90 12:91 12:92 12:93 12:94 12:95 12:96 12:97 12:98 12:99 13:00 9

* The position of the inner ring crown and details of the date indicator may vary depending on the model.

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

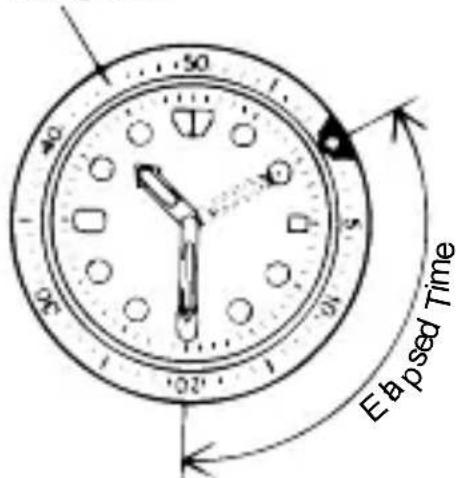

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute-hand. While certain time goes by, you can measure the elapsed time from the distance between minute-hand and figures on the rotating indicator bezel. You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

Rotating bezel

50 50 120 Eb p sed Time

The above shows that 20 minutes have elapsed from 10:10.

* Depending on design, anti-reversely and 1 minute “click” sound mechanism on rotating indicator bezel does not apply to some models.

DEUTSCH

MECHANISCHE UHR

BEDIENUNGSANLEITUNG

Cartoon illustration of a person riding a tricycle with motion lines indicating speed (no text or symbols)

(5) Temperatur

E G A 24° F N C 8 D B I

E SUNDAY A B G C 8 D I

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

◆ MODELLE MIT VERSCHRAUBBARER KRONE

Diagram of a clock face with an arrow indicating rightward movement, showing time and duration.

Simple analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols beyond clock face markings)

◆ EINSTELLEN DES DATUMS [ALLE MODELLE]

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

Simple line drawing of a circular dial with tick marks and an arrow pointing to it (no text or symbols)

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

Diagram illustrating time synchronization between two clocks with arrows indicating rotation and change.

Diagram showing a clock with an arrow indicating rotation around 12:30, accompanied by a small icon representing time.

Simple line drawing of a clock face with hour and minute hands, no text or symbols present

Diagram illustrating time frame changes with clock and digital display, showing movement from left to right.

◆ EINSTELLEN VON WOCHENTAG UND AM/PM (VORMITTAG/NACHMITTAG) [FN(46V)]

Diagram of a clock face with hour and minute hands, showing 24-hour division and an arrow indicating time direction.

12:00 15:00 04:00

12/30/45/75/82/90/97/102

Diagram showing a clock face with hour and minute hands moving, illustrating time-to-day conversion.

Diagram showing a clock face with hour and minute hands, before and after an operation.

Simple line drawing of a person using a golf club to walk (no text or symbols)

(3) Magnétisme

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(5) Température

A F C E G 24 34 D B I

E B G A 8 C D I

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

◆ MODÈLES À COURONNE DE TYPE VISSANT

Diagram showing a clock face with hour and minute hands, followed by a rightward arrow indicating time or duration.

Simple analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols beyond clock face markings)

◆ AJUSTEMENT DE LA DATE [TOUS LES MODÈLES]

Simple circular diagram with tick marks and an arrow pointing right (no text or symbols)

Diagram illustrating time synchronization between two analog clocks with clock hands and directional arrows indicating rotation.

Diagram showing a clock face with an arrow indicating rotation around it, labeled 'S' at the minute.

Simple line drawing of a clock face with hour and minute hands, no text or symbols present

◆ RÉGLAGE DE L’HEURE ET AJUSTEMENT DU JOUR DE LA SEMAINE [EV(46E)]

Diagram illustrating time frame changes with arrows and grid patterns, showing clock movement and directional change.

♦ AJUSTEMENT DU JOUR DE LA SEMAINE ET RÉGLAGE DE AM/PM (MATIN/APRES-MIDI) [FN(46V)]

Simple clock face with hour and minute hands, no visible text or symbols

Diagram of a clock face with numbers and an arrow indicating direction, showing time and duration in seconds.

24 06:30

SUNMON T UEWEDTHURISAT SUNMON T UEWEDTHURISAT

Diagram showing a clock face transforming into a simplified analog clock face, illustrating time and duration changes.

Image showing a clock face with hour and minute hands, before and after an operation.

♦ UTILISATION DE LA BAGUE DE L'HEURE MONDIALE ROTATIVE

Simple line drawing of a person using a tool to dig or walk (no text or symbols)

(3) Magnetismo

Cartoon illustration of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)

(5) Temperatura

E G A 24° F N C D B I

SUNDAY E B G A 8 C D I

$$ < \mathrm{FE} (4 6 \mathrm{P}) > < \mathrm{FN} (4 6 \mathrm{V}) > $$

A C D E F G I 20 22 24 18 16 14 12 9 7 5 3 1 0 8 6 4 2 1 0 8 6 4 2 1 0 8 6 4 2 1 0 8 6 4 2 1 0 8 6 4 2 1 0 8 6 4 2 1 0 8 6 4 2 1 0

$$ < F P (4 6 W) > < F X (4 6 Y) > $$

AM / PM E I B H G 8 A C D

I B H G A 8 SUN MON TUE NED THU FRI SRI E C D

A B H G D C I Calendario mensile

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

◆ MODELLO DI TIPO CON CORONA AD AVVITAMENTO

◆ IMPOSTAZIONE DELL'ORA [EU(46D), FX(46Y), FE(46P), FN(46V), FP(46W)]

Diagram showing a clock face with hour and minute hands, followed by an arrow indicating rightward movement.

Diagram of an analog clock showing time with hour and minute hands, accompanied by a directional arrow indicating leftward movement.

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

in sens antiora

Simple line drawing of a circular dial with tick marks and an arrow pointing to it (no text or symbols)

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Diagram showing a clock with hour and minute hands, indicating rotation or cycle, and directional arrows.

Simple circular diagram with tick marks and an arrow pointing right (no text or symbols)

Diagram showing a clock with hour and minute hands, accompanied by a circular arrow indicating rotation or refresh.

Simple line drawing of a clock face with an arrow pointing to the left side (no text or symbols)

Simple circular diagram with arrows pointing right, no text or symbols present

Diagram showing a clock with directional arrows and a segmented rectangular block, likely illustrating time or digital transformation.

Diagram showing a clock with hour and minute hands, connected to a grid and circular arrows indicating rotation or synchronization.

Diagram showing a clock with an arrow indicating rotation or change, and a grid pattern on the wall.

Diagram of a circular mechanical component with internal slots and a directional arrow (no text or symbols)

Diagram of a clock face with directional arrows and segmented segments, possibly indicating movement or navigation

A B C

◆ COME USARE LA FUNZIONE DI DOPPIO ORARIO [FE(46P)]

Diagram showing a clock face with hour and minute hands, before and after an arrow indicating rotation or change.

Diagram showing a clock face with hour and minute hands, before and after an operation.

◆ COME UTILIZZARE LA GHIERA DELL'ORA INTERNAZIONALE ROTANTE

Simple line drawing of a person using a tool to dig or sweep (no text or symbols)

(3) Magnetismo

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

(5) Temperaturas

A F C E G D B I

E SUNDAY A B G C D I

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

[EU(46D), FX(46Y), FE(46P), FN(46V), FP(46W)]

Diagram of an analog clock face showing time and duration, with a rightward arrow indicating the next minute.

Simple line drawing of an analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols)

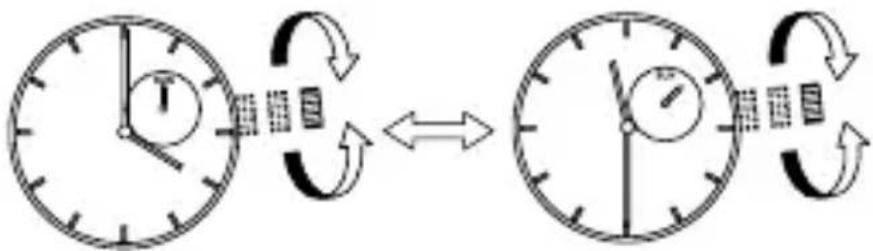

◆ AJUSTE DE LA FECHA [TODOS LOS MODELOS]

Simple line drawing of a clock face with an arrow pointing to the right (no text or symbols)

Diagram illustrating time synchronization between two analog clocks with clock hands and directional arrows indicating rotation.

Diagram showing a clock with an arrow indicating rotation around 12:30, labeled 'S', and a small inset image of a clock.

Simple line drawing of a clock face with an arrow pointing to the right side (no text or symbols)

◆ PUESTA EN HORA Y AJUSTE DE LOS DÍAS DE LA SEMANA [EV(46E)]

Diagram of a circular object with radial lines and a grid pattern, connected by an arrow (no text or symbols)

A 0

RICHMON

Diagram showing a clock face with hour and minute hands, accompanied by an arrow indicating rotation or change.

Diagram of a circular mechanical component with internal slots and an arrow indicating direction (no text or symbols)

◆ AJUSTE DEL DÍA DE LA SEMANA Y AM/PM [FN(46V)]

Diagram of a clock face with segmented segments and directional arrow, showing time or duration data

24 12 V 12 V 12 V 12 V

R S C

Diagram showing a clock face with hour and minute hands, before and after an arrow indicating rotation or change.

Image showing a clock face with hour and minute hands, before and after an arrow indicating the change.

◆ CÓMO USAR EL ARO DE HORA INTERNACIONAL GIRATORIO

Simple line drawing of a person using a golf club to dig (no text or symbols)

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(5) Температура

E G A 24° F N C 8 D B I

E SUNDAY A B G C 8 D I

A C D E F G I 20 24 22 18 16 14 12 9 8

AM/PM (утреннее/ вечернее время). E I B H G 8 A C D

I B H G A 8 SUN MON TUE MED THU FRI SAT E C D

I B H G A D C Календарь на месяц

Illustration of a hand holding a wristwatch with an arrow indicating rotational motion (no text or symbols)

◆ МОДЕЛИ С ЗАВИНЧИВАЮЩЕЙСЯ ГОЛОВКОЙ

Diagram of a clock face with hour and minute hands, showing a 12:30 interval and an arrow indicating rightward movement.

Simple analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols beyond clock face markings)

◆ УСТАНОВКА ДАТЫ [ВСЕ МОДЕЛИ]

Simple line drawing of a circular clock face with an arrow pointing right (no text or symbols)

Simple line drawing of a clock face with an arrow pointing to the left side (no text or symbols)

Simple circular diagram with tick marks and an arrow pointing right (no text or symbols)

Diagram showing a clock with hour and minute hands, followed by a circular diagram illustrating time and rotation.

Diagram showing a clock with an hour and minute hands, accompanied by a circular arrow indicating rotation or refresh.

Diagram showing a clock face with an arrow indicating rotation around 3:15, accompanied by a small icon representing time.

Diagram showing a clock face with an arrow pointing to the left side, indicating direction or movement.

◆ УСТАНОВКА ВРЕМЕНИ И ДНЕЙ НЕДЕЛИ [EV(46E)]

Diagram of a clock face with hour and minute hands, showing 24-hour cycle and directional arrow

0:30 1:00 2:00 3:00 4:00 5:00 6:00 7:00 8:00 9:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00 22:00 23:00 24:00 25:00 26:00 27:00 28:00 29:00 30:00 31:00 32:00 33:00 34:00 35:00 36:00 37:00 38:00 39:00 40:00 41:00 42:00 43:00 44:00 45:00 46:00 47:00 48:00 49:00 50:00 51:00 52:00 53:00 54:00 55:00 56:00 57:00 58:00 59:00 60:00 61:00 62:00 63:00 64:00 65:00 66:00 67:00 68:00 69:00 70:00 71:00 72:00 73:00 74:00 75:00 76:00 77:00 78:00 79:00 80:00 81:00 82:00 83:00 84:00 85:00 86:00 87:00 88:00 89:00 90:00 91:00 92:00 93:00 94:00 95:00 96:00 97:00 98:00 99:00

SUNMON T LEWEDTHURISAT

SUMMON TUEMEDTHURSAT

Diagram of a circular dial with Chinese characters and numerical markings, likely indicating an electrical or measurement device.

Diagram showing a clock face before and after rotation, with numbers 12 to 24 and a curved arrow indicating the direction.

Diagram showing a clock face transforming into a simplified analog clock face, illustrating time and duration changes.

* قد يختلف وضع قرصABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS

Diagram showing a clock face with hour and minute hands, before and after an arrow indicating rotation or change.

Image showing a clock face with hour and minute hands, before and after an operation.

Three analog clocks showing different dial patterns with arrows indicating changes, likely illustrating a digital clock or time-based adjustment.

Simple line drawing of a clock face with an arrow pointing to the right side (no text or symbols)

Diagram showing a clock with time and rotation arrows, indicating speed and direction of movement.

Diagram showing a clock with a gauge and a separate circular diagram illustrating rotational or cyclical behavior.

Simple line drawing of a circular clock with an arrow pointing to it, no text or symbols present.

Simple line drawing of a clock face with an arrow pointing right (no text or symbols)

Simple line drawing of a clock face with an arrow pointing to the left (no text or symbols)

Analog clock face showing time with hour and minute hands, accompanied by a rightward arrow indicating time.

Simple analog clock face with hour and minute hands, showing time near 10:30 (no text or symbols beyond clock face markings)

Illustration of a hand holding a wristwatch with motion arrows indicating rotation (no text or symbols)

A F C E G 24 8 D B I

A: عقرب Csاعة

B: عقرب الدقائق

C: عقرب الثوانى

اليوم : D

E: يوم الأسبوع

SUNDAY A B G C D I

Simple line drawing of a person using a golf club to dig (no text or symbols)

(٢)prec#

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines indicating speed (no text or symbols)
