Product Type	Automatic mechanical watch
Brand	ORIENT
Model	Contemporary EU00002U
Caliber	EU46D
Jewels	21
Frequency	21,600 vibrations/hour
Power Reserve	Over 40 hours
Daily Accuracy	+25 to -15 seconds/day
Power Source	Automatic winding by arm movement
Display	Hands (hours, minutes, seconds), date, day of week, 24-hour hand
Main Functions	Date, day of week, 24-hour hand, multi-year calendar, dual time function, compass (orientation bezel)
Water Resistance	5 ATM (50 meters) – splash and rain resistant, not suitable for diving
Crown Type	Push-pull crown (non-screw-down on this model)
Crystal Material	Mineral glass
Strap	Leather or stainless steel (depending on version)
Care	Clean with a soft, dry cloth; avoid chemicals, magnetism, and strong shocks
Safety	Do not use underwater if the watch is not water-resistant; avoid extreme temperatures (<5°C or >35°C) and strong magnetic fields
General Information	Watch from the Contemporary collection; Japanese manufacture

Frequently Asked Questions - Contemporary EU00002U ORIENT

How to set the time on my ORIENT Contemporary watch?

Pull the crown to the second position (the seconds hand does not stop). Turn it clockwise to adjust the time. Make sure to set the morning or afternoon by observing the date change at midnight. Then push the crown back to the normal position.

How to adjust the date?

Pull the crown to the first position. Turn it counterclockwise until the correct date is displayed. Push the crown back. Avoid setting the date between 9 PM and 2 AM to prevent damage to the mechanism.

How to adjust the day of the week?

For this model, the day of the week is adjusted using the push button (pusher) when the hands are at 2 o'clock. Press the button until the desired day appears. For hidden button types, use a pointed object.

What should I do if my watch stops?

Gently shake the watch about ten times to wind the mainspring. If it restarts, set the date and time. The watch runs for about 40 hours after a full wind. Wear it for at least 8 hours a day to maintain accuracy.

What is the power reserve of the watch?

The power reserve is approximately 40 hours when the mainspring is fully wound. For optimal accuracy, wear the watch for at least 8 hours per day.

Is my watch waterproof? Up to what depth?

Yes, it is water-resistant up to 50 meters (5 ATM). It withstands splashes and rain, but not swimming or diving. Avoid using the crown underwater.

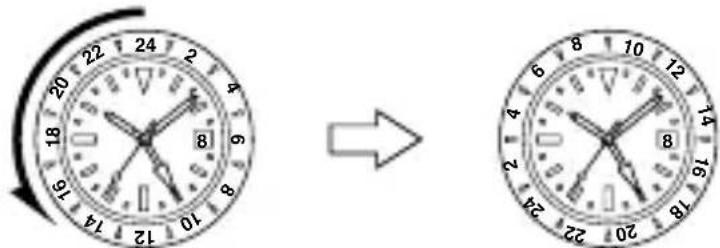

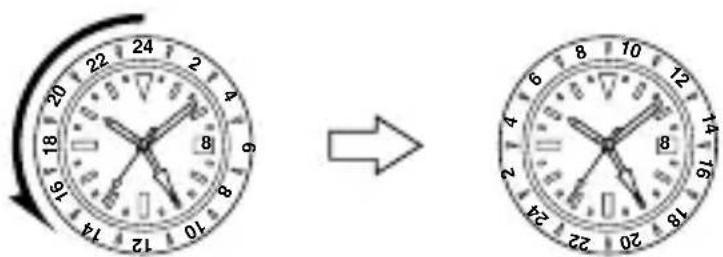

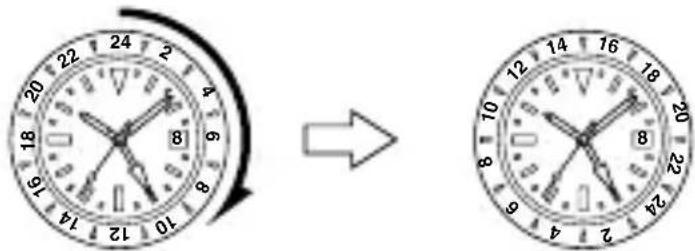

How to use the dual time function?

First set the local time. Calculate the time difference to the desired city. Rotate the rotating bezel by the corresponding number of hours (clockwise for negative offset, counterclockwise for positive). The 24-hour hand then indicates the second city's time on the bezel.

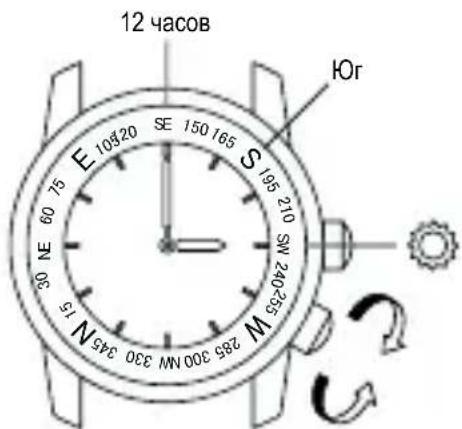

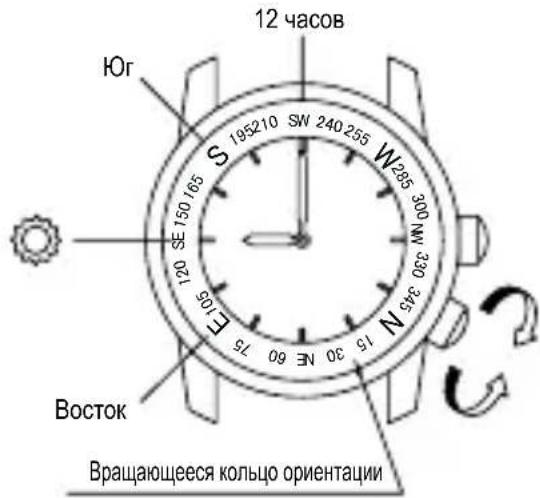

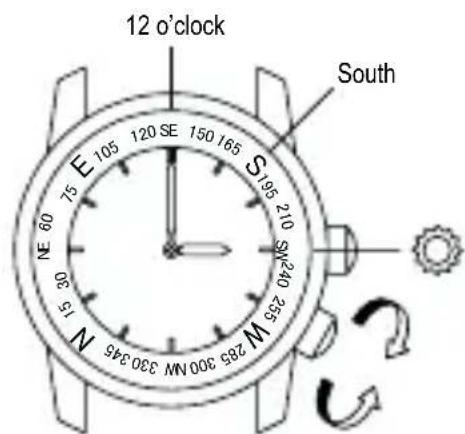

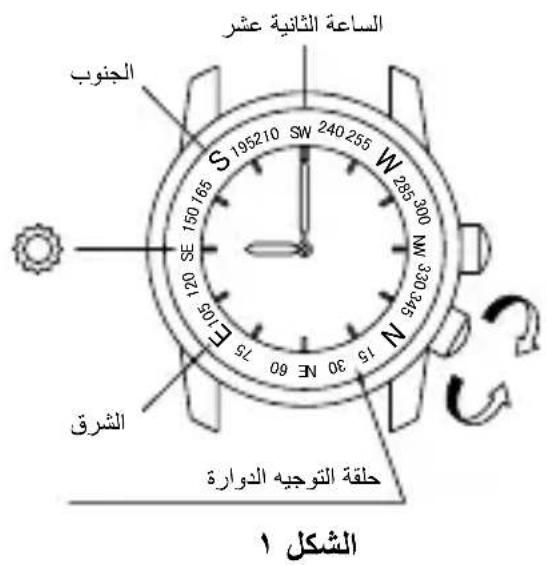

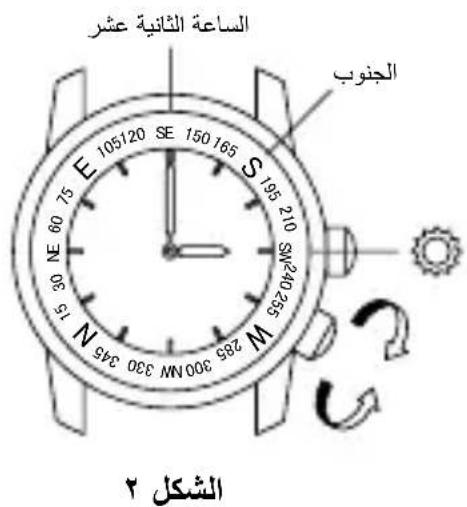

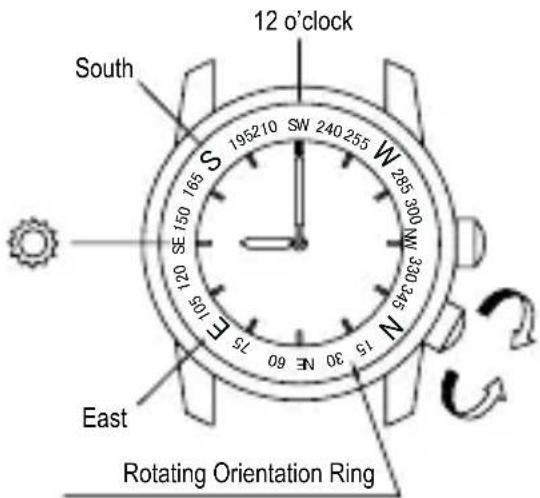

How to use the compass (orientation bezel)?

Hold the watch horizontally. Point the hour hand towards the sun. The direction between the hour hand and 12 o'clock indicates south (in the Northern Hemisphere). Rotate the orientation bezel to align the south marker with this position. The bezel then shows the cardinal directions.

How to maintain my watch?

Clean it with a soft, dry cloth. Avoid contact with seawater, chemicals, perfumes, and cosmetics. Store away from magnetism and extreme temperatures. Have the watch serviced every 3 to 5 years by a watchmaker.

What to do in case of fog under the crystal?

Temporary fog may appear due to temperature differences. If it disappears quickly, there is no risk. If it persists or if water enters, immediately consult a watchmaker. Do not leave the watch in this state.

USER MANUAL Contemporary EU00002U ORIENT

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize yourself with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× × × × ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× × × ×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○ ○		×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○ ○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○ ○	○	○

• It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

WARNING

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
(3) A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.

CAUTION

(4) Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
(8) With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.
② Avoid a violent shock such as dropping the watch on the floor.

(3) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.
② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(4)Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

(5) Temperature

In environments below and above normal temperatures (5^ - 35^) , the watch may malfunction and stop.

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(6) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(7) About accessory parts

Do not attempt to disassemble or modify the watch.

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(8) Allergic reactions

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(9) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(10) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

HOW TO IDENTIFY THE CALIBER NUMBER

Check the caliber number by referring to the model number of your watch or the case code on the watch's case back.

1. Searching by 10-digit model number

Check the 10-digit model number on the guarantee supplied with your watch. You can also see the number on the product tag put on the watch. Its second and third digits indicate the caliber number of your watch.

Example: If the model number is "F01002B" the caliber number is "FX".

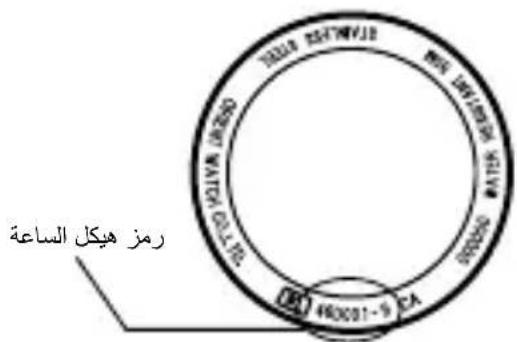

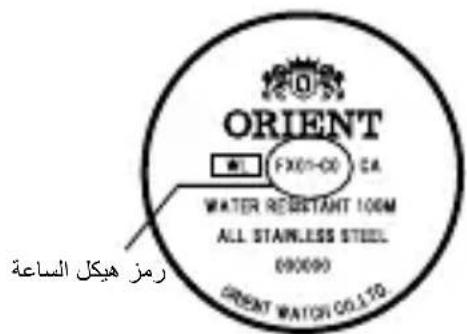

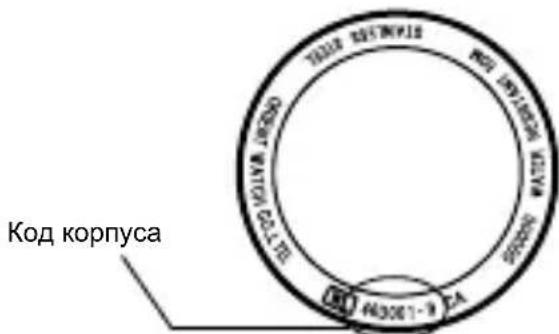

2. Searching by the case code

See the case code on the case back of your watch.

A: If the case code is 6 digits, the first two digits indicate the caliber number.
B: If the case code is 8 or 9 digits, the first three digits indicate the movement number. Search the caliber number corresponding to the movement number referring to the correspondence table.

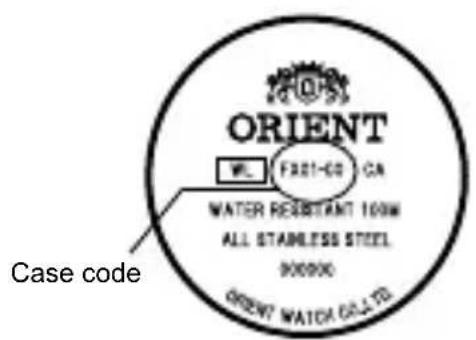

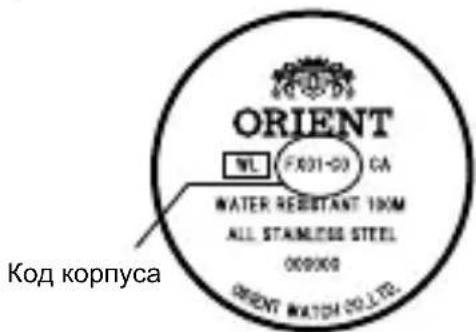

Example A

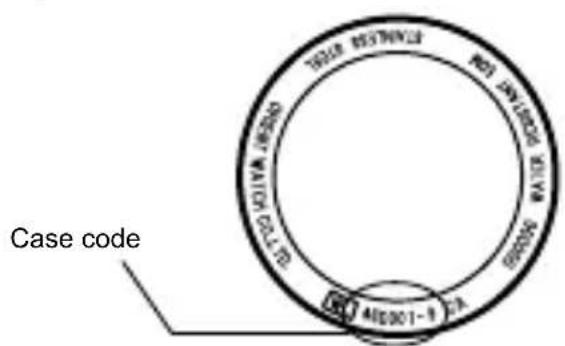

Example B

Example A: When the case code is "FX01-C0", the caliber number is "FX".

Example B: When the case code is "46D001-9", the movement number is "46D". The caliber number corresponding the number will be found "EU" on the table.

• The place of case code may vary and its letter size may be small and difficult to see depending on the characteristics of watches.
• The pictures and illustrations on this manual may differ from the actual appearance of your watch but the function and operation procedures are the same.

SPECIFICATIONS

Caliber	Number of Jewels	Date	Day of week 24H hand	Daily accuracy Remark1*
ES 46C 21		○	Hand Indicating type	- +25~-15s/day	9:00 p.m. ~ 2:00 a.m.
ET 46B 21		○	Hand Indicating type	○	+25~-15s/day
EU 46D 21		○	○	- +25~-15s/day	9:00 p.m. ~ 2:00 a.m.
EV 46E 21		○	Wide type	- +25~-15s/day	10:00 p.m. ~ 1:00 a.m.
FE 46P 21		○	-	○	+25~-15s/day
FN 46V 21		○	Wide+AM/PM	- +25~-15s/day	9:00 p.m. ~ 3:00 a.m., 10:30 a.m. ~ 1:30 p.m.
FP 46W 21		○	Dot or arrow indicating	- +25~-15s/day	9:00 p.m. ~ 3:00 a.m.
FX 46Y 21		○	○	- +25~-15s/day	9:00 p.m. ~ 2:00 a.m.

(1)Vibrations:21.600 vibrations/hour
(2) Running time: More than 40 hours
(3) Shock-proof bearings to protect the balance with hairspring from shocks.

The stated daily accuracy is in the following conditions:

• After 24 hours at room temperature with the mainspring wound fully and the dial facing up.
• Due to the characteristics of the automatic winding watch, the time may deviate from the stated "daily accuracy" depending on the following conditions: amount of time the watch is worn each day, position of the watch, movement of your arm, winding condition of the mainspring.

Product specifications may change without notice, for improvement.

CAUTION

• Avoid setting the date during the time periods listed in "Remark1" above since the calendar changes during this time. If the date is set during this time period, the date may not change or the watch may malfunction. Be sure to move the hour and minute hands away from this time period when setting the date.

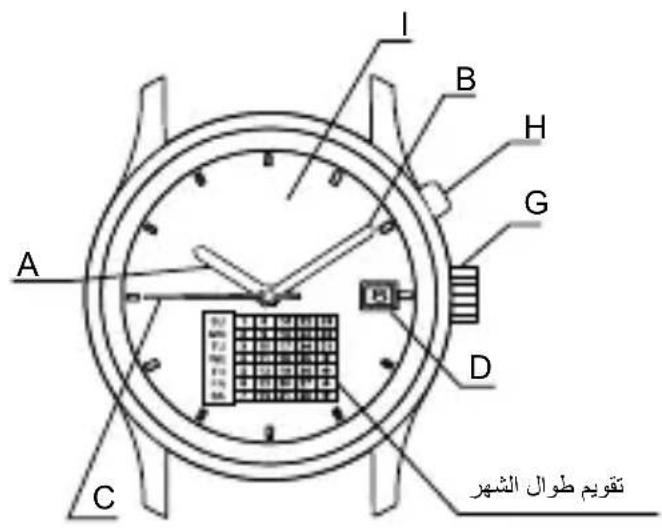

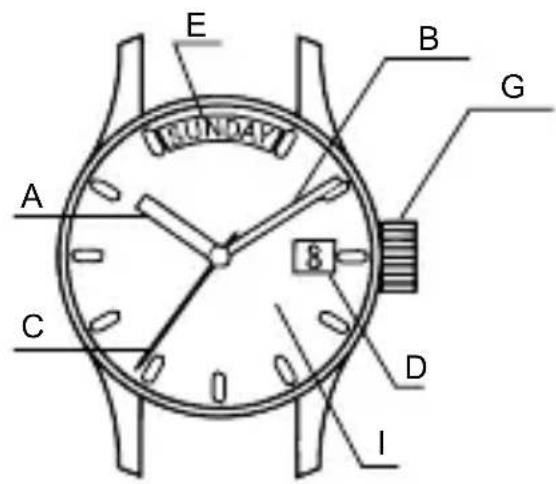

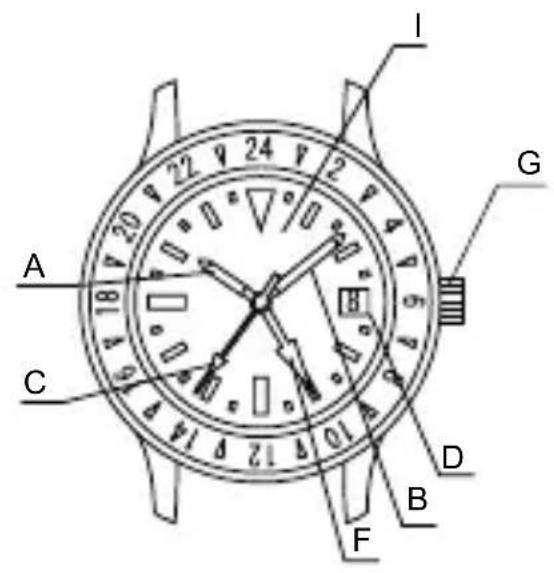

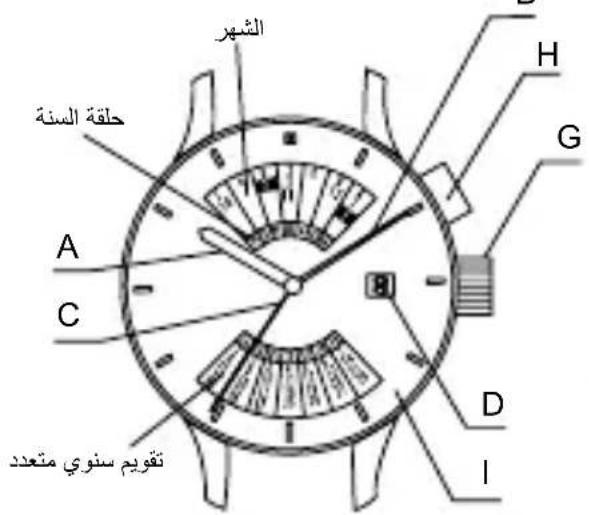

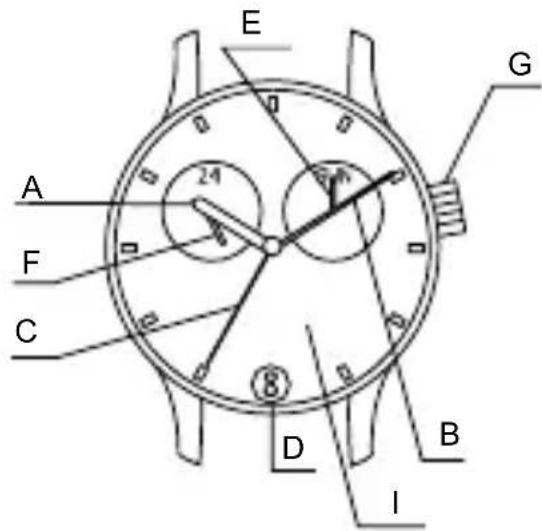

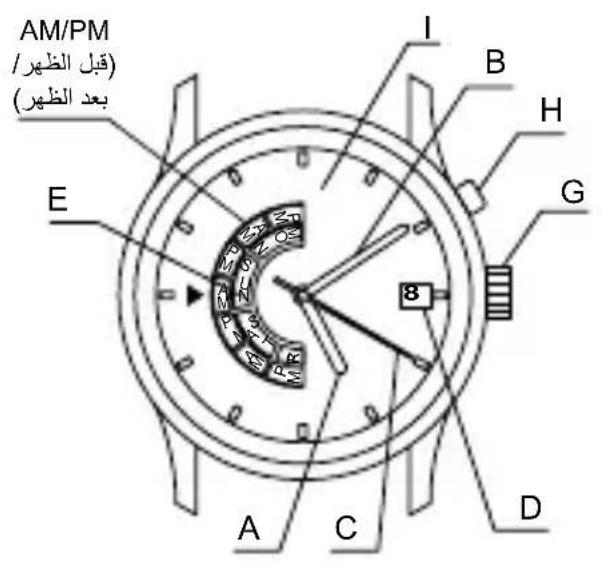

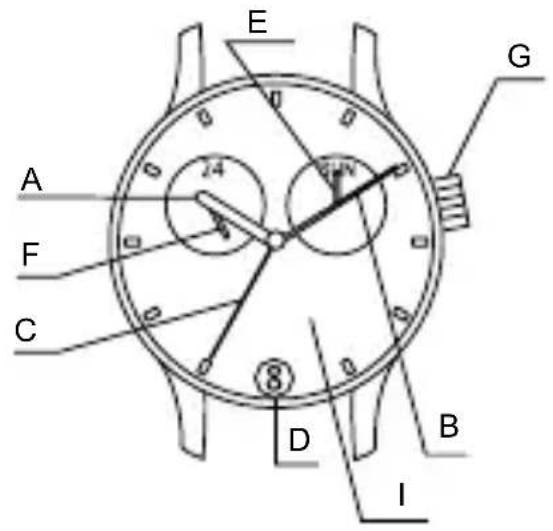

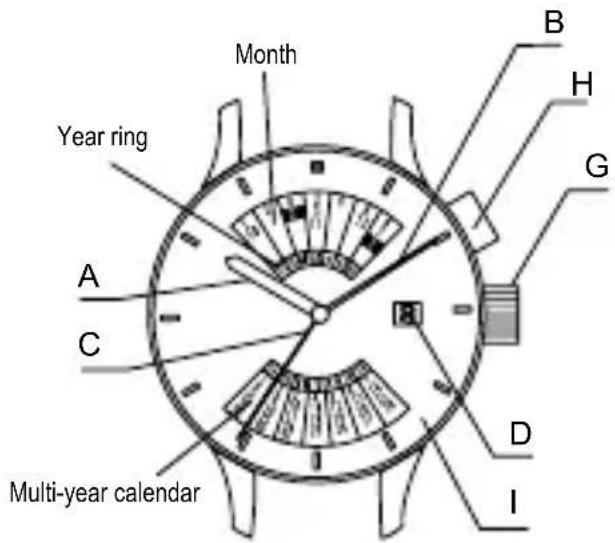

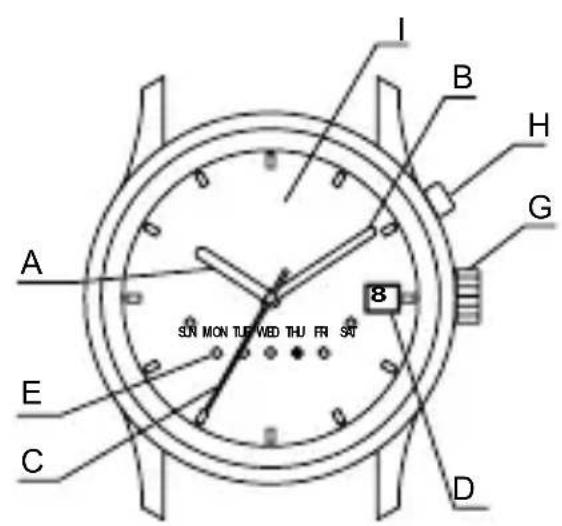

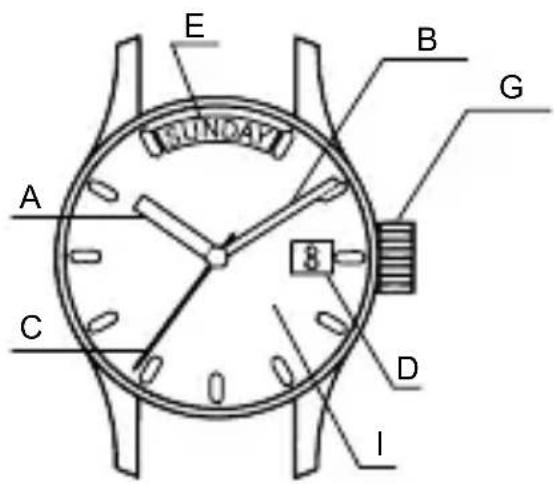

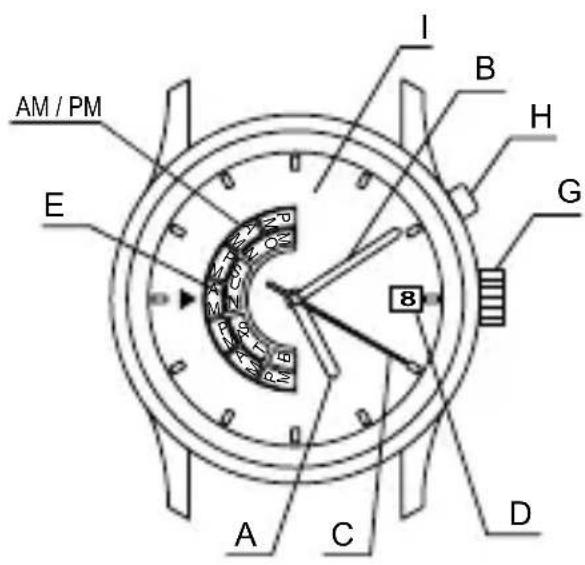

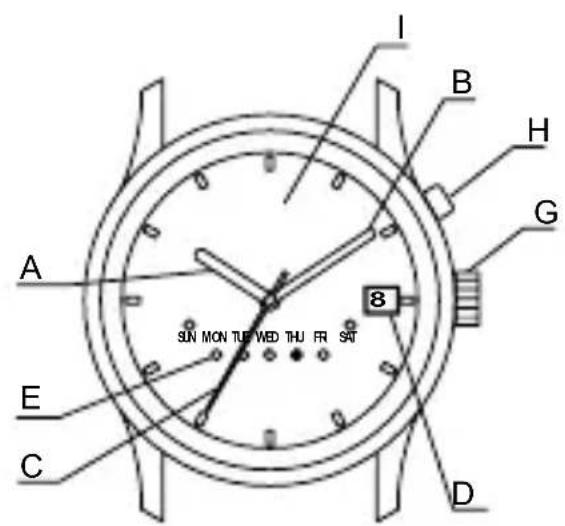

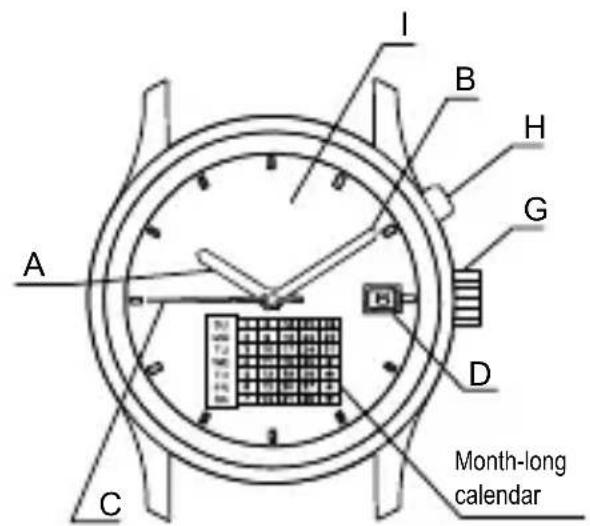

NAMES OF INDIVIDUAL COMPONENT PARTS

A: Hour hand
B:Minute hand
C:Secondhand
D:Date
E: Day of the week
F: 24-hour hand
G:Crown
H:Clickbutton
I: Dial

$$ < F E (4 6 P) > < F N (4 6 V) > $$

$$ < F P (4 6 W) > < F X (4 6 Y) > $$

• The position of the crown, date indicator, etc. may vary on some models.

AUTOMATIC WINDING MECHANISM

(1) This is an automatic winding mechanical watch.
(2) The mainspring is wound by natural movements of your arm when wearing the watch on your wrist.
(3) If your watch stops, swing the watch back and forth ten or more times to re-start the second hand. After it starts moving, set the date and time.
(4) This watch will run approximately 40 hours after it is fully wound. If it is not wound enough, the watch may lose accuracy. In order to maintain the watch's accuracy, we recommend wearing the watch at least 8 hours a day.

MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown to the left to loosen the screw lock.
(2) After setting the date and time, turn the crown to the right while pressing in, until it stops turning to securely tighten the screw.

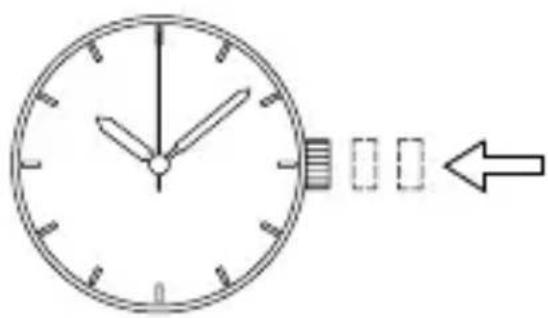

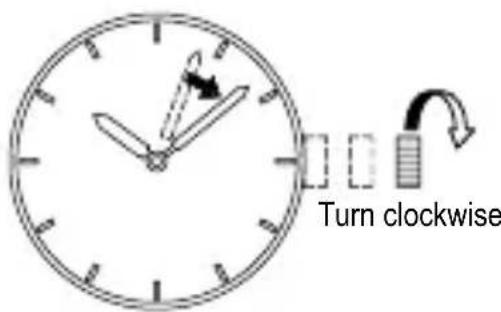

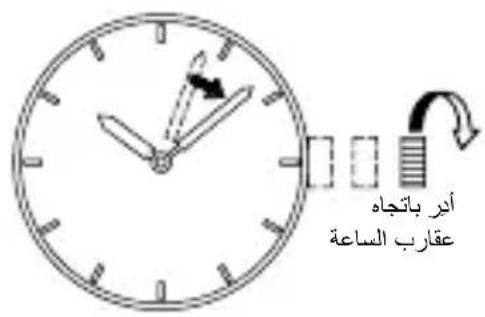

HOW TO SET THE TIME [EU(46D), FX(46Y), FE(46P), FN(46V), FP(46W)]

(1) Pull out the crown to the second click. The second hand does not stop.
(2) Turn the crown clockwise and set the current time.

Since this watch comes with a calendar, make sure that you set either a.m. or p.m. without fail.

The date changes at [twelve o'clock midnight].

When setting the time, first bring the hand back slightly earlier the actual time and then move it forward to the actual time.

(3) Press the crown in to the normal position.

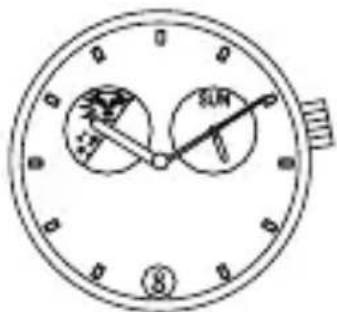

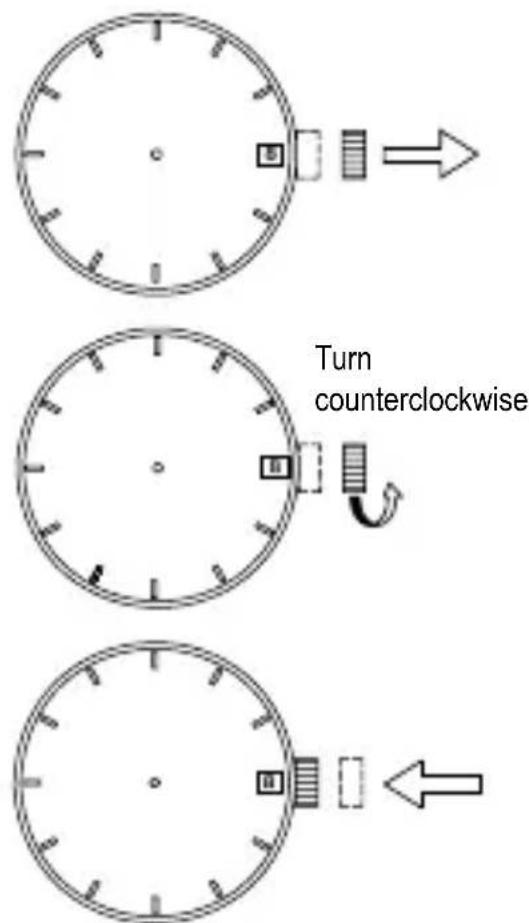

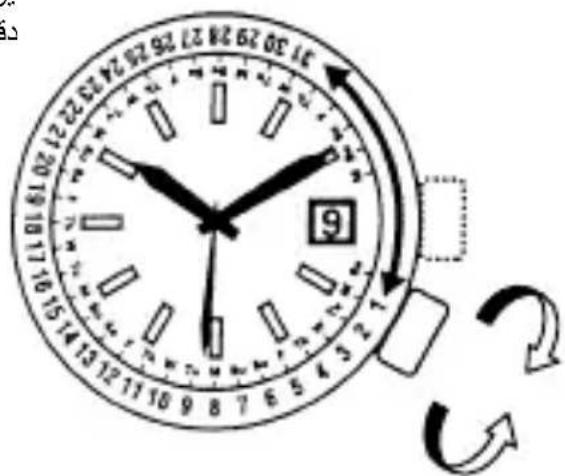

HOW TO SET THE DATE [ALL MODELS]

(1) Pull the crown out to the first click. The crown on this watch can be pulled out to the first and second clicks.
(2) Turn the crown counterclockwise until you reach today's date.
(3) Press the crown in to the normal position.

The position of the crown, date indicator, etc. may vary on some models.

About date correction at month's end:

Date correction is necessary for months with 30 days or less. Set the date to the [1st day] on the first day of the next month.

• ET(46B)

The 24-hour hand moves in conjunction with the hour hand and cannot be set by itself.

Some watches may display time using pictures or symbols (Sun & Moon) instead of the 24-hour hand.

HOW TO SET THE TIME & DAYS OF THE WEEK [ES(46C), ET(46B)]

Set the day of the week first by turning the hour hand and minute hand since this watch does not come with a correcting mechanism for the day of the week.

(1) Pull the crown out to the second click. (Second hand does not stop.)
(2) At first, turn the crown and set the day of the week.

Turn the crown clockwise until the hand indicates the day of the week.

Turn the crown counterclockwise and bring

back the

hands to

about 11:30

p.m. (At this

time, the day

of the week

does not

change.)

Again, turn the crown clockwise until the hand indicates the next day of the week.

Repeat this operation and set the day of the week.

(3) Turn the crown clockwise to set the time.

• Since this watch comes with a calendar, be sure to set either a.m. or p.m.

The date changes at [twelve o'clock midnight].

Also, you can check a.m. and p.m. with the 24-hour hand.

Some models may use a picture-based system (Sun & Moon) instead of the 24-hour hand. The time is twelve o'clock midnight when the Moon symbol is at the top of the window.

• When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.

(4) Press the crown in to the normal position.

Turn clockwise

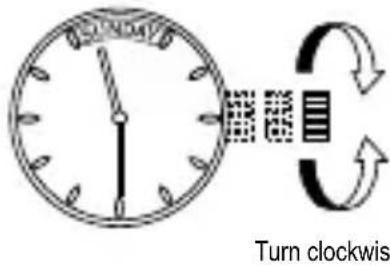

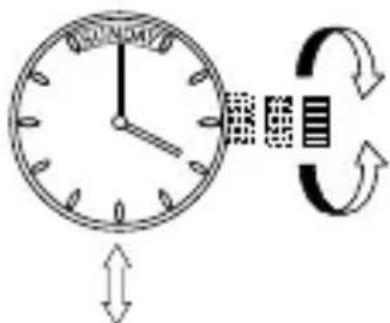

HOW TO SET THE TIME & DAYS OF THE WEEK [EV(46E)]

Set the day of the week first by turning the hour hand and minute hand since this watch does not feature a correcting mechanism for the day of the week.

(1) Pull the crown out to the second click. (Second hand does not stop.)
(2) At first, turn the crown and set the day of the week.

Turn the crown clockwise until the hand indicates the day of the week.

If a day of the week is between two days of the week, turn the crown until a day is shown.

Turn the crown counterclockwise and bring back the hands to about 11:30 p.m. (At this time, the day of the week does not come back.)

Again, turn the crown clockwise until the next day of the week is shown.

Repeat this operation and set the day of the week.

(3) Turn the crown clockwise to set the time. Since this watch comes with a calendar, be sure to set either a.m. or p.m.

The date changes at [twelve o'clock midnight].

When setting the time, first bring the hand back slightly later than the actual time and then move it forward to the actual time.

(4) Press the crown in to the normal position.

HOW TO SET THE DAY OF THE WEEK & AM/PM [FN(46V)]

Press the click button at the two o'clock position to set AM/PM and the day of the week.

When setting the time, be sure that AM/PM is set correctly.

Example: Changing the display from SUN AM to MON AM

(1) Press the click button to change the display from SUN AM to SUN PM.
(2) Press the click button again to change SUN PM to MON AM.

• For types of watches with a click button that cannot be pressed with your finger (i.e. the "hidden button" type)

The day of the week can be set by pressing the click button using a sharp, pointed object such as a precision screwdriver, a pair of tweezers or a metal pin.

The layout of the days of the week and the location of the window vary from model to model.

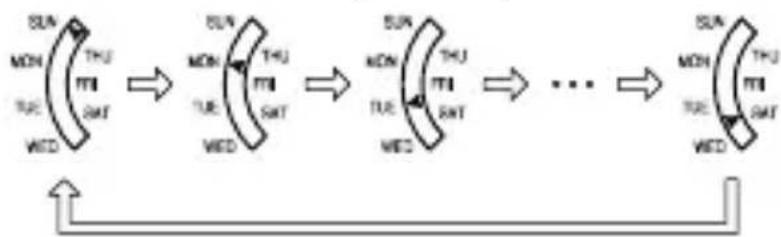

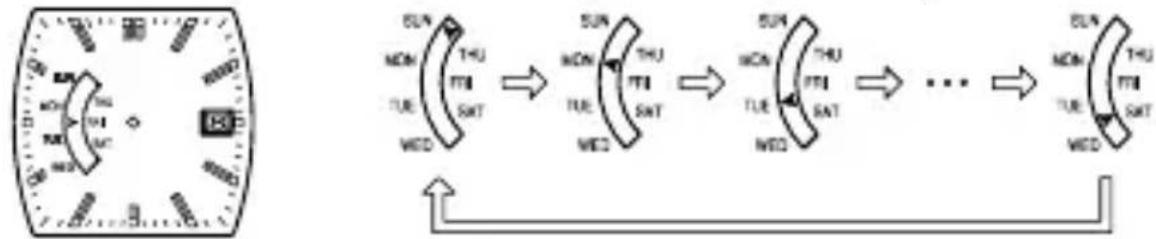

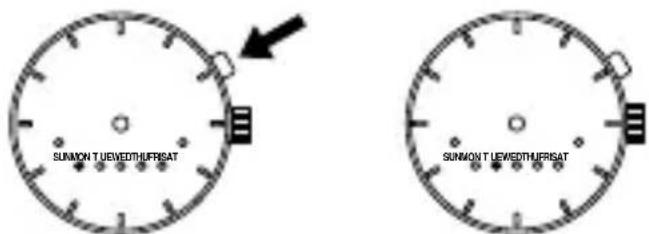

HOW TO SET THE DAY OF THE WEEK [FP(46W)]

There are models that indicate the day of the week with (dot) or (arrow). Though display methods are different, operation methods are the same.

See below for operation methods.

(Dot-indicating type)

Press the click button at the two o'clock position to set the day of the week.

(Arrow-indicating type)

Press the click button at the two o'clock position to set the day of the week.

• For types of watches with a click button that cannot be pressed with your finger (i.e. the "hidden button" type)

The day of the week can be set by pressing the click button using a sharp, pointed object such as a precision screwdriver, a pair of tweezers or a metal pin.

The layout of the days of the week and the location of the window vary from model to model.

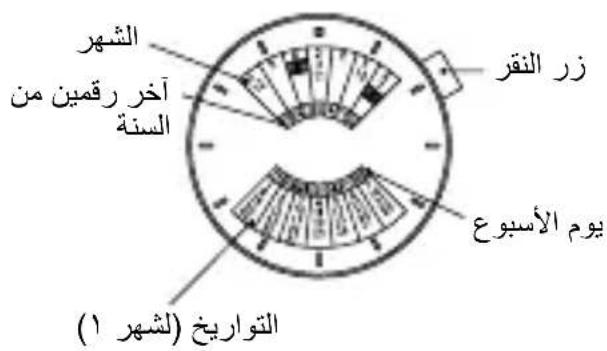

HOW TO USE THE MULTI-YEARCALENDAR [EU(46D)]

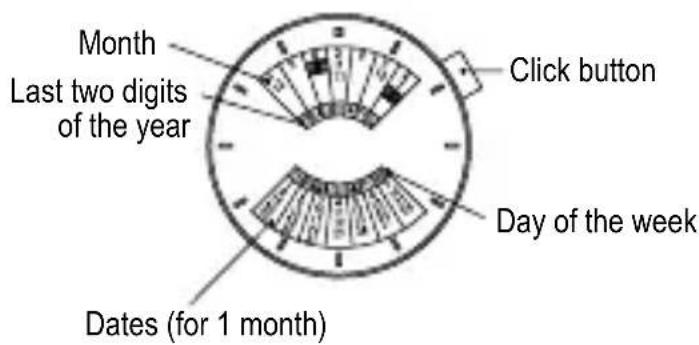

[NAMES AND FUNCTIONS OF COMPONENT PARTS]

• The click button, location of the date indicator, and style of the month indicator may vary by model.

[HOW TO SET THE MULTI-YEAR CALENDAR]

Press the click button until the month to be set lines up with the last two digits of the year to be set at the top of the dial.

• To display the month of January or February during a leap year, line up the last two digits of the year with the appropriate 1 or 2 in the black box. The last two digits of the year for a leap year are printed in red.

A calendar with the days for the specified month in their appropriate places is displayed at the bottom of the dial.

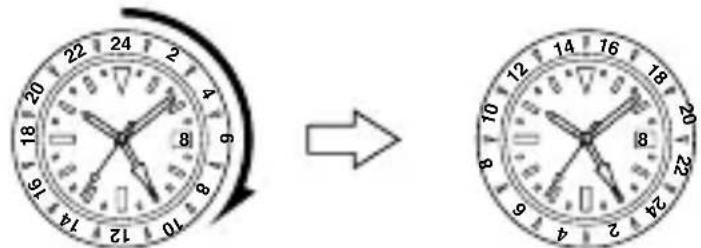

HOW TO USE THE DUAL TIME FUNCTION [FE(46P)]

You can see the time for two different time zones, one for the city you are in and another for any other city, using the rotating bezel and the 24-hour hand.

(1) First be sure that the watch is showing the correct time.
(2) Get the time difference for the city you want to know the time of. (See Comparison table of standard times.)
(3) When the time difference is a negative number, turn the bezel clockwise to that number of hours. When the time difference is positive, turn the bezel counterclockwise to that number of hours.
(4) The number on the bezel where the 24-hour hand is pointing will be the time in the city you selected.

Example: When you want to know the time in London while you are in Japan London time is 9 hours behind Japan. Therefore, turn the rotating bezel clockwise 9 hours. The hours and minutes shown by the watch hands is the time in Japan. The number on the bezel where the 24-hour hand is pointing is the time in London. (Japan time: 10:09 a.m., London time: 01:09 a.m.)

Example: When you want to know the time in Japan while you are in London Japan time is 9 hours ahead of the time in London. Therefore, turn the rotating bezel counterclockwise 9 hours. The hours and minutes shown by the watch hands is the time in London. The number on the bezel where the 24-hour hand is pointing is the time in Japan. (London time: 10:09 a.m., Japan time 07:09 p.m.).

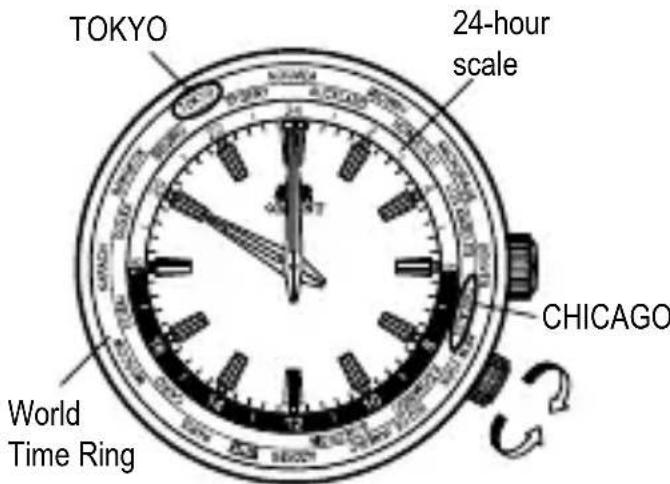

USING THE ROTATING WORLD TIME RING

When you turn the rotating indicator ring and align the city names with the times, you can read the respective times of the cities right away.

Example: It is 10:00 p.m. in Tokyo now.

(1) In the 24-hour system, 10:00 p.m. is 22:00 hours.

(2) Set TOKYO on the World Time Ring to the 22-hour position of the 24-hour scale.

• The World Time Ring comes in various types, such as with a crown for setting world time or with a rotating bezel.

(3) The position that CHICAGO on the World Time Ring indicates is the time in Chicago.

• The position indicated by each scale on the World Time Ring represents the time in that country. Using this method, you can simultaneously see the time in countries around the world by using the scales on the World Time Ring and reading the dial.

• The position of the inner ring crown and details of the date indicator may vary depending on the model.

COMPARISON TABLE OF STANDARD TIMES

City indication Typical city Time differen	ces with GMT
GMT GMT ±0
PAR PARIS +1
CAI CAIRO +2
MOW MOSCOW +3
DXB DUBAI +4
KHI KARACHI +5
DAC DHAKA +6
BKK BANGKOK +7
BJS	BEIJING	+8
TYO TOKYO +9
SYD SYDNEY +10
NOU	NOUMEA	+11
AKL AUCKLAND	+12
MDY	MIDWAY	-11
HNL HONOLULU	-10
ANC ANCHORAGE	-9
LAX LOS ANGELES	-8
DEN DENVER	-7
CHI CHICAGO	-6
NYC NEW YORK	-5
SDQ	S. DOMINGO	-4
RIO	RIO DE JANEIRO	-3
SGS S.GEORGIA	-2
PDL AZORES	-1

• Some countries use daylight savings time. There may be cases where the time difference and daylight savings time change to suit the country's convenience.
• The city names listed are major cities in various countries of the world. Please note in advance that some product specifications are subject to change for product improvement purposes.
• If planning to use the watch in a place not listed in the table above, select a city in the same time zone as the city for which you want to indicate time.

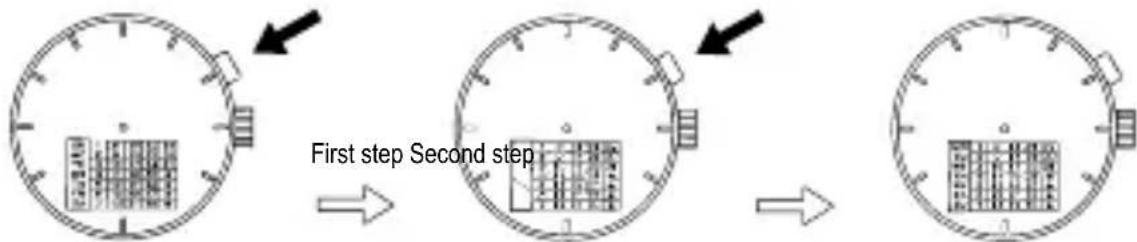

HOW TO ADJUST A DAY OF THE WEEK [FX(46Y)]

Correction of a day of the week is required the beginning of a month.

Please unite the day of the week display of a dial on the day at the beginning of a month.

Please adjust the following procedure.

Push the click button, and adjust a day of the week.

Whenever it pushes a day of the week display twice, it changes.

(* It does not change to the right position only by pushing once)

Please repeat this operation and adjust with the day of the week of that month.

• For types of watches with a click button that cannot be pressed with your finger (i.e. the "hidden button" type)

The day of the week can be set by pressing the click button using a sharp, pointed object such as a precision screwdriver, a pair of tweezers or a metal pin.

USING THE ROTATING ORIENTATION RING [FE (46P)]

Turning the crown will rotate the rotating orientation ring. If you point the hour hand in the direction of the sun while keeping the watch horizontal, the direction between the hour hand and twelve o'clock will face south.

(1) In the morning, with twelve o'clock as the origin, "the position midway between twelve o'clock and the hour hand counterclockwise from twelve o'clock" will point toward south. Refer to FIG. 1.
(2) In the afternoon, with twelve o'clock as the origin, "the position midway between twelve o'clock and the hour hand clockwise from twelve o'clock" will point toward south. Refer to FIG. 2.

The orientation ring is labeled with indications for north, south, east, and west (N, S, E, and W) as well as numbers for degrees of angles to allow directions to be known quickly.

FIG. 1

FIG. 2

This function can only be used in the northern hemisphere. However, you may not be able to use it in regions in latitudes lower than the Tropic of Cancer, depending on the season.

• To use this function, you need to be able to confirm the position of the sun.
• To use this function, you need to set the watch's time to the local time of the place where you are located.
• This function is merely a simple compass and cannot be used to determine true direction.

Example: When wanting to know the direction of east at nine o'clock in the morning. Refer to FIG. 1.

(1) Point the hour hand toward the sun.
(2) The position midway between the hour hand (nine o'clock) and twelve o'clock points toward south, so turn the S on the rotating orientation ring to line it up with the position of 10:30 on the dial.
(3) In this case, the direction in which E points (7:30) on the rotating orientation ring is east.

HOW TO SET THE MONTHLYCALENDAR

Some models come with a calendar function which uses an inner ring or bezel on the exterior of the case to indicate the date.

The monthly calendar can be used by turning the crown to set the rotating ring inside the watchcase and aligning it with the day of the week that is printed on the dial.

Turn the crown to align the first day of the month to the appropriate day of the week.

• Note that when setting the first day of the month, if the days at the end of the month (31st, etc.) are aligned with the section that does not have the days of the week printed on the dial (3 - 4 o'clock side), days of the week will not be indicated at the end of the month.

• The position of the inner ring crown and details of the date indicator may vary depending on the model.

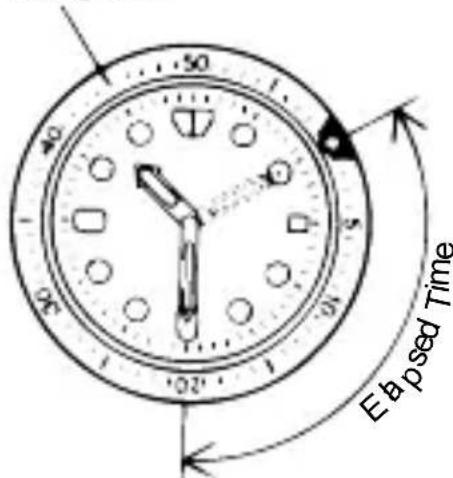

HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the mark to the minute-hand. While certain time goes by, you can measure the elapsed time from the distance between minute-hand and figures on the rotating indicator bezel. You can also set the mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

Rotating bezel

The above shows that 20 minutes have elapsed from 10:10.

DEUTSCH

MECHANISCHE UHR

La posición de la corona, indicador de Fecha, etc.SEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOOO

MEPbI INPEIOCTOPOXHOCTN

Ctporo co6IIOaIte npBVeJeHHbIe HIXe IHCTpyKcN IJI ppeOITbpaUeHnIIObOro yIep6a 3IopOBbI O NOBpeJdeHnBaIero mMyIecTba nIMyIecTba dpyrnx Iu.

...ДаньсIMBOJ O3HauaET BO3MOXHOCTb JeTaIbHOrO nCxOda nII N cepbe3HbIX TpaBM B Cclyae, ecnДaHHbI pOdyKT 6ydeT NCIOJIb3OBaTbcr JIO6bIM cNoCobom, OTJIuHbIM OT npINBeDeHHbIX INHCTpyKcN.

...ДаHHьСИМВОЛ O3нauаET BO3MOxHOCtB cepbe3HbIX TpaBM ИИ MaTePnAJIbHOrO yIepe6a ToIbKO B TOM Cnyae, ecIи ДaHHьI ПpoDyKT 6yIeT IcNoJb3OBAtbcЯ ЛбьIM INHbIM cIocO6OM, OTJIuHbIM OT npINBeDEHHbIX INHCTpyKcI.

ПРИОБPAUSEHINСЧАСМN

(1) BódoHe npOnucaemocTb

* PeKoMeHnyETcNcNoJIb3OBAbTb YacB B COOTBeTCTBm C npuBeHeHHo BblIe KlaaccnФkauei, PpeDbapntelbHo npOBepnB MapKnpoBky nO BoOnHePOnHuaemocTn Ha cΦep6NaTe UIN Kopnyce.

① Yacbl C BOIOHepOnHuaemocTbI O IJI NOBceDHeBHO ICNoJb3OBAHn 30 M (36ap) MOryt NCIOJIb3OBAtbcra BO BpeM yMbIBaHn I T. I., HO He MOryt NCIOJIb3OBAtbcra ByCIOBnX, pR KOTOpBX OHn 6ydyT NorpykaTbCRA B BODY.
② Yacbl c ycnJIeHHoB OdoHepOnHuaemocTbIO DnI NOBceDHeBHORO NcNoIb3OBaHnKlaccCa I 50 M (5 6ap) Moryr NcNoJb3OBaTbCBA BpEm PnaBaHnN T. n., HO He MoryrNCNoJIb3OBaTbCBA BpEm HbIPAHN Nn NODBOHO rPnaBaHnR.
③ Yacbl C ycnHeHNOBDOHEnPOHnUaEMOCTbIO IJN NOBCEdHEBHOI NCNoJIb3OBaHnKnaCca II 100 M nnn 200 M (10 nn 20 6ap) MOrYT NcNoJIb3OBaTbC8 BO BpeMn HbIpHn IIN NODBOHDoro PJIaBAHn, HO He MOrYT NcNoJIb3OBaTbC8 BO BpeMn NOBDOHoro PJIaBAHnC KNCNOPoDnHbIM 6aANHOHOM IIN BbINOJHHeHn BO DOJNa3HbIXpa6OT c aBOTOHMhIM NbIXaTeNbHbIM annapaTaMn Ha reINI.

④ Пи Ксплуataци Уасов ГОВКа ДОЖнHaхODИТбСВУTOПЕHHOM (HOPMaJIbHOM) NOLOжЕн. EcNi ГОВКа OTHOCINTCa K TINY 3aBnHnBaIO7uNXcR, TO OHa DOJxKha 6blTb ПNotHO 3aBnHueHa.
⑤ He nCnoNb3yIte roNoBky noi BDoi nn ecnn Ha yacax nMeetcBnara.Boa MoKET npOHKnHyTb BHyTpB Kopnyca yacOB i HapuyuNb IX repMeTNUHOCtB.
⑥ Ecnn Baun yacbl He YBnIOTc BOHOHpOHNcaeMbIMN, To He DOnyckaIte InonadaHna Ha HIX BOJnHbIX 6pb3r (BO BpeM yMbIBaHn, B DOxKnByIO nOrOdy N T. d.), a Takke 3aNoTeBaHn. Ppi nonadHn Ha yacbl BOdbI INn npn 3aNoTeBaHn UdaJIte Bnary C NOMOsbIO cyXoMgKO TkaHn.
⑦ Daxe ecn Baun Yacbl, npedHa3NaueHHbIe dIy NOBceHbHO NC0Nb307BaHn, ObnadAOT BOOnHePOnuCaemocTbO, He DOynckaIte Bo3dEInCTBn Ha Hx CNbHO CTpyn BODbl. Pn npeBbIWeHN DoynctmOrO ypOBn DaBnEHn BObl MoKet 6blb HapyseHa repMeTnUHOCt Yacob.
⑧Пи nonaHaHn Ha Baun BDOHeHPOHuaeMbIe Yacbl, npeHa3HaueHHbIe JnnoBceDHeBHO NOJb3OBaHnMOPCKOu BObl, CTpXHnTe BoUy INPOTpHTe KOpNyc HacyxO, yTO6bI He DOnyCTnTB BO3HNKHOBeHnKoppo3nn NIN INhBX HeratNBbIX NocJeDCTBn.
⑨ Bnytpn Koprnyca YacOB copeKHTcR He6oNbHoe KOJNUeCTBO Bna. IooTOMy KOrda TemnepaTypa OkpykaIOUeRO BO3dYxa HIXKe TeMnepaTypbI BO3dYxa BHyTPn Koprnyca YacOB, Ha BHyTpEHHe NOBepXHOCTN CTeKNa MOKeT O6pa3ObBtBaTbCra 3aNoTeBaHne. Ecn 3aNoTeBaHne HocNT BpeMeHHb XapaKTep, To 3TO He HaHOCTBpeDa Yacam. Ondako eCIn 3aNoTeBaHne OCTaETcRA Ha CTeKNe IpOdoJXHTelbHOe BpeMa INe ECIn B Yacbl IOnaNA BOda, IpOKOHcyJIbTnpuITecb No MeCTy npno6peTeHnA YacOB n He OCTaB7JrAte 3Ty npo6IeMy 6e3 BHIMAHnA.

(2) yapoponpoHuOCTb

① CHHMaIte YacbI BO BpEm 3aHrTm 3HeprnHbIMN BNuAMN CNoPTa, Ondako, 3aHrTne TaKIMN BNuAMN CNoPTa, KaK rOJIbΦ N T. He OKAKET HerATNBHO RO3DeEICTBna HA COCTOHNue YacOB.

② N36eraTe CnIbHOrO Ydapa Tnpa NaDeHnY YacOB Ha NoJ.

(3) Bo3dEiCTBnE MaHHTbIX NOJe

① 3anpeaaetcnoBepraTb yacbl BO3dejCTBnIO CNIbHbIX MaHTbIX NOeB TeueHne IInTeJbHorO nepNoa BpeMeHN, NoCKoJIbKy KOMHOENTbl YacOB MOry THaMaHHTNTbcr, YTO npNBedET K HapUweHIO pa60tbl YacOB.CobIouaTe OCTOPOKHOCTb.

② ПOD BO3dEINCTBnEM MaHHTHOI NOJ YacBI MOYr BpeMeHHO CNEHNTb NIM OTCTaBaTb.ToUHOCTb NOKa3AHN YacOB 6yDet BOCCTaHOBNeHa,ecNI yCTpaHHTb BO3dEINCTBnE MaHHTHOI NOJ Ha YacBI. B TAKOM cIyuae NOBTOpHO yCTaHOBnTE BPEMra.

(4) Bn6paun

YacblMOryT NOTepeTb TOUHOCTb,ecn6yUT NODBepKeHb CINbHO Bn6paun,HaNPmEp,Bbl3bBaEMOn POe3KOHNAMOTOUKNE,NCNOJb3OBAHNEM OT60HOROMOTKa,CEHHO INJIbI NT.

(5) Temnepaotypa

YacbI MOrTy IaTn HEnpaBnIbHO NII OCTaHOBNTbcra npN TeMnepaTypax HNXe NJI Bblse HopMaJIbHOrO dHaNa3oHa (5^ - 35^)

BHIMAHNE

He noIb3yIteCb YacAMn npN BbICOKo Tempepatye (HaIpIMep, B cayHe). Yacbl MOryT HArpeBaTbCn N Bbl3bIBaTb OXOrn.

(6) XIMNueckne BeuaceCTBa, ra3bl T.I.

CneJyET co6IIOdaTb MaKcMaJIbHyIO OCTOpOXHOCTb npN KOHTaKe Tc Ra3AMn, pTyTBIO, XIMNUeCKMn BeIeCTBaMn (pa36aBnteJeM dIg KpackN, 6EH3INHom, pa3NIuHbIMn pacTBOpNTeJIaMn, MOUImM cpeCTBaMn, CoepKaUIMN TaKHe BeIeCTBa, KJIeAMN, KpackAmN, IekapCTBeHHbIMN npenapaTaMn, napfOMepNei, KOCMeTKoNIOIIp.) n T.I. 3TN BeIeCTBa MOryt N3MeHNTb ZBeT Kopnyca YacOB, 6pacJIeTa/peMeIka N cIepe6IaTa. Bo3MOXHbI TaKke N3MeHeHne ZBETA, DeΦopMaunr IN NOBpeJdeHne N0JImEepHBIX KOMNOHETOB.

He nbItaIteScb pa36npaTb n MoDnΦnCnPOBaTb Yacbl.

He daBaIte 7nnIbKn 6paCneTa/peMeuKa n dpyrn e MeJkn DeTaJn DeTAM.

B cnyuae nporlaatbIBaHn MeJkoI deTaJIH HeMeJeHNO o6paTntecb K BpaCy.

(8)Аллергuingпескne peakuzn

Boli nocne KOHTaTa c 6paCneTOM Ha Koke NOBnEeTc BcInb nn pa3dpaxeHne, PpeKpATIte HOCNTb Yacbl N He3ameDnTeJbHo O6paTITecb K BpaCy.

(9)ЛюмнесецHThoe nOKpbITne

Ha cTpeIkax n KOnbue HeKOTOpbIX MoJeIe NMeETcra JHOMnHeCzEHTHOe NOKpbITne.

OHO BbINOJIHeHO n3 6e3oNaCHO HepaIIOaKTNBHO Kpackn, HAKaJIINBaIOUe CoJIHeuHbI N NCKyCCTBeHHbI CBET N OTdIoUeI erO B TEMHote. OTdaBaHaKoJIeHHbI CBET, NOKpbITne NOCTeNEHHO CTAHOBNTc8 BoJee TycKnblM.

KoJIuYeCTBO OTdAbaEMOrO CBeta N BpeMg CBeueHnra 3aBnCrt O T pa3JIuHbIX
ΦaKTOpOB: oopMbI CTeKna, ToJIuINHbI CNoR KpackN, yPOBnRApKOcTn OKpyXaUoSei
CpeDbI, pacCToRnHnO T YacOB Do NCTOChNkA CBeta N CTeNEHn NORIoUeHn RA CBeta.
POMHnTe, UTO ecnHaKoJIneHo HEmHOrO CBeta, Yacbl 6ydyr CBETntbcra cna60
IIIN HeDoIro.

(10)Воданpoиcaembийбpacnet

B HeKOTOpbIX MoDEJAX NcNOJb3yIOTcKoXaHbIe HHeJIHOHBbIe peMeUKN, NOdBeprHyTbIe CneuHaNbHoi O6pa6OtKe Inra 3aunTbI OT nToOTDeJeHnRA IN BO3deIcTBnRA BODbl. CBoiCTBO BOHOHpOnucaEMoCTn DaHHoro 6paCJIeta MOKeT 6bITb NOTepraHO B 3aBNCIMoCTn OT nepNoDa n YcNOBn 3KcPnyaTaun.

ONPEDEJEHNE HOMEPA KAJINBPA

Пюверы симп Калбра Baших чавов по Homepy модени чавов плкody Koprnyca на заней Крblшке Корни Ст。

A: Ecnn KOD KOpnyca WeCTn3HaHbI, nepBbI DBe UcΦpbl COOTBETCTBYOT HOMepy KaIIbpa.
B: Ecnn KOD Kopnyca 8- nnn 9-3NaHbIn, nepBbIe Tpi cnoPpbI COOTBeTCTBYOT HOMepy MexaHn3Ma. Hnke npnbOuNTcra Ta6nua COOTBeTCTBn HOMepOB KaIN6pa N HOMepOB MexaHn3Ma.

Приимер A

ПриимерВ

Приимер A:Еспкд корпуca“FX01-C0”，TO homeрkanib6pa—“FX”.

ПримерВ:Еспкод коруca“46D001-9”，TOHomeр mexaHn3ma-“46D”.В tabице этOMу HOMepy budedT COOTBETCTBOBaTb HOMeр kaIb6pa“EU".

• B 3aBnCmOCTn OT XapaKTePncTnK YacOB pacNoJoxKeHne Koda KopnyCa MoKetOTJIuHaTbCra, eRo 3HaKn MOryT NMeTb MaJIeHbKn pa3Mep n 6bITb TpydHo pa3JIuHmblIMn.
• PucyHKn i nllnoctpaun B daHHO IHCTpyKun MoryT OTnuaTbcra OT peaIbHorO Bnda Baunx YacOB, Ondako cyHKun n pa6oue npoceDypbl octaIOTcR HeN3MeHHbIMN.

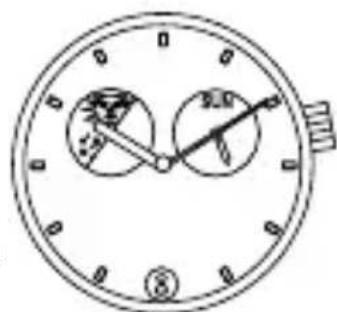

TEXHnueCKXAPAKTEPNUCTnKn

Калпбр		Количесъв Камней	Даара	Дениные	Стrelka 24-часового Индikatopa	Сутона точность	Примechanical 1*
ES 46C 21			○	Стrelочая Иndидаця	-	+25 --15 cek./cytк 21:00 ~ 2:00
ET 46B 21			○	Стrelочая Иndидаця	○	+25 --15 cek./cytк 21:00 ~ 2:00
EU 46D 21			○	○	-	+25 --15 cek./cytк 21:00 ~ 2:00
EV 46E 21			○	Полноформатный	-	+25 --15 cek./cytк 22:00 ~ 1:00
FE 46P 21			○	-	○	+25 --15 cek./cytк 21:00 ~ 2:00
FN46V 21			○	Полноформатный+ утreachе/ Вочерпец вруем	-	+25 --15 cek./cytк 21:00 ~ 3:00, 10:30 ~13:30
FP 46W 21			○	Иndидаця точков ил стrelков	-	+25 --15 cek./cytк 21:00 ~ 3:00
FX46Y 21			○	○	-	+25 --15 cek./cytк 21:00 ~ 2:00

(1) YacToTa Kone6aHn: 21,600 Kone6aHn/uaC
(2)Прдолжпельностьхда:болee40часов
(3) ydapoctoKne noDshnHnKn dny 3aunTbI 6aJahCnpa C BOJOCKOB npyXnKoN OT ydapOB.

3aBHeHnA cyToHnA ToUHOCTb XoJa oBeCneuBaETc npi Co6IIOJeHn CNeDuOx yCIOBn:

KoppeKuaIaTbIB KOHcE Meca:

EcnB Mecae 30 dHei nn Mehse, Heo6xOIMo KoppeKtnpoBaTb DaTy. YcTaHOBnTe DaTy Ha [1-e YncNo] cJeNyUoJero Mecra.

• ET(46B)

24-yaCoBaA CTpeIka DnIXeTcB MecTe C YaCoBOI CTpeIKo I He MoKet 6bITb OTpeRyInpOBAHa OTdJIbHOOT Hee.

Ha HeKOTOpbIX MoDeJIaX BMeCTO 24-uaCobOu CTpeJIKN IcNoJIb3yeTcra N3o6paXeHne IJN CmBOJ (CoJHcE n IyHa).

YCTAHOBKA BPEMEHNI INI HEN HEJEIN [ES(46C), ET(46B)]

Chauana yctahOBITE DeHb HeJeN, NOBopaunBaJ Yacobyu MHyTHyO CTpeKN, NockoIbky DaHHbIe Yacbl He IMeIoT MexAHn3Ma KoppeKTIPOBKn DnHa HeJeN.

(1) BbITaHNTe roJIOBky do BtOporo 7eJyka. (CekyHnHa CTpeJka He octaHOBntcra.)
(2)Сачара повернite Гольку и установпесн. небел.

ПоворачиBaIte roJOBky no yacoboi CTpeJIke do Tex nop, noka CTpeJIka He 6yddT yka3bIBaTb Ha DeHb HeJeN.

IobopaunBaTe roJOBky npOTNB yacBOB CTpeJIKN u yctaHOBe CTpeJIKN npIMepHo Ha 23:30. (B aTO BpEMr DeHb HeJeHn He N3MeHReTc.)

BHOb nobopaunbaTe roJOBky no YacobOy

CTpeIKe Do
Tex nop,
Noka CTpeIka
He 6yJeT
Yka3bIBaTb Ha
CJIeDyUoU
DeHb HeJeN.

ПОВТОРИTe ДаHHуO ONEpaUIO N yCTaHOBInTe DeHb HeDeJIiN.

(3)Дя установки Врemeи поворачиBaite roJIOBky no yacobой CTpeJIke.

Iata MeHreTcB [DBeHaIaTb YacOB Hou].

Takke c nomoub24-ycobOcB TpeKn Bbl Moxete npOBepntb yTpeHHee N BeuepHee Bpemr.

B HeKoTOpbIX MoJeIax BMeCTo 24-uaCOBoi CTpeJIKN MOrYT NcNOJb3OBaTbcra PnCyHKn (CoNHe n LyHa).

EcnBbepxoyokoikn306paXeHaIyHa,3TO 3NaHT, yTo ceuac 12 yacOB HOn.

Ha kOJIbUe opNeHTaUu NMeHOTc o6o3NaYeHnCeBepa, Iora, BocToKa n 3ana (N,S,E u W COOTBeTCTBeHNO), a TaKKe YnCJa,

Obo3HaouuIe rpaDcbl yIbI: YTO6bl MoXHO 6blIO 6blCTpo ONpeJeTb HnPaBJIeHne.

• PacnoJoxeHne roJOBKn BHyTpeHHeRo KOJIbUa N INHdNkATopa DaTbI B pa3HbIX MOdeJax MOryT pa3NJuHaTbcra.

Pnc.1

Pnc.2

<πpimechnno nncnoB30BaHnIO>

3Toi cyHKnne MoXHO nOJb3OBaTbcra TOnbKO B CeBepHom noJyapnn.

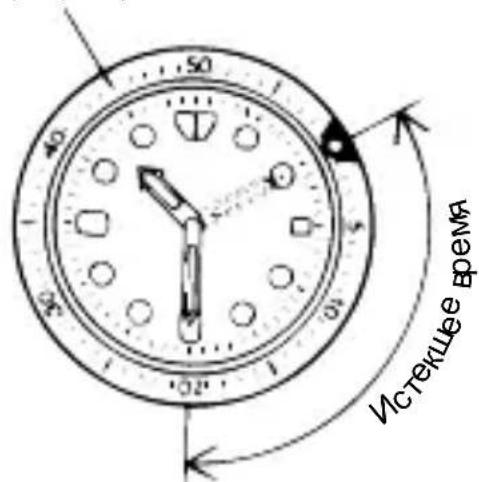

Бeзеле He Moket noBopayBaTbCBy

nPOTUBONOJXHOM HAnpaBHeHn, NOCKoJIbKy

OHO OCHaUeHO 3aUHTbIM MExaHn3MOM, IpeHa3HaueHHbIM JIЯ 3aUHTbI OT OShIOuHOI OepaUNB pe3yNbTaTe npINoXeHnCINbI INIydapa. UcPbI HA BpaUOHeMc8e3eJIe TAKKe MOrY ynpOuaTb CUnTBiBaHne TeKyuJero BpemHn.

Bpaaioiue 6e3eIb

Ha pncyHke Bblse noka3aHO, YTO C MOMeHTa, kOrda 6bIIO 10:10, npoJno 20 MInHyT.

• B 3aBnCmOCTn OT KOHCTpyKcHn 3aUHTa OT NOBOPTa B O6paTHOM HnPaBHeHn n 1-MnHyTHbI "UeJyOK" Ha HeKOTOpbIX MOneJIAX OTCyTCTByET.

jglgall a jlaaiia 1

J 1 J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

y 1

gall gdl gddg d 0jai y jalll paa lgl

y

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

yai jai 15 yai n Jyai yai y i aie y

jlll l jil

aaii aaii i 1

.

y

aai 1

1 klll l j 12a aalll aell l g qg qg ll d:

.

oJ 1i i (e) e 111 1

10:30 1S

（7:30）E 1

[FE (46P)] 4

y 1111111111111111111111111111111111111

a 1
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a aaa

gill gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

i j 11 i j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

.5g 1

acllll l l aclll b jac alj jy aaiil all jg ggl gill gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll gll

.

J 1

J 9 J 9

（）：9：

J 1

y jie 9 8 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9

( LMN LMN) BN = CM

[EU(46D)]

[laai gglgcljslaw]

jI 1

[clgwl]

e 1

.

y 1

J 1

[FP(46W)]

.（） ▲ 1 (abai) 102y

J 1

（）

.

（gall jj）

.

（"gall jll" jIb Jia) abiin jy yjz jz jz jz jz jz jz

i 1

J 1

[FN(46V)] (J/ j) AM/PM 8g

J 1

21

AaBb (y/ y) AM/PM 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

p

.

+ = 2, = 2

2

aolil

（）

e la! 4aill n 251 yg jz aclll oj J L

gall ggl

"

.【

e 1

aclw 12 oclj w jcc

（）

aaiiie 1e aie iie ae eae 8 2

i 1

[FP(46W)·FN(46V)·FE(46P)·FX(46Y)·EU(46D)]

（）

.

（）

1

Lai 1

gall gll

i 1

"

1 2

（）

a.silaogig 1 aiei i

（1）

acllll 1n jn lndic 1d jal aai bll klll jy

S ABO = S ABC

J 1

a gillg jlll lll 4y yj j j j j j j j j j j j j j j j j j j j j j

JyIguiuie puii j. JolSly Ieue 1jai eLw . dJaoiaclll o (2)

AeIw Aiei jy wgi aclll 1e blaal .giaclll dai

J 1

y

a 1

1

：Ls jjll

（1）

（）

P( k,2) .C( -2,2)

$$ < F X (4 6 Y) > $$

$$ < F P (4 6 W) > $$

1

aaii iie

aclllj:A

glaB:BC

i j 1 C

D

E

aclwY&ocljgUac:F

G

jH

1

					الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله��	الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله雄 الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله�� الله雄
~ eluwa 9...blua r...	ργ/γδιλι 10- - γο+				γιο- χβελι	46G J	AES
~ eluwa 9...blua r...	ργ/γδιλι 10- - γο+				γιο- χβελι	46B J	ET
~ eluwa 9...blua r...	ργ/γδιλι 10- - γο+				γιο-	46D	EU
~ eluwa 1...blua r...	ργ/γδιλι 10- - γο+				γιο- χβελι	46E	EV
~ eluwa 9...blua r...	ργ/γδιλι 10- - γο+				γιo- o	46P	FE
~ eluwa 9...blua r...~ blua 1...r...	ργ/γδιλι 10- - γο+		cluω/laω+ χβελι-	o	γi	46V	FN
~ eluwa 9...blua r...	ργ/γδιλι 10- - γο+				γιο- χβελι	46W	LFP
~ eluwa 9...blua r...	ργ/γδιλι 10- - γο+		o	o	γi	46Y	FX

acl/4j1,7…:j（1）

aL 2. n j5j:

Cldaln jy 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

i 1

Jlalll Jjll l jyly 4rall jll

B

A

.FX" 10,FX01-C0" 4A

46D" 46D001-9" 46D001-9"

JU"

a 1

Clell jil

i 1

Ls

（V）

gai jia aclll 1jglz

y 1

（A）

a

1 1

"g j 1000

Llall g jll lge jll jll

a

slalaglaeJgss(1·)

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

JaeWg

(4)

i ①

40 0 0 0 0 0 0 0 0 0 0 0 0 0

Jaeill jie ggiigellll clly jgsd dgygio

（）

1. = ( x1,y1) , = ( x2,y2)

（）

y jll 1111111111111111111111111111111

Jg w g a cll Jg jn jn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

aallll llll 1n n nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

1gdi ggs

J 30m clll aagaae aee aan nck
cllly jiai i yie glaiai nn k
50m I agaaiy o jz e aalgaae aae ank
. 1
200m 100m II aagaae aae ank
J 2

bll jz j 1. aell lal gall (gall gall) cgll Jgall Ie gdo ll bai ①
aJauu u nn no dui, Jauu u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u uu uuuu

（） ①
aclgl aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aol aoll alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alall

20 1

الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال	الإستعمال الإستعمال الإستعمال الإستعمال الإستعمال	الإستعمال الإستعمال الإستعمال الإستعمال الإستUTION	الإستعمال الإستUTION الإستUTION الإستUTION الإستUTION	الإستعمال الإستUTION الإستUTION الإستUTION الإستUTION	الإست據謇 الإست據謇 الإست據謇 الإست據謇 الإست據謇	الإست據謇 الإست據謇 الإست據謇 الإست據謇 الإست據謇	الإست據謇 الإست據謇 ال,en ال–– ––	ال–– ––
					XX	XXX	WATER RESISTANT (WATER RESIST)	–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
X	X	X	X	O	X	WATER RESISTANT (WATER RESIST)	–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––	–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––.
X	X	X	O	O	X	WATER RESISTANT (WATER RESIST)	–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––	–––––––––––––––––––––––––––––––––––
X	O	O	O	O	X	AIR DIVER'S 100m / 150m 200m	––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––—	––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––‒
				O O	O O	He-GAS DIVER'S 200m / 300m /...	––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––−	––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––.

aill aill joll gell aegla cullaln no jassll oclj glp dslil jbi ygaa kai lall p

a

J 1

Jaaal 100

J 1

aJ 1

J 1

1

g 1 g 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aill j 1

S OBC = S ABC + S_ BOC

aaii i aie 1

a 1

.621gll clalzill jc olisi
