Product type	Electric stove
Brand	Campomatic
Model	EP100
Power supply	230 V ~ 50 Hz (estimated)
Number of burners	2 electric burners
Control type	Rotary knobs
Main functions	Cooking on burners, residual heat
Maintenance and cleaning	Wipe with absorbent paper or soft cloth, do not use abrasive products, do not immerse
Safety	Do not leave unattended, unplug before cleaning, do not use with damaged cord
Disposal	Do not dispose of in household waste, take to retailer or recycling center
Compatible accessories	Pots and pans with flat and double bottom, diameter suitable for burners
First use	Heat for 10 minutes without food to set the protective varnish

Frequently Asked Questions - EP100 Campomatic

How to connect the EP100 stove?

Make sure the mains voltage matches that of the appliance (indicated on the rating plate). Plug the appliance into a suitable power outlet after checking that the switches are in the "Off" position (MIN upward).

Can I use any type of pots?

No, only use pots or pans with a double bottom designed for electric burners. Their diameter should not be smaller than that of the burners to avoid heat loss.

How to clean the burners?

Unplug the appliance and wait for it to cool down. Wipe the burners with absorbent paper or a soft cloth. Never use abrasive products and do not immerse the appliance in water.

What to do if the power cord is damaged?

The cord must be replaced by a qualified competent service (manufacturer's after-sales service or qualified person) to avoid any danger.

Can I leave the stove unattended?

No, never leave the appliance unattended while it is operating or under voltage. Risk of fire or burns.

How to take advantage of residual heat?

The burners continue to heat once turned off. You can use this residual heat to reheat food, saving energy.

What to do before first use?

Heat the appliance for 10 minutes without food to set the protective varnish of the burners. Then turn off and let cool before normal use.

Can the appliance be used with an external timer?

No, the appliance must never be operated by means of an external timer or a separate remote control system.

Where should I place the stove?

Place the appliance on a flat, dry, heat-resistant surface, near a power outlet. Avoid flammable materials such as curtains.

What to do if a burner is cracked?

Immediately disconnect the appliance and have it checked by a qualified competent service. Do not use the stove until the problem is resolved.

USER MANUAL EP100 Campomatic

Caution: Read and follow all safety and operating instruction before first use of this product.

Campomatic S.R.L. Via Configliachi 5/B . 35031, Abano Terme (Padova), ITALIA

WWW.CAMPOMATIC.COM

TABLE OF CONTENT

ENGLISH 3

FRANÇAIS 6

ITALIANO 9

Espanol 12

15

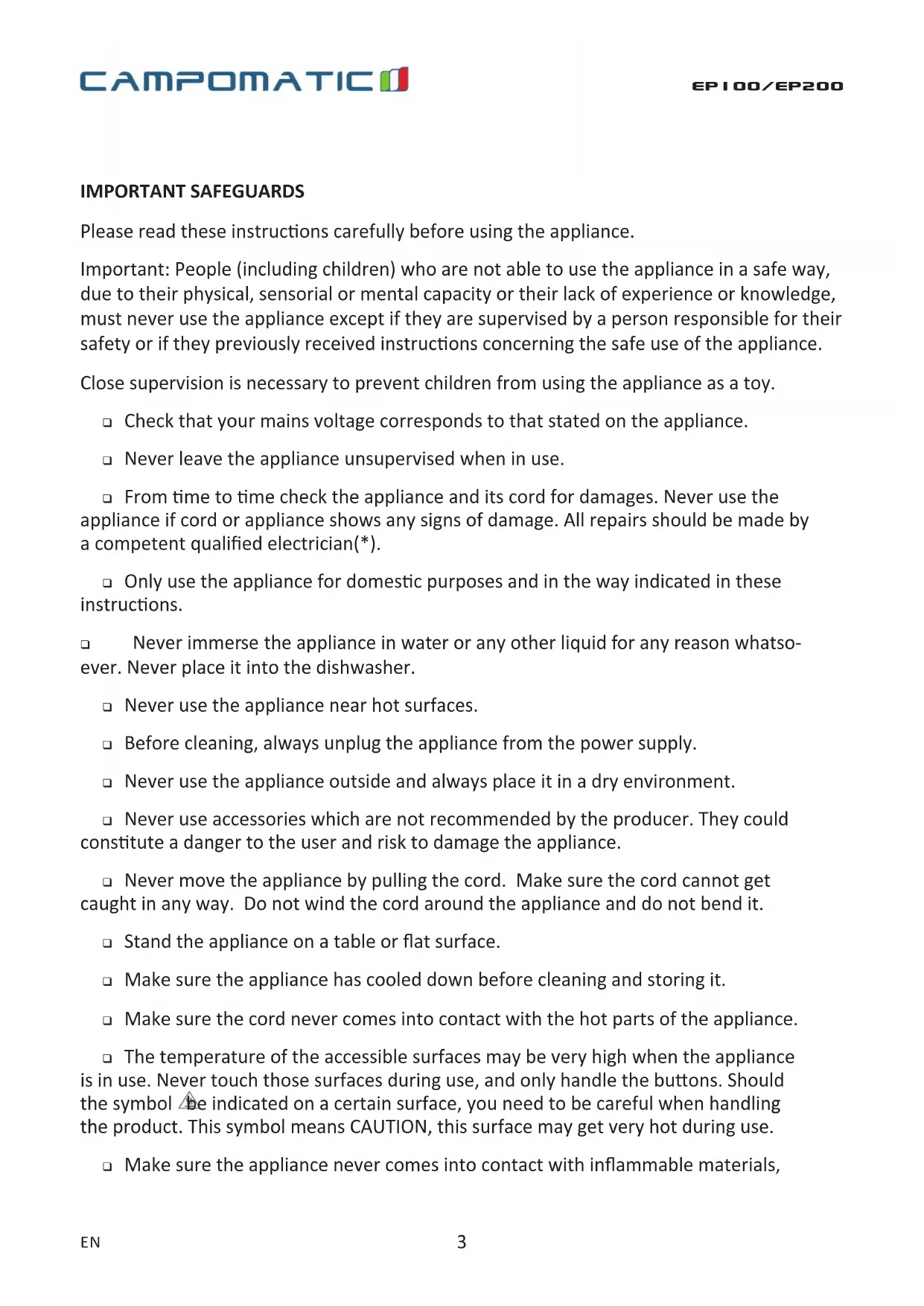

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.

Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the appliance and its cord for damages. Never use the appliance if cord or appliance shows any signs of damage. All repairs should be made by a competent qualified electrician ^(*) .
- Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
- Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
Never use the appliance outside and always place it in a dry environment.
- Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
- Stand the appliance on a table or flat surface.
Make sure the appliance has cooled down before cleaning and storing it.
Make sure the cord never comes into contact with the hot parts of the appliance.
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch those surfaces during use, and only handle the buttons. Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means CAUTION, this surface may get very hot during use.
Make sure the appliance never comes into contact with inflammable materials,

such as curtains, cloth, etc... when it is in use, as a fire might occur.

Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch.
Be extremely careful, as oil or fat preparations might catch fire when overheated.
- When using the appliance under an extractor hood, make sure to observe the minimal distance advised by the producer. It is even wiser to double this distance.
Only use the appliance for food that is supposed to be cooked.

• Your appliance must never be switched on through an external timer or any kind of separate remote control system.
• Immediately unplug the appliance if a crack appears and make sure it is controlled by a qualified competent electrician ^(*) .

(^*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

USE

• First check that the voltage marked on the product is the same as your supply voltage.
• Select a suitable position close to an electric socket, on a dry and even surface.
  Make sure the controls are in the OFF position (MIN facing upwards). Plug in.
• The invisible protective coating must be removed before you can use the appliance. To do this, set the controls to the maximum setting and leave switched on for approximately 10 minutes. Smoke will develop, make sure that the room is ventilated. Switch off the cooking plates and allow to cool down completely. The cooking plates are now ready for use.
• Always use flat-bottomed saucepans, which make good contact with the cooking plates. The saucepan bases should ideally be of the same size as the cooking plates.
• Select the temperature. The cooking plates have a range of temperatures.
• Due to the cooking plates' construction, residual heat will remain after switching off. This may be used to keep food warm for a short period.
  After use, turn temperature dial to "MIN" and unplug the appliance from electrical outlet.

CLEANING

• Before cleaning, unplug and wait for the appliance to cool down.
• Wipe with a moistened cloth.
• Do not clean with any abrasive scouring pad or steel wool, as this will damage the finish.
• Do not immerse in water or any other liquid.

PROTECTION OF THE ENVIRONMENT

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the impli

cation of both suppliers and users. For this reason, as indicated by the symbol on the rating label, your appliance should not be disposed of as unsorted municipal waste but should either be returned to the vendor, or disposed of in a separate collection point performing waste recovery by means of reuse, recycling or use for other applications.
