USER MANUAL SJB2455E0I SHARP

Your fridge freezer conforms to current safety requirements. Inappropriate use can lead to personal injury and damage to property. To avoid the risk of damage read this manual carefully before using your fridge freezer for the rst time. It contains important safety information on the installation, safety, use and maintenance of your Fridge Freezer. Retain this manual for future use.EN -2-

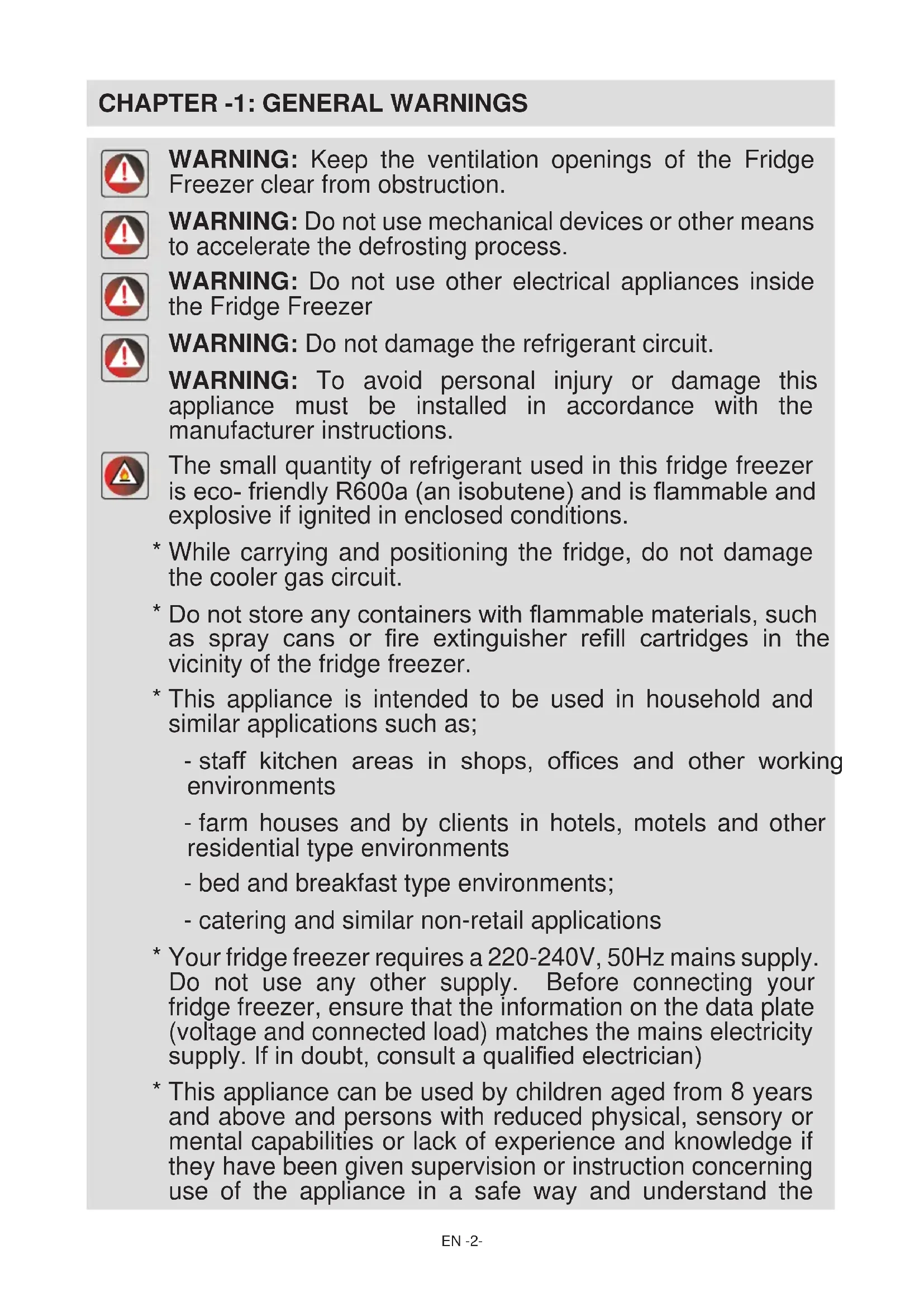

CHAPTER -1: GENERAL WARNINGS

WARNING: Keep the ventilation openings of the Fridge

Freezer clear from obstruction.

WARNING: Do not use mechanical devices or other means

to accelerate the defrosting process.

WARNING: Do not use other electrical appliances inside

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid personal injury or damage this

appliance must be installed in accordance with the manufacturer instructions. The small quantity of refrigerant used in this fridge freezer is eco- friendly R600a (an isobutene) and is ammable and explosive if ignited in enclosed conditions.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store any containers with ammable materials, such as spray cans or re extinguisher rell cartridges in the vicinity of the fridge freezer.

• This appliance is intended to be used in household and similar applications such as; - staff kitchen areas in shops, ofces and other working environments - farm houses and by clients in hotels, motels and other residential type environments - bed and breakfast type environments; - catering and similar non-retail applications

• Your fridge freezer requires a 220-240V, 50Hz mains supply. Do not use any other supply. Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches the mains electricity supply. If in doubt, consult a qualied electrician)

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand theEN -3-

CHAPTER -1: GENERAL WARNINGS

hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

• A damaged power cord /plug can cause re or give you an electric shock. When damaged it must be replaced, this should only be done by qualied personnel.EN -4-

• All packaging and materials used are environmentally friendly and recyclable. Please dispose of any packaging in an environmentally friendly manner. Consult your local council for further details.

• When the appliance is to be scrapped, cut off the electrical supply cable and destroy the plug and cable. Disable the door catch in order to prevent children becoming trapped inside.

• A cut off plug inserted into a 16 amp socket is a serious safety (shock) hazard. Please ensure the cut off plug is disposed of safely. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specied purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case. Safety warnings

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.

• A damaged power cord / plug can cause re or give you and electric shock. When damaged it must be replaced, this should only be dine by qualied personnel.

• Never bend the power cord excessively.

• Never touch the power cord / plug with wet hands as this could cause a short circuit electric shock.

• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

• Do not remove items from the freezer if your hands are damp or wet. Tis could cause skin abrasions or frost / freezer burns.

• Do not refreeze food once it has thawed out. Disposal of your old appliance This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local authority, domestic waste disposal service or the shop you have purchased the product from. Please ask your local authority about the disposal of the WEEE for the reuse, recycle and recovery purposes. Installation Information Before unpacking and manoeuvering your fridge freezer please take some time to familiarise yourself with the following points.

• Position away from direct sunlight and away from any heat source such as a radiator.

• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

• Do not expose your fridge freezer to moisture or rain.

• Your fridge freezer should be positioned at least 20mm away from another freezer.

• Clearance of at least 150 mm is required at the top and back of your fridge freezer. Do not place anything on top of your fridge freezer.

• For safe operation it is important that your fridge freezer is safe and balanced. The adjustable feet are used to level your fridge freezer. Make sure that your appliance is level before placing any foodstuffs inside it.

• We recommend that you wipe all shelving and trays with a cloth soaked in warm water mixed with a teaspoon of bicarbonate of soda before use. After cleaning rinse with warm water and dry.

• Install using the plastic distance guides, which can be found at the rear of the appliance. Turn 90 degrees (as shown in the diagram). This will keep the condenser from touching the wall.

• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm. Before Using your Fridge

• Before setting up your fridge freezer, check for any visible damage. Do not install or use your fridge freezer if it is damaged

• When using your fridge freezer for the rst time, keep it in an upright position for at least 3 hours before plugging into the mains. This will allow efcient operation and prevents damage to the compressor.

• You may notice a light odour when using your fridge freezer for the rst time. This is perfectly normal and will fade away as the fridge starts to cool.EN -5-

CHAPTER -1: GENERAL WARNINGS

No-Frost technology Your fridge freezer differs from many other standard fridge freezers. Other appliances may experience ice in the freezer compartment due to the opening of the doors and humidity caused by the food. In such appliances defrosting is required. They have to be turned off periodically, the food inside moved and the ice removed. Your "no frost" fridge freezer prevents such problems by evenly distributing in the fridge and freezer compartments through the use of a fan. This cools your food evenly and uniformly, preventing humidity and freezing.

This gure has been drawn for information purposes to show the various parts and accessories in the appliance. Parts may vary according to the model of the appliance. A) Fridge compartment B) Freezer compartment

6) Roller storage box cover

12) Cooling battery cover

Display and control panel

1- Enables the setting value of Cooler to be modied and Super Cool Mode to be

activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C, SC.

2- Enables the setting value of Freezer to be modied and Super Freeze Mode

to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24 °C, SF.

3- Enables the modes (Economy, Holiday…) to be activated if desired.

13- Economy Mode Symbol

Operating your fridge Super Freeze mode

• Press Freezer Set Button until SF letters appears on the screen. The buzzer will sound to tell you the mode is set.

• Freezer temperature segment will show "SF".

• When using this mode it is possible to adjust the Cooler and Super Cool functions. Note the Super Freeze mode will continue to work.

• However, Economy and Holiday functions can not be selected.

• Use the same operation to cancel the Super Freeze function. Note:

• Refer to the rating label to view the maximum freezer capacity (Kg) for a 24 hour period.

• At maximum capacity it is best to set the appliance to Super Freeze mode 3 hours before storing foodstuffs.

• An audible alarm will sound when optimum freezer temperature is met. Super Freeze mode will be automatically be cancelled after 24 hours, or when freezer sensor temperature drops beneath -32 °C. Super Cool mode

• Press Cooler Set button until SC letters appear on the screen. The buzzer will sound to tell you the mode is set.

• Cooler temperature segment will show "SC".

• The temperature of the Freezer and Super Freeze mode may be adjusted. Note the Super Cool mode will continue to work.

• Economy and Holiday modes can not be selected.

• Use the same operation to cancel the Super Cool function. Note: Super Cool mode will be automatically cancelled after 4 or 6 hours depending on the environmental temperature or when the refrigerator sensor reaches a sufciently low temperature. When you plug your fridge freezer in for the rst time it will take 10 seconds for the screen to work.EN -7-

• Push "Mode button" until a circle appears around the economy symbol.

• After 1 second the mode will be set, the circle will blink 3 times and an audible buzzer will sound.

• Freezer and Refrigerator temperature segments will show "E".

• Both the circle and E symbol will be visible until the mode is nished. During this mode;

• Freezer may be adjusted. When Economy mode is cancelled the selected setting will continue.

• The cooler may be adjusted. When Economy mode is cancelled the selected setting values will continue.

• The Super Cool and the Super Freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.

• Holiday mode can be selected after cancelling the Economy mode. Then the selected mode is activated.

• To cancel, you will just need to press on Mode button. Holiday Mode

• Push the Mode button until a circle appears around the plane symbol.

• After 1 second the mode will be set, the circle will blink 3 times and an audible buzzer will sound.

• The freezer temperature segment will show "H".

• Circle of the plane symbol and the H will light till the mode nishes. During this mode;

• The freezer may be adjusted. When holiday mode is cancelled the selected setting values will proceed.

• The cooler may be adjusted. When holiday mode is cancelled the selected setting values will proceed.

• Super Cool and Super Freeze modes can be selected. In this instance holiday mode is automatically cancelled and the selected mode is activated.

• Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.

• To cancel just press the Mode button.

• Holiday mode should be activated when the cooler is not used for a long period of time. By doing this you will be using your fridge in a more economic manner. The cooler must be completely emptied before holiday mode is activated. Drink Cool mode This mode is used to cool drinks within a set time.

• Press Freezer Set button for 3 seconds.

• dc letters will be seen on the cooler screen and the 05 blinks on D.Cool mode screen.

• Press the cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).

• When you select the time the numbers will blink 3 times on screen and audible buzzer will sound.

• The time will set after 2 seconds.

• The countdown starts from the adjusted time minute by minute.

• To cancel this mode press the freezer set button for 3 seconds.

• If the temperature of your bottles are ot cool enough after the set time you can extend by 5 or 10 minutes. Cooling is insufcient, you might set another 5 or 10 minutes.

• You must check the temperature of the bottles regularly. When the bottles are cool enough, you must take them out of the appliance.

• If you forget to remove the bottles when using this mode it is possible they many explode.EN -8-

CHAPTER -3: USING YOUR FRIDGE FREEZER

Screen Saver Mode How to use?

• This mode will be activated when you press on the Mode button for 3 seconds.

• Hold the button for 5 seconds to turn the light panels off.

• If you press any button when the lights of the control panel are off the current settings will appear on the screen. If you neither cancel screen saver mode nor press on any button in 5 seconds, the control panel will go off again.

• To cancel screen saver mode press on the Mode button for 3 seconds again.

• When Screen Saver mode is active you can also activate the Child Lock.

• If you do not press any buttons for 5 seconds after activating the Child Lock the lights on the control panel will go off. You can the view the previous settings and see that child lock symbol is active when you pres any button. Child lock To prevent children from playing with the buttons and changing the settings you can activate the Child Lock. Activating Child Lock Press on the Child lock and the Sound alarm off button simultaneously for 5 seconds. Deactivating Child Lock Press on the Child lock and the Sound alarm off button simultaneously for 5 seconds. Note: The Child Lock will also be deactivated if the electricity supply is interrupted or the fridge is unplugged. Temperature settings Freezer Temperature Settings

• Initial temperature value for the Freezer setting indicator is -18°C.

• Press the Freezer Set button once.

• When you rst push this button the last that has been set value will blink on the screen.

• Whenever you press on this button a lower temperature will be set. (-16°C, -18°C, -20°C, -22°C, -24°C , super freeze)

• When you push the Freezer Set button until the Super Freeze symbol appears on the Freezer setting indicator, and if you do not push any button in 1 seconds, the Super Freeze symbol will ash.

• If you continue to press, it will restart from -16°C.

• The temperature value selected before Holiday mode, Super Freeze mode, Super Cool mode or Economy mode is activated will remain the same until the mode is over or cancelled. The appliance continues to operate at this temperature value.EN -9-

• The Initial temperature value for the Cooler Setting indicator is +4°C.

• Press the Cooler Set button once.

• When you rst push this button, the last value set appears on the setting indicator of the cooler.

• Whenever you press on this button a lower temperature will be set. (+8°C, +6°C, +5°C, +4°C, +2°C, super cool)

• When you push the Cooler Set button until the supercool symbol appears on the Cooler Setting indicator, and if you do not push any button in 1 seconds the Super Cool symbol will ash.

• If you continue to press the button, it will restart from +8°C.

• The temperature value selected before Holiday mode, Super Freeze mode, Super Cool mode or Economy mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Recommended settings for your appliance temperature Freezer partition Refrigerator compartment Remarks -18 °C 4 °C For regular use and best performance. -20 °C, -20 °C or -24 °C 4 °C Recommended when environmental temperature exceeds 30°C. SF 4 °C Must be used when you wish to freeze food in a short period of time. -18 °C, -20 °C, -20 °C or -24 °C 2 °C These temperature settings must be used when the environmental temperature is high or if you think the refrigerator compartment is not cool enough because the door is being opened frequently. -18 °C, -20 °C, -20 °C or -24 °C

Must be used when the refrigerator compartment is overloaded with food or when there is food to be cooled instantly. Warnings About Temperature Adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.

• It is not recommended that you operate your fridge in environments colder than 10°C.

• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and ambient temperature of the placement of your fridge.

• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in, this is so it is completely cooled. Do not open the doors of your fridge and do not place food inside it during this period.

• A 5 minute delay function is applied to prevent damage to the compressor of your fridge, when you take the plug out and then plug it back in again after an energy breakdown has occurred. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of the stated temperatures value limits in terms of cooling effectiveness. Note: If the ambient temperature is higher than 38°C, the compartment temperature cannot be set to -22°C, -23°C or -24°C. It can only be set to -16°C, -17°C, -18°C, -19°C, -20°C or -21°C. Climate Class Ambient Temperature

T Between 16 and 43 (°C) ST Between 16 and 38 (°C) N Between 16 and 32 (°C) SN Between 10 and 32 (°C) Temperature indicator In order to help you better set your refrigerator, we have equipped it with a temperature indicator located in the coldest area. To better store the food in your refrigerator, especially in the coldest area, make sure the message “OK” appears on the temperature indicator. If « OK » does not appear, this means temperature has not been set properly It may be difcult to see the indicator, make sure it is properly lit.Each time the temperature setting device is changed, wait for the stabilisation of the temperature inside the appliance before proceeding, if necessary, with a new temperature setting. Please change the position of the temperature setting device progressively and wait at least 12 hours before starting a new check and potential change. NOTE: Following repeated openings (or prolonged opening) of the door or after putting fresh food into the appliance, it is normal for the indication “OK” not to appear in the temperature setting indicator. If there is an abnormal build up of ice crystals of ice crystals (bottom wall of the appliance) on the refrigerator compartment, evaporator (overloaded appliance, high room temperature, frequent door openings), put the temperature setting device on a lower position until compressor off periods are obtained again. OKEN -10-

• To remove the ice box; pull the upper freezer box out as far as possible and then pull the ice box out.

• Fill 3/4 full of water and place the ice box in it freezer. Note: While placing the ice box in the freezer, place it in a horizontal position. Otherwise the water in the ice box can spill. Freezer box

• The freezer box is for foods that need to be accessed more easily.

• Removing The freezer box;

• Pull the box out as far as possible

• Pull the front of box up and out. ! Make the inverse of the same operation for the resetting the sliding compartment. Note: Always hold the handle of box while moving in or out. Roller storage box You can use this compartment for two different functions. Note: Your fridge is delivered to you with the shown section in the open position. The declared energy consumption and volume are according to this setting.

1. To use for 0 °C Department: If you want to use this

compartment as 0 °C box you must take the sliding part (cover, which is indicated in picture) from closed position to open position.

2. To use for Crisper Department: If you want to use this

compartment as crisper, you must take the sliding part (cover, which is indicated in picture) from open position to closed position.

• While this compartment is used as an 0 °C compartment, food retains freshness and for longer.

• Pull the chiller shelf out toward you. The cover will open automatically. Please note this this is not a freezer compartment. Store food in the coldest area of the refrigerator. Your foods will be better stored if you put them in the most appropriate cooling area. The coldest area is just above the crisper. The following symbol indicates the coldest area of your refrigerator. To be sure to have a low temperature in this area, make sure the shelf is located at the level of this symbol, as shown in the illustration. The upper limit of the coldest area is indicated by the lower side of the sticker (head of the arrow). The coldest area upper shelf must be at the same level with the arrow head. The coldest area is below this level. As these shelves are removable, make sure they are always at the same level with these zone limits described on the stickers, in order to guarantee temperatures in this area. Picture-1 Picture-2 Picture-3 sliding part Removing The chiller shelf;

• Open the cover fully. (Picture-1)

• Pull the chiller shelf out towards you. (Picture-2)

• Pull the wheels of chiller shelf up from the rail in order to remove it. (Picture-3)EN -11- Fresh dial The fresh dial is located in the front of the crisper, should be opened when the compartment is full. The humidity level will be controlled and food will keep fresher for longer. If you see condensation on the glass shelf you must open the fresh dial fully.

• Make sure to unplug the fridge before starting to clean it.

• Do not wash your fridge by pouring water.

• You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

• Remove the parts individually and clean with soapy water. Do not wash in washing machine.

• Never use ammable, explosive or corrosive material like thinner, gas, acid for cleaning.

• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity. Make sure that your fridge is unplugged while cleaning. Defrosting Your refrigerator automatically defrosts. The water formed as a result of defrosting passes through the water collection spout, ows into the vaporization container behind your refrigerator and evaporates by itself in there. Evaporating tray Replacing LED Lighting If your fridge freezer has LED lighting contact the Sharp help desk as this should be changed by authorized personnel only.

CHAPTER -4: FOOD STORAGE GUIDANCE

Refrigerator compartment

• To reduce frost build up never place liquids with unsealed containers in the fridge compartment.

• Allow warn or hot food to cool down before storing. This helps reduce power consumption.

• To avoid frost buildup ensure that nothing is stored touching the back wall.

• The coldest area of the refrigerator is at the bottom. We recommend to use this area to store food that will perish easily, such as sh, ready meals, baked goods or dairy products. The warmest area is the top shelf of the door. We recommend you store butter or cheese here. Freezer compartment

• Use the freezer to store frozen foods for long periods of time and make ice cubes.

• If you are going to use the refrigerator with maximum freezing capacity:

• Place the foods that you want to freeze to the top basket of the freezer department without exceeding the freezing capacity of your refrigerator. Ice pack

• If a power failure or malfunction occurs, that ice pack can be used to slow down the thawing process. The longest storage time is obtained by placing the ice pack directly on the food in the top compartment.

• To save space, the ice pack can be storaged in the door compartment.

• The ice pack can also be used to cool food temporarily, for example in a cold bag. Visual and text descriptions on the accessories section may vary according which model you have..EN -12-

CHAPTER -4: FOOD STORAGE GUIDANCE

• While you use Super Freeze Mode , you mustn't storage an exist foozen food near the fresh foods that you want to freeze. Then enable the “Super Freeze” mode again. You may place your food next to the other frozen food after they are frozen (for at least 24 hours after the 2nd activation of the “Super Freeze” mode).

• To freeze fresh food - ensure that as much of the surface of food to be frozen is in contact with the cooling surface.

• Do not put fresh food on either side of frozen food as it can thaw it.

• While freezing fresh foods(i.e meat,sh and mincemeat),divide into portion sizes.

• Once the unit has been defrosted replace the foods into freezer and remember to consume them in a short period of time.

• Never place warm food in the freezer compartment.

• The instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.

• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be stored in the freezer as soon as possible.

• If a package of frozen food shows signs of humidity and abnormal swelling it has been previously stored at an unsuitable temperature and that the contents have deteriorated.

• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated. That; If you decide to open the freezer door again immediately after closing, it may be difcult to re-open. This is normal and after the freezer has reached an equilibrium condition the door will open easily. Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.

• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, only add a small amount of spice if planning to freeze, or the desired spice should be added after the food has been thawed.

• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.

• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags.

• It depends on which fridge freezer you have as to whether it is possible the reverse the doors.

• It is not possible where handles are attached at the front of the appliance.

• If your model does not have handles it is possible to reverse the doors, but this needs to be completed by authorised personnel. Please call Sharp service.

"Failure Warning" There is/are some part(s) Out of order or there is a failure in cooling process Contact the Sharp helpdesk as soon as possible.

Freezer comp. Not Cold enough This caution will be seen especially after long term of power failure

1. Do not freeze the foods that are thaw

and use in short time period.

2. Set the freezer temperature to colder

values or set the super freeze , until the compartment gets to normal temperature.

3. Do not put fresh food until this failure

is off. Your Fridge Freezer is equipped with a built in fault detection system, which is able to give you guidance should your fridge freezer not operate as expected. In the event of an error code will be displayed on the control panel. The most common error codes are shown below. If your fridge freezer displays a code not shown below contact the Sharp help- desk.EN -13-

CHAPTER -6: TROUBLESHOOTING

Check Warnings; If your fridge is not operating;

• Is there a power failure?

• Is the plug connected to the socket correctly?

• Is the fuse of the socket to which the plug is connected or the main fuse blown?

• Is there any failure at the socket? To check this, plug your refrigerator into a known working socket. If your fridge is not cooling enough;

• Is the temperature adjustment right?

• Is the door of your fridge opened frequently and left open for a long while?

• Is the door of fridge closed properly?

• Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?

• Is your fridge lled excessively?

• Is there adequate distance between your fridge and the rear and side walls?

• Is the ambient temperature within the range of values specied in the operating manual? If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?

• Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food. If your fridge is operating too loudly; To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?

• Is there anything behind your fridge?

• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.

• Are the items placed on your fridge vibrating? Normal Noises; Cracking (Ice cracking) Noise:

• During automatic defrosting.

• When the appliance is cooled or warmed (due to expansion of appliance material). Short cracking: Heard when the thermostat switches the compressor on/off. Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated. Bubbling noise and splash: This noise is caused by the ow of the refrigerant in the tubes of the system. Water ow noise: Normal ow noise of water owing to the evaporation container during defrosting. This noise can be heard during defrosting. ERROR TYPE ERROR TYPE WHY WHAT TO DO

"Refrigerator comp. Not Cold enough" Ideal temperature for Ref. Compartment is +4

C. If you see this warning your foods have risk of spoiling.

1. Set the refrigerator temperature to

colder values or set the super cooling mode until the compartment gets to normal temperature.

2. Do not open the door much until this

failure is off. LF and LC "not cold enough Warning" It is the combination of LF and LC Error type You will see this failure when rst starting the appliance. It will be off after the compartments gets normal temperature

Refrigerator comp. too Cold The foods starts to freeze because of the too much cold temperature

2. Decrease the refrigerator temperature

values LOPO "Low voltage Warning" When the power supply gets lower than 170 V the appliance gets to steady position. This not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required levelEN -14-

CHAPTER -6: TROUBLESHOOTING

Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air. If humidity builds up inside the fridge;

• Has the food been properly packaged? Have the containers been well dried before they were put into the refrigerator?

• Are the doors of the refrigerator opened very frequently? When the door is opened, the humidity found in the air in the room enters the refrigerator. Especially if the humidity rate in the room is too high, the more frequently the door is opened the faster will be the humidication. If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?

• Are the door compartments, shelves and drawers placed properly?

• Are door gaskets broken or torn?

• Is your fridge on a level surface? If the edges of fridge cabinet that the door joint contact are warm; Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal. IMPORTANT NOTES:

• The compressor protection thermal fuse will cutout after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilised. This is quite normal, and the fridge will restart after 4 or 5 minutes.

• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or ice may occur on the rear surface of your fridge due to the operation of the compressor in specied intervals. This is normal. There is no need to perform a defrosting operation unless the ice is excessive.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to

Part 4 and leave the door open to prevent humidity and smell.

• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

• If the problem persists after you have followed all the instructions above, please consult an authorised service provider. Conformity Information

• This appliance is designed for use at an ambient tem-perature within the 16°C - 43°C range.

• The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

CHAPTER -7: TIPS FOR SAVING ENERGY

1. Always allow foodstuffs to cool before storing in the appliance.

2. Thaw food in the fridge compartment, this helps save energy.DE -15-

14- Symbol for demo-tilstand

• dc letters will be seen on the cooler screen and the 05 blinks on D.Cool mode screen.

3. Do not put fresh food until this failure

• The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24, 2004/108/EF-normer.
