USER MANUAL RBOA 304 V ROSIERES

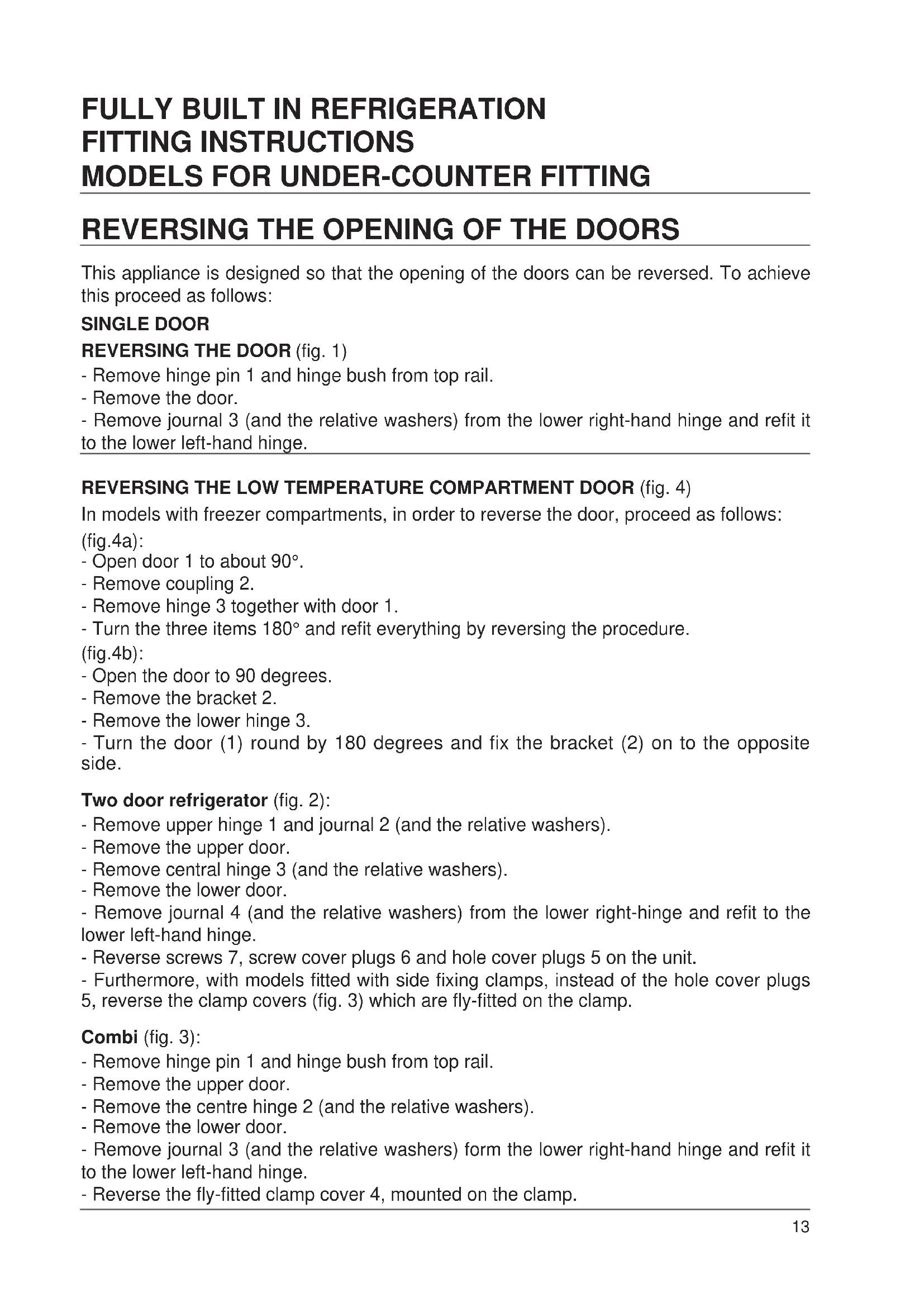

This appliance is designed so that the opening of the doors can be reversed. To achieve this proceed as follows: SINGLE DOOR

(fig. 1) - Remove hinge pin 1 and hinge bush from top rail. - Remove the door. - Remove journal 3 (and the relative washers) from the lower right-hand hinge and refit it to the lower left-hand hinge. REVERSING THE LOW TEMPERATURE COMPARTMENT DOOR (fig. 4) In models with freezer compartments, in order to reverse the door, proceed as follows: (fig.4a): - Open door 1 to about 90°. - Remove coupling 2. - Remove hinge 3 together with door 1. - Turn the three items 180° and refit everything by reversing the procedure. (fig.4b): - Open the door to 90 degrees. - Remove the bracket 2. - Remove the lower hinge 3.

Turn the door (1) round by 180 degrees and fix the bracket (2) on to the opposite side. Two door refrigerator (fig. 2): - Remove upper hinge 1 and journal 2 (and the relative washers). - Remove the upper door. - Remove central hinge 3 (and the relative washers). - Remove the lower door. - Remove journal 4 (and the relative washers) from the lower right-hinge and refit to the lower left-hand hinge. - Reverse screws 7, screw cover plugs 6 and hole cover plugs 5 on the unit. - Furthermore, with models fitted with side fixing clamps, instead of the hole cover plugs 5, reverse the clamp covers (fig. 3) which are fly-fitted on the clamp. Combi (fig. 3): - Remove hinge pin 1 and hinge bush from top rail. - Remove the upper door. - Remove the centre hinge 2 (and the relative washers). - Remove the lower door. - Remove journal 3 (and the relative washers) form the lower right-hand hinge and refit it to the lower left-hand hinge. - Reverse the fly-fitted clamp cover 4, mounted on the clamp.

13FITTING THE APPLIANCE INTO COLUMN CABINETS

Double doors and combis The built-in dimensions are shown in fig. 14/15. Proceed as follows to fit the appliance: - Fit gasket 1 (provided with the appliance) to the side opposite the hinges (fig. 5). - Fit the appliance into the column cabinet, setting it flush to the side without hinges and push backwards so that a distance of 45 mm. is achieved between the appliance and the front of the cabinet (fig. 6). - Fix the appliance firmly at the top and bottom with the screws provided in the accesso- ries pack and snap fit the ventilation grid into position (fig. 7). Furthermore, for those models with lateral fixing clamps, proceed as follows (fig. 8): - Centre hinge side - slacken off hinge fixing screw 1 and offer up clamp 3 to the column. - Opposite side from the centre hinge - remove the clamp cover 2 and offer up the clamp to the column. - Screw the clamps to the column using the screws to be found in the accessory pack and tighten the screws lackened off previously. - Refit the clamp cover. HOW TO COUPLE THE DOORS OF THE APPLIANCE

WITH THOSE OF THE COLUMN CABINET

The appliance is fitted with devices to couple its doors with those of the column cabinet (dragging slides). The slides should be fitted as follows: - (Fig. 9) Fix slide 1 to the door of the cabinet at the desired height and at approximately 20 mm. from the side edge of the door. - (Fig. 10) Open the cabinet and refrigerator doors and fit the coupling device 2 onto slide 1. - Keep the coupling 2 aligned with the refrigerator door. - Mark the drilling points for the screws and drill 2,5 diameter holes. - The slots in the coupling 2 facilitate easy adjustment. - It is recommended that the dragging slides are fitted to the appliance door in correspon- dence with the column door handles. Furthermore with models fitted with extra handles for opening the door, proceed as fol- lows (fig. 11): - Offer up handle 1 to the door, then drill a hole corresponding to the one on the handle. - Screw home using the screws in the accessory pack.

ADVICE FOR PROPER OPERATION

To obtain the maximun efficiency from your appliance it is important to allow good ventilation to the system in order to cool down the condenser positioned at the rear of the appliance.

DOUBLE DOOR COMBI AND SINGLE DOORS

To this end an opening must be made in the bottom of the column for an air inlet (fig. 13). For the air outlet the column should be equipped with an upwards direc- ted, unobstructed rear vent. Should the column be flush fitted to the ceiling, such an outlet should be present between it and the ceiling (fig. 13). The appliance should not be installed in areas where the temperature remains belows +16°C or above +32°C for long periods. 14IMPORTANT Should the appliance not be fitted in compliance to the above instructions the manufactu- rers decline all responsibility for malfunctioning of the appliance and consider their gua- rantee obligations to be null and void. (Fully built-in refrigerators and freezers) The column into which the appliance has been built must be flush with a wall so as to pre- clude access to the compressor.
