Product Type	Blender (mixer)
Brand	Black & Decker
Model	IB10
Intended Use	Household use only
Container Capacity	1 liter (4 cups) maximum
Container Material	Plastic
Power Supply	120 V, 60 Hz, 10 A
Polarized Plug	Yes (wide and narrow blade)
Number of Speeds	Multiple continuous speeds
Pulse button (Pulse)	Yes, for crushing and quick mixing
Safety - Blades	Sharp blades, handle with care
Safety - Lid	Must be in place during use
Safety - Tamper-proof screw	Prevents opening of the housing
Base Cleaning	Wipe with a damp cloth, do not immerse
Cleaning of Removable Parts	Hand wash or dishwasher (models IB10G, IB12G, IB53G, IB54G, IB73G)
Dishwasher-safe parts	Lid, cap and blades in the top rack
Included Accessories	Container, lid, cap, seal gasket, blade
Warranty	1 year full against defects in material and workmanship
After-Sales Service	Black & Decker authorized service centers
Cord Length	Designed to avoid hazards (short cord)

Frequently Asked Questions - IB10 BLACK & DECKER

How to clean the IB10 blender?

Before cleaning, turn off and unplug the appliance. Rinse parts immediately after use. The motor base can be wiped with a damp cloth and must be dried completely. Removable parts (container, lid, cap, blade) can be washed by hand or in the dishwasher (for specific models). Do not use abrasive pads.

Can I put the container in the dishwasher?

Yes, for models IB10G, IB12G, IB53G, IB54G and IB73G. The lid, cap and blades should be placed in the top rack of the dishwasher. Other models wash by hand.

What foods should not be put in the blender?

Do not put dried spices and herbs (alone), bones, large pieces of frozen food, and hard foods that can damage the appliance.

How to crush ice with the blender?

Add one cup of water to the container and up to 4 large ice cubes. Hold the lid firmly with one hand and use the pulse button (Pulse). For larger quantities, add cubes one by one through the lid opening while increasing speed.

What to do if the plug does not fit the outlet?

The plug is polarized (one wider blade). Try reversing it. If it still does not fit, contact a certified electrician. Do not neutralize this safety feature.

How to replace the blade?

Unscrew the base of the container clockwise to remove it. Handle the blade carefully as it is sharp. Place the seal gasket on the new blade, screw it on firmly and attach the container to the motor base.

What is the warranty for the IB10 blender?

The warranty is one full year from the date of purchase against any defects in material or workmanship. It does not cover accidental damage or misuse. Contact customer service at 1-800-231-9786.

Can I blend hot liquids?

Yes, but remove the lid cap while blending to avoid pressure. Keep hands and face away from the opening. Do not exceed the fill line.

How to add ingredients while operating?

Remove the lid cap and insert ingredients through the center opening. Never use utensils while the appliance is running. Use a spatula only when stopped.

What to do if the appliance does not work?

Check that the appliance is plugged in and the outlet works. Make sure the lid is properly in place. If the problem persists, take it to a Black & Decker authorized service center. Do not attempt to repair yourself.

USER MANUAL IB10 BLACK & DECKER

Save this use and care book

Licuadora

Model IB10-12, IB53 - IB74 Series

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

Please read all instructions.
To protect against risk of electrical shock, do not put blender base, cord, or plug in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
Turn off and unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to an authorized service facility for examination, repair, or electrical or mechanical adjustment.
Do not use outdoors.
The use of attachments including canning jars, not recommended or sold by the appliance manufacturer may cause a risk of fire, electric shock, or injury to persons.
- Never carry the unit by the cord or yank cord from an outlet.
Do not let the plug or cord hang over the edge of table or counter, or touch hot surfaces including the stove. Unit should be placed away from sinks and hot surfaces.
Remove the jar and blade assembly from the blender before washing.
Unit should be used for food preparation only.
Always operate blender with cover in place.

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

• Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used, but only when the blender is not running.
  Blades are sharp. Handle carefully.
• Avoid contacting moving parts.
  To reduce the risk of injury, never place cutter assembly blades on base without the jar properly attached.
• When blending hot liquids, remove the lid cap. Keep hands and face away from the lid cap opening while motor is running.
  Do not leave blender unattended during use.
  This appliance is intended FOR HOUSEHOLD USE ONLY and not for commercial or industrial use.

The Electrical Cord

The cord length of this appliance was selected to reduce safety hazards that may occur with a longer cord. If more cord length is needed, an extension cord may be used. It should be rated not less than 10 amperes, 120 volts or 6 amperes, 220 volts. When using a longer cord, be sure that it does not drape over a working area or dangle where it could be pulled on or ripped over.

Polarized Plug

(North American/Central American Models Only)

This appliance has a polarized plug—one blade is wider than the other. To reduce the risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse it. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature by modifying the plug in any way.

Tamper-Resistant Screw

This appliance is equipped with tamper-resistant screws to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user serviceable parts inside. Repair should be done only by authorized service personnel.

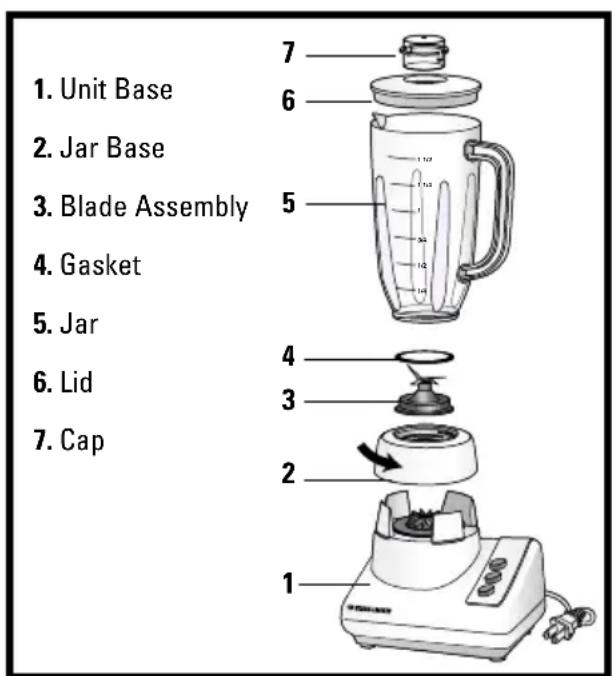

Blender Jar Assembly

1. Before first use, wash all parts except the base. Put the gasket on top of the Blade Assembly.

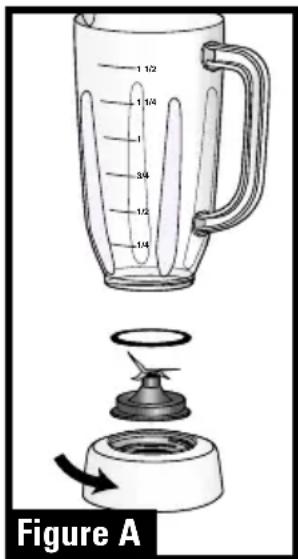

2. Place the Blade Assembly into the Jar Base and turn the Jar Base clockwise until tight. Figure A

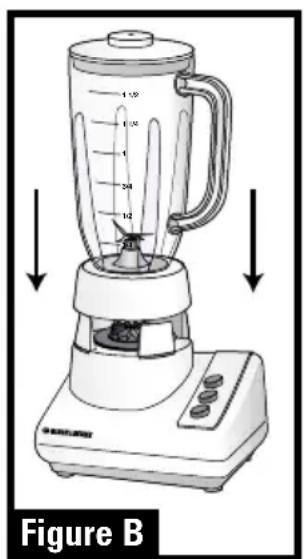

3. Place the Jar firmly onto the Unit Base. Figure B

How to Use

1. Be sure the unit is "off" and plug the cord into a standard electrical outlet.
2. Place the food to be blended into the Jar.

3. Put the Lid on the Jar before beginning. Be sure that the Lid Cap is in place. When crushing ice or hard foods, keep one hand on the Lid.

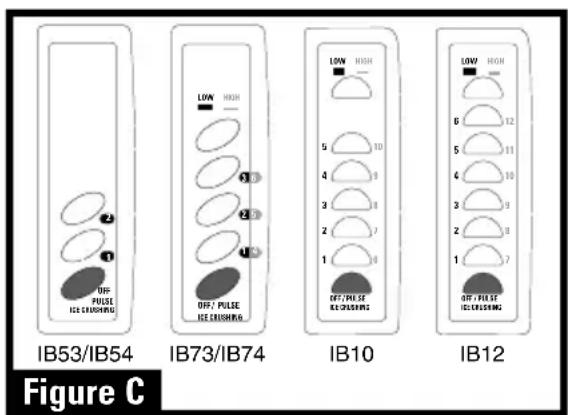

4. Select the desired speed setting:

5. In general, use lower positions for gentle blending, chopping, and grinding; in 6 speed (IB73/IB74 Series), 10-speed (IB10 Series), or 12-speed (IB12 Series) models use mid-range positions for mixing, beating, and creaming. In all models use higher settings for heavy-duty blending such as liquefying or pureeing fruits. In 6, 10, or 12-speed models, press the Low/High button then, press the appropriate speed level for blending at higher settings. Figure C

6. For quick blending tasks, press the Pulse button for a few seconds, then release. Use Pulse for best results when crushing ice.

1. If you want to add ingredients while the Blender is on, remove the Lid Cap and place through the Lid opening.

2. When finished blending, push the Off/Pulse button.

3. To remove the Jar, lift it straight up from the Unit Base without twisting. Remove the Lid before pouring.

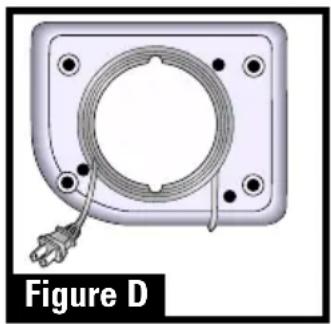

4. If using very close to an outlet, you may shorten the cord by winding some length around the tabs at the bottom of the Base. Figure D

Blender Tips

• Cut food into small 2'' pieces (about 5cm .) before adding to the Blender. To chop and grate, cut solid foods into 1'' ( 2cm ) pieces.
• When blending liquids, including the addition of ice cubes, limit quantity to the 4 cup (1 lt.) mark of the Jar.
• The following items should never be placed in the unit as they may cause damage: dried spices and herbs (ground alone), bones, large pieces of solidly frozen foods, hard or tough foods.
• For fast and easy ice crushing, add 1 cup of liquid to the Jar, add up to 4 large ice cubes. Cover holding one hand firmly on the Lid; use the Pulse button to chop. If more ice is needed, add cubes one by one through the hole in the Lid and increase to the highest speed.

How to Clean Your Blender

1. Before cleaning, turn off and unplug the Blender.
2. Rinse parts immediately after blending to ease cleanup.
3. Wipe the Base with a damp cloth and dry thoroughly. Remove stubborn spots by rubbing with a damp cloth and a non-abrasive cleaner. Do not immerse the Base in liquid.

4. Wash the Jar and the Lid with soap and water. Only jars on the IB10G, IB12G, IB53G, IB54G, and IB73G are dishwasher-safe.

5. Removable parts can be washed by hand or in a dishwasher. The Lid, Lid Cap, and Blade Assembly should be placed in the top rack only. Do not place jars or parts in boiling liquids.

6. If liquids spill into the Base, wipe the Base clean with a damp cloth and dry thoroughly.
7. Do not use rough scouring pads or cleansers on parts or finish.

Need Help?

Sevice or Repair

Service, if necessary, must be performed by a Black & Decker Inc. Company-Owned or Authorized Household Appliance Service Center. The Service Center nearest you can be found in the yellow pages of your phone book under "Appliances - Small - Repairing" or on the enclosed insert.

If mailing or shipping your Blender, pack it carefully in a sturdy carton with enough packing material to prevent damage. The original carton is not suitable for mailing. Include a note describing the problem to our Service Center and be sure to give your return address. We also suggest that you insure the package for your protection.

Full One-Year Warranty

Household Products warrants this product against any defects that are due to faulty material or workmanship for a one-year period after the original date of consumer purchase or receipt as a gift. This warranty does not include damage to the product resulting from accident or misuse. If the product should become defective within the warranty period, we will repair it or elect to replace it free of charge. We will return your product, transportation charges prepaid, provided it is delivered prepaid to any Black & Decker Company-Owned or Authorized Household Appliance Service Center.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province. Answers to any questions regarding warranty or service locations may be obtained by calling Consumer Assistance and Information toll free: 1-800-231-9786.

CONSERVE ESTAS INSTRUCCIONES

Household Products Limited de Mexico S. de R.L. de C.V.

400W 120V~ 60Hz (IB54/IB74 series)

350W 120V~ 50/60Hz

350W 220V~ 50/60Hz

BLACK&DECKER

Listed by Underwriters Laboratories, Inc.

NOM Approved

Copyright © 1997-1999 Household Products, Inc.

Pub. No. 173966-00-RV02

Product made in Mexico

Printed in Mexico

Enlistado por Underwriters Laboratories, Inc.

Aprobado por NOM

Household Products Limited de Mexico
