Brand Rosieres
Model RGV 74 SQF PN
Product type Gas cooker with hob
Category Cooker
Dimensions (W x D) 745 x 510 mm
Power supply 220-240 V / 50-60 Hz
Gas supply Natural gas (G20/G25) or LPG (G30/G31) – adaptable via injector kit
Number of burners 4 gas burners (depending on configuration: Auxiliary, Semi-rapid, Rapid, Four crowns)
Burner types Auxiliary, Semi-rapid, Rapid, Four crown (FC)
Safety Safety thermocouple on each burner (gas shut-off in case of flameout)
Ignition Built-in electronic ignition
Total gas power 8.85 kW (for 4 gas burner version)
Installation class 3 (built-in)
Surface material Stainless steel and enamel
Maintenance and cleaning Clean with soapy water or non-corrosive detergent; avoid abrasive products
Spare parts and repairability Spare parts available from after-sales service (injectors, burners, etc.)
General information Non-professional domestic use; complies with CE standards

Frequently Asked Questions - RGV 74 SQF PN ROSIERES

How to connect the cooker to the gas supply?
Connection must be carried out by a qualified professional in accordance with current standards. Use a suitable flexible or rigid hose, and check for leaks with soapy water. Never use a flame to detect leaks.
What to do if a burner does not light?
Check that the burner and its cap are correctly positioned. Wait a few seconds after turning the knob. If the electronic ignition does not work, use a match or lighter. If the problem persists, contact after-sales service.
How to adapt the cooker to another type of gas (LPG)?
Replace the injectors with those from the kit supplied with the appliance. Then adjust the minimum flame using the adjustment screw (turn clockwise to reduce). Replace the rating label with the one corresponding to the new gas.
Which pans to use on the burners?
Use flat-bottomed pans with a diameter matching the size of the burner. The bottom must be dry and not exceed the maximum indicated diameter (e.g., for rapid burner: 16-26 cm). Avoid concave or convex bottoms.
How to maintain the hob?
Clean after cooling with a damp cloth and mild detergent. For stainless steel, use a specific product. Never use steam cleaners, abrasives, or acids. Dry the burners after cleaning.
What to do in case of a crack in the glass surface?
Immediately turn off the appliance and unplug it. Do not use the cooker anymore and contact after-sales service to replace the surface.

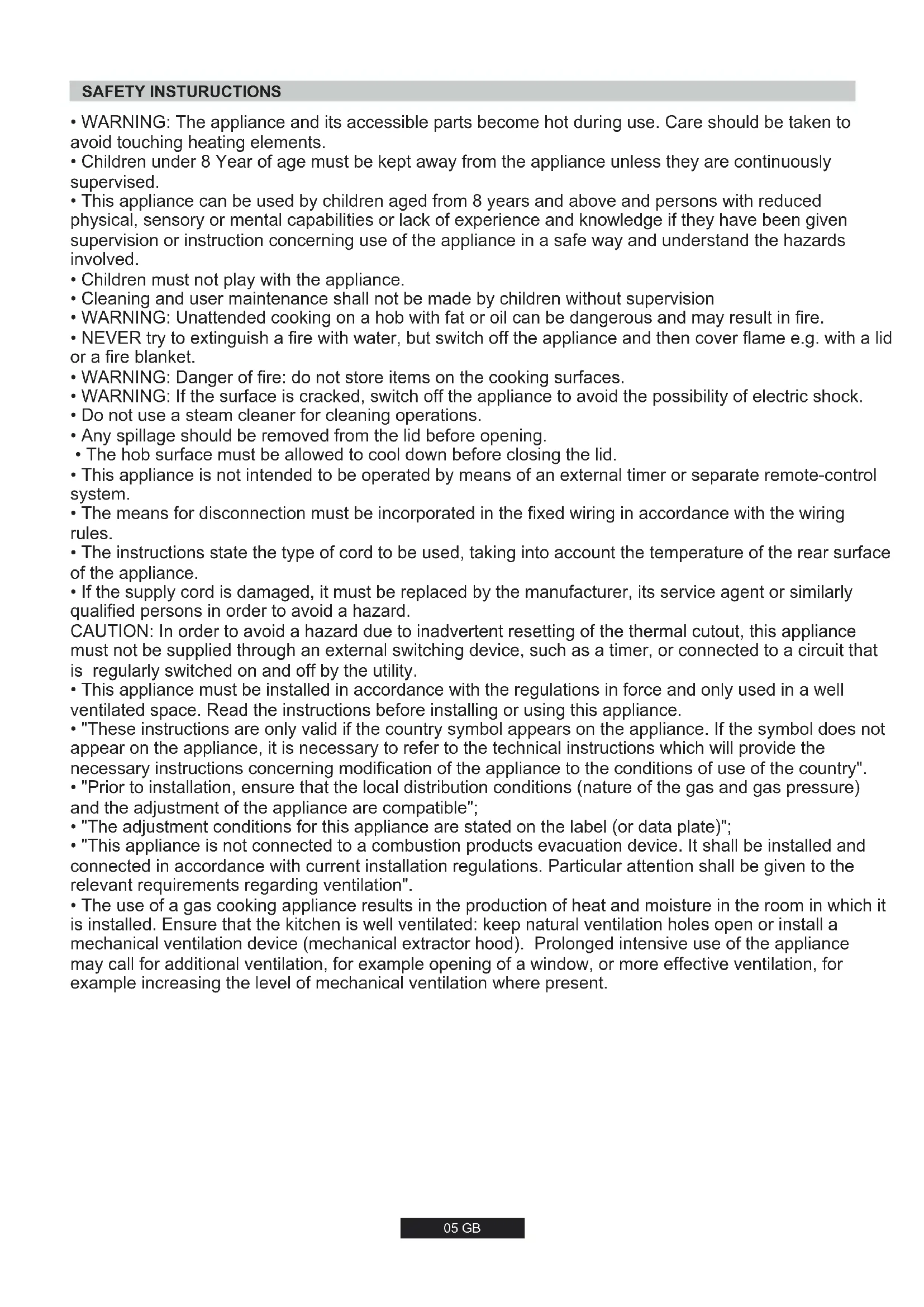

Is the cooker safe for children?
Children under 8 years old must be kept away or constantly supervised. Children must not play with the appliance or perform cleaning without supervision.
What is the minimum distance between the cooker and a hood?
The distance must be at least 70 cm. For side furniture, allow 15 cm; for the back wall, 5.5 cm.
How to unlock the cooker?
The cooker does not have a child lock function. Safety is ensured by thermocouples that cut off the gas if the flame goes out.
Where to find spare parts?
Spare parts (injectors, burners, gaskets, etc.) are available from the Rosieres authorized after-sales service. Contact your dealer or visit the official website.
