10030669 - Electric cooler Klarstein - Free user manual and instructions

Product type	Electric cooler
Brand	Klarstein
Model	10030669
Power supply (AC)	220-240 V ~ 50-60 Hz
Power supply (DC)	12 V (cigarette lighter)
Functions	Cooling and keeping warm
Capacity	About 20 L (estimated)
Dimensions (approx.)	40 × 30 × 30 cm
Weight (approx.)	5 kg
Refrigeration temperature	Below ambient temperature (approx. 15-20 °C lower)
Warming temperature	Up to approx. 65 °C
Power consumption	45 W (estimated)
Material	Plastic and insulation
Noise level	Low (approx. 35 dB)
Maintenance and cleaning	Do not rinse with water; clean with a damp cloth
Safety	Do not block the fan; do not disassemble; wait 30 s between mode changes
Included accessories	AC cable, DC cable for cigarette lighter
Recycling	Compliant with WEEE directive 2012/19/EU

Frequently Asked Questions - 10030669 Klarstein

How to switch between cooling and warming mode?

To change mode, first turn off the device, wait 30 seconds, then move the switch to the desired position (A for cold, B for hot).

Can I use the cooler directly on a wall outlet?

Yes, plug the supplied AC power cord into the mains socket (220-240 V) and set the switch to AC.

How to use the cooler in a car?

Use the DC power cord to plug the cooler into the cigarette lighter. The car engine must be running. Set the switch to DC.

Can I reheat cold food with this cooler?

No, it is designed to keep warm already hot food, not to reheat cold food.

How long does it take to cool drinks?

If drinks are not pre-cooled, cooling takes about 2 to 3 hours. For best efficiency, introduce already cold food and drinks.

What if the device does not work?

Check the power supply, the switch (AC/DC), and that the fan is not blocked. Wait 30 seconds before switching modes.

How to clean the cooler?

Never rinse the device with water. Use a damp cloth to clean the exterior and interior.

Can I leave the cooler on continuously?

Yes, but ensure the ventilation is not obstructed and that the device is not covered to avoid overheating.

Is the cooler suitable for camping?

Yes, it can be powered by a 12 V battery or a mains socket. Ideal for keeping food cool or warm on the go.

How to recycle the cooler at end of life?

Do not dispose of it with household waste. Take it to a collection point for electrical and electronic equipment in accordance with the WEEE directive.

USER MANUAL 10030669 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Technical Data

Item number 10020668, 10030669
Power supply 220-240 V ~ 50-60 Hz
Power supply DC adaptor DC 12 V

Safety Instructions

• Prevent the fans from being stuck. The fans being stuck will heat the engine and cause fire. The towel, cloths and the like s hall not be put on it.
• Please confirm the sockets of the cords to be tight. The loose socket will result in the cords and sockets heating and broken, even fire.
• Keep the appliance away from the flammable items and dampness to prevent the explosive and fire.
• Don't break up or refit the appliance.
• Don't switch the function of cool/warm abruptly. Switch the function after 30 minutes of being on OFF.
• Don't rinse it with water.
• Prevent the appliance from being upside down.
• Please don't drop or shock it.

Operation

To obtain optimized cooling effect, we suggest putting in pre-chilled foods and drinks. It will take 2 or 3 hours for cooling the unfrozen foods or drinks.

The cooler and warmer is not designed to heat cold food but to preserve hot foods at a warm temperature. If necessary, it can heat the foods with more than 2 hours. If it's applied properly following the direction, the temperature of foods can be kept for hours.

Use and Operation

1. First make sure the switch at the side of the cooler and warmer is in OFF state, and then insert the plug of the power cord into the socket of the unit. Switching states:

A = Cooling mode
B = Warming mode

1. Insert the plug of the cigarette lighter into the cigarette lighter in the car.
2. Cooling: set the power switch at the position of COOLING. The green indicator will be on indicating the unit is in cooling mode.
3. Heating: set the switch at the position of HEATING. The red indicator will be on indicating the unit is in heating mode.

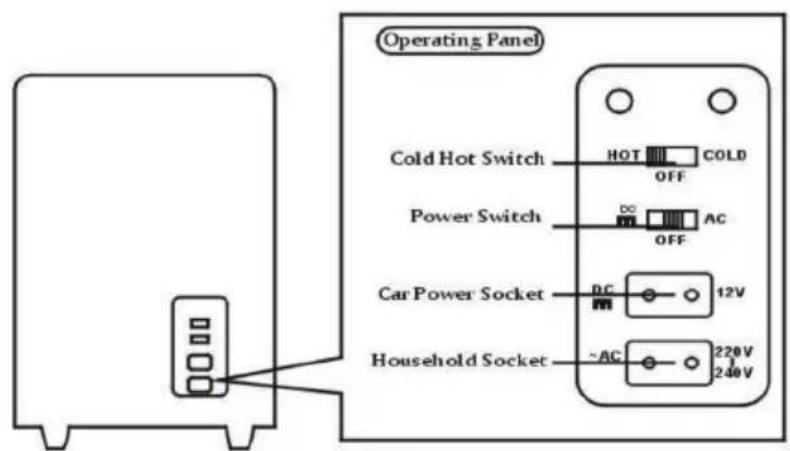

Accessory and Connections

When the DC 12 V car power is used:

1. The car engine is required.
2. The plug of DC power cord is the cord into the socket of the lighter in the car.
3. Insert the plug of DC power cord into the socket of the lighter in the car.
4. Shift the power switch to the DC side.

When the 220-240 V household power is used:

1. Connect the connector of AC power cord (household power cord) with the household socket of the product
2. Insert the power socket into the concentric plug.
3. Turn the power switch to the AC side.

Hints on Disposal

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

643/2009/EC (ErP)

1060/2010/EU (ErP)
