Features	Details
Product type	Shredder
Power	2400 W
Shredding capacity	Up to 45 mm diameter
Rotation speed	2800 rpm
Weight	10 kg
Dimensions	60 x 40 x 40 cm
Body material	Durable plastic
Safety system	Safety switch
Recommended use	Garden waste, branches, foliage
Ease of cleaning	Accessible, with a collection bin
Warranty	2 years

Frequently Asked Questions - 9010 AD SKIL

How do I assemble the SKIL 9010 AD shredder?

To assemble the shredder, follow the instructions provided in the user manual. Make sure all parts are in place and securely fastened before use.

What should I do if the shredder does not start?

Check that the device is properly plugged in and that the outlet is working. Also, ensure the lid is properly closed, as the shredder will not start if the lid is not in place.

How do I clean the SKIL 9010 AD shredder?

Unplug the device before cleaning. Use a soft brush to remove debris, then wipe surfaces with a damp cloth. Do not immerse the device in water.

What type of waste can I shred with the SKIL 9010 AD?

The SKIL 9010 AD is designed to shred garden waste such as branches, leaves, and small hedge trimmings. Avoid shredding hard materials or non-organic waste.

What should I do if the shredder jams?

If the shredder jams, unplug it immediately. Remove the stuck debris using an appropriate tool, then plug it back in and test again.

What is the warranty for the SKIL 9010 AD shredder?

The SKIL 9010 AD shredder is generally covered by a 2-year warranty. Please check the warranty certificate provided with the product for more details.

How do I adjust the shredding speed?

The SKIL 9010 AD has a speed setting that can be adjusted via the control panel. Refer to the manual for specific instructions on adjusting the speed.

Where can I find spare parts for the SKIL 9010 AD?

Spare parts can be ordered from authorized SKIL dealers or directly from the official SKIL website.

USER MANUAL 9010 AD SKIL

Illustration of a SKIL angle grinder with a power tool (no text or symbols on the device itself)

GB ORIGINAL INSTRUCTIONS 7
F NOTICE ORIGINALE 11
D ORIGINALBETRIEBSANLEITUNG 17
NL ORIGINELE GEBRUIKSAANWIJZING 22
S BRUKSANVISNING I ORIGINAL 27
DK ORIGINAL BRUGSANVISNING 32
N ORIGINAL BRUKSANVISNING 37
FIN ALKUPERÄISET OHJEET 41
E MANUAL ORIGINAL 46
P MANUAL ORIGINAL 52
I ISTRUZIONI ORIGINALI 57
H EREDETI HASZNÁLATI UTASÍTÁS 63
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 68
TR ORIJINAL İŞLETME TALİMATI 73
PL INSTRUKCJA ORYGINALNA 78
UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 83

GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 89
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 95
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 100
SK PÔVODNÝ NÁVOD NA POUŽITIE 106
HR ORIGINALNE UPUTE ZA RAD 112
SRB ORIGINALNO UPUTSTVO ZA RAD 116
SLO IZVIRNA NAVODILA 121
EST ALGUPÄRANE KASUTUSJUHEND 126
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 130
LT ORIGINALI INSTRUKCIJA 136
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 141
AL UDHËZIMET ORIGJINALE 146
AR دليل الاستعمال 160
④ RAHENMAI AUSLI 157

www.skil.com

CE 9010

GB	EU Declaration of conformityAngle grinder Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:★
F	Déclaration de conformité UEMeuleuse d'angle Numéro d'article	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:★
D	EU-KonformitätserklärungWinkelschleifer Sachnummer	Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:★
NL	EU-conformiteitsverklaringHaakse slijper Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordningen en overeenstemmen met de volgende normen.Technisch dossier bij:★
S	EU-konformitetsförklaringVinkelslipmaskin Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:★
DK	EU-overensstemmelseserklæringVinkelsliber Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i fölgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:★
N	EU-samsvarserklæringVinkelsliper Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:★
FIN	EU-vaatimustenmukaisuusvakuutusKulmahiomakone Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:★
E	Declaración de conformidad UEAmoladora angular Número de articulo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las directivas y los reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:★
P	Declaração de conformidade CERebarbadora Número do produto	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:★
I	Dichiarazione di conformità UESmerigliatrice angolare Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati di seguito, nonché alle seguenti normative.Documentazione tecnica presso:★
H	EU konformitási nyilatkozatSarokcsiszoló Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:★
CZ	EU prohlášení o shoděÜhlová bruska Objednaci číslo	Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených smérnic a nařizení a je v souladu s následujícími normami.Technické podklady u:★
TR	AB Uygunluk beyaniTaşlama makinesi Ürün kodu	Tek sorumlu olarak, tanimlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:★
PL	Deklaracja zgodności UESzlifierka kątowa Numer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:★
RU	Заявление о соответствии ECУглошлифовальная машина Товарный номер	Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится у:★
UA	Заява про відповідність ЄСНутова шліфувальна машина Товарний номер	Мизаявляемо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положеням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається у:★

CE 9010

GR	Δήλωση πιστότητας EEГωνιακός τροχός	Αριθμός ευρετηρίου	Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Техνικά έγγραφα στη: ★
RO	Declarație de conformitate UEPolizor unghiular	Număr de identificare	Declarăm pe proprie răspundere că produsele mentionate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentație tehnică la: ★
BG	EC декларация за съответствиеЪглошлайф	Каталожен номер	С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при: ★
SK	EU vyhlásenie o zhodeUhlová brúska Vecné číslo		Vyhlasujeme na výhradnú zodpovednosť, že uvedený výrobok spíňa všetky prislušné ustanovenia nižšie uvedených smernic a nariadení a je v súlade s nasledujúcimi normami.Technické podklady má spoločnosť: ★
HR	EU izjava o sukladnostiKutna brusilica Kataloški broj		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod: ★
SRB	EU-izjava o usaglašenostiUgaona brusilica Broj predmeta		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod: ★
SLO	Izjava o skladnosti ESKotni brusilnik Številka artikla		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri: ★
EST	EL-vastavusdeklaratsioonNurklihvmasin Tootenumber		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja măäruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumentid saadaval: ★
LV	Deklaracija par atbilstību EK standartiemLenķa slīpmašīna Izstrādājuma numurs		Mēs ar pilnu atbildību pazinojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktīvās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.Tehniskā dokumentacija no: ★
LT	ES atitikties deklaracijaKampinis šlifuoklis Gaminio numeris		Atsakingai pareiškiye, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytu direktyvu ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: ★
MK	EU-Изјава за сообразностАголна брусална Број на артикл		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кај: ★
AL	EU Deklarata e konformitetitMprehësja këndore Numri i nenit		Ne deklarojmë me përgjegjësinë tonë të vetme se produktet e paraqitura janë në përputhje me të githa dispozitat e zbatueshme të direktivave dhe rregulloreve të listuara më poshtë dhe janë në përputhje me standardet si më poshtë.Dosja teknike në: ★
	9010	F0159010..	2006/42/EC EN 60745-1:2009 + A11:20102014/30/EU EN 60745-2-3:2011 + A2:2013 + A11:2014 + A12:2014 + A13:20152011/65/EUEN 55014-1:2006 + A1:2009 + A2:2011EN 55014-2:2015EN 61000-3-3:2:2014EN 61000-3-3:2013EN 50581:2012
			SKIL ★ Skil BVKonijnenberg 624825 BD BredaThe Netherlands
			Olaf DijkgraafApproval ManagerSKIL BV, Konijnenberg 62, 4825 BD Breda, NL01.04.2017

1
9010

②

Warning symbol and electrical plug diagram showing a warning sign and a plug with three pins

J D A H J F G E E B B C NOT STANDARD INCLUDED

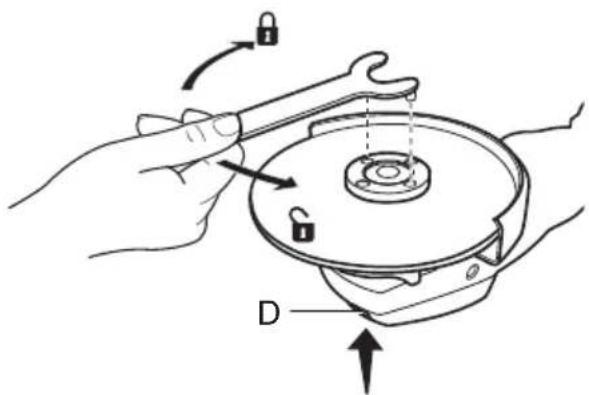

Diagram showing hands operating a lock mechanism with labeled parts D and directional arrows

③④⑤⑥

Two circular icons with white headphones and glasses, no text or symbols present

Simple geometric diagram of two concentric squares (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

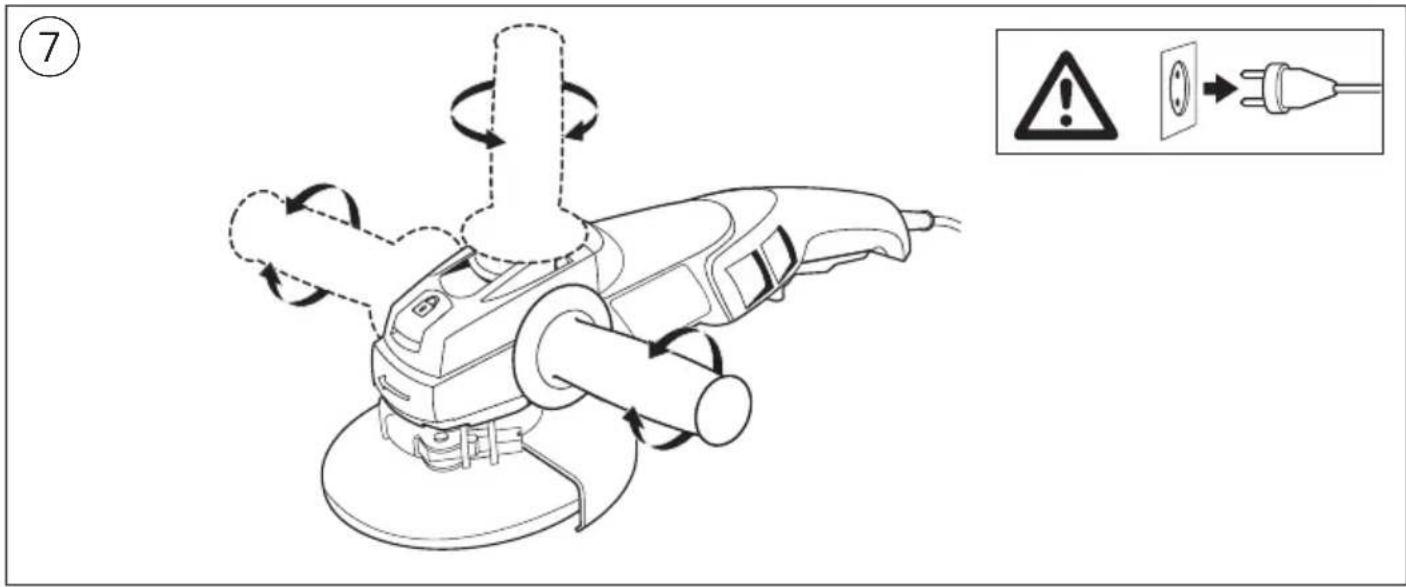

⑦ ⚠️ →

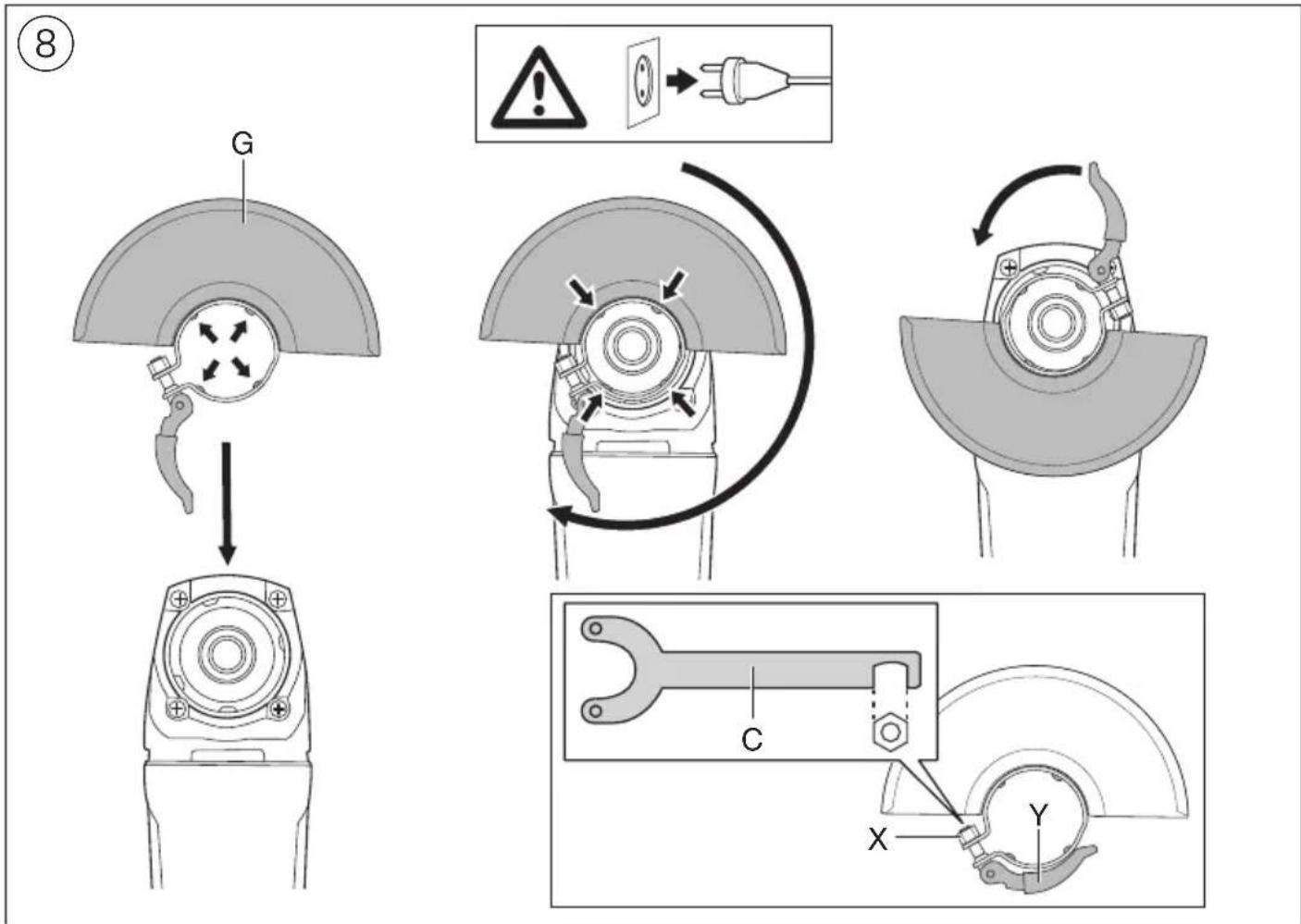

⑧ G C X Y

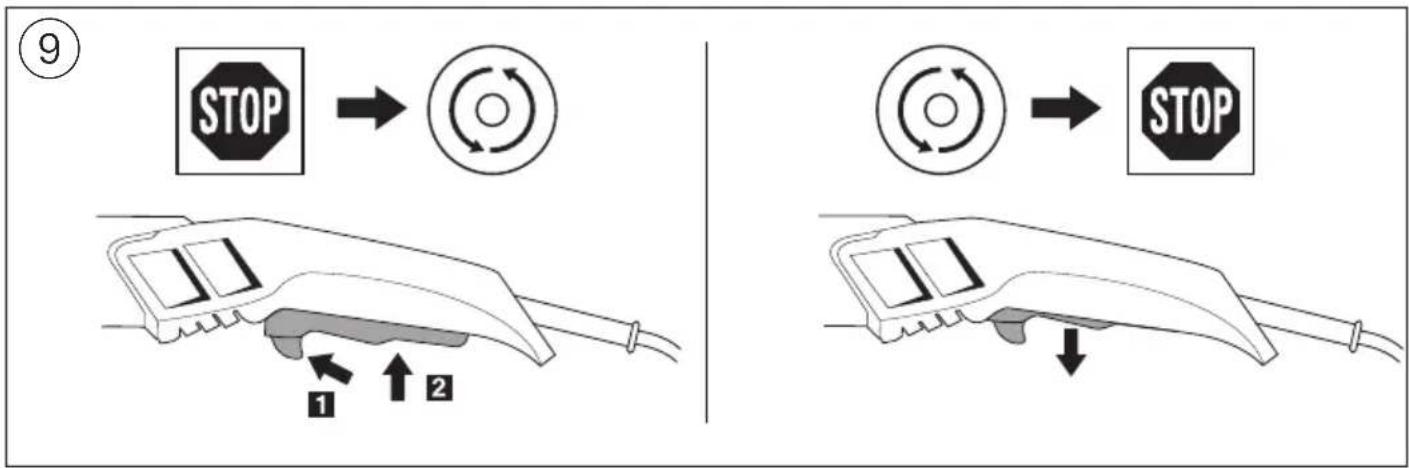

⑨ STOP → ① ↑ 2 ② STOP → ③ ↓

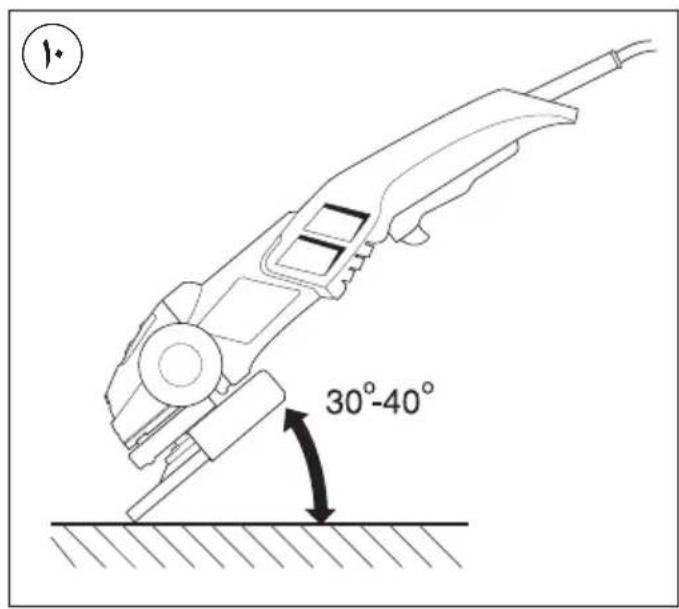

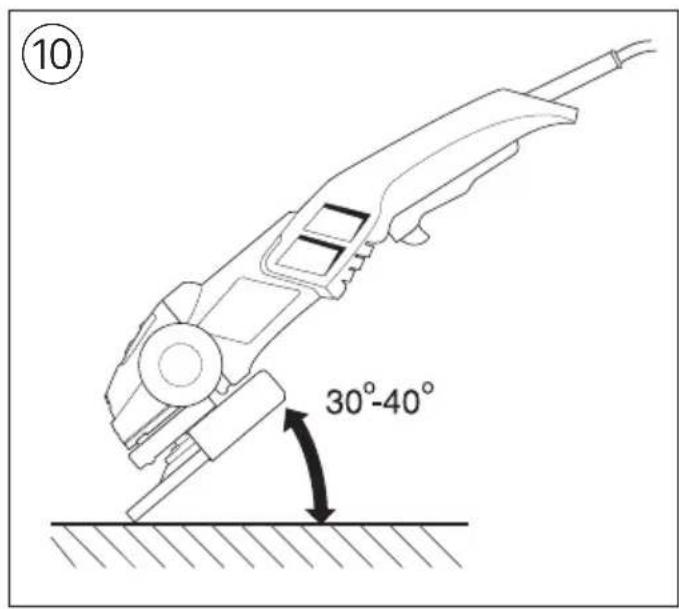

10 30°-40°

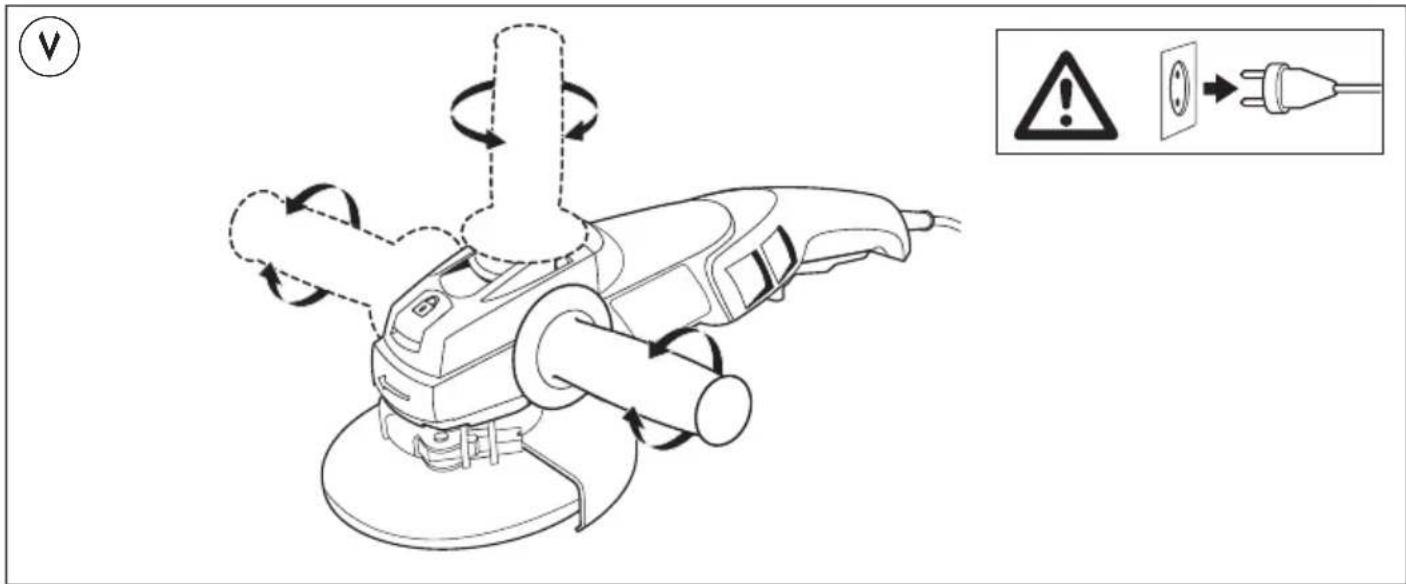

Technical line drawing of a mechanical power tool with a circular head and radial blade (no text or symbols)

Technical diagram showing two-step installation of a power tool, with numbered callouts and directional arrows indicating motion.

ACCESSORIES

WWW.SKIL.COM

GB

Angle grinder 9010

INTRODUCTION

• This tool is intended for grinding, cutting and deburring metal and stone materials without the use of water
  • This tool is not intended for professional use
• Cutting operations with abrasive cut-off wheels are only allowed when a cut-off guard (available as optional SKIL accessory 2610Z07147) is used
• Read and save this instruction manual ③

TECHNICAL DATA①

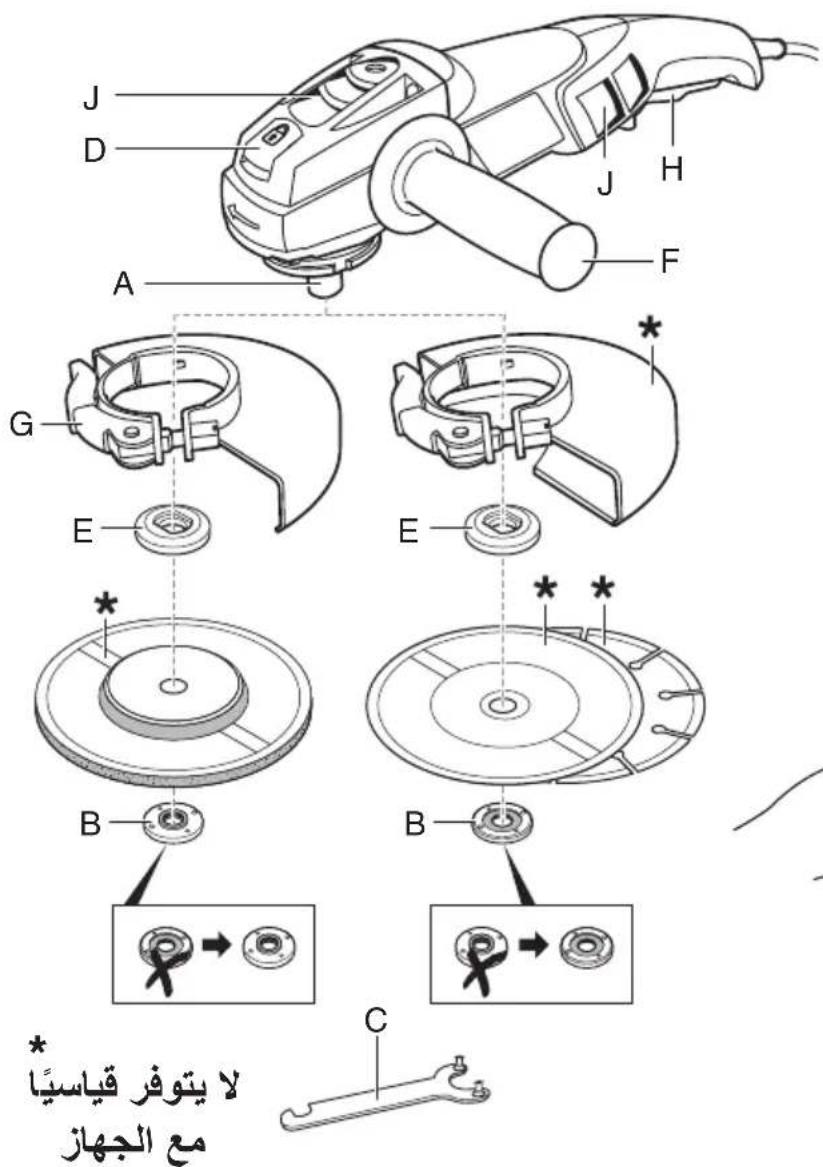

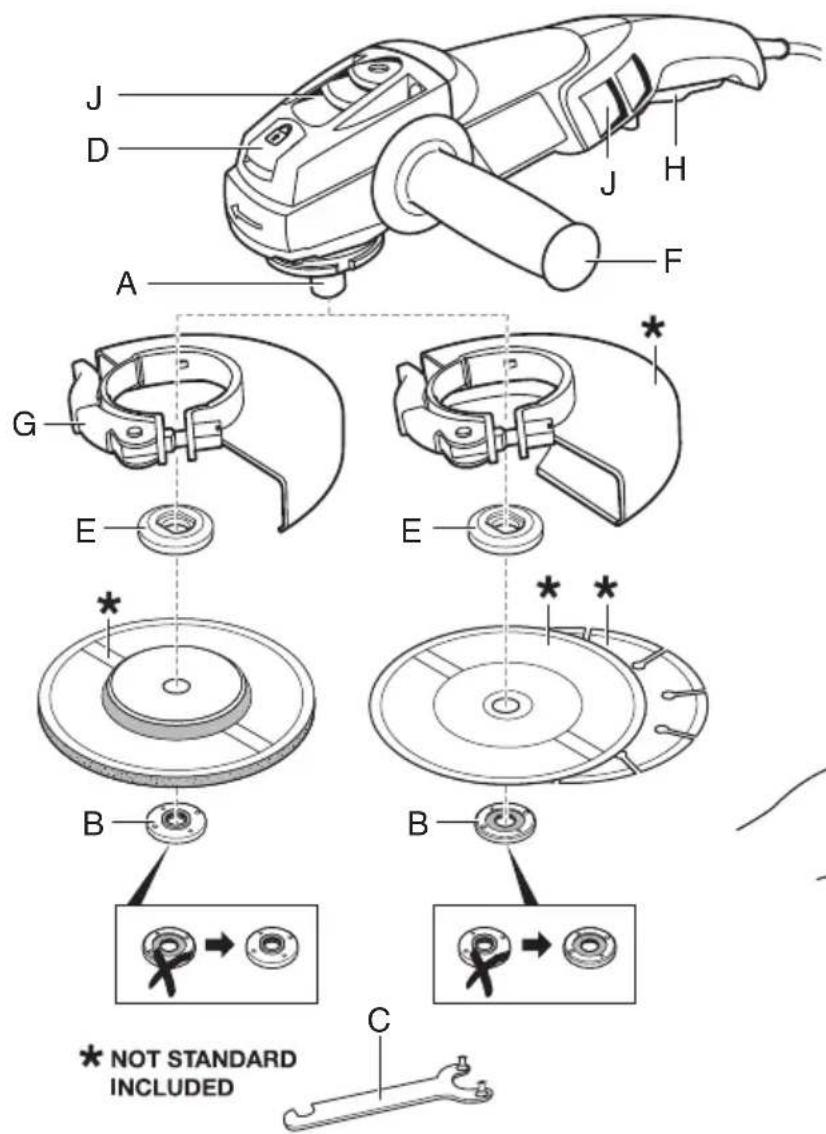

TOOL ELEMENTS ②

A Spindle
B Clamping flange
C Spanner
D Spindle-lock button
E Mounting flange
F Auxiliary handle
G Protective guard
H On/off safety switch
J Ventilation slots

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

2) ELECTRICAL SAFETY

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such

preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR ANGLE GRINDERS

1) SAFETY WARNINGS COMMON FOR GRINDING OR ABRASIVE CUTTING-OFF OPERATIONS
a) This power tool is intended to function as a grinder or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
b) This power tool is not recommended for sanding, wire brushing or polishing. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can fly apart.
e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power

tool will run out of balance, vibrate excessively and may cause loss of control.

g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pads for cracks, tear or excess wear, wire brushes for loose or cracked wires. If the power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no load speed for one minute. Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of the workpiece or of a broken accessory may fly away and cause injury beyond the immediate area of operation.
j) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. A cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
I) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.
2) KICKBACK AND RELATED WARNINGS
- Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

• For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on the direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.
• Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
  a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
  b) Never place your hand near the rotating accessory. The accessory may kickback over your hand.
  c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in the direction opposite to the wheel's movement at the point of snagging.
  d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
  e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.
  3) SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS
  a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
  b) The grinding surface of the centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
  c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
  d) Wheels must be used only for recommended applications. For example: Do not grind with the side of a cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding; side forces applied to these wheels may cause them to shatter.
  e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
  f) Do not use worn down wheels from larger power tools. A wheel intended for a larger power tool is not suitable for the higher speed of a smaller tool and may burst.

4) ADDITIONAL SAFETY WARNINGS SPECIFIC FOR CUTTING OFF OPERATIONS
a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
c) When the wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion, otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a "pocket cut" into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

ADDITIONAL SAFETY WARNINGS

GENERAL

• This tool is not suitable for wet grinding/cutting
• Only use the flanges which are supplied with this tool

• This tool should not be used by people under the age of 16 years
  • Always disconnect plug from power source before making any adjustment or changing any accessory ACCESSORIES

• SKIL can assure flawless functioning of the tool only when original accessories are used

• Use only grinding/cutting discs with a maximum thickness of 8 mm and a spindle hole diameter of 22 mm
• For mounting/using non-SKIL accessories observe the instructions of the manufacturer concerned
• Never use reducors or adaptors to fit large-hole grinding/cutting discs
• Never use accessories with a "blind" threaded hole smaller than M14 x 21 mm
• Handle and store grinding/cutting discs carefully to avoid chipping and cracking

OUTDOOR USE

- Connect the tool via a fault current (FI) circuit breaker with a triggering current of 30 mA maximum

BEFORE USE

• Before using the tool for the first time, it is recommended to receive practical information
• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool
• Always mount auxiliary handle F ② and protective guard G ②; never use the tool without them

- Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

- Do not work materials containing asbestos (asbestos is considered carcinogenic)

- Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

- Be careful when cutting grooves, especially in supporting walls (slots in supporting walls are subject to country-specific regulations; these regulations are to be observed under all circumstances)

- Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

- Do not clamp the tool in a vice

- Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)

DURING USE

- If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug

- Never use the tool when cord is damaged; have it replaced by a qualified person

- In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug

- In case of current interruption or when the plug is accidentally pulled out, release switch H ② in order to prevent uncontrolled restarting

AFTER USE

- After switching off the tool, never stop the rotation of the accessory by a lateral force applied against it

EXPLANATION OF SYMBOLS ON TOOL

③ Read the instruction manual before use
④ Wear protective glasses and hearing protection
⑤ Double insulation (no earth wire required)
⑥ Do not dispose of the tool together with household waste material

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

• Mounting of accessories ②
  !disconnect the plug
  -clean spindle A and all parts to be mounted
  -tighten clamping flange B with spanner C while pushing spindle-lock button D
  !push spindle-lock button D only when spindle A is at a standstill
  -for removing accessories handle vice-versa
  !grinding/cutting discs become very hot during use; do not touch them until they have cooled down
  !never use a grinding/cutting disc without the label ("blotter") which is glued onto it (if provided)

• Mounting of auxiliary handle F ⑦
  !disconnect the plug
  -screw auxiliary handle F on the right, the top, or the left of the tool (depending on the work to be carried out)

- Removing/mounting/adjusting of protective guard G ⑧ !disconnect the plug

!ensure that the closed side of the protective guard always points to the operator

-clamping power of lever Y can be adjusted by tightening screw X which is pre-set at manufacturing (ensure that the protective guard is closed)

• Before using the tool
  -ensure that accessory is correctly mounted and firmly tightened
  -check if accessory runs freely by turning it by hand
  -test-run tool for at least 60 seconds at highest no-load speed in a safe position
  -stop immediately in case of considerable vibration or other defects and check tool to determine the cause

- On/off safety switch H ⑨

-switch on tool ⑨a

!be aware of the sudden impact when the tool is switched on

!before the accessory reaches the workpiece, the tool should run at full speed

-switch off tool ⑨b

!before switching off the tool, you should lift it from the workpiece

!the accessory continues to rotate for a short time after the tool has been switched off

- Grinding ⑩

-move the tool back and forth with moderate pressure!never use a cutting disc for side grinding

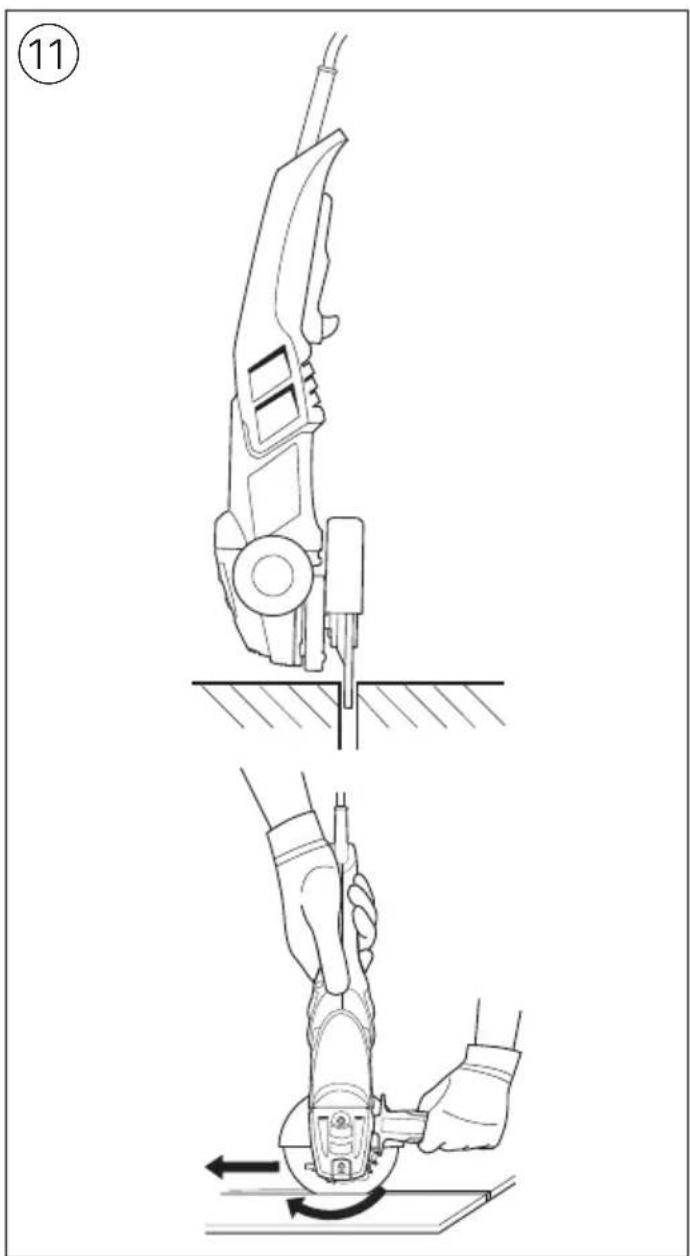

- Cutting ⑪

-do not tilt the tool while cutting

-always move the tool in same direction as arrow on tool head, in order to prevent the tool from being pushed out of the cut in an uncontrolled manner

-do not apply pressure on the tool; let the speed of the cutting disc do the work

-the working speed of the cutting disc depends on the material to be cut

-do not brake cutting discs with side pressure

- Holding and guiding the tool

-always hold the tool firmly with both hands, so you will have full control of the tool at all times

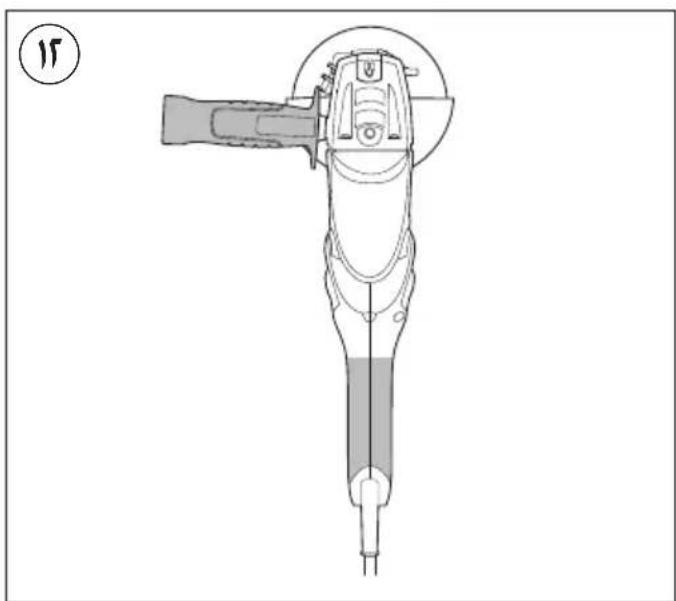

!while working, always hold the tool at the grey-coloured grip area(s) ⑫

-provide for a secure stance

-pay attention to the direction of rotation; always hold the tool so, that sparks and grinding/cutting dust fly away from the body

-keep ventilation slots J② uncovered

APPLICATION ADVICE

• Instead of flange B ② the "CLIC" quick-clamping flange (SKIL accessory 2610388766) can be used; grinding/cutting discs can then be mounted without the use of accessory keys
• For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Always keep tool and cord clean (especially ventilation slots J ②)

!do not attempt to clean ventilation slots by inserting pointed objects through openings !disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility -symbol⑥ will remind you of this when the need for disposing occurs

NOISE / VIBRATION

• Measured in accordance with EN 60745 the sound pressure level of this tool is 90 dB(A) and the sound power level 101 dB(A) (standard deviation: 3 dB), and the vibration when surface grinding 7.5 m/s ^2 (triax vector sum; uncertainty K = 1.5 m/s ^2 ) !other applications (such as cutting-off) may have different vibration values
• The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned
• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

!protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

WAARSCHUWING Lees alle

1) SIKKERHET PÅ ARBEIDSPLASSEN

VEDLIKEHOLD / SERVICE

DODATNA SIGURNOSNA UPUTSTVA

OPŠTA

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI②

Simple line drawing of a pencil (no text or symbols)

صدا / ارعتاشات

STOP 1 ↑ 2 STOP

30°-40°

Technical line drawing of a mechanical power tool (no text or symbols)

Technical illustration showing two steps of a tool manipulation process: top is a tool cutting through a tool, bottom is a hand using a tool to press or adjust the tool (no text or symbols present)

Iconographic symbol representing a person reading, with three circular icons containing symbols like 'F', 'S', and a triangle symbol.

Two circular icons with head and glasses symbols, no text or numbers present

Simple geometric diagram of two concentric squares (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Diagram illustrating the working principle of a power tool with warning symbols and an electrical plug, showing rotational flow and safety warning.

G C X Y

1

9010

①

Warning symbol and electrical plug diagram showing a warning sign and a fuse with three pins

Technical diagram of a power tool with labeled parts and assembly instructions in Chinese

Diagram showing hands holding a wrench to press a mechanical component with lock and D label, indicating mechanical assembly or repair.

Illustration of a SKIL angle grinder with a power tool and blade (no text or symbols on the device itself)

دليل الاستعمال AR

raهنماي اصلی FA
