Features	Details
Vacuum type	Bagged vacuum cleaner
Suction power	1200 W
Bag capacity	2.5 L
Filtration	HEPA filter
Weight	4.5 kg
Noise level	78 dB
Included accessories	Brush for hard floors, brush for carpets, flat nozzle
Cord length	5 m
Dimensions	30 x 25 x 20 cm
Usage	Suitable for hard floors and carpets
Maintenance	Change the bag regularly, clean the HEPA filter
Safety	Overheat protection
Warranty	2 years

Frequently Asked Questions - KVC 3121 A Koenic

The Koenic KVC 3121 A vacuum cleaner won't turn on, what should I do?

Check that the vacuum cleaner is properly plugged in and that the outlet is working. Try plugging it into another outlet. If the problem persists, the fuse may be blown.

How do I clean the filter of the Koenic KVC 3121 A vacuum cleaner?

To clean the filter, remove it from the vacuum cleaner, gently tap it to remove dust, and rinse it with lukewarm water. Make sure it is completely dry before putting it back in place.

What type of vacuum bag should I use with the Koenic KVC 3121 A?

Use bags compatible with the Koenic KVC 3121 A model. Check the specifications on the bag packaging or consult the user manual for more details.

The vacuum cleaner is losing suction power, what should I do?

Check if the dust bag is full and replace it if necessary. Also ensure the filter is clean and the hoses are not blocked.

How do I maintain my Koenic KVC 3121 A vacuum cleaner?

To maintain your vacuum cleaner, regularly empty the bag or container, clean the filter, and check the brushes and hoses for any blockages.

Is there a warranty for the Koenic KVC 3121 A?

Yes, the Koenic KVC 3121 A usually comes with a 2-year warranty. Please consult your user manual for specific warranty details.

How do I avoid unpleasant odors when using the vacuum cleaner?

Make sure the bag is clean and replace it regularly. You can also add deodorizers specially designed for vacuum cleaners into the bag.

USER MANUAL KVC 3121 A Koenic

Close-up of a white vacuum cleaner with black handle and blue filter, no visible text or symbols on the device itself.

Deutsch 3 1/2007-14 Brasil 13 17 Kapital 18-27 Furds 29 37 Mags 28 35 Büllner 16 17 Schulzer 36 42 Rohne 41-57 Arl. gak. 40-57 Sorso 29 57 Lakka 19-27

Labeled diagram of a vacuum cleaner with parts marked for identification and assembly reference.

Instructional images showing how to adjust or repair a car's electrical plug, with numbered steps and red arrows indicating action.

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

• The mains voltage must match the information on the rating label of the product.

• Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
  • Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.

English

Safety instructions

• This product is not intended for commercial use. It is designed for household use only.
• Do not allow the product to operate unsupervised.
  • Make sure that the motor unit and supply cord do not become wet.
• Use accessories supplied with the device or recommended by the manufacturer only!
• This product is suitable only for private use.
  • Always switch the product off before disconnecting it from mains supply.
• Let the product cool down sufficiently before storing.
• Do not cover the product while in use. Fire hazard!
• Do not suck up liquids with the product. Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!
• Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms with explosive gases or liquids.
• Be especially careful when cleaning the stairs
• When in use, keep the product away from clothes and body parts (fingers, hair, face).
• Do not try to clean people or animals with the product.

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Content

1 x Vacuum cleaner

1 x Floor nozzle

1 x Crevice nozzle

1 x Upholstery nozzle round brush

1 x Upholstery nozzle square brush

1 x Hard floor brush

1 x User manual

1 x warranty card

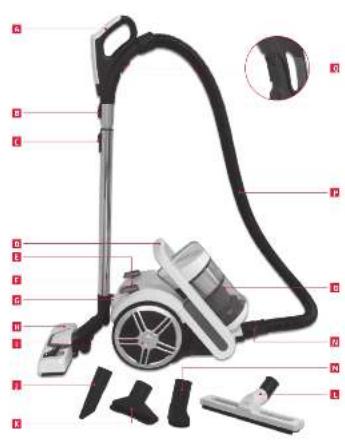

Part list

A Suction tube handle
B Suction tube handle release button
C Telescopic tube with locking mechanism
D Carrying handle
E On/Off button
F Cable retraction button
G Telescopic tube holder
H Floor nozzle
I Wheel
J Crevice nozzle
K Upholstery nozzle square
L Hard floor brush
M Upholstery nozzle round
N Suction hose bracket
0 Dust container
P Suction hose
Q Auxiliary air flap

English

Assembling the vacuum cleaner (Part B, C, N)

Fig. 1 Insert the suction hose into the hose connection. Make sure that it has clicked into place.
Fig. 2 Place the floor nozzle on the lower end and the suction tube handle on the upper end of the telescopic tube.
Fig. 3 Adjust the telescopic tube to the desired length, by sliding up the locking mechanism and then pushing the telescopic tube out or squeezing it together.

Use of the accessories provided Floor nozzle (Part H)

Fig. 4 To vacuum hard floors, press the toggle switch down.
Fig. 5 To vacuum carpeted areas, press the toggle switch again in order to retract the brushes.

Upholstery nozzle round/square (Part K, M)

Fig. 6 For vacuuming upholstered furniture, mattresses, cushions, curtains, etc.

Crevice nozzle (Part J)

Fig. 7 For vacuuming folds, crevices and corners.

Hard floor brush (Part L)

Fig. 8 For vacuuming hard and wooden floor. Use the hard floor brush to protect the floor from being scratched.

Operation

Fig. 9 Pull out the connection cable to the desired length and insert the power plug into a receptacle.
Fig. 10 Press the On/Off switch to turn the vacuum cleaner on/off.

Tip: If the vacuum can only be guided with difficulty over carpeted areas due to excessively high suction power, adjust the suction power down by opening the auxiliary air flap on the handle.

Fig. 11 Switch the vacuum cleaner off after use and unplug it when you have finished working.
Fig. 12 Wind the power cable around the cable storage device by pressing the automatic cable retraction switch. While you are doing this keep the cable taut, if possible.

Parking system for pauses in vacuuming

Fig. 13 You can store the telescopic tube with the floor nozzle on the vacuum cleaner for short pauses in vacuuming. Insert the floor nozzle with the parking attachments into the parking system.

Transport and storage

Fig. 14 To carry your vacuum cleaner grasp it by the handle. To store your vacuum cleaner, the suction tube with the floor nozzle can be mounted on the back of the vacuum cleaner in an upright position.

Cleaning and care

Warning!

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

Emptying the dust canister (Part 0)

Fig. 15 If the suction power diminishes, the dust canister must be emptied and the filters must be cleaned. We recommend to empty the dust canister outside of the house.
a) Remove the suction hose from the dust canister. Press the unlocking device and remove the filter by bringing it forward.
b) To empty the dust canister, simply press the release on the bottom so that the bottom of the canister opens and the dust falls out. Hold the dust canister over a rubbish container whilst you are emptying it.
c) Loosen the filter lid and remove the entire filter insert from the dust canister. Empty the remain dusty from the dust canister.
d) Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Cleaning the main filter

Fig. 16 a) Loosen the filter lid and remove the entire filter insert from the dust canister. Break down the filter into all of its individual parts. Tap the filter to remove the dust and clean all parts with water and dry them thoroughly.
b) Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Cleaning the motor filter

Fig.17 Remove the motor filter and tap it to remove the dust. Then re-insert it. Reassemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Warning!

Never use the vacuum cleaner without a motor filter, as otherwise, the motor will soon get dirty and will be subject to wear. If the motor filter gets dirty, the suction power will diminish.

Cleaning the exhaust air filter

Fig. 18 Open the flap, take the filter out and tap it to remove the dust. Assembly is carried out in reverse order. Insert the filter in the right direction so that the correct side is facing the motor.

Technical data

Rated Voltage : 220 - 240 V\~, 50/60 Hz

Rated input power : 700 W

Protection class : II

• This is a general purpose vacuum cleaner
- The Erp test method is according to (EU) No 666/2013, (EU) No 665/2013 & EN 60312:2013
- Please refer to below website for detail technical information, or contact us for technical document:
www.koenic-online.com

• Energy efficiency class: A
- Indicative annual energy consumption 25,3 kWh per year, based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.
• Carpet cleaning performance class: C
• Hard floor cleaning performance class: A
• Dust re-emission class: A
• Sound power level: 79 dB
• The rated input power: 700 W

PRODUKTDATENBLATT // PRODUCT FICHE // FICHA DE PRODUCTO // FICHE PRODUIT
