EK600 - Knife BLACK & DECKER - Free user manual and instructions

Brand	Black & Decker
Model	EK600
Product Type	Electric Knife
Usage	Domestic
Blade Lengths	229 mm (9") for slicing and carving; 171 mm (6 3/4") utility blade
Number of Blades	2 (one main blade and one utility blade included)
Power Supply	AC, 120 V, 10 A (polarized plug)
Power	Not specified (estimated: 150 W)
Cord Length	Standard, no extension cord
Safety	TriggerGuard™ safety switch, polarized plug
Handle Material	Rubberized (latex-free and natural rubber-free)
Blade Cleaning	Dishwasher or hot soapy water
Handle Cleaning	Damp cloth, do not immerse
Warranty	1 year against defects in material or workmanship
After-Sales Service	Authorized Black & Decker service center, phone: [phone]
Certifications	Underwriters Laboratories (UL), NOM
Country of Origin	People's Republic of China

Frequently Asked Questions - EK600 BLACK & DECKER

How to install the blades on the Black & Decker EK600 knife?

Make sure the knife is unplugged and the TriggerGuard™ safety switch is in the on position. Insert the blades into the slots on the handle by grasping them by the finger guards, cutting edge away from your hand. A click indicates they are locked in place.

How to remove the blades?

Unplug the knife and slide the TriggerGuard™ switch to cover the power switch. Press the release buttons on each side of the handle, then pull the blades by the finger guards.

Can the knife be used underwater?

No, never immerse the plug, cord, or handle. Do not use in water or under an open tap to avoid risk of electric shock.

How to clean the blades and handle?

Before cleaning, lock the TriggerGuard™ switch, unplug and remove the blades. Wash blades in hot soapy water or dishwasher. Wipe the handle with a damp cloth, no abrasives. Do not immerse handle.

What if the plug does not fit into the outlet?

The plug is polarized (one blade wider). If it does not fit, reverse the plug. If it still does not fit, contact a qualified electrician. Do not defeat the safety feature.

How to use the knife safely?

Read all instructions. Do not touch moving parts. Use the TriggerGuard™ switch to prevent accidental start. Hold blades by the non-cutting edge. Store out of reach of children.

Is the knife warranted?

Yes, a one-year full warranty against defects in material or workmanship. Does not cover accidental or misuse damage. Contact customer service at 1 [phone].

Can I use an extension cord with the knife?

Yes, use a polarized extension cord rated 10 A, 120 V, UL listed. Handle cord carefully to avoid damage.

How to use the utility (short) blade?

The utility blade installs and removes like the long blade. It is ideal for cutting smaller foods like pineapple, pepperoni, baguettes, potatoes, etc.

What if the knife does not work?

Check that the TriggerGuard™ switch is unlocked and the knife is plugged in. If the problem persists, take the appliance to an authorized Black & Decker service center.

USER MANUAL EK600 BLACK & DECKER

Electric Knife (English, see pg. 2)

Illustration of a pair of saw tools (no text or symbols present)

Household Products Limited de México S. de R.L. de C.V.

100W 120V\~ 60Hz

BLACK & DECKER®

U.S.A./CANADA 1-800-231-9786

MEXICO 1-800-714-2503

http://www.householdproductsinc.com

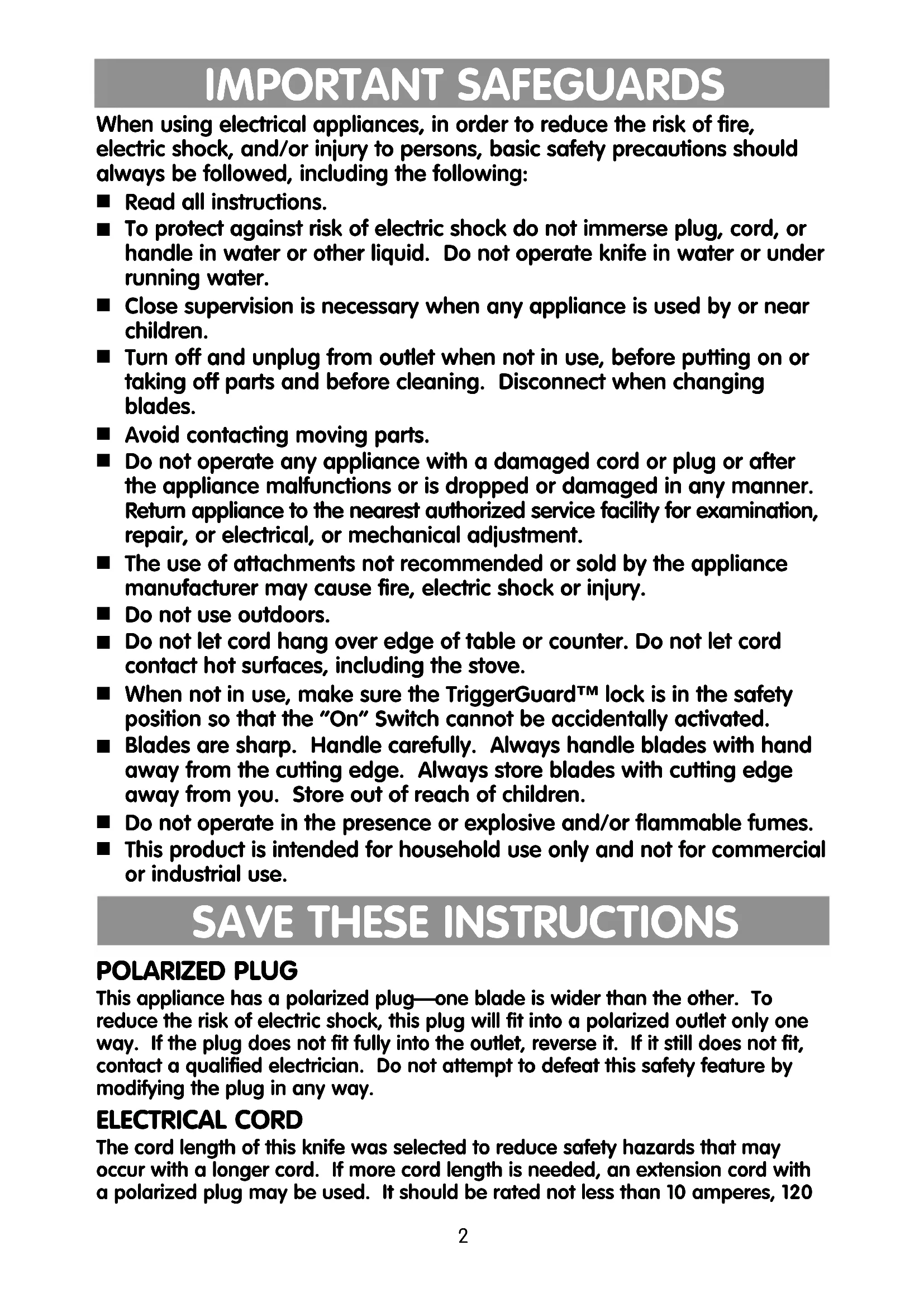

IMPORTANT SAFEGUARDS

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

• Read all instructions.
  ■ To protect against risk of electric shock do not immerse plug, cord, or handle in water or other liquid. Do not operate knife in water or under running water.
  ■ Close supervision is necessary when any appliance is used by or near children.
  ■ Turn off and unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Disconnect when changing blades.
  ■ Avoid contacting moving parts.
  ■ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or electrical, or mechanical adjustment.
  ■ The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.
  ■ Do not use outdoors.
  ■ Do not let cord hang over edge of table or counter. Do not let cord contact hot surfaces, including the stove.
  ■ When not in use, make sure the TriggerGuard™ lock is in the safety position so that the "On" Switch cannot be accidentally activated.
  ■ Blades are sharp. Handle carefully. Always handle blades with hand away from the cutting edge. Always store blades with cutting edge away from you. Store out of reach of children.
  ■ Do not operate in the presence or explosive and/or flammable fumes.
  ■ This product is intended for household use only and not for commercial or industrial use.

SAVE THESE INSTRUCTIONS

POLARIZED PLUG

This appliance has a polarized plug—one blade is wider than the other. To reduce the risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse it. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature by modifying the plug in any way.

ELECTRICAL CORD

The cord length of this knife was selected to reduce safety hazards that may occur with a longer cord. If more cord length is needed, an extension cord with a polarized plug may be used. It should be rated not less than 10 amperes, 120

Volts, and have Underwriters Laboratories listing. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

BEFORE USING

CAUTION: The TriggerGuard™ Lock must be slid over the "On" Switch before inserting or removing Blades.

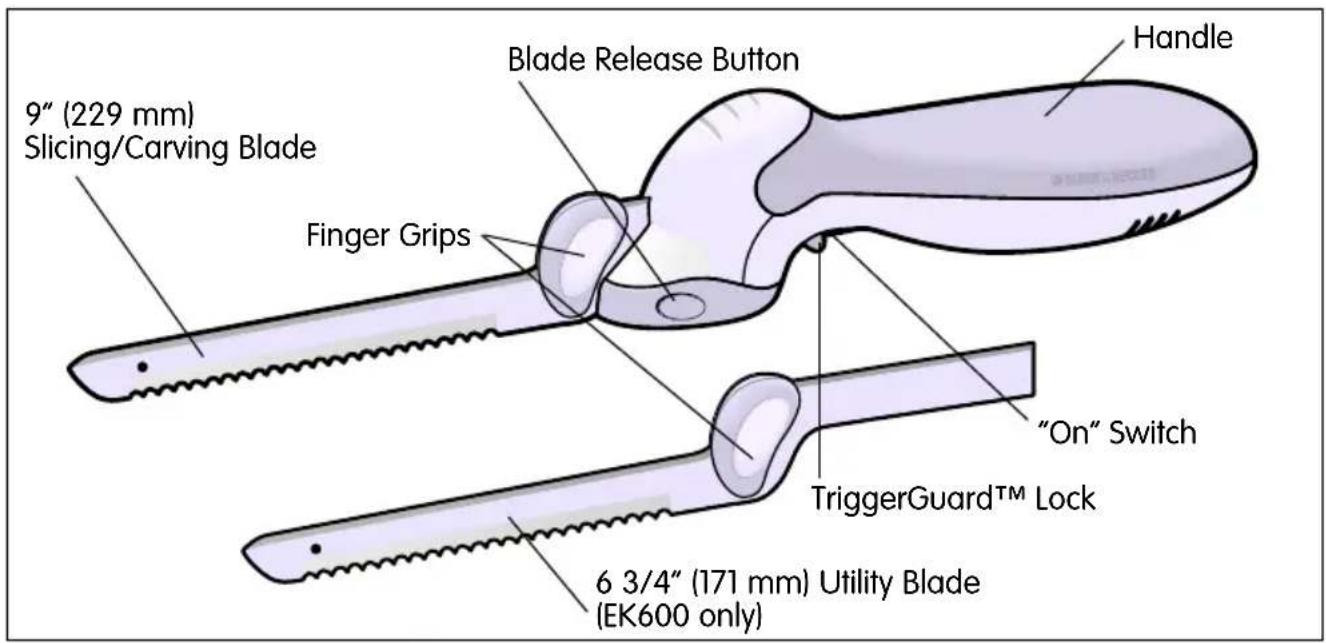

9" (229 mm) Slicing/Carving Blade Finger Grips Blade Release Button Handle "On" Switch TriggerGuard™ Lock 6 3/4" (171 mm) Utility Blade (EK600 only)

How To Use

NOTE: The rubberized grip is free of natural rubber and latex. It is safe for use by individuals allergic or sensitive to these materials.

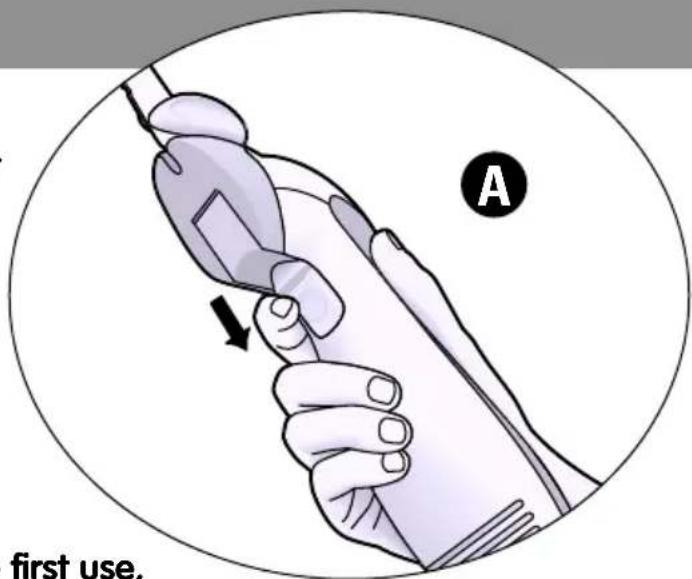

IMPORTANT: When the

TriggerGuard™ "Lock" is in position, the "On" Switch cannot be pressed inward even when the Knife is plugged in (A).

first use, A

B 1. S 3. W

1. Before first use,

wash the blades in hot,

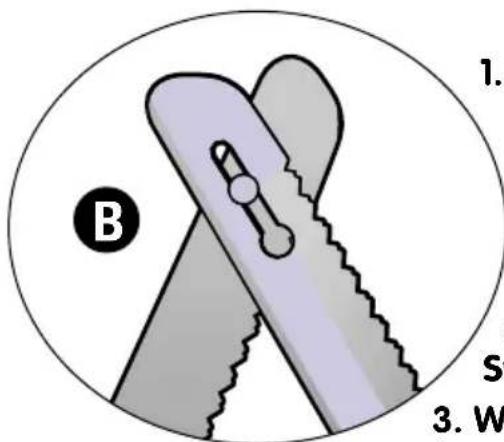

soapy water or in the dishwasher. Rinse and dry thoroughly. Slip the Rivet at the tip of one blade into the Keyhole Slot on the other (B).

1. When inserting or removing Blades, always be sure the TriggerGuard™ Lock is slid over the "On" Switch and the cord is unplugged.

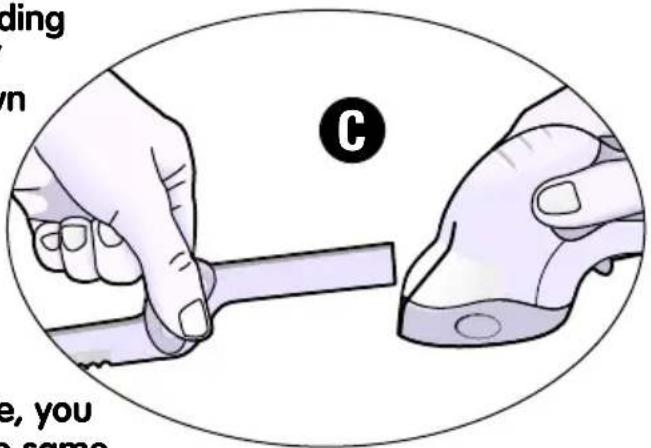

2. With the cutting (serrated) edge facing AWAY from hand, grab the Blades by the Finger Grips and insert

the two ends of the Blades into the slots of the Handle (C). The Blades will "click" into place. Plug the cord into a standard outlet. Position the food to be sliced on a cutting board.

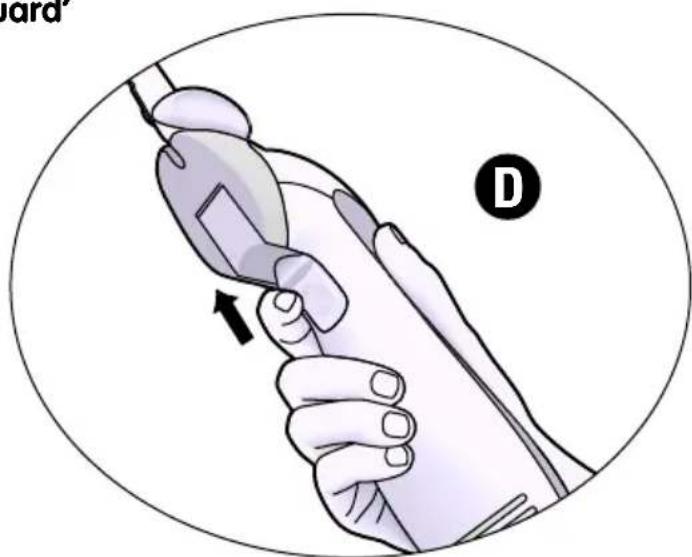

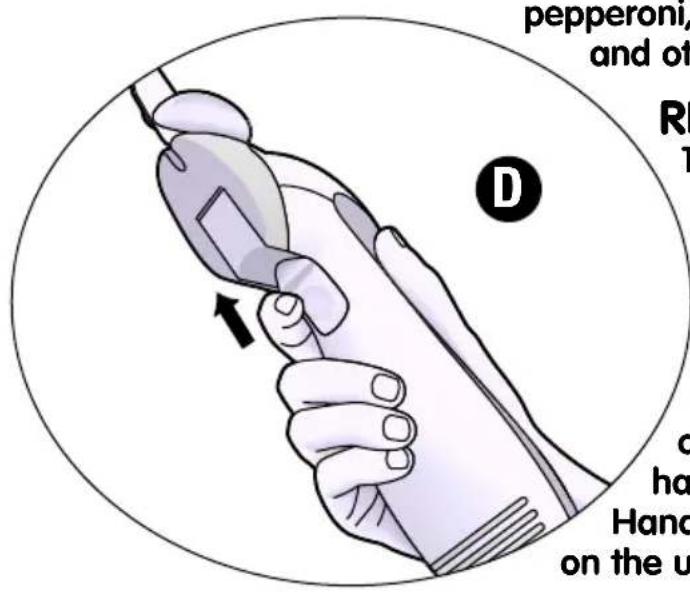

1. Release the TriggerGuard™ Lock by sliding it toward the blade (D). Press the "On" Switch and guide the Knife Blades down through the food. Use a carving fork to hold the food, if necessary.

CAUTION: NEVER place your hand over the Blade to support it while operating this knife. The Blades are designed to slide back and forth for cutting.

1. For models with the shorter Utility Blade, you may insert and remove the Blade in the same manner as the long Blade. The Utility Blade w

ding wn e, you e same

The Utility Blade works well on pineapple, pepperoni, small bread loaves, potatoes, and other small fruits and vegetables.

pepperoni, and of R 1 D c ha Hand on the u

REMOVING BLADES

1. To remove the Blades, the TriggerGuard™ Lock must be covering the "On" Switch and the cord must be unplugged. Press the Blade Release Buttons on both sides of the Handle. Grasp the Blades by the Finger Grips with the cutting edge facing AWAY from your hand and pull out away from the handle. (See C) Instructions also appear underside of the Handle.

Care & Cleaning

1. Before cleaning any part of the Electric Knife, engage the TriggerGuard™ Lock, unplug the cord, and remove the Blades.
2. Knife Blades may be washed in hot, soapy water or in the dishwasher. Dry all parts thoroughly before next use.
3. The Knife Handle and cord may be cleaned with a damp cloth. DO NOT use any abrasive cleanser or material to clean any part of the Knife as it may harm the finish. Do not put the Knife Handle in water.

NEED HELP?

Service, if necessary, must be performed by a Black & Decker Company-Owned or Authorized Household Appliance Service Center. The Service Center nearest you can be found in the yellow pages of your phone book under "Appliances-Small-Repairing."

If mailing or shipping your knife, pack it carefully in any sturdy carton with enough material to prevent damage. Include a note describing the problem to our Service Center and be sure to give your return address. We also suggest that you insure the package for your protection.

FULL ONE-YEAR WARRANTY

Household Products, Inc. warrants this product against any defects that are due to faulty material or workmanship for a one-year period after the original date of consumer purchase. This warranty does not include damage to the product resulting from accident or misuse. If the product should become defective within the warranty period, we will repair it or elect to replace it free of charge. We will return your product, transportation charges prepaid, provided it is delivered prepaid to any Black & Decker Company-Owned or Authorized Household Appliance Service Center.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province. Answers to any questions regarding warranty or service locations may be obtained by calling Consumer Assistance and Information toll free: 1-800-231-9786.

* BLACK & DECKER is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

1. B Tr "ON

Illustration of two hands holding a tool, one with a pen and the other with a smartphone (no text or symbols)

Illustration of a hand holding a pen or tool, with an arrow indicating direction (no text or symbols present)

Listed by Underwriters Laboratories Inc.

NOM Approved

Product made in People's Republic of China

Copyright © 1999 Household Products, Inc.

Pub. No. 174837-00-RV00

Printed in People's Republic of China

Enlistado por Underwriters Laboratories, Inc.

Aprobado por NOM

IMPORTADOR-Household Products Limited de México
