Product Type	Electric Knife
Brand	Black & Decker
Model	EK300
Usage	Home
Blade Length	23 cm (9 in)
Blade Type	Serrated stainless steel blade
Functions	Slicing, carving
Cutting Guide	Yes, adjustable for right-handed and left-handed users
Fat Guard	Yes
Safety Lock	Yes
Switch	Push-button with lock
Power Supply	Mains, 120 V, polarized plug
Cleaning Blades	Dishwasher or warm soapy water
Cleaning Handle	Damp cloth, no abrasive
Safety	Safety lock, polarized plug, do not immerse
Warranty	1 year
Included Accessories	2 blades, cutting guide, fat guard
Certifications	UL (Underwriters Laboratories)

Frequently Asked Questions - EK300 BLACK & DECKER

How to insert the blades into the Black & Decker EK300 knife?

Make sure the safety lock is in the locked position and the appliance is unplugged. Grasp the blades by the flat part in front of the fat guards, the sharp edge facing down. Insert the blades into the handle until you hear a click.

How to use the cutting guide?

Slide the notched tabs of the guide into the holes on the side of the knife. The guide can be placed on either side for left-handed or right-handed users. Adjust according to the desired slice thickness.

How to clean the EK300 knife?

Before cleaning, set the safety lock to the locked position, unplug and remove the blades. Wash the blades and cutting guide in warm soapy water or in the dishwasher. Clean the handle with a damp cloth. Do not use abrasive products.

How to remove the blades?

Press the release buttons on each side of the handle. Grasp the blades by the flat part in front of the fat guards and pull them out of the handle. Make sure the safety lock is locked before doing this.

What to do if the plug does not fit into the outlet?

The plug is polarized (one prong wider). Try inserting it the other way. If it still does not fit, contact a certified electrician. Do not modify the plug.

Can the knife be used outdoors?

No, the knife is designed for household use and should not be used outdoors. Also avoid using it in the presence of explosive or flammable vapors.

What are the main safety instructions?

Do not immerse the plug or handle. Use under supervision near children. Always lock the knife when not in use. Handle blades with care. Unplug before cleaning or changing blades.

How to store the blades?

Store the blades carefully with the cutting edge facing the wall. Keep the knife and blades out of reach of children.

What is the warranty of the Black & Decker EK300?

The product is warranted for 1 year against any defect in material or workmanship. The warranty does not cover accidental damage or damage due to misuse. For any questions, call 1-800-231-9786 (United States) or 1-800-465-6070 (Canada).

Where to get repairs?

Have servicing performed by an authorized Black & Decker service center. Consult the Yellow Pages under 'Small Appliances - Repair' or call the toll-free number indicated on the cover of the guide.

USER MANUAL EK300 BLACK & DECKER

SAVE THIS USE AND CARE BOOK

Electric Knife with Cutting Guide (English, see pg. 2)

Cuchillo Eléctrico

Line drawing of a pair of electrician's hairtex, showing blade and handle (no text or symbols)

U.S.A 1-800-231-9786

MEXICO 9-1-800-50833

CANADA 1-800-465-6070

http://www.blackanddecker.com

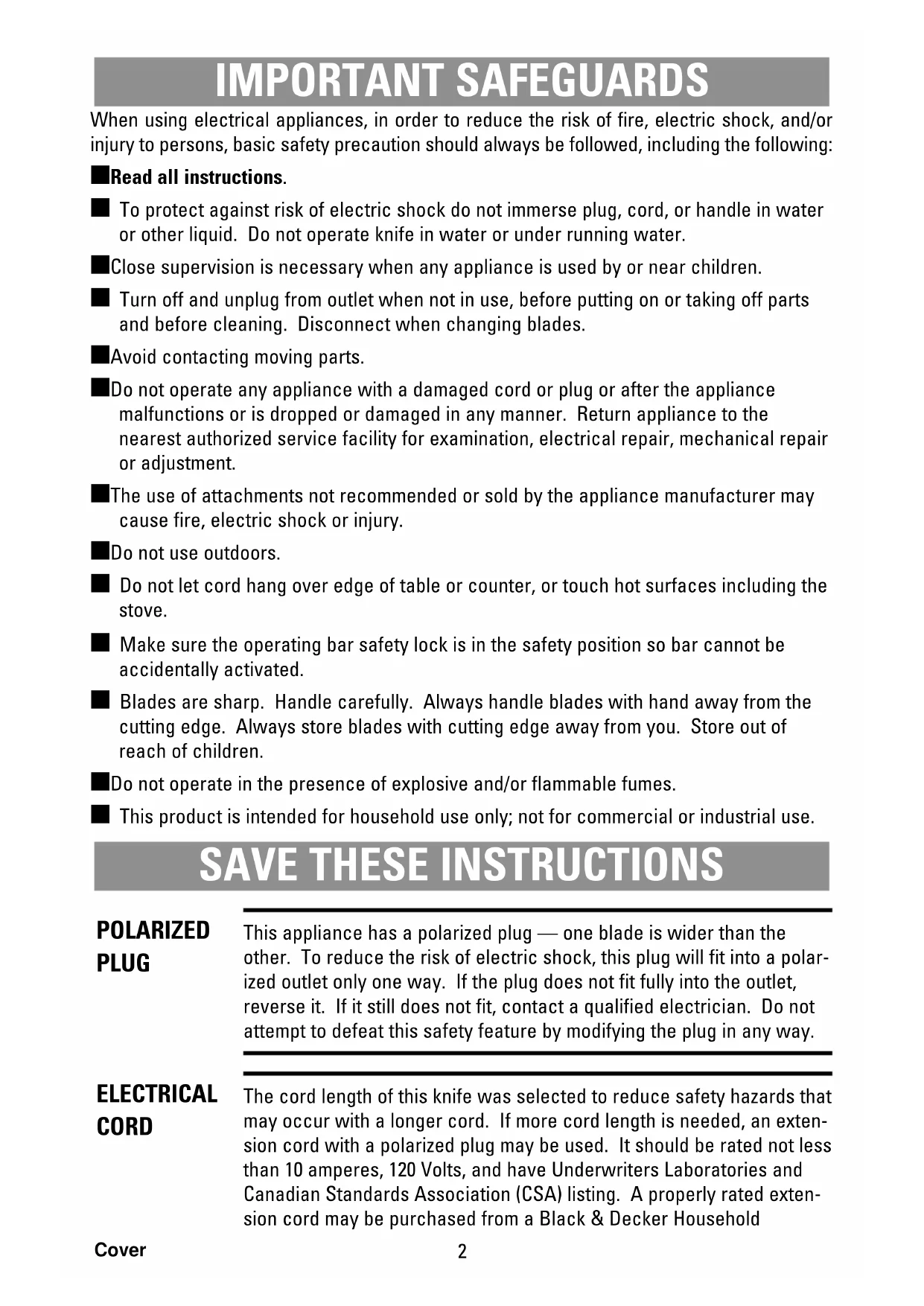

IMPORTANT SAFEGUARDS

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precaution should always be followed, including the following:

Read all instructions.

To protect against risk of electric shock do not immerse plug, cord, or handle in water or other liquid. Do not operate knife in water or under running water.

■Close supervision is necessary when any appliance is used by or near children.

■ Turn off and unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Disconnect when changing blades.

■Avoid contacting moving parts.

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, electrical repair, mechanical repair or adjustment.

The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.

■Do not use outdoors.

- Do not let cord hang over edge of table or counter, or touch hot surfaces including the stove.

■ Make sure the operating bar safety lock is in the safety position so bar cannot be accidentally activated.

Blades are sharp. Handle carefully. Always handle blades with hand away from the cutting edge. Always store blades with cutting edge away from you. Store out of reach of children.

■Do not operate in the presence of explosive and/or flammable fumes.

This product is intended for household use only; not for commercial or industrial use.

SAVE THESE INSTRUCTIONS

POLARIZED PLUG

This appliance has a polarized plug — one blade is wider than the other. To reduce the risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse it. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature by modifying the plug in any way.

ELECTRICAL CORD

The cord length of this knife was selected to reduce safety hazards that may occur with a longer cord. If more cord length is needed, an extension cord with a polarized plug may be used. It should be rated not less than 10 amperes, 120 Volts, and have Underwriters Laboratories and Canadian Standards Association (CSA) listing. A properly rated extension cord may be purchased from a Black & Decker Household

Appliance Company-Owned or Authorized Service Center. Handle cord carefully for longer life; avoid jerking or straining it at outlet and appliance connections.

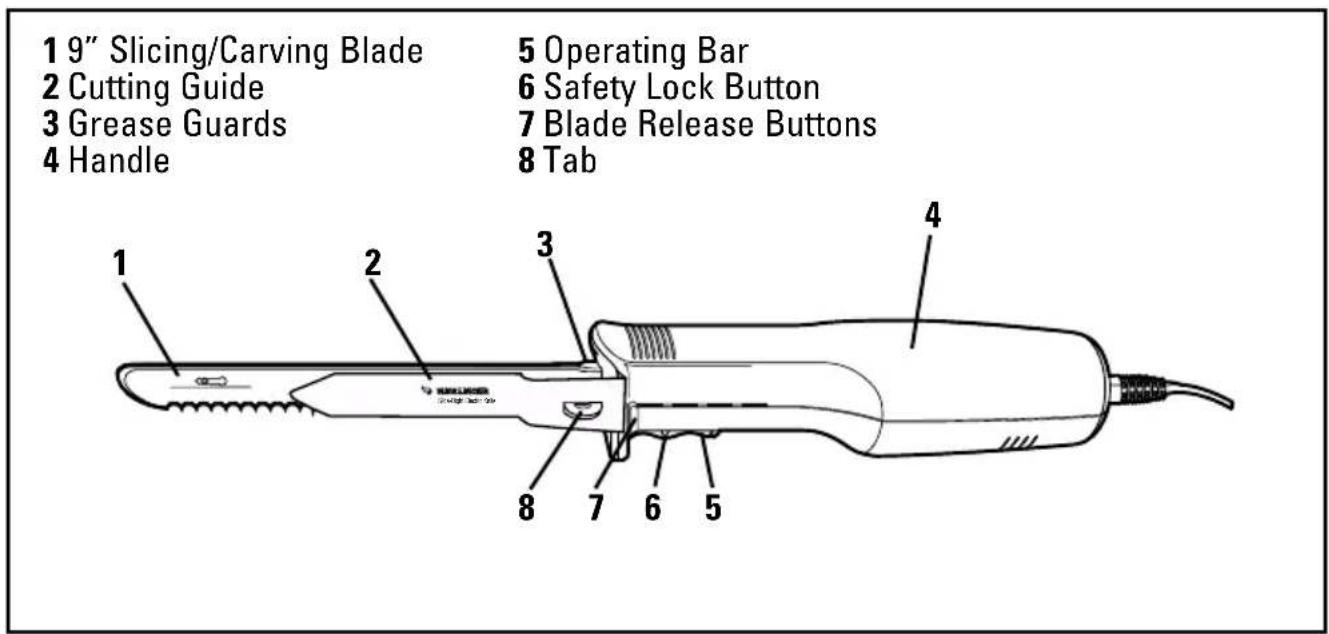

1 9" Slicing/Carving Blade 2 Cutting Guide 3 Grease Guards 4 Handle 5 Operating Bar 6 Safety Lock Button 7 Blade Release Buttons 8 Tab

How To Use

"Lock" "Unlock"

Figure A

Key-hole Slot Rivet

Figure B

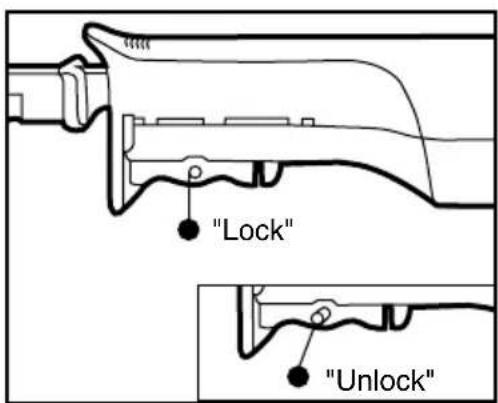

IMPORTANT: Unplug and be sure the Safety Button is in the "Lock" position before inserting or removing Blades. In this position, the Operating Bar cannot be pressed inward even when the Knife is plugged in. (Figure A).

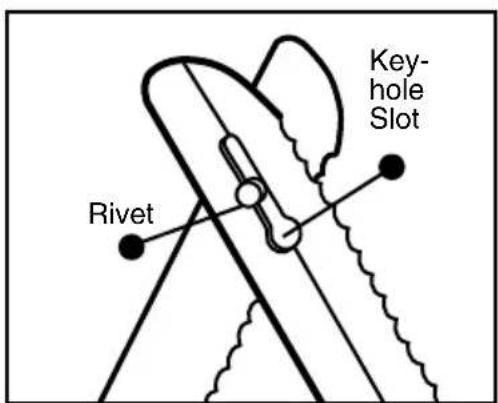

1. Before first use, separate the Blades and wash them in hot, sudsy water or in a dishwasher. Rinse and dry thoroughly. Slip the Rivet at the top of one blade into the Keyhole Slot on the other. (Figure B).

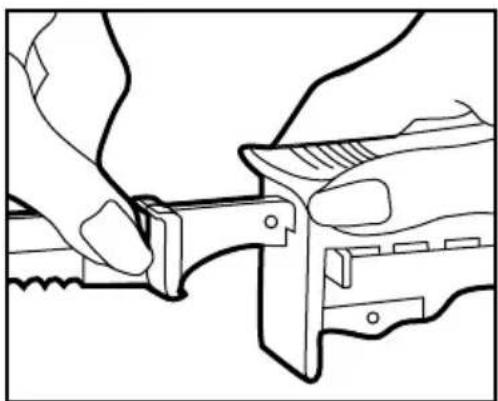

2. Align the two Blades making sure the tips remain locked. Insert into the Handle by gripping the blades on the flat area in front of the Grease Guards with the cutting (serrated) edge facing downward AWAY from you. (Figure C) The Blades will "click" into place. Plug the cord into a standard electrical outlet. Position the food to be sliced on a cutting board.
3. Release the Safety Lock by pushing the Button to the opposite side of the Operating Bar marked "Unlock." (Inset Figure A) Press the Bar and guide the Knife Blades downward through the food.

Line drawing of hands using a caliper to adjust or install a mechanical component (no text or symbols present)

Figure C

CAUTION: NEVER place your hand over the blade to support it while operating this knife. The Blades are designed to slide back and forth for cutting.

1. To use the Cutting Guide, slip the runners of the Guide through the holes at the side of the Knife. (Figure D). The Guide can be positioned on either side for right or left-handed use. Push in or pull out to adjust the thickness of sliced breads or meats.
2. To remove the Cutting Guide, grasp the Tab at the side of the Guide and pull out.
3. To remove the Blades, press the Blade Release Buttons on both sides of the Handle. Grasp the Blades on the flat area in front of the Grease Guards and pull away from the Handle.

WALAWAR Bending Easolide

Figure D

CLEANING

1. Before cleaning any part of the Electric Knife, move the Safety Button to the "Lock" position, unplug the cord, and remove the Blades. Be sure to dry all parts thoroughly before next use.

2. Knife Blades and the Cutting Guide may be washed in hot, sudsy water or in a dishwasher.

3. The Knife Handle and cord may be cleaned with a damp cloth. DO NOT use any abrasive cleanser or material to clean any part of the Knife as it may harm the finish.

SERVICE OR REPAIR

Service, if necessary, must be performed by a Black & Decker, Household Appliance Company-Owned or Authorized Service Center. The Service Center nearest you can be found on the insert sheet, in the yellow pages of your phone book under "Appliances-Small-Repairing", or you may call the appropriate toll-free number on the cover of this manual.

If mailing or shipping your Knife, pack it carefully in its original carton or any study carton with enough packing material to prevent damage. Include a note describing the problem to our Service Center and be sure to give your return address and phone number. We also suggest that you insure the package for your protection.

FULL ONE-YEAR WARRANTY

Black & Decker warrants this product against any defects that are due to faulty material or workmanship for a one-year period after the original date of consumer purchase or receipt as a gift. This warranty does not include damage to the product resulting from accident or misuse.

If the product should become defective within the warranty period, we will repair it or elect to replace it free of charge. We will return your product, transportation charges prepaid, provided it is delivered pre-paid to any Black & Decker Household Appliance Company-Owned or Authorized Service Center.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

Answers to any questions regarding warranty or service locations may be obtained by calling Consumer Assistance and Information toll free, in the U.S.: 1-800-231-9786; in Canada: 1-800-465-6070.

WAMLESTER Sika Pig & Eucine 10.5K

llus. D

Line drawing of hands using a caliper to adjust or install a mechanical component (no text or symbols present)

Fig. C

Line drawing of a black metal tool with label (no text or symbols on the tool itself)

Fig. D

Listed by Underwriters Laboratories, Inc.

Copyright ©1991 - 1998 Black & Decker

Pub. No. 168633-37-RV01

Printed in People's Republic of China

Enlistado por Underwriters Laboratories, Inc.
