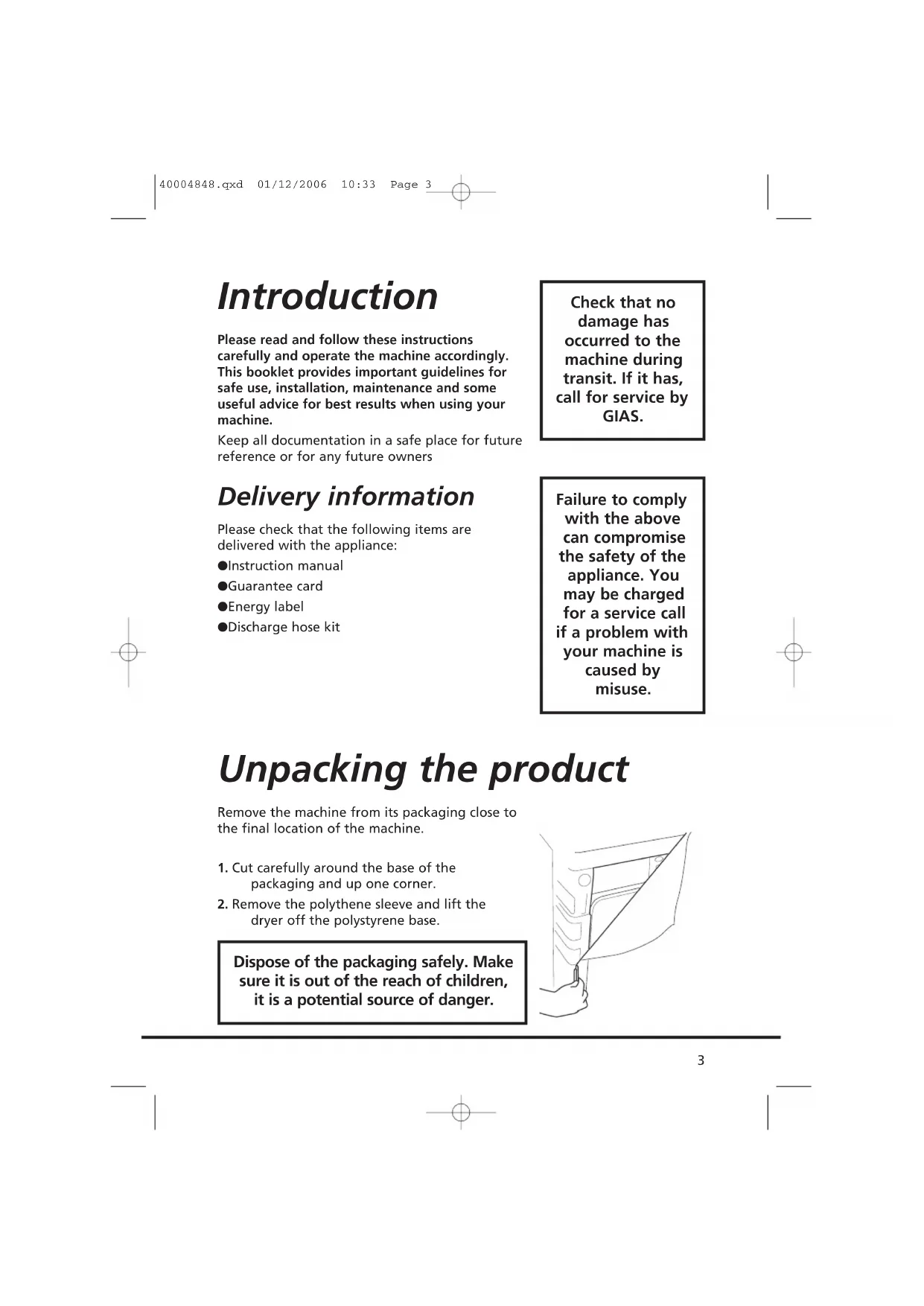

40004848.qxd 01/12/2006 10:33 Page 2Introduction Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine. Keep all documentation in a safe place for future reference or for any future owners Delivery information Please check that the following items are delivered with the appliance: ● Instruction manual ● Guarantee card ● Energy label ● Discharge hose kit Remove the machine from its packaging close to the final location of the machine.

1. Cut carefully around the base of the

packaging and up one corner.

2. Remove the polythene sleeve and lift the

Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse. Unpacking the product Dispose of the packaging safely. Make sure it is out of the reach of children, it is a potential source of danger. 40004848.qxd 01/12/2006 10:33 Page 3Safety reminders Installation ● Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service. ● Do not use adapters, multiple connectors and/or extensions. ● This machine should not be installed in a bathroom or shower room. ● Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer. ● The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of tumble dryer. Use ● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ● Children should be supervised to ensure that they do not play with the appliance. ● WARNING Misuse of a tumble dryer may create a fire hazard. ● This machine is solely for domestic use, i.e. to dry household textiles and garments. ● This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance. ● Do not touch the appliance when hands or feet are damp or wet. ● Do not lean on the door when loading the machine or use the door to lift or move the machine. ● Do not allow children to play with the machine or its controls. ● WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited. ● WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C. ● Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance. ● Do not continue to use this machine if it appears to be faulty. ● Lint and fluff must not be allowed to collect on the floor around the outside of the machine. ● The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry. The Laundry ● Do not dry unwashed items in the tumble dryer. ● WARNING Do not tumble dry fabrics treated with dry cleaning fluids. ● WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Foam plastic, foam rubber, shower caps, waterproof textiles rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. ● Always refer to the laundry care labels for directions on suitability for drying.

40004848.qxd 01/12/2006 10:33 Page 4● Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should NOT be put into the dryer. ● Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine. ● Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres. ● Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer. ● Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. Environmental Issues ● All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal. ● To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock. GIAS Service ● To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS Service engineer. European directive 2002/96/EC This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

If the appliance is not running properly or breaks down, switch it off and disconnect the plug from the socket. Consult GIAS Service for possible repair. 40004848.qxd 01/12/2006 10:33 Page 5Electrical requirements Tumble dryers are supplied to operate at a voltage of 230V, 50 Hz. Check that the supply circuit is rated to at least 16A. Electricity can be extremely dangerous. This appliance must be earthed. The socket outlet and the plug on the appliance must be of the same type. Do not use multiple adapters and/or extension leads. The plug should be accessible for disconnection after the appliance has been installed. The wires in the mains lead are coloured in accordance with the following codes: Blue NEUTRAL Brown LIVE Green and Yellow EARTH CE Appliance complies with European Directive 89/336/EEC, 73/23/EEC and subsequent amendments. Adjusting the feet Once the machine is in place the feet should be adjusted to ensure that the machine is level. Adjust the four feet to ensure the machine is firm and level.

You may be charged for a service call if a problem with your machine is caused by incorrect installation. If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person. Installation Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice. 40004848.qxd 01/12/2006 10:33 Page 6Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer. ● Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. ● Check regularly that the air flowing through the dryer is not restricted. ● Check the fluff filter after use, and clean, if necessary. ● The inlet and outlets should be kept free from obstructions. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed. There should be a gap of at least 12mm between the machine and any obstructions. ● Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet. ● NEVER install the dryer up against curtains.

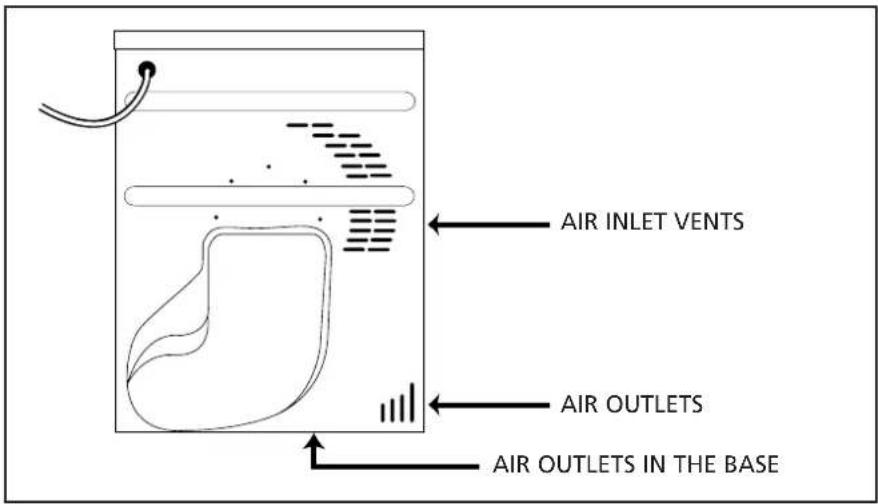

Ventilation AIR OUTLETS

40004848.qxd 01/12/2006 10:33 Page 7Before using the tumble dryer for the first time: ● Please read this instruction book thoroughly. ● Remove all items packed inside the drum. ● Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit. Clothes preparation Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled. Maximum drying weight ● Cottons Max. 8 kg ● Synthetics Max. 4 kg

Preparing the load Do not overload the drum, large items when wet can exceed the maximum admissible clothes load (for example: sleeping bags, duvets). 40004848.qxd 01/12/2006 10:33 Page 8Sort the load as follows: ● By care symbols These can be found on the collar or inside seam: Suitable for tumble drying. Tumble drying at high temperature. Tumble drying at low temperature only. Do not tumble dry. If the item does not have a care label it must be assumed that it is not suitable for tumble drying. ● By amount and thickness Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear). ● By type of fabric Cottons/linen: Towels, cotton jersey, bed and table linen. Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes. ● By drying level Sort into: iron dry, cupboard dry, etc. For delicate articles press the button to select low drying temperature.

40004848.qxd 01/12/2006 10:33 Page 9Do not tumble dry: Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc. Energy saving Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity. ALWAYS ● Try to dry the maximum weight of laundry, this will save time and electricity. ● Check that the filter is clean before every drying cycle. NEVER ● Exceed the maximum weight, this will waste time and electricity. ● Put dripping wet items into the tumble dryer, this may damage the appliance. Drying guide The table shows approximate drying times, depending on the type of fabric and dampness of the clothes.

Drying advice IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion). During the last 15 minutes the load is always tumbled in cool air. Fabric COTTON SYNTHETICS ACRYLIC HEAT SETTING HIGH LOW LOW INDICATOR LIGHT OFF

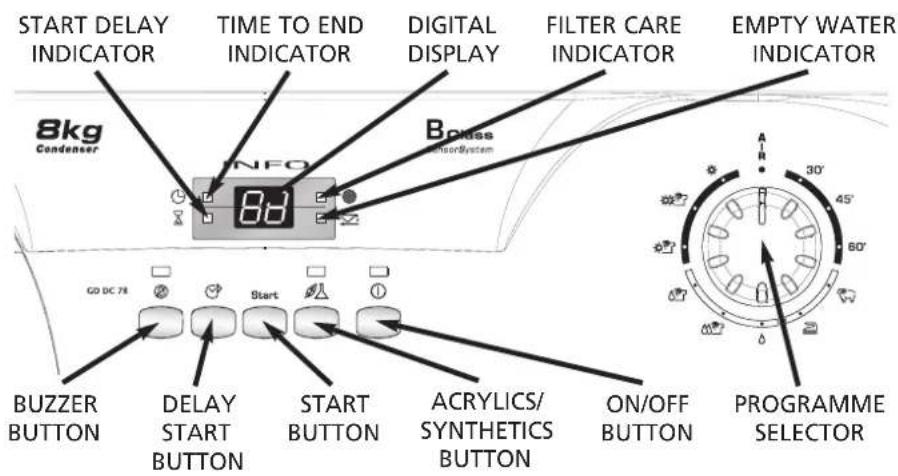

MEDIUM LOAD 70-80 min 70-80 min 50-65 min LIGHT LOAD 50-65 min 40-55 min 30-40 min 40004848.qxd 01/12/2006 10:33 Page 10Control panel and indicator lights Programme Selector – Select the required programme. On/Off button and indicator – Press to switch on, the indicator will light. The display will show the selected programme (see Programme Guide). Acrylics/Synthetics button – Press to reduce the heat level for delicate items, the indicator above the button will light up. To change the heat setting the programme must be reset. Low Heat - Indicator light ON High Heat - Indicator light OFF Start button – Press Start to commence the selected drying programme. Press for 5 seconds to cancel/reset the programme. Delay Start button – Allows the user to delay the start of the drying cycle (see details of Operation on page 16). Buzzer button – The buzzer is active in normal operation. To cancel the buzzer press the button and the indicator will light up. Empty Water indicator – Lights when the water container tray is full. Filter Care indicator – Lights when the filter needs cleaning. Time to End indicator – Lights when the program starts. Start Delay indicator – Light flashes when the program starts. Digital Display – The two digit display indicates the selected programme, the Start Delay and the Time to End of the programme.

INDICATOR DIGITAL DISPLAY START DELAY INDICATOR 40004848.qxd 01/12/2006 10:33 Page 11Opening the door Pull on handle to open the door. To restart the dryer, close the door and press Start. Filter IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

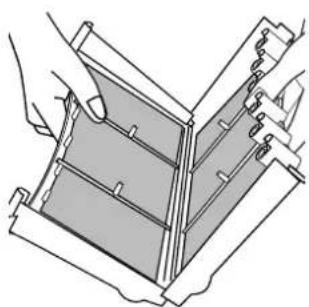

1. Pull the filter upwards.

2. Open filter as shown.

3. Gently remove lint using a soft brush or

4. Snap the filter together and push back into

place. Filter Care Indicator lights when the filter needs cleaning. If the laundry is not drying check that the filter is not clogged.

Door and Filter WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. 40004848.qxd 01/12/2006 10:33 Page 12The water removed from the laundry during the drying cycle is collected in a container at the bottom of the dryer. When the container is full the indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle. NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first. To remove the container

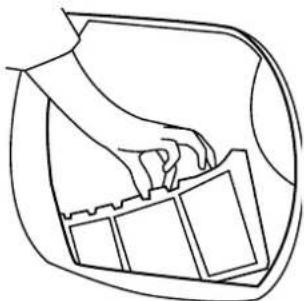

1. Gently pull out the tray until it is completely

removed. Support the tray with both hands. When it is full the water container will weigh about 4kg.

2. Tilt the water container to empty the water

out through the rear hole. When empty slide the water container back into position. PUSH FIRMLY INTO PLACE. NOTE: If you have the option of drainage near the dryer it is possible to use the discharge kit to provide a permanent drain for the water collected by the dryer. This will remove the need to empty the water tray. All the information for assembly of the kit is contained in the kit envelope.

Water Container 40004848.qxd 01/12/2006 10:33 Page 13Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser. To maintain the efficiency of the dryer regularly check that the condenser is clean. To remove the condenser

1. Gently pull the bottom of the kickplate so

that it unclips from the dryer. The top section can then be unhinged allowing the kickplate to be completely removed.

2. Turn the two locking levers anti-clockwise

and pull out the condenser.

3. Pull out the condenser unit.

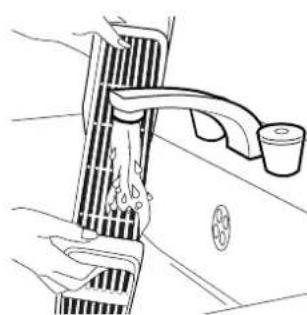

4. Gently remove any dust or fluff with a cloth,

then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust or fluff.

5. Refit the condenser ensuring it is in the

correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise.

6. Refit the kickplate.

Condenser 40004848.qxd 01/12/2006 10:33 Page 14Note: The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes. Set the programme between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type. If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown. If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after 180 minutes.

Selecting the Programme The Sensor Dry machine gives many options for drying the laundry to suit all circumstances. The table below lists the programmes and the function of each programme. Programme Wool Fast Iron 60' 45' 30' AIR Description Select the degree of dryness that you require. This ranges from for bath towels and bathrobes, through for items that will be put away without ironing, to the programmes that leave the laundry suitable for ironing. The Fast Iron programme provides a conditioning and anticrease function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. The Fast Iron process relaxes the creases in the fabric making ironing quicker and easier. A gentle programme specially created to get woollens softer after air-drying. This delicate warm air cycle, lasting 12 minutes, can also be used to get woollens 'refreshed' after being stored in the wardrobe. 60 minutes of drying 45 minutes of drying 30 minutes of drying Tumbling of laundry in cool air 40004848.qxd 01/12/2006 10:33 Page 151. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

2. Gently close the door pushing it slowly until you hear the door 'click' shut.

3. Press the button to switch on the dryer. The indicator will light up and

the programme number will be indicated.

4. Turn the Programme Selector dial to select the required drying program

(see Programme Guide).

5. If drying synthetics, acrylics or delicate items, press the button to

reduce the heat level. The light above the push button will light up when the machine is in low heat setting. To deselect this status the machine must be reset.

6. Press the Start button. The dryer will start automatically and the

indicator will be continuously lit. The time to the end of the program will be shown on the display.

7. The display will show the drying progress in terms of time remaining, the

indicator will remain lit.

8. If the door is opened during the programme to check the laundry, it is

necessary to press Start to recommence drying after the door has been closed.

9. When the 15' indicator is lit the machine will enter the cool down phase,

the clothes will be tumbled in cool air allowing the load to cool down.

10. When the programme is complete the Display will show 0'min. and the

buzzer will sound for 10 seconds.

11. Following the completion of the cycle the drum will rotate intermittently to

minimise creasing, the buzzer will also sound. This will continue until the machine is reset or switched OFF. Cancelling and resetting the programme To cancel a programme press the Start button for 5 seconds. The machine will indicate that it has been reset by the display flashing. It is possible to change the programme within the first 10 minutes without using the cancel and reset function. Delay Start Function The function allows the user to delay the start of the drying cycle by up to 23 hours. When the function is first selected the display will show a delay of 1 hour,

Operation 40004848.qxd 01/12/2006 10:33 Page 16subsequent presses of the button will increase the delay by 1 hour to a maximum of 23 hours. To commence the programme press Start and the display will indicate the hours remaining on the time delay and will complete the drying cycle at the end of this time. Note: If Start is not pressed within 5 seconds the Delay Start will cancel automatically. Cleaning the dryer ● Clean the filter and empty the water container after every drying cycle. ● Regularly clean the condenser. ● After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it. ● Wipe the outside of the machine and the door with a soft cloth. ● DO NOT use abrasive pads or cleaning agents. ● To prevent the door sticking or the build up of fluff periodically clean the inner door and gasket with a damp cloth. Technical specifications Drum capacity 115 litres Maximum load 8 kg Height 85cm Width 60cm Depth 60cm Energy Label Band B

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance. For electrical data refer to the rating label on the front of the dryer cabinet (with the door open). Cleaning and Routine Maintenance WARNING! The drum, door and load may be very hot. 40004848.qxd 01/12/2006 10:33 Page 17What might be the cause of... Defects you can remedy yourself Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone. Drying time is too long/clothes are not dry enough… ● Have you selected the correct drying time/programme? ● Were the clothes too wet? Were the clothes thoroughly wrung or spin- dried? ● Does the filter need cleaning? ● Does the condenser need cleaning? ● Is the dryer overloaded? ● Are the inlets, outlets and base of the dryer free from obstructions? ● Has the option been selected from a previous cycle? The dryer does not operate… ● Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp. ● Is the plug properly connected to the mains supply? ● Is there a power failure? ● Has the fuse blown? ● Is the door fully closed? ● Is the dryer switched on, both at the mains supply and at the machine? ● Has the drying time or the programme been selected? ● Has the machine been switched on again after opening the door? ● Has the dryer stopped operating because the water tray is full and needs emptying? The dryer is noisy… ● Switch off the dryer and contact GIAS Service for advice. The Indicator is on… ● Does the filter need cleaning? ● Does the condenser need cleaning? The Indicator is on… ● Does the water container need emptying?

Troubleshooting 40004848.qxd 01/12/2006 10:33 Page 18Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice. They may be able to assist you over the telephone or arrange a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine: ● Is found to be in working order. ● Has not been installed in accordance with the installation instructions. ● Has been used incorrectly. Spares Always use genuine spares, available direct from GIAS Service. GIAS Service For service and repairs call your local GIAS Service engineer. The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
