10031901 - Shoe cleaner Klarstein - Free user manual and instructions

Product type	Shoe cleaner and polisher
Brand	Klarstein
Model	10031901
Power supply	230 V ~ 50 Hz
Power	120 W
Motor type	Intermittent motor with overload and overheat protection
Duty cycle	5 minutes continuous operation, then 5 minutes rest
Trigger	Automatic induction sensor
Auto shut-off	After 15 seconds without a shoe
Polish reservoir	Integrated, with control window and pouring spout
Polish type	Colorless or colored (separate brushes recommended)
Supplied brushes	Polishing brush and cleaning brush
Mat	Removable, washable, and vacuum compatible
Maintenance	Unplug before cleaning; do not immerse
Brush replacement	Unscrew the fixing screws, pull the brush to the side
Child protection	Do not allow children to use the device
Intended use	Household use only, indoors
Compliance	European directives 2014/30/EU, 2014/35/EU, 2011/65/EU
Recycling	Do not dispose with household waste; follow local regulations

Frequently Asked Questions - 10031901 Klarstein

How to fill the polish reservoir?

Unlock the outlet spout and turn it to open the housing. Remove the bottle, take off the lid, and pour in the polish. Make sure the outlet at the top of the bottle is open and that the springs and metal ball are in place. Put the bottle back and lock the housing.

Why does the motor stop after a few minutes?

The motor is designed for intermittent operation: 5 minutes on then 5 minutes off. If it stops earlier, the overheat protection may have been triggered. Wait 10 to 15 minutes for it to cool down before restarting.

Can I use colored polish with the same brush as colorless polish?

It is strongly recommended to use different polishing brushes for colorless and colored polish. Mixing brushes can affect the polishing result and transfer colors.

How to clean the machine mat?

The mat is removable. You can wash or vacuum it. Make sure it is completely dry and cool before putting it back. Do not expose it to direct sunlight or heat sources.

How to replace the brushes?

Unscrew the fixing screws of the brush, then pull the brush to the side of the carrier shaft to remove it. To install a new brush, proceed in reverse order, tightening the screws on the flat D-shaped side of the motor shaft.

The machine does not start when I insert my shoe, why?

Check that the device is plugged in and the induction sensor is not blocked. Ensure the shoe is close enough to the sensor. If the problem persists, let the motor cool down (overheat protection).

What type of polish to use?

Colorless polish is suitable for all shoes. You can also use colored polish, but with a dedicated brush. The reservoir can hold only one type of polish at a time.

Is the device suitable for all types of shoes?

Yes, the machine is designed to clean and polish any type of shoe, provided the shape fits into the designated slot. For very high shoes or stilettos, check compatibility.

What to do if the polish does not come out of the spout?

Check that the outlet at the top of the bottle is open. If it's the first use, remove the locking rod. Make sure the springs and metal ball are in correct position. Clean the spout if necessary.

How to maintain the device?

Always unplug the device before cleaning. Do not clean it under running water. The mat can be washed or vacuumed. Brushes can be replaced if worn. Store the device in a dry place.

USER MANUAL 10031901 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 8

Declaration of Conformity 8

Safety Instructions 9

Product Description 10

Operation 10

Care and Cleaning 12

Hints on Disposal 12

TECHNICAL DATA

Item number 10031901
Power supply 230 V ~ 50 Hz
Power consumption 120 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Read all instruction before using the appliance.
• This appliance is not for use by children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Unplug from outlet before cleaning.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, mechanical or electrical adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not use in washroom or in wet areas.
• The appliance is not suitable for installation in area where a water jet could be used.
  The appliance must not be cleaned by a water jet.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.
• Do not use appliance for any other intended use.

NOTE: This model is a household shoe polishing machine and works with an intermittent duty motor. The duty cycle of the motor is designed to run for 5 minutes continuously and then 5 minutes off before restarting again. The motor has an automatic overload thermal cutoff which stops the appliance in case of excessive force which may cause over-heating. In case the overload is tripped, you have to wait for approximately 10-15 minutes before resuming regular operation. (This depends on the ambient temperature.)

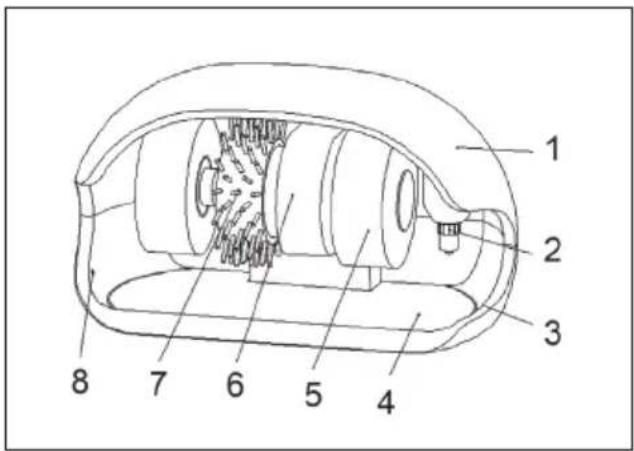

PRODUCT DESCRIPTION

1 Top plastic housing
2 Dispenser cabinet
3 Base plastic housing
4 Mat
5 Polishing brush
6 Motor
7 Cleaning brush(middle)
8 Auto-inductive switch

OPERATION

How to use your shoe polishing machine

1 Plug power outlet, then put your shoe inside of machine. Under the control of Auto-inductive switch the machine start to work. When polishing is done, withdraw your shoe from inside this machine auto-stops within 15 seconds.
2 To apply polishing cream to your shoe, lift your shoe and stroke the tap of the dispenser gently. Natural color shoe cream can be used for any colored shoes.
3 It is strongly recommended that one of the polishing brushes is used for shoes applied natural color cream and another one, for colored cream. Do not mix use of these two brushes, or otherwise, it will affect the polishing result occasionally.

Refill the shoe cream

1 By looking through the wax box indication slot, you can notice when the shoe cream should be refilled.
2 Unlatch the dispenser and have it move outward to open the dispenser cabinet.
3 Take the bottle out, loose the tap and fill in cream of the same kind. Put the spring and steel ball in proper position before recapping the tap tightly. Also, make sure the exhaust hole on top of the bottle is open. Or otherwise, shoe cream will not flow out smoothly when tap is stroked. Actually, you can take the blocking pin out from the exhaust hole and throw it away at the first time you have your bottle filled.
4 Put the cream bottle back into the cabinet and latch it in proper position on the machine.

CARE AND CLEANING

1 Unplug the unit before cleaning and maintenance.
2 Do not clean the machine with water jet.
3 Dust and mud on the mat can be cleaned by simply taken it out from the machine and have it washed or cleaned by vacuum cleaner. It is a good practice and important for safety to have the mat dry thoroughly in cool area before putting it back to the machine. Do not dry the mat under strong sunshine nor in hot area.
4 When changing brush is seemed necessary, unscrew the fixing screw on the brush and pull it sideways to take it out from the shaft. Replace the brush following the reversed procedure. Remember to have the screw fixed on the flat D-cut surface of the motor shaft.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
