10008802 - Food Processor Klarstein - Free user manual and instructions

Product type	Food processor
Brand	Klarstein
Model	10008802
Power supply	220-240 V AC, 50/60 Hz
Power	1000 W (estimated)
Number of speeds	6 (1-3 for kneading, 4-6 for mixing and beating)
Bowl capacity	3 L (estimated)
Bowl material	Stainless steel (estimated)
Included accessories	Mixing hook, whisk, dough hook, splash guard
Weight	4 kg (estimated)
Dimensions (L x W x H)	30 x 20 x 35 cm (estimated)
Cable length	1 m (estimated)
Main functions	Kneading, mixing, beating
Safety	On/off switch, automatic overload shutdown (estimated)
Cleaning and maintenance	Dishwasher-safe bowl; accessories (hooks, whisk) hand wash only; housing clean with damp cloth
Spare parts	Accessories: mixing hook, whisk, dough hook, mixing bowl
Repairability	Repair only by qualified technician; no self-repair
Compliance	CE (2014/30/EU, 2014/35/EU, 2011/65/EU)
Recycling	Do not dispose of with household waste, follow WEEE directives
Warranty	2 years (estimated)

Frequently Asked Questions - 10008802 Klarstein

How to use the Klarstein 10008802 food processor?

After initial cleaning, plug in the appliance. Lift the upper part with the switch (4), place the bowl and attach the desired accessory. Lower the upper part, select the speed (1-6) with the adjustment knob. To turn off, set the knob to 0.

Which speeds to use for kneading or beating?

For kneading, use speeds 1 to 3. For mixing and beating, use speeds 4 to 6.

Can the robot bowl go in the dishwasher?

Yes, the mixing bowl can be cleaned in the dishwasher. However, the accessories (mixing hook, whisk, dough hook) must be hand washed.

How to clean the robot housing?

Unplug the appliance and let it cool down. Clean the exterior surfaces with a damp cloth and a little cleaning product. Never immerse the housing in water.

What to do if the appliance stops working?

First check the power supply. If the problem persists, do not attempt to repair it yourself. Contact a qualified technician or Klarstein after-sales service.

What accessories are included with the robot?

The package contains: the main unit, a mixing bowl, a dough hook, a whisk, a splash guard, and the instruction manual.

Can I use the robot for hot preparations?

No, the robot is not designed for hot preparations. Use it only with room temperature or refrigerated ingredients.

What is the power of the robot?

The power is not explicitly mentioned in the manual, but for a food processor of this size, it is estimated at about 1000 W.

How to store the power cord?

Under the appliance there is a cable winder. Unwind the necessary length before use and wind it up after use.

Is the appliance suitable for people with reduced mobility?

People with reduced physical abilities should only use the appliance under supervision or after having understood the safety instructions given by a responsible person.

USER MANUAL 10008802 Klarstein

Congratulations on purchasing this Klarstein equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Safety Instructions

Read all safety and operating instructions carefully and retain them for future reference.

General Instructions

The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges.
Do not use the appliance with the wet hands. If the appliance is humid or wet, unplug it immediately.
- For cleansing and storage, switch the appliance off and always pull out the plug from the socket if the appliance is not being used. Store attached accessories safely.
- Do not operate the machine without supervision. If you leave the room you should always turn the device off and remove the plug from the socket.
The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufactures, by our customer service or by qualified person and with a cable of the same type.
- Use only original spare parts.
In order to ensure your children's safe, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Instructions on Use

• Mixer blades are sharp. Before replacement of accessories or additional parts which move during operation, the device must be switched off and cut off from the mains. Don't touch moving parts.
• Place the appliance on a firm and even surface, Set it up so that it cannot tip over.
• The machine should only be used under supervision.
• Do not carry or lift the appliance during operation, but turn it off first and then disconnect the mains plug.
  This appliance can be used by children aged from 8 tears and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance

This appliance is only to be used as instructed in this user manual. The appliance is not intended for commercial use. Any other use shall be considered as not intended use and can lead to material damage or even personal injury. The manufacturer shall not be liable for damages caused by not intended use.

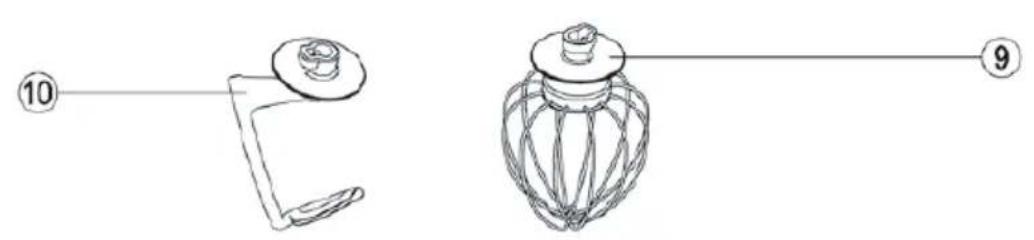

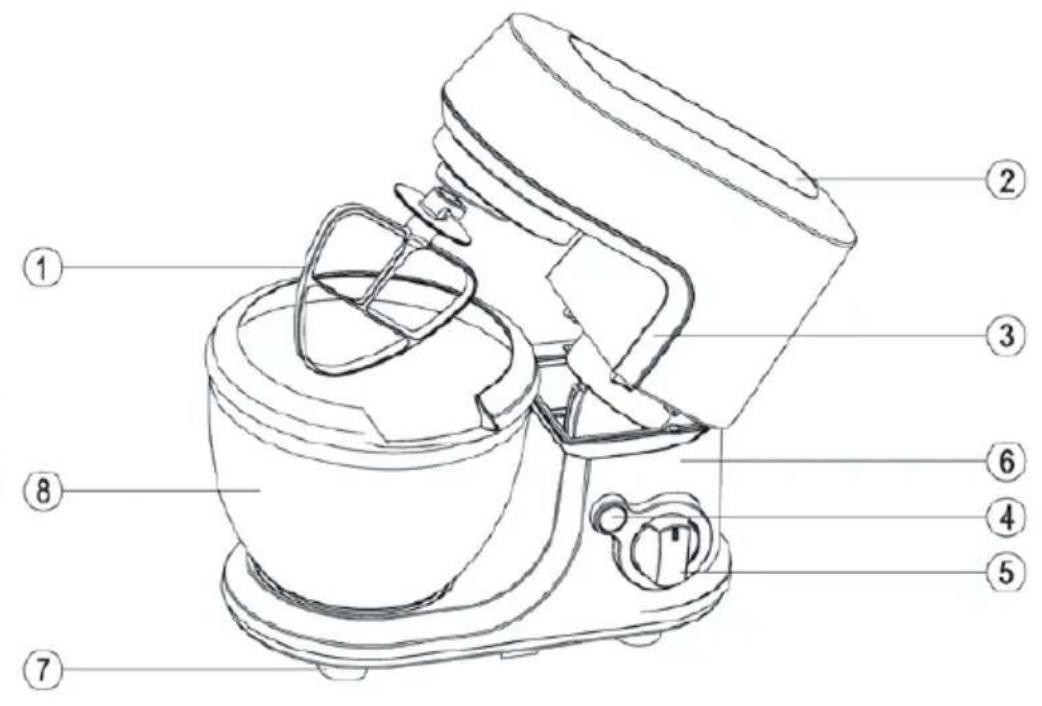

Overview

Mixer blade	16 Lower housing cover
Large cover	27 Foot
Upper housing cover	38 Mixing bowl
Knob	49 Whisk
Switch	510 Dough hook

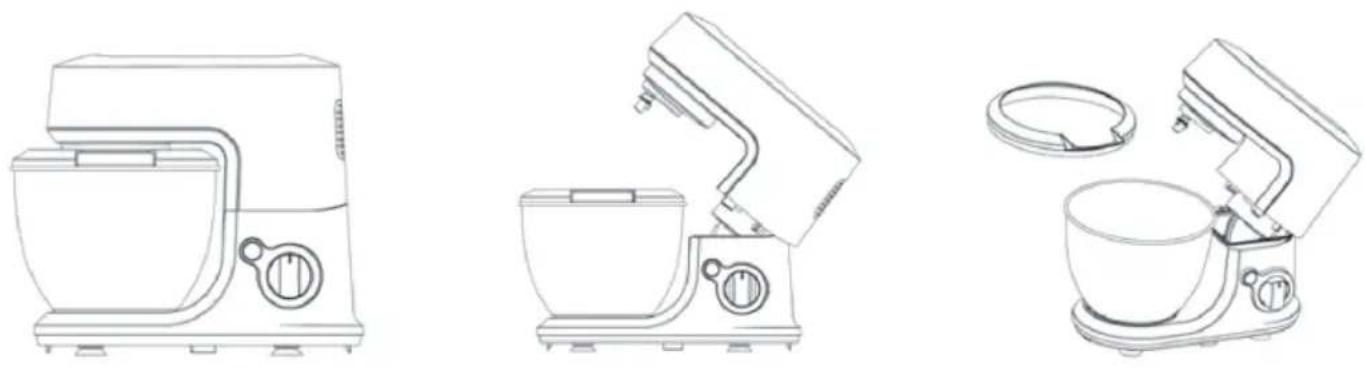

Initial Use / Operation

All parts of the devive are to be thoroughly cleaned before being used. Take out the required lenght of cable from the cable storage on the base of the device. Connect to household mains supply.

1. Mix ingredients in accordance with your recipe. Then open the upper housing by pressing the knob (4).

1. Place the mixing bowl on the device plate and turn it until it is fixed. Put the lid onto the bowl.
2. Fix the dough blade, the whisk or the mixer blade at the blade connector and rotate the connector anticlockwise until it engages firmly.

1. Press the upper housing down.
2. To turn the mixer on, turn the switch to the desired speed (1 - 6): Use 1 - 3 for kneading and 4 - 6 for mixing and whipping
3. Turn the device off by turning the switch back to 0.
4. Lift up the housing by pressing the switch (4).
5. You can now remove the mixing bowl.

Cleansing: Cleansing: Turn the switch to 0 and pull the plug. Let the machine cool down. For cleaning the housing, use a damp cloth and some mild detergent. Do never submerge the unit in water. The dough hook, whisk and mixing blade are not dishwasher safe. Clean with warm water and household cleanser. The bowl can be washed in the dishwasher. Do not use any abrasive detergents anyway.

Technical Data

Article no. 10008799, 10008800, 10008801, 10008802

Power supply 220-240V AC

Scope of delivery Main device, mixing bowl, dough hook, mixer blade, Whisk, Lid (splash guard), manual

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Manufacturer: CHAL-TEC GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

CE
