Technical Specifications	Klarstein Food Processor 10031674
Power	800 W
Bowl Capacity	5 liters
Bowl Material	Stainless steel
Operating Speed	Variable (6 levels)
Included Accessories	Whisk, dough hook, mixer
Usage	Preparation of doughs, creams, sauces, etc.
Maintenance	Bowl and accessories dishwasher safe
Safety	Overheat protection system
Dimensions	35 x 25 x 30 cm
Weight	4.5 kg
Warranty	2 years

Frequently Asked Questions - 10031674 Klarstein

How to assemble the Klarstein food processor 10031674?

To assemble the Klarstein food processor 10031674, start by attaching the bowl to the base by turning it clockwise until it locks in place. Then, place the accessory of your choice (whisk, dough hook, etc.) onto the central shaft and make sure it is securely attached.

How to clean the food processor after use?

To clean the processor, unplug it and remove all accessories and the bowl. Wash the bowl and accessories with warm soapy water or in the dishwasher. Wipe the base with a damp cloth. Never immerse the base in water.

What to do if the processor does not turn on?

First, check that the processor is properly plugged in and that the outlet is working. Also ensure that the bowl is correctly installed, as the processor will not turn on if the bowl is not in place.

The processor makes an unusual noise during operation, what to do?

If the processor makes an unusual noise, stop it immediately. Check if an accessory is improperly attached or if food is stuck. Clean the processor and restart it. If the problem persists, contact customer service.

Is it possible to overload the processor?

Yes, it is possible to overload the processor by adding too many ingredients at once. For best results, follow the quantities recommended in the user manual.

Where to find spare parts for the Klarstein 10031674?

Spare parts can be found on the official Klarstein website or from authorized dealers. Make sure to check the exact model to order the correct parts.

Does the processor have a safety function, what does it do?

The processor is equipped with a safety function that prevents its use if the bowl or accessories are not properly installed. This helps to avoid accidents and damage.

How to adjust the speed of the processor?

You can adjust the speed of the processor using the control knob located on the control panel. Turn it to select the desired speed depending on the use (whisking, kneading, mixing).

USER MANUAL 10031674 Klarstein

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Technical diagram of a kitchen mixer with numbered parts for identification

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 9

Declaration of Conformity 9

Safety Instructions 10

Hints on Disposal 10

Product Description 11

Use and Operation 12

Care and Cleaning 14

TECHNICAL DATA

Item number	10006254, 10006255, 1000823510008236, 10008237, 1003167410031675
Power supply 220-240 V ~ 50-60 Hz
Capacity bowl	5 L
Capacity jar	1,5 L

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Make sure that the voltage displayed on the device corresponds to your power supply.
• The appliance must always be switched off before connecting it to the power supply.
• Do not use this device near water to prevent electric shock.
• If the power cord is damaged, it must be replaced by a specialist.
• Do not kink the cable. Do not place the unit too close to a table edge as it may fall.
• Do not expose the device to an open flame.
• Place the device on a flat surface.
  • The device must not be operated by children.
• Check the condition of the power cord regularly.
• Do not use the device outdoors.
• Do not use the device when it is empty.
• Do not touch the moving parts with your fingers during use.
• Only use original accessories.
• Disconnect the power when you are not using the device.
  • Never repair the device yourself.
• The knives are very sharp. Be careful when cleaning the glass jar.
• Do not use the individual functions of the device at the same time.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

PRODUCT DESCRIPTION

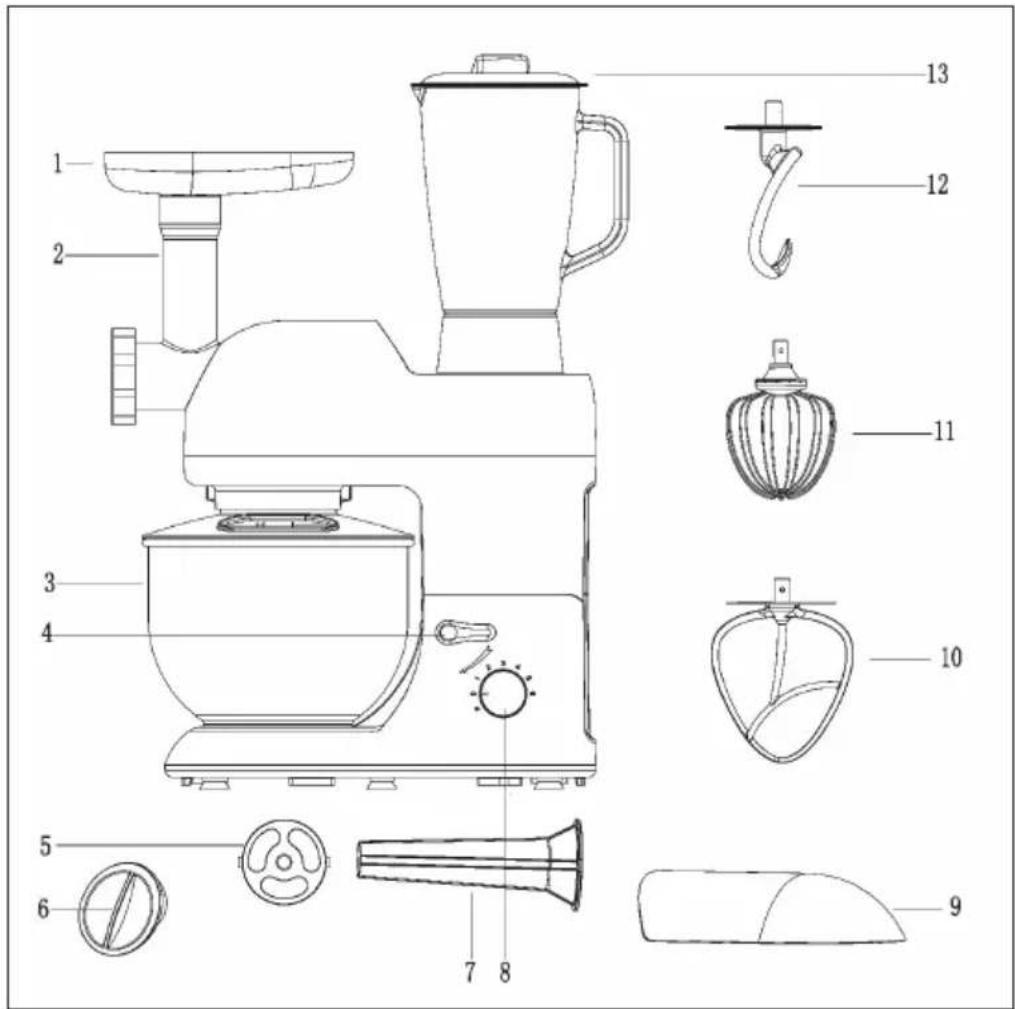

Technical diagram of a kitchen mixer with numbered parts for identification

1 Hopper
2 Mincing tube
3 Mixing bowl
4 Shaft knob
5 Sausage Holder
6 Front cover
7 Sausage tube
8 Rotary knob
9 Caudal cover
10 Mixing blade
11 Egg beater
12 Dough blade
13 Blender jar

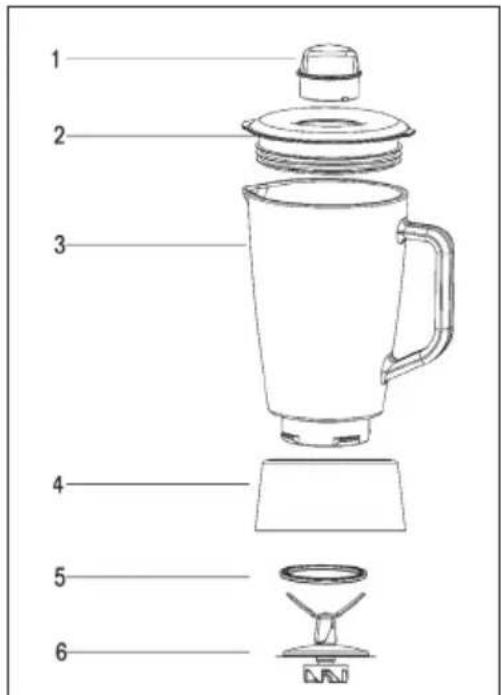

1 2 3 4 5 6

1 Measuring cup
2 Lid
3 Glass Jar
4 Jar base
5 Sealing ring
6 Blade base

USE AND OPERATION

Before first Use

1. All parts of the food mixer are to be thoroughly cleaned before being used for the first time. (See section: Cleaning).
2. Take out the required length of cable from the cable tidy on the base of the food mixer and connect the device to the mains supply.

Note: The lid or glass container must be mounted for safety reasons so that the machine can be put into operation. Otherwise, the device may not start.

Assembly of the Glass Jar

1. Mount the jar sealing ring onto the blade base, and Mount the blade base into the jar base, and the inside ring of jar base is tighten on jar base as far as fixed the blade base tight.
2. After putting the ingredients in the jar, fix the lid onto the jar by pressing down.
3. Insert the Measuring cup into the opening of the lid, and tune it in anticlockwise direction until it is locked.
4. Mount the jar with jar unit onto the main base, and tune the jar in anticlockwise direction until the jar is locked.

Trial use:

1. Revolve the Shaft knob, then lift the machine arm.
2. Put the mixing bowl and mixing bowl cover onto the base, and lock it as the arrowhead denotes.
3. Revolve the Shaft knob, then push the upper cover down and make the arm down. Make sure the arm is fixed together the base, then Revolve the Shaft knob up to lock the arm solidly.
4. Plug-in the cord, and turn the switch to P, then try every speed for a few seconds.
5. After the trial, turn the switch to Speed 0.
6. Turn the Shaft knob and lift the arm, then take apart the mixing blade from the blade conector.
7. Take off the back cover from the upper housing.
8. Pure a cup of water into the blender jar, set the blender jar onto the machine, then repeat step 4, 5 and 6.
9. Take off the blender jar, and set the Caudal cover to the machine.

To mix or knead dough

1. Suggestion flour and water at a ratio of 5:3.
2. From speed 1 for mix 20 second, and speed 2 for mix 20 second, afterwards speed 3 for about 3 minutes.
3. When filling the blender jar, please ensure that the maximum quality is not exceeded.
4. Maximum quantity of flour is 1500g.
5. The dough blade or mixer blade should be used.
6. Do not use the dough blade longer than 20 seconds continuously at speed level 1 or 2 and not longer than 4 minutes continuously at speed level 3.
7. Use No longer than 4 minutes continuously at a time.

Whipping egg whites or cream

1. Switch on speed 4 to speed 6, whip the egg whites without stopping for about 5 minutes, according to the size of the eggs, until stiff.
2. Maximum quantity 24 eggs.
3. For whipped cream, whip 250ml fresh cream at speed 4 to 6 for about 5 minutes.
4. When filling the glass jar with fresh milk, cream or other ingredients, please ensure that the maximum quality is not exceeded.
5. The egg beater should be used.
6. Use No longer than 4 minutes continuously at a time.

Use Blender function

1. Place the foodstuff you wish to process into the glass jar.
2. Put the lid on the glass jar and close securely. Place the measuring cup into the hole in the lid and turn clockwise to lock.

Stufe 3-4 For easy use (liquids)

Stufe 5-6 For firmer consistency (liquids, solid foods)

Stufe P For crunching ice, or for a short powerful mixing

Note: Set the switch to 0 after use.

CARE AND CLEANING

- Before cleaning, please ensure that the Switch knob is at the "0" position and that the plug has been disconnected from the socket.

• After use, allow the device to cool down before you start to clean it.

• To clean the exterior of the device, use a moist cloth and a mild detergent.

- When cleaning the interior and exterior do not use any abrasive detergents or alcohol.

• To clean the device, never submerge it in water.

- The dough blade, mixing blade are not dishwasher safe. The accessories must be cleaned only in warm water and washing-up liquid.

- The plastic accessories, Mixing bowl, egg beater, blender jar and blades inside, can be cleaned with warm water and washing-up liquid or in dishwasher. Do not use any abrasive detergents.
