10011632 - Food Processor Klarstein - Free user manual and instructions

Product type	Food processor
Brand	Klarstein
Model	10011632
Dimensions (L x W x H)	Approx. 35 x 20 x 30 cm
Weight	Approx. 4.5 kg
Power supply	220-240 V, 50/60 Hz
Power	1000 W
Number of speeds	6 speeds + Pulse function (turbo)
Bowl capacity	4.5 L
Included accessories	Dough hook, flat beater, whisk
Main functions	Mix, knead, whisk
Bowl material	Stainless steel
Safety	Automatic shut-off in case of overheating, safety switch
Cleaning and maintenance	Hand wash with soft sponge and dish soap; do not put in dishwasher
Power cord length	Approx. 1.2 m
Warranty	2 years
Repairability	Contact a specialized workshop; do not open yourself
Recycling	Compliant with WEEE directive (crossed-out bin)

Frequently Asked Questions - 10011632 Klarstein

How to install the bowl and accessories?

Place the mixing bowl in the designated spot. Press the unlocking button (2) to raise the mixing arm, then insert the accessory (hook, beater, or whisk) into the attachment and secure it. Lower the arm before plugging in the appliance.

Which speed to use for each preparation?

For thick doughs (e.g., bread), use speeds 1-4 with the dough hook. For medium-thick mixtures (e.g., pancake batter), speeds 3-4 with the flat beater. For light preparations (e.g., whipped cream), speeds 5-6 with the whisk. The Pulse function is ideal for quick mixing.

Can I wash the bowl and accessories in the dishwasher?

No, the bowl and accessories are not dishwasher safe. Clean them by hand with a soft sponge and dish soap, then dry thoroughly before reassembling.

How long can I use the appliance continuously?

For thick doughs, do not exceed 10 minutes of continuous use. If you need more time, let the appliance cool down before resuming. For other preparations, observe cooling breaks.

What to do if the appliance stops working during use?

The appliance is equipped with an automatic safety shut-off in case of overheating. Unplug it, let it cool down for about 30 minutes, then reuse. If the problem persists, contact an authorized repair service.

Can I use accessories other than those provided?

Only accessories recommended by the manufacturer should be used. Using unsuitable accessories may damage the appliance or cause injury.

How to clean the exterior of the food processor?

Unplug the appliance. Clean the exterior with a damp cloth and mild detergent. Do not use abrasive products or solvents. Avoid water entering the openings.

The appliance is quite noisy, is this normal?

Some noise is normal, especially at high speed or when kneading thick doughs. If the noise becomes abnormally loud or there are grinding sounds, stop the appliance and check that the accessories are properly installed.

How to use the Pulse (turbo) function?

Turn the speed control knob to the 'Pulse' position and hold it down. As soon as you release the knob, it automatically returns to 0. This function is ideal for quick mixing such as egg whites.

What to do if the appliance does not start?

Check that the appliance is properly plugged in and that the outlet works. Make sure the bowl and mixing arm are correctly engaged. If the problem persists, consult the manual or contact customer service.

USER MANUAL 10011632 Klarstein

Row of white icons representing kitchen appliances including blender, blender, kettle, refrigerator, air conditioner, fan, air conditioner, and microwave (no text or symbols)

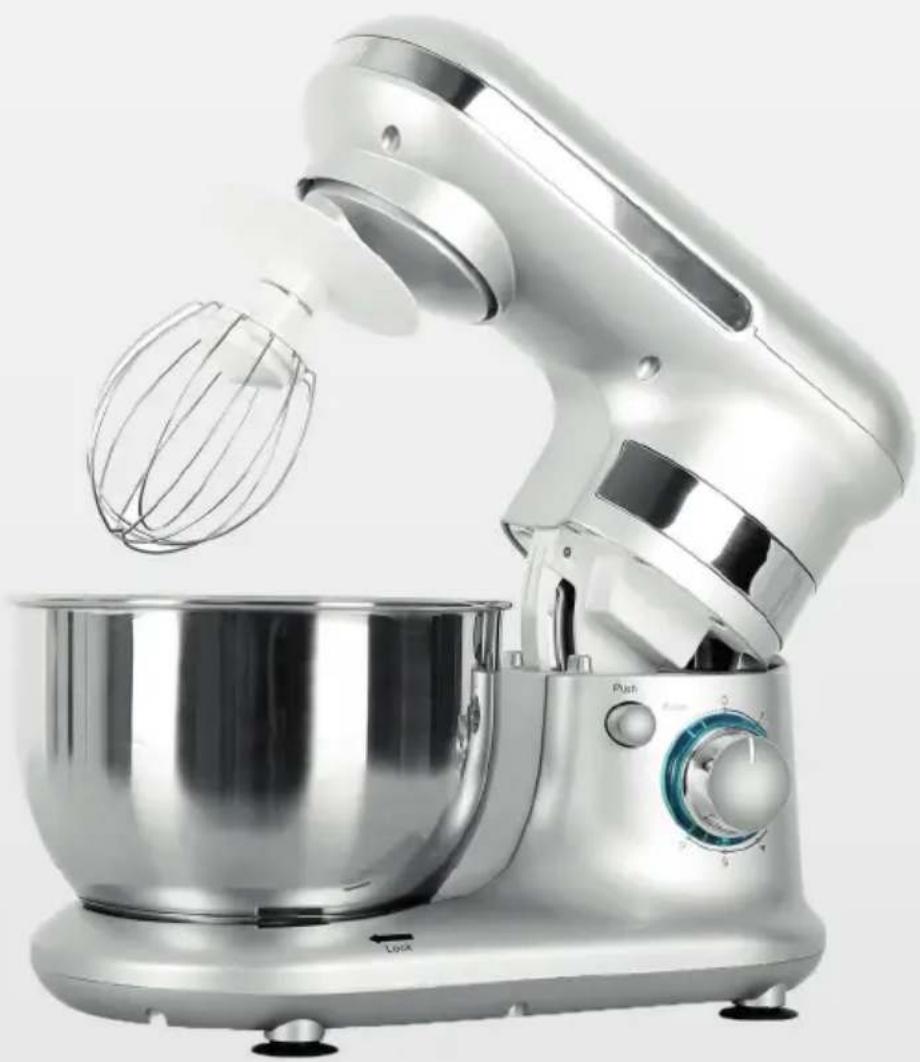

Modern kitchen stand mixer with whisk and bowl, no visible text or symbols

Küchenmaschine

10011632 10011633

10011634 10011635

KLARSTEIN

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

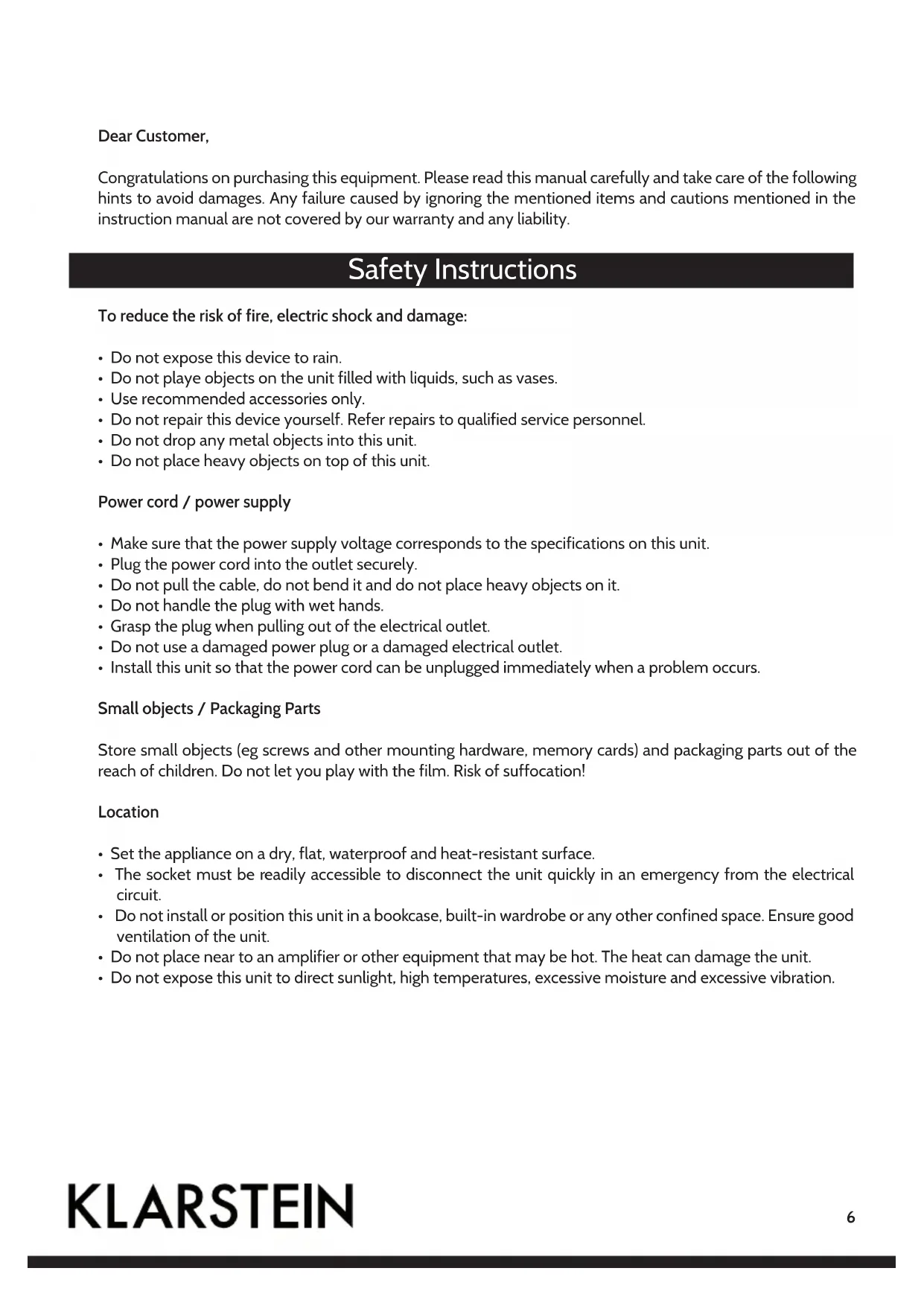

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Safety Instructions

To reduce the risk of fire, electric shock and damage:

• Do not expose this device to rain.
• Do not playe objects on the unit filled with liquids, such as vases.
• Use recommended accessories only.
• Do not repair this device yourself. Refer repairs to qualified service personnel.
• Do not drop any metal objects into this unit.
• Do not place heavy objects on top of this unit.

Power cord / power supply

• Make sure that the power supply voltage corresponds to the specifications on this unit.
• Plug the power cord into the outlet securely.
• Do not pull the cable, do not bend it and do not place heavy objects on it.
• Do not handle the plug with wet hands.
• Grasp the plug when pulling out of the electrical outlet.
• Do not use a damaged power plug or a damaged electrical outlet.
• Install this unit so that the power cord can be unplugged immediately when a problem occurs.

Small objects / Packaging Parts

Store small objects (eg screws and other mounting hardware, memory cards) and packaging parts out of the reach of children. Do not let you play with the film. Risk of suffocation!

Location

• Set the appliance on a dry, flat, waterproof and heat-resistant surface.
• The socket must be readily accessible to disconnect the unit quickly in an emergency from the electrical circuit.
• Do not install or position this unit in a bookcase, built-in wardrobe or any other confined space. Ensure good ventilation of the unit.
• Do not place near to an amplifier or other equipment that may be hot. The heat can damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, excessive moisture and excessive vibration.

AC Adapter

- The power adapter can operate on AC 220-240 V only. Use a suitable plug adapter if the plug does not fit into the power outlet.

Intended Use

- This device is used for processing food. It is exclusively meant for this purpose and must only be used for this purpose. It may only be used in the manner as described in this manual.

- This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety.

Transport

- Please keep the original packaging. To an adequate protection during transport of the device, pack the unit in its original packaging.

Cleaning

Do not use volatile liquids, such as insecticide spray. Dont clean the surface with strong pressure otherwise it could get damaged. Rubber or plastic should not be in contact with the devive over a longer period. Clean the appliance and the floor using a soft cloth and warm water, if necessary, a soap solution. Never submerge the base in water or any other liquid.

Repairs

- Repairs to the appliance should only be carried out by an authorized service center.

- A remodeling or modification of the affected product safety. Risk of injury!

- Open the product never arbitrarily and perform repairs never yourself!

- Incorrect reassembly may result in malfunction or total failure.

- Open in no case the unit. We assume no liability for consequential damages. The warranty expires at foreign interference with the device.

Special Hints on Use

• Only operate this machine under supervision.
• Do not interfere with any safety switches.
• Do not insert anything into the rotating hooks while the machine is working.
• Place the machine on a smooth, flat and stable working surface.

- Do not insert the mains plug of the machine into the power socket without having installed all the necessary accessories.

- In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

• Use only original spare parts.

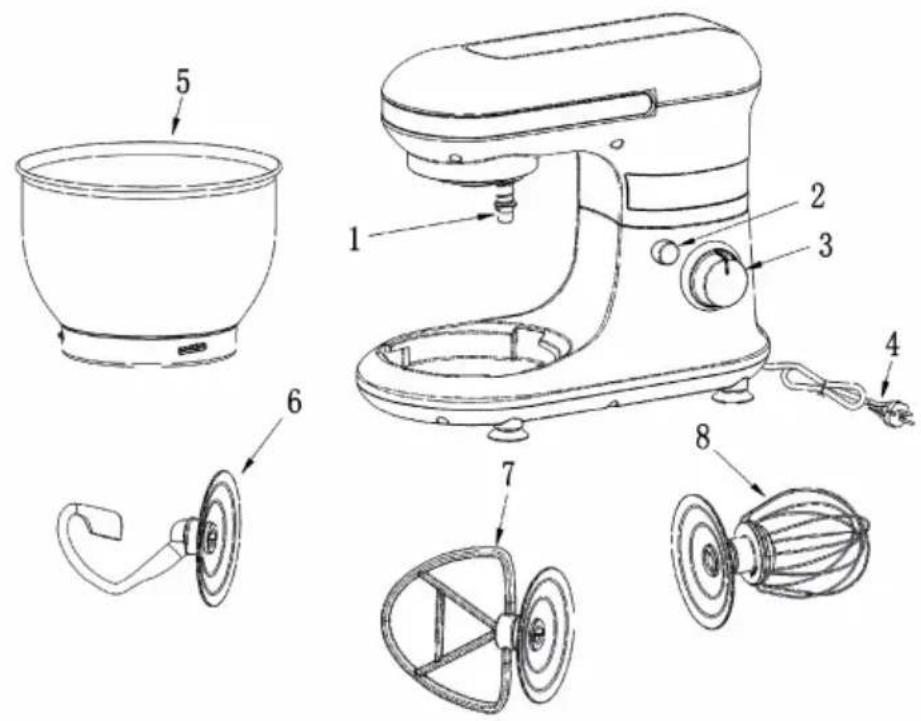

Product Description

1 Output shaft
2 Rise button
3 Speed knob
4 Power Cord
5 Mixing bowl
6 Dough hook
7 Beater
8 Whisk

Use and Operation

1. Place the mixing bowl into its holding device and turn the bowl until it locks into place.
2. In order to lift the arm, push the rise button(2) down. The arm will now move upwards.
3. Mount the required utensil by inserting the top into the output shaft and locking.
4. Now fill in your ingredients. Do not overfill the machine - the maximum quantity of ingredients is 1.2 kg.
5. Lower the arm using the rise button (2).
6. Insert the mains plug into a properly installed 230 V/50 Hz safety power socket.
7. Switch the machine using the speed button to a speed between 1 and 6 (corresponding to the mixture).
8. For pulse operation (kneading at short intervals), turn the switch to the "PULSE" position. The switch has to be held in this position according to the desired interval length. When the switch is released it returns automatically to the "O" position.

Levels Use Type of Mixture
1-4 Dough hook Heavy mixtures(e.g. bread or short pastry)
3-4 Beater Medium-heavy mixtures(e.g. crepes or sponge mixture)
5-6 Whisk Light mixtures (e.g. cream, egg white, blancmange)
Pulse Whisk Interval (e.g. for mixing under sponge, egg white)

NOTE:

Short operation time: With heavy mixtures, do not operate the machine for more than ten minutes, and then allow it to cool down for a further ten minutes.

1. After kneading/stirring turn the speed knob (3) back to the "O" position as soon as the mixture has formed a ball. Then remove the mains plug.
2. Press the rise button (2) downwards and the arm will be raised.
3. The mixture can now be released with the help of a spatula and removed from the mixing bowl.

Disposal Considerations

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

CE

This product is conform to the following European Directives:

2004/108/EC (EMC)

2011/65/EU (RoHS)

2006/95/EC (LVD)
