Trilit 10033694 - Sandwich maker Klarstein - Free user manual and instructions

Technical Features	Details not available
Usage	Details not available
Maintenance and Repair	Details not available
Safety	Details not available
General Information	Details not available

Frequently Asked Questions - Trilit 10033694 Klarstein

How can I assemble the Klarstein Trilit 10033694?

Please refer to the user manual provided with the product for detailed assembly instructions. Make sure you have all the necessary tools before starting.

What should I do if the Klarstein Trilit 10033694 does not turn on?

Check that the device is properly plugged in and that the outlet is working. If the device still does not turn on, try resetting the circuit breaker or checking the fuses.

How do I clean the Klarstein Trilit 10033694?

Use a soft, damp cloth to wipe the outside of the device. Avoid using abrasive products that could scratch the surface.

Is there a warranty for the Klarstein Trilit 10033694?

Yes, Klarstein offers a limited warranty for its products. Please refer to the warranty documents provided with your device for more information.

Where can I find spare parts for the Klarstein Trilit 10033694?

Spare parts can be ordered directly from Klarstein customer service or on their official website.

Can the Klarstein Trilit 10033694 be used outdoors?

No, the Klarstein Trilit 10033694 is designed for indoor use only. Using it outdoors may damage the device and void the warranty.

What safety precautions should be observed when using the Klarstein Trilit 10033694?

Make sure not to block the device\'s vents and never leave the device unattended while in use. Read the user manual carefully for more safety advice.

How do I adjust the temperature settings on the Klarstein Trilit 10033694?

Use the control buttons located on the device\'s panel to adjust the temperature. Refer to the user manual for specific instructions on setting the parameters.

USER MANUAL Trilit 10033694 Klarstein

3 in 1 Sandwich Maker

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

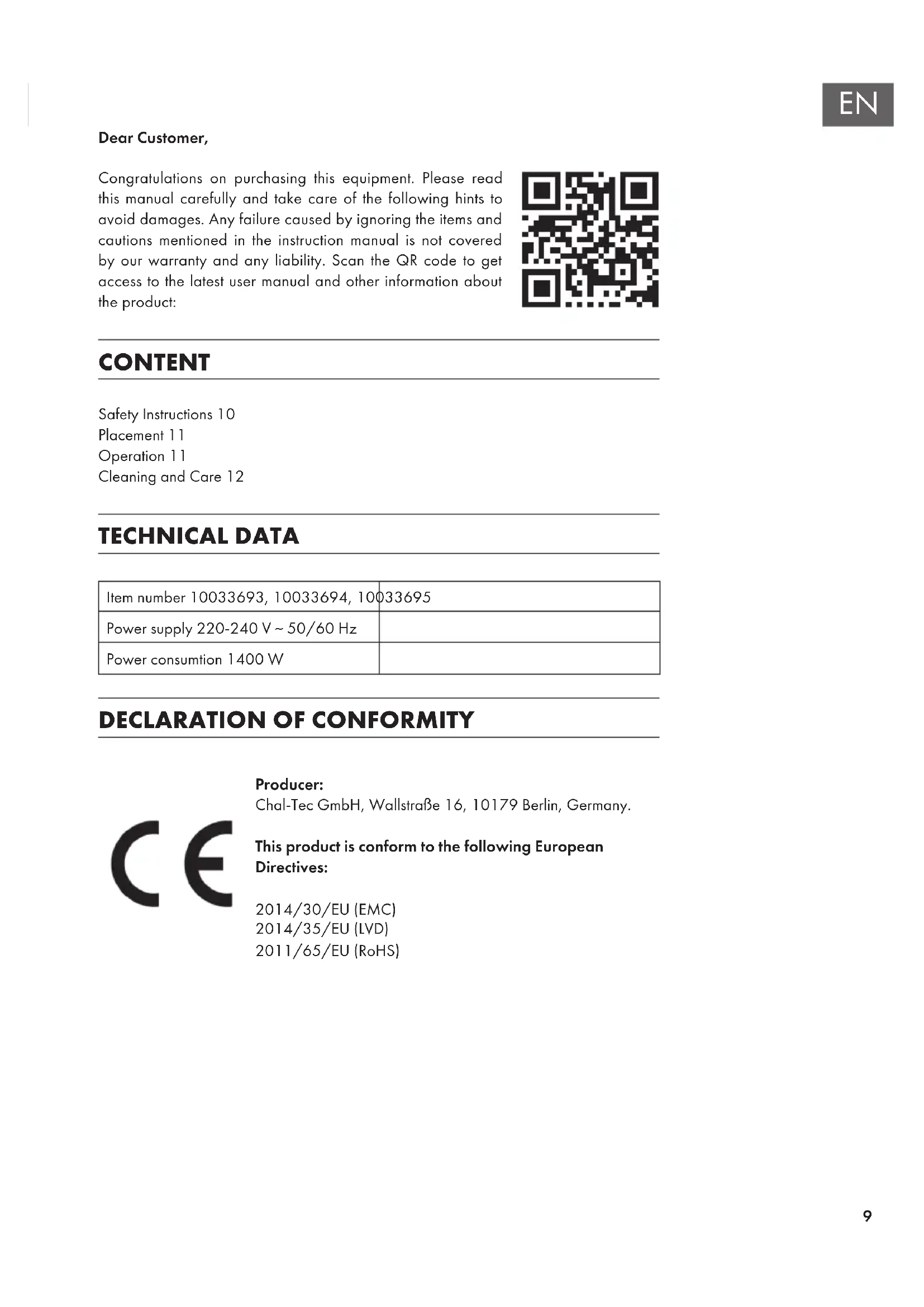

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product:

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 10

Placement 11

Operation 11

Cleaning and Care 12

TECHNICAL DATA

Item number 10033693, 10033694, 10033695

Power supply 220-240 V ~ 50/60 Hz

Power consumption 1400 W

DECLARATION OF CONFORMITY

C€

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

CAUTION

Risk of burns! Certain parts of the appliance become very hot during use. Handle only the handles and controls and allow the unit to cool before cleaning or replacing the plates to prevent burns.

• This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and maintenance operations must not be performed by children without supervision.
• Ensure that children do not play with the device.
• Never immerse the appliance in water or other liquids.
• If children are present, do not leave the appliance unattended.
• Before cleaning, unplug the appliance from the wall outlet and allow it to cool. Only change the plates when they have cooled down completely.
• Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.
• If the power cord or plug is damaged, it must be replaced by the manufacturer, an authorized service center, or a similarly qualified person.
  • Use only the supplied accessories.
• This equipment is not intended for commercial use and is intended for domestic and similar environments only. This includes kitchens in offices, farms, hotels, motels and facilities offering Bed & Breakfasts.
• Ensure that the power cord does not hang from the work surface and does not touch hot surfaces.
• Do not place the appliance near stoves, ovens or gas-fi red heat sources.
• Connect the power cord to the appliance before plugging the appliance into a wall outlet. When not in use, turn all controls to OFF before unplugging the appliance.
• Do not place the appliance near fl ammable materials such as curtains, drapes or wooden walls.
• Do not use an extension cord and do not connect the unit to external timers or remotely controlled sockets.
• Do not operate the unit with the lid open.

PLACEMENT

• Place the appliance on a dry, level, waterproof and heat-resistant surface.
• Place the unit in a location that is difficult for children to reach.
• The power outlet must be easily accessible to quickly disconnect the equipment in an emergency.
• Do not place the device in a bookshelf, built-in cupboard or
• in a confined space. Ensure that the air can circulate sufficiently around the unit.
• Do not place the appliance on top of other appliances that may become hot. These
• Do not expose this product to direct sunlight, high temperatures, excessive moisture, or excessive vibration.

OPERATION

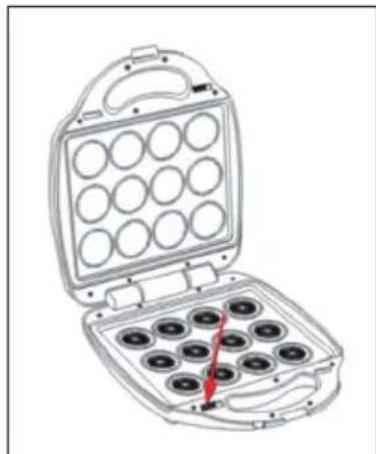

The Sandwich Maker has removable hotplates. Select the desired plate and install it as follows:

Line drawing of an open battery pack with multiple circular cavities and a red pointer indicating a specific cell (no text or symbols present)

Remove plate

Open the device and press the release button (see arrow). Remove the plate.

Insert plate

Align the slot of the cooking plate with the hinge. Push the plate down until you hear it click into place.

Before first Operation

1. Clean the plates with a damp cloth.
2. Grease the plates with a little butter or cooking oil.
3. Plug in the plug and switch on the appliance.

Note: During the initial period of use, odour may be produced by the materials used in the device. This is normal. The odour will diminish after a short period of time.

Preparation of Sandwiches

1. Insert the plug into the socket. The red and green lights will turn on.
2. As soon as the red light goes out, the sandwich maker is ready for operation.

Note: the red light turns on and off every now and then, while the appliance automatically reheats.

1. Prepare the sandwich ingredients. For a sandwich you need two slices of bread and the desired topping.
2. To brown the outside of the sandwich nicely, spread some butter on the outside that touches the baking tray.
3. Cover the toast and place it in the appliance.
4. Lower the upper baking tray carefully, press the bread and lock the appliance with the lock on the handle.
5. Heat the sandwich for 2-3 minutes and then check if the sandwich has the golden colour you want.
6. When the sandwich is ready, remove it with a plastic or wooden spatula. Do not use metallic or sharp kitchen utensils to avoid destroying the non-stick coating of the plates.
7. After use, unplug the appliance from the mains and allow it to cool before cleaning.

CLEANING AND CARE

Note: before cleaning, unplug the appliance from the wall outlet and allow the appliance and the plates to cool completely.

• It is not necessary to disassemble the unit for cleaning. Use a paper towel or soft sponge to remove oil residue.
• Wipe the plates with a soft, slightly damp cloth.
• Do not immerse the unit in water.
• Do not use scratching or abrasive cleaners as they will damage the non-stick coating.
• Do not use oven cleaner to clean the panels.
• Use a soft, slightly damp cloth and mild detergent to clean the exterior, handles, and other parts.
• If residues are difficult to remove, add some oil and allow to soak for 5 minutes. If the residue is softened, it is easier to remove.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
