USER MANUAL EBGK2TC PKM
mind. 50 mm mind. 50 mm

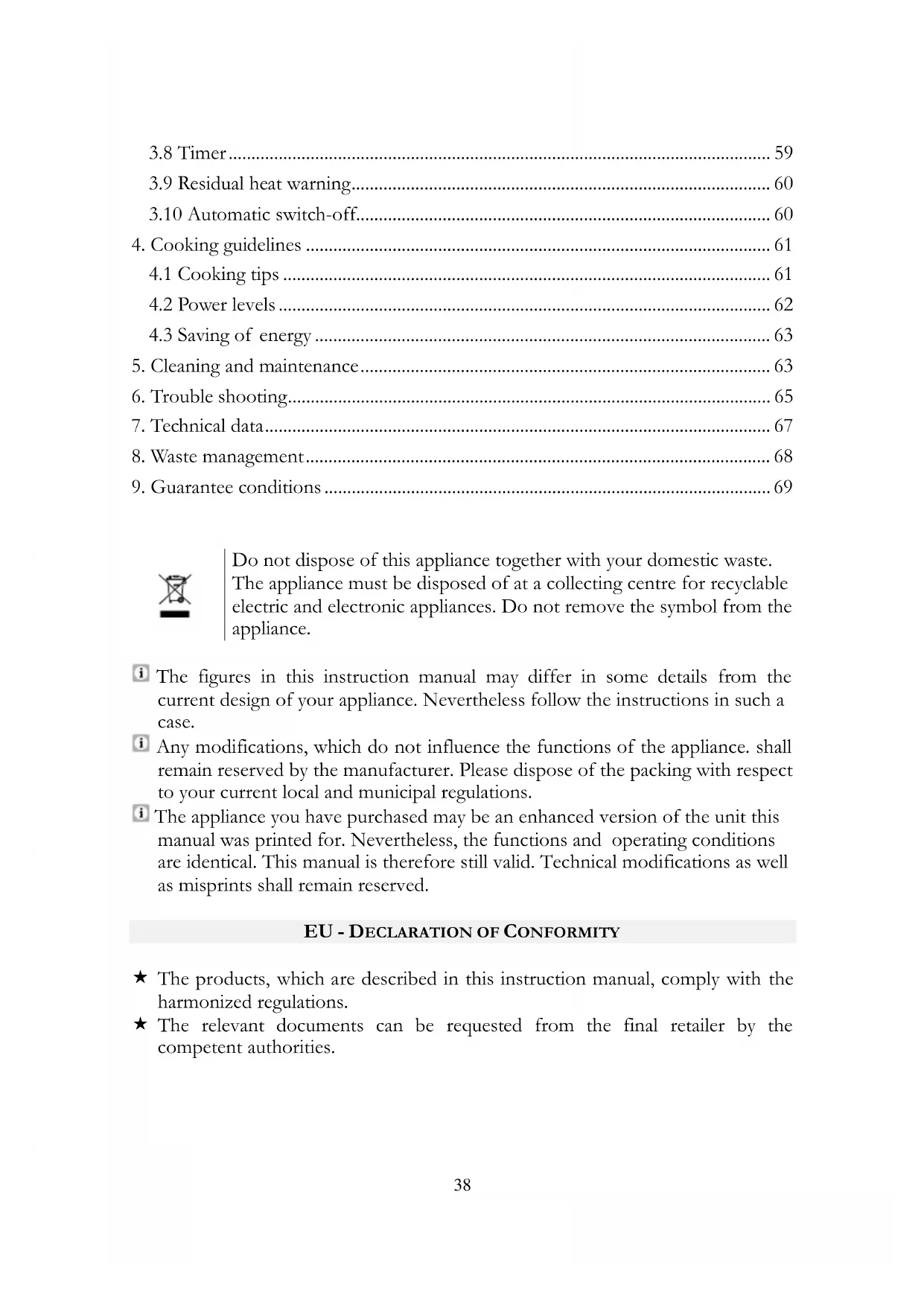

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.
The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations. The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.
EU - DECLARATION OF CONFORMITY
The products, which are described in this instruction manual, comply with the harmonized regulations. The relevant documents can be requested from the final retailer by the competent authorities.39
READ THE SAFETY INFORMATION AND SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME. All information included in those pages serve for the protection of the operator. If you ignore the safety information and safety instructions, you will endanger your health and life. Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property. Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly- made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional. The appliance is intended for private use only. The appliance is intended for cooking in a private household only. The appliance is intended for indoor-use only. The appliance is not intended to be operated for commercial purposes, during camping and in public transport. Operate the appliance in accordance with its intended use only. Do not allow anybody who is not familiar with this instruction manual to operate the appliance. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards40 involved. Children must not play with the appliance. Cleaning and user- maintenance must not be carried out by children unless they are supervised.
DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury. WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.
CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE! indicates possible damage to the appliance.
1.2 Safety instructions
DANGER! To reduce the risk of electrocution:
1. Non-compliance of the orders of this instruction manual will
endanger the life and health of the operator and / or can result in damages to the appliance.
2. The appliance must be connected to the mains by a qualified
professional, who is familiar with and adheres to the local requirements and supplementary regulations of your energy supplier.
3. All electrical work must be carried out by a qualified professional.
Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations
4. Do not connect the appliance to the mains if the appliance itself or
the power cord or the plug are visibly damaged.
5. Never try to repair the appliance yourself. Repairs carried out by
unauthorized persons can cause serious damage. If the appliance41 does not operate properly, please contact the shop you purchased the appliance at. Original spare parts should be used only.
6. When the power cord is damaged, it must be replaced by the
manufacturer or an authorized aftersales service or a qualified professional only.
7. Never touch the power plug, the power switch or other electrical
components with wet or damp hands. RISK OF ELECTRIC SHOCK!
WARNING! To reduce the risk of burns, electrocution, fire or injury to persons:
1. Operate the appliance with 220 ~ 240 V AC / 50 Hz only.
2. Disconnect the appliance from the mains before you clean or
3. The technical data of your energy supply must meet the data on the
rating label. The main current circuit must be equipped with a safety shut-down device.
4. The appliance must always be grounded and protected
corresponding to the requirements of your local energy supplier. The main current circuit must be equipped with a safety shut-down device.
5. All modifications to the electrical mains to enable the installation of
the appliance must be performed by a qualified professional.
6. In case of an event caused by a technical malfunction, disconnect
the appliance from the mains. Report the malfunction to your service centre so it can be repaired.
7. If any cracks occur on the glass-ceramic , switch off the appliance
and disconnect it from the mains. RISK OF ELECTRICAL SHOCK!
8. Do not use adapters, multiple sockets and extension cords for
connecting the appliance to the mains.
9. Do not carry out any modifications to your appliance.
10. Do not repair the appliance yourself. Repairs carried out by
unauthorized persons can cause serious damage. Always contact the nearest service centre. Only original spare-parts should be used for repairs.
11. The room the appliance is installed in must be dry and well-
ventilated. When the appliance is installed, an easy access to all control elements is required.42
12. The veneering of cabinets has to be fixed with a heat-resistant
glue, that is able to withstand a temperature of 100
13. Adjacent furniture or housing and all materials used for installation
must be able to resist a temperature of min. 85
C above the ambient temperature of the room the appliance is installed in during operation.
14. Do not install the appliance in rooms or at areas which contain
flammable substances as petrol, gas or paint. This warning also refers to the vapour these substances release.
15. Cooker-hoods should be installed according to their manufacturers'
16. The safety distance between the hob and a wall cupboard above
should be at least 450 mm.
17. The safety distance between the hob and an extractor hood
above should be at least 760 mm.
18. Unattended cooking with fat or oil can be dangerous and may
result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
19. Do not install the appliance near to curtains or upholstered
furniture. RISK OF FIRE!
20. Do not store any objects on the hob. RISK OF FIRE!
21. Household equipment and connection leads must not touch the
hob as the insulation material is usually not heat-resistant.
22. Never use a steam cleaner to clean the appliance. The steam will
cause serious damage to the electric components of the appliance. RISK OF ELECTRICAL SHOCK!
23. Never touch the cooking zones while the residual heat indicator is
still on. RISK OF BURNS!
24. After use, always switch off the cooking zones as described in this
manual(i.e. by using the touch controls). Do not rely on the auto- detection feature to switch off the cooking zones when you remove the cookware.
25. The appliance is not allowed to be operated with an external timer
or a separate remote-control-system.
26. The accessible parts of the appliance become hot during operation,
so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.
27. Children must not play with the appliance.
28. Always supervise children when they are near the appliance.
29. This appliance may be operated by children aged from 8 years
and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of43 the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.
30. Only allow children to use the appliance without supervision, when
adequate instructions have been given before so that the child is able to use the appliance in a safe way and understands the risks of improper use.
31. While unpacking, the packaging materials (polythene bags,
polystyrene pieces, etc.) should be kept away from children and pets. RISK OF INJURY! CHOKING HAZARD!
32. Only use hob guards designed by the manufacturer of the cooking
appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. CAUTION!
1. Do not use any aggressive, abrasive and acrid detergents or sharp-
edged items to clean the appliance. Otherwise you may scratch the surface and damage the glass.
2. Do not switch on the hob before you have put a cookware on it.
3. The hob should be clean at every time. Soiled cooking zones do not
transfer the heat correctly.
4. Protect the hob against corrosion.
7. Do not leave pans with prepared dishes based on fats and oils
unattended on a operating cooking zone; hot fat can spontaneously catch fire.
8. The blades of scrapers for cleaning an induction hob are very
sharp. Do not cut yourself, especially when you have removed the safety cover of the scraper.
9. Metal-made items such as knives, forks, spoons and pan lids
should not be put on the appliance, because they may become hot.
10. This appliance complies with the current European safety
legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating. NOTICE!
1. When you move the appliance, hold it at its base and lift it carefully.
Keep the appliance in an upright position.44
2. The appliance must be transported and installed by at least two
3. When you unpack the appliance, you should take note of the
position of its components in case you have to repack and transport it at a later point of time.
4. Do not put any heavy items on the hob.
5. Only use cookware which is suitable to be used on ceramic glass;
otherwise you will damage the appliance.
6. Do not operate the appliance unless all components are installed
7. The air vents of the appliance or its built-in structure (if the
appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
8. The rating plate must not be removed or made illegible, otherwise
all terms of the warranty become invalid! SAVE THESE INSTRUCTIONS. The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.
DANGER! The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your electricity supplier. Do not carry out the installation yourself. RISK OF ELECTRIC SHOCK! DANGER! All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations. RISK OF ELECTRIC SHOCK! WARNING! The safety distance between the hob and a wall cupboard above should be at least 450 mm. WARNING! The safety distance between the hob and an extractor hood above should be at least 760 mm.45 CAUTION! Do not install the appliance above cooling equipment, dish washers or laundry dryers. CAUTION! When installing the appliance ensure optimal heat radiation to maintain the operating safety. CAUTION! The wall and the reach of the heat radiation above the worktop must be made of heat-resistant materials. CAUTION! To avoid any damage, the sandwich layer and adhesive must resist heat.
2.1 Unpacking and positioning
1. Unpack the appliance carefully. Dispose of the packaging as described in
chapter WASTE MANAGEMENT.
2. The appliance may be equipped with a the transport-protection. Be very careful
and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Check that the appliance and the power cord are not damaged.
4. Connect the appliance to a dedicated socket only.
5. Do not install the appliance in a place where it may come in contact with water
or rain; otherwise the insulation of the electrical system will be damaged.
6. Connect the appliance to the mains properly.
2.2 Pre-installation requirements
The worktop must be rectangular and plane and made of heat-resisting material. Structural elements should not interfere with the installation area. The installation must meet the safety requirements as well as the legal rules and regulations. The wall sat the hob should be covered with heat-resistant material, e.g. ceramic tiles. The power cable must not come into contact with cabinet doors or drawers. The appliance must be supplied with an adequate flow of fresh air from outside the cabinet to the base of the hob. If the hob is installed above an oven, the oven must be equipped with a cooling system. Install a thermal protection below the bottom of the appliance when installing it above a drawer or a cupboard. The circuit breaker must be easily accessible.46

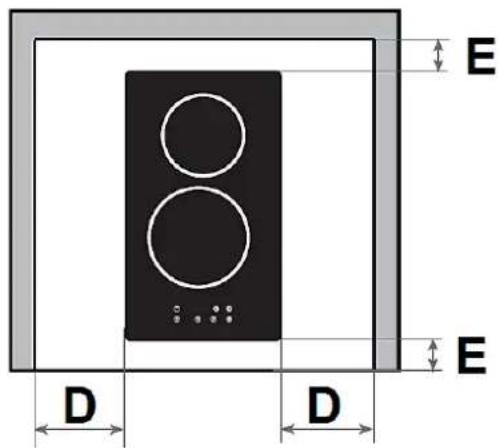

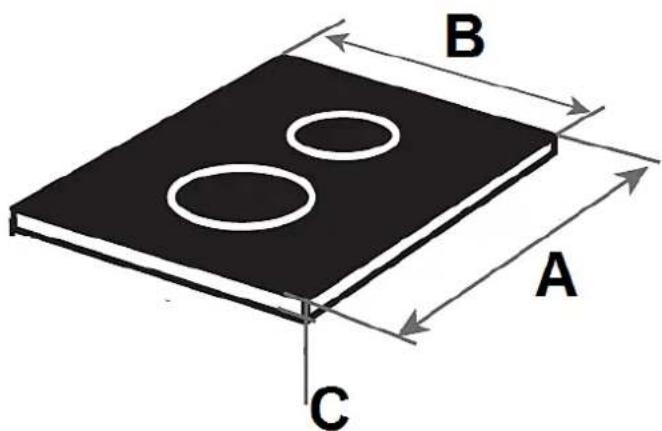

2.3 Selection of installation equipment / Dimensions
Cut out the installation hole as described on the drawing below. For installation and use, a minimum of 50 mm space shall be preserved around the hole. The thickness of the work top should be at least 30 mm. Choose heat-resistant materials for the work top only to avoid any deformation caused by the heat-radiation of the appliance. WARNING! The safety distance between the hob and a wall cupboard above should be at least 450 mm. WARNING! The safety distance between the hob and an extractor hood above should be at least 760 mm. DIMENSIONS OF THE HOB:

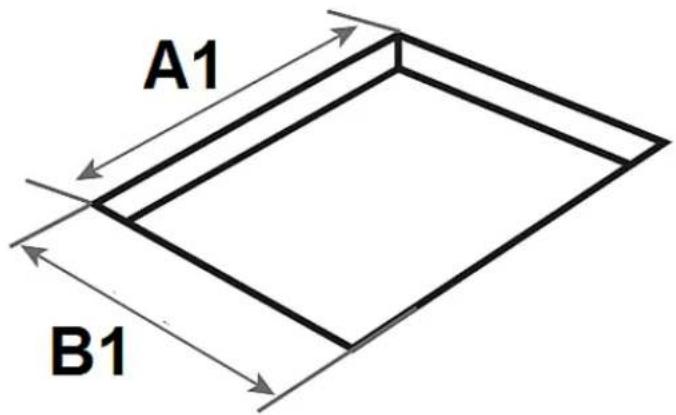

DIMENSIONS OF THE INSTALLATION OPENING:47
A 1= DEPTH / B 1 = WIDTH
DANGER! The hob must be installed by a qualified professional only. Do not carry out the installation yourself. RISK OF ELECTRIC SHOCK! The safety distance between the hob and a wall cupboard above should be at least 450 mm. The safety distance between the hob and an extractor hood above should be at least 760 mm. Do not install the appliance above cooling equipment, dish washers or laundry dryers. When installing the appliance ensure optimal heat radiation to maintain the operating safety. The wall and the reach of the heat radiation above the worktop must be made of heat-resistant materials. To avoid any damage, the sandwich layer and adhesive must resist heat. The hob must be ventilated properly. The air inlet (D) and outlet (E) must never be blocked or covered (s. fig. below). Always keep the appliance in proper condition.
1. Before installing the hob to the worktop, the adhesive seal has to be fixed on
the bottom edge of the hob properly. The seal has to be fixed properly. The outer side of the seal must match the bottom outer edge of the hob (s. fig. below). The seal must be fitted tightly on the bottom edge of the hob (no overlaps, no gaps etc.) to prevent liquids etc. from entering the installation opening subsequently.

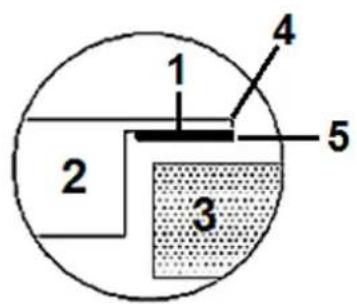

Outer side of the seal
2. Insert the hob into the installation opening and push it downward carefully until
the hob is in firm contact to the worktop.
3. Fix the hob at the bottom of the worktop using the fixing brackets (s. below).

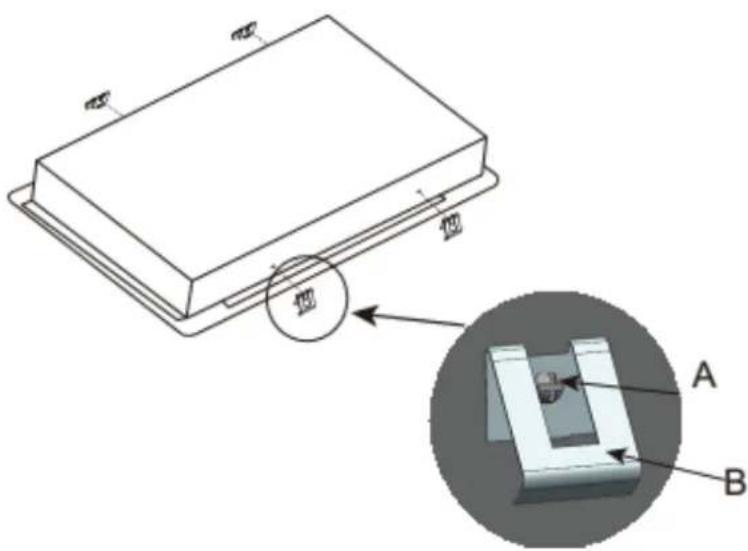

MOUNTING OF THE FIXING BRACKETS:
1. Mount the fixing brackets at the bottom of the hob using the appropriate
2. Screw one end of the fixing brackets into the predrilled holes at the bottom
of the hob (as shown below in fig 1 or 2).51
3. Mount the other end of the fixing brackets at the bottom of the worktop using
the appropriate screws to fix the hob tightly and safely.
2.5 Electrical connection
DANGER! The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your electricity supplier. Do not carry out the installation yourself. RISK OF ELECTRIC SHOCK! DANGER! All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations.
1. The appliance is equipped with a Schuko safety plug. Only use a Schuko safety
plug and a properly-grounded safety socket for connecting the appliance to the mains.
2. Your household power supply must meet the power consumption of the
3. The voltage must meet the values on the nameplate.
4. The power cord must withstand the values on the nameplate.
5. When connecting do not use adapters, reducers and branching devices as they
cause overheating. RISK OF FIRE!
6. The power cord must not touch hot areas and its temperature must not exceed
7. When the socket is not accessible for the user or a fixed electrical connection
of the appliance is required, an all-pole disconnecting device must be incorporated during installation. Disconnecting devices are switches with a contact opening distance of at least 3 mm. These include LS-switches, fuses and protectors (EN 30335). Read the information on the nameplate and the connection diagram before connecting the appliance to the mains. The electricity supply must be performed via a 16A automatic cut-out. If in doubt, always contact the local building authorities and consult the relevant legal provisions.
8. Do not bend or compress the power cord.
9. Check the power cord regularly. The power cord must be replaced by a
qualified professional only!
Read the complete instruction manual before you operate the appliance for the first time. Strictly observe the safety guidelines! Remove the complete protective film !

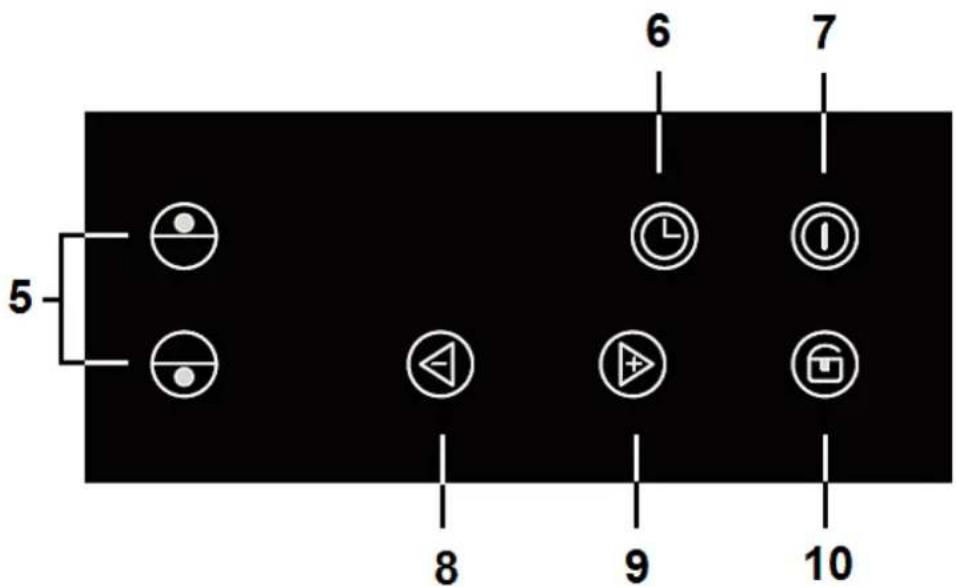

SENSOR BUTTON: - For the selection of the POWER LEVELS of the cooking zones (1 - 9) For the setting of the TIMER
SENSOR BUTTON: + For the selection of the POWER LEVELS of the cooking zones (1 - 9) For the setting of the TIMER
3.2 Use of the touch control
The sensor keys respond to touches so you do not need to press them. Touch the sensors with the bottom side of your top phalanx but not with your fingertip (see figure below). You will hear a beep
after each effective input. Always keep the touch control clean and dry. Cooking utensils and cloths should not cover the touch control. A thin water film may already complicate operating the sensors.
Clean the glass-ceramic (look at chap. CLEANING AND MAINTENANCE).

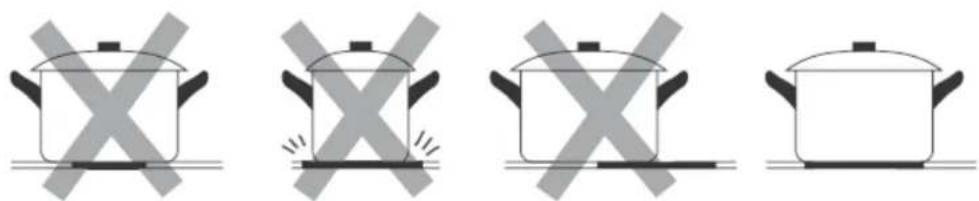

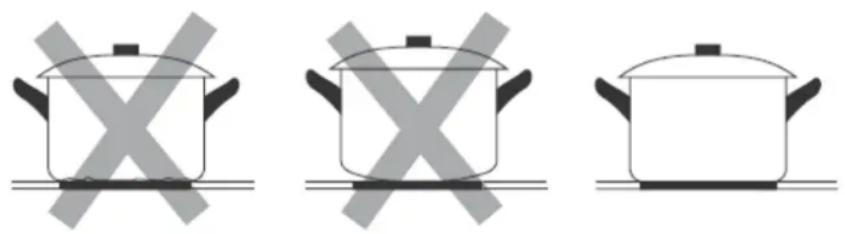

3.4 Suitable cookware
Use glass-ceramic suitable cookware only. The base of cookware must have a minimum diameter relevant to the diameter of the cooking zone you use the cookware on. Do not use cookware with rough edges or a curved base.
depending on model56 The base of your cookware should be flat, contact the glass ceramic completely and have the same diameter as the relevant cooking zone. Always centre the cookware on the cooking zone.
Always lift your cookware, when you want to move it on the glass ceramic. Do not push cookware as you may scratch the glass ceramic.
3.5 How to start cooking
WARNING! Never touch the cooking zones while the residual heat indicator is still on. RISK OF BURNS! When the power is on, an acoustic signal sounds once; all indicators show . Now the appliance has entered the stand-by mode.
Always keep the bottom of the cookware as well as the cooking zone clean and dry.57
4. Select the desired cooking zone by touching the SELECTION
OF COOKING ZONE sensor. The indicator flashes for 5 seconds.
5. Set the power level using the + and - sensor.
Each cooking zone is equipped with 9 power levels (1 - 9)
6. When you do not set a power level within 1 minute, the appliance will switch
off automatically. You have to start at step 1 again.
7. While cooking, the power level can be changed at any time.
3.6 How to stop cooking
1. Touch the SELECTION OF COOKING ZONE-sensor of the
cooking zone you want to switch off.
2. Switch off the RELEVANT COOKING ZONE by setting the -
3. Check that the indicator displays 0 and then H.
4. Switch off the appliance with the ON / OFF sensor.58
5. Beware of the hot surfaces of the cooking zones! An H
indicates which cooking zones are still hot. The H disappears as soon as the relevant cooking zone has cooled down.
6. You can use the residual heat for saving energy when starting a new cooking
procedure on a cooking zone which is still warm / hot.
You can lock the sensors to protect them from unintentional operation or operation by children. LOCKING OF THE SENSORS:
3. All sensors except ON / OFF are deactivated.
UNLOCKING OF THE SENSORS:
1. Check that the appliance is switched on.
4. All sensor buttons are released again.
5. Now you can proceed operation as normal.59
NOTICE! When the sensors have been locked, all sensors except ON/OFF are deactivated. You can switch off the appliance with the ON/OFF sensor in case of emergency, but you should unlock the sensors afterwards.
The timer switches off the relevant cooking zones as soon as the set time has elapsed. The max. selectable period of time is 99 minutes. When the selected period of time exceeds 99 minutes, the timer will be set back to 0. AUTOMATIC SWITCH-OFF FUNCTION OF ONE COOKING ZONE:
to control via the timer.
3. The INDICATOR OF THE TIMER starts flashing and indicates
4. Set he desired time using the + and - sensor.
Touch + or - once to increase / decrease the value by 1 minute. Touch and hold + or - to increase / decrease the value by 1 minutes in fast mode.
5. When you have finished the setting, the count-down of the
set time starts. The display indicates the remaining time.60
6. To indicate which cooking zone (upper / lower cooking
zone) has been enabled a red dot next to the INDICATOR OF THE TIMER goes on.
7. When the set time has elapsed, the relevant cooking
zone is switched off automatically.
WARNING! Other cooking zones will keep operating if they have been turned on previously. DEACTIVATING OF THE TIMER FUNCTION:
1. Touch the - SENSOR to set the remaining time back to 0.
If the appliance has been operated for a while, the cooking zones will emit residual heat even after operation. In such a case the letter "H" is indicated.
3.10 Automatic switch-off
The automatic switch-off represents a safety component of your appliance. The automatic switch-off is activated, when you forgot to switch off a cooking zone after operation. The default times are described on the schedule below. The default times are described on the schedule below: POWER LEVEL AUTO SWITCH-OFF (HOURS)
WARNING! Be very careful when frying, because oil and fat heat up very fast especially when operating a high power level. Extremely hot oil and fat inflame spontaneously and represent a serious fire risk. WARNING! NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
Decrease the power level as soon as the desired cooking temperature is reached. Use pot-lids to shorten cooking times and save energy. Minimize the amount of cooking liquids or fat / oil to shorten cooking times. Select a high power level, when you start cooking. Reduce the power level, when your food has been heated up.
SIMMERING / COOKING OF RICE
Simmering is cooking with a temperature of approx. 85
C. At this temperature small bubbles ascend to the surface of the cooking liquid. Simmering is a perfect way to cook delicious soups and stews as the flavours of the food unfold completely without being over-heated. You should also cook egg-based sauces and sauces thickened with flour in this way. Some cooking procedures, including the cooking of rice with the absorption- method (= the water is consumed completely), require a setting above the lowest power level, so the food is cooked within the recommended cooking time. STEAKS
1. Take the meat out of the fridge and let it rest at room temperature for approx.
2. Heat up a pan with a heavy base.62
3. Rub both sides of the steak with oil. Drizzle a small amount of oil into the hot
pan and place the steak into the pan.
4. Turn the meat just once while cooking. The exact cooking time depends from
the size of your steak and your individual preferences (medium, medium rare etc.). So the cooking time of each side may vary from 2 to 8 minutes. Press the steak to check the cooking result - a firm steak is well done.
5. Leave the steak on a warm plate for a few minutes; so it will become tender.
1. Choose a wok with a flat base or a big pan.
2. Prepare all ingredients and the cooking utensils you need. Asian-style cooking
should work fast. If you want to cook a big amount of food, you should divide the food into several portions.
3. Preheat the wok / pan briefly and add two tablespoons of oil.
4. Cook the meat first. Put it aside and keep it warm.
5. Now cook the vegetable. When the vegetable is hot but still crisp, reduce the
power level. Add the meat and, if desired, a sauce.
6. Sauté the complete food carefully so all components are hot.
7. Serve immediately.
Level 1 - 2 Delicate warming of small amounts of food. Melting of chocolate, butter etc. Food which burns quickly. Gentle simmering. Slow warming. Level 3 - 4 Reheating. Fast simmering. Rice. Level 5 - 6 Pancakes.63 Level 7 - 8 Sautéing. Pasta. Level 9 Asian-style. Frying. Reaching of the boiling point of soup / water.
4.3 Saving of energy
Use proper cookware for cooking. Cookware with thick, flat bases can save up to1/3 of electric energy. Remember to cover your cookware if possible; otherwise you will use four times as much energy! Match the size of the cookware to the surface of the heating plate. A cookware should never be smaller than a heating plate. Ensure that the heating plates and the cookware are clean. Soils prevent heat-transfer. Repeatedly burnt-on spillages can often be removed by products, which will damage the environment, only. Do not uncover the cookware too often (a watched pot-content will never boil!). You can use the residual heat for saving energy when starting a new cooking procedure on a cooking zone which is still warm / hot.
5. Cleaning and maintenance
WARNING! Switch off the appliance and let it cool down before cleaning. Disconnect the appliance from the mains before maintenance (fuse box of your household power supply)! WARNING! Do not use a steam cleaner. Risk of electric shock! The steam can damage the electric components of the appliance.64 DETERGENTS: Do not use any abrasive detergents ! Do not use any organic detergents !
Do not use essential oils ! Never use solvents ! CLEANING OF THE HOB: Clean the hob after use. Clean the glass-ceramic with a commercially available detergent for glass- ceramic. Use a special sponge and warm water. Remove residuals on the glass-ceramic with a soft cloth. Do not scrub the glass-ceramic. Remove residuals with a silicon-made scraper, which is suitable for glass- ceramic. Such scrapers are commercial available.
1. Disconnect the appliance from the
2. Use a suitable detergent for glass
ceramic while the glass ceramic is still warm - but not hot!
3. Clean with a soft cloth / kitchen
paper and water, then dry carefully.
4. Connect the appliance to the mains
again. While the appliance is disconnected from the mains the residual heat indicator does not work, so the cooking zones may be still hot. Be very careful. Scourers, nylon-scourers and abrasive detergents can scratch the glass ceramic. Read the product information of these detergents, so you know if they are suitable to clean glass ceramic. Do not leave any residuals of a detergent on the glass ceramic as it can turn stained permanently.
Detergents such as vinegar, citric acid etc.65 OVERCOOKED OR MELTED FOOD AND STAINS CAUSED BY HEATED SUGAR- CONTAINING FOOD ON THE GLASS CERAMIC. Remove such a contamination immediately with a suitable glass ceramic scraper. Beware of cooking zones which are still hot!
1. Disconnect the appliance from the
2. Hold the scraper in a 30
-angle and scrape off the contamination to a cold area.
3. Clean the contaminated area with a
dish towel / kitchen paper.
4. Proceed as described in steps 2 - 4 in
the previous section. Remove such contaminations as soon as possible. When they cool down on the glass ceramic, they are difficult to remove and may damage the glass ceramic permanently. Be very careful when using the scraper so that you do not cut yourself (especially, when you have removed the safety cover). CONTAMINATION OF THE CONTROL PANEL.
1. Disconnect the appliance from the
2. Take away the contamination.
3. Wipe the sensors with a damp
4. Dry the sensors with kitchen paper.
5. Connect the appliance to the mains
again. The appliance may beep and automatically turn off. The sensors may not work properly when they are wet. Dry the control panel carefully before you put it into operation again.
1. Switch off the entire appliance.
2. Disconnect the appliance from the mains (fuse box of your household power
3. Contact the shop you purchased the appliance at.
Check the schedule below before you contact the shop you purchased the appliance at.66 ERROR CAUSES MEASURES THE APPLIANCE CANNOT BE SWITCHED ON. Break in the power supply. Check that the appliance is connected to the mains. Check the household fuse box. Is there a power failure at your place of residence? THE SENSORS DO NOT RESPOND. The sensors are locked. Unlock the sensors. THE SENSORS ARE DIFFICULT TO OPERATE. Liquid on the sensors. You used your fingertip. Dry the sensors. Use the bottom of your top phalanx. THE GLASS CERAMIC IS SCRATCHED. You used unsuitable cookware with sharp edges. You used an unsuitable detergent, e.g. an abrasive. Use suitable cookware. Use suitable detergents. SOME COOKWARE MAKE CRACKING OR CLICKING NOISE. Your cookware is produced with layers made of different kinds of metal.
This is normal for such a cookware and does not indicate a malfunction. THE APPLIANCE MAKES HUMMING NOISE WHEN USED ON A HIGH HEAT SETTING. Caused by induction-cooking. Normal operating condition, but the noise should decrease or disappear after decreasing the heat setting. NOISE CAUSED BY THE FAN INSIDE THE APPLIANCE. The cooling-fan the appliance is equipped with protects the electronics from being overheated. It may continue to run even after you have switched the appliance off. Normal operating condition. Do not disconnect the appliance from the mains while the fan is running.67 COOKWARE DOES NOT BECOME HOT AND THE RELEVANT SYMBOL IS DISPLAYED. Cookware cannot be detected, because it is unsuitable, too small or improperly positioned on the cooking zone. Use suitable cookware which meets the diameter of the cooking zone. Place cookware on the centre of the cooking zone. THE APPLIANCE OR A COOKING ZONE HAS BEEN SWITCHED OFF AUTOMATICALLY AND UNEXPECTEDLY, AN ACOUSTIC SIGNAL SOUNDS AND AN
(TYPICALLY ALTERNATING WITH ONE OR TWO
DIGITS ON THE TIMER-DISPLAY). Technical malfunction. Note the complete error-code, disconnect the appliance from the mains and contact the shop you purchased the appliance at
If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the shop you purchased the appliance at.
Model Glass ceramic Hob Control panel Touch Control Material Glass ceramic Cooking zones
Power of cooking zones front / rear 1*1800 W / 1*1200 W Diameter of cooking zones front / rear 180 mm / 145 mm Maximum power 3000 W Voltage
Frequency 50 Hz Residual heat indicator
Power levels 9 per cooking zone Power cable 150 cm Timer / adjustable time / up to 99 minutes Dim. installation opening B*T in cm 26.80*50.00 Installation depth in cm
Dim. installation H*B*T in cm 5,30*28.80*52.00 Weight net / gross in kg
Technical modifications reserved.
1. While unpacking, the packaging materials (polythene bags, polystyrene pieces,
etc.) should be kept away from children and pets. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible
recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the
appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these
materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal
Materials marked with this symbol are recyclable. Please contact your local authorities to receive further information.69
9. Guarantee conditions
for large electric appliances, PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers. This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material- components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property. The guarantee claim does not cover:
1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized
condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product
unless a liability is forced by legal regulations. The validity of the guarantee will be terminated if:
1. the prescriptions of the installation and operation of the appliance are not
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but
Please contact the shop you purchased the appliance at.105
