MXPC2103 - Kitchen scales Mx Onda - Free user manual and instructions

Product Type	Electronic Kitchen Scale
Brand	Mx Onda
Model	MXPC2103
Maximum Capacity	5000 g (11 lb)
Precision	1 g / 0.002 lb
Units of Measurement	kg, g, lb, oz
Display	5-digit backlit LCD
Power On	Electronic button-operated
Automatic Shut-off	Yes, after 2 minutes of inactivity
Tare function	Yes (zeroes out container)
Low battery indicator	Yes (displays "Lo")
Overload indicator	Yes (displays "EEEEE")
Power supply	2 AAA 1.5 V batteries (not included)
Dimensions (L × W × H)	140 × 203 × 18 mm
Weight	304 g
Extra-flat height	18 mm
Material	ABS plastic and tempered glass
Cleaning	Damp cloth, no abrasive products or alcohol
Use	Household use only
Compliance	European directives 2014/30/EU (EMC) and RoHS
After-sales service	MX ONDA, S.A. – Madrid (Spain), tel. [phone], email [e-mail]

Frequently Asked Questions - MXPC2103 Mx Onda

How to turn on the MXPC2103 scale?

Press the on/off and tare button (Tare-on/off). The screen performs a test and displays 0 when ready.

How to change the weight unit?

Press the Unit button to switch between kg (kilograms), g (grams), lb (pounds) and oz (ounces). The selected unit symbol displays on the screen.

How to use the tare function?

Place an empty container on the scale, press the on/off and tare button (Tare-on/off) to zero the display. You can then add ingredients without counting the container's weight.

What to do if the screen displays "Lo"?

"Lo" indicates low battery. Replace the two AAA 1.5 V batteries observing polarity. Follow the manual instructions to access the battery compartment.

What does the display "EEEEE" mean?

"EEEEE" is an overload signal. The weight on the scale exceeds the maximum capacity of 5000 g. Immediately remove the excess weight to avoid damaging the device.

How to clean the scale?

Use a damp cloth to clean the surface, then dry with a dry cloth. Never use alcohol, solvents, or abrasive products. Avoid water entering the interior.

What batteries to use for the scale?

The scale works with 2 AAA 1.5 V batteries. Insert them into the compartment under the device observing polarity indications. Remove the plastic protective sheet before first use.

How to turn off the scale?

Press and hold the on/off and tare button (Tare-on/off) for about 2 seconds until the screen turns off. The scale also turns off automatically after 2 minutes of inactivity.

What is the maximum weighing capacity?

The scale can weigh up to 5000 g (11 lb) with a resolution of 1 g. The minimum weight is about 2 g.

What to do if the scale does not turn on?

First check that the batteries are correctly installed (polarity observed) and that they are new. If the screen remains off, remove the batteries and reinsert them after a few seconds. If the problem persists, contact MX ONDA technical support.

USER MANUAL MXPC2103 Mx Onda

CE

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

LIMPIEZA Y MANTENIMIENTO

MANUAL DE INSTRUÇÕES

Mx Onda

BALANÇA DE COZINHA ELETRÔNICA

MODELO: MX-PC2102

CE

ANTES DE USAR LEIA ATENTAMENTE ESTE MANUAL

CE

A VOR GEBRAUCH SORGFÄLTIG LESEN SIE DIE

MANUEL D'INSTRUCTIONS

Mx Onda

BALANCE DE CUISINE ÉLECTRONIQUE

MODÉLE: MX-PC2102

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

COLCOATION OU REMPLACEMENT DES PILES

CE

PRIMA DI UTILIZZARE IL MANUALE DI LEGGERE ATTENTAMENTE

CE

BEFORE USE CAREFULLY READ THIS MANUAL

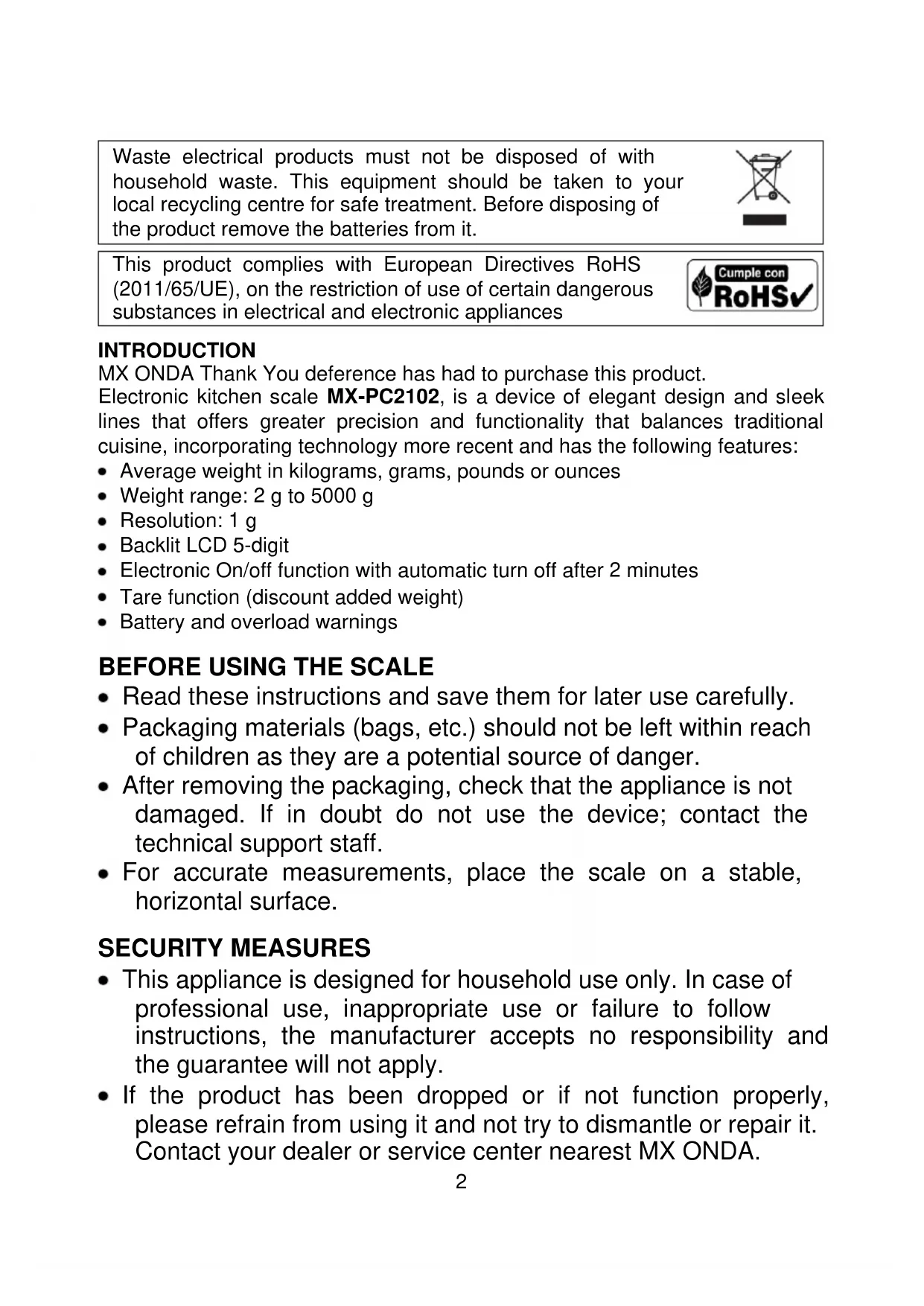

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment. Before disposing of the product remove the batteries from it.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances

INTRODUCTION

MX ONDA Thank You deference has had to purchase this product.

Electronic kitchen scale MX-PC2102, is a device of elegant design and sleek lines that offers greater precision and functionality that balances traditional cuisine, incorporating technology more recent and has the following features:

• Average weight in kilograms, grams, pounds or ounces
• Weight range: 2 g to 5000 g
- Resolution: 1 g
- Backlit LCD 5-digit
• Electronic On/off function with automatic turn off after 2 minutes
• Tare function (discount added weight)
- Battery and overload warnings

BEFORE USING THE SCALE

• Read these instructions and save them for later use carefully.
• Packaging materials (bags, etc.) should not be left within reach of children as they are a potential source of danger.
• After removing the packaging, check that the appliance is not damaged. If in doubt do not use the device; contact the technical support staff.
• For accurate measurements, place the scale on a stable, horizontal surface.

SECURITY MEASURES

• This appliance is designed for household use only. In case of professional use, inappropriate use or failure to follow instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• If the product has been dropped or if not function properly, please refrain from using it and not try to dismantle or repair it. Contact your dealer or service center nearest MX ONDA.

CLEANING AND MAINTENANCE

• Clean the scale with a damp cloth and dry with a dry. Do not use alcohol or abrasive products and not allow the unit in contact with volatile agents such as gasoline, solvents, insecticides, etc.
• Avoid the device is exposed to extreme temperature and humidity, direct sunlight, water or dust.

PLACEMENT AND REPLACEMENT OF BATTERIES

This device uses two batteries of 1.5 V type AAA, for the placement or replacement of them follow the following steps:

1. Remove the cover of the battery compartment located at the base of the appliance.
2. Insert two 1.5 V batteries type AAA respecting the indicated polarity.
3. Replace the battery compartment cover.

VERY IMPORTANT

• Before using for the first time the balance must remove the plastic sheet to protect the batteries.
• Replace the batteries when the display shows the indication " L_0 ".
• If you do not plan to use the unit for a long period of time, remove the batteries and store them in a cool place.
• Do not remove the batteries, not the short circuit and never heat or throw into fire. Batteries contain environmental polluting materials, therefore, once the life of them exhausted, not throw it away, but dispose of them at the right site for recycling.

CONTROLS AND FUNCTIONS

HOW TO USE

• To turn on the balance press the on / off button and tare function Tare-on/off, the screen will perform a check and when it displays the digit " ☐" indicates that it is ready to weigh.
  If there is to switch the scale placed a container or an object, this will not be considered (heavy).

- Press the selector button of the weight unit Unit choose the unit of measurement, you can choose between kilograms, grams, pounds or ounces. The display shows the symbol of the selected unit of weight, Kg (kilograms), g (grams), lb (pounds) and oz (ounces) appear.

- When the display shows the symbol will indicate that the scale is stabilized and ready for measurement, place it on the area for weighing the product to be weighed and the weight display.

• By pressing the on / off button and tare function Tare-on/off the scale will not consider the weight of the components or ingredients or the container that are based, in this way then you can add different ingredients without removing the already heavy.

- To turn off the balance press and hold the on / off button and tare function for two seconds Tare-on/off. However, if after 2 minutes without touching any button despite any object or food, the scale will automatically turn off.

- To exceed the weight limit of the scale, the display will show overload indication "EEEE".

TECHNICAL SPECIFICATIONS

Power supply 2 batteries 1,5 V Type AAA Backlit LCD display 5 digits 0.63 "(16 mm) Weight range 2 g / 0.004 lb - 5000 g / 11 lb. Resolution 1 g / 0,002 lb Dimensions 140 x 203 x 18 mm (L, W, H) Weight 304 g

Specifications subject to change without notice.

This product complies with the European Directives 2014/30/EU (EMC – Electromagnetic Compatibility).

“MX, MX ONDA” and its logos are trademarks of MX ONDA, S.A.

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

Telephone Information and Service: [phone]

Icon of a person reading a book inside a circle (no text or symbols)

Manual de instrucciones Instruction manual Manual de instruções Benutzerhandbuch Manuel utilisateur Manuale di istruzioni

E-MAIL: [e-mail] http://www.mxonda.es
