USER MANUAL MXCE2258 Mx Onda

11. Definindo as horas

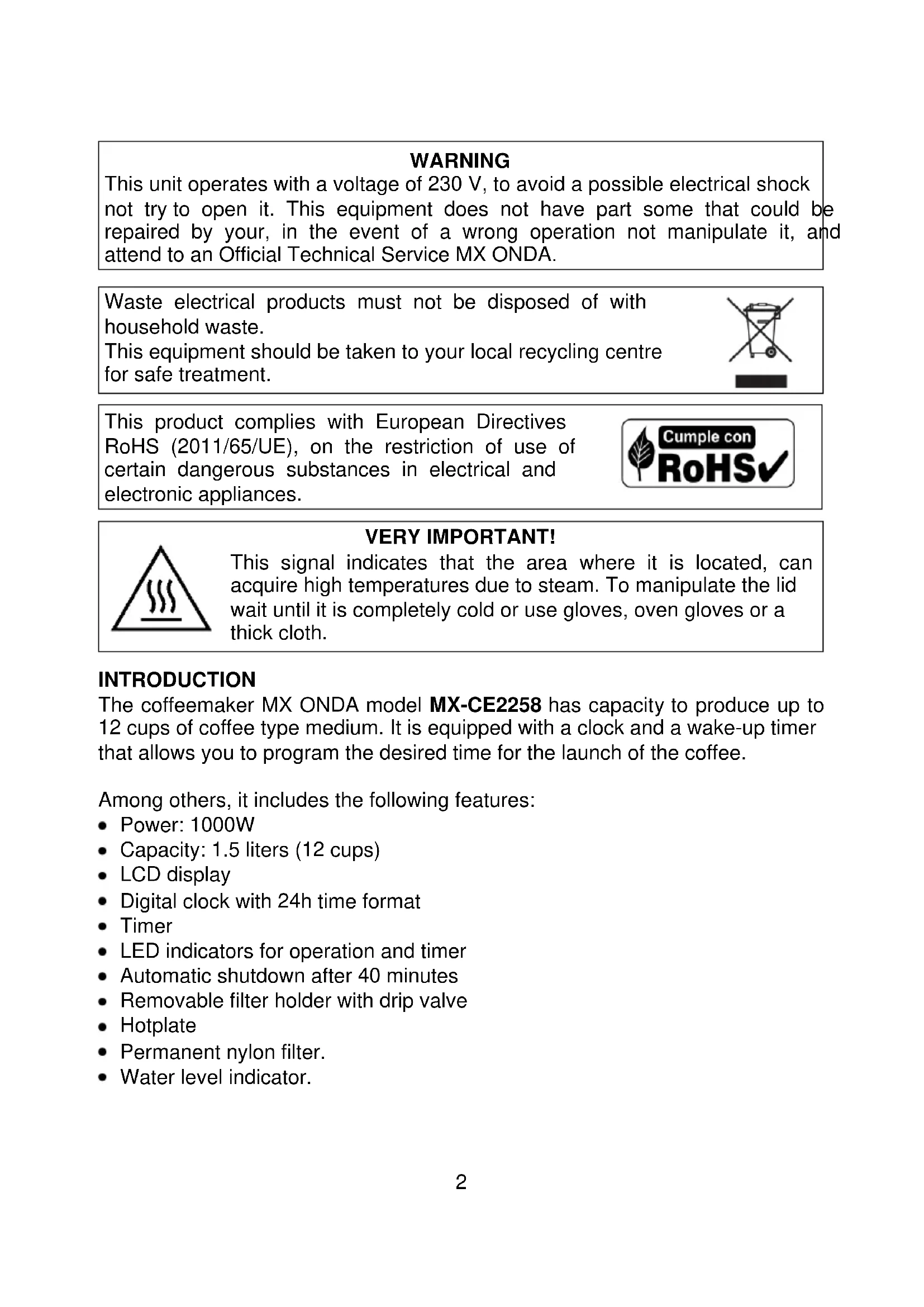

WARNING This unit operates with a voltage of 230 V, to avoid a possible electrical shock not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA. Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment. This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances. VERY IMPORTANT! This signal indicates that the area where it is located, can acquire high temperatures due to steam. To manipulate the lid wait until it is completely cold or use gloves, oven gloves or a thick cloth. INTRODUCTION The coffeemaker MX ONDA model MX-CE2258 has capacity to produce up to 12 cups of coffee type medium. It is equipped with a clock and a wake-up timer that allows you to program the desired time for the launch of the coffee. Among others, it includes the following features: Power: 1000W Capacity: 1.5 liters (12 cups) LCD display Digital clock with 24h time format Timer LED indicators for operation and timer Automatic shutdown after 40 minutes Removable filter holder with drip valve Hotplate Permanent nylon filter. Water level indicator.3

BEFORE CONNECTING THE COFFEE MAKER

When using electrical appliances, it should always be a basic safety precautions to reduce the risk of fire, electric shock and / or injury. These measures include the following: Read these instructions and keep them carefully for later use. Check that the voltage in your outlet is 220 - 240 V ~ 50 Hz and which is provided with grounding. The electrical safety of this appliance is only guaranteed if it is connected to an efficient earth, as defined in the safety regulations. The manufacturer declines all responsibility for damages caused by the lack of earthing of the installation. If in doubt, consult a qualified electrician. If you need to use an extension cord, use only one that is in good condition, equipped with grounded plug and is suitable for the power unit. The extension should be placed so that not drape over the countertop or table so that children can pull him or that can be tripped over by mistake. To protect against risk of electric shock and personal injury, do not immerse cord, plug or the main body of the coffee maker in water or other liquid. After removing the packaging, check that the appliance is not damaged. If in doubt do not use it; contact the technical support staff. To reduce the risk of fire or electric shock, do not open the main body of the apparatus. Packaging materials such as plastic bags, polystyrene foam, etc., should not be left within reach of children as they are a potential source of danger. Before using this unit for the first time, you must perform an initial cleaning. Refer to the appropriate device. Only use ground coffee for this specific type of coffee, the use of another type of coffee or other substances such as tea, can cause permanent filter clogging and affect normal operation of the appliance. The manufacturer declines any liability for damage resulting from improper, incorrect or careless use of the appliance. To avoid burns, NEVER open the lid of the coffee maker when in operation, the steam or water at high temperature could cause serious injury. SECURITY MEASURES Children should not play with this device. Cleaning and maintenance by the user can not be done by children unless they are older than 8 years and are supervised. This device can not be used by children (under the age of 8 years) or persons with or without experience and knowledge reduced physical, sensory or mental capabilities, unless they have received appropriate on using the appliance instructions and be supervised by an adult.4 Failure to follow these warnings and safety instructions could give as a result burns or serious injury. This appliance is intended for household use only and not professional. MX ONDA not accept any responsibility and the guarantee will not apply in case of misuse or failure to follow instructions. The brewer incorporates a power cable short length, to reduce the risk of injury that can occur through entanglement or tripping over long cables. This device operates at high temperatures, so during handling DO NOT touch hot surfaces. Hold the jar of coffee by the handle. While the appliance is switched on or is still hot, do not neglect their vigilance and keep it out of reach of children. Always place the kettle on a dry, stable and level surface, do not use outdoors. To disconnect the unit from the mains, pull out the plug. You do never pull on the cable. Unplug the appliance when a power outage occurs, "skip" a fuse or circuit and before cleaning. Make sure the cord does not hang over the edge of the table top or counter, or touch hot surfaces this. Do not place the kettle on or near gas burners, electric hot plates or ovens. When in operation, it could cause a fire if the coffee comes into contact with any flammable materials or items such as curtains, etc. The use of accessories not recommended by the appliance manufacturer may cause fire, electric shock or injury. Use this only coffee jug supplied. Cool the jug and the main body of the appliance before you clean it. Do not use the coffee machine outdoors. In case of failure, anomalies, if the appliance is dropped, the plug or other parts are considered impaired, or the cable is damaged, do not plug in the appliance and do not attempt to repair it yourself. Contact our Customer Service nearest MX ONDA.5

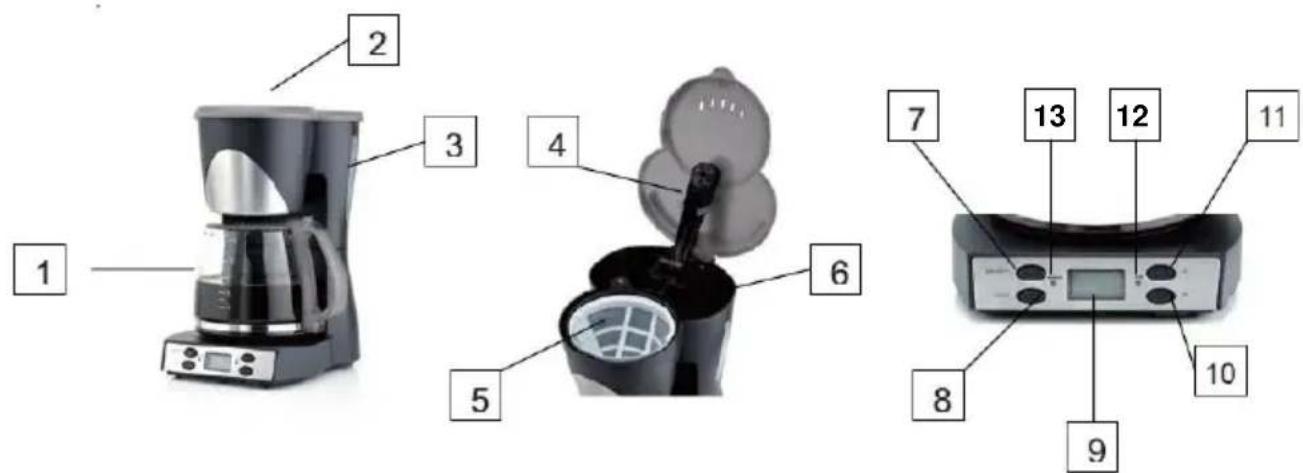

4. Nozzle for water outlet

5. Filter holder with anti-drip valve

8. Setting the clock and timer

This coffee maker incorporates a clock that is designed to indicate the time in 24-hour format. To adjust the clock, follow these steps:

1. Insert the plug of the power cord into a 230 V mains socket, the display will

show the digits "12:00".

2. With the coffee machine switched off, press button 8 (PROG) momentarily

and the display will show "CLOCK".

3. Press the 11 (HR) button repeatedly to set the time, or press the 10 (MIN)

button repeatedly to set the minute.

4. Once the hour and minutes have been set, press the 8 (PROG) button

twice or let 15 seconds pass without touching any button, the "CLOCK" indication will disappear from the screen and the clock time will be memorized.6

Note: In case of failure of the main supply or disconnect the power cord from the main outlet, both the current time and the timer is cleared immediately. Once power is restored, the display will show the digits "12:00" so please put back the clock. INITIAL CLEANING Before using the coffee maker for the first time or when not been used for a long time, we recommend that you run the coffee machine with water only (without adding coffee) to clean dust or small particles that may have inside . Proceed as follows:

1. Open lid 2 and fill tank 6 with fresh water (from time) to the maximum level

2. Place the filter holder 5 in its housing as well as the permanent filter, do not

3. Close the lid by pressing gently on it until it fits perfectly.

4. Place jar 1 on the hotplate.

5. Press the power button 7 (ON/OFF) once and the power indicator 13

(RUN) will illuminate, warning that the coffee machine is operating.

6. Let all the hot water flow over the jar.

7. Turn off the coffee machine by pressing the power button 7 (ON/OFF)

twice, the power indicator 13 (RUN) will turn off.

8. Wait until the coffee machine and the water in the carafe cool down before

proceeding to dry it. Empty the carafe and dry the main body of the coffee maker with a soft cloth.

9. Wash the jug, the filter holder and the permanent nylon filter with soapy

water, rinse them thoroughly and then dry them with a clean, dry cloth. Attention: It is possible that the first time you use the coffee while it is heated, it produces a slight odor. This is normal and is because the device is new, it will disappear shortly after use.

PREPARING THE COFEE MAKER

Filling the water tank Open the lid 2 and pour into the water tank 6 the amount of fresh water required for the preparation of coffee. Never to exceed the maximum water level (mark MAX level indicator). The recommended minimum water level must not be less than equivalent to 4 cups. Filling coffee With coffee lid open, place the holder 2 in its housing, place this permanent filter (pre-washing), or a paper filter No. 4 size.7 With the the measuring spoon supplied, deposited on the filter the amount of ground coffee (specific to this type of coffee) depending on your taste (about a tablespoon per cup). Close the lid 2 by pressing gently. Place the jar 1 with his lid closed on the hot plate. OPERATION Manual mode

1. Once the coffee maker is prepared (with water and coffee).

2. Press the power button 7 (ON/OFF) once and the power indicator 13

(RUN) will light, warning that the coffee machine is operating.

3. After a few seconds the coffee will flow inside the jar 1.

4. When you want you can remove the glass jar (taking it by the handle), as

the anti-drip system will prevent the coffee from spilling. Once the coffee has been served, immediately place the jug on the hotplate again, note that the coffee maker is still working and the coffee can be passed. Timer mode The timer mode is that when the clock strikes the hour programmed in the timer, the appliance is put into operation to make coffee. This feature is very useful for those people who wish to have coffee and hot at a certain time without having to wait. Before setting the timer you must ensure that the current time is set. Setting the timer

1. With the coffee machine off press button 8 (PROG) twice and the display

will show the indication "TIMER".

2. Press button 11 (HR) and button 10 (MIN) repeatedly and set the time and

minutes for automatic start-up.

3. Once the hour and minute have been set, press the 8 (PROG) button once

or allow 15 seconds to pass without touching any button, the "TIMER" indication will disappear from the screen and the time for the automatic start-up will be memorized. Activating the timer

1. Remember that you have to prepare the coffee maker (with water and

2. To activate the timer, press the power button 7 (ON/OFF) twice and the

timer mode indicator 12 (AUTO) will light, letting you know that the timer is activated. Note: Note that in case of failure of the power main supply or disconnect the power cord from the coffee maker, both the current time and the timer is cleared immediately and the timer will remain off.8 How to cancel the timer? Press the power button 7 (ON/OFF) once and the timer mode indicator 12 (AUTO) will turn off warning you that the timer is deactivated. After coffee processing (manual or timer mode):

1. When the water tank is empty, the hotplate will remain in operation keeping

2. If you want to make more coffee, let the appliance cool down for at least 10

minutes before carrying out the entire process described above. In case there is water left inside the tank, empty it in a sump.

3. To turn off the coffee machine press the power button 7 (ON/OFF) twice

and the power indicator 13 (RUN) will turn off. Energy savings The coffee maker incorporates an energy saving device which automatically turns off the coffee after 40 minutes. Attention: Never open the lid during the coffe process. The device generates steam which can cause burns. To avoid coffee overflow ensure that: - The filter holder 5 is properly engaged. - The lid 2 is fixed perfectly to the main body of the coffee maker. - The jar 1 is placed correctly on the hot base. - The permanent filter is clean and if you use paper filters, this are not bent. Once completed the processing of coffee, leave the jar on the base of the coffee to finish out the rest of coffee may remain in the filter. CLEANING Unplug the appliance from the mains socket and wait until completely cool prior to cleaning. Open the lid 2 and remove the permanent filter (or filter paper), then remove the filter from its housing 5. Wash the permanent nylon filter and the holder 5 soapy water, then rinse well and dry with a clean, dry cloth. Put it back in its housing. The glass jar can be washed with soap and warm water, do not use scouring pads or other abrasive cleaners. Other plastic surfaces and the heating plate can be cleaned with a damp cloth. Do not use abrasive products. The main body of the pot and the hotplate can be cleaned with a damp cloth, completely dried with a dry cloth. Do not immerse the main body of the coffee maker in water or under a faucet.9 Do not use abrasive products and do not enter into the dishwasher. PRECAUTIONS Do not enter the jar in the microwave or in a dishwasher. Do not insert ice cubes inside the jar and not insert it in the refrigerator. Do not shake metallic objects (eg a spoon) into the glass jar, as it could damage it. If the pitcher has a crack, refrain from using it. DECALCIFICATION Depending on the use and "water hardness", you should regularly descale the appliance. When you notice that the coffee takes longer than usual in the processing of coffee, it will be a sure sign of the presence of residues of lime. To proceed with the decalcification follow these steps: Open the water tank. Pour into the tank a mixture composed of 2 cups water and 2 commonly used vinegar (available in food stores) and close the lid. Place the jar with the lid on the hot plate (without permanent filter or coffee) and connect the brewer. Once the pitcher has flowed in about half of the solution, disconnect the appliance and let the mixture sit for about 30 minutes. Connect it again and let it flow the rest of the solution. If you think a lot of the amount of waste accumulated lime, repeat the above steps as many times as necessary. To clarify the pot once the above process is completed, fill the tank with water and run it to circulate water through the various circuits and vinegar taste is removed. Repeat this process several times.10 TECHNICAL SPECIFICATIONS Operating voltage 220-240 V ~ 50 Hz Maximum power 1000 W Jar capacity 1.5 liters Number of cups 12 cups maximun Cord length 80 cm Dimensions 190 x 250 x 320 mm (w, d, h) Weight 1.64 Kg Specifications subject to change without notice. This product complies with the European Directives 2014/30/EU (EMC – Electromagnetic Compatibility) and the 2014/35/EU (LVD – Low Voltage Directive) relative to Low Tension Security. “MX, MX ONDA” and its logos are trademarks of MX ONDA, S.A. Telephone of information and Technical Service: [phone] MX ONDA, S.A. Isla de Java, 37 28034 – MADRID (SPAIN) E-MAIL: [e-mail] http://www.mxonda.es
