KX012 - Insect repellent DOMO - Free user manual and instructions

Product type	Electric insect killer lamp
Brand	DOMO
Model	KX012
Use	Indoor only
Light source	UV lamp
Destruction method	High voltage electrified grid
Power supply voltage	220-240 V ~ 50/60 Hz
Power	15 W (estimated)
Attraction range	Up to 50 m² (estimated)
Recommended suspension height	1.5 to 3 meters
Housing material	Plastic
Collection tray	Removable, easy to empty
Operation	On/off switch
Dimensions (estimated)	Approximately 25 x 15 x 10 cm
Weight (estimated)	Approximately 500 g
Cleaning	Dry cloth and soft brush (no water)
Safety	Do not immerse, keep out of reach of children
Main parts warranty	2 years from date of purchase
Accessories warranty	6 months
Spare parts	UV lamp, electrified grid (replaceable)
Customer service	[phone] / [e-mail]

Frequently Asked Questions - KX012 DOMO

How to install the device?

Place the device indoors at a height of 1.5 to 3 meters from the ground. Hang it by its suspension chain. Plug it into a 220-240 V outlet. Use the on/off switch.

Where to place the device for optimal efficiency?

Place the device away from other light sources and without obstacles between insects and the UV lamp. Avoid placing it near open doors or windows. Keep windows closed if possible.

How to clean the device?

Unplug the device and set the switch to 'O'. Use a dry cloth and a soft brush to remove dead insects from the grid and lamp. Never use water or liquids.

How to replace the UV lamp?

Unplug the device. Remove the collection tray. Unscrew the two screws at the back, open the protective grid. Turn the lamp a quarter turn, pull it towards you. Insert a new lamp and turn a quarter turn to secure it. Close the grid and re-screw.

What to do if the device does not work?

Check that the device is plugged in and the switch is set to 'I'. If the problem persists, contact customer service at [phone] or by email at [e-mail]. Do not attempt to repair it yourself.

Can I use the device outdoors?

No, the device is designed for indoor use only. Do not expose it to rain or humidity.

How to empty the collection tray?

Unplug the device. Slightly lift the tray upwards and pull it towards you. Empty the dead insects. Put the tray back in place by pushing it until it clicks.

Is the device safe for children and pets?

The device must be placed out of reach of children and pets. The electrified grid can cause an unpleasant but non-lethal shock. Do not let children play with the device.

What types of insects does the device attract?

The UV lamp mainly attracts mosquitoes, gnats and other nocturnal flying insects. The insects are electrocuted by the grid and fall into the tray.

What is the lifespan of the UV lamp?

The typical lifespan of a UV lamp is about 3000 hours. Replace it when insect attraction decreases. Use only authentic Domo replacement lamps.

USER MANUAL KX012 DOMO

REEMPLACEMENT DES LAMPES

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday-Thursday:8.30-12.oo and 13.oo-17.oo

Friday: 8.30-12.00 and 13.00-16.30

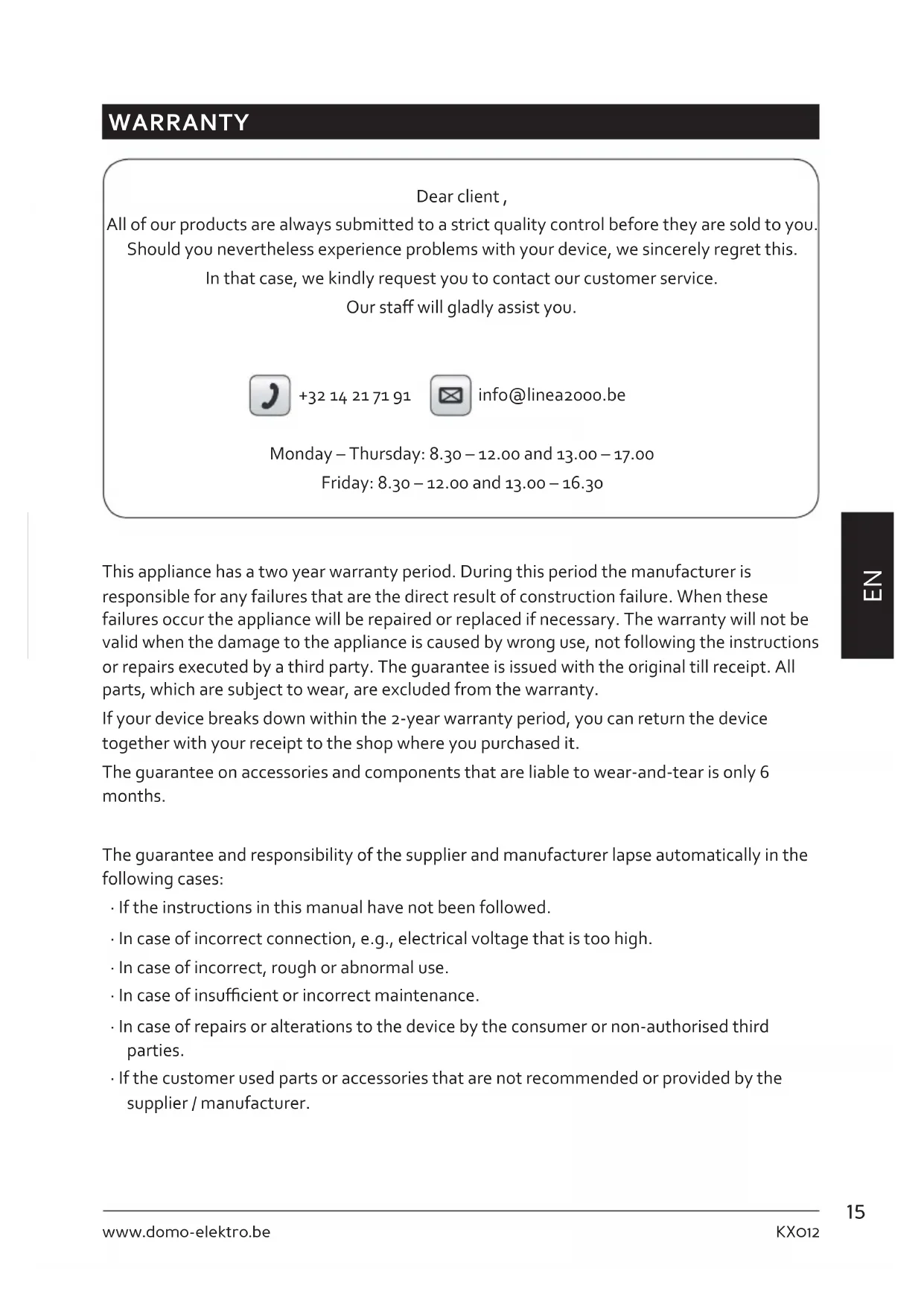

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  In case of incorrect connection, e.g., electrical voltage that is too high.
  In case of incorrect, rough or abnormal use.
  In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.
- Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision.
- Keep the appliance out of reach of children younger than 16 years old.
- This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
Farms
· Hotel or motel rooms and other surroundings with a residential character
Guest rooms or similar

• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Remove all packaging materials, and check if everything has been removed.
• Never immerse the appliance in water or any other liquide.
• Make sure that the appliance can not be touched by children.
• Only use indoors.
• If the power cord is damage, let is be replaced by a qualified electricien. Never try to repair your appliance yourself. When the repair isn't done correctly, you run the risque of electrocution.
• Never use the appliance for other than the intended use.
• Never use the appliance in a room with flammable liquids, explosive gasses or dusty rooms.
• Never put any foreign objects in the appliance.

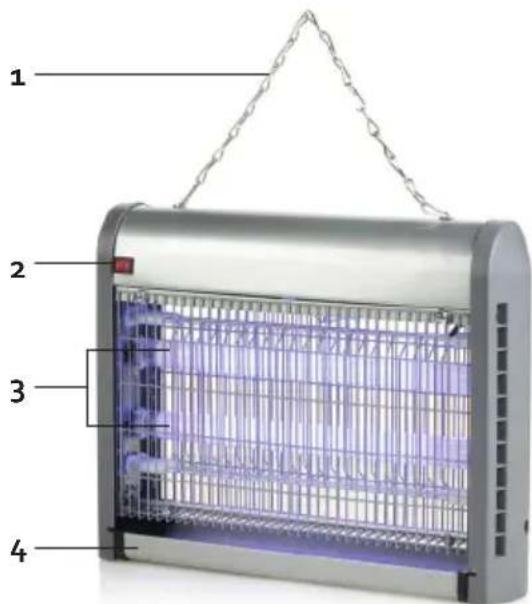

PARTS

1. Suspension chain
2. On-off switch
3. UV light
4. Collection tray

BEFORE THE FIRST USE

• Place the appliance between 1,5 and 3m above the ground.
• The ultraviolet light has to attract the insects, don't hang the appliance near other light sources.
• Make sure that there are no obstacles between the flyway of the insects and the ultraviolet light.
• Never hang the appliance near people or food.
  It is advisable to keep windows and doors closed.
• Don't hang the appliance in front of an open window or door.

USE

Turn the insect killer 'on' or 'off' by sliding the on/off switch.

The ultraviolet light attracts flying insects. The high voltage grid kills them instantly. They fall into a removable tray on the bottom of the appliance.

CLEANING AND MAINTENANCE

• Always put the on/off switch in the 'OFF' position and disconnect the appliance from the main supply outlet before cleaning.
• The tray on the bottom of the appliance has to be emptied regularly. Remove the collection tray by lifting it up slightly and then towards you.
• Never use water or other liquids to clean the appliance. Only use a dry cloth and a dry, soft brush. Use a small brush to clean the grille and remove dead insects from the light.

REPLACE THE LAMP

• Always put the on/off switch in the 'OFF' position and disconnect the appliance from the main supply outlet before cleaning.
• Remove the drip tray by lifting it up slightly and then towards you.
• Remove the two screws on the rear of the appliance. There is no high voltage grille for the bulbs on this side. The screws are located at the top on the protection grille.
• Open the protection grille.
• Remove bulbs by first rotating them quarter-turn, and then pulling them towards you. Insert the new bulb and rotate it a quarter-turn to secure.
• Close the protection grille and put the screws back in place.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.
