USER MANUAL DDR70B1BDB DANBY

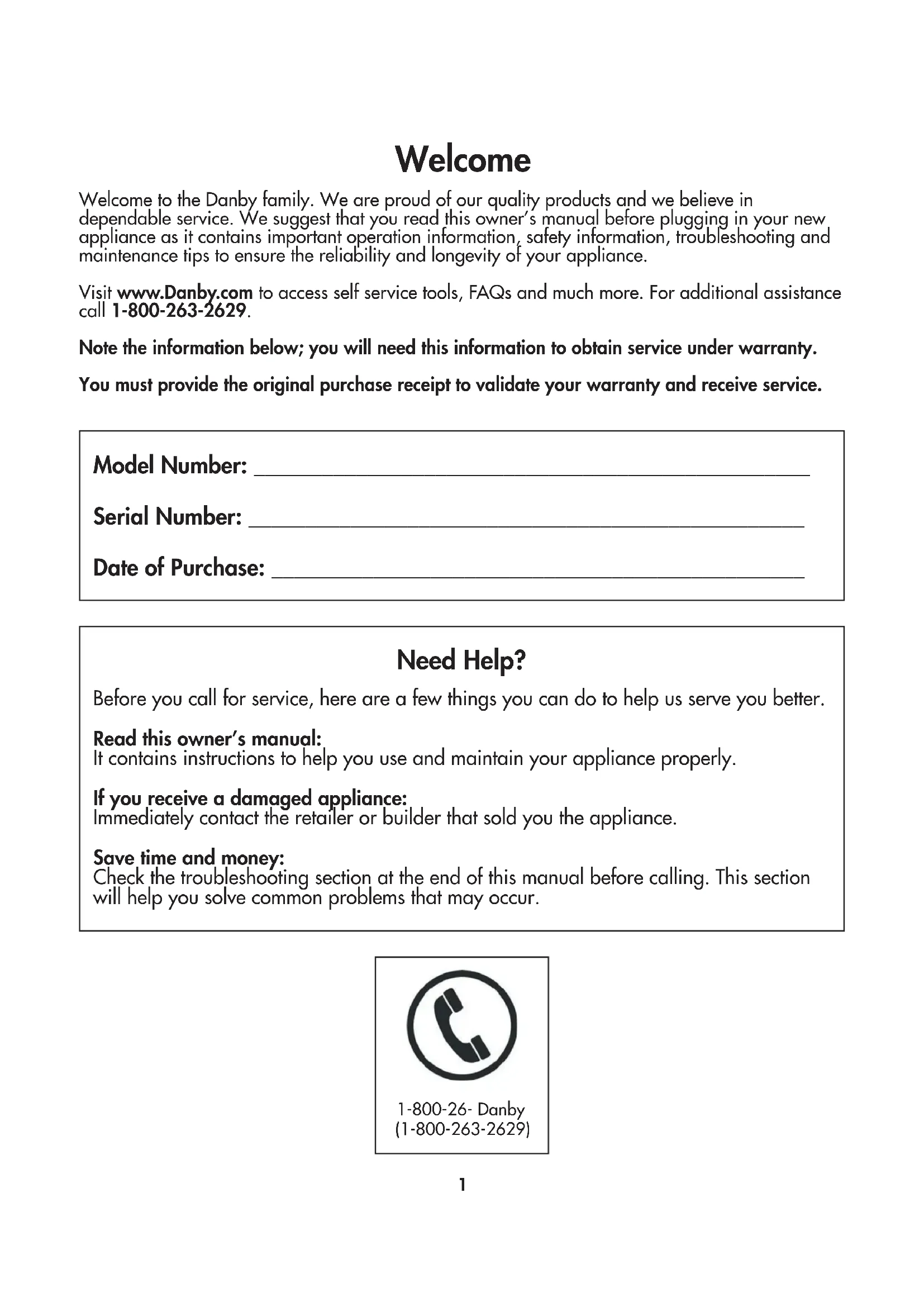

2018.10.16Welcome Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner’s manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance. Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629. Note the information below; you will need this information to obtain service under warranty. You must provide the original purchase receipt to validate your warranty and receive service. Model Number: _________________________________________________ Serial Number: _________________________________________________ Date of Purchase: _______________________________________________ Need Help? Before you call for service, here are a few things you can do to help us serve you better. Read this owner’s manual: It contains instructions to help you use and maintain your appliance properly. If you receive a damaged appliance: Immediately contact the retailer or builder that sold you the appliance. Save time and money: Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur. 1-800-26- Danby(1-800-263-2629) 1SAFETY REQUIREMENTS This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. To avoid risk of electric shock, do not operate this dehumidifi er in an area that is likely to accumulate standing water. If this condition develops, disconnect the power supply before stepping into the water. Do not store or use combustible materials such as gasoline or other fl ammable vapors or liquids in the vicinity of this or any other appliance. Do not insert fi ngers or other objects into grills or openings in the appliance. Do not cover or block the intake and exhaust openings. Do not operate the appliance without the fi lter installed. Do not operate the appliance near heat sources. This appliance is intended for indoor, residential applications only. Do not use this dehumidifi er outdoors. Do not use this dehumidifi er for commercial or industrial applications. GROUNDING INSTRUCTIONS This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current. This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for. WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualifi ed electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. Do not connect the appliance to extension cords, adapters or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualifi ed person in order to avoid hazard. Important Safety Information

• Place the dehumidifi er on a smooth, level fl oor that is strong enough to support the appliance with a full bucket of water.

• Do not place the dehumidifi er on carpeting as this can block air fl ow around the appliance.

• Do not force casters to move over carpeting as the appliance can become unbalanced and spill water.

• To maintain effi ciency, operate the appliance in an enclosed area. Keep nearby doors and windows closed.

• Maintain a minimum clearance of 20 cm (8 inches) on the sides and back of the appliance and 40 cm (16 inches) on the top of the appliance to allow for proper air circulation.

• The recommended ambient operating temperature is between 5°C (41°F) and 35°C (95°F).

• Any time the appliance is placed on its back or side, it must be allowed to stand upright for 6 hours before plugging in to avoid damage to internal components.

• The default humidity setting is 40% and high fan speed. Depending on humidity conditions the dehumidifi er may not start automatically under the default setting. This means the humidity in the surrounding air is less than 40%. Press the down button to lower the set humidity until the set humidity is lower than the ambient humidity.

• For optimal performance, ensure that the humidity setting is 10% lower than the ambient humidity. It is normal for the ambient humidity to vary up to 5% above or below the set humidity.

• It is recommended in normal conditions to set the humidity between 40-45%.

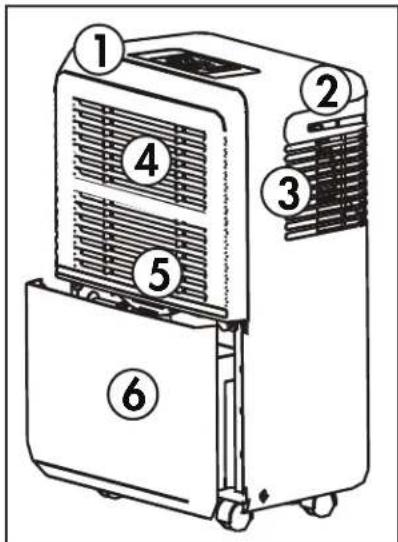

• It is normal for the dehumidifi er to exhaust warm air from the top. FEATURES Front

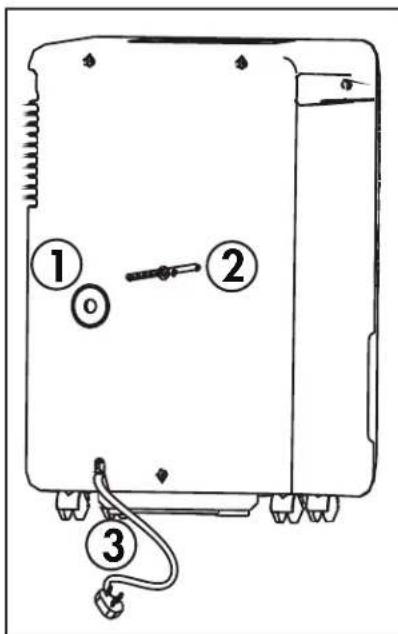

1. Continuous Drain Outlet

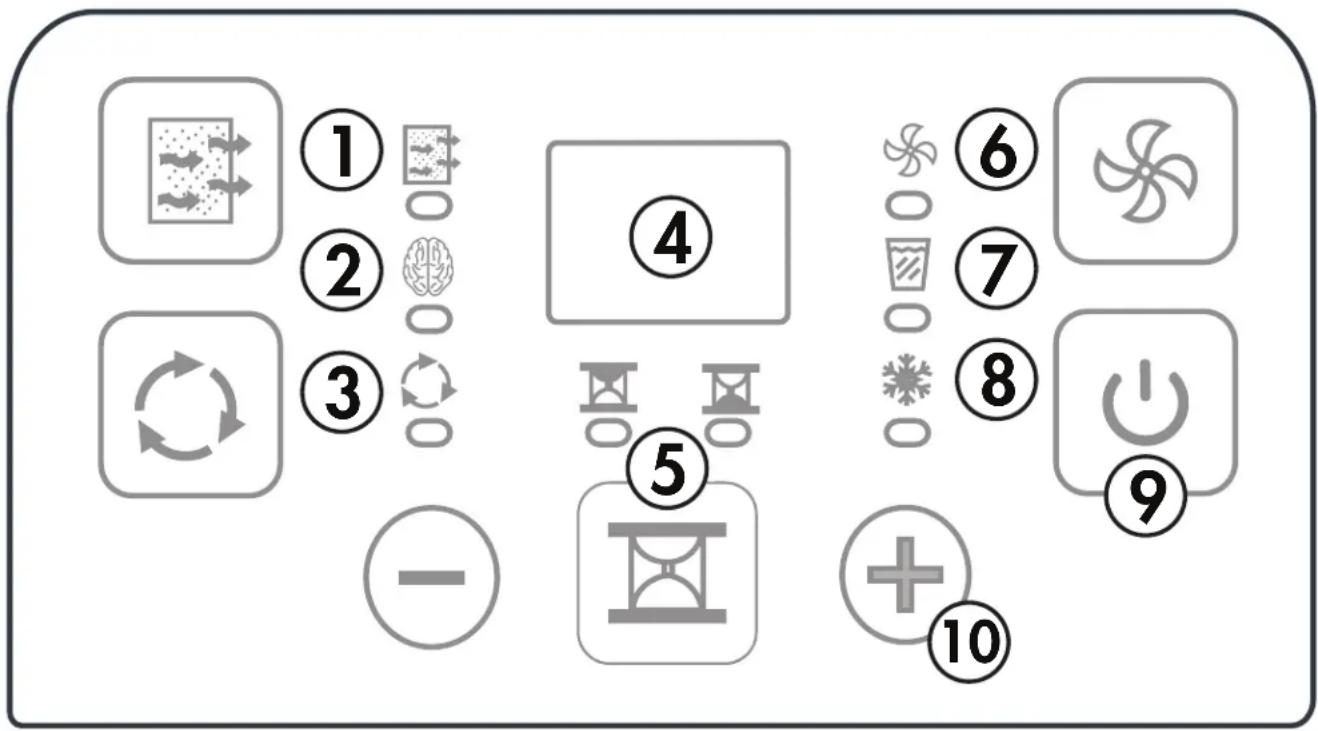

• The fi lter light will illuminate when the fi lter needs to be cleaned. Press the fi lter button once the fi lter has been cleaned to return to regular functioning.

• This function will automatically adjust the humidity level with the fl uctuating room temperatures. The humidity level cannot be adjusted in this setting, it will stabilize between 45% - 55%.

3. Continuous Mode Button and Indicator Light

• Press this button to activate continuous mode. This will run the dehumidifying function continuously. The indicator light will turn on when continuous mode is active.

• The humidity can be set between 35-85% in 5% increments. For drier air, set the humidity to a lower number. For damper air, set the humidity to a higher number.

• The ambient humidity display is accurate within +/- 5%. OPERATING INSTRUCTIONS

• Use this button to set the timer function.

6. Fan Button and Indicator Lights

• Press this button to set the fan speed to low or high. The single fan icon indicates low speed. The double fan icon indicates high speed.

7. Full Bucket Indicator Light

• The full bucket indicator light will illuminate when the bucket is full of water. Empty the bucket to resume regular functioning.

8. Defrost Indicator Light

• The defrost indicator light will illuminate when frost has accumulated on the interior of the appliance. This can indicate that the ambient temperature is too cold. The dehumidifying function will cease until the frost has melted.

• Use this button to turn the appliance on or off.

10. Plus and Minus Buttons

• The plus and minus buttons can adjust the set humidity or the timer setting.

1. Press the timer button until the auto on indicator

2. Use the plus and minus buttons to select the

desired amount of time before the appliance should turn on. The plus and minus buttons will add or subtract 30 minutes of time up to 10 hours, then at 1 hour increments up to a maximum of 24 hours.

3. The time selected will appear on the display

panel and will count down until the appliance turns on. Auto Off Function

1. Press the timer button until the auto off indicator

2. Use the plus and minus buttons to select the

desired amount of time before the appliance should turn on. The plus and minus buttons will add or subtract 30 minutes of time up to 10 hours, then at 1 hour increments up to a maximum of 24 hours.

3. The time selected will appear on the display

panel and will count down until the appliance turns off. Using Auto On and Auto Off Simultaneously The auto on and auto off functions can be used at the same time by fi rst setting one and then the other. Both indicator lights will illuminate and the display will count down to the appliance either turning off or on, whichever function was set fi rst. Note: The timer will not cycle the appliance on and off indefi nitely. The auto on and auto off timers will function one time and then the appliance will return to regular functioning. Turning the appliance off, pressing the default button on the remote or unplugging the appliance will clear all memory settings, including the timer. WATER REMOVAL There are two ways to remove collected water from the appliance.

The dehumidifi er will automatically collect condensed water in the water bucket. When the bucket is full, the compressor and fan will turn off and the full bucket indicator light will turn on. The display will show “P2”. To empty the bucket, gently remove it from the appliance by gripping both sides and pulling outward. Be cautious when removing the bucket, it will be full and can be heavy. Do not place the water bucket directly on the fl oor. The bottom of the bucket is uneven and it will fall over and spill water. Empty the bucket and replace it in the appliance. The dehumidifi er will not function without the bucket installed.WATER REMOVAL

Water can be removed from the appliance using the continuous drain and a standard garden hose (not provided). Before using any automatic drain functions, check that all drain ports are clean and free of debris. There is one drain port inside the bucket compartment of the appliance, remove the bucket to see it. There is one drain port on the back of the appliance where the drain hose attaches. All drain ports should be cleaned with a pipe cleaner prior to use. Note: Do not clean the drain ports with anything more rigid than a pipe cleaner as this can damage the appliance. Note: If the drain ports are clogged or dirty it can cause water to leak from the bottom of the appliance.

1. Before attaching the garden hose, fi rst install the

provided adapter and drain hose.

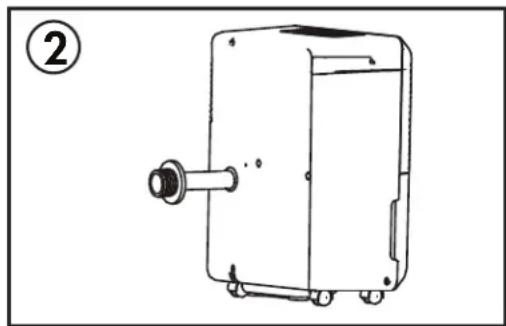

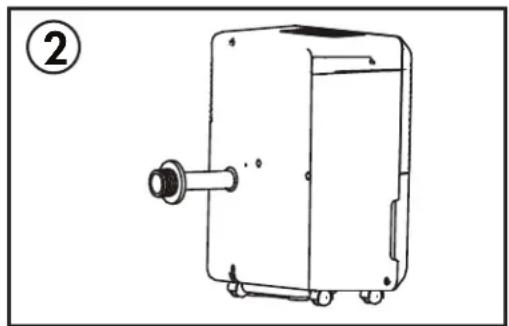

2. Remove the cover from the continuous drain

outlet and insert the drain hose into the appliance until it connects to the drip point inside the bucket compartment.

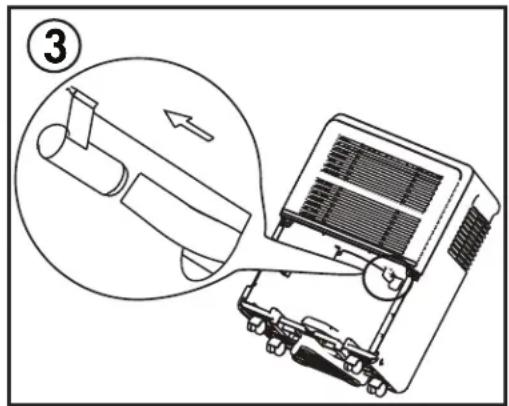

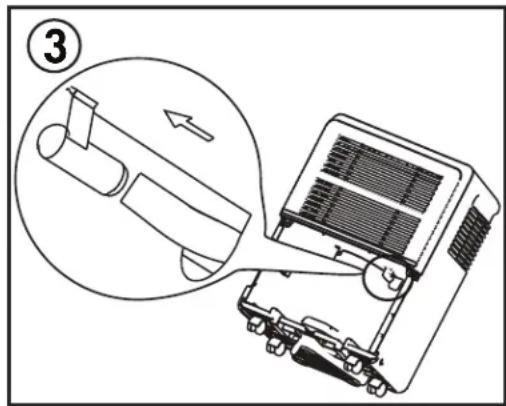

3. The drip point is visible when the bucket is

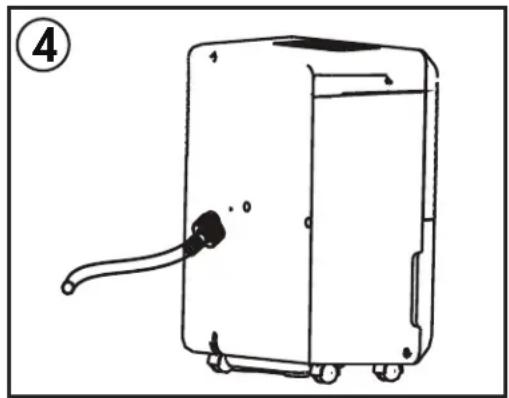

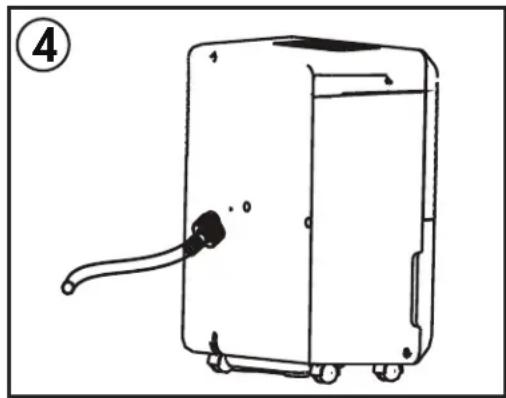

4. Attach the female threaded end of the garden

hose to the adapter on the back of the appliance. Direct the other end of the garden hose to a bucket or fl oor drain. Ensure that the garden hose is not bent and goes straight down from the back of the appliance. The continuous drain is only activated by gravity so any bends or upward motion in the hose will stop the water from draining. The garden hose should be cut so that it is no more than 1.8 m (6 feet) long. If the drain hose is too long water may not drain completely which can lead to stagnant water and mildew build up inside the hose. OPERATING INSTRUCTIONS

6CARE & MAINTENANCE AIR FILTER The air fi lter should be cleaned approximately every 2 weeks. The air fi lter may require more frequent cleaning if there is signifi cant dander or fur in the air. Approximately every two weeks, the fi lter indicator light on the control panel will illuminate as a reminder to clean the fi lter. Follow the steps below to clean the fi lter and return the appliance to normal functioning.

1. The air fi lter is located behind the front intake

grill. To remove the air fi lter, grasp the fi lter tab on the top of the grill and slide it upward.

2. Use a vacuum cleaner with a soft brush

attachment to remove any large debris or dust build up from the air fi lter.

3. Wash the fi lter in lukewarm, soapy water, below

40°C (104°F), or use a neutral cleaning agent.

4. Rinse the fi lter with clean water and dry

thoroughly before reinstalling in the appliance.

5. Press the fi lter button on the control panel to

resume normal functioning. Note: Do not operate the appliance without the air fi lter installed. ERROR CODES If the display panel shows any of the below error codes, unplug the appliance, let it stand for 5-10 minutes and then plug it back in. If the error persists, call for service. AS - Humidity sensor error ES - Temperature sensor error P2 - Full bucket or bucket not in the correct position EC - Cooling system error or sensor error CLEANING To avoid possible electric shock, ensure that the appliance is unplugged before performing any cleaning or maintenance. The outside of the appliance can be wiped clean with a soft cloth or with a lukewarm, damp cloth if necessary. Do not use gasoline, benzene, thinner or any other chemicals to clean this appliance as these substances can cause damage to the fi nish and deformation of plastic parts. Never pour water directly onto the appliance as this will cause deterioration of electrical components and wiring insulation. Ensure that the drain port on the interior of the appliance and the drain port on the back of the appliance are free of dirt and calcium build up.

Before removing the appliance from service for the year, operate the appliance on high fan mode for half a day to ensure that the inside of the appliance is dry. This will help avoid the growth of mold or mildew inside the appliance. Ensure the fi lter is clean and dry. Store the appliance covered in a dry location. DISPOSAL This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. Check for local regulatory compliance regarding approved and safe disposal of this appliance. 7TROUBLESHOOTING Danby Consumer Care: 1-800-263-2629 Hours of operation: Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time Friday 8:30 am - 4:00 pm Eastern Standard Time Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE

Appliance will not operate • Plug is not fully inserted into the wall outlet

• Blown fuse or circuit breaker

• Ambient humidity is lower than the set humidity

• Bucket is full or is not in the proper position Insuffi cient dehumidifying • Air fi lter is dirty

• Appliance size is too small for application

• Ambient humidity is lower than the set humidity Noise • Air fi lter is dirty

• Bucket is not in proper position

• Floor surface is not level Odors • Formation of mold or mildew on internal wet surfaces

• Place an algaecide tablet in the water bucket Water on fl oor • Hose connection is loose

• Drain cover has been removed Frost build up • When ambient temperature is below 5°C (41°F) frost may form

• Switch the appliance to fan only mode until the frost melts

8LIMITED IN-HOME APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter “Danby”) or by an authorized distributor of Danby, and is non-transferable.TERMS OF WARRANTY Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided. First Year During the rst twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor’s option, at no charge to the ORIGINAL purchaser. To obtain Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an Authorized Service Depot. Any app liance Service requiring service outside the limited boundaries of “In Home Service” , it will be the consumer’s responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See “Boundaries of In Home Serv ice” below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualied service technician. If service is performed on the units by anyone other than an authorized service depot, or the unit is used for commercial appli cation, all obligations of Danby under this warranty shall be void. Boundaries of If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be In Home Service delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualied and certif ied for warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are t he responsibility of the purchaser. Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other c ontents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.EXCLUSIONS Save as herein provided, Danby, there are no other warranties, conditions, representations or guarantees, express or implied, m ade or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditio ns, representations or guarantees under any Sale of Goods Act or like legislation or statue is hereby expressly excluded. Save as herein provided, Danby shall no t be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction o f the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or propert y caused by the unit. GENERAL PROVISIONS No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

2) Damage in transit or when moving the appliance.

3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.

4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating con ditions (extremely high or low room temperature).

5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).

6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, oods etc.

7) Service calls resulting in customer education.

8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for out door application). Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.Danby Products LimitedPO Box 1778, Guelph, Ontario, Canada N1H 6Z9Telephone: (519) 837-0920 FAX: (519) 837-0449Danby Products Inc.PO Box 669, Findlay, Ohio, U.S.A. 45840Telephone: (419) 425-8627 FAX: (419) 425-862904/09 1-800-263-2629 Warranty ServiceIn-home Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser. During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor’s option, at no charge to the original purchaser. Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void. It is the responsibility of the purchaser to transport the appliance to the nearest authorized service depot. First 24 monthsTo obtain service

LIMITED “CARRY IN” WARRANTY
