USER MANUAL SB500 Campomatic

Caution: Read and follow all safety and operating instruction before first use of this product.

Campomatic S.R.L. Via Configliachi 5/B . 35031, Abano Terme (Padova), ITALIA

WWW.CAMPOMATIC.COM

TABLE OF CONTENT

ENGLISH 4

FRANÇAIS 10

ITALIANO 17

---

• Overview of the Components
• Lieste des différents éléments de commande
• Elementi di lavoro

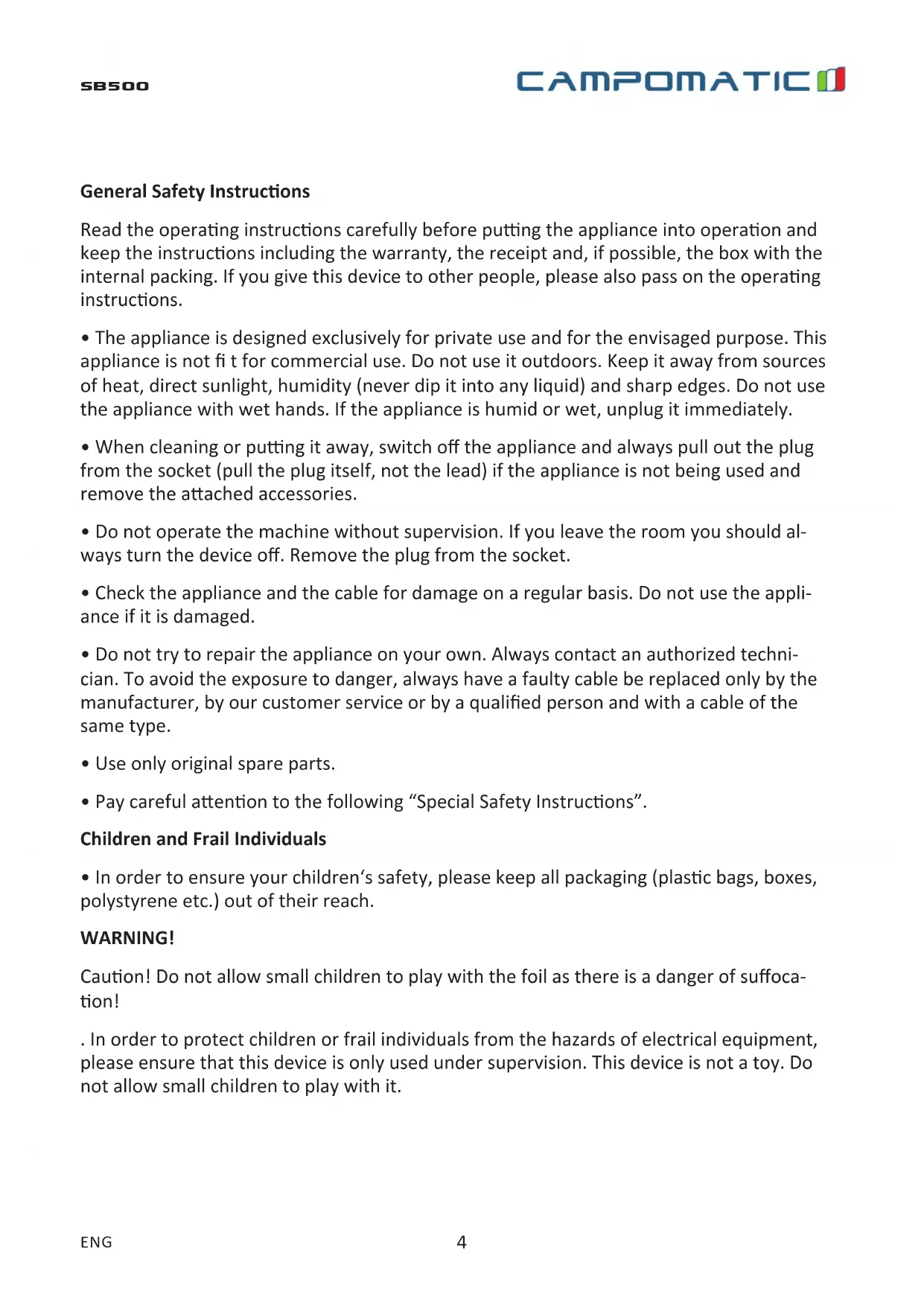

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

. In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

Special Safety Instructions for this Machine

• Make sure that the motor casing is not wet.
• Pay attention to the slowing down of the motor after shutting off.
• The appliance is designed for the mashing and mixing of food and drinks and for chopping together with the multichopper.
• Short-time operating: use the device for no longer than 4 minutes with soft foods and no longer than 3 minutes with hard foods. Leave the device to cool down for at least 3 minutes before using again.

WARNING:

The attachments and the blade are very sharp! Handle these parts with great caution! DANGER OF INJURY!

• The appliance is designed to process only small quantities of food! Fill the container with the maximum quantities specified in the table!
• Do not put hard foods such as ice cubes, nutmeg or large pieces of chocolate into the container! The blade can be damaged!

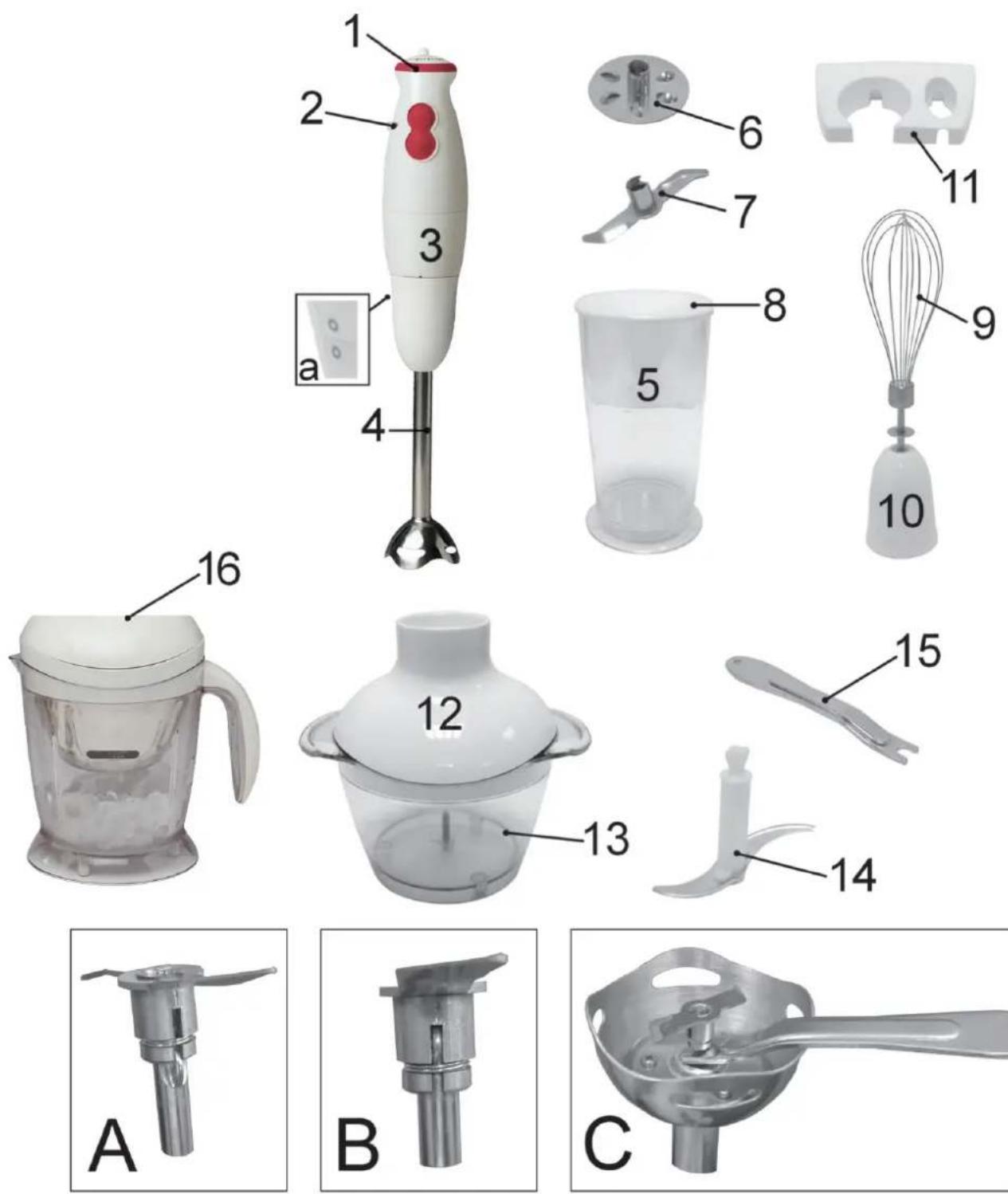

Overview of the Components

1 Speed regulator
2 Two-level control switch
3 Motor casing
3a Marker Dots
4 Mixing rod, removable
5 Mixing bowl
6 Beater
7 Multi-purpose blade
8 Lid for mixing bowl
9 Whisk
10 Adapter for whisk
11 Wall mounting with fixing materials
12 Lid of the chopping machine
13 Transparent beaker
14 Chopping blade with shaft
15 Attachment release button (discs, blade)
16 Ice Crusher

Before Use

• Take out all the parts carefully out of the packing. Save the packing and the inner packing material for the whole duration of the warranty.
• Clean the device before using it for the first time as described in "Cleaning and Maintenance".

Wall Mounting

The mixing rod (4) can also be attached to the wall using the attachment kit supplied (11).

In order to do this, measure the distance between the two recesses on the back and drill two holes which are this distance apart.

CAUTION:

Make sure before you start that you will not damage any electrical wires hidden in the walls!

Insert the motor housing (3) with the mixing rod (4) into the holding device.

Remove the mixing rod

• Remove the mixing rod from the motor housing by turning it briefly in an anticlockwise direction.

Attaching Accessories

• If you would like to use the Multiknife or the whisking disc, first place the attachment on the shaft of the mixing rod (see Illustration A) and then push it into the position shown in Illustration B. If necessary, hold the shaft at the open end of the mixing rod tightly.

NOTE:

• Make sure that the pin located on the shaft fits into the slot of the attachment. Only in this case can the attachment be inserted completely onto the shaft!
• Use the lifter (15) as a tool in order to release the components again (see Illustration C).

Attaching the Mixing Rod

• Lock the mixing rod into place by turning once. The marker dots (3a) are now positioned one above the other.

Whisk

• If you would like to use the whisk (9), replace the mixing rod by the adapter (10). Lock the whisk into place by applying moderate pressure to the driveshaft of the adapter.

Function and Accessories

Two-level control switches (2):

Level *: At this level it is possible to use the speed control to regulate the number of revolutions per minute.

Level **: This provides the maximum speed and cannot be regulated.

Table of Functions and Accessories (see below)

Table of Functions and Accessories

Attachment	Function	Speed	Operating Time
Beater disk (6)	For mixing and stirring milk shakes, drinks, omelette batter, sauces and cosmetic emulsions	Level ·, set speed control to 1–2.	max. 3 min.
Whisk (9)	For beating cream, egg white (max. 4 egg whites) and blanc mange and whipping up sauces, sponge cake mixture and other airy and foamy foods	Level ·, set speed control to 2–4.	max. 4 min.
Multiple blade (7)	With the addition of liquid can be used for chopping, mincing and pureeing boiled vegetables, soft fruit and baby food and for the straining of soups and sauces	Level ·, set speed control to 1–5 or level **	max. 3 min.
Chopping blade (14)	For cutting, chopping or mincing raw or cooked meat and hard-fibred vegetables	Level ·, set speed control to 1–5 or level **	max. 3 min.

Using the Mixing Rod and Whisk

WARNING: Make sure that the plug is not inserted!

1. Select an accessory. Please note the section "Before Use".
2. Fill the food to be mixed into the mixing bowl ((5) max. 0.6 litres). The mixing rod or whisk should be fully immersed.
3. Use the regulator (1) to set the corresponding speed. Please refer to the table.
4. Hold the device in such a way that you are able to operate the two-level control switch (2) with your fingers.
5. Only connect the machine to a properly installed safety socket, 230V / 50Hz
6. Press one of the buttons of the two-level control switch.
7. You can achieve pulse operation by pressing the button at intervals and then releasing it.
8. The device switches itself off when the button is released.
9. Pull out the plug from the socket after use. Clean and put the device away as described in "Cleaning and Maintenance".

Changing of the metal attachments

• Remove the attachment already inserted on the shaft of the mixing rod (4) with the release button (15).
• The side with the slot is used to remove the attachments.

Using the Multi-chopper

WARNING: Make sure that the plug is not inserted!

1. Release the mixing rod (4) by turning it and pulling it out of the motor housing (3).
2. Place the multiple chopping machines on a flat, level surface and then remove the lid (12).
3. Fill the transparent beaker (13). Do not fill the beaker to the rim, but only 34 of the beaker capacity.
4. Seal the bowl again with the lid; the recesses on the lower edge of the lid and on the upper edge of the bowl must interlock.
5. Place the motor casing on the upper opening of the lid and fasten the multi-chopper by turning it to the right.
6. Only connect the machine to a properly installed safety socket, 230V / 50Hz . Allow the multiple chopping machine to stand on this surface during operation and until the chopping blade is removed (14). Hold the multi-chopper firmly with a hand.
7. Press one of the buttons on the two-level control switch. You can achieve pulse operation by pressing the button at intervals and then releasing it.
8. Remove the mains plug from the socket after use. Release the motor housing from the multiple chopping machine by turning it and then remove it from the lid.
9. Remove the lid and pull the chopping blade (14) out carefully.

WARNING: The chopping blade is very sharp! DANGER OF INJURY!

1. Pour the contents of the beaker into a container or plate.
2. Clean the appliance as described in "Cleaning and Storage".

Cleaning and Maintenance

• Always pull the plug out of the socket before cleaning!
• Removable parts which have come into contact with food (utensils and bowls) can be cleaned in soapy water.
• In order to clean the mixing rod fill the mixing bowl with water and operate the mixing rod as described under "Using the Device". Then dry the mixing rod thoroughly.
• Rub the outside of the motor casing with a moist towel to clean it when necessary and then wipe it with a dry cloth.
• After cleaning, store the mixing rod in the wall mounting supplied.
