USER MANUAL KC221W INVENTUM

This product is only suitable for well insulated spaces or occasional use.

1. safety instructions page 10
2. product description page 13
3. prior to first use page 13
4. using the ceramic heater page 14
5. cleaning and maintenance page 14
6. breakdowns and solutions page 14
7. technical data page 15

general terms and conditions of service and warranty page 29

Deutsch

Vermogen LAAG = 1200 watt, HOOG = 2000 watt

1 safety instructions

• Carefully and fully read the instruction manual prior to using the appliance and carefully store the manual for future reference.

WARNING: never cover the heater, in order to prevent it from overheating.

• Only use this appliance for the purposes described in the instruction manual.
• Only connect the appliance to alternate current, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Never bend the power cord sharply or allow it to run across hot parts.
• Fully unwind the cord to prevent it from overheating.
• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other objects that could catch flame, such as curtains, towels (cotton or paper, etc.).
• The air around the appliance should be able to circulate freely. Therefore, do not place it too close to walls or large objects or under a shelf or cabinet for example.
• Do not place the appliance near, below or facing a power socket or near open fire or heat sources.
• Only use the appliance indoors.

• The appliance is not suitable for use in wet or humid rooms such as bathrooms, laundry rooms, etc. Do not place it in the vicinity of a tap, bath tub, shower, swimming pool, fountain, etc., make sure it can never fall in water and prevent water from penetrating the appliance. Should the appliance fall in water, first remove the plug from the power socket! Do not use an appliance that has become wet on the inside, but have it repaired.

• Caution: Prevent strange objects from entering the appliance through the ventilation holes or air outlets. This could lead to electric shocks, fire or damage.

• Never cover the appliance! In order to prevent fire, supply and discharge openings should never be blocked in any way. Therefore also never use the appliance to dry clothes or to place something on it, and do not place it on soft surfaces such as beds or long pile carpets, as a result of which openings can be shut off.
• The appliance can get hot during use. To prevent burns, do not make contact with hot surfaces with bare skin!
• Children are not allowed to play with the appliance.
• Ensure proper supervision when this appliance is used in the presence of children, legally incompetent persons or pets. Children under the age of 3 should be kept at a distance, unless they are supervised at all times. Children over the age of 3, but under the age of 8 are only permitted to switch the appliance on or off if the appliance is placed or installed on its normal working location and if they are being supervised and have been instructed about the safe use of the appliance and understand the hazards involved. Children over the age of 3, but under the age of 8 may not insert the plug in the socket, control or clean the the appliance, or perform user maintenance on it.
• Do not leave the appliance unsupervised if the appliance is operational.
• Always make sure the appliance is placed on an even, flat surface.
• If you want to move the appliance, make sure the appliance is switched off.
• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the shop or our technical service.
• If the cord of the appliance is damaged, it should be replaced by the manufacturer, his customer service or a similarly qualified person in order to prevent hazardous situations.

• Never replace the plug or cord yourself. Repairs to electrical appliances should only be performed by skilled persons. Incorrect repairs could cause considerable hazards for the user.

• Never use the appliance with parts that are not recommended or supplied by the manufacturer.

• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or moist hands.
• Never connect the appliance to an external timer or a separate remote control system, in order to prevent hazardous situations.
• If the appliance is not being used or is being cleaned, fully switch off the appliance by removing the plug from the socket.
• Extension cords may only be used if the mains voltage (see the information plate) and capacity are identical to or higher than that of the appliance. Always use an approved extension cord.
• Never submerge the appliance, cord or plug in water.
• If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.
• If you decide to stop using the appliance due to a defect, we recommend cutting the cord after removing the plug from the wall socket. Small household appliances do not belong in the dustbin. Take the appliance to the waste processing department concerned of your municipality.

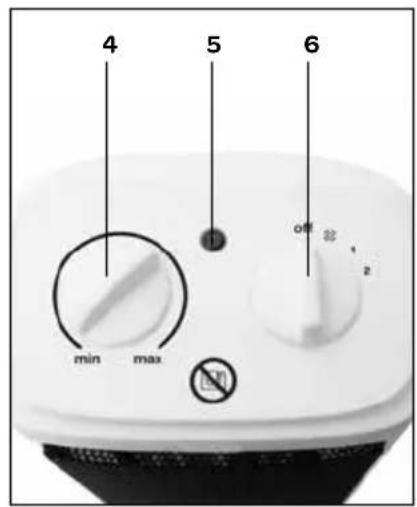

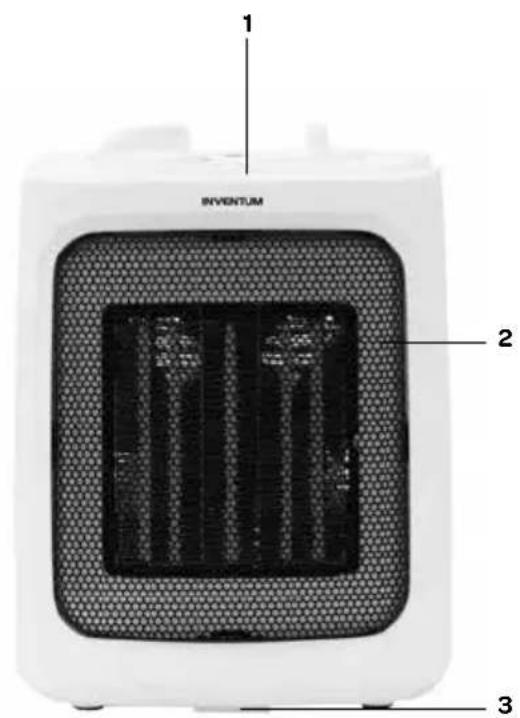

2 product description

1. Operating panel
2. Protective grille
3. Anti-tilting protection
4. Thermostat button
5. Indicator light
6. Position button

3 prior to first use

Before using the heater for the first time, proceed as follows: carefully remove the heater from its packaging and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the appliance, check it for external damage that may have occurred during transport.

Select a suitable location for the heater. The heater is provided with anti-tilting protection, therefore always place the heater in a straight position on a heat resistant flat surface. Make sure there is enough space around it for sufficient ventilation.

Check that the voltage corresponds with what is stated on the information plate and insert the plug in the socket. It is possible that the heater smells "new" when used for the first time, this is entirely normal, will do no harm and the smell will disappear automatically.

4 using the ceramic heater

Insert the plug in a socket.

SWITCHING THE HEATER ON AND OFF

Turn the position button to one of the three positions and carefully turn the thermostat button towards the maximum position, until you hear a click sound. The heater switches on and the indicator light burns.

onlyventilate-cold

low capacity heating

high capacity heating

Turn the position button to the off position [off] to switch off the heater. Remove the plug from the socket.

THERMOSTAT BUTTON

The heater has a thermostat to regulate temperature and is therefore able to keep a room at room temperature.

Turn the thermostat button to the maximum position and turn the position button to one of the heating positions to switch on the heater. The indicator light burns.

Once the required temperature is reached, you slowly turn back the thermostat button towards the minimum position, until you hear a click sound. The heater switches off. The heater will now switch on and off automatically to maintain the set room temperature. The indicator light will switch on and off, in correspondence with the thermostat. If you do not want the heat to keep the room at temperature automatically, you must switch off the heater with the position button and remove the plug from the socket.

SAFEGUARDS

The heater is provided with an overheating protection and an anti-tilting protection.

Overheating protection

When the heater gets too hot due to the ambient temperature or as a result of prolonged use, the heater switches off automatically. Allow the heater to cool before you switch it on again.

Anti-tilting protection

When the heater falls over accidentally, the protection switches off the entire heater automatically. When the heater is standing straight again, the heater switches back on.

5 cleaning and maintenance

Before cleaning the heater, switch it off and remove the plug from the socket. Allow the heater to cool down fully before cleaning or storing it. Regularly clean the heater. At least once per seasonal use.

• Clean the exterior of the appliance with a dry cloth only.
• If necessary, you can clean the inlet and outlet openings by means of a vacuum cleaner (nozzle).
• Do not use aggressive or abrasive cleaning agents for cleaning the appliance.
• Never submerge the heater in water or any other liquid.
• Preferably store the heater in its original packaging on a cool, dry place.

6 breakdowns and solutions

First check the following if your heater is not working.

• Check the fuses in the meter cupboard.
• Check that the plug is properly inserted in the socket and that the socket receives power.
• Check that the thermostat button is in the right position.
• Keep the heater clean. Dust, dirt and/or contamination in the heater are common causes of overheating. Make sure that such contamination is removed regularly.
• If the heater suddenly stops while heating, it is possible that the overheating protection is activated. Switch off the heater, remove the plug from the socket and allow the heater to cool down. Switch on the heater according to the instructions, after it has cooled down.

7 technical data

Type number KC221W

Voltage 220-240V\~,50Hz

Capacity LOW = 1200 watts, HIGH = 2000 watts

Table for information requirements for electrical local space heaters

Model identifier(s): KC221W
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electrical local space heaters only(select one)
Nominal heat output	Pnom	2,0	kW	Manual heat charge control with integrated thermostat	[no]
Minimum heat output(indicative)	Pmin 1,2	kW	Manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuousheat output	Pmax	2,0	kW	Electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				Fan assisted heat output	[no]
At nominal heat output	elmax	N/A	kW	Type of heat output/ room temperature control(select one)	[no]
At minimum heat output	elmin	N/A	kW	Single stage heat output and no room temperature control	[no]
In standby mode	eISB	0.000	kW	Two or more manual stages, no room temperature control	[no]
				With mechanic thermostat room temperature control	[yes]
				With electronic room temperature control	[no]
				Electronic room temperature control plus day timer	[no]
				Electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	[no]
				Room temperature control, with open window detection	[no]
				With distance control option	[no]
				With adaptive start control	[no]
				With working time limitation	[no]
				With black bulb sensor	[no]
Contact details	Inventum Huishoudelijke Apparaten B.V., Meander 901, 6825 MH, Arnhem, The Netherlands
Remark:For electrical local space heaters, the measured seasonal space heating energy efficiency ηs cannot be worse than the declared value at the nominal heat output of the unit.
The seasonal space heating energy efficiency of all local space heaters except commercial local space heaters, ηs (%)					36

7 specifications techniques

Type n KC221W

Tension 220-240V\~,50Hz

Puissance BASSE = 1200 watts, HAUTE = 2000 watts

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

normal wear and tear;
- improper use or misuse;
insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
- non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   external connection cables;
4. glass accessories and glass parts such as oven doors;

5. and similar items.

6. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

7. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908

KC221W/01.0819V

Sous reserve de modification/ Modifications and printing errors reserved
