VENTOINHA DE MESA

Table Fan | Ventilador | Ventilateur Electrique de Table

ORTF-40-C

SERVIÇO DE APOIO AO CLIENTE

Apoio ao Cliente:

Tel.: [phone] E: [e-mail]

Serviço Pós Venda:

Tel.: [phone] E: [e-mail]

UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.

Technical diagram of a fan assembly with numbered components for identification

Technical diagram of a fan assembly with numbered components for identification

Please read these operating instructions through carefully before connecting your device to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the device on to a third party, these operating instructions must also be handed over.

STRUCTURE

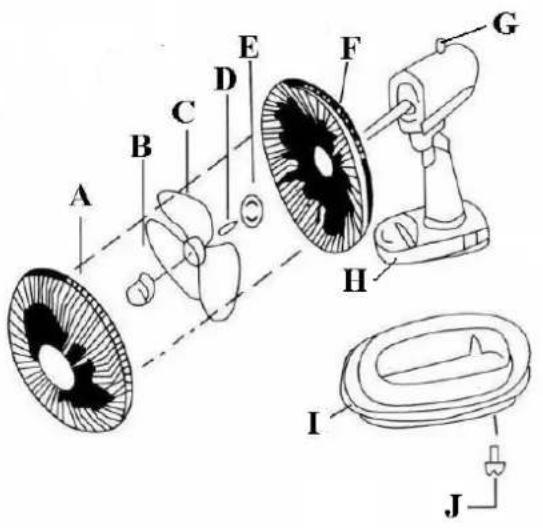

Technical diagram of a fan assembly with labeled parts A through J, showing internal components and wiring connections.

A- FRONT GRILLE

F- REAR GRILL

B- NUT

G- SWING BUTTON

C-BLADE

H- BASE 1

D- SHAFT

I- BASE 2

E- GRILL NUT

J- SCREW

ASSEMBLY

1. Position the front grill against the rear grill so that the holes in the rims that accept the small nut and bolt are in line.
2. Fully tighten the knurl bolt to fix the base.

OPERATING INSTRUCTIONS

1. Connect the power plug to a suitable outlet.
2. Select the desired speed by pressing the switch 0/I/II/III

0 - Off

1 - Low Speed
2 - Middle Speed
3 - High Speed

1. The incline of the ventilator head can be adjusted by tilting it forward or backward. The ventilator head can then be locked into position, which is indicated by an audible click.

CAUTION

1. Read and retain these instructions for future use.
2. Improper installation may result in the risk of fire, electric shock, or serious injury to persons.
3. Power plug must be removed from power socket before cleaning, servicing, maintenance and when moving from one location to another.
4. The fan should be placed on a flat and stable surface when operating to avoid overturning.
5. The fan should not be placed in a damp place or where humidity is high (such as in a bathroom).
6. Do not insert fingers or other objects through the fan guard.
7. Unplug from mains if not in use.
8. This is not a toy keep out of reach of children.

Disposal Environment Friendly

Do not put this kind of equipment in devices for normal garbage. Direct it to the places intended for your Collection (you can get more information on your Town Hall). The materials are recyclable and are Identified with the respective symbol. By recycling materials will contribute to the protection of their Environment.

MANUEL D'INSTRUCTION

VENTILATEUR ELECTRIQUE DE TABLE

INSTRUCTIONS POUR INSTALLER LE VENTILATEUR DE TABLE 40CM.

AVERTISSEMENTS :

NE PAS BRANCHER L'APPAREIL PENDANT SON INSTALLATION. CES INSTRUCTIONS ONT POUR OBJECTIF DE REDUIRE LES RISQUES ET D'ASSURER UNE INSTALLATION CORRECTE DE L'APPAREIL. L'UTILISATEUR DOIT SUIVRE CES INSTRUCTIONS SCRUPULEUSEMENT POUR GARANTIR L'INSTALLATION ET L'UTILISATION DU PRODUIT.

AUCUNE RESPONSABILITE NE SERA PRISE EN CHARGE EN CAS DE DOMMAGE SURVENU LORS DU TRANSPORT, D'INSTALLATION INCORRECTE OU DE CHANGEMENT ET MODIFICATION DE PIECES.

ATTENTION

Exploded diagram of a front-end fan with numbered parts for identification
